利用Codesys+Node.js+Mysql构建CNC数字车间工业物联网

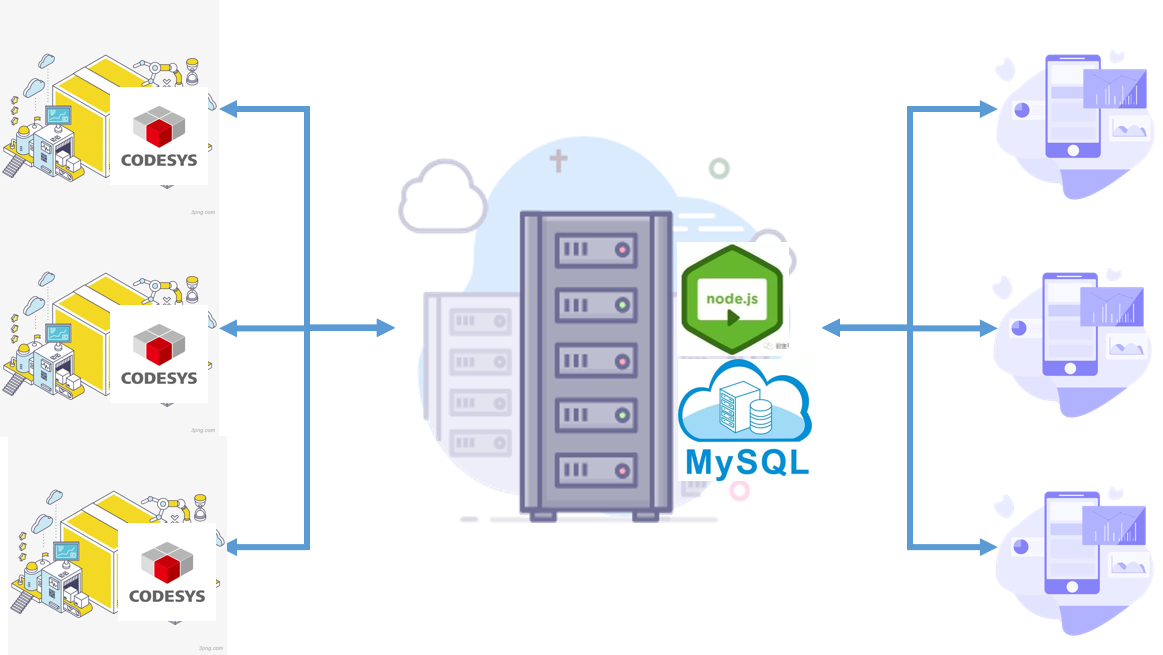

一、概述

本项目的应用场景是CNC加工车间。

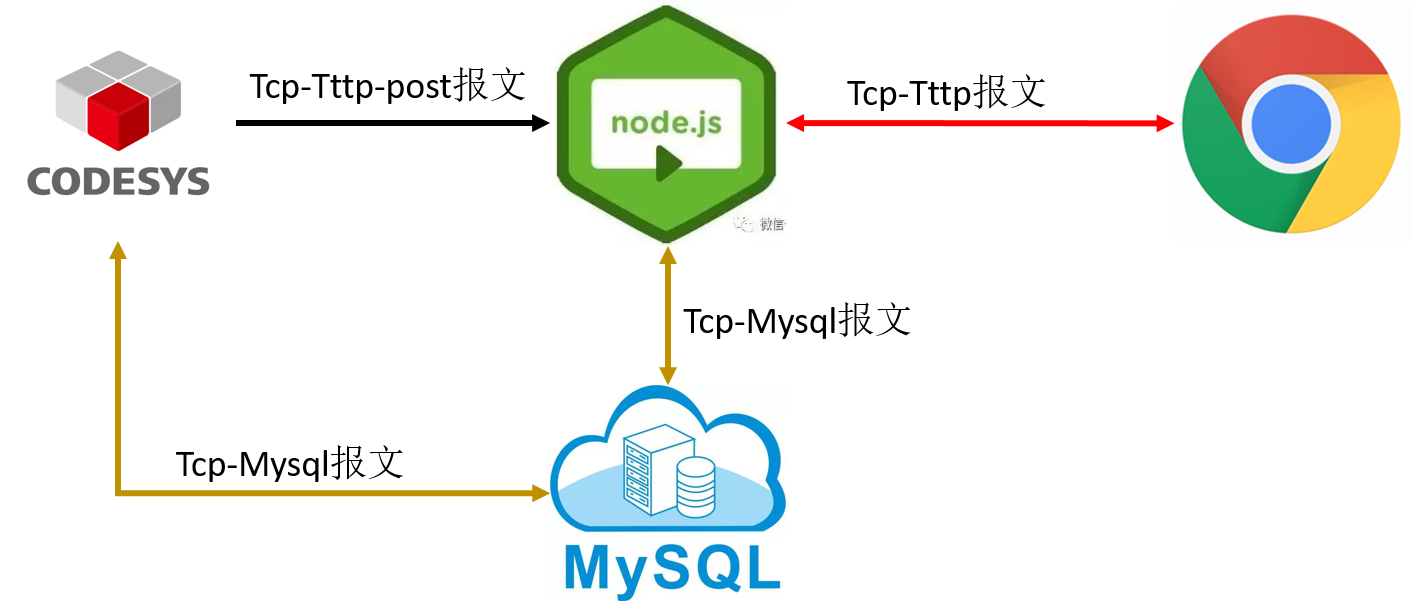

1，通过Codesys定时主动连接并且以http-post的方式上传状态信息到web服务器(Node.js+Express)，而用户通过PC、手机和平板的浏览器访问web服务器获取设备状态信息。

2，Codesys在有需要时候主动连接并且以Tcp-Mysql报文的方式操作数据库(Mysql)，获取生产需要的资料(G加工代码)。

3，用户经过PC、手机和平板的浏览器访问web服务器来灵活管理保存于数据库的生产资料，实现生产调度。

通过本项目展示 工业物联网项目的设备上云的基本框架，实现 设备远程数字化监控、灵活有效的生产调度这两个工业物联网的关键能力。

二、代码展示

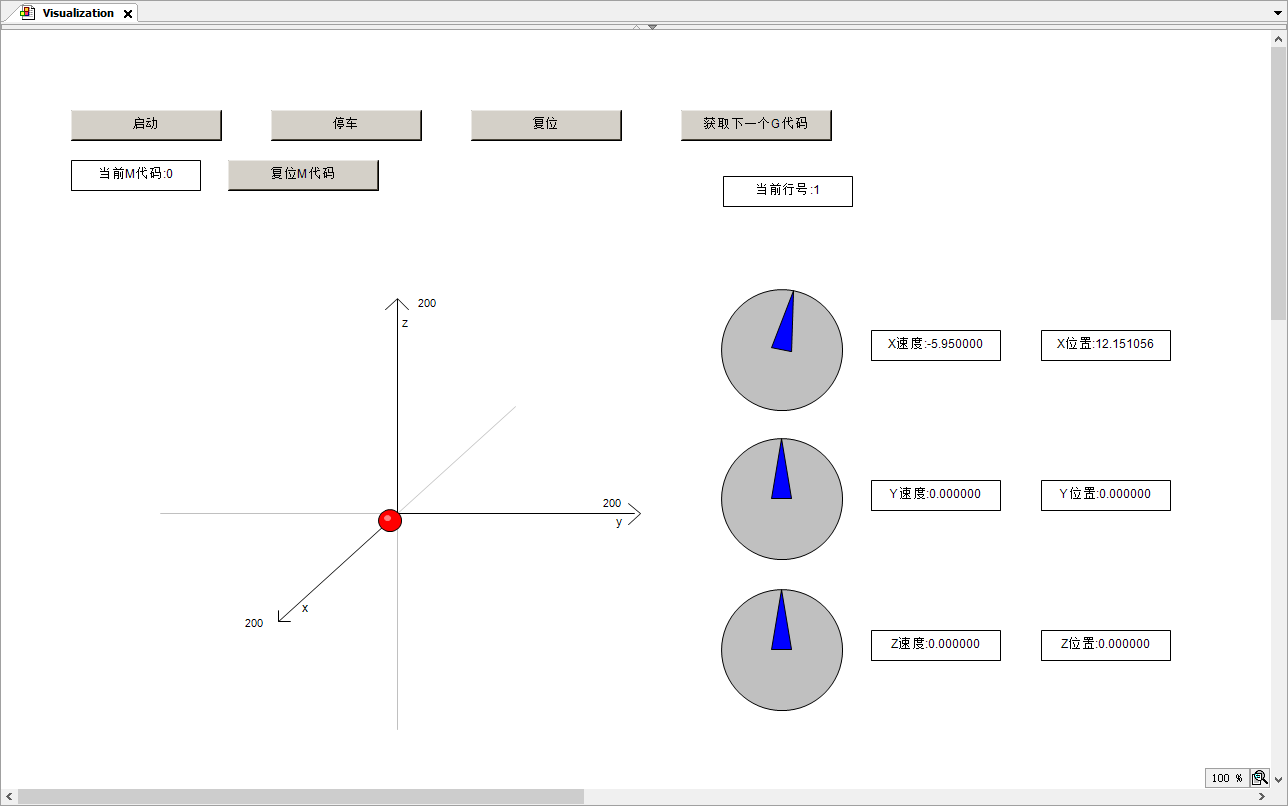

2.1Codesys代码

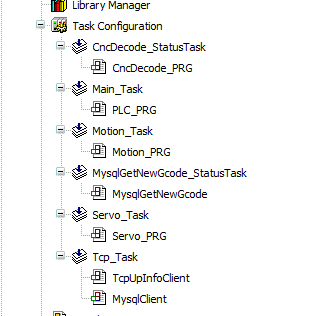

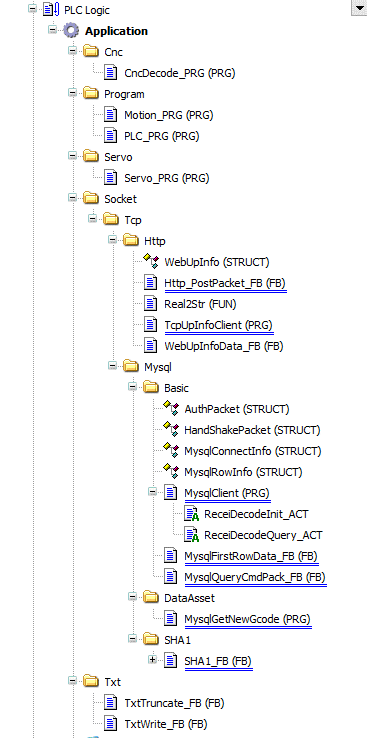

2.1.1架构

2.1.2代码

本项目的Codesys程序沿用了我之前博文的《WPF上位机+Codesys的CNC》和《在Codesys利用Socket操作Mysql》,因此Servo、CNC和Mysql的代码，就不再展示。本文只展示其中的 http-post部分和Mysql的应用部分。

2.1.2.1 WebUpInfo

//作者：AlongWU
TYPE WebUpInfo :
STRUCT

STR_EquipId              :STRING(30);              //设备ID
R_V_X                    :REAL;                    //X位置
R_V_Y                    :REAL;                    //Y位置
R_V_Z                    :REAL;                    //Z位置
I_LineNo                 :DINT;                    //G代码的当前执行行号
W_V_State                :WORD;                    //程序状态

END_STRUCT
END_TYPE

2.1.2.2 Http_PostPacket_FB

//作者：AlongWU
FUNCTION_BLOCK Http_PostPacket_FB
VAR CONSTANT
abyEmpty               :ARRAY [0..999] OF BYTE;                //复位数组
END_VAR

VAR_INPUT
STR_Url                :STRING(30);                            //post报文的url字段
STR_Host               :STRING(30);                            //post报文的Host字段
Data                   :ARRAY[0..999]OF BYTE;                  //post报文 数据字节数组
DataLen                :INT;                                   //post报文 数据字节数组的字节数

END_VAR

VAR_OUTPUT
Packet                  :ARRAY [0..999] OF BYTE;                //输出post报文
PacketSize              :UINT;                                  //post报文的字节数
END_VAR

VAR
HeaderLen                :INT;                                   //post报文header的字节数
STR_HttpHeader           :STRING(200);                           //post报文Header
END_VAR

//构建报文header,  $0a 是换行符 $0d 是回车符
STR_HttpHeader:=CONCAT('POST ',STR_Url);
STR_HttpHeader:=CONCAT(STR_HttpHeader,' HTTP/1.1$0d$0aAccept: */*$0d$0aAccept-Language: zh-CN$0d$0ahost:');
STR_HttpHeader:=CONCAT(STR_HttpHeader,STR_Host);
STR_HttpHeader:=CONCAT(STR_HttpHeader,'$0d$0aContent-TYPE: application/x-www-form-urlencoded$0d$0aConnection: close$0d$0aContent-Length: ');
STR_HttpHeader:=CONCAT(STR_HttpHeader,INT_TO_STRING(DataLen));
STR_HttpHeader:=CONCAT(STR_HttpHeader,'$0d$0a$0d$0a');

//Header的字节数
HeaderLen :=LEN(STR_HttpHeader);

//复位字节数组
Packet :=abyEmpty;

//header复制到 Packet
MEM.MemMove(pSource:= ADR(STR_HttpHeader), pDestination:= ADR(Packet), uiNumberOfBytes:=INT_TO_UINT(HeaderLen));

//data复制到 Packet
MEM.MemMove(pSource:= ADR(Data), pDestination:= ADR(Packet)+INT_TO_UINT(HeaderLen), uiNumberOfBytes:=INT_TO_UINT(DataLen));

//packet的总字节数
PacketSize :=INT_TO_UINT(HeaderLen + DataLen);

2.1.2.3 TcpUpInfoClient

//作者：AlongWU
PROGRAM TcpUpInfoClient

VAR CONSTANT
abyEmpty                    :ARRAY [0..999] OF BYTE;                        //复位数组
END_VAR

VAR
TCP_ClientFB                :NBS.TCP_Client;                                //TCP客户端连接实例
TCP_ReadFB                  :NBS.TCP_Read;                                  //TCP接收实例
TCP_WriteFB                 :NBS.TCP_Write;                                 //TCP发送实例
ServerIp                    :NBS.IP_ADDR:=(sAddr:='192.168.0.132');         //Tcp服务器地址
ServerPort                  :UINT:=8100;                                    //Tcp服务器port
Enable_F_TRIG               :F_TRIG;                                        //通信使能下降沿
Enable_R_TRIG               :R_TRIG;                                        //通信使能上升沿
Recei_R_TRIG                :R_TRIG;                                        //接收上升沿
Close_R_TRIG                :R_TRIG;                                        //关闭连接上升沿
Send_R_TRIG                 :R_TRIG;                                        //发送上升沿
WaitCount                   :UINT:=0;                                       //空闲计时
TryConnect                  :UINT;                                          //尝试连接次数
STR_Url                     :STRING(30);                                  //post报文的url字段
STR_Host                    :STRING(30);                                  //post报文的host字段
ConnectActive_R_TRIG        :R_TRIG;                                        //TCP连接成功上升沿
W_state                     :WORD;                                          //程序状态值
UpInfo                      :WebUpInfo;                                    //web上传数据的结构体
Datalen                     :INT;                                         //post报文data的字节数
PostPacketFB                :Http_PostPacket_FB;                       //构建post报文功能块的实例
UpInfoFB                    :WebUpInfoData_FB;                //构建post报文的data的功能块的实例
UpInfoFB_Size               :INT;                             //构建post报文的data的功能块的字节数
UpInfoFB_Data               :ARRAY [0..999] OF BYTE;     //构建post报文的data的功能块的输出字节数组
END_VAR



Enable_F_TRIG(CLK:=GVL.B_TcpUpInfo_Enable, Q=> );                                //使能下降沿
Enable_R_TRIG(CLK:=GVL.B_TcpUpInfo_Enable, Q=> );                                //使能上升沿

Recei_R_TRIG(CLK:=TCP_ReadFB.xReady, Q=> );                                      //接收上升沿

Send_R_TRIG(CLK:=(GVL.B_TcpUpInfo_Send), Q=> );                                  //发送上升沿
Close_R_TRIG(CLK:=GVL.B_TcpUpInfo_Close, Q=> );                                //关闭信号上升沿


IF Enable_F_TRIG.Q THEN
    //使能下降沿，复位状态
    GVL.B_TcpUpInfo_Send :=FALSE;
    GVL.TcpUpInfo_abyRx :=abyEmpty;
END_IF


IF Enable_R_TRIG.Q THEN
    //使能上升沿，复位状态
    GVL.B_TcpUpInfo_OK :=FALSE;
    GVL.B_TcpUpInfo_FF :=FALSE;
    TryConnect:=0;
    WaitCount :=0;

END_IF

IF Send_R_TRIG.Q THEN
    //发送上升沿，复位状态
    GVL.B_TcpUpInfo_OK :=FALSE;
    GVL.B_TcpUpInfo_FF :=FALSE;
    WaitCount :=0;

        (*

Http报文 例子

POST /PlcUpInfo  HTTP/1.1
Accept: */*
Accept-Language: zh-CN
host: localhost:8100
Content-Type: application/x-www-form-urlencoded
Content-Length: 54
Connection:close

EquipId=E00001&V_X=10&V_Y=20&V_Z=30&LineNo=1&V_State=1


    *)

    //结构体赋值
    UpInfo.STR_EquipId := GVL.STR_EquipID;

    UpInfo.R_V_X :=LREAL_TO_REAL(GVL.X_Pos);
    UpInfo.R_V_Y :=LREAL_TO_REAL(GVL.Y_Pos);
    UpInfo.R_V_Z :=LREAL_TO_REAL(GVL.Z_Pos);
    UpInfo.I_LineNo :=DINT_TO_INT(GVL.D_LineNo);

    W_state.0 :=GVL.Interpolator.bBusy;
    W_state.1 :=GVL.Interpolator.bDone;
    UpInfo.W_V_State :=W_state;


    //打包POST报文的 数据区
    UpInfoFB(UpInfo:=UpInfo , Data=>UpInfoFB_Data , DataSize=>UpInfoFB_Size );

    STR_Url:='/PlcUpInfo';
    STR_Host:=CONCAT(ServerIp.sAddr,':');
    STR_Host:=CONCAT(STR_Host,UINT_TO_STRING(ServerPort));

    //打包POST报文
    PostPacketFB(
    STR_Url:= STR_Url,
    STR_Host:= STR_Host,
    Data:= UpInfoFB_Data,
    DataLen:= UpInfoFB_Size,
    Packet=> GVL.TcpUpInfo_abyTx,
    PacketSize=> GVL.TcpUpInfo_WriteSize);

END_IF




//TCP客户端连接功能块
TCP_ClientFB(
    xEnable:= GVL.B_TcpUpInfo_Enable,
    xDone=> ,
    xBusy=> ,
    xError=> ,
    udiTimeOut:= 0,
    ipAddr:= ServerIp,
    uiPort:= ServerPort,
    eError=> ,
    xActive=> ,
    hConnection=> );


//TCP客户端接收功能块
TCP_ReadFB(
    xEnable:= TCP_ClientFB.xActive,
    xDone=> ,
    xBusy=> ,
    xError=> ,
    hConnection:= TCP_ClientFB.hConnection,
    szSize:= 1000,
    pData:= ADR(GVL.TcpUpInfo_abyRx),
    eError=> ,
    xReady=> ,
    szCount=> );

//TCP客户端发送功能块
TCP_WriteFB(
    xExecute:= GVL.B_TcpUpInfo_Send,
    udiTimeOut:= 100,
    xDone=> ,
    xBusy=> ,
    xError=> ,
    hConnection:= TCP_ClientFB.hConnection,
    szSize:= GVL.TcpUpInfo_WriteSize,
    pData:= ADR(GVL.TcpUpInfo_abyTx),
    eError=> );


//TCP连接成功上升沿
ConnectActive_R_TRIG(CLK:= TCP_ClientFB.xActive, Q=> );


IF GVL.B_TcpUpInfo_Enable THEN
    IF ConnectActive_R_TRIG.Q THEN
        //TCP上传动作使能后，成功建立连接后，启动发送动作
        GVL.B_TcpUpInfo_Send := TRUE;
    END_IF
END_IF



//发送完成
IF TCP_WriteFB.xDone THEN
    GVL.B_TcpUpInfo_Send :=FALSE;
END_IF

//发送后，web服务返回结果，断开连接
IF GVL.B_TcpUpInfo_Enable THEN
    WaitCount := WaitCount +1;
    IF (WaitCount >5 AND GVL.B_TcpUpInfo_Close =FALSE) OR TCP_ReadFB.xReady THEN
        GVL.B_TcpUpInfo_Close := TRUE;
    END_IF
END_IF

IF Close_R_TRIG.Q THEN
    //关闭信号上升沿，复位状态
    GVL.B_TcpUpInfo_Close := FALSE;
    GVL.B_TcpUpInfo_Enable:=FALSE;
    GVL.B_TcpUpInfo_Send :=FALSE;
END_IF



2.1.2.4 WebUpInfoData_FB

//作者：AlongWU
FUNCTION_BLOCK WebUpInfoData_FB
VAR_INPUT
UpInfo                      :WebUpInfo;                   //输入上传数据结构体
END_VAR
VAR_OUTPUT
Data                        :ARRAY[0..999]OF BYTE;       //输出结果字节数组
DataSize                    :INT;                        //输出结果字节数组的字节数
END_VAR
VAR
STR_Data                    :STRING(255);
END_VAR


//构建post报文的data

STR_Data:=CONCAT('EquipId=',UpInfo.STR_EquipId);
STR_Data:=CONCAT(STR_Data,'&V_X=');
STR_Data:=CONCAT(STR_Data,Real2Str(UpInfo.R_V_X,3));
STR_Data:=CONCAT(STR_Data,'&V_Y=');
STR_Data:=CONCAT(STR_Data,Real2Str(UpInfo.R_V_Y,3));
STR_Data:=CONCAT(STR_Data,'&V_Z=');
STR_Data:=CONCAT(STR_Data,Real2Str(UpInfo.R_V_Z,3));
STR_Data:=CONCAT(STR_Data,'&LineNo=');
STR_Data:=CONCAT(STR_Data,DINT_TO_STRING(UpInfo.I_LineNo));
STR_Data:=CONCAT(STR_Data,'&V_State=');
STR_Data:=CONCAT(STR_Data,WORD_TO_STRING(UpInfo.W_V_State));

//data的字节数量
DataSize :=LEN(STR_Data);

//字符串转字节数组
MEM.MemMove(pSource:= ADR(STR_Data), pDestination:= ADR(Data), uiNumberOfBytes:=INT_TO_UINT(DataSize));

2.1.2.5 MysqlGetNewGcode

//作者：AlongWU
PROGRAM MysqlGetNewGcode

VAR CONSTANT
EmptyResult                  :ARRAY[0..5119] OF BYTE;            //复位字节数组
END_VAR


VAR
QueryStr                      :STRING(100);                        //查询命令字符串
QueryBytes                    :ARRAY[0..5119] OF BYTE;             //查询命令buffer
MysqlCmdPack                  :MysqlQueryCmdPack_FB;               //Mysql指令实例
MysqlFirstRowInfo             :MysqlRowInfo;                       //Mysql首行数据结构体
MysqlFirstRowDecode           :MysqlFirstRowData_FB;        //Mysql解析回复表格信息并提取首行数据
GcodeBytes                    :ARRAY[0..5119] OF BYTE;             //查询命令buffer
tmpUint                       :UINT;
tmpAddr                       :UINT;
TxtWrite                      :TxtWrite_FB;                        //txt写入功能块实例
TxtTruncate                   :TxtTruncate_FB;                     //txt清空功能块实例
GcodeSize                     :UINT;                               //NextGcode字节数
END_VAR


CASE GVL.I_GetNextCodeStep OF
        0:
            QueryBytes := EmptyResult;                                   //指令buffer复位

            IF GVL.B_Mysql_Inited THEN
                GVL.I_GetNextCodeStep := 10;                             //已连接数据库
            ELSE
                GVL.I_GetNextCodeStep := GVL.I_GetNextCodeStep +1;       //未连接数据库,下一步
            END_IF
        1:
            GVL.B_Mysql_Enable :=TRUE;
            GVL.I_GetNextCodeStep := GVL.I_GetNextCodeStep +1;           //下一步
        2:
            IF GVL.B_Mysql_Inited THEN
                GVL.I_GetNextCodeStep := 10;                              //已连接数据库
            END_IF

            IF GVL.B_Mysql_AuthFalure THEN                                //连接失败，推出登录
                GVL.I_GetNextCodeStep := 99;
            END_IF
        10:
            GVL.B_Mysql_Result :=FALSE;                                    //复位接收解析标志

            // '要用$27来转义，特殊的符号，用$+16进制的acsii值
            QueryStr :='SELECT `NextGcode` FROM `equiptable` WHERE `STATE`=1 AND `EquipId`=$27';
            QueryStr := CONCAT(QueryStr,GVL.STR_EquipID);
            QueryStr := CONCAT(QueryStr,'$27 LIMIT 1');
            MEM.MemMove(pSource:= ADR(QueryStr), pDestination:= ADR(QueryBytes), uiNumberOfBytes:=INT_TO_UINT(LEN(QueryStr)));
            //构建cmd
            MysqlCmdPack(Cmd:=3 , InputBytes:= QueryBytes, Result=> GVL.Mysql_abyTx, ResultSize=>GVL.Mysql_WriteSize );
            GVL.B_Mysql_Send :=TRUE;
            GVL.I_GetNextCodeStep := GVL.I_GetNextCodeStep +1;             //下一步
        11:
            IF GVL.B_Mysql_FF OR GVL.B_Mysql_FE THEN
                GVL.I_GetNextCodeStep:=99;                                 //数据库错误，退出程序
                RETURN;
            END_IF

            IF GVL.B_Mysql_Result THEN
                MysqlFirstRowDecode(InputRxBytes:=GVL.Mysql_abyRx , FirstRowInfo=>MysqlFirstRowInfo );        //解析row数据
                IF MysqlFirstRowInfo.IsNull THEN
                    //回复为空，即该EquipID没有数据
                    //NOTHING
                    GVL.I_GetNextCodeStep:=99;
                ELSE
                    //回复为真，该EquipID有G代码资料
                    TxtTruncate();                                                                            //重置cnc文件
                    GVL.I_GetNextCodeStep:=GVL.I_GetNextCodeStep +1;
                END_IF
            END_IF
        12:
            //读取mysql回复数据
            GcodeSize :=MysqlFirstRowInfo.RowData[0];
            MEM.MemMove(pSource:= ADR(MysqlFirstRowInfo.RowData)+1, pDestination:= ADR(GcodeBytes), uiNumberOfBytes:=GcodeSize);
            //写入并更新txt文件
            TxtWrite(Buffer:=ADR(GcodeBytes), BufferLen:= GcodeSize);
            GVL.I_GetNextCodeStep:=GVL.I_GetNextCodeStep +1;
        13:
            // 更新ActiveGcode
            QueryStr :='UPDATE `equiptable` SET `ActiveGcode`=$27';
            tmpUint :=INT_TO_UINT(LEN(QueryStr));
            MEM.MemMove(pSource:= ADR(QueryStr), pDestination:= ADR(QueryBytes), uiNumberOfBytes:=tmpUint);

            tmpAddr := tmpUint;
            //Gcode复制到命令中
            MEM.MemMove(pSource:= ADR(GcodeBytes), pDestination:= ADR(QueryBytes)+tmpAddr, uiNumberOfBytes:=GcodeSize);

            tmpAddr := tmpAddr + GcodeSize;

            QueryStr :='$27 WHERE `EquipId`=$27';
            QueryStr := CONCAT(QueryStr,GVL.STR_EquipID);
            QueryStr := CONCAT(QueryStr,'$27');

            MEM.MemMove(pSource:= ADR(QueryStr), pDestination:= ADR(QueryBytes)+tmpAddr, uiNumberOfBytes:=INT_TO_UINT(LEN(QueryStr)));
            //构建cmd
            MysqlCmdPack(Cmd:=3 , InputBytes:= QueryBytes, Result=> GVL.Mysql_abyTx, ResultSize=>GVL.Mysql_WriteSize );
            GVL.B_Mysql_Send :=TRUE;
            GVL.I_GetNextCodeStep := GVL.I_GetNextCodeStep +1;                                                //下一步
        14:
            IF GVL.B_Mysql_FF OR GVL.B_Mysql_FE OR  GVL.B_Mysql_OK THEN
                GVL.I_GetNextCodeStep:=99;
            END_IF
        99:
            GVL.I_GetNextCodeStep:=100;
ELSE
    GVL.B_GetNextCode:=FALSE;
    GVL.B_GetNextCodeTask:=FALSE;
END_CASE


//mysql错误处理
IF GVL.B_Mysql_AuthFalure THEN
    GVL.B_GetNextCode := FALSE;
    GVL.B_GetNextCodeTask:=FALSE;
END_IF

2.1.2.6 PLC_PRG

//作者:AlongWu
PROGRAM PLC_PRG
VAR

ReadFileTask_F_TRIG             :F_TRIG;                //读取cnc文件标志下降沿
Cnc_Start_R_TRIG                :R_TRIG;                //cnc执行标志上升沿
B_MysqlGetGCode_R_TRIG          :R_TRIG;                //Mysql更新G代码上升沿
UpBlink                         :INT:=0;                //http post的延时计数

END_VAR

//cnc执行标志上升沿
Cnc_Start_R_TRIG(CLK:= GVL.B_Cnc_Start, Q=> );

IF Cnc_Start_R_TRIG.Q THEN
    //读取cnc文件标志和读取文件Task的触发标志，置TRUE。
    GVL.B_ReadFile:=TRUE;
    GVL.B_ReadFileTask:=TRUE;
END_IF

//读取txt文件标志下降沿
ReadFileTask_F_TRIG(CLK:= GVL.B_ReadFileTask, Q=> );

IF ReadFileTask_F_TRIG.Q THEN
    //读取cnc并解析后，启动插补器
    GVL.B_Cnc_Ipo:= TRUE;
    GVL.B_Cnc_Start :=FALSE;
END_IF


//通过Mysql获取 NextGCode
B_MysqlGetGCode_R_TRIG(CLK:=GVL.B_GetNextCode , Q=> );

IF B_MysqlGetGCode_R_TRIG.Q THEN
    //启动Mysql获取NextGCode
    GVL.I_GetNextCodeStep := 0;
    GVL.B_GetNextCodeTask :=TRUE;
    GVL.B_Mysql_AuthFalure :=FALSE;
END_IF

(*http post 上传数据*)
IF UpBlink < 2 THEN
    UpBlink :=UpBlink+1;
ELSE
    //每2个周期上传一次
    GVL.B_TcpUpInfo_Enable:= TRUE;
    UpBlink:=0;
END_IF

2.2服务器端Node.js代码

//------------const end------------

const express = require('express');
const mysql = require('mysql');
const bodyParser = require('body-parser');

// 创建web服务器
const app = express();

//mysql connection
const connection = mysql.createConnection({
    host     : 'localhost',
    user     : 'testNode',
    password : 'testNode',
    database : 'testcnc'
  });

//------------const end--------------

//------------class start------------

class PLC {
    constructor(EquipId, Name,TouchCount,V_X,V_Y,V_Z,V_LineNo,V_State,ActGcode,NextGcode,sqlState) {
      this.EquipId = EquipId
      this.Name = Name
      this.V_X = V_X
      this.V_Y = V_Y
      this.V_Z = V_Z
      this.V_LineNo = V_LineNo
      this.V_State = V_State
      this.TouchCount = TouchCount
      this.ActGcode = ActGcode
      this.NextGcode = NextGcode
      this.sqlState = sqlState
    }

  }

 //------------class end--------------

//------------object start------------

//plc变量值 Json对象
var tmpPlcVars =
{
    EquipId:'',
    Name:'',
    X:0,
    Y:0,
    Z:0,
    LineNo:0,
    TouchCount:0,
    State:0
};

var tmpGcodeVars =
{
    EquipId:'',
    ActGcode:'',
    NextGcode:'',
    res:0
};

//------------object end------------

//------------var start-------------

  //PLC的class数组
  var PLC_ArrList = new Array();
 // 创建 application/x-www-form-urlencoded 编码解析
  var urlencodedParser = bodyParser.urlencoded({ extended: false })

//------------var end---------------

//------------ function start-------

//查询mysql设备信息表
 function  QueryEquipList()
{
   connection.query('SELECT * FROM equiptable WHERE STATE=1', function (error, results) {
       if(error){
           console.log('[SELECT ERROR] - ',error.message);
           return;
         }
        let rowResult;
        let tmpPlc;
        let n,h,i,j;
        let TmpPlcList;
        h = results.length;
        n = PLC_ArrList.length;

       /*
         1，查询mysql数据库，获取当前能用的equiplist。
         2，查询结果跟当前的PLC_ArrList进行，数据更新并且 mysql数据库标注为可用的，更新PLC_ArrList项的sqlState；如果有新增，push添加。
         3，将PLC_ArrList项的sqlState为0 的剔除，并重新建立PLC_ArrList。
       */


        if(h > 0)
        {
           //全部plc的sqlstate置0
           for(i=0;i < n;i++ )
          {
            PLC_ArrList[i].sqlState = 0;
          }

           //如果PLC_ArrList的项在mysql仍然有记录，则sqlstate置1
           for ( i=0; i<h; i++)
           {
               rowResult = results[i];
               for( j=0;j < n;j++ )
               {
                   if(rowResult['EquipId'] == PLC_ArrList[j].EquipId)
                   {
                    //找到PLC_ArrList的位置，更新ActiveGcode和NextGcode。
                       PLC_ArrList[j].ActiveGcode = rowResult['ActiveGcode'];
                       PLC_ArrList[j].NextGcode = rowResult['NextGcode'];
                       PLC_ArrList[j].sqlState = 1;
                       break;
                   }

               }

               //PLC_ArrList没有记录，push新增
               if(j == n)
               {
                   tmpPlc = new PLC(rowResult['EquipId'],rowResult['Name'],0,0,0,0,0,0,rowResult['ActiveGcode'],rowResult['NextGcode'],1);
                   PLC_ArrList.push(tmpPlc);

               }
           }

           //更新 PLC_ArrList的数量
           n = PLC_ArrList.length;

           TmpPlcList = new Array();

           //把 PLC_ArrList数组 复制到 TmpPlcList
           for (i=0; i<n; i++)
           {
               TmpPlcList.push(PLC_ArrList.pop());
           }

           //PLC_ArrList复位
           PLC_ArrList = new Array();

           for (i=0; i<n; i++)
           {
               tmpPlc = TmpPlcList.pop();

               if(tmpPlc.sqlState == 1)
               {
                   //如果 sqlState=1，重新压回 PLC_ArrList
                   PLC_ArrList.push(tmpPlc);
               }
           }
       }
   });

}

//更新mysql设备的G代码数据项
function MysqlUpdateGCode(equipid,newcode)
{
    connection.query("UPDATE equiptable SET NextGcode='"+newcode+"' WHERE EquipId='"+equipid+"'", function (error, results) {
        if(error){
            console.log('[SELECT ERROR] - ',error.message);
            return;
          }
       });
}

//构建express(web服务器)
function InitExpress()
{

// 启动服务器
app.listen(8100, () => {
   console.log('express server running at http://127.0.0.1')
});

//use方法，静态路由
app.use( express.static('page'));

//State指令的处理
app.get('/State', (req, res) => {
   let id = req.query.EquipId;
   n = PLC_ArrList.length;
   if( n >0)
   {
       for(i=0;i<n;i++)
       {
           if(PLC_ArrList[i].EquipId == id)
           {
               break;
           }
       }

       if(n == i)
       {
           //设备未登记
           tmpPlcVars.EquipId ='';
           tmpPlcVars.Name ='';
           tmpPlcVars.X = 0;
           tmpPlcVars.Y = 0;
           tmpPlcVars.Z = 0;
           tmpPlcVars.LineNo = 0;
           tmpPlcVars.State = 0;
           tmpPlcVars.TouchCount = 0;
       }
       else
       {
           //设备已登记
           //更新Plc数组的信息
           tmpPlcVars.EquipId  = PLC_ArrList[i].EquipId;
           tmpPlcVars.Name  = PLC_ArrList[i].Name;
           tmpPlcVars.X =  PLC_ArrList[i].V_X;
           tmpPlcVars.Y =  PLC_ArrList[i].V_Y;
           tmpPlcVars.Z =  PLC_ArrList[i].V_Z;
           tmpPlcVars.LineNo = PLC_ArrList[i].LineNo;
           tmpPlcVars.State = PLC_ArrList[i].V_State;
           tmpPlcVars.TouchCount = PLC_ArrList[i].TouchCount;
       }
   }
 //回复用户浏览器
   res.send(JSON.stringify(tmpPlcVars));
});

//Fresh G Code指令的处理
app.get('/FreshGode', urlencodedParser, function (req, res) {

   let id = req.query.EquipId;

   let i,n;

   n = PLC_ArrList.length;

   for(i=0;i<n;i++)
    {
       if(PLC_ArrList[i].EquipId == id)
       {
           break;
       }
    }
    if(i<n)
    {
        //如果所查找的EquipId在PLC_ArrList数组内，则赋值tmpGcodeVars。
       tmpGcodeVars.EquipId = id;
       tmpGcodeVars.ActGcode = PLC_ArrList[i].ActGcode;
       tmpGcodeVars.NextGcode = PLC_ArrList[i].NextGcode;
       tmpGcodeVars.res = 1;
    }
    else
    {
       //如果所查找的EquipId不在PLC_ArrList数组内，则回复查询失败。
       tmpGcodeVars.EquipId = "";
       tmpGcodeVars.ActGcode = "";
       tmpGcodeVars.NextGcode ="";
       tmpGcodeVars.res = 0;
    }

    //回复用户浏览器
   res.send(JSON.stringify(tmpGcodeVars));

})

//Plc上传数据 PlcUpInfo指令的处理
app.post('/PlcUpInfo', urlencodedParser, function (req, res) {
   let id = req.body.EquipId;
   let i,n;
   n = PLC_ArrList.length;

   if( n >0)
   {
       for(i=0;i<n;i++)
       {
           if(PLC_ArrList[i].EquipId == id)
           {
               break;
           }
       }

       if(n == i)
       {
           //设备未登记
           //nothing
           console.log('no equip');
       }
       else
       {

           //设备已登记
           //更新Plc数组的信息
           PLC_ArrList[i].V_X = req.body.V_X;
           PLC_ArrList[i].V_Y = req.body.V_Y;
           PLC_ArrList[i].V_Z = req.body.V_Z;
           PLC_ArrList[i].LineNo = req.body.LineNo;
           PLC_ArrList[i].V_State = req.body.V_State;
           PLC_ArrList[i].TouchCount = PLC_ArrList[i].TouchCount + 1;

            if(PLC_ArrList[i].TouchCount > 10000)
            {
              PLC_ArrList[i].TouchCount =0;
            }

       }
   }
   res.end();//结束进程

})

//web导入新Gcode
app.post('/Newgcode', urlencodedParser, function (req, res) {
    let id = req.body.EquipId;
    let i,n;
    n = PLC_ArrList.length;
    if( n >0)
    {
        for(i=0;i<n;i++)
        {
            if(PLC_ArrList[i].EquipId == id)
            {
                break;
            }
        }

        if(n == i)
        {
            //设备未登记
            res.send('EquipId:'+id+" 不可用。");
        }
        else
        {
            //设备已登记
            MysqlUpdateGCode(id,req.body.gc);
            res.send('新G代码已更新');
        }
    }

 })
}

//定时循环任务函数
function CircleTask1()
{
    QueryEquipList();   //查询mysql，获取最新equiplist
}

//------------ function end----------

//------------Main function start----

function MainFunction (){

    InitExpress();                      //建立Web服务器 express
    console.log('已建立Express');
    　　
    //建立mysql长连接
    connection.connect(function(err,data){
        if(err)
        {　
            throw err　　
            return;                      //mysql不可用，退出程序
        }else
        {
            //连接成功　　
            console.log('已连接mysql');
        }});

    QueryEquipList();                   //第一次查询mysql，获取最新equiplist

    setInterval(CircleTask1,2000);      //启动定时任务1，周期2s
    console.log('已启动定时循环任务');

};

MainFunction();                         //启动MainFunction

//------------Main function end----

2.3客户端Html+原生js

<html>
<head>
<style type="text/css">
.mbutton {
    height: 45px;
    width: 100px;
}

.mtable{
  border:1px;
  border-style: solid;
  width: 850px;
  height: 350px;
  border-collapse: collapse;
}

.mtextarea{
  width: 250px;
  height: 400px;
  overflow-y: auto;
}

.codeSp
{
  background-color: lightgray;
}

.mtr{
  height: 50px;
}
</style>



<script type="text/javascript">

//------------var start------------

var GcodeTxt ;
var TmpActGcode='';
var T_CircleQuery,T_ReplyCheck;
var LostConnect =0;
var EquipId = 'E00001';
var TouchCount = 0,LastTouchCount = 0;
var SendLock=0;
var PlcOnline=0;
var codeArr;

//delay函数
const delay = ms => new Promise((resolve, reject) => setTimeout(resolve, ms))


//------------var end------------


//主函数
function MainFuncion()
{
  console.log("启动循环查询");
  var t=0;

  //构建定时循环任务
  var CircleAsyncTask = async() =>{
    while(LostConnect == 0)
    {

      if(t<10)
      {
        //每0.2s查询一次状态
        QueryFunc();
        t++;
      }
      else
      {
        //每2s查询一次g代码
        GetGodeFunc();
        t=0;

        if(LastTouchCount != TouchCount)
        {
          document.getElementById("onLine").textContent ='在线中';
          PlcOnline=1;
        }
        else
        {
          document.getElementById("onLine").textContent ='未连接';
          PlcOnline=0;
        }

        //更新TouchCount
        LastTouchCount = TouchCount;

      }
      //异步循环
      await delay(200)
    }
  console.log("结束循环查询");
  };

  //启动定时循环任务
  CircleAsyncTask();

}

//G代码上传函数
function TxtUpload(input) {
            //支持chrome IE10
            if (window.FileReader) {
                var reader = new FileReader();
                var file = input.files[0];
                //构建reader
                reader.onload = function() {
                    GcodeTxt = this.result;
                    //把Txt文件的G代码发送到服务器
                    SendGodeFunc();
                }
                reader.readAsText(file);
            }

        }

//发送G代码至服务器的函数
function SendGodeFunc()
{
  let xmlhttp;
  let postCode;
if (window.XMLHttpRequest)
  {// code for IE7+, Firefox, Chrome, Opera, Safari
  xmlhttp=new XMLHttpRequest();
  }
else
  {// code for IE6, IE5
  xmlhttp=new ActiveXObject("Microsoft.XMLHTTP");
  }
xmlhttp.onreadystatechange=function()
  {
  if (xmlhttp.readyState==4 && xmlhttp.status==200)
    {
        //复位Ajax响应计时
      clearTimeout(T_ReplyCheck);
      SendLock=0;
    }
  }


xmlhttp.open("post","/Newgcode",true);
xmlhttp.setRequestHeader("Content-Type", "application/x-www-form-urlencoded");
postCode ="EquipId="+EquipId+"&gc="+GcodeTxt;

while(SendLock==1)
{
  //wait
}
xmlhttp.send(postCode);
SendLock=1;
//启动Ajax响应计时
T_ReplyCheck =setTimeout("AjaxRelyFalure()", 100);

}

//查询当前设备状态的函数
function QueryFunc()
{
let xmlhttp;
if (window.XMLHttpRequest)
  {// code for IE7+, Firefox, Chrome, Opera, Safari
  xmlhttp=new XMLHttpRequest();
  }
else
  {// code for IE6, IE5
  xmlhttp=new ActiveXObject("Microsoft.XMLHTTP");
  }
xmlhttp.onreadystatechange=function()
  {
  if (xmlhttp.readyState==4 && xmlhttp.status==200)
    {
      //复位Ajax响应计时
      clearTimeout(T_ReplyCheck);
      SendLock =0;
      let PlcObj = JSON.parse(xmlhttp.responseText);

      document.getElementById("Plc_X").textContent = PlcObj.X;
      document.getElementById("Plc_Y").textContent = PlcObj.Y;
      document.getElementById("Plc_Z").textContent = PlcObj.Z;

      if(parseInt(PlcObj.State) == 0)
      {
        document.getElementById("Plc_State").textContent = "待机";

      }
      else
      {
        document.getElementById("Plc_State").textContent = "加工中";
      }

      TouchCount = parseInt(PlcObj.TouchCount);

      let lineNo = parseInt(PlcObj.LineNo);

      if(lineNo ==-1 || PlcOnline == 0)
      {
        document.getElementById("ActGcode").innerHTML =TmpActGcode;
      }
      else
      {

          let n = codeArr.length;
          let i;
          let code='';
          if(n>0)
          {
            for(i=0;i<n;i++)
            {
                if(i == lineNo)
                {
                  code = code + "<span class='codeSp'>"+codeArr[i]+'</span><br>';
                }
                else
                {
                  code = code + codeArr[i]+'<br>';
                }
            }
            document.getElementById("ActGcode").innerHTML =code;

          }

      }


    }
  }
xmlhttp.open("get","/State?EquipId="+EquipId,true);
xmlhttp.setRequestHeader("Content-Type", "text/html");

while(SendLock==1)
{
  //wait
}

xmlhttp.send();
SendLock = 1;
//启动Ajax响应计时
T_ReplyCheck =setTimeout("AjaxRelyFalure()", 100);
}

//查询当前设备G代码的函数
function GetGodeFunc()
{
  let xmlhttp;
if (window.XMLHttpRequest)
  {// code for IE7+, Firefox, Chrome, Opera, Safari
  xmlhttp=new XMLHttpRequest();
  }
else
  {// code for IE6, IE5
  xmlhttp=new ActiveXObject("Microsoft.XMLHTTP");
  }
xmlhttp.onreadystatechange=function()
  {
  if (xmlhttp.readyState==4 && xmlhttp.status==200)
    {
        //复位Ajax响应计时
      clearTimeout(T_ReplyCheck);
      SendLock = 0;
      let GcodeObj = JSON.parse(xmlhttp.responseText);

      if(GcodeObj.res == 1)
      {
        codeArr = (GcodeObj.ActGcode).split('\r\n');
        TmpActGcode = (GcodeObj.ActGcode).replace(/\r\n/g,'<br>');
        document.getElementById("NextGcode").innerHTML = (GcodeObj.NextGcode).replace(/\r\n/g,'<br>');
      }
      else
      {
        document.getElementById("ActGcode").innerHTML ='';
        document.getElementById("NextGcode").innerHTML= '';
      }
    }
  }
xmlhttp.open("get","/FreshGode?EquipId="+EquipId,true);
xmlhttp.setRequestHeader("Content-Type", "text/html");

while(SendLock==1)
{
  //wait
}
xmlhttp.send();
SendLock = 1;
//启动Ajax响应计时
T_ReplyCheck =setTimeout("AjaxRelyFalure()", 100);

}

//ajax接收超时报警函数
function AjaxRelyFalure()
{
  SendLock=0;
  LostConnect = 1 ;
  alert("服务器连接失败，请刷新页面");
}


//页面加载完成后，启动主函数
window.onload = function(){
            //页面加载即执行函数
            MainFuncion();
        }


</script>
</head>
<body>

<h2>NodeJs+Codesys</h2>
<table class="mtable" cellspacing="0">
<tr>
  <td width="250">
    <table cellspacing="0">
      <tr>
        <td><h3>设备执行G代码</h3></td>
      </tr>
      <tr>
        <td><div id="ActGcode" class="mtextarea"></div></td>
      </tr>

    </table>
  </td>
  <td width="250">
    <table cellspacing="0">
      <tr>
        <td><h3>设备下一个G代码</h3></td>
      </tr>
      <tr>
        <td><div id="NextGcode" class="mtextarea"></div></td>
      </tr>

    </table>
  </td>
  <td width="350">
    <table>
      <tr class="mtr">
        <td width="90px">
          <h3>X</h3>
        </td>
        <td>
          <h2 id="Plc_X"></h2>
        </td>
      </tr>
      <tr class="mtr">
        <td >
          <h3>Y</h3>
        </td>
        <td>
          <h2 id="Plc_Y"></h2>
        </td>
      </tr>
      <tr class="mtr">
        <td >
          <h3>Z</h3>
        </td>
        <td>
          <h2 id="Plc_Z"></h2>
        </td>
      </tr>
      <tr class="mtr">
        <td >
          设备状态
        </td>
        <td>
          <span id="Plc_State"></span>
        </td>
      </tr>
      <tr class="mtr">
        <td >
          在线状态
        </td>
        <td>
          <span id="onLine"></span>
        </td>
      </tr>

      <tr class="mtr">
        <td valign="middle">
          导入
        </td>
        <td >
          <input type="file"  onchange="TxtUpload(this)"/>
        </td>
      </tr>
    </table>
  </td>
</tr>
</table>

</body>
</html>

三、总结

本项目通过CNC的G代码的联网数据库调用和管理，展示了Codesys+Node.js+Mysql的工业物联网应用的基本构架和实现。项目实现的功能虽然比较简单，但基本体现了工业物联网的特性和应用。

Codesys通过http报文与web系统交互，意味着web服务器软件不限于Node.js+express，还可以PHP+apache 、 Asp.net+iis 等等全部web服务器系统。前端不限于原生js，还可以Vue、React等等的全部SPA的框架。

Codesys通过Tcp报文与数据库系统交互，意味着数据库不限于Mysql，还可以在codesys开发相应数据库的操作子程序来使用Oracle、SQLServer等等。

基于Codesys的socket能力，可以十分灵活和便捷地对接服务器软件(Web, ERP,MES等等)，实现设备的联网，进而实现设备数字化管理和使用。
