一、关于环境
请参考:pymeshlab遍历文件夹中模型、缩放并导出指定格式-CSDN博客
二、关于代码
本文所给出代码仅为参考,禁止转载和引用,仅供个人学习。
本文会创建一个四面体,但会故意缺失一个面,以模拟闭合孔洞。

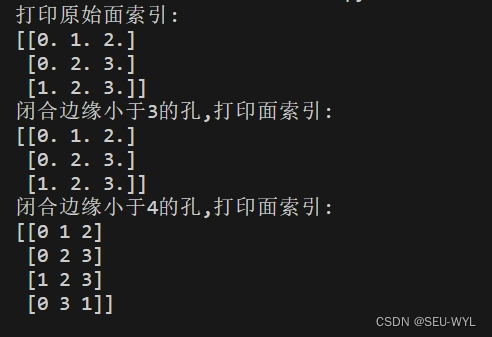

控制台输出
# pymeshlab需要导入,其一般被命名为ml
import pymeshlab as ml
# numpy需要导入,其一般被命名为np
import numpy as np
# 首先需要创建一个空的容器
mesh = ml.MeshSet()
# 创建四面体的顶点
vertex_matrix = np.array([
[0, 0, 1],
[1, 0, 0],
[0, 1, 0],
[0, 0, 0]
], dtype=np.float64)
# 创建四面体的面片索引
face_matrix = np.array([
[0, 1, 2],
[0, 2, 3],
[1, 2, 3],
# [0, 1, 3],
], dtype=np.float64)
# 创建四面体的顶点颜色,范围是0-1
v_color_matrix = np.array([
[0, 0, 0, 1],
[1, 0, 0, 1],
[0, 1, 0, 1],
[0, 0, 1, 1]
], dtype=np.float64)
# 创建四面体
mesh_c = ml.Mesh(vertex_matrix = vertex_matrix,
face_matrix = face_matrix,
v_color_matrix = v_color_matrix,
)
# 然后,将四面体放入MeshSet中
mesh.add_mesh(mesh_c)
# 打印原始面数
mesh_c = mesh.current_mesh()
print('打印原始面索引:')
print(face_matrix)
# 闭合边缘小于3的孔,实际是不存在的,所以闭合后的面数依然是3
mesh.close_holes(
maxholesize = 3,
)
mesh_c = mesh.current_mesh()
print('闭合边缘小于3的孔,打印面索引:')
print(face_matrix)
# 闭合边缘小于4的孔,实际存在一个符合的,即[0, 1, 3],所以闭合后的面数是4
mesh.close_holes(
maxholesize = 4,
)
mesh_c = mesh.current_mesh()
face_matrix = mesh_c.face_matrix().copy()
print('闭合边缘小于4的孔,打印面索引:')
print(face_matrix)
