SLAM笔记——基于PL-ICP的激光里程计

从零开始搭二维激光SLAM --- 基于PL-ICP的激光雷达里程计

首先ROS中的坐标系包括

map: 地图坐标系，也被称为世界坐标系，是静止不动的
odom: 里程计坐标系，相对于map来说一般情况下是静止的，有些情况下会变动（定位节点为了修正机器人的位姿从而改变了map->odom间的坐标变换）
base_link: 代表机器人的旋转中心的坐标系，相对于odom来说base_link是运动的
laser_link: 激光雷达的坐标系，相对于base_link来说是静止的，因为雷达装在机器人上，雷达不会自己飞起来


他们的关系是单方面依赖的

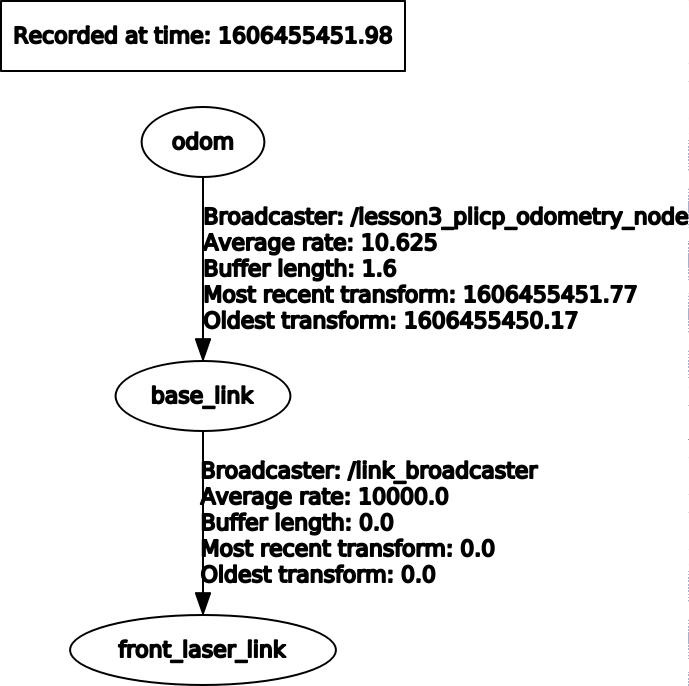

map -> odom -> base_link -> laser_link 这种关系被称为TF树可以使用rqt显示

ROS中管理坐标系的库TF2

tf2常用数据类型与常用函数汇总：tf2常用数据类型与常用函数汇总_李太白lx的博客-CSDN博客

//新增函数
void InitParams();//初始化参数
bool GetBaseToLaserTf(const std::string &frame_id);//机器人和雷达的变换
void GetPrediction(double &prediction_change_x, double &prediction_change_y, double// &prediction_change_angle, double dt);//
void CreateTfFromXYTheta(double x, double y, double theta, tf2::Transform& t);//
void PublishTFAndOdometry();//
bool NewKeyframeNeeded(const tf2::Transform &d);//

 新增的代码如下

构造函数（一般用来初始化参数）

private_node_ 初始化为 “~” ，代表私有命名空间，可以用来获取节点内的参数

ScanMatchPLICP::ScanMatchPLICP() : private_node_("~"), tf_listener_(tfBuffer_)
{
    // \033[1;32m，\033[0m 终端显示成绿色
    ROS_INFO_STREAM("\033[1;32m----> PLICP odometry started.\033[0m");

    laser_scan_subscriber_ = node_handle_.subscribe(
        "laser_scan", 1, &ScanMatchPLICP::ScanCallback, this);

    odom_publisher_ = node_handle_.advertise<nav_msgs::Odometry>("odom_plicp", 50);

    // 参数初始化
    InitParams();

    // 第一帧雷达还未到来
    initialized_ = false;

    base_in_odom_.setIdentity();
    base_in_odom_keyframe_.setIdentity();

    input_.laser[0] = 0.0;
    input_.laser[1] = 0.0;
    input_.laser[2] = 0.0;

    // Initialize output_ vectors as Null for error-checking
    output_.cov_x_m = 0;
    output_.dx_dy1_m = 0;
    output_.dx_dy2_m = 0;
}

InitParams()

/*
 * ros与csm的参数初始化
 */
void ScanMatchPLICP::InitParams()
{
    private_node_.param<std::string>("odom_frame", odom_frame_, "odom");
    private_node_.param<std::string>("base_frame", base_frame_, "base_link");
    // **** keyframe params: when to generate the keyframe scan
    // if either is set to 0, reduces to frame-to-frame matching
    private_node_.param<double>("kf_dist_linear", kf_dist_linear_, 0.1);
    private_node_.param<double>("kf_dist_angular", kf_dist_angular_, 5.0 * (M_PI / 180.0));
    kf_dist_linear_sq_ = kf_dist_linear_ * kf_dist_linear_;

    // **** CSM 的参数 - comments copied from algos.h (by Andrea Censi)

    // Maximum angular displacement between scans
    if (!private_node_.getParam("max_angular_correction_deg", input_.max_angular_correction_deg))
        input_.max_angular_correction_deg = 45.0;

    // Maximum translation between scans (m)
    if (!private_node_.getParam("max_linear_correction", input_.max_linear_correction))
        input_.max_linear_correction = 0.50;

    // Maximum ICP cycle iterations
    if (!private_node_.getParam("max_iterations", input_.max_iterations))
        input_.max_iterations = 10;

    // A threshold for stopping (m)
    if (!private_node_.getParam("epsilon_xy", input_.epsilon_xy))
        input_.epsilon_xy = 0.000001;

    // A threshold for stopping (rad)
    if (!private_node_.getParam("epsilon_theta", input_.epsilon_theta))
        input_.epsilon_theta = 0.000001;

    // Maximum distance for a correspondence to be valid
    if (!private_node_.getParam("max_correspondence_dist", input_.max_correspondence_dist))
        input_.max_correspondence_dist = 0.3;

    // Noise in the scan (m)
    if (!private_node_.getParam("sigma", input_.sigma))
        input_.sigma = 0.010;

    // Use smart tricks for finding correspondences.
    if (!private_node_.getParam("use_corr_tricks", input_.use_corr_tricks))
        input_.use_corr_tricks = 1;

    // Restart: Restart if error is over threshold
    if (!private_node_.getParam("restart", input_.restart))
        input_.restart = 0;

    // Restart: Threshold for restarting
    if (!private_node_.getParam("restart_threshold_mean_error", input_.restart_threshold_mean_error))
        input_.restart_threshold_mean_error = 0.01;

    // Restart: displacement for restarting. (m)
    if (!private_node_.getParam("restart_dt", input_.restart_dt))
        input_.restart_dt = 1.0;

    // Restart: displacement for restarting. (rad)
    if (!private_node_.getParam("restart_dtheta", input_.restart_dtheta))
        input_.restart_dtheta = 0.1;

    // Max distance for staying in the same clustering
    if (!private_node_.getParam("clustering_threshold", input_.clustering_threshold))
        input_.clustering_threshold = 0.25;

    // Number of neighbour rays used to estimate the orientation
    if (!private_node_.getParam("orientation_neighbourhood", input_.orientation_neighbourhood))
        input_.orientation_neighbourhood = 20;

    // If 0, it's vanilla ICP
    if (!private_node_.getParam("use_point_to_line_distance", input_.use_point_to_line_distance))
        input_.use_point_to_line_distance = 1;

    // Discard correspondences based on the angles
    if (!private_node_.getParam("do_alpha_test", input_.do_alpha_test))
        input_.do_alpha_test = 0;

    // Discard correspondences based on the angles - threshold angle, in degrees
    if (!private_node_.getParam("do_alpha_test_thresholdDeg", input_.do_alpha_test_thresholdDeg))
        input_.do_alpha_test_thresholdDeg = 20.0;

    // Percentage of correspondences to consider: if 0.9,
    // always discard the top 10% of correspondences with more error
    if (!private_node_.getParam("outliers_maxPerc", input_.outliers_maxPerc))
        input_.outliers_maxPerc = 0.90;

    // Parameters describing a simple adaptive algorithm for discarding.
    //  1) Order the errors.
    //  2) Choose the percentile according to outliers_adaptive_order.
    //     (if it is 0.7, get the 70% percentile)
    //  3) Define an adaptive threshold multiplying outliers_adaptive_mult
    //     with the value of the error at the chosen percentile.
    //  4) Discard correspondences over the threshold.
    //  This is useful to be conservative; yet remove the biggest errors.
    if (!private_node_.getParam("outliers_adaptive_order", input_.outliers_adaptive_order))
        input_.outliers_adaptive_order = 0.7;

    if (!private_node_.getParam("outliers_adaptive_mult", input_.outliers_adaptive_mult))
        input_.outliers_adaptive_mult = 2.0;

    // If you already have a guess of the solution, you can compute the polar angle
    // of the points of one scan in the new position. If the polar angle is not a monotone
    // function of the readings index, it means that the surface is not visible in the
    // next position. If it is not visible, then we don't use it for matching.
    if (!private_node_.getParam("do_visibility_test", input_.do_visibility_test))
        input_.do_visibility_test = 0;

    // no two points in laser_sens can have the same corr.
    if (!private_node_.getParam("outliers_remove_doubles", input_.outliers_remove_doubles))
        input_.outliers_remove_doubles = 1;

    // If 1, computes the covariance of ICP using the method http://purl.org/censi/2006/icpcov
    if (!private_node_.getParam("do_compute_covariance", input_.do_compute_covariance))
        input_.do_compute_covariance = 0;

    // Checks that find_correspondences_tricks gives the right answer
    if (!private_node_.getParam("debug_verify_tricks", input_.debug_verify_tricks))
        input_.debug_verify_tricks = 0;

    // If 1, the field 'true_alpha' (or 'alpha') in the first scan is used to compute the
    // incidence beta, and the factor (1/cos^2(beta)) used to weight the correspondence.");
    if (!private_node_.getParam("use_ml_weights", input_.use_ml_weights))
        input_.use_ml_weights = 0;

    // If 1, the field 'readings_sigma' in the second scan is used to weight the
    // correspondence by 1/sigma^2
    if (!private_node_.getParam("use_sigma_weights", input_.use_sigma_weights))
        input_.use_sigma_weights = 0;
}

GetBaseToLaserTf()

/**
 * 获取机器人坐标系与雷达坐标系间的坐标变换
 */
bool ScanMatchPLICP::GetBaseToLaserTf(const std::string &frame_id)
{
    ros::Time t = ros::Time::now();

    geometry_msgs::TransformStamped transformStamped;
    // 获取tf并不是瞬间就能获取到的，要给1秒的缓冲时间让其找到tf
    try
    {
        transformStamped = tfBuffer_.lookupTransform(base_frame_, frame_id,
                                                     t, ros::Duration(1.0));
    }
    catch (tf2::TransformException &ex)
    {
        ROS_WARN("%s", ex.what());
        ros::Duration(1.0).sleep();
        return false;
    }

    // 将获取的tf存到base_to_laser_中
    tf2::fromMsg(transformStamped.transform, base_to_laser_);
    laser_to_base_ = base_to_laser_.inverse();

    return true;
}

ScanMatchWithPLICP()

实现PLICP匹配的

/**
 * 使用PLICP进行帧间位姿的计算
 */
void ScanMatchPLICP::ScanMatchWithPLICP(LDP &curr_ldp_scan, const ros::Time &time)
{
    // CSM is used in the following way:
    // The scans are always in the laser frame
    // The reference scan (prevLDPcan_) has a pose of [0, 0, 0]
    // The new scan (currLDPScan) has a pose equal to the movement
    // of the laser in the laser frame since the last scan
    // The computed correction is then propagated using the tf machinery

    prev_ldp_scan_->odometry[0] = 0.0;
    prev_ldp_scan_->odometry[1] = 0.0;
    prev_ldp_scan_->odometry[2] = 0.0;

    prev_ldp_scan_->estimate[0] = 0.0;
    prev_ldp_scan_->estimate[1] = 0.0;
    prev_ldp_scan_->estimate[2] = 0.0;

    prev_ldp_scan_->true_pose[0] = 0.0;
    prev_ldp_scan_->true_pose[1] = 0.0;
    prev_ldp_scan_->true_pose[2] = 0.0;

    input_.laser_ref = prev_ldp_scan_;
    input_.laser_sens = curr_ldp_scan;

    // 匀速模型，速度乘以时间，得到预测的odom坐标系下的位姿变换
    double dt = (time - last_icp_time_).toSec();
    double pr_ch_x, pr_ch_y, pr_ch_a;
    GetPrediction(pr_ch_x, pr_ch_y, pr_ch_a, dt);

    tf2::Transform prediction_change;
    CreateTfFromXYTheta(pr_ch_x, pr_ch_y, pr_ch_a, prediction_change);

    // account for the change since the last kf, in the fixed frame
    // 将odom坐标系下的坐标变换 转换成 base_in_odom_keyframe_坐标系下的坐标变换
    prediction_change = prediction_change * (base_in_odom_ * base_in_odom_keyframe_.inverse());

    // the predicted change of the laser's position, in the laser frame
    // 将base_link坐标系下的坐标变换 转换成 雷达坐标系下的坐标变换
    tf2::Transform prediction_change_lidar;
    prediction_change_lidar = laser_to_base_ * base_in_odom_.inverse() * prediction_change * base_in_odom_ * base_to_laser_;

    input_.first_guess[0] = prediction_change_lidar.getOrigin().getX();
    input_.first_guess[1] = prediction_change_lidar.getOrigin().getY();
    input_.first_guess[2] = tf2::getYaw(prediction_change_lidar.getRotation());

    // If they are non-Null, free covariance gsl matrices to avoid leaking memory
    if (output_.cov_x_m)
    {
        gsl_matrix_free(output_.cov_x_m);
        output_.cov_x_m = 0;
    }
    if (output_.dx_dy1_m)
    {
        gsl_matrix_free(output_.dx_dy1_m);
        output_.dx_dy1_m = 0;
    }
    if (output_.dx_dy2_m)
    {
        gsl_matrix_free(output_.dx_dy2_m);
        output_.dx_dy2_m = 0;
    }

    start_time_ = std::chrono::steady_clock::now();
    // 调用csm进行plicp计算
    sm_icp(&input_, &output_);

    end_time_ = std::chrono::steady_clock::now();
    time_used_ = std::chrono::duration_cast<std::chrono::duration<double>>(end_time_ - start_time_);
    // std::cout << "PLICP计算用时: " << time_used_.count() << " 秒。" << std::endl;

    tf2::Transform corr_ch;

    if (output_.valid)
    {
        // 雷达坐标系下的坐标变换
        tf2::Transform corr_ch_l;
        CreateTfFromXYTheta(output_.x[0], output_.x[1], output_.x[2], corr_ch_l);

        // 将雷达坐标系下的坐标变换 转换成 base_link坐标系下的坐标变换
        corr_ch = base_to_laser_ * corr_ch_l * laser_to_base_;

        // 更新 base_link 在 odom 坐标系下 的坐标
        base_in_odom_ = base_in_odom_keyframe_ * corr_ch;

        latest_velocity_.linear.x = corr_ch.getOrigin().getX() / dt;
        latest_velocity_.angular.z = tf2::getYaw(corr_ch.getRotation()) / dt;
    }
    else
    {
        ROS_WARN("not Converged");
    }

    // 发布tf与odom话题
    PublishTFAndOdometry();

    // 检查是否需要更新关键帧坐标
    if (NewKeyframeNeeded(corr_ch))
    {
        // 更新关键帧坐标
        ld_free(prev_ldp_scan_);
        prev_ldp_scan_ = curr_ldp_scan;
        base_in_odom_keyframe_ = base_in_odom_;
    }
    else
    {
        ld_free(curr_ldp_scan);
    }

    last_icp_time_ = time;
}

  GetPrediction()

/**
 * 推测从上次icp的时间到当前时刻间的坐标变换
 * 使用匀速模型，根据当前的速度，乘以时间，得到推测出来的位移
 */
void ScanMatchPLICP::GetPrediction(double &prediction_change_x,
                                   double &prediction_change_y,
                                   double &prediction_change_angle,
                                   double dt)
{
    // 速度小于 1e-6 , 则认为是静止的
    prediction_change_x = latest_velocity_.linear.x < 1e-6 ? 0.0 : dt * latest_velocity_.linear.x;
    prediction_change_y = latest_velocity_.linear.y < 1e-6 ? 0.0 : dt * latest_velocity_.linear.y;
    prediction_change_angle = latest_velocity_.linear.z < 1e-6 ? 0.0 : dt * latest_velocity_.linear.z;

    if (prediction_change_angle >= M_PI)
        prediction_change_angle -= 2.0 * M_PI;
    else if (prediction_change_angle < -M_PI)
        prediction_change_angle += 2.0 * M_PI;
}

CreateTfFromXYTheta()

为 tf2::Transform 赋值

/**
 * 从x,y,theta创建tf
 */
void ScanMatchPLICP::CreateTfFromXYTheta(double x, double y, double theta, tf2::Transform &t)
{
    t.setOrigin(tf2::Vector3(x, y, 0.0));
    tf2::Quaternion q;
    q.setRPY(0.0, 0.0, theta);
    t.setRotation(q);
}

 PublishTFAndOdometry()

/**
 * 发布tf与odom话题
 */
void ScanMatchPLICP::PublishTFAndOdometry()
{
    geometry_msgs::TransformStamped tf_msg;
    tf_msg.header.stamp = current_time_;
    tf_msg.header.frame_id = odom_frame_;
    tf_msg.child_frame_id = base_frame_;
    tf_msg.transform = tf2::toMsg(base_in_odom_);

    // 发布 odom 到 base_link 的 tf
    tf_broadcaster_.sendTransform(tf_msg);

    nav_msgs::Odometry odom_msg;
    odom_msg.header.stamp = current_time_;
    odom_msg.header.frame_id = odom_frame_;
    odom_msg.child_frame_id = base_frame_;
    tf2::toMsg(base_in_odom_, odom_msg.pose.pose);
    odom_msg.twist.twist = latest_velocity_;

    // 发布 odomemtry 话题
    odom_publisher_.publish(odom_msg);
}

NewKeyframeNeeded()

/**
 * 如果平移大于阈值，角度大于阈值，则创新新的关键帧
 * @return 需要创建关键帧返回true, 否则返回false
 */
bool ScanMatchPLICP::NewKeyframeNeeded(const tf2::Transform &d)
{
    if (fabs(tf2::getYaw(d.getRotation())) > kf_dist_angular_)
        return true;

    if (scan_count_++ == kf_scan_count_)
    {
        scan_count_ = 0;
        return true;
    }

    double x = d.getOrigin().getX();
    double y = d.getOrigin().getY();
    if (x * x + y * y > kf_dist_linear_sq_)
        return true;

    return false;
}
