本文介绍如何使用matplotlib的GridSpec模块进行复杂图形布局，通过示例代码展示如何在一个4x4网格中放置7张图，实现每行两张图，最后一张图居中的效果。适合需要精确控制子图位置的高级绘图需求。

摘要生成于 C知道，由 DeepSeek-R1 满血版支持，前往体验 >

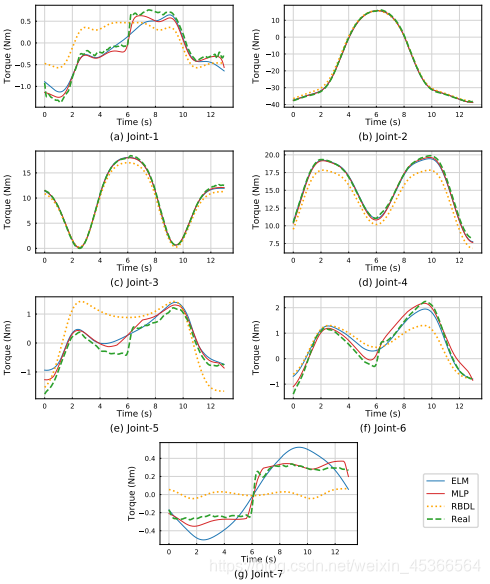

效果

7张图，每行两张，最后一张位于中间
在这里插入图片描述

方法

使用matplotlib.gridspec

分成四行四列
```
gs = gridspec.GridSpec(4, 4)
```

每行第一张图占0,1 位；第二张图占2,3位；最后一行的图占1,2位
即：plt.subplot(gs[行, 列])

# position
if (joint%2==0 and joint != 6): ax = plt.subplot(gs[int(joint/2), :2]) # 第一张图占0,1 位
elif (joint == 6): ax = plt.subplot(gs[int(joint/2), 1:3]) # 最后一行的图占1,2位
else: ax = plt.subplot(gs[int(joint/2), 2:]) # 第二张图占2,3位

完整代码

import matplotlib.gridspec as gridspec

def show_results(robot_name, file_test_list, joint=None):

	joint_range = []
	if joint is None:joint_range = range(0,7)
	else:joint_range = range(joint,joint+1)

	letter = list(map(chr, range(ord('a'), ord('z') + 1)))

	mlp_folder = robot_name+"_(50,50,20)"

	plt.figure(robot_name,figsize=(6,7.3))
	gs = gridspec.GridSpec(4, 4)

	for joint in joint_range:
		elm_model = robot_ELM(joint)
		X_test, T_test = elm_model.loadData(file_test_list)

	##### ELM ####
		model = joblib.load(func.get_module_path("../../training_model/"+robot_name)+"/"+robot_name+"9-16,tanh,r=200/joint_"+str(joint)+".pickle")
		# model = joblib.load(func.get_module_path("../../training_model/param_selection/9-16,tanh")+"/"+robot_name+"/joint_"+str(joint)+".pickle")
		# model_sf = joblib.load(func.get_module_path("../../training_model/param_selection/9-16,tanh,sf/blue")+"/joint_"+str(joint)+".pickle")
		# model = joblib.load(func.get_module_path("../../training_model/param_selection/9-16,sigm,sf/blue")/joint_"+str(joint)+".pickle")

	#### MLP ####
		mlp = joblib.load(func.get_module_path("../../training_model/MLP/"+mlp_folder)+'/joint_'+str(joint)+'.pickle')
		# mlp_sf = joblib.load(func.get_module_path("../../training_model/MLP/"+mlp_folder)+',sf/joint_'+str(joint)+'.pickle')
		# mlp_nosf = 	joblib.load(func.get_module_path("../../training_model/MLP/"+mlp_folder)+',nosf/joint_'+str(joint)+'.pickle')

	##### Transfer learning ######
	## Two-layer
		# model1 = joblib.load(func.get_module_path("../../training_model/trsf1")+"/trsf1_"+robot_name+"_bs_blue9-16,tanh,r=200,m=1/joint_"+str(joint)+".pickle")
		# model2 = joblib.load(func.get_module_path("../../training_model/trsf1")+"/trsf1_"+robot_name+"_bs_blue9-16,tanh,r=200,m=2/joint_"+str(joint)+".pickle")
	## Three-layer
		# model1 = joblib.load(func.get_module_path("../../training_model/trsf2")+"/trsf2_"+robot_name+"_bs_blue_red9-16,tanh,r=100,m=1/joint_"+str(joint)+".pickle")
		# model2 = joblib.load(func.get_module_path("../../training_model/trsf2")+"/trsf2_"+robot_name+"_bs_blue_red9-16,tanh,r=100,m=2/joint_"+str(joint)+".pickle")

		O_test = model.predict(X_test)
		O_mlp = mlp.predict(X_test).reshape(-1,1)

		# plot position
		if (joint%2==0 and joint != 6): ax = plt.subplot(gs[int(joint/2), :2])
		elif (joint == 6): ax = plt.subplot(gs[int(joint/2), 1:3])
		else: ax = plt.subplot(gs[int(joint/2), 2:])

		# if(joint == 6): ax = plt.subplot(3,3,joint+2)
		# else: ax = plt.subplot(3,3,joint+1)

		# plt.figure(robot_name+" Joint "+str(joint))
		func.plot_figure(target=elm_model.get_tau_r_f(),
						elm=O_test+elm_model.get_tau_m(),
						rbdl=elm_model.get_tau_m(),
						mlp=O_mlp+elm_model.get_tau_m(),
						# shuffle=O_mlp_sf+elm_model.get_tau_m(),
						# shuffle=O_shuf+elm_model.get_tau_m(),
						# transfer_1=O_test1+elm_model.get_tau_m(),
						# transfer_2=O_test2+elm_model.get_tau_m(),
						fs=100,
						joint_i=None)
		plt.subplots_adjust(hspace=0.43,wspace=0.7)

		ax.set_xlabel("Time (s)",fontsize=6.5)
		ax.set_ylabel("Torque (Nm)",fontsize=6.5)
		ax.xaxis.set_label_coords(0.5, -0.11)
		ax.yaxis.set_label_coords(-0.12, 0.5)
		ax.tick_params(direction='in', axis="both", labelsize=5, width=0.5, length=1)
		plt.grid(b=True, which='major', color='lightgrey', linestyle='-', linewidth=0.4)
		for axis in ['top','bottom','left','right']:
			ax.spines[axis].set_linewidth(0.5)

		if joint == 6:
			plt.rcParams["mathtext.fontset"] = "cm"
			plt.rcParams['text.latex.preamble']=[r"\usepackage{lmodern}"]
			# leg = plt.legend(loc = "best", fontsize=5.5, framealpha=0.7)
			# leg.get_frame().set_linewidth(0.8)
			plt.legend(bbox_to_anchor=(1.62,0.71), borderaxespad = 0.2, fontsize=6.5) #loc='lower right'

		ax.set_title('('+letter[joint]+') '+'Joint-'+str(joint+1), y=-0.4, fontsize=7.5)

	savepath = "."
	plt.savefig(savepath, bbox_inches='tight')
