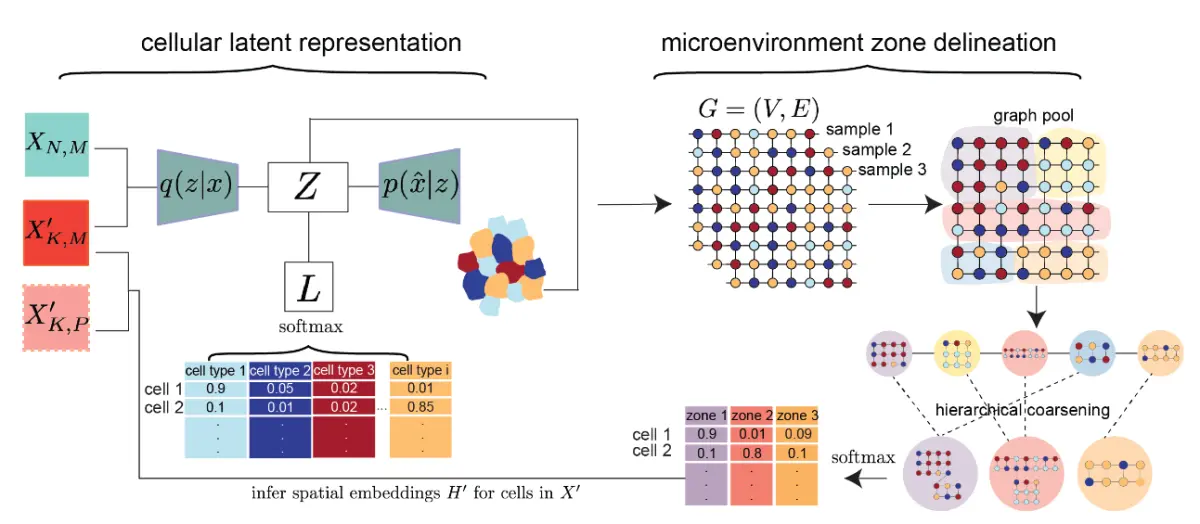

高精度平台带来的最大的最明显的变化，就是微环境分析，包括邻域与社区。还有就是算力变化，为了提升分析能力，需要转移到python中分析了。

目前scanpy也更新了对于HD的分析，我们来简单看一下：

import scanpy as sc
import pandas as pd
from anndata import AnnData
from pathlib import Path
import json
from matplotlib.image import imread

from step import scModel, stModel
from step.utils.misc import read_visium_hd

sc.set_figure_params(dpi=150, figsize=(6, 4.5))

Visium HD Human Colorectal Cancer (16 um) cell type clustering & spatial domain identification

16 um bin size: cell type clustering

adata = read_visium_hd("./data/visium-hd/human-coloretal-cancer/square_016um/")

stepc = scModel(
    adata=adata,
    n_top_genes=2000,
)

stepc.run(epochs=400, batch_size=2048, beta=1e-3)

adata = stepc.adata

sc.pp.neighbors(adata, use_rep='X_rep', n_neighbors=60)
sc.tl.umap(adata)

sc.tl.leiden(adata)

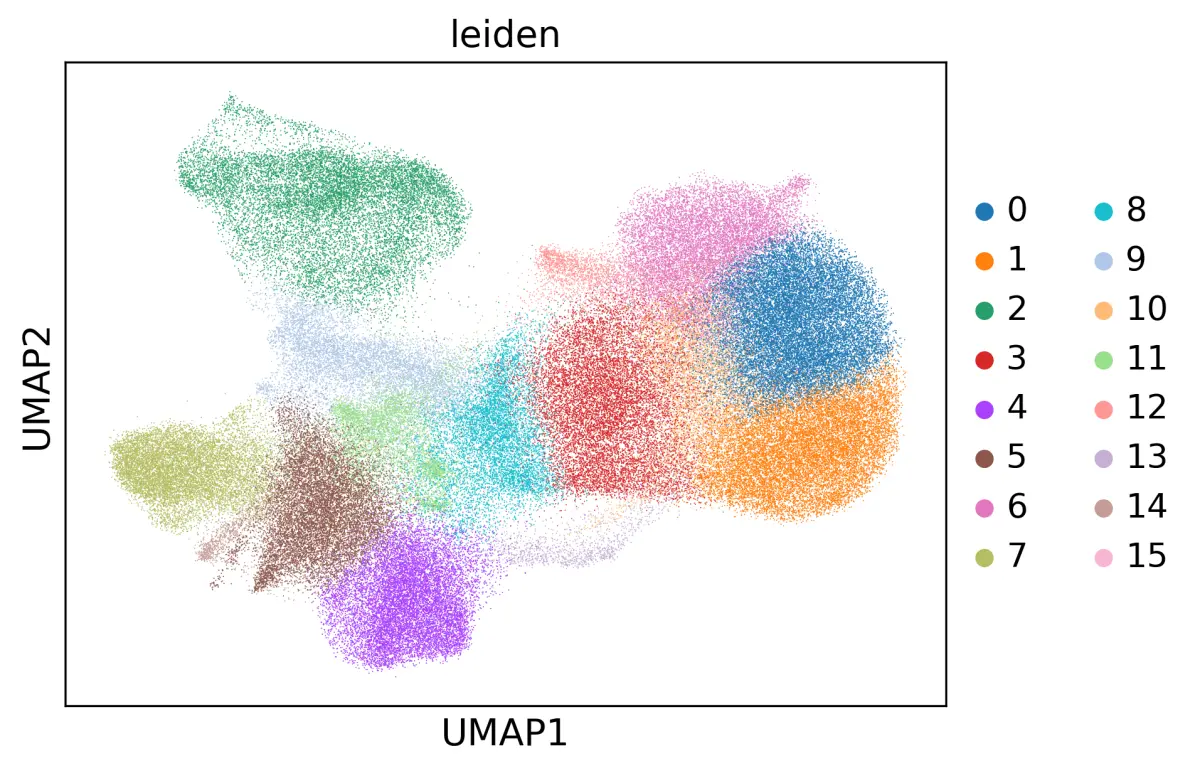

sc.pl.umap(adata, color='leiden')

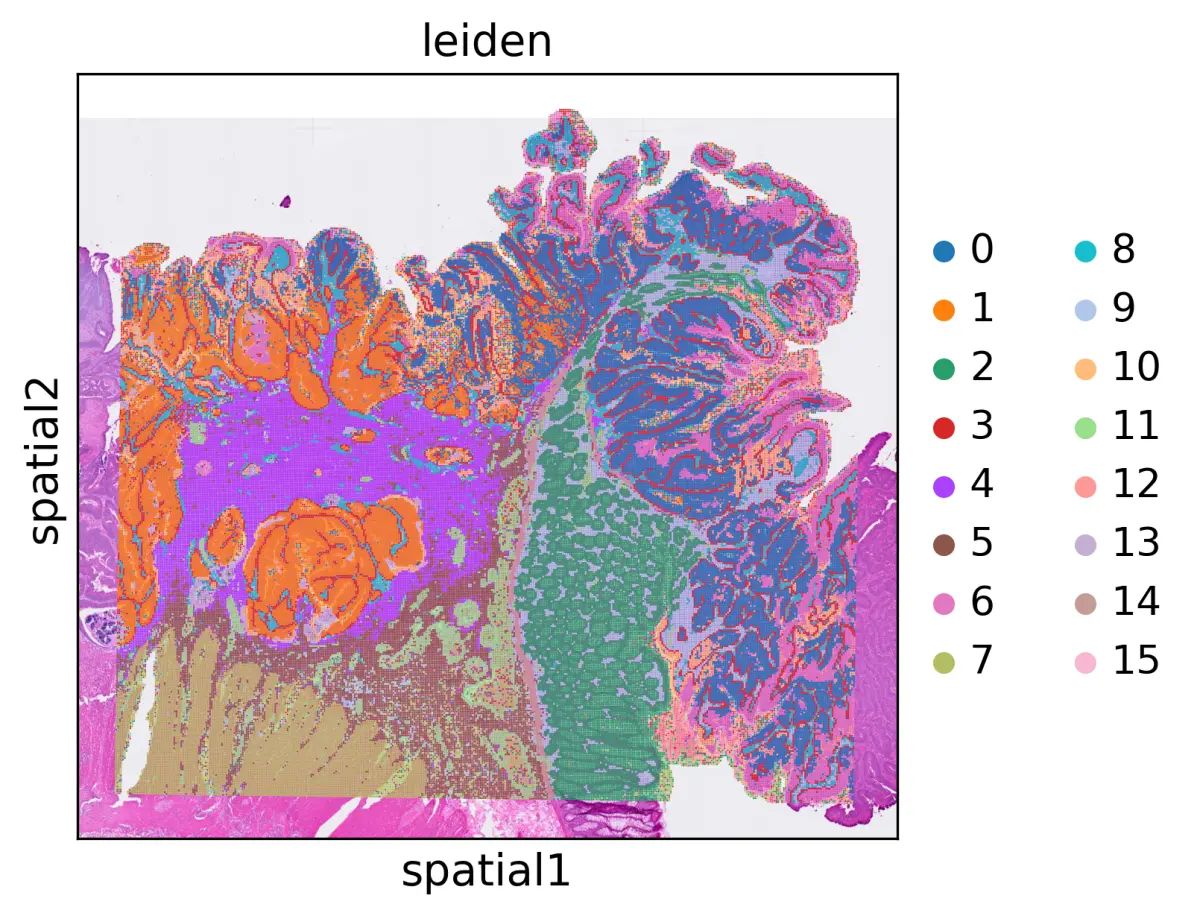

sc.pl.spatial(adata, color='leiden')

stepc.save("./results/visium-hd/hcc-16um/")
adata.write_h5ad("./results/visium-hd/hcc_16um.h5ad")

adata = sc.read_h5ad("./results/visium-hd/hcc_16um.h5ad")
# sc.set_figure_params(dpi=300, dpi_save=300)
# sc.settings.figdir = './results/visium-hd/hcc-16um/'

sc.pl.spatial(adata, color='leiden', frameon=False, groups=['7', '11', '14', '2', '9', '10'], na_in_legend=False)

sc.settings.figdir = "./results/visium-hd/hcc-16um/"
sc.set_figure_params(dpi_save=300)

sc.tl.rank_genes_groups(adata, groupby='leiden', dendrogram=False, use_raw=True)
sc.tl.dendrogram(adata, use_raw=True, groupby='leiden')

WARNING: You’re trying to run this on 2000 dimensions of `.X`, if you really want this, set `use_rep='X'`.
         Falling back to preprocessing with `sc.pp.pca` and default params.

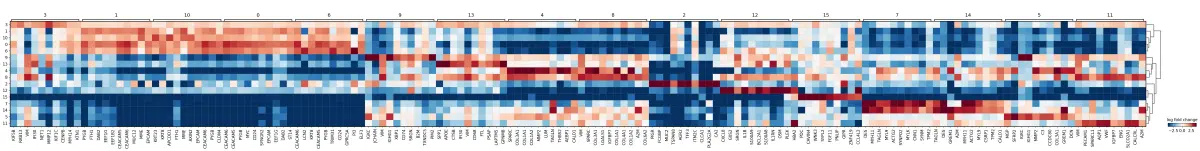

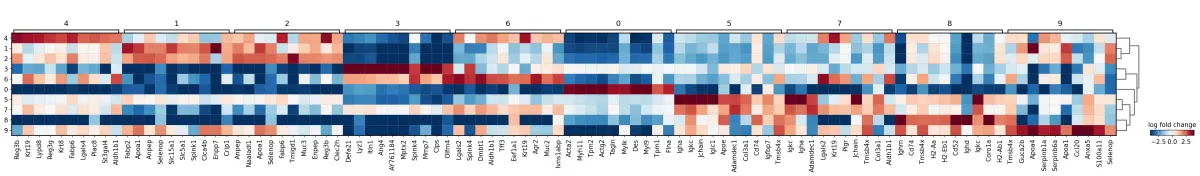

sc.pl.rank_genes_groups_matrixplot(adata,
                                   groupby='leiden',
                                   values_to_plot='logfoldchanges',
                                   cmap='RdBu_r',
                                   vmin=-4, vmax=4,
                                   save='16um_leiden.svg')

16 um bin size: spatial domain identification

adata = read_visium_hd("./data/visium-hd/human-coloretal-cancer/square_016um/")

stepc = stModel(
    adata=adata,
    n_top_genes=3000,
    edge_clip=2,
    n_glayers=3,
)

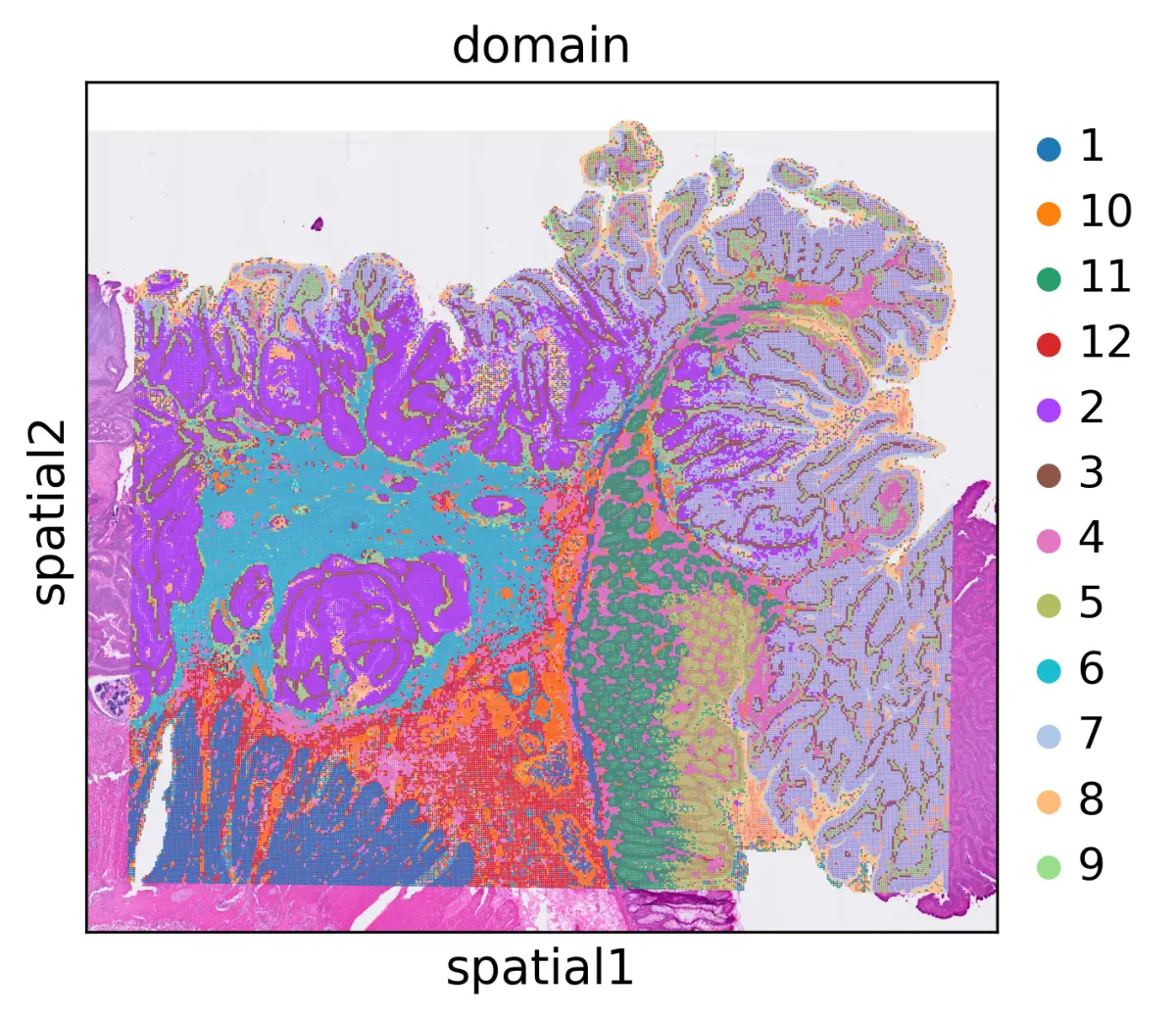

stepc.cluster(n_clusters=12)
stepc.spatial_plot(color='domain',)
stepc.save("./results/visium-hd/hccspatial_plotomain/")

stepc = stModel.load("./results/visium-hd/hccspatial_plotomain/",
                           filepath="./results/visium-hd/hcc_16um_domain.h5ad")
stepc.adata.obsm['X_smoothed'] = stepc.gembed()

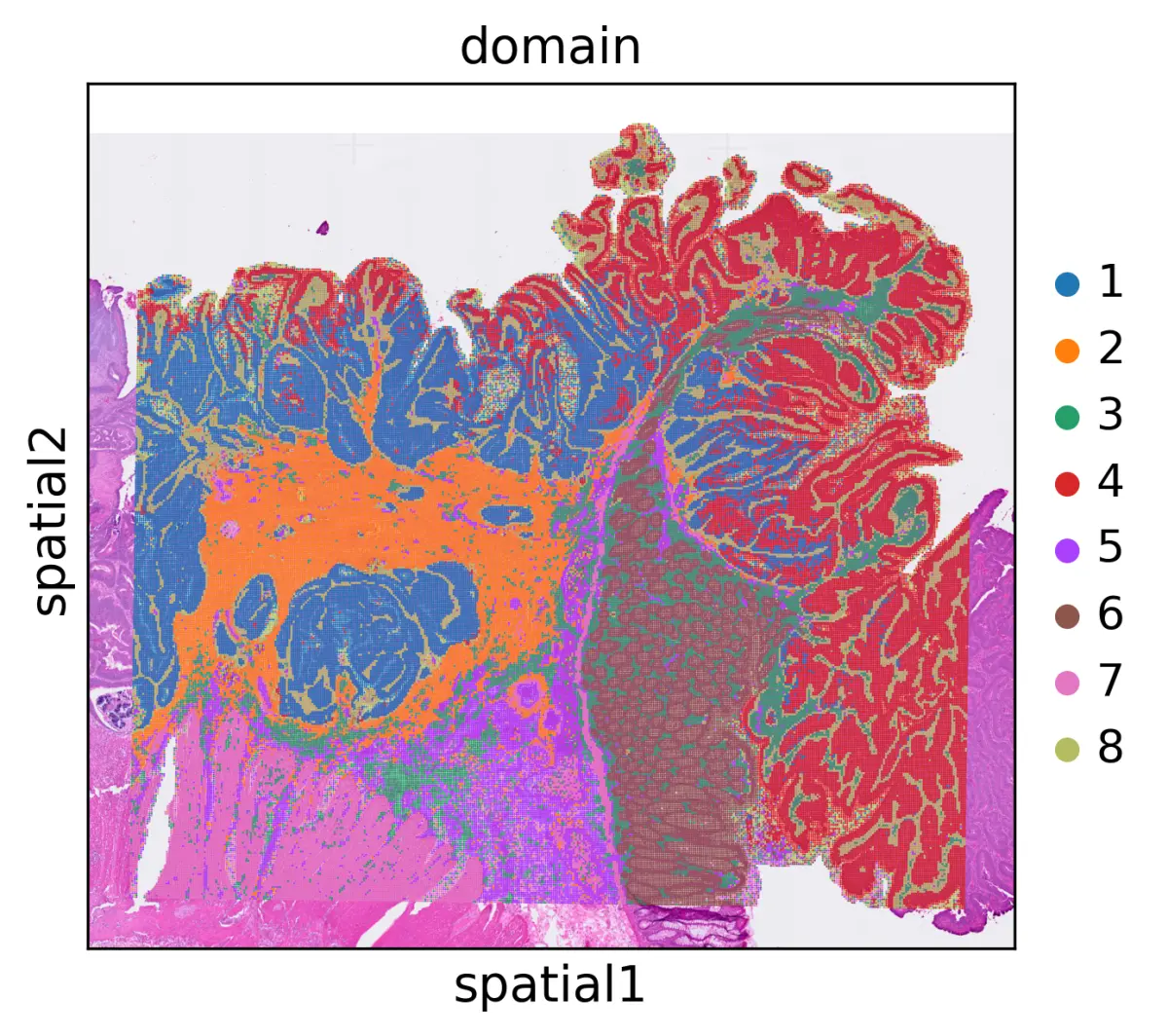

stepc.cluster(n_clusters=8)
stepc.spatial_plot(color='domain',)

stepc.adata.write_h5ad("./results/visium-hd/hcc_16um_domain.h5ad")

adata = sc.read_h5ad("./results/visium-hd/hcc_16um_domain.h5ad")

sc.settings.figdir = "./results/visium-hd/hcc-16um/"
sc.set_figure_params(dpi_save=300, figsize=(12, 9))

sc.pl.spatial(adata, color='domain', frameon=False, show=False, save='_16um_domain.svg',)

adata_raw = adata.raw.to_adata()
sc.pp.log1p(adata_raw)
adata.raw = adata_raw

# adata = stepc.adata

sc.tl.rank_genes_groups(adata, groupby='domain', dendrogram=False, use_raw=True)
sc.tl.dendrogram(adata, use_raw=True, groupby='domain')

sc.pl.rank_genes_groups_matrixplot(adata,
                                   groupby='domain',
                                   values_to_plot='logfoldchanges',
                                   cmap='RdBu_r',
                                   vmin=-4, vmax=4,
                                   save='16um_domain.svg')

Visium HD Mouse Small Intestine (8 um and 16 um) cell type clustering & spatial domain identification

import scanpy as sc

from step import scModel, stModel
from step.utils.misc import read_visium_hd

sc.set_figure_params(dpi=150, figsize=(6, 4.5), dpi_save=300)

16 um bin size: Cell type clustering

adata = read_visium_hd("./data/visium-hd/mouse-intesitine/square_016um/")

stepc = scModel(
    adata=adata,
    n_top_genes=2000,
)

stepc.run(epochs=400, batch_size=1024,)

adata = stepc.adata

sc.pp.neighbors(adata, use_rep='X_rep', n_neighbors=60)
sc.tl.umap(adata)

sc.tl.leiden(adata)

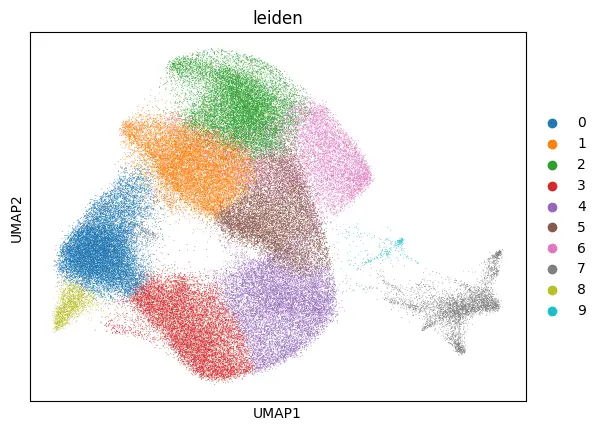

sc.pl.umap(adata, color='leiden')

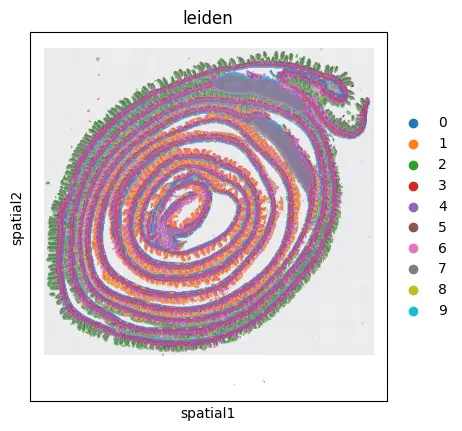

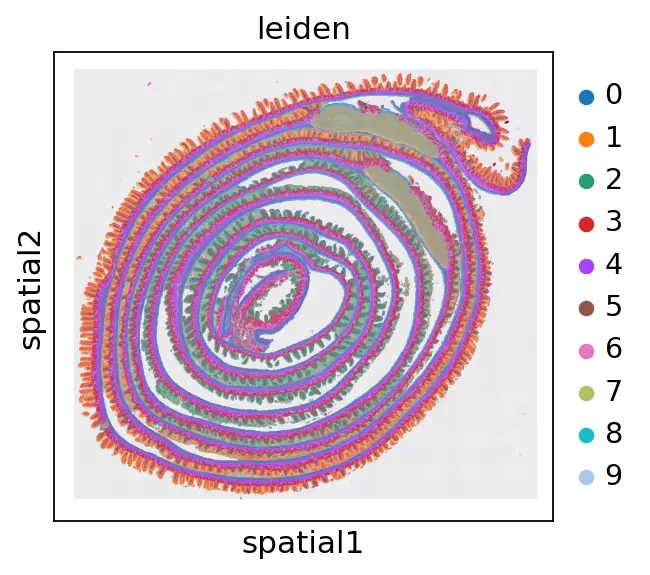

sc.pl.spatial(adata, color='leiden')

stepc.save("./results/visium-hd/config")
adata.write_h5ad("./results/visium-hd/mouse_intesitine_16um.h5ad")

adata = read_visium_hd("./data/visium-hd/mouse-intesitine/square_008um/")

stepc = stModel(
    adata=adata,
    n_top_genes=2000,
    edge_clip=1,
)

stepc.run()

stepc = stModel.load("./results/visium-hd/mouse-intestine/config-8um/",
                     filepath='./results/visium-hd/mouse_intesitine_8um.h5ad')
stepc.cluster(n_clusters=8)

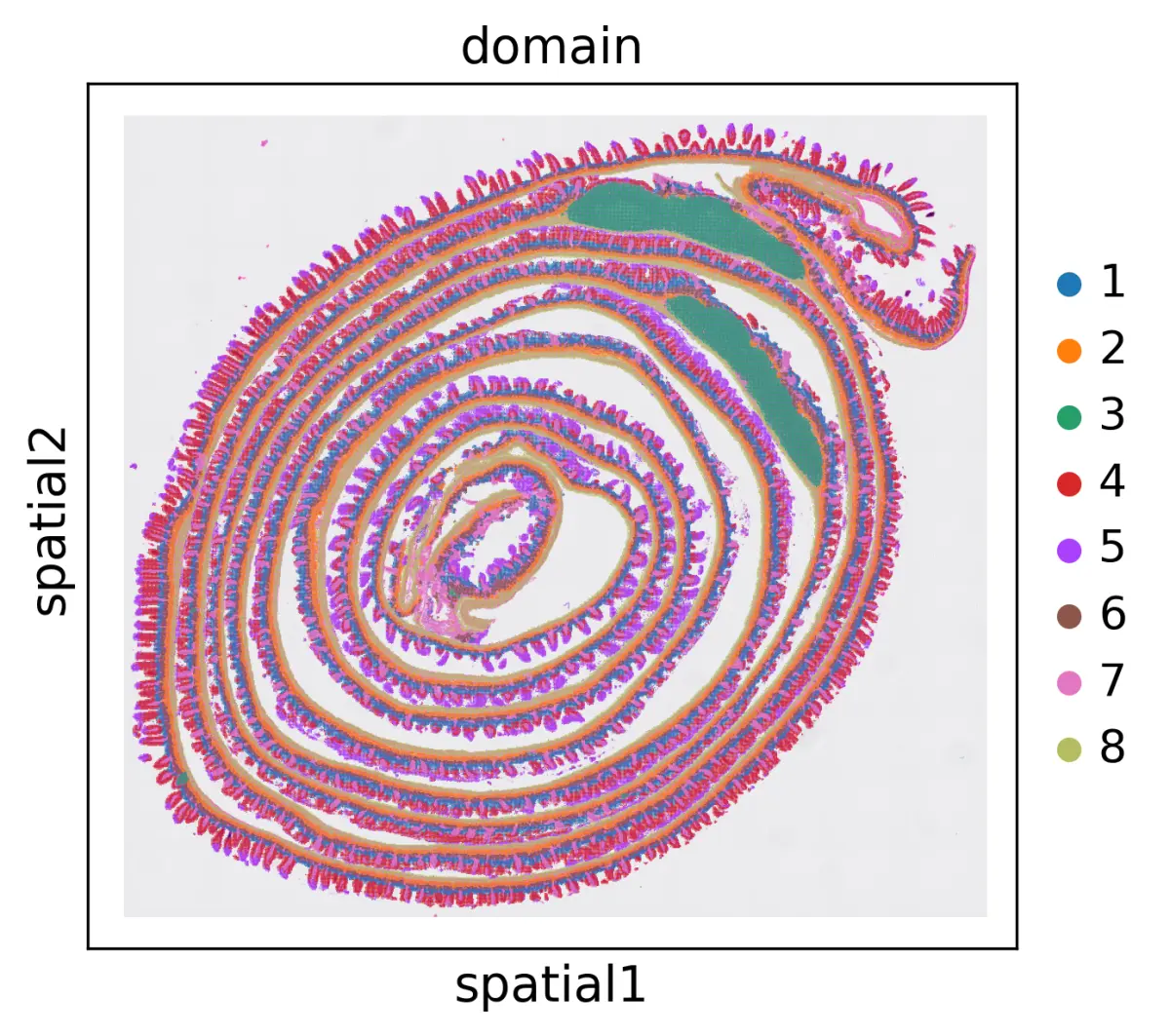

stepc.spatial_plot(color='domain')

import torch
torch.cuda.empty_cache()

stepc.add_embed(key_added='X_rep')
adata = stepc.adata

sc.pp.neighbors(adata, use_rep='X_rep', n_neighbors=60)
sc.tl.umap(adata)

stepc.save("./results/visium-hd/mouse-intestine/config-8um")
adata.write_h5ad("./results/visium-hd/mouse_intesitine_8um.h5ad")
adata = sc.read_h5ad("./results/visium-hd/mouse_intesitine_8um.h5ad")

sc.pl.umap(adata, color='domain', show=False, save='8um_domain.svg')
adata = stepc.adata
sc.tl.rank_genes_groups(adata, groupby='domain', method='wilcoxon', dendrogram=False, use_raw=True)
sc.tl.dendrogram(adata, groupby='domain')sc.settings.figdir = "./results/visium-hd/mouse-intestine/config-8um/"
sc.pl.rank_genes_groups_matrixplot(adata,
                                   groupby='domain',
                                   values_to_plot='logfoldchanges',
                                   cmap='RdBu_r',
                                   use_raw=True,
                                   vmin=-4, vmax=4, save="8um_domain.svg")

8 um bin size: Cell type clustering

adata = read_visium_hd("./data/visium-hd/mouse-intesitine/square_008um/")

stepc = scModel(
    adata=adata,
    n_top_genes=2000,
)

stepc.run(epochs=400, batch_size=4096)

adata = stepc.adata

sc.pp.neighbors(adata, use_rep='X_rep', n_neighbors=60)
sc.tl.umap(adata)

sc.tl.leiden(adata, resolution=0.8)

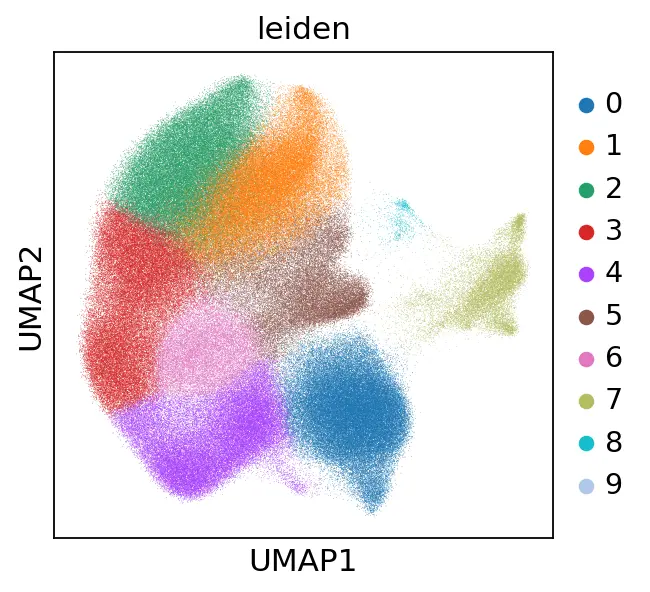

sc.pl.umap(adata, color='leiden')

sc.pl.spatial(adata, color='leiden')

sc.set_figure_params(dpi_save=300, figsize=(12, 9))
sc.settings.figdir = "./results/visium-hd/mouse-intestine/config-8um/"
sc.pl.spatial(adata, color='leiden', frameon=False, save='_leiden_8um.svg')
sc.pl.umap(adata, color='leiden', frameon=False, save='_leiden_8um.svg', show=False)
# sc.pl.spatial(adata, color='leiden',)

sc.pl.spatial(adata, color='leiden', groups=['6', '7'], img_key=None)

adata.obs['leiden'] = adata.obs['leiden'].astype(str).apply(lambda x: '0' if x in ['10', '11'] else x)
adata.obs['leiden'] = pd.Categorical(adata.obs['leiden'])

sc.pl.umap(adata, color='leiden', show=False, save='_leiden_8um.svg')
sc.pl.spatial(adata, color='leiden', frameon=False, show=False, save='_leiden_8um.svg')

sc.tl.rank_genes_groups(adata, groupby='leiden', method='wilcoxon', dendrogram=False, use_raw=True)
sc.tl.dendrogram(adata, groupby='leiden')

sc.settings.figdir = "./results/visium-hd/mouse-intestine/config-8um/"
sc.pl.rank_genes_groups_matrixplot(adata,
                                   groupby='leiden',
                                   values_to_plot='logfoldchanges',
                                   cmap='RdBu_r',
                                   use_raw=True,
                                   vmin=-4, vmax=4, save="8um_ct.svg")
