💥1 概述
本文探讨了一种适用于认知无线电应用的动态频谱分配系统,在特定频段内进行了仿真模拟。该系统基于能量检测进行频谱感知,将频谱划分为多个信道,并动态地将这些信道分配给用户,实现了智能的频谱管理。信道的分配根据其可用性进行调整,分配方案以彩色矩阵的形式呈现,清晰展示了用户信道分配情况随时间变化的动态过程。这种系统极大地提高了频谱利用效率,有效地减少了频谱资源的浪费,并为认知无线电领域的发展提供了新的思路和解决方案。

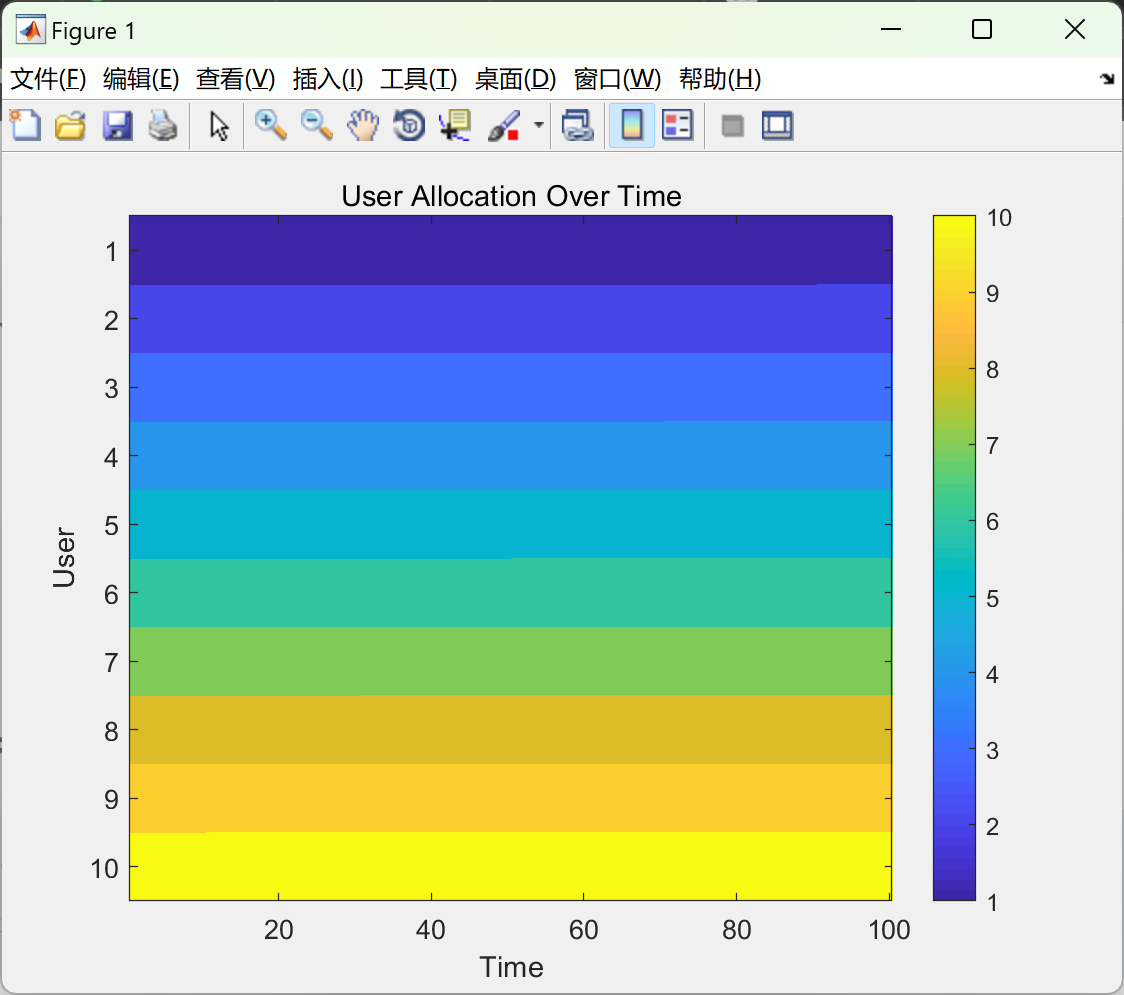

📚2 运行结果
部分代码:
% SSM - Spectrum Sensing Module
function [available_channels] = spectrum_sensing(num_channels, channel_bandwidth, noise_level, threshold, margin)
% This function performs spectrum sensing using energy detection
% It adds a margin to the threshold to tolerate noise and interference
available_channels = false(1, num_channels);
for i = 1:num_channels
% Simulate received signal for this channel
signal = randn(1, 1000) * sqrt(channel_bandwidth) + randn * noise_level;
% Perform energy detection
energy = sum(abs(signal).^2) / length(signal);
if energy > threshold + margin
available_channels(i) = true;
end
end
end
% FSM - Frequency Selection Module
function [selected_channel, available_channels] = frequency_selection(available_channels)
% This function selects the optimal channel based on the available channels
% It prefers channels with lower indices, simulating a preference for lower frequencies
available_channel_indices = find(available_channels);
if isempty(available_channel_indices)
selected_channel = NaN; % indicate no channel available
else
% Sort the available channel indices in ascending order and select the first one
sorted_indices = sort(available_channel_indices);
selected_channel = sorted_indices(1);
% Mark the selected channel as unavailable
available_channels(selected_channel) = false;
end
end
% SAM - Spectrum Allocation Module
function [] = spectrum_allocation(selected_channel)
% This function allocates the selected channel to a user
disp(['Allocated channel: ', num2str(selected_channel)]);
end
🎉3 参考文献
文章中一些内容引自网络,会注明出处或引用为参考文献,难免有未尽之处,如有不妥,请随时联系删除。
[1]赵娇娇.基于A-D/K-S拟合优度算法的频谱感知技术研究[D].南开大学,2013.DOI:10.7666/d.Y2409558.
[2]何健.认知无线电系统中频谱感知与动态资源分配技术的研究[D].上海交通大学,2012.DOI:CNKI:CDMD:1.1013.003770.
[3]成晨.认知无线网络频谱感知与频谱分配算法研究[D].北京邮电大学,2015.
