广芯Analog Switch模拟开关

广芯Analog Switch模拟开关

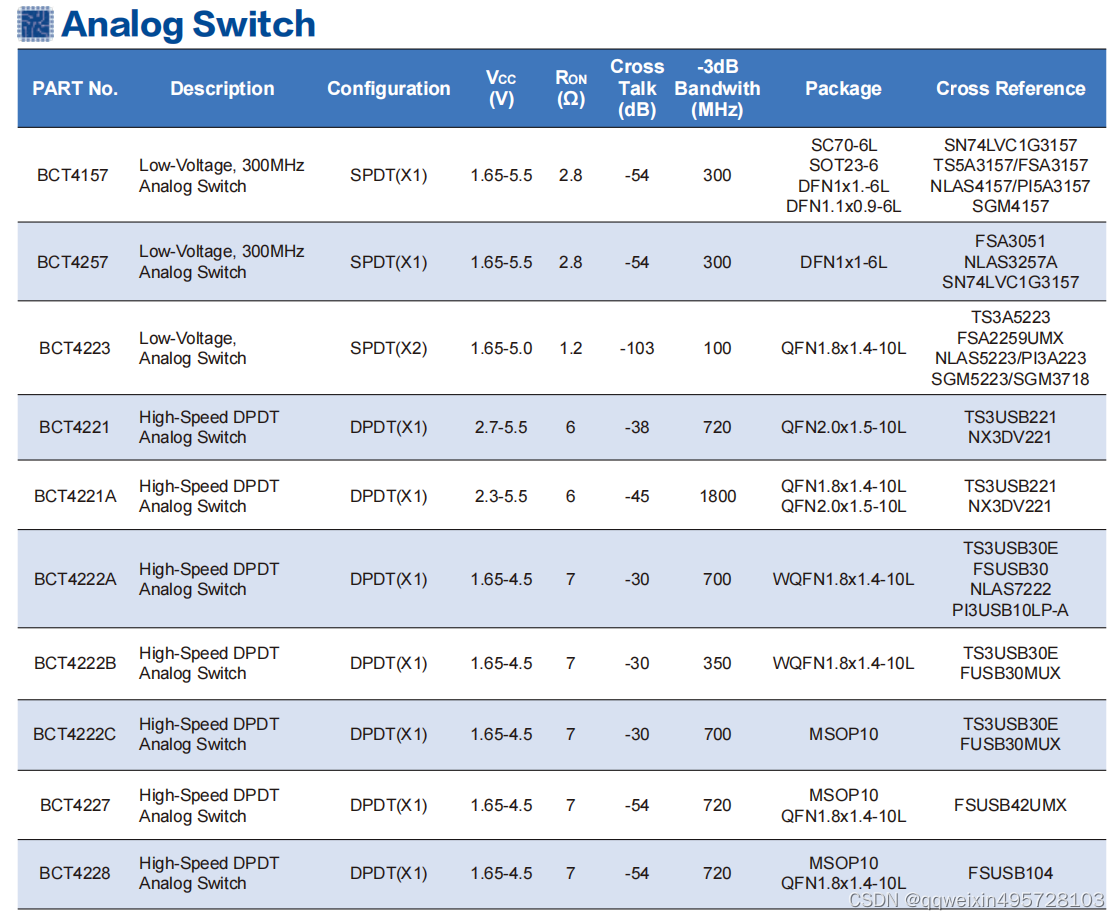

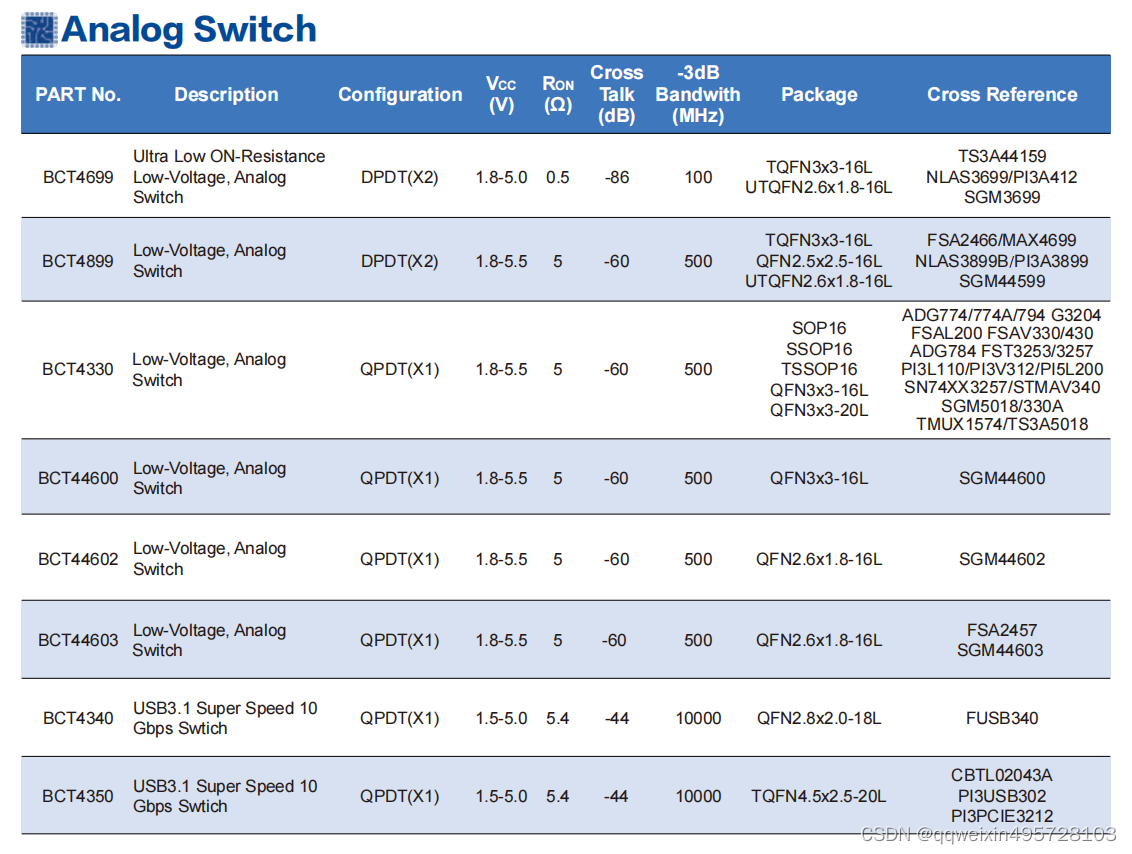

BCT4157/BCT4257/BCT4223/BCT4221/BCT4222/BCT4227/BCT4228/BCT4699/BCT4899/BCT4330/BCT44600/BCT44602/BCT44603/BCT4340/BCT4350/BCT4567/BCT48752/BCT48751
替换
SN74LVC1G3157/TS5A3157/FSA3157/NLAS4157/P15A3157/SGM4157/FSA3051/NLAS3257A/SN74LVC1G3157/TS3A5223/FSA2259UMX/NLAS5223/PI3A223/SGM5223/SGM3718/TS3USB221/NX3DV221/TS3USB30E/FSUSB30/NLAS7222/PI3USB10LP-A//FSUSB42UMX/FSUSB104/TS3A44159/NLAS3699/PI3A412/SGM3699/FSA2466/MAX4699/NLAS3899B/PI3A3899/SGM44599/ADG774/774A/794/G3204/FSAL200/FSAV330/430/ADG784/FST3253/3257PI3L110/P13V312/PI5L200SN74XX3257/STMAV340SGM5018/330ATMUX1574/TS3A5018/SGM44600/SGM44602/FSA2457/SGM44603/FUSB340/CBTL02043A/PI3USB302/PI3PCIE3212/FSA2567/SGM48752/SN74HC4052/SN74HC4851/TMUX1308/SGM48751
比如BCT4222C是一种高带宽，快速双刀双掷DPDT)模拟开关。它的宽带宽和低比特对位倾斜使它能够通过高速差分信号，具有良好的信号完整性。每个开关都是双向的，在输出端提供很少或不衰减高速信号。行业领先的优势包括传播延迟小于250ps，由于其低通道电阻和低V/O电容。其高通道I串扰抑制导致最小的噪声干扰
特点
Vcc Operating Range: 1.65V to 4.5V
Rail-to-Rail Signal Range
ON-Resistance Matching: 0.05 Q (TYP)
ON-Resistance Flatness: 0.08Q (TYP)
High Off lsolation: 57dB at 10MHz
54dB (10MHz) Crosstalk Rejection ReducesSignal Distortion
Break-Before-Make Switching
-3dB Bandwidth: 700MHz
Extended Industrial Temperature Range: -40°C to85°C
lmproved Direct Replacement for NLAS7222
Packaging (Pb-free & Green available)
应用
手机
平板
便携式仪器仪表
差分信号数据路由
USB20信号路由
