大功率肖特基二极管

01 FSV12100V肖特基二极管

一、前言

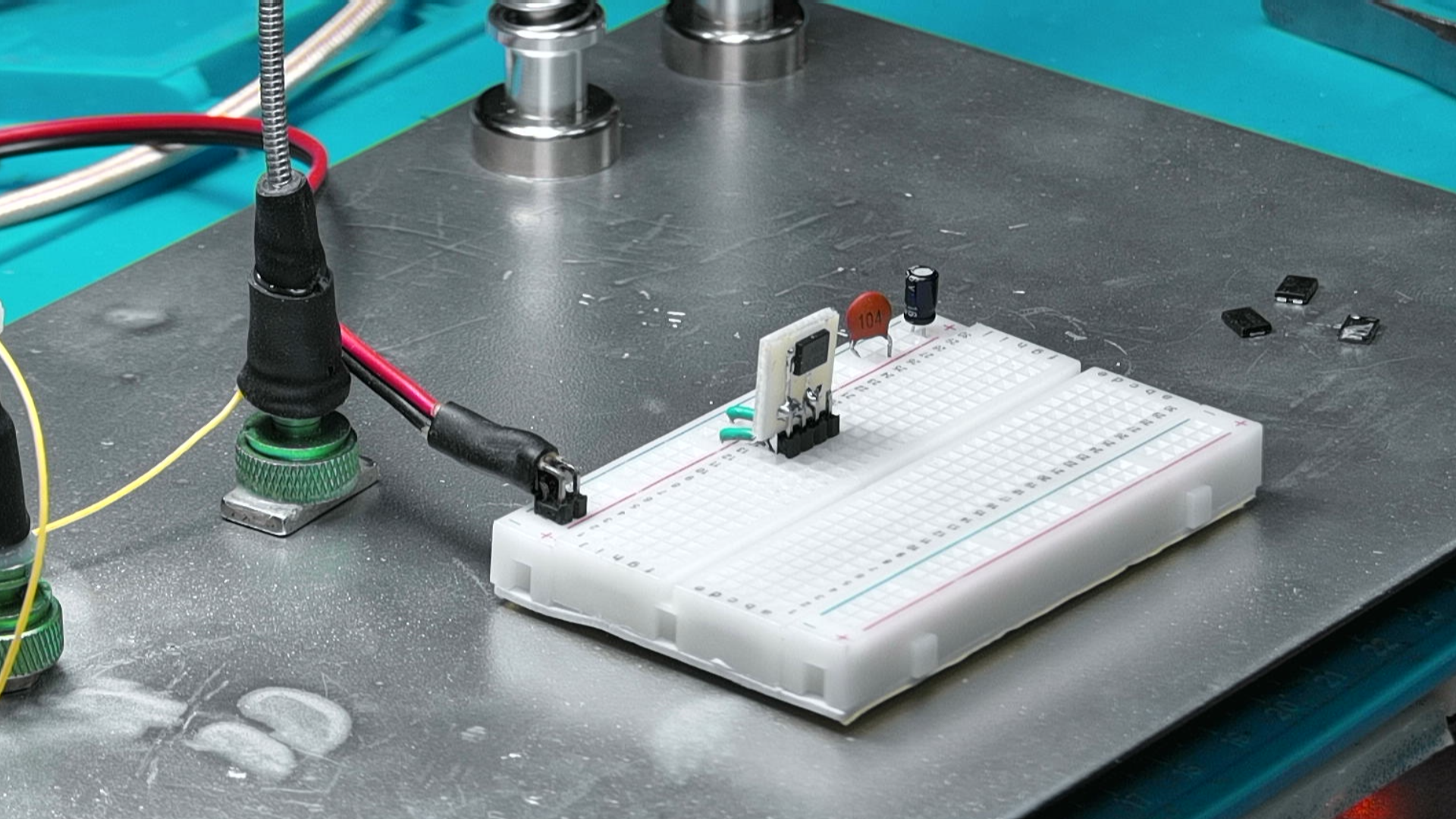

这是手边从就得电路板拆卸下来的几个大功率肖特基整流二极管。型号为 FSV12100V。二极管阳极有两颗管脚，阴极为散热焊盘。下面通过一个转接板连接到面包板上，测试一下它的基本特性。

G5M1728182693_1920_1080.MP4|_-5

二、测量结果

1、前向电压

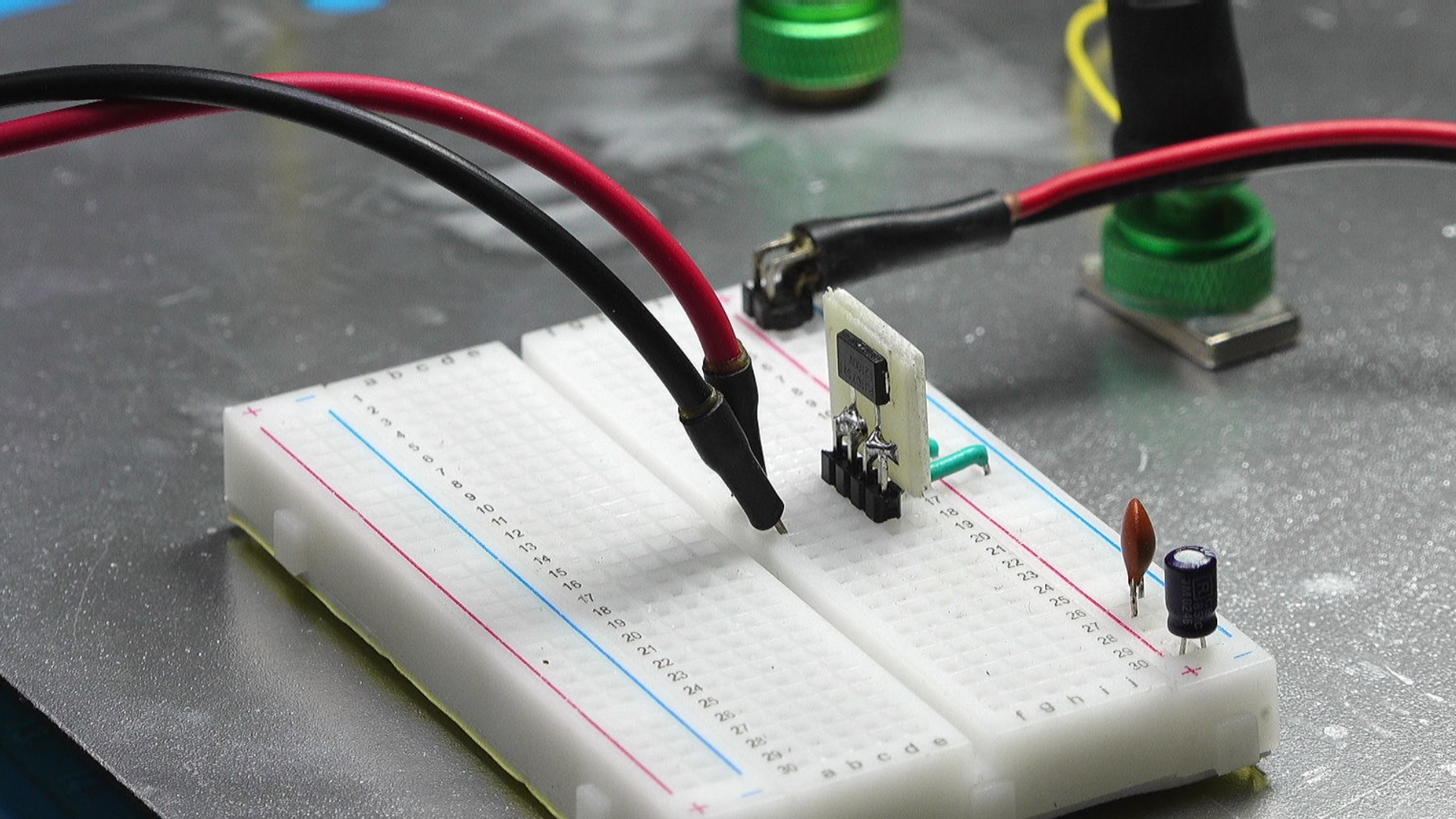

使用DH1766提供前向电流，利用DM3068测量 FSV12100V两端电压。电流从 0A 变化到 1A，测到二极管的电压变化曲线。相比与其它二极管。肖特基二极管的导通电压非常低。从测量数据来看，前向电流为 330mA的时候，电压也仅仅只有 0.2V。

G8M1728183739_1920_1080.MP4|_-8

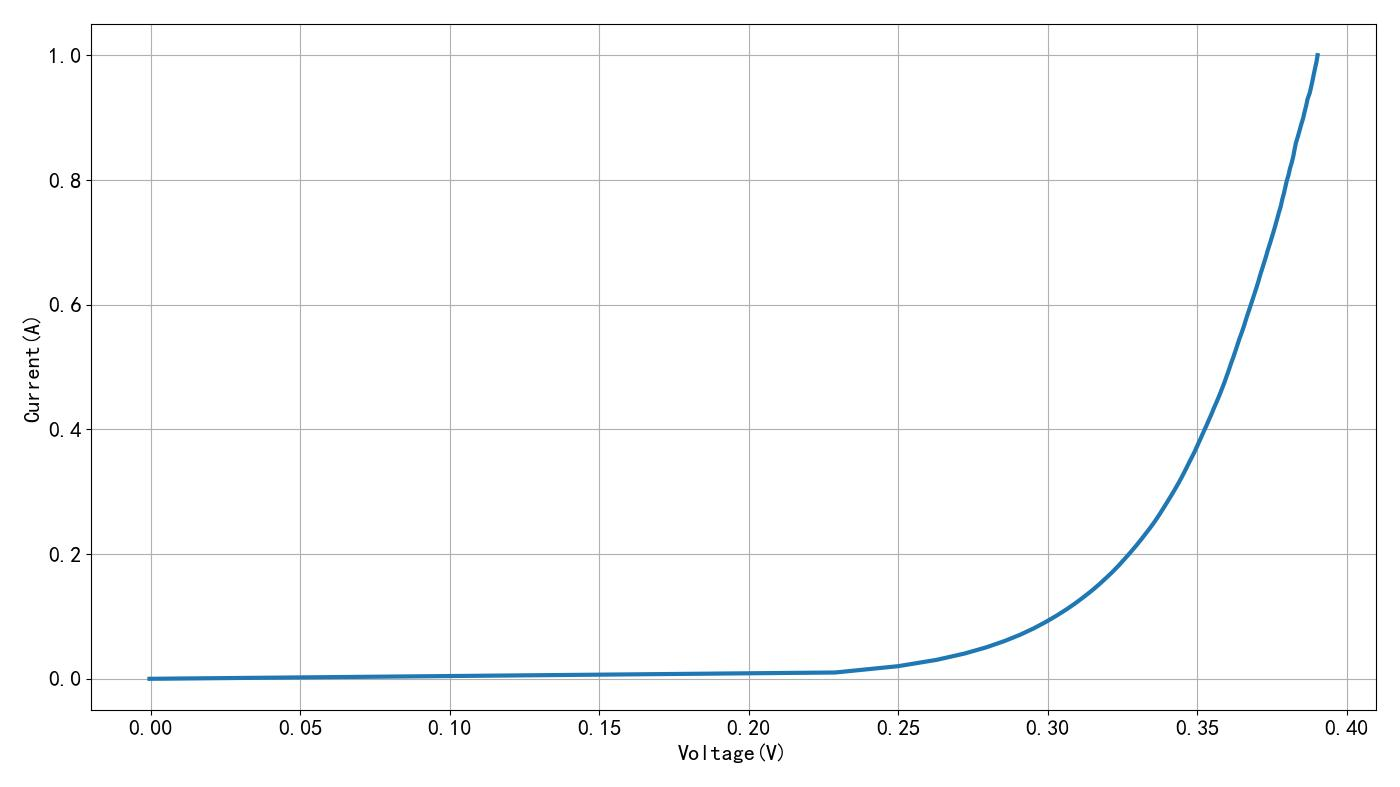

▲ 图1.2.1 FSV12100V 前向导通电压

▲ 图1.2.1 FSV12100V 前向导通电压

idim=[0.0000,0.0101,0.0202,0.0303,0.0404,0.0505,0.0606,0.0707,0.0808,0.0909,0.1010,0.1111,0.1212,0.1313,0.1414,0.1515,0.1616,0.1717,0.1818,0.1919,0.2020,0.2121,0.2222,0.2323,0.2424,0.2525,0.2626,0.2727,0.2828,0.2929,0.3030,0.3131,0.3232,0.3333,0.3434,0.3535,0.3636,0.3737,0.3838,0.3939,0.4040,0.4141,0.4242,0.4343,0.4444,0.4545,0.4646,0.4747,0.4848,0.4949,0.5051,0.5152,0.5253,0.5354,0.5455,0.5556,0.5657,0.5758,0.5859,0.5960,0.6061,0.6162,0.6263,0.6364,0.6465,0.6566,0.6667,0.6768,0.6869,0.6970,0.7071,0.7172,0.7273,0.7374,0.7475,0.7576,0.7677,0.7778,0.7879,0.7980,0.8081,0.8182,0.8283,0.8384,0.8485,0.8586,0.8687,0.8788,0.8889,0.8990,0.9091,0.9192,0.9293,0.9394,0.9495,0.9596,0.9697,0.9798,0.9899,1.0000]
vdim=[-0.0004,0.2290,0.2499,0.2628,0.2721,0.2795,0.2856,0.2908,0.2953,0.2993,0.3029,0.3062,0.3093,0.3121,0.3148,0.3172,0.3195,0.3217,0.3238,0.3257,0.3275,0.3293,0.3311,0.3327,0.3343,0.3358,0.3373,0.3386,0.3399,0.3412,0.3424,0.3437,0.3448,0.3459,0.3469,0.3480,0.3491,0.3500,0.3510,0.3519,0.3529,0.3538,0.3547,0.3556,0.3565,0.3574,0.3582,0.3591,0.3598,0.3606,0.3613,0.3620,0.3627,0.3634,0.3641,0.3649,0.3656,0.3663,0.3670,0.3677,0.3684,0.3691,0.3697,0.3704,0.3710,0.3717,0.3723,0.3730,0.3736,0.3743,0.3749,0.3755,0.3761,0.3767,0.3773,0.3779,0.3784,0.3790,0.3794,0.3799,0.3805,0.3810,0.3816,0.3822,0.3825,0.3830,0.3836,0.3842,0.3848,0.3854,0.3859,0.3864,0.3869,0.3876,0.3881,0.3886,0.3890,0.3894,0.3899,0.3903]

from headm import *
from tsmodule.tsvisa        import *

dm3068open()

idim = linspace(0, 1, 100)
vdim = []

for i in idim:
    dh1766currlimit1(i)
    time.sleep(1.5)
    v = dm3068vdc()
    vdim.append(v)
    tspsave("fv", idim=idim, vdim=vdim)

    printff(i, v)

dh1766currlimit1(0.5)
plt.plot(idim, vdim, lw=3)

plt.xlabel("Current(A)")
plt.ylabel("Voltage(V)")
plt.grid(True)
plt.tight_layout()
plt.show()

2、反向击穿电压

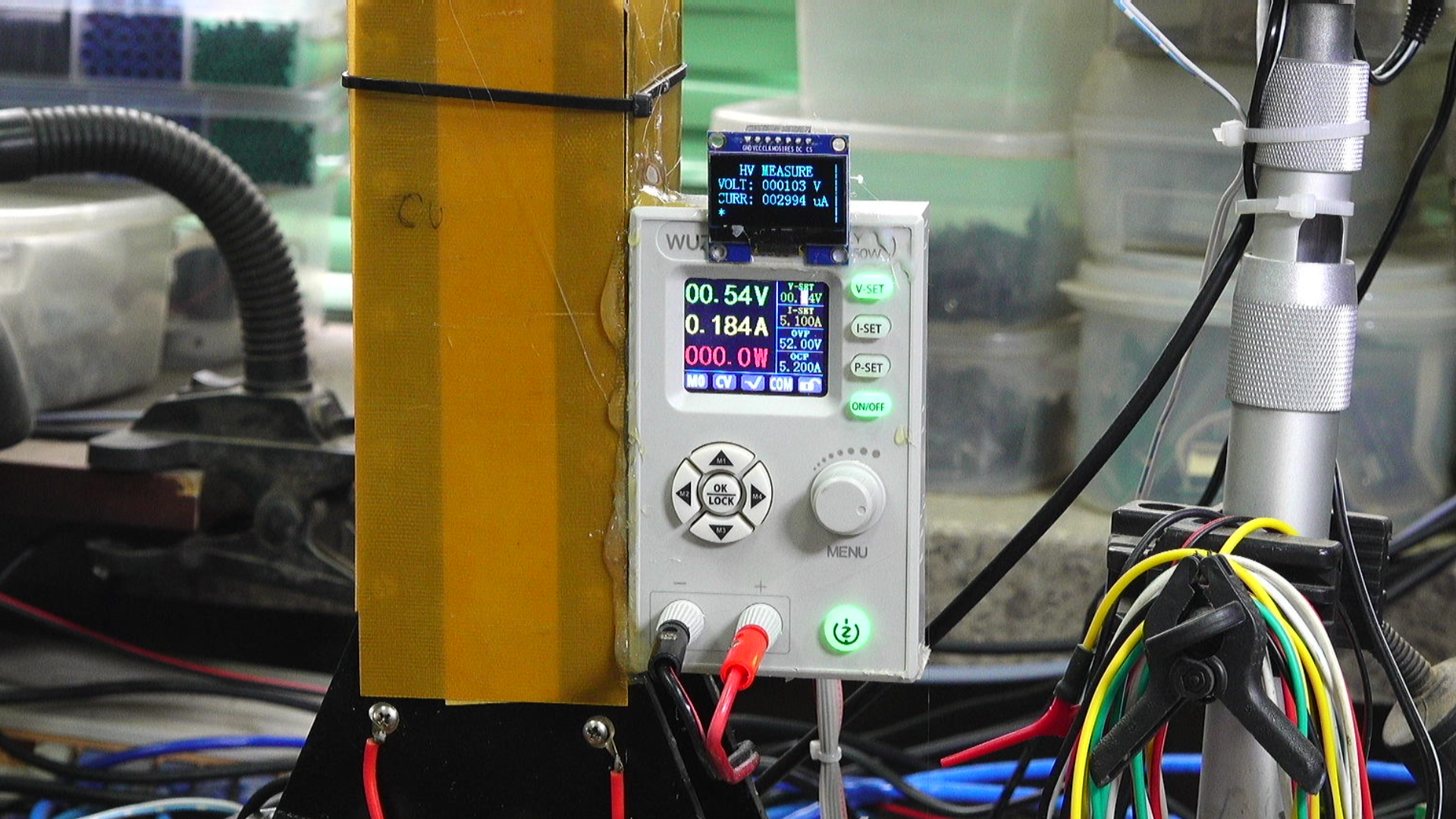

使用自制的高压发生器测量 FSV12100V的反向击穿电压。可以看到反向击穿电压大约为 103V。这与它的数据手册给出的数值是相符合的。由此也可看出，肖特基二极管的一个最大的缺点就是反向击穿电压比较低。

G3M1728184053_1920_1080.MP4|_-3

3、结电容

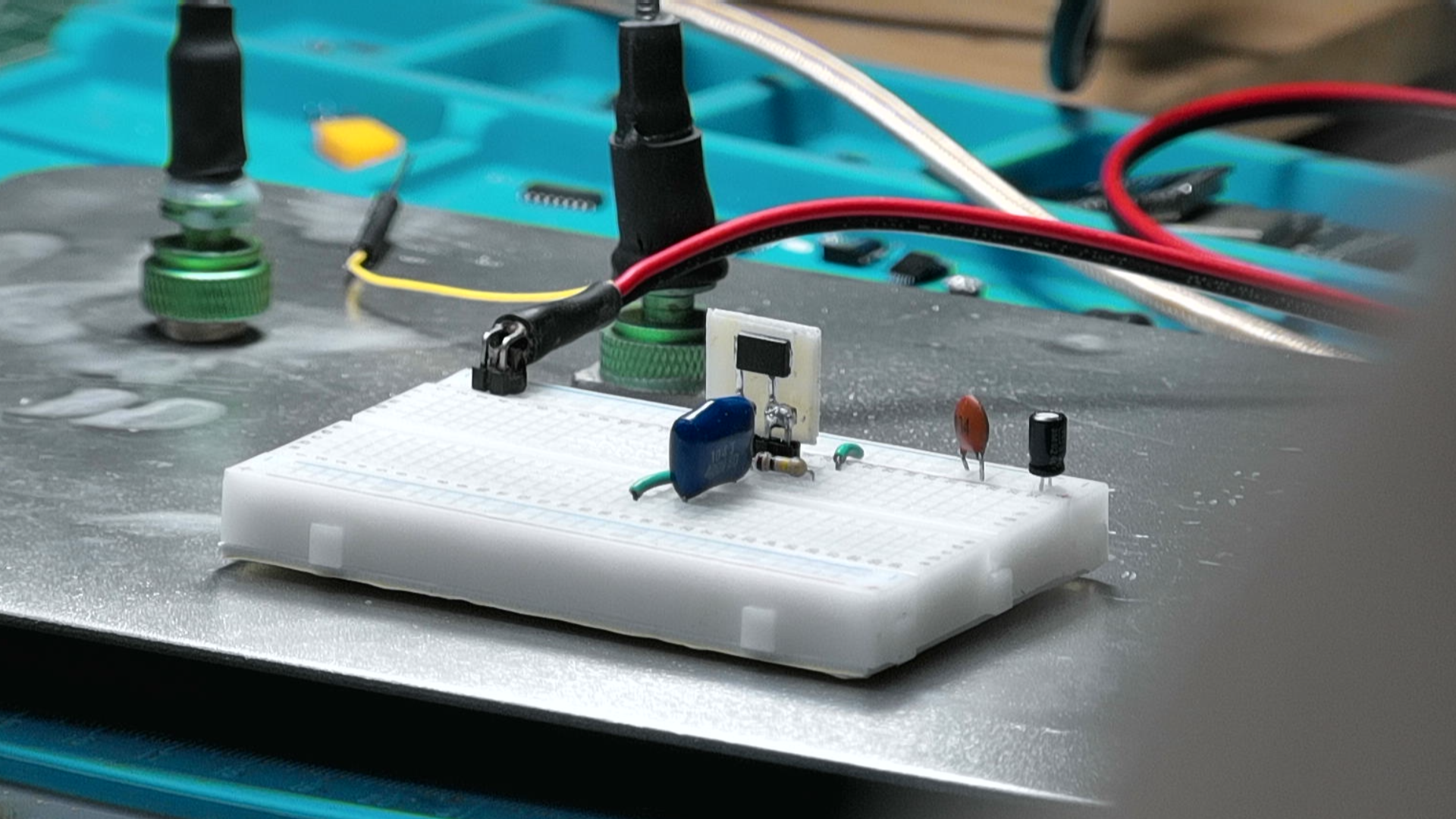

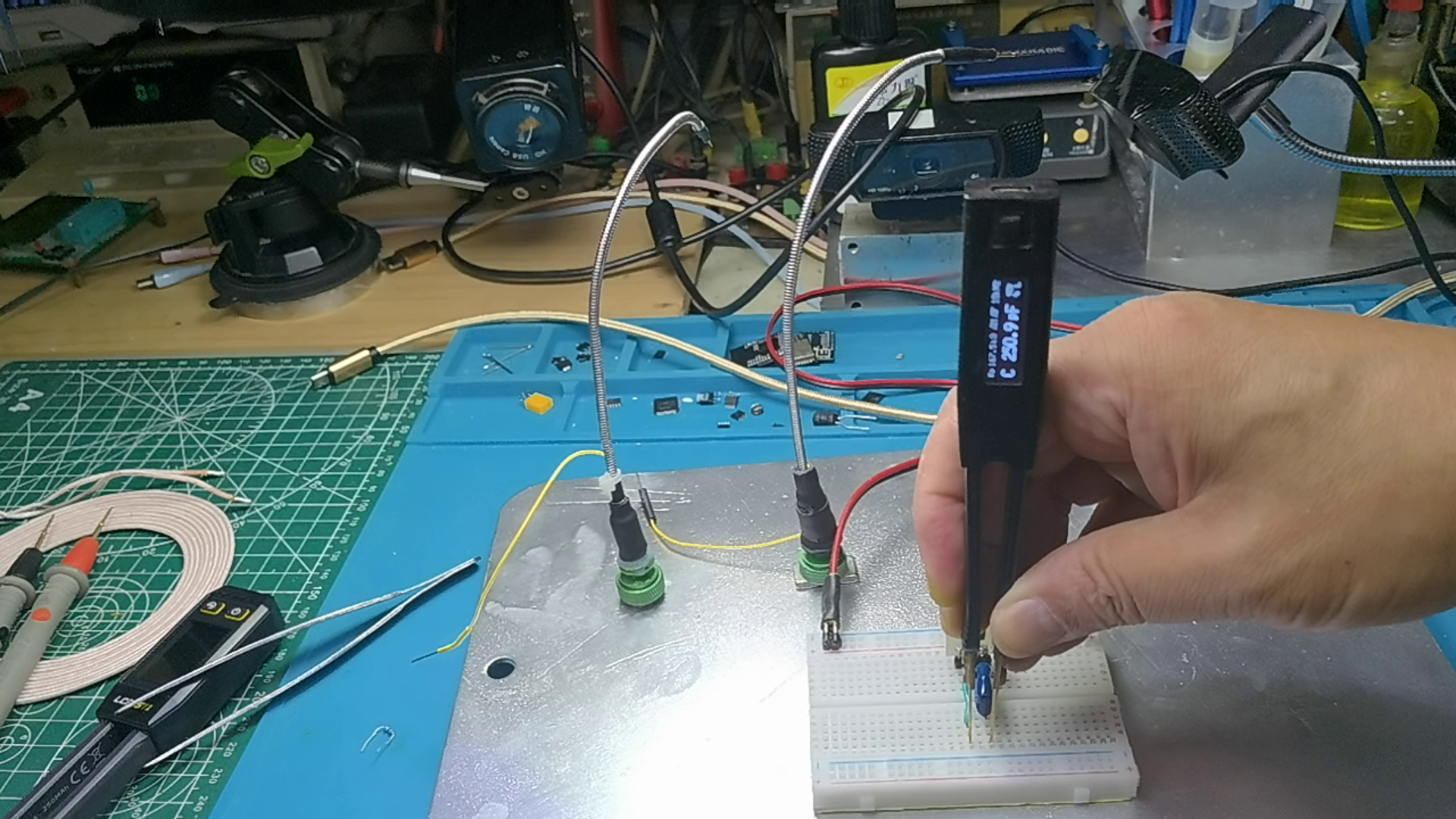

下面使用手持 LCR镊子测量一下肖特基二极管的结电容，通过一个 100k欧姆给肖特基施加反向偏置电压。然后通过一个隔直流的电容测量二极管两端电容。隔直电容为 0.1微法。在偏压为0V的时候，电容为 1.6nF左右。设置反向电压为 10V，测量电容为 0.4nF左右。升高反向偏置电压为 20V。电容继续降低到 0.25nF左右。
