如何用DS-5/elcipse打开现有的设计实例

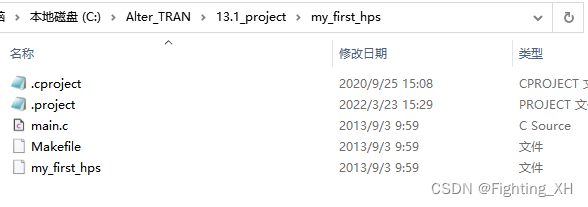

1、导入现有项目之前，需确保项目下.classpath和.project还在，不然无法导入，如下图，但是如果没有.project的话，可以自己建立一个，内容的填写如下：
.project内容: 注意第三行修改为自己的项目名字
<?xml version="1.0" encoding="UTF-8"?>
<projectDescription>
<name>**自己的项目名字（my_first_hps）**</name>
<comment></comment>
<projects>
</projects>
<buildSpec>
<buildCommand>
<name>org.eclipse.cdt.managedbuilder.core.genmakebuilder</name>
<triggers>clean,full,incremental,</triggers>
<arguments>
</arguments>
</buildCommand>
<buildCommand>
<name>org.eclipse.cdt.managedbuilder.core.ScannerConfigBuilder</name>
<triggers>full,incremental,</triggers>
<arguments>
</arguments>
</buildCommand>
</buildSpec>
<natures>
<nature>org.eclipse.cdt.core.cnature</nature>
<nature>org.eclipse.cdt.managedbuilder.core.managedBuildNature</nature>
<nature>org.eclipse.cdt.managedbuilder.core.ScannerConfigNature</nature>
</natures>
</projectDescription>
我的.cproject 如下：
<?xml version="1.0" encoding="UTF-8" standalone="no"?>
<?fileVersion 4.0.0?><cproject storage_type_id="org.eclipse.cdt.core.XmlProjectDescriptionStorage">
<storageModule moduleId="org.eclipse.cdt.core.settings">
<cconfiguration id="com.arm.eclipse.cdt.managedbuild.ds5.gcc.config.gnu.exe.debug.231222870">
<storageModule buildSystemId="org.eclipse.cdt.managedbuilder.core.configurationDataProvider" id="com.arm.eclipse.cdt.managedbuild.ds5.gcc.config.gnu.exe.debug.231222870" moduleId="org.eclipse.cdt.core.settings" name="Debug">
<externalSettings/>
<extensions>
<extension id="org.eclipse.cdt.core.ELF" point="org.eclipse.cdt.core.BinaryParser"/>
<extension id="org.eclipse.cdt.core.GASErrorParser" point="org.eclipse.cdt.core.ErrorParser"/>
<extension id="org.eclipse.cdt.core.GmakeErrorParser" point="org.eclipse.cdt.core.ErrorParser"/>
<extension id="org.eclipse.cdt.core.GLDErrorParser" point="org.eclipse.cdt.core.ErrorParser"/>
<extension id="org.eclipse.cdt.core.CWDLocator" point="org.eclipse.cdt.core.ErrorParser"/>
<extension id="org.eclipse.cdt.core.GCCErrorParser" point="org.eclipse.cdt.core.ErrorParser"/>
</extensions>
</storageModule>
<storageModule moduleId="cdtBuildSystem" version="4.0.0">
<configuration artifactName="${ProjName}" buildArtefactType="org.eclipse.cdt.build.core.buildArtefactType.exe" buildProperties="org.eclipse.cdt.build.core.buildArtefactType=org.eclipse.cdt.build.core.buildArtefactType.exe,org.eclipse.cdt.build.core.buildType=org.eclipse.cdt.build.core.buildType.debug" cleanCommand="clean" description="" id="com.arm.eclipse.cdt.managedbuild.ds5.gcc.config.gnu.exe.debug.231222870" name="Debug" parent="com.arm.eclipse.cdt.managedbuild.ds5.gcc.config.gnu.exe.debug">
<folderInfo id="com.arm.eclipse.cdt.managedbuild.ds5.gcc.config.gnu.exe.debug.231222870." name="/" resourcePath="">
<toolChain id="com.arm.eclipse.cdt.managedbuild.ds5.gcc.toolchain.exe.debug.2050650786" name="GCC 4.x [arm-linux-gnueabihf] (DS-5 built-in)" superClass="com.arm.eclipse.cdt.managedbuild.ds5.gcc.toolchain.exe.debug">
<targetPlatform id="com.arm.eclipse.cdt.managedbuild.ds5.gcc.target.platform.base.exe.debug.541669236" name="%target" superClass="com.arm.eclipse.cdt.managedbuild.ds5.gcc.target.platform.base.exe.debug"/>
<builder buildPath="${workspace_loc:/hello}/Debug" id="com.arm.eclipse.cdt.managedbuild.ds5.gcc.target.builder.exe.debug.43212220" keepEnvironmentInBuildfile="false" managedBuildOn="true" name="Gnu Make Builder" superClass="com.arm.eclipse.cdt.managedbuild.ds5.gcc.target.builder.exe.debug"/>
<tool id="com.arm.eclipse.cdt.managedbuild.ds5.gcc.tool.cpp.compiler.base.exe.debug.1382314548" name="GCC C++ Compiler 4 [arm-linux-gnueabihf]" superClass="com.arm.eclipse.cdt.managedbuild.ds5.gcc.tool.cpp.compiler.base.exe.debug">
<option id="gnu.cpp.compiler.option.optimization.level.1680743183" name="Optimization Level" superClass="gnu.cpp.compiler.option.optimization.level" value="gnu.cpp.compiler.optimization.level.none" valueType="enumerated"/>
<option defaultValue="gnu.cpp.compiler.debugging.level.default" id="com.arm.eclipse.cdt.managedbuild.ds5.gcc.tool.cpp.compiler.base.exe.debug.base.option.debugging.level.442549976" name="Debug Level" superClass="com.arm.eclipse.cdt.managedbuild.ds5.gcc.tool.cpp.compiler.base.exe.debug.base.option.debugging.level" valueType="enumerated"/>
</tool>
<tool id="com.arm.eclipse.cdt.managedbuild.ds5.gcc.tool.c.compiler.base.exe.debug.894571270" name="GCC C Compiler 4 [arm-linux-gnueabihf]" superClass="com.arm.eclipse.cdt.managedbuild.ds5.gcc.tool.c.compiler.base.exe.debug">
<option defaultValue="gnu.c.optimization.level.none" id="gnu.c.compiler.option.optimization.level.2039297822" name="Optimization Level" superClass="gnu.c.compiler.option.optimization.level" valueType="enumerated"/>
<option defaultValue="gnu.c.debugging.level.default" id="com.arm.eclipse.cdt.managedbuild.ds5.gcc.tool.c.compiler.base.exe.debug.base.option.debugging.level.826240459" name="Debug Level" superClass="com.arm.eclipse.cdt.managedbuild.ds5.gcc.tool.c.compiler.base.exe.debug.base.option.debugging.level" valueType="enumerated"/>
<option id="gnu.c.compiler.option.include.paths.1207547225" name="Include paths (-I)" superClass="gnu.c.compiler.option.include.paths" valueType="includePath">
<listOptionValue builtIn="false" value=""D:\intelFPGA\17.1\embedded\ip\altera\hps\altera_hps\hwlib\include\soc_cv_av""/>
<listOptionValue builtIn="false" value=""D:\intelFPGA\17.1\embedded\ip\altera\hps\altera_hps\hwlib\include""/>
</option>
<inputType id="com.arm.eclipse.cdt.managedbuild.ds5.gcc.tool.c.compiler.base.input.183988904" superClass="com.arm.eclipse.cdt.managedbuild.ds5.gcc.tool.c.compiler.base.input"/>
</tool>
<tool id="com.arm.eclipse.cdt.managedbuild.ds5.gcc.tool.assembler.base.exe.debug.721218954" name="GCC Assembler 4 [arm-linux-gnueabihf]" superClass="com.arm.eclipse.cdt.managedbuild.ds5.gcc.tool.assembler.base.exe.debug">
<option id="gnu.both.asm.option.include.paths.1832343113" name="Include paths (-I)" superClass="gnu.both.asm.option.include.paths" valueType="includePath">
<listOptionValue builtIn="false" value=""D:\intelFPGA\17.1\embedded\ip\altera\hps\altera_hps\hwlib\include\soc_cv_av""/>
<listOptionValue builtIn="false" value=""D:\intelFPGA\17.1\embedded\ip\altera\hps\altera_hps\hwlib\include""/>
</option>
<inputType id="cdt.managedbuild.tool.gnu.assembler.input.1643607160" superClass="cdt.managedbuild.tool.gnu.assembler.input"/>
<inputType id="com.arm.managedbuilder.gcc.inputType.1127548433" superClass="com.arm.managedbuilder.gcc.inputType"/>
</tool>
<tool id="com.arm.eclipse.cdt.managedbuild.ds5.gcc.tool.c.linker.base.exe.debug.745443388" name="GCC C Linker 4 [arm-linux-gnueabihf]" superClass="com.arm.eclipse.cdt.managedbuild.ds5.gcc.tool.c.linker.base.exe.debug">
<inputType id="cdt.managedbuild.tool.gnu.c.linker.input.1275161441" superClass="cdt.managedbuild.tool.gnu.c.linker.input">
<additionalInput kind="additionalinputdependency" paths="$(USER_OBJS)"/>
<additionalInput kind="additionalinput" paths="$(LIBS)"/>
</inputType>
</tool>
<tool id="com.arm.eclipse.cdt.managedbuild.ds5.gcc.tool.cpp.linker.base.exe.debug.1401802887" name="GCC C++ Linker 4 [arm-linux-gnueabihf]" superClass="com.arm.eclipse.cdt.managedbuild.ds5.gcc.tool.cpp.linker.base.exe.debug"/>
<tool id="com.arm.eclipse.cdt.managedbuild.ds5.gcc.tool.archiver.base.exe.debug.139756714" name="GCC Archiver 4 [arm-linux-gnueabihf]" superClass="com.arm.eclipse.cdt.managedbuild.ds5.gcc.tool.archiver.base.exe.debug"/>
</toolChain>
</folderInfo>
</configuration>
</storageModule>
<storageModule moduleId="org.eclipse.cdt.core.externalSettings"/>
</cconfiguration>
<cconfiguration id="com.arm.eclipse.cdt.managedbuild.ds5.gcc.config.gnu.exe.release.1329323942">
<storageModule buildSystemId="org.eclipse.cdt.managedbuilder.core.configurationDataProvider" id="com.arm.eclipse.cdt.managedbuild.ds5.gcc.config.gnu.exe.release.1329323942" moduleId="org.eclipse.cdt.core.settings" name="Release">
<externalSettings/>
<extensions>
<extension id="org.eclipse.cdt.core.ELF" point="org.eclipse.cdt.core.BinaryParser"/>
<extension id="org.eclipse.cdt.core.GASErrorParser" point="org.eclipse.cdt.core.ErrorParser"/>
<extension id="org.eclipse.cdt.core.GmakeErrorParser" point="org.eclipse.cdt.core.ErrorParser"/>
<extension id="org.eclipse.cdt.core.GLDErrorParser" point="org.eclipse.cdt.core.ErrorParser"/>
<extension id="org.eclipse.cdt.core.CWDLocator" point="org.eclipse.cdt.core.ErrorParser"/>
<extension id="org.eclipse.cdt.core.GCCErrorParser" point="org.eclipse.cdt.core.ErrorParser"/>
</extensions>
</storageModule>
<storageModule moduleId="cdtBuildSystem" version="4.0.0">
<configuration artifactName="${ProjName}" buildArtefactType="org.eclipse.cdt.build.core.buildArtefactType.exe" buildProperties="org.eclipse.cdt.build.core.buildArtefactType=org.eclipse.cdt.build.core.buildArtefactType.exe,org.eclipse.cdt.build.core.buildType=org.eclipse.cdt.build.core.buildType.release" cleanCommand="clean" description="" id="com.arm.eclipse.cdt.managedbuild.ds5.gcc.config.gnu.exe.release.1329323942" name="Release" parent="com.arm.eclipse.cdt.managedbuild.ds5.gcc.config.gnu.exe.release">
<folderInfo id="com.arm.eclipse.cdt.managedbuild.ds5.gcc.config.gnu.exe.release.1329323942." name="/" resourcePath="">
<toolChain id="com.arm.eclipse.cdt.managedbuild.ds5.gcc.toolchain.exe.release.1128690538" name="GCC 4.x [arm-linux-gnueabihf] (DS-5 built-in)" superClass="com.arm.eclipse.cdt.managedbuild.ds5.gcc.toolchain.exe.release">
<targetPlatform id="com.arm.eclipse.cdt.managedbuild.ds5.gcc.target.platform.base.exe.release.678421339" name="%target" superClass="com.arm.eclipse.cdt.managedbuild.ds5.gcc.target.platform.base.exe.release"/>
<builder buildPath="${workspace_loc:/hello}/Release" id="com.arm.eclipse.cdt.managedbuild.ds5.gcc.target.builder.exe.release.1444917189" keepEnvironmentInBuildfile="false" managedBuildOn="true" name="Gnu Make Builder" superClass="com.arm.eclipse.cdt.managedbuild.ds5.gcc.target.builder.exe.release"/>
<tool id="com.arm.eclipse.cdt.managedbuild.ds5.gcc.tool.cpp.compiler.base.exe.release.1853062232" name="GCC C++ Compiler 4 [arm-linux-gnueabihf]" superClass="com.arm.eclipse.cdt.managedbuild.ds5.gcc.tool.cpp.compiler.base.exe.release">
<option id="gnu.cpp.compiler.option.optimization.level.2026462061" name="Optimization Level" superClass="gnu.cpp.compiler.option.optimization.level" value="gnu.cpp.compiler.optimization.level.most" valueType="enumerated"/>
<option id="gnu.cpp.compiler.option.debugging.level.1962049485" name="Debug Level" superClass="gnu.cpp.compiler.option.debugging.level" value="gnu.cpp.compiler.debugging.level.none" valueType="enumerated"/>
</tool>
<tool id="com.arm.eclipse.cdt.managedbuild.ds5.gcc.tool.c.compiler.base.exe.release.1169712812" name="GCC C Compiler 4 [arm-linux-gnueabihf]" superClass="com.arm.eclipse.cdt.managedbuild.ds5.gcc.tool.c.compiler.base.exe.release">
<option defaultValue="gnu.c.optimization.level.most" id="gnu.c.compiler.option.optimization.level.1323608642" name="Optimization Level" superClass="gnu.c.compiler.option.optimization.level" valueType="enumerated"/>
<option id="gnu.c.compiler.option.debugging.level.63414857" name="Debug Level" superClass="gnu.c.compiler.option.debugging.level" value="gnu.c.debugging.level.none" valueType="enumerated"/>
<option id="gnu.c.compiler.option.include.paths.397804680" name="Include paths (-I)" superClass="gnu.c.compiler.option.include.paths" valueType="includePath">
<listOptionValue builtIn="false" value=""D:\intelFPGA\17.1\embedded\ip\altera\hps\altera_hps\hwlib\include""/>
<listOptionValue builtIn="false" value=""D:\intelFPGA\17.1\embedded\ip\altera\hps\altera_hps\hwlib\include\soc_cv_av""/>
</option>
<inputType id="com.arm.eclipse.cdt.managedbuild.ds5.gcc.tool.c.compiler.base.input.1411431679" superClass="com.arm.eclipse.cdt.managedbuild.ds5.gcc.tool.c.compiler.base.input"/>
</tool>
<tool id="com.arm.eclipse.cdt.managedbuild.ds5.gcc.tool.assembler.base.exe.release.922056298" name="GCC Assembler 4 [arm-linux-gnueabihf]" superClass="com.arm.eclipse.cdt.managedbuild.ds5.gcc.tool.assembler.base.exe.release">
<option id="gnu.both.asm.option.include.paths.821633082" name="Include paths (-I)" superClass="gnu.both.asm.option.include.paths" valueType="includePath">
<listOptionValue builtIn="false" value=""D:\intelFPGA\17.1\embedded\ip\altera\hps\altera_hps\hwlib\include""/>
<listOptionValue builtIn="false" value=""D:\intelFPGA\17.1\embedded\ip\altera\hps\altera_hps\hwlib\include\soc_cv_av""/>
</option>
<inputType id="cdt.managedbuild.tool.gnu.assembler.input.261816489" superClass="cdt.managedbuild.tool.gnu.assembler.input"/>
<inputType id="com.arm.managedbuilder.gcc.inputType.2098305789" superClass="com.arm.managedbuilder.gcc.inputType"/>
</tool>
<tool id="com.arm.eclipse.cdt.managedbuild.ds5.gcc.tool.c.linker.base.exe.release.1377957620" name="GCC C Linker 4 [arm-linux-gnueabihf]" superClass="com.arm.eclipse.cdt.managedbuild.ds5.gcc.tool.c.linker.base.exe.release">
<inputType id="cdt.managedbuild.tool.gnu.c.linker.input.1624529141" superClass="cdt.managedbuild.tool.gnu.c.linker.input">
<additionalInput kind="additionalinputdependency" paths="$(USER_OBJS)"/>
<additionalInput kind="additionalinput" paths="$(LIBS)"/>
</inputType>
</tool>
<tool id="com.arm.eclipse.cdt.managedbuild.ds5.gcc.tool.cpp.linker.base.exe.release.1122251343" name="GCC C++ Linker 4 [arm-linux-gnueabihf]" superClass="com.arm.eclipse.cdt.managedbuild.ds5.gcc.tool.cpp.linker.base.exe.release"/>
<tool id="com.arm.eclipse.cdt.managedbuild.ds5.gcc.tool.archiver.base.exe.release.1482545299" name="GCC Archiver 4 [arm-linux-gnueabihf]" superClass="com.arm.eclipse.cdt.managedbuild.ds5.gcc.tool.archiver.base.exe.release"/>
</toolChain>
</folderInfo>
</configuration>
</storageModule>
<storageModule moduleId="org.eclipse.cdt.core.externalSettings"/>
</cconfiguration>
</storageModule>
<storageModule moduleId="cdtBuildSystem" version="4.0.0">
<project id="hello.com.arm.eclipse.cdt.managedbuild.ds5.gcc.target.gnu.exe.28680618" name="Executable" projectType="com.arm.eclipse.cdt.managedbuild.ds5.gcc.target.gnu.exe"/>
</storageModule>
<storageModule moduleId="scannerConfiguration">
<autodiscovery enabled="true" problemReportingEnabled="true" selectedProfileId=""/>
<scannerConfigBuildInfo instanceId="com.arm.eclipse.cdt.managedbuild.ds5.gcc.config.gnu.exe.debug.231222870;com.arm.eclipse.cdt.managedbuild.ds5.gcc.config.gnu.exe.debug.231222870.;com.arm.eclipse.cdt.managedbuild.ds5.gcc.tool.c.compiler.base.exe.debug.894571270;com.arm.eclipse.cdt.managedbuild.ds5.gcc.tool.c.compiler.base.input.183988904">
<autodiscovery enabled="true" problemReportingEnabled="true" selectedProfileId="com.arm.managedbuilder.gcc.ARMGCCDiscoveryProfileC"/>
</scannerConfigBuildInfo>
<scannerConfigBuildInfo instanceId="com.arm.eclipse.cdt.managedbuild.ds5.gcc.config.gnu.exe.release.1329323942;com.arm.eclipse.cdt.managedbuild.ds5.gcc.config.gnu.exe.release.1329323942.;com.arm.eclipse.cdt.managedbuild.ds5.gcc.tool.c.compiler.base.exe.release.1169712812;com.arm.eclipse.cdt.managedbuild.ds5.gcc.tool.c.compiler.base.input.1411431679">
<autodiscovery enabled="true" problemReportingEnabled="true" selectedProfileId="com.arm.managedbuilder.gcc.ARMGCCDiscoveryProfileC"/>
</scannerConfigBuildInfo>
</storageModule>
<storageModule moduleId="org.eclipse.cdt.core.LanguageSettingsProviders"/>
<storageModule moduleId="com.arm.projectSettings" version="5.25"/>
<storageModule moduleId="refreshScope"/>
</cproject>
2、有了上面两个之后即可添加。

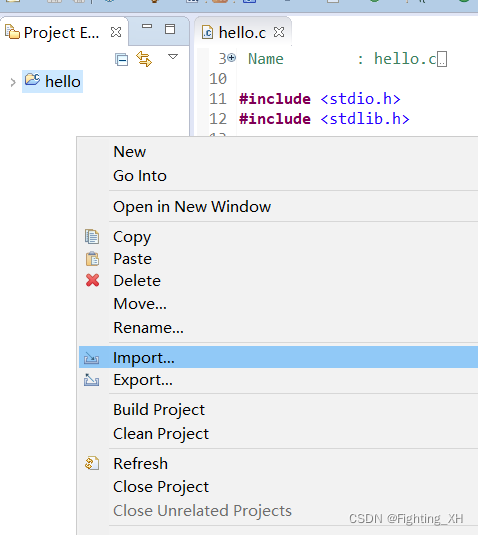

- 右键——import导入

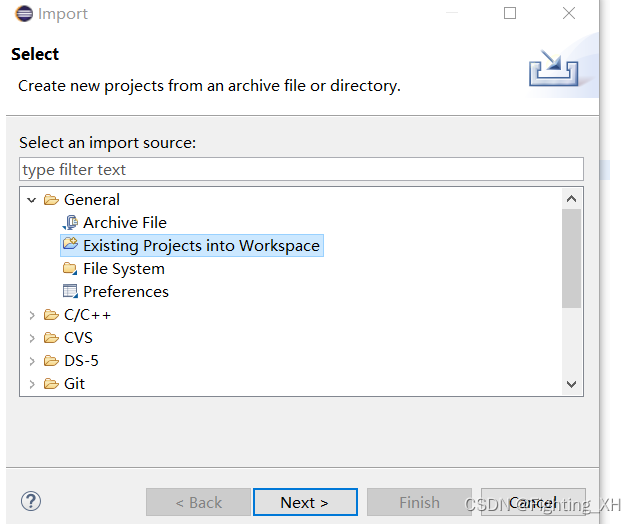

- 选中将已存在的项目添加到工作空间中来：

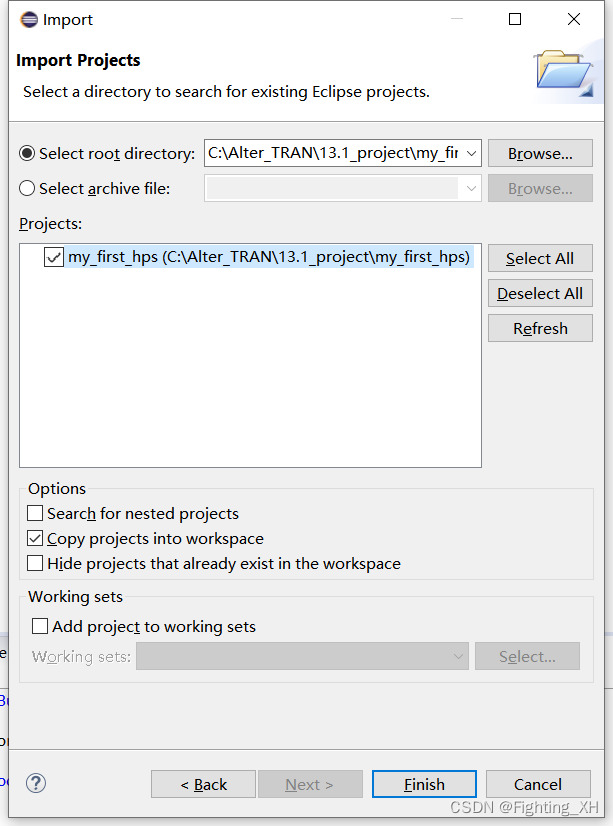

- 添加我们的项目路径（不要有中文路径），下面白色大框中即可找到该路径下所有已存在的文件，另外可勾选Copy projects，防止当前的项被覆盖掉

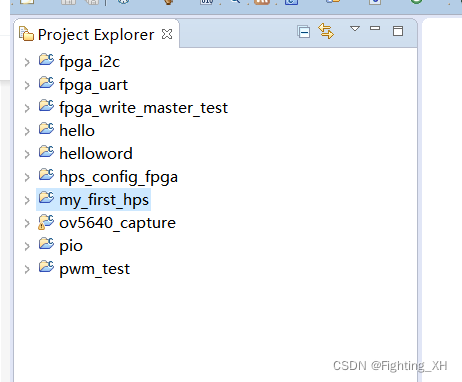

finish后，左侧项目中即出现我们添加的文件
