本文对比了10GBASE-T、10GBASE-R、10GBASE-X和10GBASE-W四种10G以太网标准的特点。10GBASE-T支持双绞线传输和64B/65B信号编码；10GBASE-R用于光纤传输，支持64B/66B信号编码；10GBASE-X兼容铜缆和光纤介质，采用8B/10B信号编码；10GBASE-W针对SONET光纤系统，同样支持64B/66B信号编码。

摘要生成于 C知道，由 DeepSeek-R1 满血版支持，前往体验 >

参考链接：
https://www.rfwireless-world.com/Terminology/10GBASE-T-vs-10GBASE-R-vs-10GBASE-X-vs-10GBASE-W.html

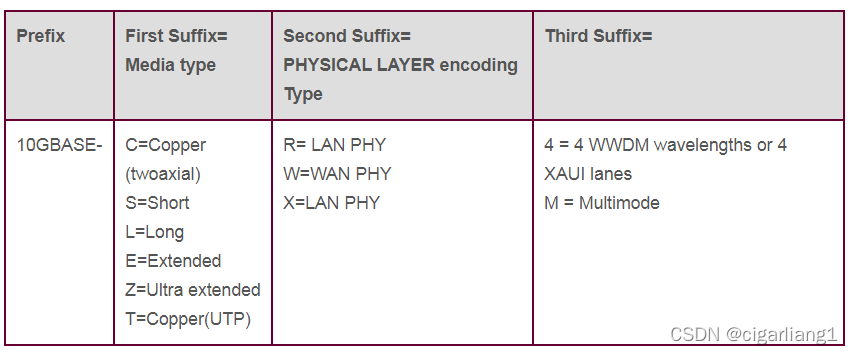

在这里插入图片描述
10GBASE-T
The version 10GBASE-T has following features.
• Supports 64B/65B signal encoding type
• supports transmission over twisted pair cabling
• Baseband 16 level PAM signalling, 3.125 information bits/symbol
• 128-DSQ plus LDPC(2048,1723), Tomlinson-Harashima precoder at Transmitter
• Full duplex echo cancelled transmission
• 800 Mbaud , less than 500 MHz bandwidth
• FEXT cancellation needed

10GBASE-R
The version 10GBASE-R has following features.
• Supports 64B/66B signal encoding
• Supports transmission over optical fiber medium
• 10GBASE-SR, 10GBASE-LR, 10GBASE-ER and 10GBASE-LRM configurations are available

10GBASE-X
The version 10GBASE-X has followi
