roLabelImg标注旋转目标数据集，经格式转换后用yolov8-obb训练

yoolov8的项目中集成了obb旋转目标检测，但是从数据标注到在项目里跑起来有一段比较曲折的路。

用roLabelImg标注旋转目标框可以参考文章旋转标注工具roLabelImg使用教程-CSDN博客，得到的label文件为xml格式，内容样式如下。

<annotation verified="no">
  <folder>images</folder>
  <filename>000000000006</filename>
  <path>C:\Ayjc\about_graduate\datasets\DC\DC_obb\images\000000000006.jpg</path>
  <source>
    <database>Unknown</database>
  </source>
  <size>
    <width>1440</width>
    <height>1920</height>
    <depth>3</depth>
  </size>
  <segmented>0</segmented>
  <object>
    <type>robndbox</type>
    <name>dan</name>
    <pose>Unspecified</pose>
    <truncated>0</truncated>
    <difficult>0</difficult>
    <robndbox>
      <cx>462.0606</cx>
      <cy>1000.1061</cy>
      <w>238.0</w>
      <h>751.0</h>
      <angle>2.694585</angle>
    </robndbox>
  </object>
</annotation>

label文件格式转换的逻辑是：先将格式转换为obb检测通用数据集DOTA数据集（类似COCO数据集在目标检测的地位）的xml格式，再转换为txt形式的DOTA数据集格式再通过yolov8中自带的转换脚本，将DOTA数据集格式转换为yolov8的txt格式。

1、利用这个脚本可以将数据集转换为DOTA数据集的xml格式和txt格式，并分别存入相应文件夹。

# 功能描述   ：把rolabelimg标注的xml文件转换成dota能识别的xml文件，
#             再转换成dota格式的txt文件
#            把旋转框 cx,cy,w,h,angle，或者矩形框cx,cy,w,h,转换成四点坐标x1,y1,x2,y2,x3,y3,x4,y4
import os
import xml.etree.ElementTree as ET
import math

cls_list = ['标注的类别']  # 修改为自己的标签


def edit_xml(xml_file, dotaxml_file):
    """
    修改xml文件
    :param xml_file:xml文件的路径
    :return:
    """

    # dxml_file = open(xml_file,encoding='gbk')
    # tree = ET.parse(dxml_file).getroot()

    tree = ET.parse(xml_file)
    objs = tree.findall('object')
    for ix, obj in enumerate(objs):
        x0 = ET.Element("x0")  # 创建节点
        y0 = ET.Element("y0")
        x1 = ET.Element("x1")
        y1 = ET.Element("y1")
        x2 = ET.Element("x2")
        y2 = ET.Element("y2")
        x3 = ET.Element("x3")
        y3 = ET.Element("y3")
        # obj_type = obj.find('bndbox')
        # type = obj_type.text
        # print(xml_file)

        if (obj.find('robndbox') == None):
            obj_bnd = obj.find('bndbox')
            obj_xmin = obj_bnd.find('xmin')
            obj_ymin = obj_bnd.find('ymin')
            obj_xmax = obj_bnd.find('xmax')
            obj_ymax = obj_bnd.find('ymax')
            # 以防有负值坐标
            xmin = max(float(obj_xmin.text), 0)
            ymin = max(float(obj_ymin.text), 0)
            xmax = max(float(obj_xmax.text), 0)
            ymax = max(float(obj_ymax.text), 0)
            obj_bnd.remove(obj_xmin)  # 删除节点
            obj_bnd.remove(obj_ymin)
            obj_bnd.remove(obj_xmax)
            obj_bnd.remove(obj_ymax)
            x0.text = str(xmin)
            y0.text = str(ymax)
            x1.text = str(xmax)
            y1.text = str(ymax)
            x2.text = str(xmax)
            y2.text = str(ymin)
            x3.text = str(xmin)
            y3.text = str(ymin)
        else:
            obj_bnd = obj.find('robndbox')
            obj_bnd.tag = 'bndbox'  # 修改节点名
            obj_cx = obj_bnd.find('cx')
            obj_cy = obj_bnd.find('cy')
            obj_w = obj_bnd.find('w')
            obj_h = obj_bnd.find('h')
            obj_angle = obj_bnd.find('angle')
            cx = float(obj_cx.text)
            cy = float(obj_cy.text)
            w = float(obj_w.text)
            h = float(obj_h.text)
            angle = float(obj_angle.text)
            obj_bnd.remove(obj_cx)  # 删除节点
            obj_bnd.remove(obj_cy)
            obj_bnd.remove(obj_w)
            obj_bnd.remove(obj_h)
            obj_bnd.remove(obj_angle)

            x0.text, y0.text = rotatePoint(cx, cy, cx - w / 2, cy - h / 2, -angle)
            x1.text, y1.text = rotatePoint(cx, cy, cx + w / 2, cy - h / 2, -angle)
            x2.text, y2.text = rotatePoint(cx, cy, cx + w / 2, cy + h / 2, -angle)
            x3.text, y3.text = rotatePoint(cx, cy, cx - w / 2, cy + h / 2, -angle)

        # obj.remove(obj_type)  # 删除节点
        obj_bnd.append(x0)  # 新增节点
        obj_bnd.append(y0)
        obj_bnd.append(x1)
        obj_bnd.append(y1)
        obj_bnd.append(x2)
        obj_bnd.append(y2)
        obj_bnd.append(x3)
        obj_bnd.append(y3)

        tree.write(dotaxml_file, method='xml', encoding='utf-8')  # 更新xml文件


# 转换成四点坐标
def rotatePoint(xc, yc, xp, yp, theta):
    xoff = xp - xc;
    yoff = yp - yc;
    cosTheta = math.cos(theta)
    sinTheta = math.sin(theta)
    pResx = cosTheta * xoff + sinTheta * yoff
    pResy = - sinTheta * xoff + cosTheta * yoff
    return str(int(xc + pResx)), str(int(yc + pResy))


def totxt(xml_path, out_path):
    # 想要生成的txt文件保存的路径，这里可以自己修改

    files = os.listdir(xml_path)
    i = 0
    for file in files:

        tree = ET.parse(xml_path + os.sep + file)
        root = tree.getroot()

        name = file.split('.')[0]

        output = out_path + '\\' + name + '.txt'
        file = open(output, 'w')
        i = i + 1
        objs = tree.findall('object')
        for obj in objs:
            cls = obj.find('name').text
            box = obj.find('bndbox')
            x0 = int(float(box.find('x0').text))
            y0 = int(float(box.find('y0').text))
            x1 = int(float(box.find('x1').text))
            y1 = int(float(box.find('y1').text))
            x2 = int(float(box.find('x2').text))
            y2 = int(float(box.find('y2').text))
            x3 = int(float(box.find('x3').text))
            y3 = int(float(box.find('y3').text))
            if x0 < 0:
                x0 = 0
            if x1 < 0:
                x1 = 0
            if x2 < 0:
                x2 = 0
            if x3 < 0:
                x3 = 0
            if y0 < 0:
                y0 = 0
            if y1 < 0:
                y1 = 0
            if y2 < 0:
                y2 = 0
            if y3 < 0:
                y3 = 0
            for cls_index, cls_name in enumerate(cls_list):
                if cls == cls_name:
                    file.write("{} {} {} {} {} {} {} {} {} {}\n".format(x0, y0, x1, y1, x2, y2, x3, y3, cls, cls_index))
        file.close()
        # print(output)
        print(i)


if __name__ == '__main__':
    # -----**** 第一步：把xml文件统一转换成旋转框的xml文件 ****-----
    roxml_path = r'C:/Ayjc/about_graduate/datasets/DC/DC_obb/labels_xml' # 存放roLabelImg标注的原文件的文件夹
    dotaxml_path = r'C:/Ayjc/about_graduate/datasets/DC/DC_obb/labels_xml' # 存放转换后DOTA数据集xml格式文件的文件夹
    out_path = r'C:/Ayjc/about_graduate/datasets/DC/DC_obb/dotatxt' # 存放转换后DOTA数据集txt格式文件的文件夹
    filelist = os.listdir(roxml_path)

    for file in filelist:
        edit_xml(os.path.join(roxml_path, file), os.path.join(dotaxml_path, file))

    # -----**** 第二步：把旋转框xml文件转换成txt格式 ****-----
    totxt(dotaxml_path, out_path)

得到的DOTA数据集xml格式的文件内容形式如下。

<annotation verified="no">
  <folder>DC_obb</folder>
  <filename>000000000006</filename>
  <path>C:\Ayjc\about_graduate\datasets\DC\DC_obb\000000000006.jpg</path>
  <source>
    <database>Unknown</database>
  </source>
  <size>
    <width>1440</width>
    <height>1920</height>
    <depth>3</depth>
  </size>
  <segmented>0</segmented>
  <object>
    <type>robndbox</type>
    <name>dancang</name>
    <pose>Unspecified</pose>
    <truncated>0</truncated>
    <difficult>0</difficult>
    <bndbox>
      <x0>88</x0><y0>595</y0><x1>1171</x1><y1>739</y1><x2>1143</x2><y2>951</y2><x3>60</x3><y3>807</y3></bndbox>
  </object>
</annotation>

得到的DOTA数据集txt格式的文件内容形式如下。

88 595 1171 739 1143 951 60 807 dancang 9

2、调用yolov8自带的数据集格式转换脚本（路径为项目文件夹下ultralytics/data/converter.py），在调用前需要对脚本做一些改动。

        ①在350行左右将数据集的类别改为自己的。

# Class names to indices mapping
    '''
    class_mapping = {
        "plane": 0,
        "ship": 1,
        "storage-tank": 2,
        "baseball-diamond": 3,
        "tennis-court": 4,
        "basketball-court": 5,
        "ground-track-field": 6,
        "harbor": 7,
        "bridge": 8,
        "large-vehicle": 9,
        "small-vehicle": 10,
        "helicopter": 11,
        "roundabout": 12,
        "soccer-ball-field": 13,
        "swimming-pool": 14,
        "container-crane": 15,
        "airport": 16,
        "helipad": 17,
    }
    '''
    class_mapping = {
        "自己的类别": 对应的序号
        }

        ②在410行左右，将图片格式改为自己数据集中的图片格式（我的是jpg格式）。

for image_path in TQDM(image_paths, desc=f"Processing {phase} images"):
    if image_path.suffix != ".jpg":
        continue
    image_name_without_ext = image_path.stem
    img = cv2.imread(str(image_path))
    h, w = img.shape[:2]
    convert_label(image_name_without_ext, w, h, orig_label_dir, save_dir)

3、在存放DOTA txt格式标签文件的文件夹中，将转换好的标签文件分为train_original和val_original两个文件夹，放入对应的标签。运行一下代码调用脚本。需要注意把当前环境的ultralytics包卸载，否则会调用到site-packages中的脚本导致改动失效，并且这个脚本需要放在ultralytics的同级目录下。

import sys

sys.path.append('/ultralytics-main/ultralytics')
from ultralytics.data.converter import convert_dota_to_yolo_obb
convert_dota_to_yolo_obb('path/to/dotatxt') # DOTA txt格式标签文件存放路径

运行之后，在DOTA txt格式标签文件的文件夹中会产生train和val两个文件夹，里面存放了转换好的yolov8格式标签文件，形式如下。

9 0.0611111 0.309896 0.813194 0.384896 0.79375 0.495312 0.0416667 0.420312

至此，数据集就可以放入yolov8-obb训练了，新建yolov8-obb_1.yaml。

# dataset path
path: path/to/dataset
train: ./dataset/images/train
val: ./dataset/images/val
test: ./dataset/images/test

# number of classes
nc: x

# class names
names: ['自己的类别']

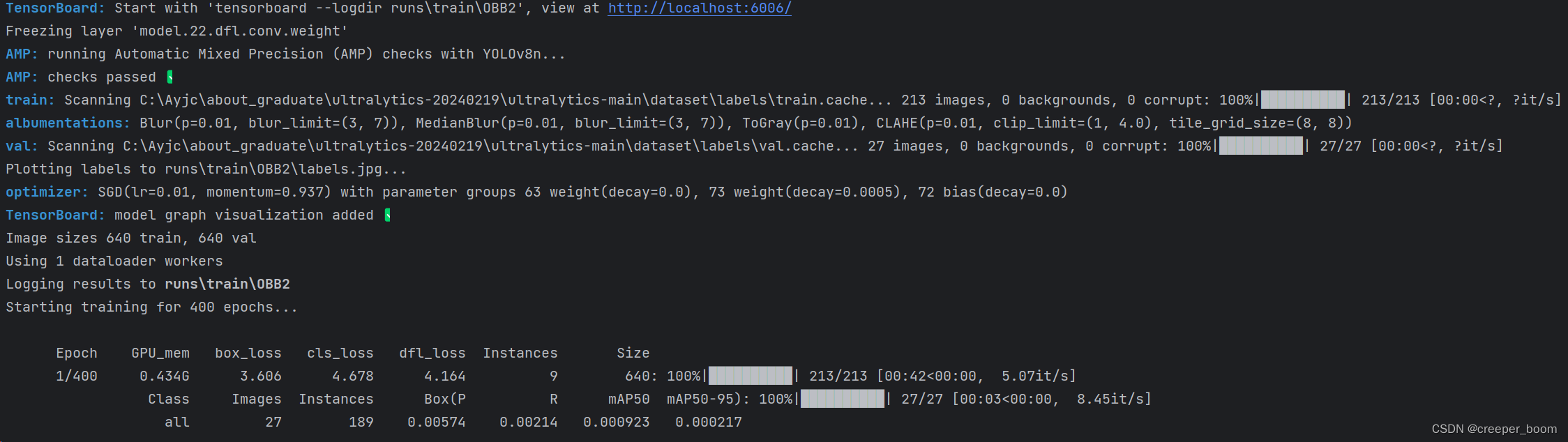

运行train.py开始训练。

import warnings
warnings.filterwarnings('ignore')
from ultralytics import YOLO

if __name__ == '__main__':
    model = YOLO('ultralytics-main/ultralytics/cfg/models/v8/yolov8-obb.yaml')
    # model.load('yolov8n.pt') # loading pretrain weights
    model.train(data='/ultralytics-main/dataset/data-OBB-DC.yaml',
                cache=False,
                imgsz=640,
                epochs=400,
                batch=1,
                close_mosaic=10,
                workers=1,
                device='0',
                optimizer='SGD', # using SGD
                # resume='', # last.pt path
                # amp=False, # close amp
                # fraction=0.2,
                project='runs/train',
                name='OBB',
                )

成功。
