前言：
本文主要介绍了集成电路EDA这门课程的相关实验及代码。使用的软件是Quartus Ⅱ，该实验使用fpga芯片为cyclone IV EP4CE115F29C7。
需要注意,使用的FPGA板子为DE2-115,该实验板中数码管显示模块使用的是直接控制,即每个引脚控制一个数码管的一根线,使用了74系列芯片的板子需要自己更改数码管显示模块或者直接丢弃该模块也行。
1.实验要求
本次实验我们需要实现生活中常见的电子手表的所有功能。
我们知道:
电子手表有五个功能,包括:时间显示功能,夜光模式功能,计时功能,闹钟功能,调时功能,
各功能实际效果介绍:
- 时间显示功能：正常状态下,时间正常显示时分秒
- 调光功能：按下1键也就是light键表灯亮度会逐渐改变
- 记时功能：按下2键也就是mooe键一次进入计时功能，这时按下3键也就是start键开始计时，再次按下时间停止，再次则继续，按下4键也就是reset键即记时归零。
- 闹钟调整及实现功能：按下2键两次进入闹钟功能，这时按下3键调整当前闪烁区域，按下4键更换区域。
- 时间调整功能：按下2键三次进入时间调整功能，这时按下三键调整当前闪烁区域，按下4键更换区域。
2.实现过程
本次实验为了代码优美易于修正,整体上使用模块化设计实现多功能数字钟。
其中使用一个按钮开关调节模式mode:
- 0.时间显示功能
- 1.记时功能
- 2.闹钟调整功能
- 3.时间调整功能
详细使用FPGA资源如下:
- 拨动开关SW[0] —用于系统复位即顶层模块中的sys_rst_n,低电平有效
- 4个按钮开关KEY3—KEY0,其中
KEY3-light实现调光功能,
KEY2-mooe调整当前模式
KEY1-start调整数据/计时启动
KEY0-rst调整数据位置/计时复位- LED[17]-[14]用于显示当前mode,17亮则为mode0,16亮-mode1…
- LED[0]闪烁用于模拟闹钟报警
- 数码管0-1显示秒,3-4显示分,6-7显示时,2和5显示’-'将时分秒间隔开来

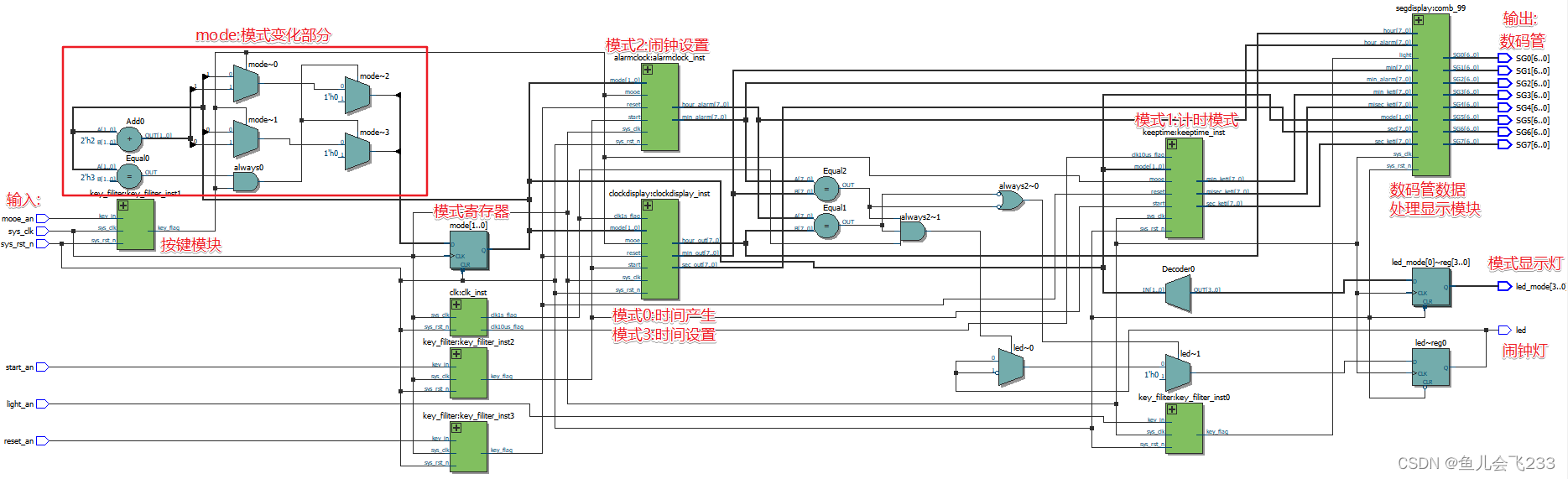

多功能数字钟的整体RTL视图
下面我将详细介绍各个模块及原理:
2.1 顶层模块clock
统筹整个实验的整体,其中mode改变,led模式显示,闹钟报警功能在此模块实现,其余都是调用模块部分
/*
mode (按下mooe按键+1)
0 显示
小时：0-23
分钟：0-59
秒：0-59
1 计时
分钟:秒:99
start-->开始计时(1)-->暂停计时(0)-->开始计时...
reset-归零
2 闹钟设置
start--加1(默认分钟)
reset--切换小时/分钟设置 默认分钟-->小时-->分钟
小时：0-23
分钟：0-59
3 时间设置
start--
秒(默认)-->归0
分钟/小时-->+1
reset-->
秒-->分钟-->小时
*/
module clock
(
input wire sys_clk , //系统时钟50MHZ
input wire sys_rst_n , //复位
input wire light_an , //控制亮度
input wire mooe_an , //功能按键
input wire start_an , //调整数值按键
input wire reset_an , //切换区域按键
output reg led , //做闹钟用 LEDR0 闪烁
output reg [3:0] led_mode , //显示当前模式 LEDR17-LEDR14
output wire [6:0] SG0,SG1,SG2,SG3,SG4,SG5,SG6,SG7 //数码管的值 7-6,4-3,1-0显示数字 5,2显示:
);
reg [1:0] mode;//模式, mooe按键控制
wire light,mooe,start,reset; //按键脉冲,高电平有效
wire clk1s_flag,clk10ms_flag; //时钟标志位
wire [7:0] sec,min,hour; //时钟变量寄存
wire [7:0] min_keti,sec_keti,misec_keti;//计时变量寄存
wire [7:0] min_alarm,hour_alarm ; //闹钟变量寄存
//1s,10ms时钟产生模块
clk clk_inst
(
.sys_clk (sys_clk ) , //系统时钟50MHZ
.sys_rst_n (sys_rst_n ) , //复位
.clk1s_flag (clk1s_flag ) , //1s时钟脉冲标志位
.clk10ms_flag (clk10ms_flag ) //10ms时钟脉冲标志位
);
//mode改变
always @(posedge sys_clk or negedge sys_rst_n)
if(!sys_rst_n)
mode <= 2'd0;
else if(mooe && (mode == 2'd3))
mode <= 2'd0;
else if(mooe)
mode <= mode + 1'd1;
else
mode <= mode;
//led_mode-显示当前模式
always @(posedge sys_clk or negedge sys_rst_n)
if(!sys_rst_n)
led_mode <= 4'b0000;
else
case(mode)
0:led_mode <= 4'b1000;
1:led_mode <= 4'b0100;
2:led_mode <= 4'b0010;
3:led_mode <= 4'b0001;
default: led_mode <= 4'b1000;
endcase
//0.显示功能+ 3.时间设置
clockdisplay clockdisplay_inst
(
.sys_clk (sys_clk ) , //系统时钟50MHZ
.sys_rst_n (sys_rst_n ) , //复位
.mode (mode ) , //模式-相当于使能
.clk1s_flag(clk1s_flag ) , //1s脉冲
.mooe (mooe ) , //调整功能按键
.start (start ) , //开始暂停计数
.reset (reset ) , //置0
.sec_out (sec ) , //显示-秒
.min_out (min ) , //显示-分钟
.hour_out (hour ) //显示-小时
);
//1.计数功能
keeptime keeptime_inst
(
.sys_clk (sys_clk ) , //系统时钟50MHZ
.sys_rst_n (sys_rst_n ) , //复位
.mode (mode ) , //模式-相当于使能
.clk10ms_flag (clk10ms_flag ) , //10ms脉冲
.mooe (mooe ) , //调整功能按键
.start (start ) , //开始暂停计数
.reset (reset ) , //置0
.min_keti (min_keti ) , //计时-分钟
.sec_keti (sec_keti ) , //计时-秒
.misec_keti (misec_keti ) //计时-10ms
);
//2.闹钟调整
alarmclock alarmclock_inst
(
.sys_clk (sys_clk ) , //系统时钟50MHZ
.sys_rst_n (sys_rst_n ) , //复位
.mode (mode ) , //模式-相当于使能
.mooe (mooe ) , //调整功能按键
.start (start ) , //开始暂停计数
.reset (reset ) , //置0
.min_alarm (min_alarm ) , //闹钟-分钟
.hour_alarm(hour_alarm) //闹钟-小时
);
//闹钟报警-1分钟灯闪烁
always @(posedge sys_clk or negedge sys_rst_n)
if(!sys_rst_n)
led <= 1'b0;
else if(min != min_alarm || hour != hour_alarm)
led <= 1'b0;
else if((hour == hour_alarm) && (min == min_alarm) && clk1s_flag)
led <= ~led;
//数码管显示模块
segdisplay segdisplay_inst
(
.sys_clk (sys_clk ) , //系统时钟50MHZ
.sys_rst_n (sys_rst_n ) , //复位
.mode (mode ) , //模式-相当于使能
.light (light ) , //控制显示亮度
//时钟变量
.sec (sec ) ,
.min (min ) ,
.hour (hour ) ,
//计时变量
.min_keti (min_keti ) ,
.sec_keti (sec_keti ) ,
.misec_keti(misec_keti) ,
//闹钟变量
.min_alarm (min_alarm ) ,
.hour_alarm(hour_alarm) ,
//数码管的值 7-6,4-3,1-0显示数字 5,2显示:
.SG0 (SG0) ,
.SG1 (SG1) ,
.SG2 (SG2) ,
.SG3 (SG3) ,
.SG4 (SG4) ,
.SG5 (SG5) ,
.SG6 (SG6) ,
.SG7 (SG7)
);
//按键滤波器,按下按键产生一个高脉冲
key_filiter key_filiter_inst0
(
.sys_clk (sys_clk ) ,
.sys_rst_n(sys_rst_n) ,
.key_in (light_an) ,
.key_flag (light)
);
key_filiter key_filiter_inst1
(
.sys_clk (sys_clk ) ,
.sys_rst_n(sys_rst_n) ,
.key_in (mooe_an) ,
.key_flag (mooe)
);
key_filiter key_filiter_inst2
(
.sys_clk (sys_clk ) ,
.sys_rst_n(sys_rst_n) ,
.key_in (start_an) ,
.key_flag (start)
);
key_filiter key_filiter_inst3
(
.sys_clk (sys_clk ) ,
.sys_rst_n(sys_rst_n) ,
.key_in (reset_an) ,
.key_flag (reset)
);
endmodule
2.2 按键消抖模块key_filiter
按键滤波器,按下按钮后即低电平输入,经过该模块输出一个系统时钟周期的高脉冲。
本次实验使用的四个按键都是通过这个模块产生高脉冲起作用。
//按键滤波器,按下按钮后即低电平输入,经过该模块输出一个系统时钟周期的高脉冲
module key_filiter
(
input sys_clk ,
input sys_rst_n ,
input key_in ,
output reg key_flag
);
reg [19:0] cnt_20ms;
parameter CNT_MAX=20'd999999;
always@(posedge sys_clk or negedge sys_rst_n)
if(!sys_rst_n)
cnt_20ms<=20'd0;
else if(key_in)
cnt_20ms<=20'd0;
else if(cnt_20ms==CNT_MAX) //最大值保持
cnt_20ms<=CNT_MAX;
else
cnt_20ms<=cnt_20ms+1'd1;
always@(posedge sys_clk or negedge sys_rst_n)
if(!sys_rst_n)
key_flag<=1'b0;
else if(cnt_20ms==CNT_MAX-20'd1)
key_flag<=1'b1;
else
key_flag<=1'b0;
endmodule
2.3 数字钟1s/10ms时钟产生模块clk
本模块输入系统时钟50MHZ与复位信号,输出1s/10ms时钟脉冲标志位,高电平有效
因为1个系统时钟20ns,所以实现1s需要计数50_000_000次,10ms即500_000次
//1s,10ms时钟产生模块
module clk
(
input wire sys_clk , //系统时钟50MHZ
input wire sys_rst_n , //复位
output reg clk1s_flag , //1s时钟脉冲标志位
output reg clk10ms_flag //10ms时钟脉冲标志位
);
parameter CNT_MAX_1S = 28'd49_999_999;
parameter CNT_MAX_10MS = 20'd499_999;
reg [27:0] clk_1s ;
reg [19:0] clk_10ms ;
//1s时钟脉冲产生
always @(posedge sys_clk or negedge sys_rst_n)
if(!sys_rst_n)
clk_1s <= 28'd0;
else if(clk_1s == CNT_MAX_1S)
clk_1s <= 28'd0;
else
clk_1s <= clk_1s + 1'd1;
always @(posedge sys_clk or negedge sys_rst_n)
if(!sys_rst_n)
clk1s_flag <= 1'b0;
else if(clk_1s == CNT_MAX_1S-1)
clk1s_flag <= 1'b1;
else
clk1s_flag <= 1'b0;
//10ms时钟脉冲产生
always @(posedge sys_clk or negedge sys_rst_n)
if(!sys_rst_n)
clk_10ms <= 20'd0;
else if(clk_10ms == CNT_MAX_10MS)
clk_10ms <= 20'd0;
else
clk_10ms <= clk_10ms + 1'd1;
always @(posedge sys_clk or negedge sys_rst_n)
if(!sys_rst_n)
clk10ms_flag <= 1'b0;
else if(clk_10ms == CNT_MAX_10MS-1)
clk10ms_flag <= 1'b1;
else
clk10ms_flag <= 1'b0;
endmodule
2.4 时间显示(模式0)与调整模块(模式3)clockdisplay
输入1s脉冲与3个按键,输出时分秒
通过秒溢出分溢出时溢出之间的关系每秒时分秒值
当进入调试时间模式即模式3时,时间停止,这时默认更改秒,按下start按键,秒归0,rst更改调整位置
/*
0 显示
小时：0-23
分钟：0-59
秒：0-59
3 时间设置
start--
秒(默认)-->归0
分钟/小时-->+1
reset-->
秒-->分钟-->小时
mode-->返回时间显示(按过start,reset)
*/
module clockdisplay
(
input wire sys_clk , //系统时钟50MHZ
input wire sys_rst_n , //复位
input wire [1:0] mode , //模式-相当于使能
input wire clk1s_flag , //1s脉冲
input wire mooe , //调整功能按键
input wire start , //开始暂停计数
input wire reset , //调整位置
output reg [7:0] sec_out , //显示-秒
output reg [7:0] min_out , //显示-分钟
output reg [7:0] hour_out //显示-小时
);
reg [1:0] position;//调整数据位置
//position;调整数据位置 0-秒,1-分,2-时
always @(posedge sys_clk or negedge sys_rst_n)
if(!sys_rst_n)
position <= 2'd0;
else if(mode != 2'd3)
position <= 2'd0;
else if((mode == 2'd3) && reset && (position == 2'd2))
position <= 2'd0;
else if((mode == 2'd3) && reset) //每按下一次reset建位置更改一次
position <= position + 1'd1;
//秒产生
always @(posedge sys_clk or negedge sys_rst_n)
if(!sys_rst_n)
sec_out <= 8'd57;
else if((mode != 2'd3) && clk1s_flag && (sec_out == 8'd59))
sec_out <= 8'd0;
else if((mode != 2'd3) && clk1s_flag) //秒产生
sec_out <= sec_out + 1'd1;
//mode == 2'd3
else if((mode == 2'd3) && (position == 2'd0) && start) //mode==3即时间设置,按下start秒清0
sec_out <= 8'd0;
//分产生
always @(posedge sys_clk or negedge sys_rst_n)
if(!sys_rst_n)
min_out <= 8'd59;
else if((mode != 2'd3) && clk1s_flag && (min_out == 8'd59) && (sec_out == 8'd59))
min_out <= 8'd0;
else if((mode != 2'd3) && clk1s_flag && (sec_out == 8'd59)) //分产生
min_out <= min_out + 1'd1;
//mode == 2'd3
else if((mode == 2'd3) && (position == 2'd1) && start && (min_out == 8'd59)) //分钟==59,按下start秒分清0
min_out <= 8'd0;
else if((mode == 2'd3) && (position == 2'd1) && start) //mode==3即时间设置,按下start分加一
min_out <= min_out + 1'd1;
//时产生
always @(posedge sys_clk or negedge sys_rst_n)
if(!sys_rst_n)
hour_out <= 8'd23;
else if((mode != 2'd3) && clk1s_flag && (hour_out == 8'd23) && (min_out == 8'd59) && (sec_out == 8'd59))
hour_out <= 8'd0;
else if((mode != 2'd3) && clk1s_flag && (min_out == 8'd59) && (sec_out == 8'd59))
hour_out <= hour_out + 1'd1;
//mode == 2'd3
else if((mode == 2'd3) && (position == 2'd1) && start && (hour_out == 8'd23) && (min_out == 8'd59)) //分钟溢出且小时==23,时清0
hour_out <= 8'd0;
else if((mode == 2'd3) && (position == 2'd2) && start && (hour_out == 8'd23)) //小时==23,按下start秒时清0
hour_out <= 8'd0;
else if((mode == 2'd3) && (position == 2'd2) && start) //mode==3即时间设置,按下start时加一
hour_out <= hour_out + 1'd1;
endmodule
2.5 计时(模式1)模块keeptime
这儿我们使用10ms脉冲用于实现秒表计数.输出计时三个数值用于显示
原理跟时间显示差不多,都是溢出判断即可
进入模式1后,按下start开始计时,再次按下暂停,按下rst计时归0
注意:进入模式1后,数字钟时间正常运行,但是此时显示计时值
/*
mooe
1 计时
分钟:秒:99
start-->开始计时(1)-->暂停计时(0)-->开始计时...
reset-归零
//mode-->返回时间显示(按过start,reset)
*/
module keeptime
(
input wire sys_clk , //系统时钟50MHZ
input wire sys_rst_n , //复位
input wire [1:0] mode , //模式-相当于使能
input wire clk10ms_flag , //10ms脉冲
input wire mooe , //调整功能按键
input wire start , //开始暂停计数
input wire reset , //置0
output reg [7:0] min_keti , //计时-分钟
output reg [7:0] sec_keti , //计时-秒
output reg [7:0] misec_keti //计时-10ms
);
reg keeptime_flag;//控制计数启动暂停变量
//keeptime_flag;//控制计数启动暂停变量 0-停止/暂停,1-启动
always @(posedge sys_clk or negedge sys_rst_n)
if(!sys_rst_n)
keeptime_flag <= 1'b0;
else if(mode != 2'd1)
keeptime_flag <= 1'b0;
else if((mode == 2'd1) && start)
keeptime_flag <= ~keeptime_flag;
else if((mode == 2'd1) && reset)
keeptime_flag <= 1'b0;
//misec_keti 计时-10ms
always @(posedge sys_clk or negedge sys_rst_n)
if(!sys_rst_n)
misec_keti <= 8'd0;
else if(mode != 2'd1)
misec_keti <= 8'd0;
else if(reset || (mode == 2'd1 && keeptime_flag && clk10ms_flag && misec_keti == 99)) //按下reset按键 或者 计满99 us清0
misec_keti <= 8'd0;
else if(mode == 2'd1 && keeptime_flag && clk10ms_flag) //keeptime_flag==1,启动计时
misec_keti <= misec_keti + 1'd1;
//sec_keti 计时-秒
always @(posedge sys_clk or negedge sys_rst_n)
if(!sys_rst_n)
sec_keti <= 8'd0;
else if(mode != 2'd1)
sec_keti <= 8'd0;
else if(reset || (mode == 2'd1 && keeptime_flag && clk10ms_flag && sec_keti == 59)) //按下reset按键 或者 计满59 s清0
sec_keti <= 8'd0;
else if(mode == 2'd1 && keeptime_flag && clk10ms_flag && misec_keti == 99) //keeptime_flag==1,misec_keti溢出sec_keti++
sec_keti <= sec_keti + 1'd1;
//min_keti 计时-分钟
always @(posedge sys_clk or negedge sys_rst_n)
if(!sys_rst_n)
min_keti <= 8'd0;
else if(mode != 2'd1)
min_keti <= 8'd0;
else if(reset || (mode == 2'd1 && keeptime_flag && clk10ms_flag && min_keti == 59)) //按下reset按键 或者 计满59 分清0
min_keti <= 8'd0;
else if(mode == 2'd1 && keeptime_flag && clk10ms_flag && sec_keti == 59 && misec_keti == 99) //keeptime_flag==1,misec_keti溢出min_keti++
min_keti <= min_keti + 1'd1;
endmodule
2.6 闹钟调整(模式2)模块alarmclock
此模块用于对闹钟数值的调整,根据输入的按键,输出调整后的闹钟值
进入模式2后,按下start默认调整闹钟分+1,按下rst调节闹钟时
注意:进入模式2后,数字钟时间正常运行,但是此时显示闹钟设置时分值
/*
2 闹钟设置
start--加1(默认分钟)
reset--切换小时/分钟设置 默认分钟-->小时-->分钟
小时：0-23
分钟：0-59
mode-->返回时间显示(按过start,reset)
*/
module alarmclock
(
input wire sys_clk , //系统时钟50MHZ
input wire sys_rst_n , //复位
input wire [1:0] mode , //模式-相当于使能
input wire mooe , //调整功能按键
input wire start , //开始暂停计数
input wire reset , //置0
output reg [7:0] min_alarm , //闹钟-分钟
output reg [7:0] hour_alarm //闹钟-小时
);
reg position;//调整数据位置
//position;调整数据位置 0-分钟设置,1-小时设置
always @(posedge sys_clk or negedge sys_rst_n)
if(!sys_rst_n)
position <= 1'b0;
else if(mode != 2'd2)
position <= 1'b0;
else if(reset)
position <= ~position;
//min_alarm//闹钟-分钟
always @(posedge sys_clk or negedge sys_rst_n)
if(!sys_rst_n)
min_alarm <= 8'd0;
else if((mode == 2'd2) && (!position) && (start) && (min_alarm == 8'd59))//溢出清0
min_alarm <= 8'd0;
else if((mode == 2'd2) && (!position) && (start)) //mode == 2'd2,按下start键,闹钟-分钟+1
min_alarm <= min_alarm + 1'd1;
//hour_alarm//闹钟-小时
always @(posedge sys_clk or negedge sys_rst_n)
if(!sys_rst_n)
hour_alarm <= 8'd0;
else if((mode == 2'd2) && (!position) && (start) && (min_alarm == 8'd59) && (hour_alarm == 8'd23))//闹钟-分钟+1,且小时==23溢出清0
hour_alarm <= 8'd0;
else if((mode == 2'd2) && (position) && (start) && (hour_alarm == 8'd23)) //闹钟-小时+1,且小时==23溢出清0
hour_alarm <= 8'd0;
else if((mode == 2'd2) && (position) && (start)) //mode == 2'd2,按下start键,闹钟-小时+1
hour_alarm <= hour_alarm + 1'd1;
endmodule
2.7 数码管显示模块segdisplay
此模块输入之前各模块运算得出的数值,输出到数码管显示
还包括调光功能,使用PWM波实现,按下light调节,共分5档
//数码管显示模块
module segdisplay
(
input wire sys_clk , //系统时钟50MHZ
input wire sys_rst_n , //复位
input wire [1:0] mode , //模式-相当于使能
input wire light , //控制显示亮度
//时钟变量
input wire [7:0] sec ,
input wire [7:0] min ,
input wire [7:0] hour ,
//计时变量
input wire [7:0] min_keti ,
input wire [7:0] sec_keti ,
input wire [7:0] misec_keti ,
//闹钟变量
input wire [7:0] min_alarm ,
input wire [7:0] hour_alarm ,
output reg [6:0] SG0,SG1,SG2,SG3,SG4,SG5,SG6,SG7 //数码管的值 7-6,4-3,1-0显示数字 5,2显示:
);
parameter CNT_1US_MAX=6'd49; //1个时钟20ns,50个即1us
parameter CNT_1MS_MAX=10'd999; //计满1000个即1ms
parameter unit = 4'd5;
reg [9:0] tim;
reg [5:0] cnt_1us;
reg [9:0] cnt_1ms;
wire [3:0] sec_ten,sec_unit,min_ten,min_unit,hour_ten,hour_unit;//时钟变量显示
wire [3:0] minketi_ten,minketi_unit,secketi_ten,secketi_unit,misecketi_ten,misecketi_unit;//计数变量显示变量
wire [3:0] minalarm_ten,minalarm_unit,houralarm_ten,houralarm_unit;//闹钟变量显示变量
assign sec_ten=sec/10;assign sec_unit=sec%10;
assign min_ten=min/10;assign min_unit=min%10;
assign hour_ten=hour/10;assign hour_unit=hour%10;
assign minketi_ten=min_keti/10;assign minketi_unit=min_keti%10;
assign secketi_ten=sec_keti/10;assign secketi_unit=sec_keti%10;
assign misecketi_ten=misec_keti/10;assign misecketi_unit=misec_keti%10;
assign minalarm_ten=min_alarm/10;assign minalarm_unit=min_alarm%10;
assign houralarm_ten=hour_alarm/10;assign houralarm_unit=hour_alarm%10;
//1us脉冲产生
always@(posedge sys_clk or negedge sys_rst_n)
if(!sys_rst_n)
cnt_1us<=6'd0;
else if(cnt_1us==CNT_1US_MAX)
cnt_1us<=6'd0;
else
cnt_1us<=cnt_1us+6'd1;
//1ms脉冲产生
always@(posedge sys_clk or negedge sys_rst_n)
if(!sys_rst_n)
cnt_1ms<=10'd0;
else if((cnt_1ms==CNT_1MS_MAX)&&(cnt_1us==CNT_1US_MAX))
cnt_1ms<=10'd0;
else if(cnt_1us==CNT_1US_MAX)
cnt_1ms<=cnt_1ms+10'd1;
else
cnt_1ms<=cnt_1ms;
//亮度变量调整
always @(posedge sys_clk or negedge sys_rst_n)
if(!sys_rst_n)
tim <= 10'd0;
else if(tim >= 10'd999)
tim <= 10'd0;
else if(light)
tim <= tim + 10'd200;
else
tim <= tim;
//数码管显示
always @(posedge sys_clk or negedge sys_rst_n)
if(!sys_rst_n)
begin
SG0 <= 7'b1111111;
SG1 <= 7'b1111111;
SG3 <= 7'b1111111;
SG4 <= 7'b1111111;
SG6 <= 7'b1111111;
SG7 <= 7'b1111111;
SG2 <= 7'b1111111;
SG5 <= 7'b1111111;
end
else if(cnt_1ms<=tim)
begin
SG0 <= 7'b1111111;
SG1 <= 7'b1111111;
SG3 <= 7'b1111111;
SG4 <= 7'b1111111;
SG6 <= 7'b1111111;
SG7 <= 7'b1111111;
SG2 <= 7'b1111111;
SG5 <= 7'b1111111;
end
else
begin
if(mode == 2'd0)//时钟显示
begin
SG2 <= 7'b0111111;
SG5 <= 7'b0111111;
case(sec_unit)
0:SG0<=7'b1000000; 1:SG0<=7'b1111001;
2:SG0<=7'b0100100; 3:SG0<=7'b0110000;
4:SG0<=7'b0011001; 5:SG0<=7'b0010010;
6:SG0<=7'b0000010; 7:SG0<=7'b1111000;
8:SG0<=7'b0000000; 9:SG0<=7'b0010000; //7段译码值
default: SG0 <= 7'b1111111;
endcase
case(sec_ten)
0:SG1<=7'b1000000; 1:SG1<=7'b1111001;
2:SG1<=7'b0100100; 3:SG1<=7'b0110000;
4:SG1<=7'b0011001; 5:SG1<=7'b0010010;
6:SG1<=7'b0000010; 7:SG1<=7'b1111000;
8:SG1<=7'b0000000; 9:SG1<=7'b0010000; //7段译码值
default: SG1 <= 7'b1111111;
endcase
case(min_unit)
0:SG3<=7'b1000000; 1:SG3<=7'b1111001;
2:SG3<=7'b0100100; 3:SG3<=7'b0110000;
4:SG3<=7'b0011001; 5:SG3<=7'b0010010;
6:SG3<=7'b0000010; 7:SG3<=7'b1111000;
8:SG3<=7'b0000000; 9:SG3<=7'b0010000; //7段译码值
default: SG3 <= 7'b1111111;
endcase
case(min_ten)
0:SG4<=7'b1000000; 1:SG4<=7'b1111001;
2:SG4<=7'b0100100; 3:SG4<=7'b0110000;
4:SG4<=7'b0011001; 5:SG4<=7'b0010010;
6:SG4<=7'b0000010; 7:SG4<=7'b1111000;
8:SG4<=7'b0000000; 9:SG4<=7'b0010000; //7段译码值
default: SG4 <= 7'b1111111;
endcase
case(hour_unit)
0:SG6<=7'b1000000; 1:SG6<=7'b1111001;
2:SG6<=7'b0100100; 3:SG6<=7'b0110000;
4:SG6<=7'b0011001; 5:SG6<=7'b0010010;
6:SG6<=7'b0000010; 7:SG6<=7'b1111000;
8:SG6<=7'b0000000; 9:SG6<=7'b0010000; //7段译码值
default: SG6 <= 7'b1111111;
endcase
case(hour_ten)
0:SG7<=7'b1000000; 1:SG7<=7'b1111001;
2:SG7<=7'b0100100; 3:SG7<=7'b0110000;
4:SG7<=7'b0011001; 5:SG7<=7'b0010010;
6:SG7<=7'b0000010; 7:SG7<=7'b1111000;
8:SG7<=7'b0000000; 9:SG7<=7'b0010000; //7段译码值
default: SG7 <= 7'b1111111;
endcase
end
else if(mode == 2'd1)//计时显示
begin
SG2 <= 7'b0111111;
SG5 <= 7'b0111111;
case(misecketi_unit)
0:SG0<=7'b1000000; 1:SG0<=7'b1111001;
2:SG0<=7'b0100100; 3:SG0<=7'b0110000;
4:SG0<=7'b0011001; 5:SG0<=7'b0010010;
6:SG0<=7'b0000010; 7:SG0<=7'b1111000;
8:SG0<=7'b0000000; 9:SG0<=7'b0010000; //7段译码值
default: SG0 <= 7'b1111111;
endcase
case(misecketi_ten)
0:SG1<=7'b1000000; 1:SG1<=7'b1111001;
2:SG1<=7'b0100100; 3:SG1<=7'b0110000;
4:SG1<=7'b0011001; 5:SG1<=7'b0010010;
6:SG1<=7'b0000010; 7:SG1<=7'b1111000;
8:SG1<=7'b0000000; 9:SG1<=7'b0010000; //7段译码值
default: SG1 <= 7'b1111111;
endcase
case(secketi_unit)
0:SG3<=7'b1000000; 1:SG3<=7'b1111001;
2:SG3<=7'b0100100; 3:SG3<=7'b0110000;
4:SG3<=7'b0011001; 5:SG3<=7'b0010010;
6:SG3<=7'b0000010; 7:SG3<=7'b1111000;
8:SG3<=7'b0000000; 9:SG3<=7'b0010000; //7段译码值
default: SG3 <= 7'b1111111;
endcase
case(secketi_ten)
0:SG4<=7'b1000000; 1:SG4<=7'b1111001;
2:SG4<=7'b0100100; 3:SG4<=7'b0110000;
4:SG4<=7'b0011001; 5:SG4<=7'b0010010;
6:SG4<=7'b0000010; 7:SG4<=7'b1111000;
8:SG4<=7'b0000000; 9:SG4<=7'b0010000; //7段译码值
default: SG4 <= 7'b1111111;
endcase
case(minketi_unit)
0:SG6<=7'b1000000; 1:SG6<=7'b1111001;
2:SG6<=7'b0100100; 3:SG6<=7'b0110000;
4:SG6<=7'b0011001; 5:SG6<=7'b0010010;
6:SG6<=7'b0000010; 7:SG6<=7'b1111000;
8:SG6<=7'b0000000; 9:SG6<=7'b0010000; //7段译码值
default: SG6 <= 7'b1111111;
endcase
case(minketi_ten)
0:SG7<=7'b1000000; 1:SG7<=7'b1111001;
2:SG7<=7'b0100100; 3:SG7<=7'b0110000;
4:SG7<=7'b0011001; 5:SG7<=7'b0010010;
6:SG7<=7'b0000010; 7:SG7<=7'b1111000;
8:SG7<=7'b0000000; 9:SG7<=7'b0010000; //7段译码值
default: SG7 <= 7'b1111111;
endcase
end
else if(mode == 2'd2)//闹钟设置显示
begin
SG0 <= 7'b1111111;
SG1 <= 7'b1111111;
SG2 <= 7'b1111111;
case(minalarm_unit)
0:SG3<=7'b1000000; 1:SG3<=7'b1111001;
2:SG3<=7'b0100100; 3:SG3<=7'b0110000;
4:SG3<=7'b0011001; 5:SG3<=7'b0010010;
6:SG3<=7'b0000010; 7:SG3<=7'b1111000;
8:SG3<=7'b0000000; 9:SG3<=7'b0010000; //7段译码值
default: SG3 <= 7'b1111111;
endcase
case(minalarm_ten)
0:SG4<=7'b1000000; 1:SG4<=7'b1111001;
2:SG4<=7'b0100100; 3:SG4<=7'b0110000;
4:SG4<=7'b0011001; 5:SG4<=7'b0010010;
6:SG4<=7'b0000010; 7:SG4<=7'b1111000;
8:SG4<=7'b0000000; 9:SG4<=7'b0010000; //7段译码值
default: SG4 <= 7'b1111111;
endcase
case(houralarm_unit)
0:SG6<=7'b1000000; 1:SG6<=7'b1111001;
2:SG6<=7'b0100100; 3:SG6<=7'b0110000;
4:SG6<=7'b0011001; 5:SG6<=7'b0010010;
6:SG6<=7'b0000010; 7:SG6<=7'b1111000;
8:SG6<=7'b0000000; 9:SG6<=7'b0010000; //7段译码值
default: SG6 <= 7'b1111111;
endcase
case(houralarm_ten)
0:SG7<=7'b1000000; 1:SG7<=7'b1111001;
2:SG7<=7'b0100100; 3:SG7<=7'b0110000;
4:SG7<=7'b0011001; 5:SG7<=7'b0010010;
6:SG7<=7'b0000010; 7:SG7<=7'b1111000;
8:SG7<=7'b0000000; 9:SG7<=7'b0010000; //7段译码值
default: SG7 <= 7'b1111111;
endcase
end
else if(mode == 2'd3)//时钟设置显示
begin
SG2 <= 7'b0111111;
SG5 <= 7'b0111111;
case(sec_unit)
0:SG0<=7'b1000000; 1:SG0<=7'b1111001;
2:SG0<=7'b0100100; 3:SG0<=7'b0110000;
4:SG0<=7'b0011001; 5:SG0<=7'b0010010;
6:SG0<=7'b0000010; 7:SG0<=7'b1111000;
8:SG0<=7'b0000000; 9:SG0<=7'b0010000; //7段译码值
default: SG0 <= 7'b1111111;
endcase
case(sec_ten)
0:SG1<=7'b1000000; 1:SG1<=7'b1111001;
2:SG1<=7'b0100100; 3:SG1<=7'b0110000;
4:SG1<=7'b0011001; 5:SG1<=7'b0010010;
6:SG1<=7'b0000010; 7:SG1<=7'b1111000;
8:SG1<=7'b0000000; 9:SG1<=7'b0010000; //7段译码值
default: SG1 <= 7'b1111111;
endcase
case(min_unit)
0:SG3<=7'b1000000; 1:SG3<=7'b1111001;
2:SG3<=7'b0100100; 3:SG3<=7'b0110000;
4:SG3<=7'b0011001; 5:SG3<=7'b0010010;
6:SG3<=7'b0000010; 7:SG3<=7'b1111000;
8:SG3<=7'b0000000; 9:SG3<=7'b0010000; //7段译码值
default: SG3 <= 7'b1111111;
endcase
case(min_ten)
0:SG4<=7'b1000000; 1:SG4<=7'b1111001;
2:SG4<=7'b0100100; 3:SG4<=7'b0110000;
4:SG4<=7'b0011001; 5:SG4<=7'b0010010;
6:SG4<=7'b0000010; 7:SG4<=7'b1111000;
8:SG4<=7'b0000000; 9:SG4<=7'b0010000; //7段译码值
default: SG4 <= 7'b1111111;
endcase
case(hour_unit)
0:SG6<=7'b1000000; 1:SG6<=7'b1111001;
2:SG6<=7'b0100100; 3:SG6<=7'b0110000;
4:SG6<=7'b0011001; 5:SG6<=7'b0010010;
6:SG6<=7'b0000010; 7:SG6<=7'b1111000;
8:SG6<=7'b0000000; 9:SG6<=7'b0010000; //7段译码值
default: SG6 <= 7'b1111111;
endcase
case(hour_ten)
0:SG7<=7'b1000000; 1:SG7<=7'b1111001;
2:SG7<=7'b0100100; 3:SG7<=7'b0110000;
4:SG7<=7'b0011001; 5:SG7<=7'b0010010;
6:SG7<=7'b0000010; 7:SG7<=7'b1111000;
8:SG7<=7'b0000000; 9:SG7<=7'b0010000; //7段译码值
default: SG7 <= 7'b1111111;
endcase
end
end
endmodule
以上就是本次实验的全部代码。
modelsim仿真的实验代码
`timescale 1ns/1ns
module tb_clock();
//模块相关数据定义
reg sys_clk ; //系统时钟50MHZ
reg sys_rst_n ; //复位
reg light_an ; //控制亮度
reg mooe_an ; //功能按键
reg start_an ; //调整数值按键
reg reset_an ; //切换区域按键
wire led ; //做闹钟用 LEDR0 闪烁
wire [3:0] led_mode ; //显示当前模式 LEDR17-LEDR14
wire [6:0] SG0,SG1,SG2,SG3,SG4,SG5,SG6,SG7; //数码管的值 7-6,4-3,1-0显示数字 5,2显示:
//sys_clk,sys_rst_n初始赋值，模拟触摸按键信号值
initial
begin
sys_clk <= 1'b1 ;
sys_rst_n <= 1'b0 ;
light_an <= 1'b1 ;
start_an <= 1'b1 ;
reset_an <= 1'b1 ;
mooe_an <= 1'b1 ;
#30
sys_rst_n <= 1'b1 ;
#1000
mooe_an <= 1'b0 ;
#100
mooe_an <= 1'b1 ;
#100
mooe_an <= 1'b0 ;
#100
mooe_an <= 1'b1 ;
#100
mooe_an <= 1'b0 ;
#100
mooe_an <= 1'b1 ;
#100
start_an <= 1'b0;
#100
start_an <= 1'b1;
#100
reset_an <= 1'b0;
#100
reset_an <= 1'b1;
#100
start_an <= 1'b0;
#100
start_an <= 1'b1;
#100
reset_an <= 1'b0;
#100
reset_an <= 1'b1;
#100
start_an <= 1'b0;
#100
start_an <= 1'b1;
#100
mooe_an <= 1'b0 ;
#100
mooe_an <= 1'b1 ;
end
//clk：产生时钟
always #10 sys_clk = ~sys_clk ;
//重定义模块内部CNT溢出值
defparam clock_inst.clk_inst.CNT_MAX_1S = 100'd49;
defparam clock_inst.clk_inst.CNT_MAX_10MS = 100'd19;
defparam clock_inst.key_filiter_inst0.CNT_MAX = 100'd5;
defparam clock_inst.key_filiter_inst1.CNT_MAX = 100'd5;
defparam clock_inst.key_filiter_inst2.CNT_MAX = 100'd5;
defparam clock_inst.key_filiter_inst3.CNT_MAX = 100'd5;
//模块例化
clock clock_inst
(
.sys_clk (sys_clk ) , //系统时钟50MHZ
.sys_rst_n (sys_rst_n) , //复位
.light_an (light_an ) , //控制亮度
.mooe_an (mooe_an ) , //功能按键
.start_an (start_an ) , //调整数值按键
.reset_an (reset_an ) , //切换区域按键
.led (led ) , //做闹钟用 LEDR0 闪烁
.led_mode (led_mode ) , //显示当前模式 LEDR17-LEDR14
.SG0 (SG0) ,
.SG1 (SG1) ,
.SG2 (SG2) ,
.SG3 (SG3) ,
.SG4 (SG4) ,
.SG5 (SG5) ,
.SG6 (SG6) ,
.SG7 (SG7)
);
endmodule
3.实物验证

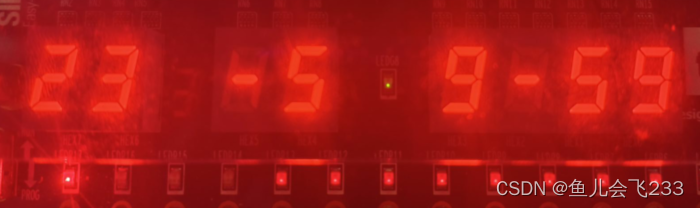

系统启动默认时间从23:59:57开始,左下角灯为模式显示灯

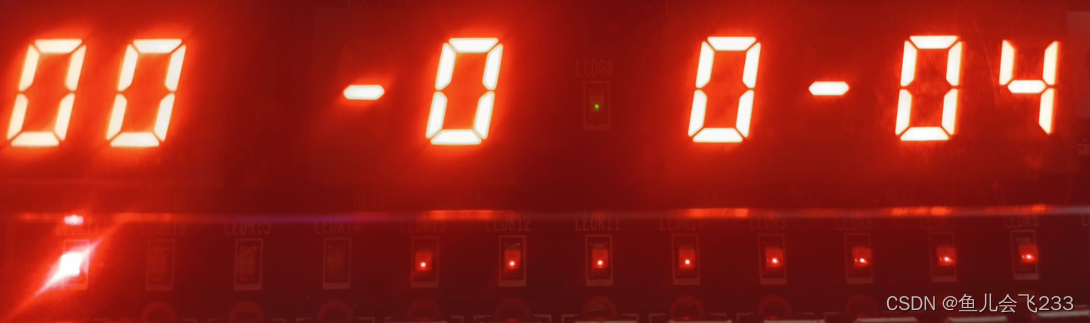

系统自动走了一段时间,可以看到正常进位

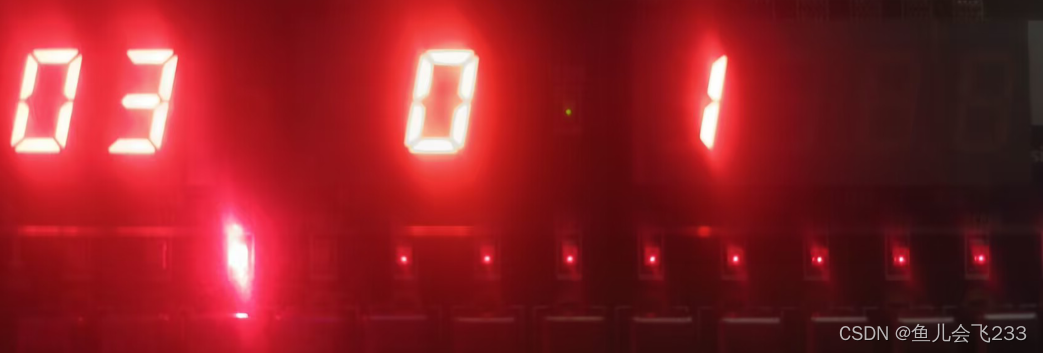

按下light调节亮度

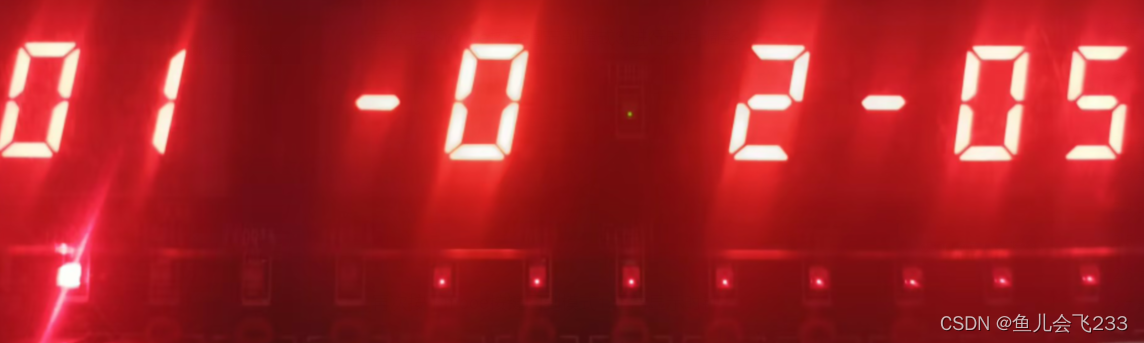

按下mooe按键调节到模式1计时模式,启动

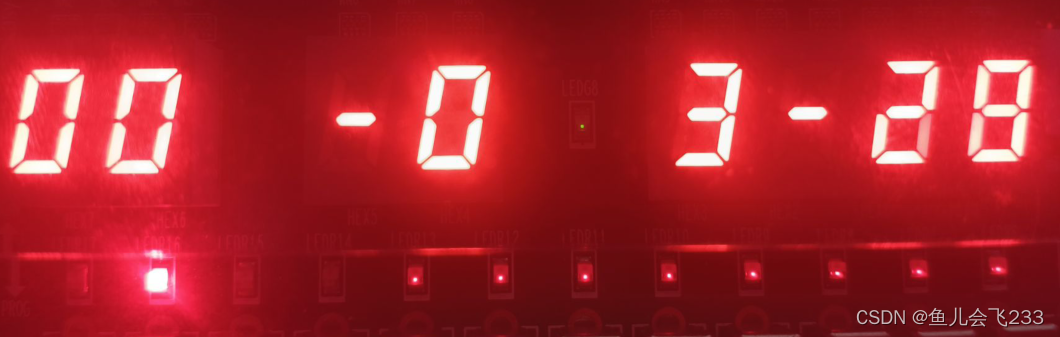

再次按下mooe按键调节到模式2,进行闹钟调整

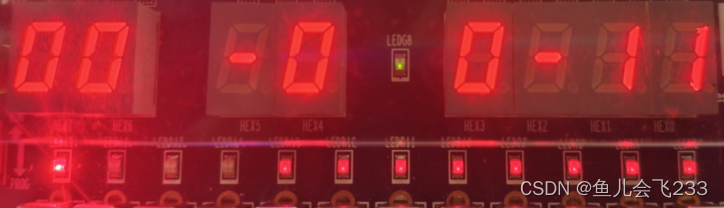

再次按下mooe按键调节到模式3,进行时间调整

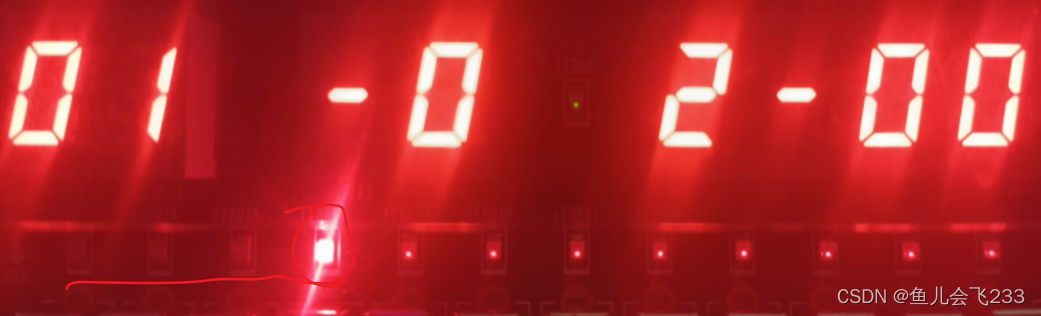

再次按下mooe按键回到模式1,正常显示时钟
1万+
被折叠的 条评论
为什么被折叠?
到【灌水乐园】发言
