【算法专题十四】BFS解决FloodFill算法

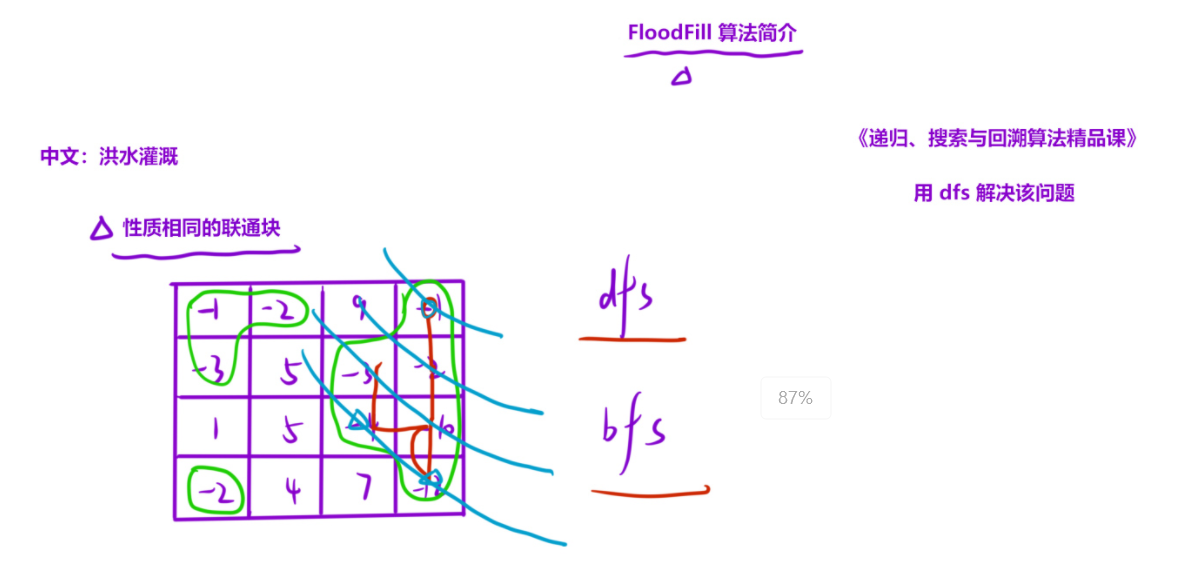

1.简介

2.图像渲染

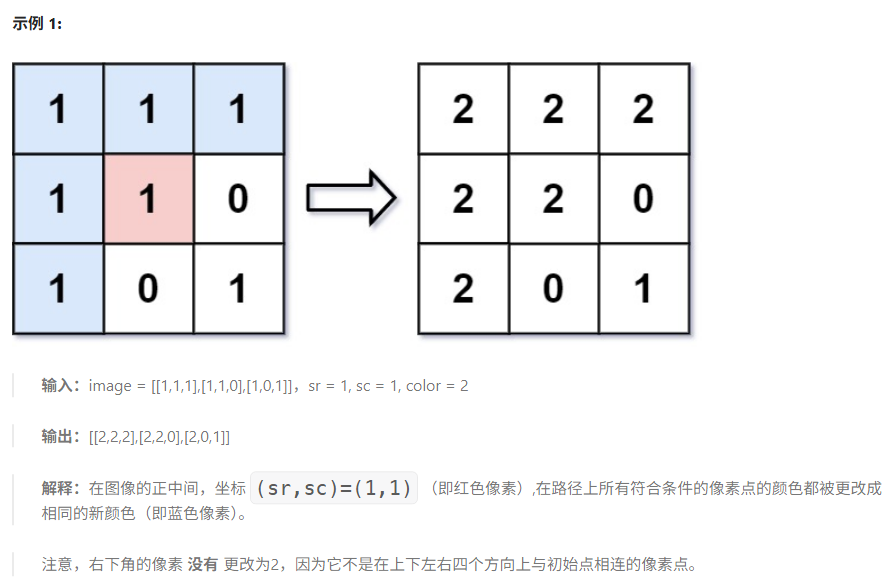

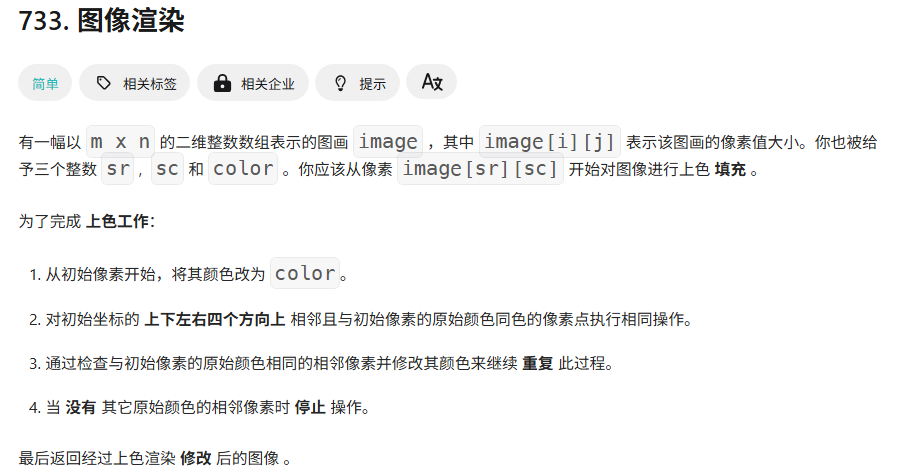

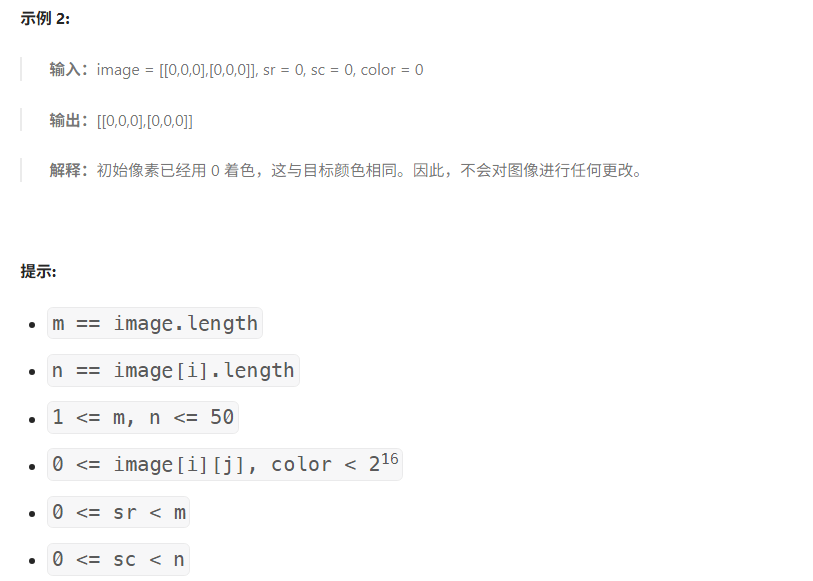

2.1 题目

题目链接

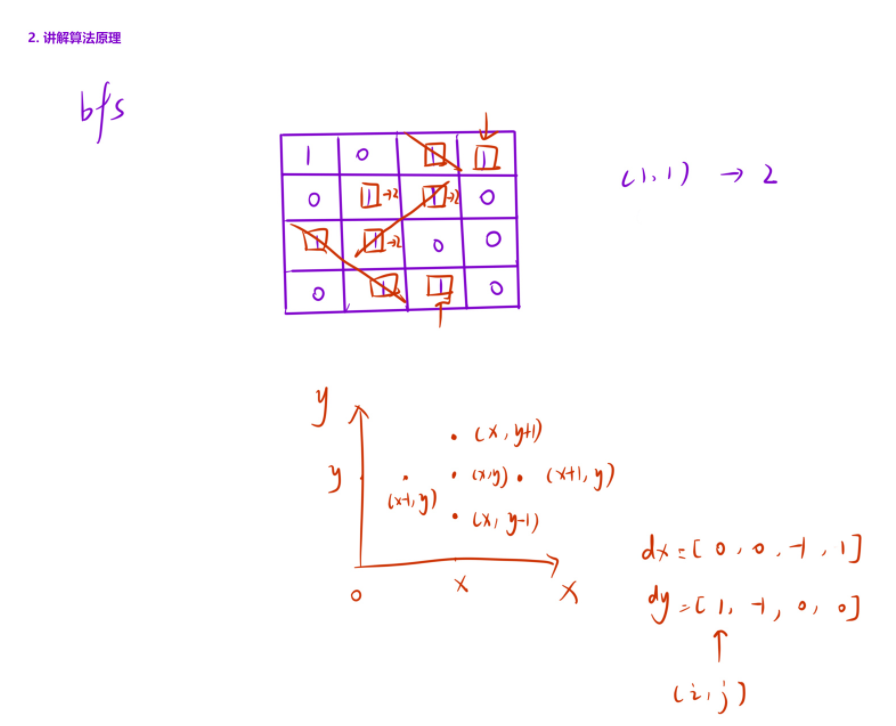

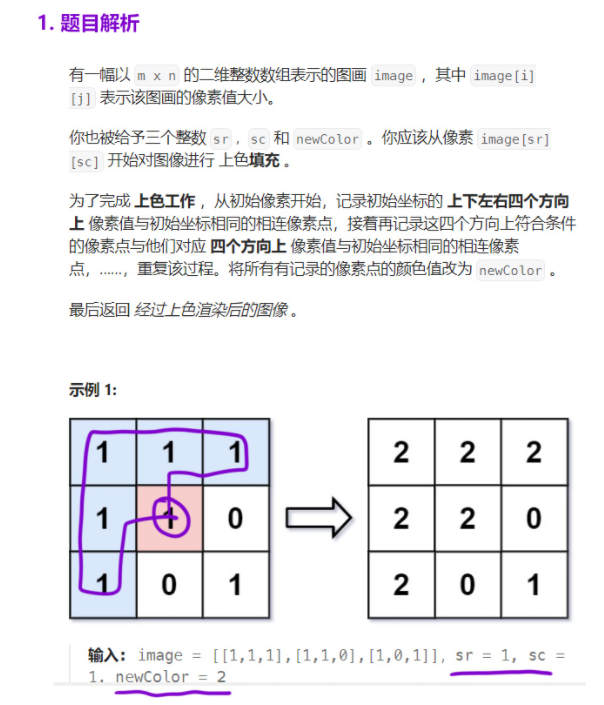

2.2 思路

2.3代码

class Solution {
public:
    vector<vector<int>> floodFill(vector<vector<int>>& image, int sr, int sc, int color) {
        int prev = image[sr][sc];
        if(prev == color) return image; // 判断边界条件
        queue<pair<int, int>> q;
        q.push({sr, sc});
        int dx[4] = {0, 0, 1, -1};
        int dy[4] = {1, -1, 0, 0};
        int m = image.size(), n = image[0].size();
        while(q.size())
        {
            auto [a, b] = q.front();
            q.pop();
            image[a][b] = color;
            for(int i = 0; i < 4; i++)
            {
                int x = a + dx[i], y = b + dy[i];
                if(x >= 0 && x < m && y >= 0 && y < n && image[x][y] == prev) q.push({x, y});
            }
        }
        return image;
    }
};

3.岛屿数量

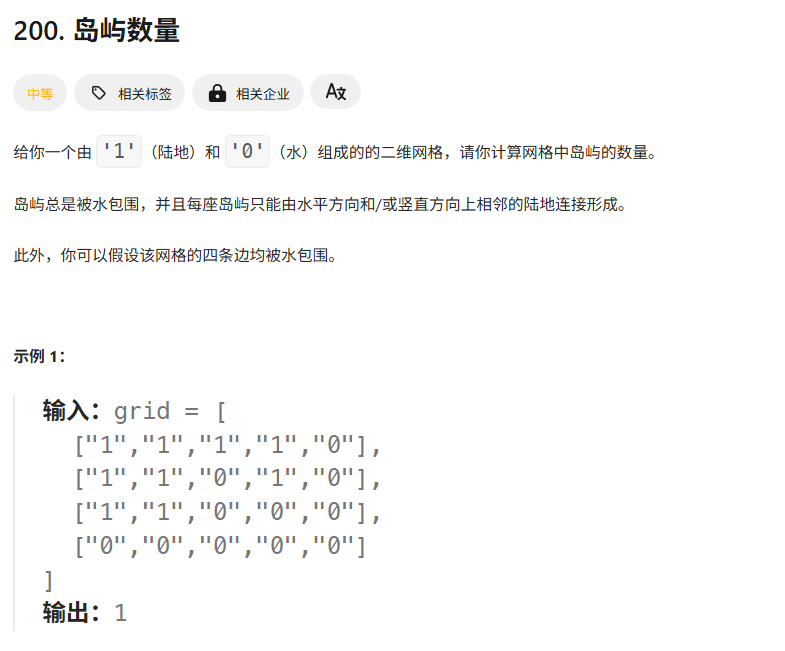

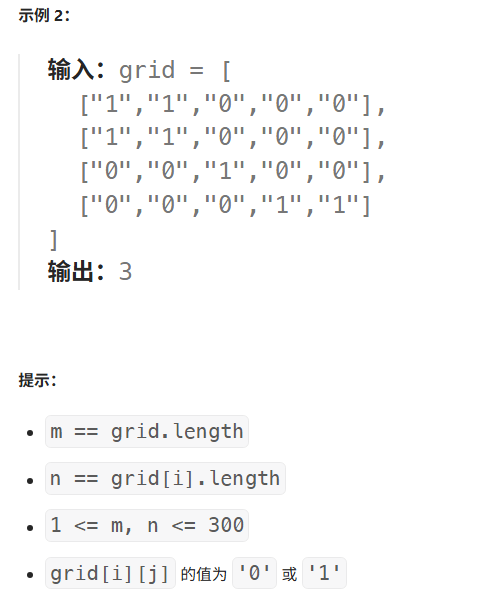

3.1 题目

题目链接

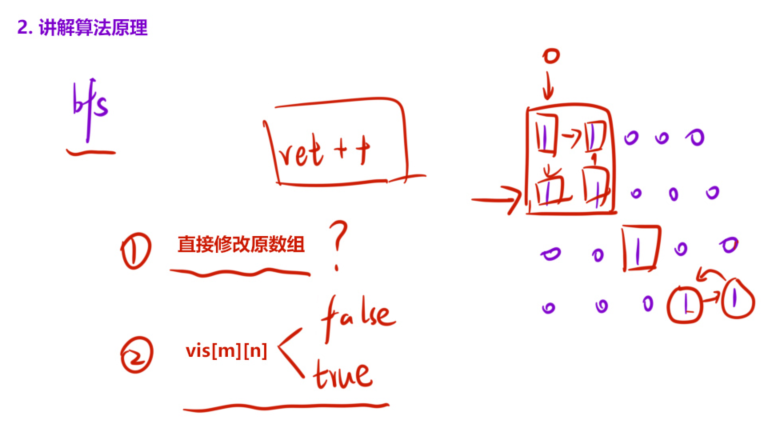

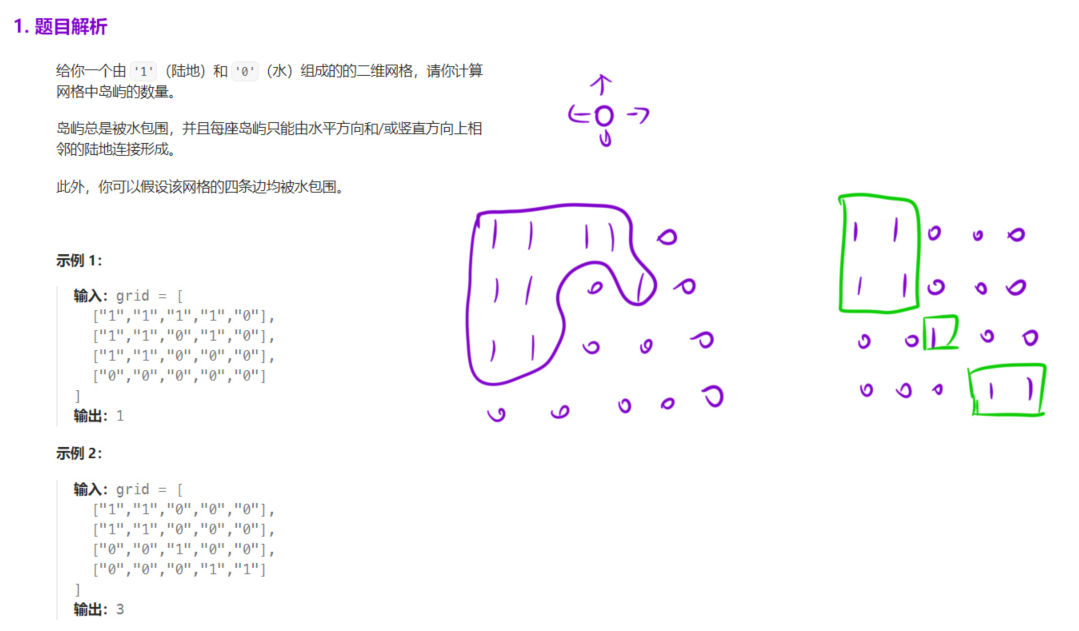

3.2 思路

3.3 代码

class Solution {
public:
    bool vis[301][301];
    int dx[4] = {0, 0, -1, 1}, dy[4] = {-1, 1, 0, 0};
    int m, n;

    int numIslands(vector<vector<char>>& grid) {
        int ret = 0;
        m = grid.size(), n = grid[0].size();
        for(int i = 0; i < m; i++)
        {
            for(int j = 0; j < n; j++)
            {
                if(grid[i][j] == '1' && !vis[i][j])
                {
                    ret += 1;
                    bfs(grid, i, j); // 把这块陆地都标记一下；
                }
            }
        }
        return ret;
    }
    void bfs(vector<vector<char>>& grid, int i, int j)
        {
            queue<pair<int, int>> q;
            q.push({i, j});
            vis[i][j] = true;
            while(q.size())
            {
                auto [a, b] = q.front();
                q.pop();
                for(int k = 0; k < 4; k++)
                {
                    int x = a + dx[k], y = b + dy[k];
                    if(x >= 0 && x < m && y >= 0 && y < n && grid[x][y] == '1' && !vis[x][y])
                    {
                        q.push({x, y});
                        vis[x][y] = true;
                    }
                }
            }

        }
};

4.岛屿的最大面积

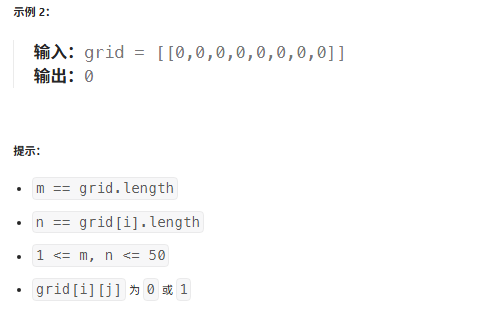

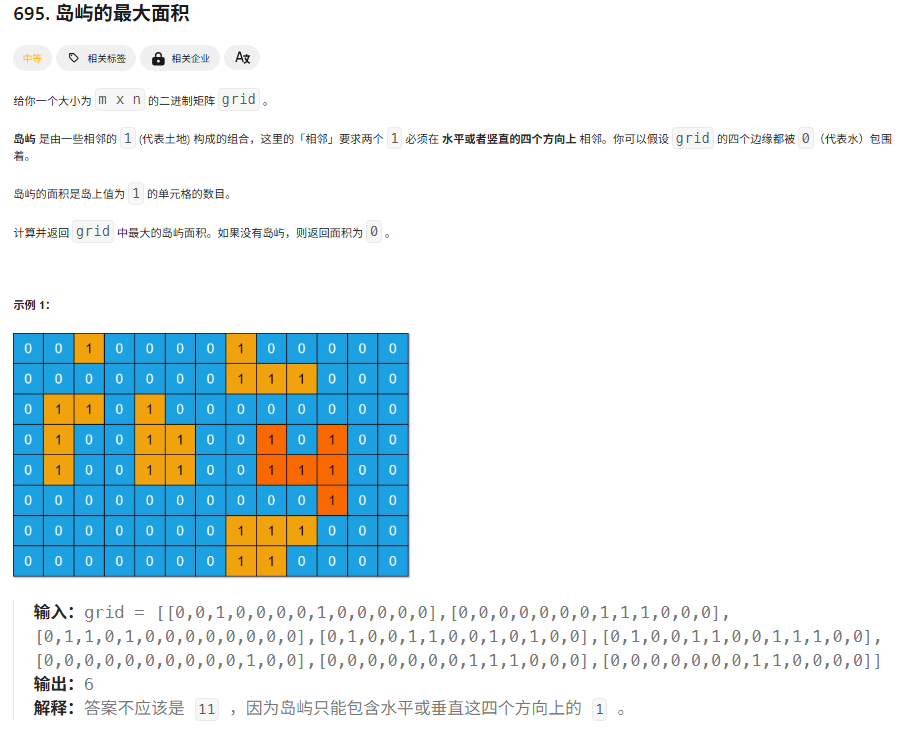

4.1 题目

题目链接

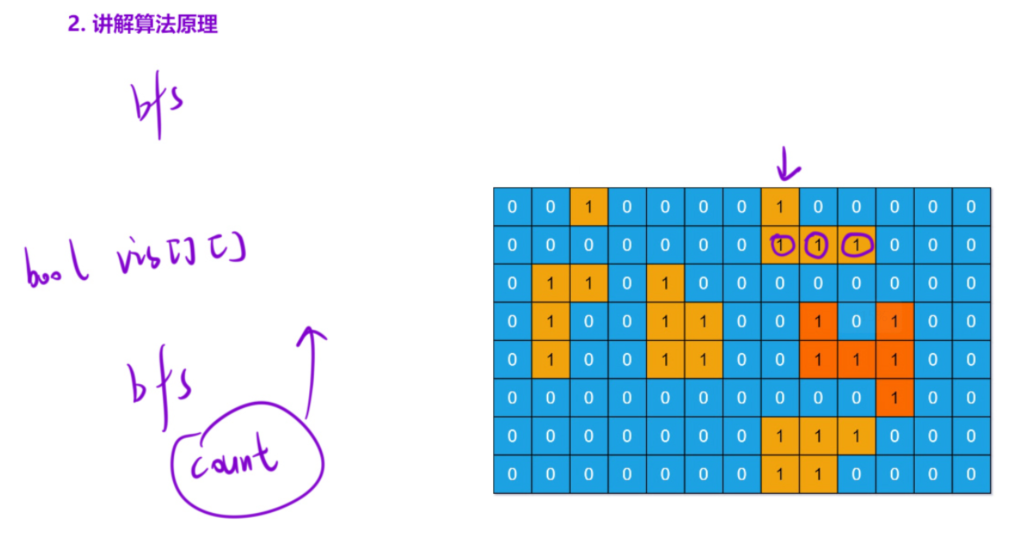

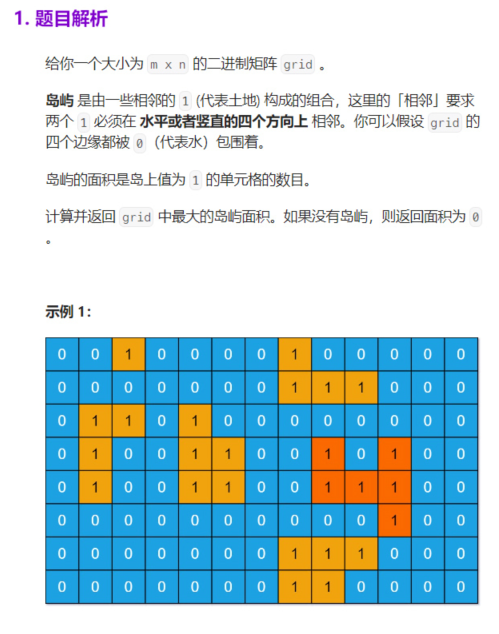

4.2 思路

4.3 代码

class Solution {
public:
    int m, n;
    bool vis[51][51];
    int dx[4] = {0, 0, 1, -1}, dy[4] = {1, -1, 0, 0};
    int ret;
    int maxAreaOfIsland(vector<vector<int>>& grid) {
        m = grid.size(), n = grid[0].size();
        for(int i = 0; i < m; i++)
        {
            for(int j = 0; j < n; j++)
            {
                if(grid[i][j] == 1 && !vis[i][j])
                {
                    int ret2 = bfs(grid, i, j);
                    ret = max(ret, ret2);
                }
            }
        }
        return ret;
    }
    int bfs(vector<vector<int>>& grid, int i, int j)
    {
        queue<pair<int, int>> q;
        q.push({i, j});
        vis[i][j] = true;
        int ret1=1;

        while(q.size())
        {
            auto [a, b] = q.front();
            q.pop();

            for(int ii = 0; ii < 4; ii++)
            {
                int x = a + dx[ii], y = b + dy[ii];
                if(x >= 0 && x < m && y >= 0 && y < n && grid[x][y] == 1 && !vis[x][y])
                {

                    q.push({x, y});
                    ret1 ++;
                    vis[x][y] = true;
                }
            }
        }
         return ret1;
    }
};

5. 被围绕的区域

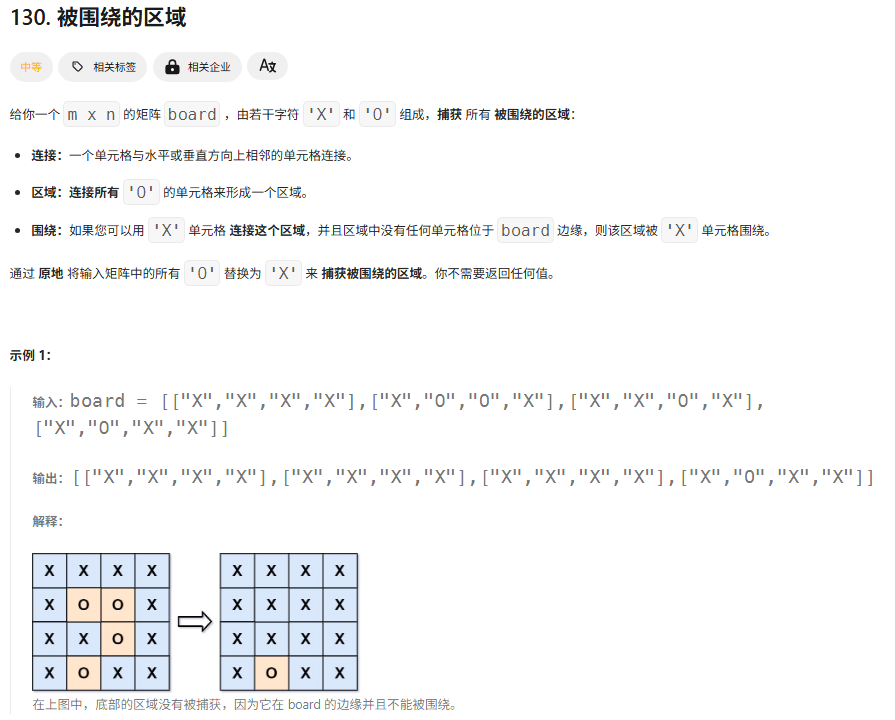

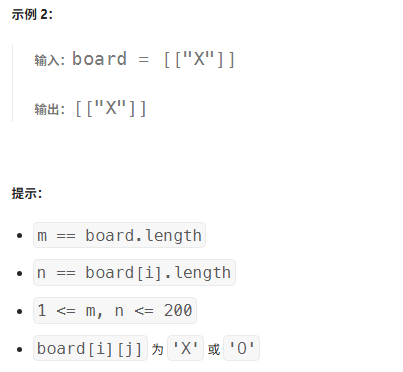

5.1 题目

题目链接

5.2 思路

5.3 代码

class Solution {
public:
    int m, n;
    // bool vis[201][201];
    // 因为这个题可以直接在原数组上修改，所以就不用vis数组了
    int dx[4] = {0, 0, -1, 1}, dy[4] = {-1, 1, 0, 0};
    void solve(vector<vector<char>>& board) {
        m = board.size(), n = board[0].size();
        // 1.先把边缘的0变成.
        for(int i = 0; i < m; i++)
        {
            if(board[i][0] == 'O') bfs(board, i, 0);
            if(board[i][n - 1] == 'O') bfs(board, i, n - 1);
        }
        for(int j = 0; j < n; j++)
        {
            if(board[0][j] == 'O') bfs(board, 0, j);
            if(board[m - 1][j] == 'O') bfs(board, m - 1, j);
        }
        for(int i = 0; i < m; i++)
        {
            for(int j = 0; j < n; j++)
            {
                if(board[i][j] == 'O') board[i][j] = 'X';
                if(board[i][j] == '.') board[i][j] = 'O';
            }
        }
    }
    void bfs(vector<vector<char>>& board, int i, int j)
    {
        queue<pair<int, int>> q;
        q.push({i, j});
        board[i][j] = '.';
        while(q.size())
        {
            auto [a, b] = q.front();
            q.pop();
            for(int k = 0; k < 4; k++)
            {
                int x = a + dx[k], y = b + dy[k];
                if(x >= 0 && x < m && y >= 0 && y < n && board[x][y] == 'O')
                {
                    board[x][y] = '.';
                    q.push({x, y});
                }
            }
        }
    }
};
