VBA实战(Solidworks二次开发)(1)：如何开始

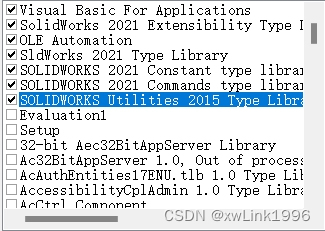

一、引用

二、基础运用

1、新建一个圆柱体，地址注意改成自己的电脑上的模板地址。

Private Sub Command1_Click()
    Dim PartTemplate As String
    Dim swApp As Object
    Dim Part As Object
    Set swApp = CreateObject("SldWorks.Application")
    swApp.Visible = True
'    Set Part = swApp.NewDocument("C:\ProgramData\SOLIDWORKS\SOLIDWORKS 2021\templates\gb_part.prtdot", 0, 0, 0)'设置模板地址
    PartTemplate = swApp.GetUserPreferenceStringValue(swUserPreferenceStringValue_e.swDefaultTemplatePart) '获取默认地址
    Set Part = swApp.NewDocument(PartTemplate, 0, 0, 0)
    Part.SketchManager.InsertSketch (True)
    boolstatus = Part.Extension.SelectByID2("前视基准面", "PLANE", 0, 0, 0, False, 0, Nothing, 0)
    Dim skSegment As Object
    Set skSegment = Part.SketchManager.CreateCircle(0, 0, 0, 0, 0.04, 0)
    Part.ShowNamedView2 "*上下二等角轴测", 8
    boolstatus = Part.Extension.SelectByID2("Arc1", "SKETCHSEGMENT", 0, 0, 0, False, 0, Nothing, 0)
    Dim myFeature As Object
    Set myFeature = Part.FeatureManager.FeatureExtrusion2(True, False, False, 0, 0, 0.1, 0.01, False, False, False, False, 0, 0, False, False, False, False, True, True, True, 0, 0, False)
    Part.SelectionManager.EnableContourSelection = False
End Sub

2.宏录制

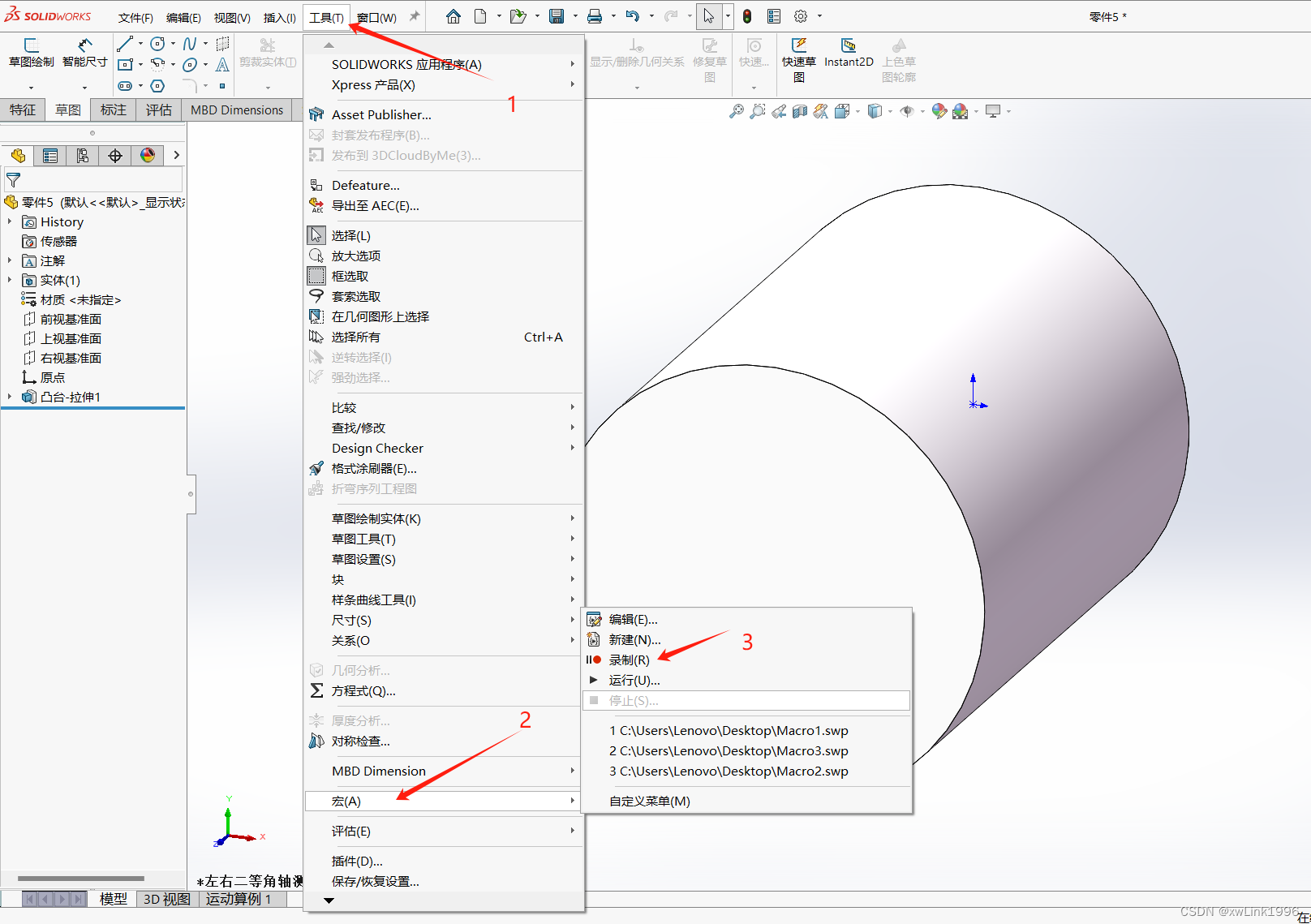

录制完后，工具》宏》编辑，即可查看录制的宏程序

' ******************************************************************************
' C:\Users\Lenovo\AppData\Local\Temp\swx7392\Macro1.swb - macro recorded on 05/23/24 by Lenovo
' ******************************************************************************
Dim swApp As Object
Dim Part As Object
Dim boolstatus As Boolean
Dim longstatus As Long, longwarnings As Long

Sub main()
    Set swApp = Application.SldWorks
    Set Part = swApp.ActiveDoc
End Sub

这个是solidworks中的宏程序，改为VBA为

Dim swApp As Object
Dim Part As Object
Dim boolstatus As Boolean
Dim longstatus As Long, longwarnings As Long

Sub test()
    Set swApp = GetObject(, "SldWorks.Application") '配置程序
    Set Part = swApp.ActiveDoc
End Sub
