目前网络上对于diffusers库的介绍仅限于对模型的加载,但实际上diffusers库具有多种功能,本博客将用于记录运用diffuser库微调一个stable diffusion的过程。
开始前的一些基础知识

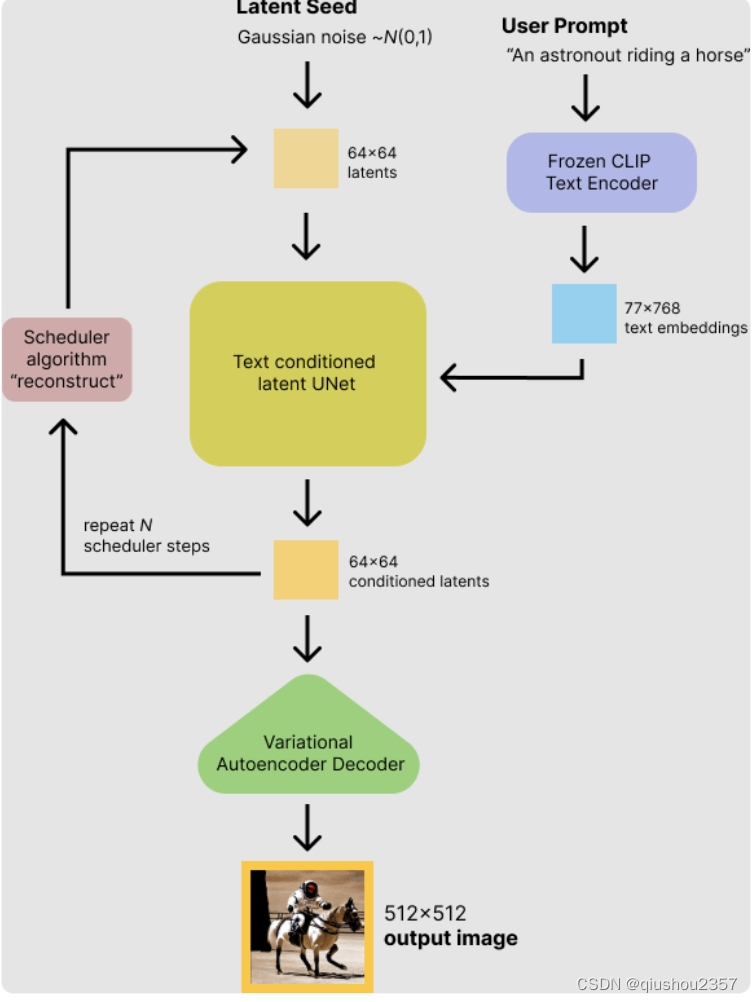

首先先简单介绍一下SD,一般来讲一个正统的 stable diffusion 包含三个分开的预训练模型,分别为VAE,U-Net,以及Text-encoder。
-VAE 变分自动编码器
包含encoder和decoder两个部分,其中encoder旨在把图像转化成隐变量,然后decoder将隐变量还原为图像,训练时这个隐变量会被作为U-Net的输入。在推理过程中,我们只需要过decoder的部分。
-U-Net 图像分割网络
U-Net的encoder和decoder都由残差网络块构成,encoder作用是特征提取,decoder是上采样,它用于输出噪声隐变量。残差回路是为了防止信息丢失,会在层中添加cross-attention的部分。
-The Text-encoder 文本编码器
将输入的文本转化为可被U-Net识别的东西,通常用transformer实现,由于imagen的提出,现在这部分可以分开训练,用CLIP来完成。
-其他小部件
tokenizer:服务于文本编码器。
scheduler:用于在训练的过程中迭代添加噪声
逐步搭建推理过程
我们不想再load别人写好的完整模型了,而是想从不同的模型中择其所长,怎么办呢?
from transformers import CLIPTextModel, CLIPTokenizer
from diffusers import AutoencoderKL, UNet2DConditionModel, PNDMScheduler
from diffusers import LMSDiscreteScheduler
# 1. 从老stable diffusion里获取VAE
vae = AutoencoderKL.from_pretrained("CompVis/stable-diffusion-v1-4", subfolder="vae")
# 2. 从openai获取新的CLIP
tokenizer = CLIPTokenizer.from_pretrained("openai/clip-vit-large-patch14")
text_encoder = CLIPTextModel.from_pretrained("openai/clip-vit-large-patch14")
# 3. 从老stable diffusion中获取unet
unet = UNet2DConditionModel.from_pretrained("CompVis/stable-diffusion-v1-4", subfolder="unet")
# 4. 创建一个LMSD的Scheduler
scheduler = LMSDiscreteScheduler(beta_start=0.00085, beta_end=0.012, beta_schedule="scaled_linear", num_train_timesteps=1000)
# 5. 将这些部件加到GPU上运算
torch_device = "cuda"
vae.to(torch_device)
text_encoder.to(torch_device)
unet.to(torch_device)
至此我们已将所有的组件装载完毕,来运行一个prompt
prompt = ["a photograph of an astronaut riding a horse"]
height = 512 # 图片高
width = 512 # 图片宽
num_inference_steps = 100 # 去噪次数
guidance_scale = 7.5 # 输入prompt与图像的紧密型
generator = torch.manual_seed(0) # 随机种子
batch_size = len(prompt)
首先,将prompt送入tokenizer编码成向量,padding将所有不同长度的句子归一成同样长度,然后通过CLIP编码成隐向量。
text_input = tokenizer(prompt, padding="max_length", max_length=tokenizer.model_max_length, truncation=True, return_tensors="pt")
text_embeddings = text_encoder(text_input.input_ids.to(torch_device))[0]
同时,获取一个空embedding加到embedding中来实现classifier-free,进而增加多样性。
max_length = text_input.input_ids.shape[-1]
uncond_input = tokenizer([""] * batch_size, padding="max_length", max_length=max_length, return_tensors="pt")
uncond_embeddings = text_encoder(uncond_input.input_ids.to(torch_device))[0]
text_embeddings = torch.cat([uncond_embeddings, text_embeddings])
接下来,生成随机噪声
latents = torch.randn(
(batch_size, unet.in_channels, height // 8, width // 8),
generator=generator,
)
latents = latents.to(torch_device)
这里生成了一个torch.Size([1, 4, 64, 64])的噪声,一会儿会被用于去噪生成所需图片的隐变量。
接下来我们初始化scheduler,还需要计算一个sigma,这个sigma是我们使用的K-LMS scheduler所需要的。
进行一个迭代的去噪。
scheduler.set_timesteps(num_inference_steps)
latents = latents * scheduler.init_noise_sigma
from tqdm.auto import tqdm
scheduler.set_timesteps(num_inference_steps)
for t in tqdm(scheduler.timesteps):
# 这个步骤是为了服务于classifier-free guidance
latent_model_input = torch.cat([latents] * 2)
latent_model_input = scheduler.scale_model_input(latent_model_input, timestep=t)
#用 Unet 计算噪声
with torch.no_grad():
noise_pred = unet(latent_model_input, t, encoder_hidden_states=text_embeddings).sample
# 进行classifier-free guidance
noise_pred_uncond, noise_pred_text = noise_pred.chunk(2)
noise_pred = noise_pred_uncond + guidance_scale * (noise_pred_text - noise_pred_uncond)
# 迭代到下一轮去噪
latents = scheduler.step(noise_pred, t, latents).prev_sample
使用VAE将隐变量还原为图片
# scale and decode the image latents with vae
latents = 1 / 0.18215 * latents
with torch.no_grad():
image = vae.decode(latents).sample
储存你的成果
image = (image / 2 + 0.5).clamp(0, 1)
image = image.detach().cpu().permute(0, 2, 3, 1).numpy()
images = (image * 255).round().astype("uint8")
pil_images = [Image.fromarray(image) for image in images]
pil_images[0]
参考
[1]:https://huggingface.co/blog/stable_diffusion#how-does-stable-diffusion-work
