Unity中写GLSL（六）—— 环境skybox反射 + Normal Map + Diffuse Map + AO Map

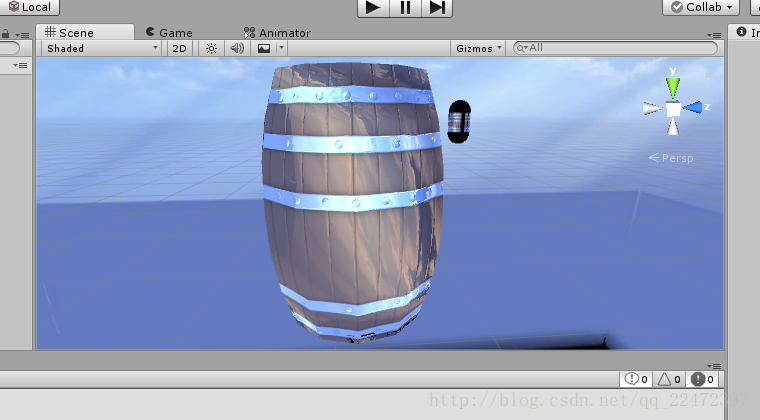

先上图：

再来是代码：

Shader "Custom/ShaderExample3"
{
    Properties
    {
        _MainTex ("Texture", 2D) = "white" {}   //duffuse
        _BumpMap("Normal Map", 2D) = "bump" {}  //normal
        _OcclusionMap("Occlusion", 2D) = "white" {} //AO
        _Cube("Reflection Map", Cube) = "" {} //skybox
    }

    SubShader
    {
        Pass
        {
            GLSLPROGRAM

            #extension GL_NV_shadow_samplers_cube : enable

            uniform sampler2D _MainTex;
            uniform sampler2D _BumpMap;
            uniform sampler2D _OcclusionMap;
            uniform samplerCube _Cube;

            uniform vec4 _BumpMap_ST;   //代表Tiling和Offset

            uniform mat4 _Object2World;
            uniform mat4 _World2Object;
            uniform vec3 _WorldSpaceCameraPos;  //view位置

            #ifdef VERTEX
            //顶点着色器

            attribute vec4 Tangent; //切线

            out vec4 texUvCoord;

            //tangent basis
            out mat3 localSurface2World;
            out vec4 worldPos;

            void main()
            {
                mat4 modelMatrix = _Object2World;
                mat4 modelMatrixInverse = _World2Object;

                //tangent转世界
                localSurface2World[0] = normalize(vec3(modelMatrix * vec4(vec3(Tangent), 0.0)));
                //normal转世界
                localSurface2World[2] = normalize(vec3(vec4(gl_Normal, 0.0) * modelMatrixInverse));
                //计算副法线(世界空间内)
                localSurface2World[1] = normalize(cross(localSurface2World[2], localSurface2World[0]) * Tangent.w);

                //Pos转世界
                worldPos = modelMatrix * gl_Vertex;

                //UV
                texUvCoord = gl_MultiTexCoord0;

                gl_Position = gl_ModelViewProjectionMatrix * gl_Vertex;
            }

            #endif

            #ifdef FRAGMENT
            //片元着色器

            in vec4 texUvCoord;

            //tangent basis
            in mat3 localSurface2World;
            in vec4 worldPos;

            void main()
            {
                //从normal map里读取normal
                vec4 encodedNormal = texture2D(_BumpMap, _BumpMap_ST.xy * texUvCoord.xy + _BumpMap_ST.zw);

                //normal转到世界tangent坐标系中
                vec3 normalDirection = normalize(localSurface2World * vec3(encodedNormal));

                //view dir
                vec3 viewDirection = normalize(vec3(worldPos) - _WorldSpaceCameraPos);

                vec3 reflectedDir = reflect(viewDirection, normalize(normalDirection));

                //天空盒反射颜色(加上normal map)
                vec4 skyNormalColor = textureCube(_Cube, reflectedDir);

                //diffuse颜色
                vec4 diffuseColor = texture(_MainTex, vec2(texUvCoord));

                //AO颜色
                vec4 occlusionColor = texture(_OcclusionMap, vec2(texUvCoord));

                //最终片元颜色
                gl_FragColor = skyNormalColor * diffuseColor * occlusionColor * 1.5;    //*1.5变亮一点
            }

            #endif

            ENDGLSL
        }
    }
}
