📘前言

• 🍅 键值对（Key - Value）又名哈希(hash)，各种编程语言都会有的一种数据类型,Python中叫字典，CAPL中叫 语义场联想（Associative fields ），本节想通过Python和CAPL的角度讲解下key-value的使用

• 🍅 演示软硬件环境 Windows11 x64 ； CANoe 11 SP2 x64


---

📙 CAPL和Python的简单对比

1️⃣ python下是字典的数据类型，通过花括号定义，可以初始化

• 键一般是唯一的，如果重复最后的一个键值对会替换前面的，值不需要唯一。
• 值可以取任何数据类型，但键必须是不可变的，如字符串，数字或元组。

tinydict = {'Name': 'Zara', 'Age': 7, 'sex': 'boy'}# 定义字典并初始化
tinydict['Age'] = 8 # 更新
tinydict['School'] = "RUNOOB" # 添加


print( "tinydict['Age']: ", tinydict['Age'])
print( "tinydict['School']: ", tinydict['School'])

---

2️⃣ CAPL中叫Associative fields ，定义方法如下

• capl定义如下图，key，value的数据类型可以是： long, int64, float, double, enumeration types and char[].
• 不像python,在同一个变量中，value可以是整形，也可以是字符串，CAPL中，只能是同一种数据类型

• 下面代码key 和value 都是 字符串类型的

on key 'a'
{
  char[20] tinydict[char []];

  strncpy(tinydict["Name"], "Zara", 20);
  strncpy(tinydict["Age"],  "7",    20);
  strncpy(tinydict["sex"],  "boy",  20);

  for (char[] mykey : tinydict)
  {
    write("%s is mapped to %s", mykey, tinydict[mykey]);
  }

}

• 输出结果：

Age is mapped to 7
Name is mapped to Zara
sex is mapped to boy

• 下面代码key 字符串类型的，Value是long类型

on key 'b'
{
  long setSignal[char []];

  setSignal["speed"] = 80;
  setSignal["igin"] = 1;

  for (char [] mykey : setSignal)
  {
    write("%s is mapped to %d", mykey, setSignal[mykey]);
  }

}

---

3️⃣ 特殊的for 语句

• 这个for 循环是特殊的，就是这个结构 char[] 是key的数据类型；mykey,可以随意定义，代表key；setSignal是keyvalue 变量名
• for循环所以是按照key的升序来的，仔细看下上面打印输出，Age ，Name ,sex先后打印出来，并不是按照赋值的顺序。

  for (char [] mykey : setSignal)
  {
    write("%s is mapped to %d", mykey, setSignal[mykey]);
  }

• 可以在循环中增加或者更改 value的

on key 'b'
{
  long setSignal[char []];

  setSignal["speed"] = 80;
  setSignal["igin"] = 1;

  for (char [] mykey : setSignal)
  {
    if (setSignal[mykey] == 80)
    {
      setSignal[mykey] = 90;
      setSignal["drivemode"] = 7;
    }
    write("%s is mapped to %d", mykey, setSignal[mykey]);
  }
}

---

4️⃣ 作为函数参数传递

on key 'c'
{
  long setSignal[char []];

  setSignal["speed"] = 80;
  setSignal["igin"] = 1;

  write("调用函数之前：");
  for (char [] mykey : setSignal)
  {
    write("%s is mapped to %d", mykey, setSignal[mykey]);
  }

  printMap(setSignal);

  write("调用函数之后：");
  for (char [] mykey : setSignal)
  {
    write("%s is mapped to %d", mykey, setSignal[mykey]);
  }

}

void printMap(long m[char []])
{
  for (char [] mykey : m)
  {
    if (m[mykey] == 80)
    {
      m[mykey] = 90;
      m["drivemode"] = 7;
    }
  }

}

• 输出结果：

调用函数之前：
igin is mapped to 1
speed is mapped to 80
调用函数之后：
drivemode is mapped to 7
igin is mapped to 1
speed is mapped to 90

---

5️⃣ 内置函数containsKey 检查key是否存在

on key 'd'
{
  long setSignal[char []];

  setSignal["speed"] = 80;
  setSignal["igin"] = 1;

  if (setSignal.containsKey("speed"))
  {
    write("key speed 存在");
  }
  else
  {
    write("key speed 不存在");
  }
}

---

6️⃣ 内置函数size 统计键值对个数

on key 'd'
{
  long setSignal[char []];

  setSignal["speed"] = 80;
  setSignal["igin"] = 1;

  write("setSignal key/value number:%d",setSignal.size());
}

setSignal key/value number:2

---

7️⃣ 内置函数remove 根据key删除一个key/value

on key 'd'
{
  long setSignal[char []];

  setSignal["speed"] = 80;
  setSignal["igin"] = 1;

  setSignal.remove("speed");

   for (char [] mykey : setSignal)
  {
    write("%s is mapped to %d", mykey, setSignal[mykey]);
  }
}

igin is mapped to 1

---

7️⃣ 内置函数clear 删除所有key/value

on key 'd'
{
  long setSignal[char []];

  setSignal["speed"] = 80;
  setSignal["igin"] = 1;

  setSignal.clear();
  write("setSignal key/value number:%d",setSignal.size());
}

setSignal key/value number:0

📙 结构体键值对复合数据

/*@!Encoding:936*/
variables
{
    struct msgdef
  {
    char name[34];
    char txNode[34];
    dword id;
    dword dlc;
    long cycle;

  };
  struct msgdef CAN_BUS_MSG[long, 200];
}



on message *

{
  if(!CAN_BUS_MSG.containsKey(this.id))
  {

    strncpy(CAN_BUS_MSG[this.id].name,this.name,elcount(CAN_BUS_MSG[this.id].name));
    strncpy(CAN_BUS_MSG[this.id].txNode,"%NODE_NAME%",elcount(CAN_BUS_MSG[this.id].txNode));
    CAN_BUS_MSG[this.id].id = this.id;
     CAN_BUS_MSG[this.id].dlc = this.dlc;
    CAN_BUS_MSG[this.id].cycle = DBLookup(this).GenMsgCycleTime;

  }

}

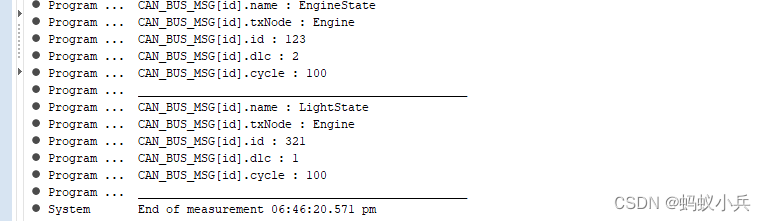

on key 'a'
{
  for(long id : CAN_BUS_MSG)
  {
    write("CAN_BUS_MSG[id].name : %s",CAN_BUS_MSG[id].name);
    write("CAN_BUS_MSG[id].txNode : %s",CAN_BUS_MSG[id].txNode);
    write("CAN_BUS_MSG[id].id : %x",CAN_BUS_MSG[id].id);
    write("CAN_BUS_MSG[id].dlc : %d",CAN_BUS_MSG[id].dlc);
    write("CAN_BUS_MSG[id].cycle : %d",CAN_BUS_MSG[id].cycle);
    write("_______________________________________________");
  }
}
