自适应动态规划(一)
先立一个flag,这个算法我一定要研究透彻,连续更新。
动态规划
参考书籍《最优控制理论与系统》第四章 动态规划
递推方程
J
N
(
x
)
=
min
S
N
(
x
)
{
d
[
x
,
s
N
(
x
)
]
+
J
N
−
1
[
S
N
(
x
)
]
}
J
1
(
x
)
=
d
(
x
,
F
)
J_N(x)=\min_{S_N(x)}\{d[x,s_N(x)]+J_{N-1}[S_N(x)]\} \\ J_1(x)=d(x,F)
JN(x)=SN(x)min{d[x,sN(x)]+JN−1[SN(x)]}J1(x)=d(x,F)
最优性原理
贝尔曼指出,多级决策过程的最优策略具有这样的性质;不论初始状态和初始决策如何,当把其中的任何一级和状态再作为初始级和初始状态时,其余的决策对此必定也是一个最优策略。
动态规划本质上告诉人们:整体最优闭为局部最优。
动态规划要求按照时间阶段逆向计算,而同时动态系统的状态又要求根据系统函数按照时间正向顺序计算,这使得传统动态规划的直接应用变得困难。
离散系统例题
已知离散系统方程
x
(
k
+
1
)
=
2
x
(
k
)
+
u
(
k
)
,
x
(
0
)
=
1
x(k+1)=2x(k)+u(k),~~~~~~~x(0)=1
x(k+1)=2x(k)+u(k), x(0)=1
代价函数
J
=
x
2
(
3
)
+
∑
k
=
0
2
[
x
2
(
k
)
+
u
2
(
k
)
]
J=x^2(3)+\sum_{k=0}^2[x^2(k)+u^2(k)]
J=x2(3)+k=0∑2[x2(k)+u2(k)]
式中的状态x(k)及控制u(k)均不受约束。试求最优控制序列
u
∗
(
0
)
,
u
∗
(
1
)
,
u
∗
(
2
)
{u^*(0),u^*(1),u^*(2)}
u∗(0),u∗(1),u∗(2),使代价函数极小。
解:
令
N
=
3
,
k
=
2
N=3,k=2
N=3,k=2时
J
1
∗
[
x
(
2
)
]
=
min
u
(
2
)
{
[
x
2
(
2
)
+
u
2
(
2
)
]
+
J
0
∗
[
x
(
3
)
]
}
J
0
∗
[
x
(
3
)
]
=
x
2
(
3
)
=
[
2
x
(
2
)
+
u
(
2
)
]
2
\begin{aligned} J_{1^*}[x(2)]&=\min_{u(2)}\{[x^2(2)+u^2(2)]+J_{0^*}[x(3)]\} \\ J_{0^*}[x(3)]&=x^2(3)=[2x(2)+u(2)]^2 \end{aligned}
J1∗[x(2)]J0∗[x(3)]=u(2)min{[x2(2)+u2(2)]+J0∗[x(3)]}=x2(3)=[2x(2)+u(2)]2
所以
J
1
∗
[
x
(
2
)
]
=
min
u
(
2
)
{
x
2
(
2
)
+
u
2
(
2
)
+
[
2
x
(
2
)
+
u
(
2
)
]
2
}
J_{1^*}[x(2)]=\min_{u(2)}\{x^2(2)+u^2(2)+[2x(2)+u(2)]^2\}
J1∗[x(2)]=u(2)min{x2(2)+u2(2)+[2x(2)+u(2)]2}
由于
u
(
k
)
u(k)
u(k)无约束,故令
∂
{
⋅
}
∂
u
(
2
)
=
2
u
(
2
)
+
2
[
2
x
(
2
)
+
u
(
2
)
]
=
0
\frac{\partial \{\cdot\}}{\partial u(2)}=2u(2)+2[2x(2)+u(2)]=0
∂u(2)∂{⋅}=2u(2)+2[2x(2)+u(2)]=0
求得
u
∗
(
2
)
=
−
x
(
2
)
u^*(2)=-x(2)
u∗(2)=−x(2)
将上述结果带入
J
1
∗
[
x
(
2
)
]
J_{1^*}[x(2)]
J1∗[x(2)]方程,易得
J
1
∗
[
x
(
2
)
]
=
3
x
2
(
2
)
J_{1^*}[x(2)]=3x^2(2)
J1∗[x(2)]=3x2(2)
令
N
=
2
,
k
=
1
N=2,k=1
N=2,k=1时
J
2
∗
[
x
(
1
)
]
=
min
u
(
1
)
{
[
x
2
(
1
)
+
u
2
(
1
)
]
+
J
1
∗
[
x
(
2
)
]
}
=
min
u
(
1
)
{
[
x
2
(
1
)
+
u
2
(
1
)
]
+
3
[
2
x
(
1
)
+
u
(
1
)
]
2
}
\begin{aligned} J_{2^*}[x(1)]&=\min_{u(1)}\{[x^2(1)+u^2(1)]+J_{1^*}[x(2)]\} \\ &=\min_{u(1)}\{[x^2(1)+u^2(1)]+3[2x(1)+u(1)]^2\} \end{aligned}
J2∗[x(1)]=u(1)min{[x2(1)+u2(1)]+J1∗[x(2)]}=u(1)min{[x2(1)+u2(1)]+3[2x(1)+u(1)]2}
同理取偏导数为0解得
u
∗
(
1
)
=
−
3
2
x
(
1
)
J
2
∗
[
x
(
1
)
]
=
4
x
2
(
1
)
u^*(1)=-\frac{3}{2}x(1) \\ J_{2^*}[x(1)]=4x^2(1)
u∗(1)=−23x(1)J2∗[x(1)]=4x2(1)
令
N
=
1
,
k
=
0
N=1,k=0
N=1,k=0时
J
3
∗
[
x
(
0
)
]
=
min
u
(
0
)
{
[
x
2
(
0
)
+
u
2
(
0
)
]
+
J
1
∗
[
x
(
1
)
]
}
=
min
u
(
0
)
{
[
x
2
(
0
)
+
u
2
(
0
)
]
+
4
[
2
x
(
0
)
+
u
(
0
)
]
2
}
\begin{aligned} J_{3^*}[x(0)]&=\min_{u(0)}\{[x^2(0)+u^2(0)]+J_{1^*}[x(1)]\} \\ &=\min_{u(0)}\{[x^2(0)+u^2(0)]+4[2x(0)+u(0)]^2\} \end{aligned}
J3∗[x(0)]=u(0)min{[x2(0)+u2(0)]+J1∗[x(1)]}=u(0)min{[x2(0)+u2(0)]+4[2x(0)+u(0)]2}
同理取偏导数为0解得
u
∗
(
0
)
=
−
8
5
x
(
0
)
J
3
∗
[
x
(
0
)
]
=
21
5
x
2
(
0
)
u^*(0)=-\frac{8}{5}x(0) \\ J_{3^*}[x(0)]=\frac{21}{5}x^2(0)
u∗(0)=−58x(0)J3∗[x(0)]=521x2(0)
带入已知的
x
(
0
)
=
1
x(0)=1
x(0)=1,按正向顺序算出
u
∗
(
0
)
=
−
8
5
,
x
∗
(
1
)
=
2
(
0
)
+
u
∗
(
0
)
=
2
5
,
J
3
∗
[
x
(
0
)
]
=
21
5
u
∗
(
1
)
=
−
3
5
,
x
∗
(
1
)
=
2
(
1
)
+
u
∗
(
1
)
=
1
5
,
J
2
∗
[
x
(
1
)
]
=
16
25
u
∗
(
2
)
=
−
1
5
,
x
∗
(
3
)
=
2
(
2
)
+
u
∗
(
2
)
=
1
5
,
J
1
∗
[
x
(
2
)
]
=
3
25
u^*(0)=-\frac{8}{5},~~~~~x^*(1)=2(0)+u^*(0)=\frac{2}{5},~~~~~J_{3^*}[x(0)]=\frac{21}{5} \\ u^*(1)=-\frac{3}{5},~~~~~x^*(1)=2(1)+u^*(1)=\frac{1}{5},~~~~~J_{2^*}[x(1)]=\frac{16}{25} \\ u^*(2)=-\frac{1}{5},~~~~~x^*(3)=2(2)+u^*(2)=\frac{1}{5},~~~~~J_{1^*}[x(2)]=\frac{3}{25} \\
u∗(0)=−58, x∗(1)=2(0)+u∗(0)=52, J3∗[x(0)]=521u∗(1)=−53, x∗(1)=2(1)+u∗(1)=51, J2∗[x(1)]=2516u∗(2)=−51, x∗(3)=2(2)+u∗(2)=51, J1∗[x(2)]=253
于是,最优轨迹及最优代价分别为
u
∗
=
−
8
5
,
−
3
5
,
−
1
5
x
∗
=
1
,
2
5
,
1
5
,
1
5
J
∗
=
J
3
∗
[
x
(
0
)
]
=
21
5
u^*={-\frac{8}{5},-\frac{3}{5},-\frac{1}{5}} \\ x^*={1,\frac{2}{5},\frac{1}{5},\frac{1}{5}} \\ J^*=J_3^*[x(0)]=\frac{21}{5}
u∗=−58,−53,−51x∗=1,52,51,51J∗=J3∗[x(0)]=521
这种计算是比较复杂的,可以利用动态规划数值计算法来求解离散最优控制问题。但是计算量和存储量会急剧增长。
维数灾难
对于状态向量为 n n n维、控制向量为 m m m维、时间离散段为N的离散系统,在状态向量的每个元取 p p p个值、控制向量的每个元取 q q q个值的情况下,计算性能指标的求值次数为 N p n q m Np^nq^m Npnqm次,要求存储容量为 2 p n 2p^n 2pn个字。取 N = 10 , p = q = 20 , n = 3 , m = 1 N=10,p=q=20,n=3,m=1 N=10,p=q=20,n=3,m=1,则需要存储容量为1.6万个字,编制表格的时间约需16s。此时还是一个低维的问题,因此计算量限制了动态规划去解决高维问题,自适应动态规划可以解决这个问题。
自适应动态规划
自适应动态规划,利用前向计算更加符合系统的计算模型。
ADP
- HDP启发式动态规划
- 最优控制要通过评判网络权值 ω \omega ω和输入输出关系式得出

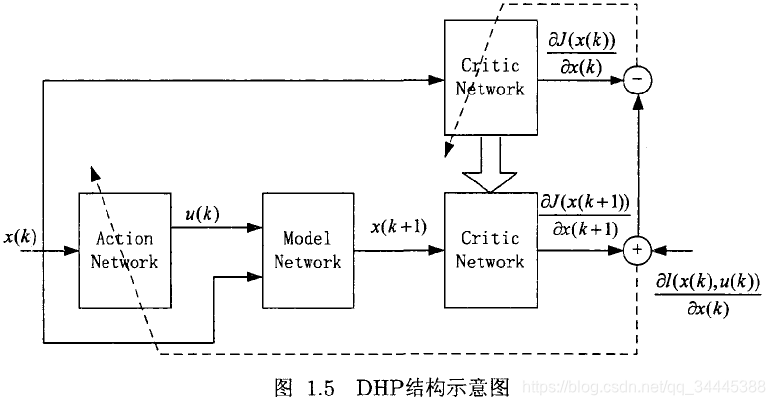

- DHP二次启发式动态规划
- 最优控制可以通过协状态( ∂ J ( x ( k ) ) ∂ x ( k ) \frac{\partial J(x(k))}{\partial x(k)} ∂x(k)∂J(x(k)))直接获得

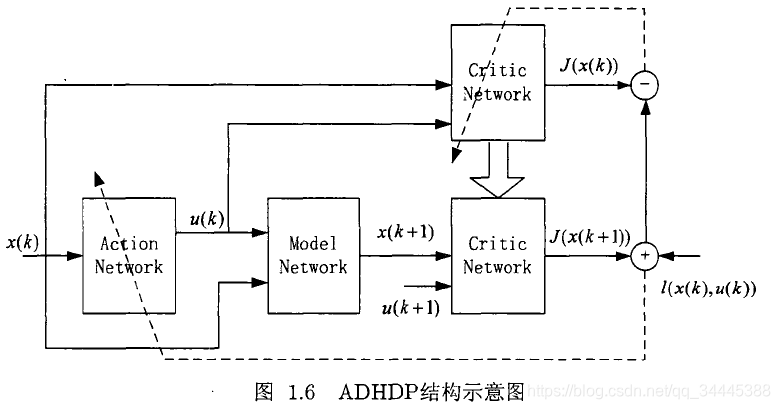

- ADHDP执行依赖启发式动态规划也被称为Q学习
- 和HDP相似,仅仅是评判网络多了控制变量做为输入

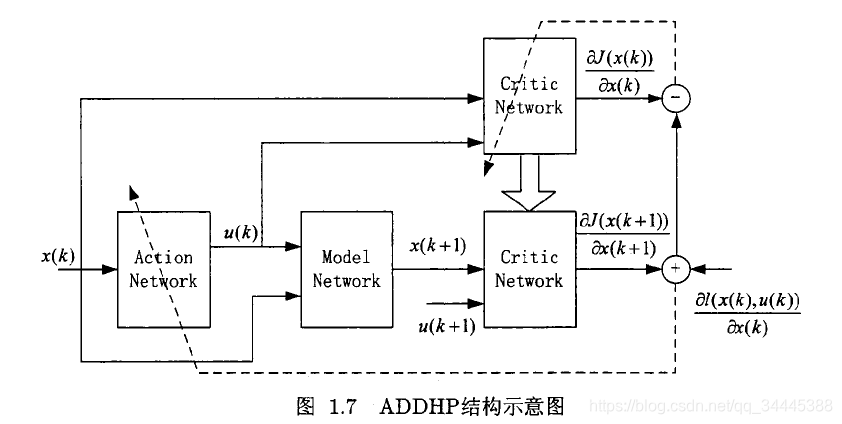

- ADDHP执行依赖二次启发式规划(同理)
DHP相对于HDP具有更高的控制精度,但需要更高的计算量。

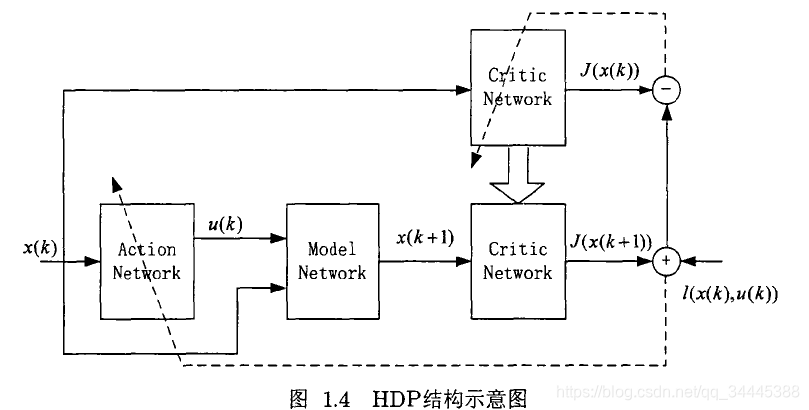

启发式动态规划(HDP)
HDP包含三个神经网络,分别为”执行网络“,”模型网络“,”评判网络“。
- 执行网络:输入系统当前系统状态,输出控制变量。代表了控制策略。
- 模型网络:用神经网络逼近实际的模型,利用神经网络的强大能力可以不必对实际的对象进行建模,降低算法部署的复杂性。
- 评判网络:输入系统状态变量,输出性能指标。利用历史数据,用神经网络逼近代价函数,使系统可以通过这个网络进行前向计算。
在HDP中,性能指标函数可以写成如下表达式
J
(
x
(
k
)
)
=
l
(
x
(
k
)
,
u
(
x
(
k
)
)
)
+
J
(
x
(
k
+
1
)
)
J(x(k))=l(x(k),u(x(k)))+J(x(k+1))
J(x(k))=l(x(k),u(x(k)))+J(x(k+1))
其实评判网络的作用就是去拟合这个等式。
评判网络的loss一般都是平方误差,可以写为(用
J
ω
J_{\omega}
Jω代表评价网络)
l
o
s
s
=
1
2
[
J
ω
(
x
(
k
)
)
−
l
(
x
(
k
)
,
u
(
x
(
k
)
)
)
+
J
(
x
(
k
+
1
)
)
]
2
loss = \frac{1}{2}[J_{\omega}(x(k))-l(x(k),u(x(k)))+J(x(k+1))]^2
loss=21[Jω(x(k))−l(x(k),u(x(k)))+J(x(k+1))]2
然后利用梯度下降的方法对网络进行迭代更新。用数学表示为:
ω
∗
=
a
r
g
min
ω
{
∣
J
(
x
(
k
)
,
ω
)
−
d
(
x
(
k
)
,
ω
)
∣
2
}
\omega^*=arg \min_{\omega}\{|J(x(k),\omega)-d(x(k),\omega)|^2\}
ω∗=argωmin{∣J(x(k),ω)−d(x(k),ω)∣2}
其中
d
(
x
(
k
)
,
ω
)
=
l
(
x
(
k
)
,
u
(
x
(
k
)
)
)
+
J
(
x
(
k
+
1
)
,
ω
)
d(x(k),\omega)=l(x(k),u(x(k)))+J(x(k+1),\omega)
d(x(k),ω)=l(x(k),u(x(k)))+J(x(k+1),ω)
对控制网络的loss
∂
J
∗
(
x
(
k
)
)
∂
u
(
k
)
=
∂
l
(
x
(
(
k
)
,
u
(
k
)
)
)
∂
u
(
k
)
+
∂
J
∗
(
x
(
k
+
1
)
)
∂
u
(
k
)
=
∂
l
(
x
(
(
k
)
,
u
(
k
)
)
)
∂
u
(
k
)
+
∂
J
∗
(
x
(
k
+
1
)
)
∂
x
(
k
+
1
)
∂
x
(
k
+
1
)
∂
u
(
k
)
\begin{aligned} \frac{\partial J^*(x(k))}{\partial u(k)}&=\frac{\partial l(x((k),u(k)))}{\partial u(k)}+\frac{\partial J^*(x(k+1))}{\partial u(k)} \\ &=\frac{\partial l(x((k),u(k)))}{\partial u(k)}+\frac{\partial J^*(x(k+1))}{\partial x(k+1)}\frac{\partial x(k+1)}{\partial u(k)} \end{aligned}
∂u(k)∂J∗(x(k))=∂u(k)∂l(x((k),u(k)))+∂u(k)∂J∗(x(k+1))=∂u(k)∂l(x((k),u(k)))+∂x(k+1)∂J∗(x(k+1))∂u(k)∂x(k+1)
ω ∗ = arg min ω { l ( x ( k ) , u ( x ( k ) , ω ) ) + J ∗ ( x ( k + 1 ) ) } \omega^*=\arg \min_{\omega}\{l(x(k),u(x(k),\omega))+J^*(x(k+1))\} ω∗=argωmin{l(x(k),u(x(k),ω))+J∗(x(k+1))}
loss就可以表示为
l
o
s
s
=
1
2
[
u
(
x
(
k
)
,
ω
)
−
arg
min
u
{
l
(
x
(
k
)
,
u
(
x
(
k
)
)
)
+
J
∗
(
x
(
k
+
1
)
)
}
]
2
loss=\frac{1}{2}[u(x(k),\omega)-\arg \min_{u}\{l(x(k),u(x(k)))+J*(x(k+1))\}]^2
loss=21[u(x(k),ω)−argumin{l(x(k),u(x(k)))+J∗(x(k+1))}]2
从上面可以看到,HDP主要是利用神经网络模拟了评价函数和控制函数,通过采样产生大量的数据来提前拟合原本需要实时在线进行反向递推的代价函数。
HDP的参考代码
代码是复制粘贴别人的ADP(自适应动态规划)-HDP,在此进行学习。
import torch
from torch.autograd import Variable
import matplotlib.pyplot as plt
import numpy as np
torch.manual_seed(1) # 设置随机种子,使得每次生成的随机数是确定的
state_dim = 2 # 状态维度
v_dim = 1 # 价值维度
action_dim = 1 # 动作维度
learing_rate = 0.005 # 学习率
learing_num = 500 # 学习次数
sim_num = 20 # 仿真步长
x0 = np.array([2,-1]) # 初始状态
epislon = 0.0001 # 阈值
Fre_V1_Paras = 5 # 更新V1的频率
########################################################################################################################
# 定义神经网络类
########################################################################################################################
import torch
from torch.autograd import Variable
import matplotlib.pyplot as plt
import numpy as np
state_dim = 2 # 状态维度
v_dim = 1 # 价值维度
action_dim = 1 # 动作维度
A_learing_rate = 0.01 # A网络学习率
V_learing_rate = 0.01 # V网络学习率
learing_num = 1000 # 学习次数
sim_num = 20 # 仿真步长
x0 = np.array([2,-1]) # 初始状态
epislon = 0.01 # 阈值
model_net_train_num = 50 # 模型网络训练测次数
torch.manual_seed(1) # 设置随机种子,使得每次生成的随机数是确定的
# 采样状态 将状态定义在x1 [-2,2] x2 [-1,1]
x = np.arange(-2, 2, 0.1)
y = np.arange(-1, 1, 0.1)
xx, yy = np.meshgrid(x, y) # 为一维的矩阵
state = np.transpose(np.array([xx.ravel(), yy.ravel()])) # 所有状态
state_num = state.shape[0] # 状态个数
####################################################################################################################
# 定义原始模型函数
####################################################################################################################
def model(current_state, u):
next_state = np.zeros([current_state.shape[0], current_state.shape[1]]) # 初始化下一个状态
for index in range(current_state.shape[0]): # 对每个样本计算下一个状态 根据输入的u
next_state[index, 0] = 0.2 * current_state[index, 0] * np.exp(current_state[index, 1] ** 2)
next_state[index, 1] = 0.3 * current_state[index, 1] ** 3 - 0.2 * u[index]
pass
return next_state
# 动作采样 将输入定在[-10 10] 内
action = np.arange(-10, 10, 0.05)
action_num = action.shape[0]
# 计算状态-动作对
a = np.random.rand(4,2)
b = np.random.rand(3)
state1 = np.repeat(state,action.shape[0],axis=0)
action1 = np.tile(action,(state.shape[0],1)).reshape((-1,1))
model_input = np.zeros([state.shape[0]*action.shape[0],2+1])
model_input[:,0:2] = state1
model_input[:,2] = action1.reshape(state.shape[0]*action.shape[0])
# 计算模型网络的label
model_target = model(state1,action1)
########################################################################################################################
# 定义神经网络类
########################################################################################################################
class Net1(torch.nn.Module):
# 初始化
def __init__(self):
super(Net1, self).__init__()
self.lay1 = torch.nn.Linear(state_dim, 10, bias = False) # 线性层
self.lay1.weight.data.normal_(0,0.5) # 权重初始化
self.lay2 = torch.nn.Linear(10, action_dim, bias = False) # 线性层
self.lay2.weight.data.normal_(0, 0.5) # 权重初始化
def forward(self, x):
layer1 = self.lay1(x) # 第一隐层
layer1 = torch.nn.functional.relu(layer1,inplace= False) # relu激活函数
output = self.lay2(layer1) # 输出层
return output
class Net2(torch.nn.Module):
# 初始化
def __init__(self):
super(Net2, self).__init__()
self.lay1 = torch.nn.Linear(state_dim+action_dim, 10, bias = False) # 线性层
self.lay1.weight.data.normal_(0,0.5) # 权重初始化
self.lay2 = torch.nn.Linear(10, state_dim, bias = False) # 线性层
self.lay2.weight.data.normal_(0, 0.5) # 权重初始化
def forward(self, x):
layer1 = self.lay1(x) # 第一隐层
layer1 = torch.nn.functional.relu(layer1,inplace = False) # relu激活函数
output = self.lay2(layer1) # 输出层
return output
########################################################################################################################
# 定义价值迭代类
########################################################################################################################
class HDP():
def __init__(self):
self.V_model = Net1() # 定义V1网络
self.A_model = Net1() # 定义A网络
self.modelnet = Net2() # 定义模型网络
self.criterion = torch.nn.MSELoss(reduction='mean') # 平方误差损失
# 训练一定次数,更新Critic Net的参数
# 这里只需要定义A网络和V2网络的优化器
self.optimizerV = torch.optim.SGD(filter(lambda p: p.requires_grad, self.V_model.parameters()), lr = V_learing_rate) # 利用梯度下降算法优化model.parameters
self.optimizerA = torch.optim.SGD(filter(lambda p: p.requires_grad, self.A_model.parameters()), lr = A_learing_rate) # 利用梯度下降算法优化model.parameters
self.optimizer_model = torch.optim.SGD(self.modelnet.parameters(), lr=0.01) # 利用梯度下降算法优化model.parameters
self.learn_model() # 训练模型网络
self.cost = [] # 初始化误差矩阵
# for p in self.V_model.parameters():
# p.requires_grad = True # 固定模型网络参数
# pass
# print('Model Net Training has finished!')
# for p in self.A_model.parameters():
# p.requires_grad = True # 固定模型网络参数
# pass
# print('Model Net Training has finished!')
# pass
def learn_model(self):
print('Model Net Training has begun!')
self.model_loss = []
for learn_index in range(model_net_train_num): # 训练模型
model_predict = self.modelnet(Variable(torch.Tensor(model_input))) # 预测值
loss = self.criterion(model_predict, Variable(torch.Tensor(model_target))) # 计算损失
self.model_loss.append(loss)
#print('loss: ', np.array(loss.data))
if np.abs(loss.data) < 0.001:
break
self.optimizer_model.zero_grad() # 对模型参数做一个优化,并且将梯度清0
loss.backward(retain_graph=True) # 计算梯度
self.optimizer_model.step() # 权重更新
pass
print('Model Net Training has finished!')
pass
####################################################################################################################
# J_loss函数
####################################################################################################################
def J_loss1(self,sk,uk):
Vk = np.zeros(sk.shape[0]) # x_k 的V值
for index in range(uk.shape[0]): # 对每个样本计算下一个状态 根据输入的u
Vk[index] = sk[index,0] ** 2 + sk[index,1] ** 2 + uk[index] ** 2
pass
return Vk
pass
def J_loss2(self,sk,uk,Vk_1):
Vk = np.zeros(uk.shape[0]) # x_k 的V值
for index in range(uk.shape[0]): # 对每个样本计算下一个状态 根据输入的u
Vk[index] = sk[index,0] ** 2 + sk[index,1] ** 2 + uk[index] ** 2 + Vk_1[index,0]
pass
return Vk
pass
def fitparas(self,p1,is_required):
if is_required==1:
for p in p1.parameters():
p.requires_grad = True # 固定模型网络参数
pass
else:
for p in p1.parameters():
p.requires_grad = False # 固定模型网络参数
pass
pass
####################################################################################################################
# 定义学习函数
####################################################################################################################
def learning(self):
self.loss = []
for train_index in range(learing_num):
print('the ' , train_index + 1 , ' --th learing start')
u_star = np.zeros([state_num, 1])
for index in range(state_num): # 循环计算所有状态的U*
st = model_input[(index)*action_num:(index+1)*action_num,:]
#print(st)
new_xk_1 = self.modelnet(Variable(torch.Tensor(st)))
next_V1 = self.V_model(Variable(torch.Tensor(new_xk_1)))
A1 = self.J_loss2(st, action, np.array(next_V1.data))
u_star_index = np.argmin(A1)
u_star[index] = action[u_star_index]
pass
# 计算target
Vk = self.V_model(Variable(torch.Tensor(state))) # 计算Vk
Gd = self.J_loss1(state , u_star) # 计算gD
target = np.array(Vk.data).reshape(Vk.shape[0],1)-np.array(Gd).reshape(Vk.shape[0],1) #计算标签
# 计算预测值 # 这里需要对两个网络A和V网络计算loss 两个loss是一样的
# 但是因为A网络需要经过Model网络计算梯度,不能直接中间结果保存到某个变量中,再带入另一个net 这样会出现 梯度为 None
# 具体的操作如 predict1
# 开始有用predict1 直接对V网络计算梯度,但是好像报了一个关于Pytorch版本的错误 然后 就利用中间变量保存
#model_input_with_u = Variable(torch.Tensor(np.zeros([state_num,state_dim+action_dim])))
model_input_with_u = torch.randn(state_num, state_dim + action_dim)
#model_input_with_u[:,0:state_dim] = Variable(torch.Tensor(state))
model_input_with_u[:,0:state_dim] = torch.tensor(state).type(torch.FloatTensor)
model_input_with_u[:,state_dim] = self.A_model(Variable(torch.Tensor(state))).view(state_num).type(torch.FloatTensor)
next_xk_1 = self.modelnet(Variable(torch.Tensor(model_input_with_u))).type(torch.FloatTensor)
predict2 = self.V_model(Variable(torch.Tensor(next_xk_1))) # 计算Vk+1
predict1 = self.V_model(\
self.modelnet(\
torch.cat((Variable(torch.tensor(state)).type(torch.FloatTensor),\
self.A_model(Variable(torch.Tensor(state))).view(state_num,1).type(torch.FloatTensor)\
),1)
)
)
# predict2 = self.V_model( \
# self.modelnet( \
# torch.cat((Variable(torch.tensor(state)).type(torch.FloatTensor), \
# self.A_model(Variable(torch.Tensor(state))).view(state_num, 1).type(torch.FloatTensor) \
# ), 1)
# )
# )
# for tt in range(next_xk_1.shape[0]):
# for ttt in range(next_xk_1.shape[1]):
# next_xk_1[tt,ttt].requires_grad = True
# pass
# pass
#
# for t in range(predict.shape[0]):
# predict[t].requires_grad = True
#print('是否求梯度', next_xk_1[5,1].requires_grad)
#############################################################################################################
# 更新Crictic Actor网络
#############################################################################################################
# for p in self.A_model.named_parameters():
# p.requires_grad
#self.fitparas(self.A_model, 1)
#self.fitparas(self.V_model, 0)
#self.fitparas(self.modelnet, 0) # Medel Net 不更新
# A_loss = self.criterion(self.A_model(Variable(torch.Tensor(state))).view(state_num,1),Variable(torch.Tensor(target))) # 计算损失
A_loss = self.criterion(predict1,torch.tensor(target).type(torch.FloatTensor)) # 计算损失
#A_loss.requires_grad = True
self.optimizerA.zero_grad() # 对模型参数做一个优化,并且将梯度清0
A_loss.backward(retain_graph=True) # 计算梯度
self.optimizerA.step() # 权重更新
print(' the ', train_index + 1, ' Action Net have updated')
# for name, parms in self.A_model.named_parameters():
# print('A_model-->name:', name, '-->grad_requirs:', parms.requires_grad, \
# ' -->grad_value:', parms.grad)
# self.fitparas(self.V_model, 1) # 只对V求梯度
# self.fitparas(self.A_model, 0)
#self.fitparas(self.modelnet, 0)
V_loss = self.criterion(predict2, Variable(torch.Tensor(target))) # 计算损失
self.optimizerV.zero_grad() # 对模型参数做一个优化,并且将梯度清0
V_loss.backward(retain_graph=True) # 计算梯度
self.optimizerV.step() # 权重更新
print(' the ' , train_index+1 , ' Critic Net have updated')
# for name, parms in self.V_model.named_parameters():
# print('V_model-->name:', name, '-->grad_requirs:', parms.requires_grad, \
# ' -->grad_value:', parms.grad)
# print('A paras:\n', list(self.A_model.named_parameters()))
# print('V paras:\n', list(self.V_model.named_parameters()))
# print('model paras:\n', list(self.modelnet.named_parameters()))
print(" AC net loss: ",A_loss.data)
self.loss.append(np.array(A_loss.data))
# 保存和加载整个模型
# 每次训练完可以保存模型,仿真时候 直接load训练好的模型 或者 继续训练可以接着上一次训练的结果继续训练
#torch.save(model_object, 'model.pth')
#model = torch.load('model.pth')
pass
#######################################################################################################
# 定义仿真函数
# 通过得到的Actor选择动作
# 同时利用Critic计算V
#######################################################################################################
def simulator(self):
print('the simulation is start')
#self.restore(self.path)
State_traject = np.zeros([sim_num + 1, state_dim])
State_traject[0, :] = x0
u_traject = np.zeros([sim_num, 1])
for index in range(sim_num):
print('the ', index, ' --th time start')
print('当前状态:', Variable(torch.Tensor(State_traject[index,:])).data)
sim_actor = self.A_model(Variable(torch.Tensor(State_traject[index,:])))
print('当前输入:',sim_actor)
u_traject[index] = sim_actor.data
sim_nexstate = model(State_traject[index, :].reshape(1, 2), sim_actor.data) #带入实际系统中
print('下一时刻状态:', sim_nexstate)
State_traject[index + 1, :] = sim_nexstate
pass
pass
V_traject = self.V_model(Variable(torch.Tensor(State_traject))).data
print('the simulation is over')
self.plot_curve(State_traject , u_traject , V_traject , self.loss,self.model_loss)
pass
#######################################################################################################
# 绘图函数
# 分别绘制状态轨迹 控制输入u轨迹 值函数V轨迹
# 并将结果保存!
#######################################################################################################
def plot_curve(self, s, u, V,cost,modelloss):
# print('\nstate\n',s)
# print('\nu\n', u)
# print('\nV\n', V)
# 绘制状态轨迹
plt.figure(1)
plt.plot(s[:, 0], 'r', label='State_1')
plt.plot(s[:, 1], 'b', label='State_2')
plt.title('State_Trajecteory')
plt.xlabel('iter')
plt.ylabel('State')
plt.legend()
plt.grid()
plt.savefig(r'ADPresultfig\HDP_state.png')
plt.show()
# 绘制控制输入u轨迹
plt.figure(2)
plt.plot(u, )
plt.title('U_Trajecteory')
plt.xlabel('iter')
plt.ylabel('u')
plt.grid()
plt.savefig(r'ADPresultfig\HDP_u.png')
plt.show()
# 绘制值函数V的轨迹
plt.figure(3)
plt.plot(V, 'r')
plt.title('V_Trajecteory')
plt.xlabel('iter')
plt.ylabel('V')
plt.grid()
plt.savefig(r'ADPresultfig\HDP_V.png')
plt.show()
print(cost)
# 绘制值函数V的轨迹
plt.figure(4)
plt.plot(cost, 'r')
plt.title('Train_loss_Trajecteory')
plt.xlabel('iter')
plt.ylabel('Train_loss')
plt.grid()
plt.savefig(r'ADPresultfig\HDP_loss.png')
plt.show()
# 绘制模型网络loss的轨迹
plt.figure(5)
plt.plot(modelloss, 'r')
plt.title('Model_loss_Trajecteory')
plt.xlabel('iter')
plt.ylabel('Model_loss')
plt.grid()
plt.savefig(r'ADPresultfig\HDP_Model_loss.png')
plt.show()
pass
########################################################################################################################
# 函数起始运行
# 在仿真时候,直接调用最优的模型进行仿真
# 最优的模型根据损失函数进行判断
########################################################################################################################
if __name__ == '__main__':
Agent = HDP() # 值迭代类实例化
Agent.learning() # 学习
Agent.simulator() # 仿真
参考文献
- Discrete-time nonlinear HJB solution using Approximate dynamic programming: Convergence Proof
- ADP(自适应动态规划)-HDP
- 基于近似动态规划的非线性系统最优控制研究
