使用TensorBoard进行数据可视化

使用TensorBoard进行数据可视化

---

---

除了python的matplotlib这个数据图像化的包，我们还可以使用Tensorflow自带的TensorBoard来将数据进行可视化，实现的代码如下

---

import tensorflow as tf
import numpy as np

def add_layer(inputs, in_size, out_size, n_layer, activation_function=None):
    layer_name = 'layer%s' % n_layer
    with tf.name_scope("layer"):
        with tf.name_scope("weight"):
            Weights = tf.Variable(tf.random_normal([in_size,out_size]),name="W")
            tf.summary.histogram(layer_name+'/Weights',Weights)
        with tf.name_scope("biases"):
            biases = tf.Variable(tf.zeros([1, out_size])+0.1,name="b")
            tf.summary.histogram(layer_name+'/biases',biases)
        with tf.name_scope("Wx_plus_b"):
            Wx_plus_b = tf.matmul(inputs, Weights)+biases
        if activation_function == None:
            outputs = Wx_plus_b
        else:
            outputs = activation_function(Wx_plus_b)
            tf.summary.histogram(layer_name+'/outputs',outputs)
        return outputs

x_data = np.linspace(-1,1,300)[:,np.newaxis]
noise = np.random.normal(0,0.05,x_data.shape)
y_data = np.square(x_data) - 0.5 + noise

with tf.name_scope("inputs"):
    xs = tf.placeholder(tf.float32,[None,1],name="x_input")
    ys = tf.placeholder(tf.float32,[None,1],name="y_input")

l1 = add_layer(xs, 1, 10, n_layer=1, activation_function=tf.nn.relu)
prediction = add_layer(l1, 10, 1, n_layer=2, activation_function=None)

with tf.name_scope("loss"):
    loss = tf.reduce_mean(tf.reduce_sum(tf.square(ys-prediction),reduction_indices=[1]),name="loss")
    tf.summary.scalar('loss',loss)
with tf.name_scope("train"):
    train_step = tf.train.GradientDescentOptimizer(0.1).minimize(loss)

init = tf.global_variables_initializer()
sess = tf.Session()
merged = tf.summary.merge_all()
writer = tf.summary.FileWriter("logs/",sess.graph)
sess.run(init)

for i in range(1000):
    sess.run(train_step,feed_dict={xs:x_data,ys:y_data})
    if i%50==0:
        result = sess.run(merged,feed_dict={xs:x_data,ys:y_data})
        writer.add_summary(result,i)

---

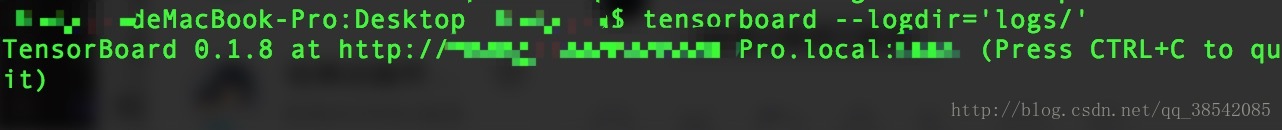

代码进行保存以及运行之后，将会在指定文件夹中看到保存的文件，这是我们需要在终端中运行下面的命令，然后将网址复制到浏览器即可打开

$ tensorboard --logdir='logs/' #'logs'是指保存的文件所在的文件夹

---

---

注：

---

1.

tf.name_scope("name")

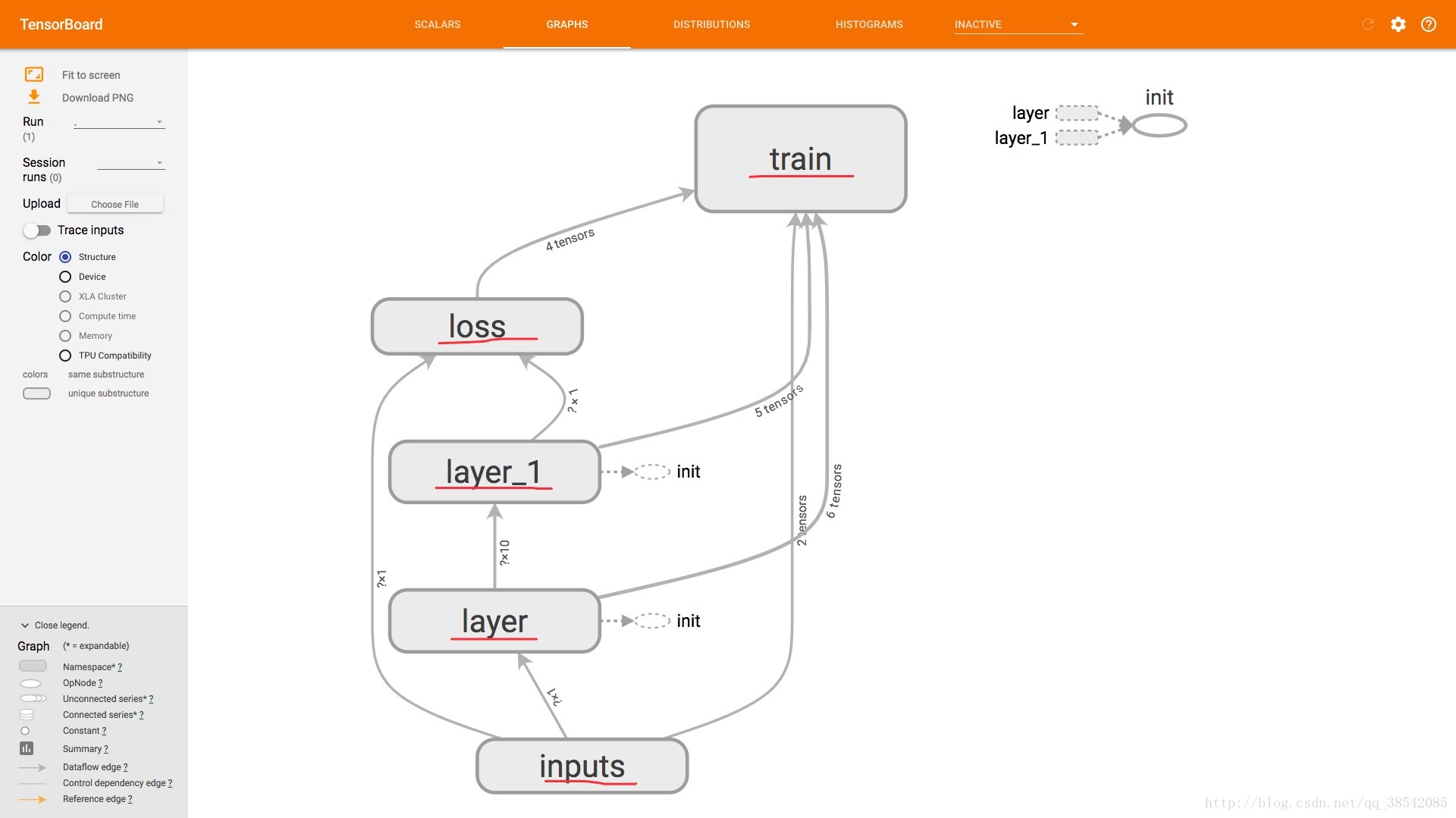

该函数中的name是指GRAPHS中的

以及每个神经网络的节点打开后里面的各种量的名字

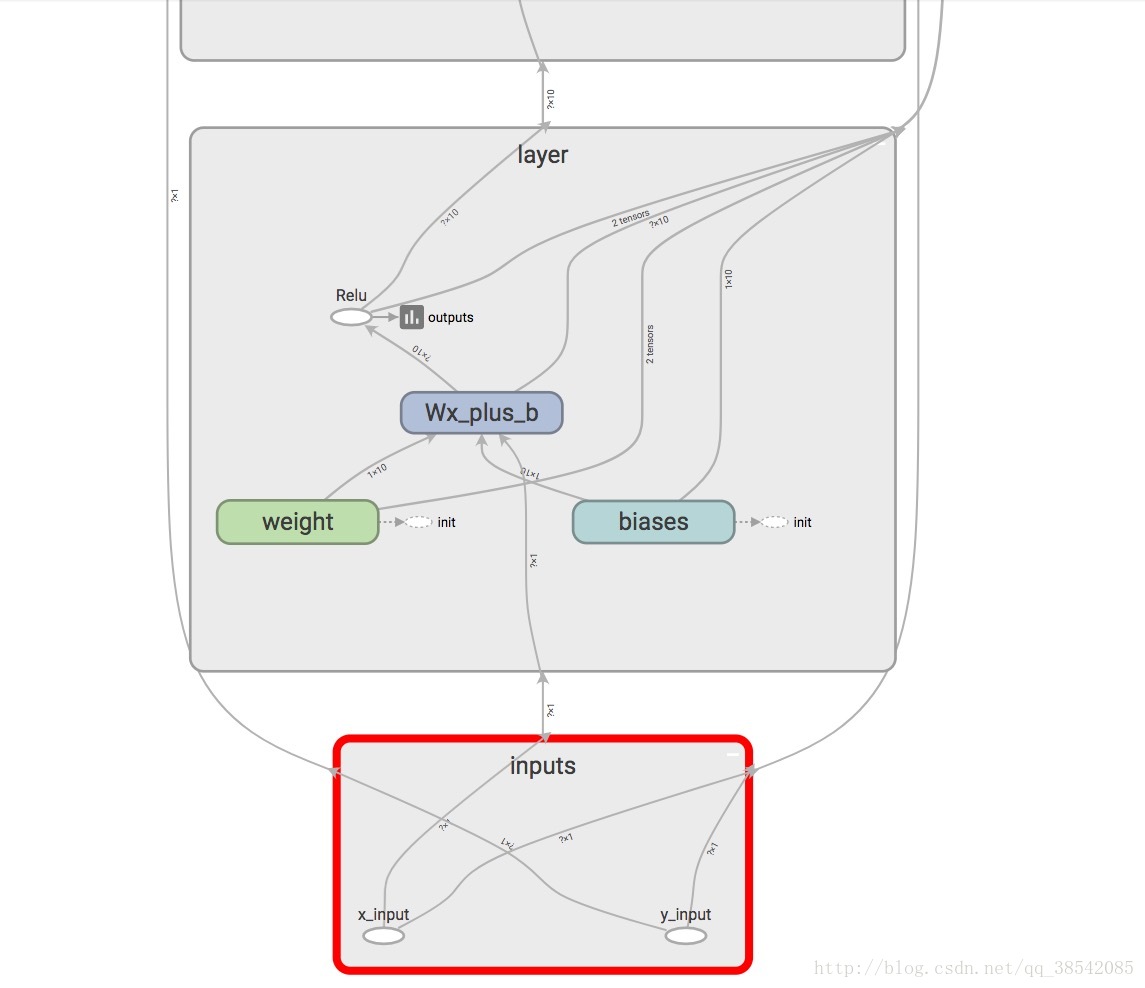

这是部分节点点开后的样子

这是所有节点点开后的样子

---

2.

tf.summary.histogram(layer_name+'name',name)

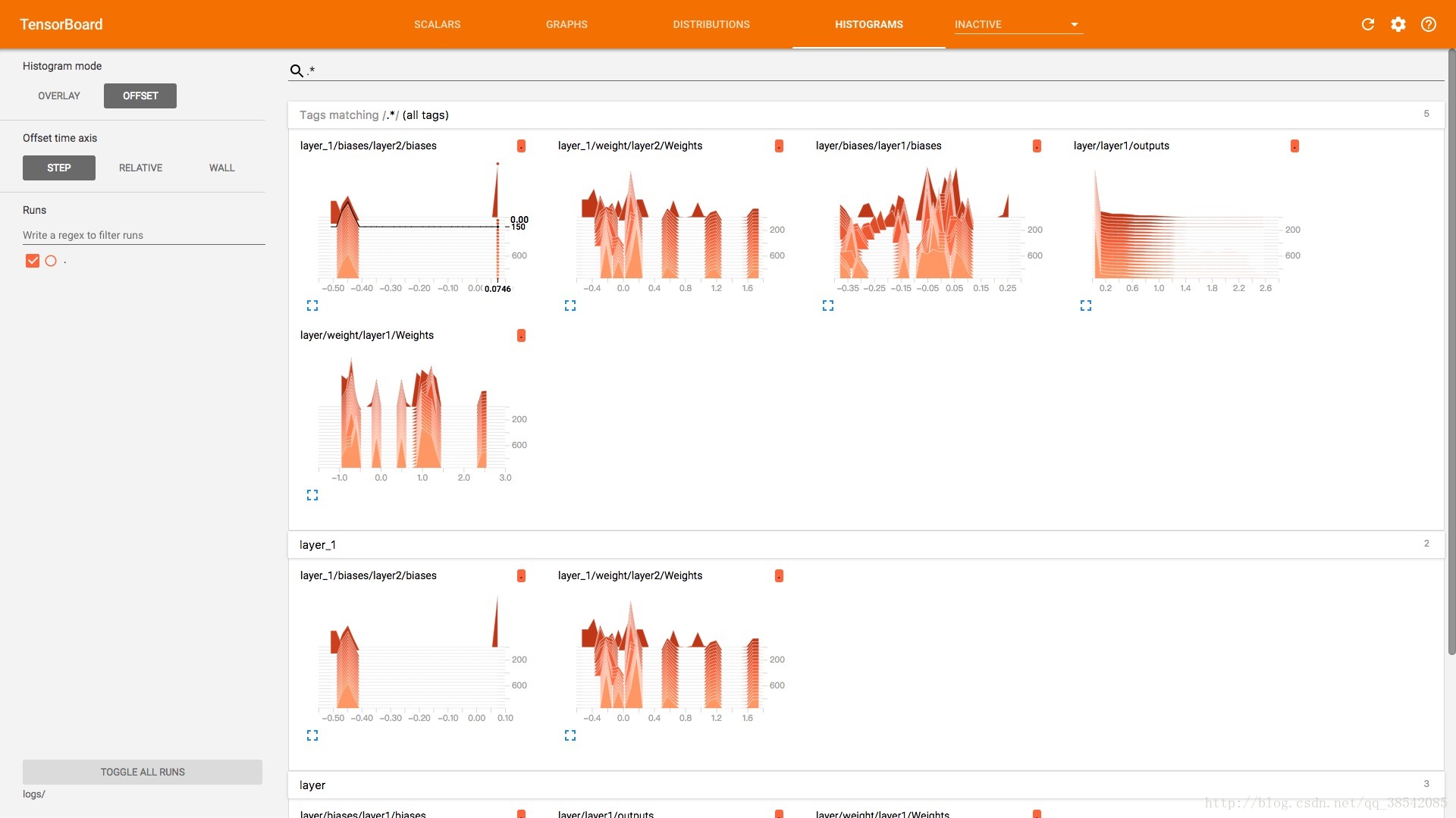

该函数是用来绘制histogram中图可视化绘图

---

3.

tf.summary.scalar('name',name)

该函数主要适用于损失函数在scalar的可视化绘图

---

4.

tf.summary.FileWriter("logs/",sess.graph)

该函数是将TensorBoard文件保存到指定路径，例如”logs/”即是指路径，正常运行后将会在logs文件夹下产生一个文件

---

5.

tf.summary.merge_all()

该函数是将所有summary文件合并到同一个文件里并在下一步的tf.summary.FileWriter(“logs/”,sess.graph)进行保存

---

6.

add_summary(result,i)

该函数是将result这个数据加入到writer = tf.summary.FileWriter(“logs/”,sess.graph)这个函数的write中去，其中i是指步数，例如本函数中就是50布记录一个点

---

7.运行应该在ipython中运行，如果在jupyter中运行可能会产生报错
