在《恒星结构与演化》这门课上，曾经用mesa进行过恒星演化的模拟。当时在绘制各种恒星的演化动画时，想到如果能将恒星的有效温度映射到具体对应的颜色上，画出来的动画是不是就更加生动形象了？于是我就到网上四处搜集黑体温度与颜色的关系，结果却什么也没搜到，加上ddl在即，于是只好作罢。

凑巧的是，没过多久，又有一位 ~~老同事~~ 也问了我一个类似的问题：为什么A型恒星的温度和电焊的温度差距如此之大，发出的光却都是蓝白色？当时我的回答是前者可以视为黑体而后者则不然，二者的光谱不同，在某种能够变换到颜色上的积分运算结果不同，从而导致得到了不同的颜色。

那么问题来了，光谱是怎么计算出对应的颜色的？为此我搜集了部分色彩学的文献及网页资料，最后便找到了下述的答案。

光谱到颜色的计算过程

从光谱到颜色的计算过程大致如下：

光谱 & CIE XYZ三色系的CMF $\rightarrow$ XYZ分量 $\rightarrow$ RGB分量 $\rightarrow$ 归一化后的，可以直接使用的RGB颜色

光谱

在光学中已经知道，一个物体在各个波段的辐射强度可以使用光谱 $\phi_\lambda(\lambda)$ 来描述，其中 $\lambda$ 为波长。有了光谱 $\phi_\lambda(\lambda)$ 后，就可以通过积分的方式求出各个指定波长范围 $[\lambda_1,\ \lambda_2]$ 内的辐射强度：
$I_{12}=\int_{\lambda_1}^{\lambda_2}\phi_\lambda(\lambda)d\lambda$
对于黑体而言，辐射为：
$S_\lambda(\lambda,\ T)=\frac{8\pi hc}{\lambda^5}\frac{1}{e^{hc/\lambda kT}-1}$

颜色的定量描述——CIE XYZ三色系

说到颜色的定量描述，最著名的一个色彩坐标系便是CIE XYZ三色系（CIE XYZ Trichromatic System），它将色彩空间里的三个基矢分别定义为X，Y和Z，在这个系统中的所有颜色都由这三个基失的线性叠加来描述。也就是说，只要知道了X，Y和Z的值，就可以确定一个具体的颜色

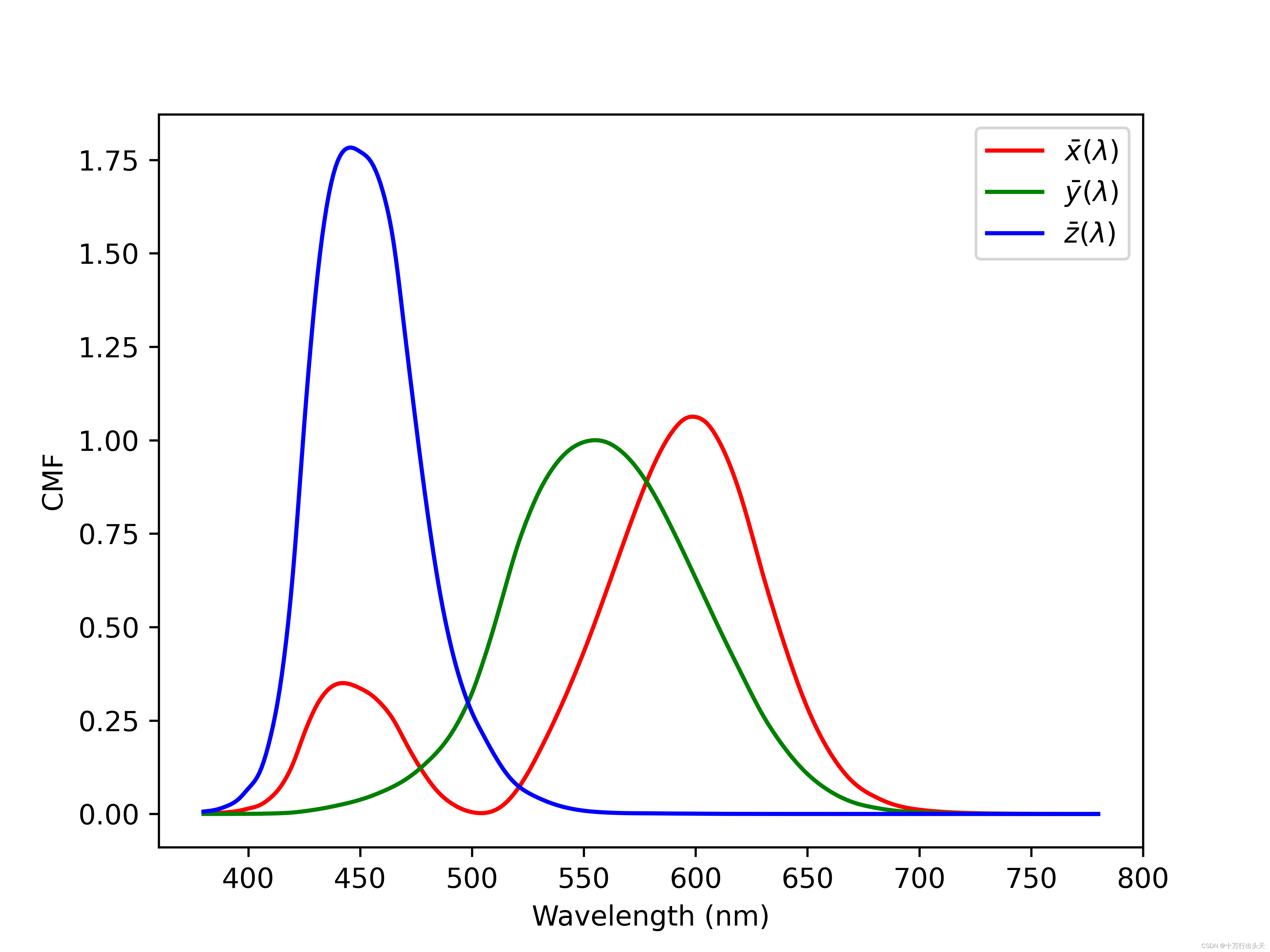

但如何确定X，Y和Z？这个时候就需要用到类似于滤光片透光率曲线的“人眼透光率曲线”了，在色彩学中称作color matching functions（CMF）。CMF是根据人眼的感光特性，将这个特性分解到X，Y和Z这三个分量上，从而分别得到了三条“透光率曲线” $\bar x(\lambda)$ ， $\bar y(\lambda)$ 和 $\bar z(\lambda)$ ：

在这里插入图片描述

类似于天文观测中的流量计算，对于任一光谱 $\phi_\lambda(\lambda)$ ，这里的三个分量的“流量”计算方式也几乎是一模一样的：
$\begin{aligned} X&=k\int_{380\ \mathrm{nm}}^{780\ \mathrm{nm}}\phi_\lambda(\lambda)\bar x(\lambda)d\lambda\\ Y&=k\int_{380\ \mathrm{nm}}^{780\ \mathrm{nm}}\phi_\lambda(\lambda)\bar y(\lambda)d\lambda\\ Z&=k\int_{380\ \mathrm{nm}}^{780\ \mathrm{nm}}\phi_\lambda(\lambda)\bar z(\lambda)d\lambda \end{aligned}$
计算出了X，Y和Z后，将其归一化：
$\begin{aligned} x&=\frac{X}{X+Y+Z}\\ y&=\frac{Y}{X+Y+Z}\\ z&=\frac{Z}{X+Y+Z} \end{aligned}$
$(x,\ y,\ z)$ 自由度为2，省略 $z$ 坐标，画出的 $(x,\ y)$ 平面即为 $(x,\ y)$ 色度图。至此，任意颜色都可以使用这个平面上的坐标来定量表示

XYZ到RGB的转换

实际上在最早的CIE 1931规范提出时，我们所熟知的RGB系统比XYZ系统要出现的更早。由于它们都是在色彩空间中使用三个不同的基矢，因此在这两个系统之间必然能够进行相应的线性变换

关于线性变换的参数，在很多文献中也都能找到。例如，RGB变换到XYZ的方式如下：
$\left(\begin{matrix} X\\Y\\Z \end{matrix}\right)= \left(\begin{matrix} 2.768892 & 1.751748 & 1.130160\\ 1.000000 & 4.590700 & 0.060100\\ 0 & 0.056508 & 5.594292 \end{matrix}\right) \left(\begin{matrix} R\\G\\B \end{matrix}\right)$
将变换矩阵求逆即可用于XYZ到RGB的变换，变换后再根据需求进行相应的归一化，就能在采用RGB规范的显示设备上将这个颜色显示出来了

算法运行结果展示

不同温度下的黑体颜色

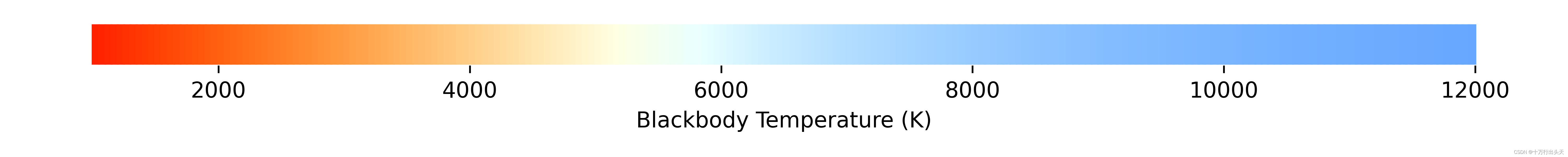

根据前面提到的黑体谱以及CMF，分别对不同温度的黑体进行计算得到XYZ，随后再通过线性变换得到RGB并进行归一化，作图得到下述的结果：

在这里插入图片描述

这个图和各种色温参考图相比，还是有比较大的偏差的，可能是因为CMF曲线的使用有所差异（这里的CMF曲线是从python的colour-science包中相应的数据库里掏出来的）

赫罗图改进

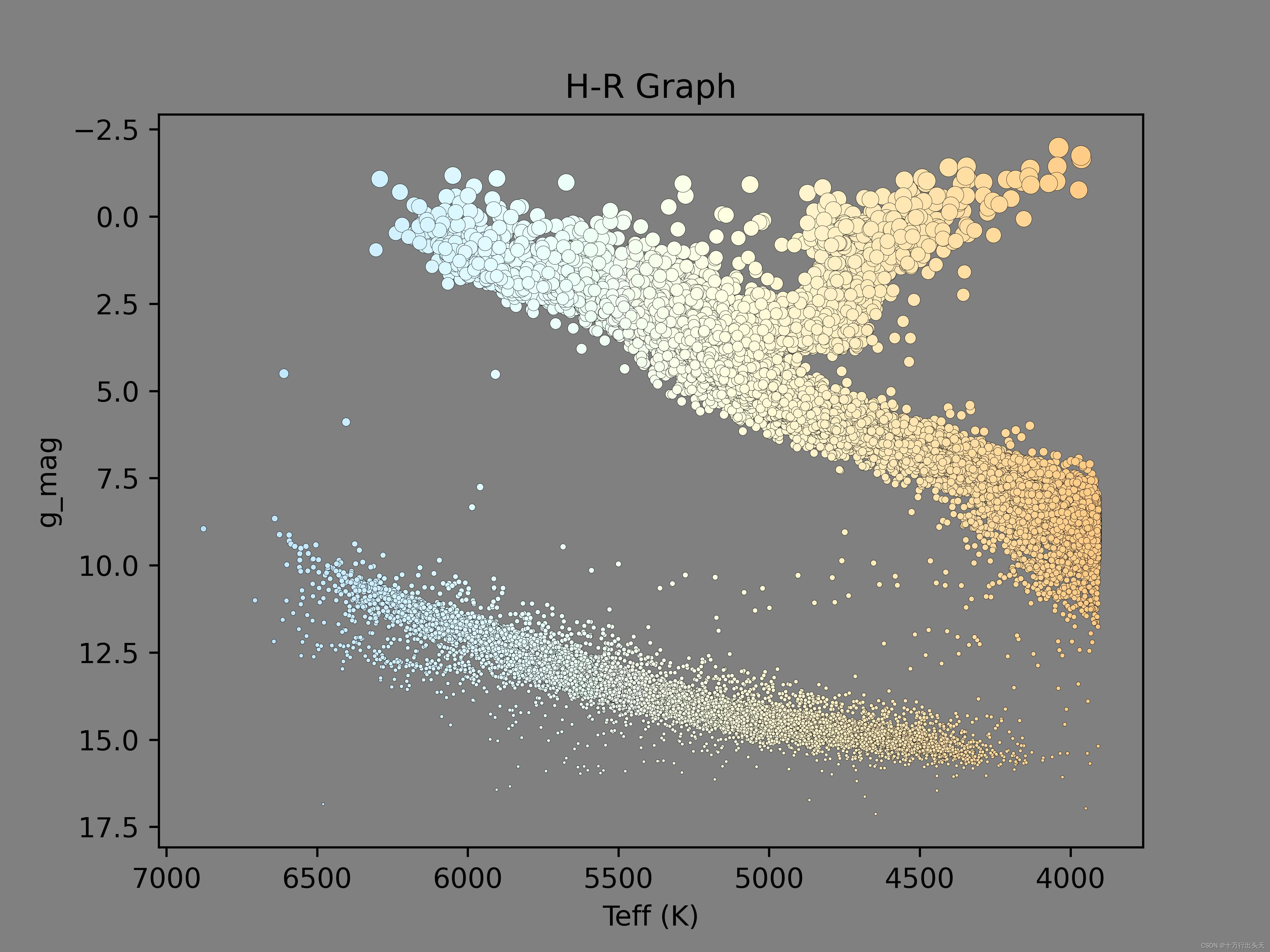

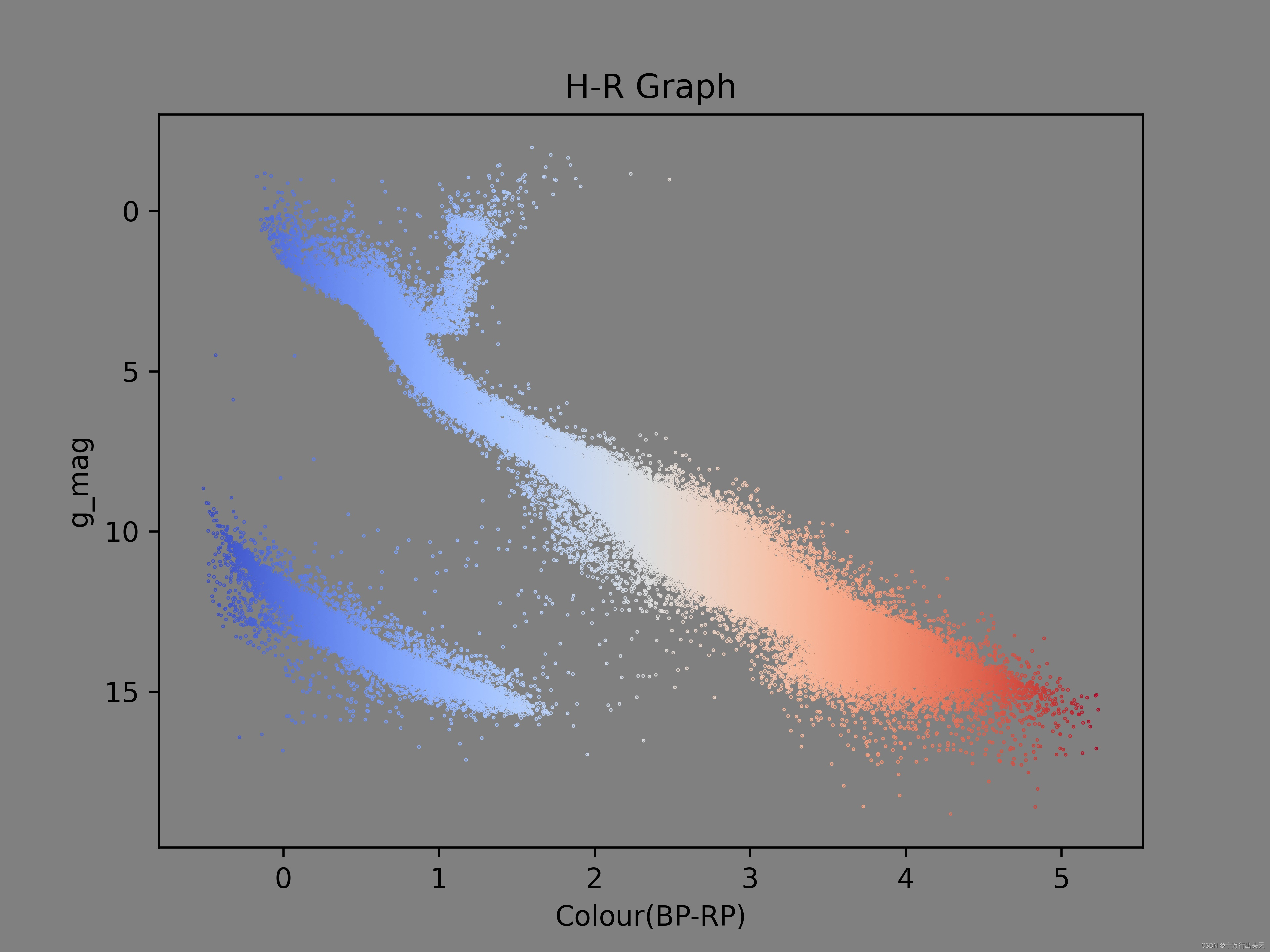

现在已经知道了黑体温度与颜色的具体对应关系，因此就尝试了一下对几个月前画的一张赫罗图进行了相应的改进，现在各点的颜色都能够与有效（黑体）温度相对应，显得更加科学了：

最开始的问题：不同温度，辐射颜色却相同的原因？

答案自然是光谱的不同所致了。光谱不同，得到的X，Y，Z分量不同，表现出来的颜色自然也就不同了

也有文献（McCamy, C. , 1992）研究了CIE中的等温线——它们是近似地以某个点为中心，向外辐射出各个不同斜率的直线，在同一条直线上，物体对应的温度是相等的。也就是说，温度相同的物体，的确会随着光谱的不同而呈现出不同的颜色

参考文献

[1] JÁNOS SCHANDA (2007). UNDERSTANDING THE CIE SYSTEM, 29-34.

[2] McCamy, C. (1992). Correlated color temperature as an explicit function of chromaticity coordinates . Color Research & Application, 17(2), 142–144.

相关代码

黑体谱与RGB颜色的转换

import numpy as np
import matplotlib.pyplot as plt
import json
from colour.plotting import plot_chromaticity_diagram_CIE1931

def load_cmf():
    """
        获取XYZ坐标系的cmf

        Returns
        -------
        [xbar, ybar, zbar] : [float[], float[], float[]]
            三个坐标变量的cmf
    """
    xbar = []
    ybar = []
    zbar = []
    with open("data_cmfs_standard_observer.json", "r") as f:
        D = json.load(f)
    for each_waveLength in range(380, 781):
        each_waveLength_str = str(each_waveLength)
        [each_xbar, each_ybar, each_zbar] = D[each_waveLength_str]
        xbar.append(each_xbar)
        ybar.append(each_ybar)
        zbar.append(each_zbar)
    return [xbar, ybar, zbar]

def get_bb_spectrum(T):
    """
        计算某一温度下对应的黑体谱

        Parameters
        ----------
        T : float
            温度(K)

        Returns
        -------
        waveLength : float[]
            波长(nm)
        bb_spectrum : float[]
            计算得到的归一化黑体谱
    """
    h = 6.626e-34
    c = 3e8
    k = 1.381e-23
    waveLength = np.arange(380, 781, 1) # unit : nm
    waveLength_metric = waveLength / 1e9 # unit : m
    bb_spectrum = 8 * np.pi * h * c / waveLength_metric**5 / (np.exp(h * c / (waveLength_metric * k * T)) - 1)
    bb_spectrum = bb_spectrum / max(bb_spectrum) # normalization
    return [waveLength, bb_spectrum]

def plotCMF(waveLength, xbar, ybar, zbar):
    """
        绘制CMF
    """
    plt.plot(waveLength, xbar, 'r-', label=r'$\bar x(\lambda)$')
    plt.plot(waveLength, ybar, 'g-', label=r'$\bar y(\lambda)$')
    plt.plot(waveLength, zbar, 'b-', label=r'$\bar z(\lambda)$')
    plt.xlabel('Wavelength (nm)')
    plt.ylabel('CMF')
    plt.legend()
    plt.savefig("CMF.png", dpi=600)

def convolution(fx1, fx2):
    """
        计算两个函数相乘的积分，已满足x轴坐标对应的条件
    """
    fx1 = np.array(fx1)
    fx2 = np.array(fx2)
    F = np.sum(fx1 * fx2)
    return F

def calculate_CIE_pos(bb_spectrum, xbar, ybar, zbar):
    """
        根据黑体谱和CMF，计算CIE坐标
    """
    X = convolution(bb_spectrum, xbar)
    Y = convolution(bb_spectrum, ybar)
    Z = convolution(bb_spectrum, zbar)
    x = X / (X + Y + Z)
    y = Y / (X + Y + Z)
    z = Z / (X + Y + Z)
    return [x, y, z]

def show_bb_color_in_CIE(T):
    """
        在CIE上显示温度为T的黑体对应颜色
    """
    [xbar, ybar, zbar] = load_cmf()
    plot_chromaticity_diagram_CIE1931(standalone=False)
    [waveLength, bb_spectrum] = get_bb_spectrum(T=T)
    [x, y, z] = calculate_CIE_pos(bb_spectrum, xbar, ybar, zbar)
    plt.plot(x, y, 'k.')
    plt.show()

def from_xyz_to_RGB(x, y, z):
    """
        将CIE上的坐标转换为RGB坐标
    """
    M = np.matrix([[0.41845516, -0.15865714, -0.08283193],
                [-0.09116486, 0.25242564, 0.01570531],
                [0.00092086, -0.00254975, 0.17859499]])
    xyz = np.matrix([[x], [y], [z]])
    RGB = M * xyz
    RGB = RGB / max(RGB)
    RGB[np.where(RGB < 0)] = 0
    RGB = np.array(RGB)
    return [RGB[0][0], RGB[1][0], RGB[2][0]]

def plot_bb_color_temperature_relation():
    """
        画出黑体的颜色-温度关系图
    """
    [xbar, ybar, zbar] = load_cmf()
    deltaT = 50
    plt.figure(figsize=(10,1))
    for T in range(1000, 12000, deltaT):
        [waveLength, bb_spectrum] = get_bb_spectrum(T=T)
        [x, y, z] = calculate_CIE_pos(bb_spectrum, xbar, ybar, zbar)
        RGB = from_xyz_to_RGB(x, y, z)
        plt.fill([T, T+deltaT, T+deltaT, T, T], [0, 0, 1, 1, 0], c=RGB)
    plt.yticks([])
    plt.xlabel("Blackbody Temperature (K)")
    plt.gca().spines['left'].set_visible(False)
    plt.gca().spines['right'].set_visible(False)
    plt.gca().spines['bottom'].set_visible(False)
    plt.gca().spines['top'].set_visible(False)
    plt.tight_layout()
    plt.savefig("bb_color_temperature_relation.png", dpi=600)

def bb_temperature_to_RGB(T):
    """
        将黑体的温度所对应的颜色转换为RGB值

        Returns
        -------
        RGB : float[3]
            RGB值，已进行归一化，可以直接在pyplot中使用
    """
    [xbar, ybar, zbar] = load_cmf()
    [waveLength, bb_spectrum] = get_bb_spectrum(T=T)
    [x, y, z] = calculate_CIE_pos(bb_spectrum, xbar, ybar, zbar)
    RGB = from_xyz_to_RGB(x, y, z)
    return RGB

if __name__ == "__main__":
    RGB = bb_temperature_to_RGB(T=5000)
    print(RGB)

CIE 1931规范下的CMF（从colour-science包中抠出，可直接复制使用）

json格式的，key为波长，单位是纳米，value分别为 $\bar x(\lambda)$ ， $\bar y(\lambda)$ 和 $\bar z(\lambda)$ 的值

{"360": [0.0001299, 3.917e-06, 0.0006061], "361": [0.000145847, 4.393581e-06, 0.0006808792], "362": [0.0001638021, 4.929604e-06, 0.0007651456], "363": [0.0001840037, 5.532136e-06, 0.0008600124], "364": [0.0002066902, 6.208245e-06, 0.0009665928], "365": [0.0002321, 6.965e-06, 0.001086], "366": [0.000260728, 7.813219e-06, 0.001220586], "367": [0.000293075, 8.767336e-06, 0.001372729], "368": [0.000329388, 9.839844e-06, 0.001543579], "369": [0.000369914, 1.104323e-05, 0.001734286], "370": [0.0004149, 1.239e-05, 0.001946], "371": [0.0004641587, 1.388641e-05, 0.002177777], "372": [0.000518986, 1.555728e-05, 0.002435809], "373": [0.000581854, 1.744296e-05, 0.002731953], "374": [0.0006552347, 1.958375e-05, 0.003078064], "375": [0.0007416, 2.202e-05, 0.003486], "376": [0.0008450296, 2.483965e-05, 0.003975227], "377": [0.0009645268, 2.804126e-05, 0.00454088], "378": [0.001094949, 3.153104e-05, 0.00515832], "379": [0.001231154, 3.521521e-05, 0.005802907], "380": [0.001368, 3.9e-05, 0.006450001], "381": [0.00150205, 4.28264e-05, 0.007083216], "382": [0.001642328, 4.69146e-05, 0.007745488], "383": [0.001802382, 5.15896e-05, 0.008501152], "384": [0.001995757, 5.71764e-05, 0.009414544], "385": [0.002236, 6.4e-05, 0.01054999], "386": [0.002535385, 7.234421e-05, 0.0119658], "387": [0.002892603, 8.221224e-05, 0.01365587], "388": [0.003300829, 9.350816e-05, 0.01558805], "389": [0.003753236, 0.0001061361, 0.01773015], "390": [0.004243, 0.00012, 0.02005001], "391": [0.004762389, 0.000134984, 0.02251136], "392": [0.005330048, 0.000151492, 0.02520288], "393": [0.005978712, 0.000170208, 0.02827972], "394": [0.006741117, 0.000191816, 0.03189704], "395": [0.00765, 0.000217, 0.03621], "396": [0.008751373, 0.0002469067, 0.04143771], "397": [0.01002888, 0.00028124, 0.04750372], "398": [0.0114217, 0.00031852, 0.05411988], "399": [0.01286901, 0.0003572667, 0.06099803], "400": [0.01431, 0.000396, 0.06785001], "401": [0.01570443, 0.0004337147, 0.07448632], "402": [0.01714744, 0.000473024, 0.08136156], "403": [0.01878122, 0.000517876, 0.08915364], "404": [0.02074801, 0.0005722187, 0.09854048], "405": [0.02319, 0.00064, 0.1102], "406": [0.02620736, 0.00072456, 0.1246133], "407": [0.02978248, 0.0008255, 0.1417017], "408": [0.03388092, 0.00094116, 0.1613035], "409": [0.03846824, 0.00106988, 0.1832568], "410": [0.04351, 0.00121, 0.2074], "411": [0.0489956, 0.001362091, 0.2336921], "412": [0.0550226, 0.001530752, 0.2626114], "413": [0.0617188, 0.001720368, 0.2947746], "414": [0.069212, 0.001935323, 0.3307985], "415": [0.07763, 0.00218, 0.3713], "416": [0.08695811, 0.0024548, 0.4162091], "417": [0.09717672, 0.002764, 0.4654642], "418": [0.1084063, 0.0031178, 0.5196948], "419": [0.1207672, 0.0035264, 0.5795303], "420": [0.13438, 0.004, 0.6456], "421": [0.1493582, 0.00454624, 0.7184838], "422": [0.1653957, 0.00515932, 0.7967133], "423": [0.1819831, 0.00582928, 0.8778459], "424": [0.198611, 0.00654616, 0.959439], "425": [0.21477, 0.0073, 1.0390501], "426": [0.2301868, 0.008086507, 1.1153673], "427": [0.2448797, 0.00890872, 1.1884971], "428": [0.2587773, 0.00976768, 1.2581233], "429": [0.2718079, 0.01066443, 1.3239296], "430": [0.2839, 0.0116, 1.3856], "431": [0.2949438, 0.01257317, 1.4426352], "432": [0.3048965, 0.01358272, 1.4948035], "433": [0.3137873, 0.01462968, 1.5421903], "434": [0.3216454, 0.01571509, 1.5848807], "435": [0.3285, 0.01684, 1.62296], "436": [0.3343513, 0.01800736, 1.6564048], "437": [0.3392101, 0.01921448, 1.6852959], "438": [0.3431213, 0.02045392, 1.7098745], "439": [0.3461296, 0.02171824, 1.7303821], "440": [0.34828, 0.023, 1.74706], "441": [0.3495999, 0.02429461, 1.7600446], "442": [0.3501474, 0.02561024, 1.7696233], "443": [0.350013, 0.02695857, 1.7762637], "444": [0.349287, 0.02835125, 1.7804334], "445": [0.34806, 0.0298, 1.7826], "446": [0.3463733, 0.03131083, 1.7829682], "447": [0.3442624, 0.03288368, 1.7816998], "448": [0.3418088, 0.03452112, 1.7791982], "449": [0.3390941, 0.03622571, 1.7758671], "450": [0.3362, 0.038, 1.77211], "451": [0.3331977, 0.03984667, 1.7682589], "452": [0.3300411, 0.041768, 1.764039], "453": [0.3266357, 0.043766, 1.7589438], "454": [0.3228868, 0.04584267, 1.7524663], "455": [0.3187, 0.048, 1.7441], "456": [0.3140251, 0.05024368, 1.7335595], "457": [0.308884, 0.05257304, 1.7208581], "458": [0.3032904, 0.05498056, 1.7059369], "459": [0.2972579, 0.05745872, 1.6887372], "460": [0.2908, 0.06, 1.6692], "461": [0.2839701, 0.06260197, 1.6475287], "462": [0.2767214, 0.06527752, 1.6234127], "463": [0.2689178, 0.06804208, 1.5960223], "464": [0.2604227, 0.07091109, 1.564528], "465": [0.2511, 0.0739, 1.5281], "466": [0.2408475, 0.077016, 1.4861114], "467": [0.2298512, 0.0802664, 1.4395215], "468": [0.2184072, 0.0836668, 1.3898799], "469": [0.2068115, 0.0872328, 1.3387362], "470": [0.19536, 0.09098, 1.28764], "471": [0.1842136, 0.09491755, 1.2374223], "472": [0.1733273, 0.09904584, 1.1878243], "473": [0.1626881, 0.1033674, 1.1387611], "474": [0.1522833, 0.1078846, 1.090148], "475": [0.1421, 0.1126, 1.0419], "476": [0.1321786, 0.117532, 0.9941976], "477": [0.1225696, 0.1226744, 0.9473473], "478": [0.1132752, 0.1279928, 0.9014531], "479": [0.1042979, 0.1334528, 0.8566193], "480": [0.09564, 0.13902, 0.8129501], "481": [0.08729955, 0.1446764, 0.7705173], "482": [0.07930804, 0.1504693, 0.7294448], "483": [0.07171776, 0.1564619, 0.6899136], "484": [0.06458099, 0.1627177, 0.6521049], "485": [0.05795001, 0.1693, 0.6162], "486": [0.05186211, 0.1762431, 0.5823286], "487": [0.04628152, 0.1835581, 0.5504162], "488": [0.04115088, 0.1912735, 0.5203376], "489": [0.03641283, 0.199418, 0.4919673], "490": [0.03201, 0.20802, 0.46518], "491": [0.0279172, 0.2171199, 0.4399246], "492": [0.0241444, 0.2267345, 0.4161836], "493": [0.020687, 0.2368571, 0.3938822], "494": [0.0175404, 0.2474812, 0.3729459], "495": [0.0147, 0.2586, 0.3533], "496": [0.01216179, 0.2701849, 0.3348578], "497": [0.00991996, 0.2822939, 0.3175521], "498": [0.00796724, 0.2950505, 0.3013375], "499": [0.006296346, 0.308578, 0.2861686], "500": [0.0049, 0.323, 0.272], "501": [0.003777173, 0.3384021, 0.2588171], "502": [0.00294532, 0.3546858, 0.2464838], "503": [0.00242488, 0.3716986, 0.2347718], "504": [0.002236293, 0.3892875, 0.2234533], "505": [0.0024, 0.4073, 0.2123], "506": [0.00292552, 0.4256299, 0.2011692], "507": [0.00383656, 0.4443096, 0.1901196], "508": [0.00517484, 0.4633944, 0.1792254], "509": [0.00698208, 0.4829395, 0.1685608], "510": [0.0093, 0.503, 0.1582], "511": [0.01214949, 0.5235693, 0.1481383], "512": [0.01553588, 0.544512, 0.1383758], "513": [0.01947752, 0.56569, 0.1289942], "514": [0.02399277, 0.5869653, 0.1200751], "515": [0.0291, 0.6082, 0.1117], "516": [0.03481485, 0.6293456, 0.1039048], "517": [0.04112016, 0.6503068, 0.09666748], "518": [0.04798504, 0.6708752, 0.08998272], "519": [0.05537861, 0.6908424, 0.08384531], "520": [0.06327, 0.71, 0.07824999], "521": [0.07163501, 0.7281852, 0.07320899], "522": [0.08046224, 0.7454636, 0.06867816], "523": [0.08973996, 0.7619694, 0.06456784], "524": [0.09945645, 0.7778368, 0.06078835], "525": [0.1096, 0.7932, 0.05725001], "526": [0.1201674, 0.8081104, 0.05390435], "527": [0.1311145, 0.8224962, 0.05074664], "528": [0.1423679, 0.8363068, 0.04775276], "529": [0.1538542, 0.8494916, 0.04489859], "530": [0.1655, 0.862, 0.04216], "531": [0.1772571, 0.8738108, 0.03950728], "532": [0.18914, 0.8849624, 0.03693564], "533": [0.2011694, 0.8954936, 0.03445836], "534": [0.2133658, 0.9054432, 0.03208872], "535": [0.2257499, 0.9148501, 0.02984], "536": [0.2383209, 0.9237348, 0.02771181], "537": [0.2510668, 0.9320924, 0.02569444], "538": [0.2639922, 0.9399226, 0.02378716], "539": [0.2771017, 0.9472252, 0.02198925], "540": [0.2904, 0.954, 0.0203], "541": [0.3038912, 0.9602561, 0.01871805], "542": [0.3175726, 0.9660074, 0.01724036], "543": [0.3314384, 0.9712606, 0.01586364], "544": [0.3454828, 0.9760225, 0.01458461], "545": [0.3597, 0.9803, 0.0134], "546": [0.3740839, 0.9840924, 0.01230723], "547": [0.3886396, 0.9874182, 0.01130188], "548": [0.4033784, 0.9903128, 0.01037792], "549": [0.4183115, 0.9928116, 0.009529306], "550": [0.4334499, 0.9949501, 0.008749999], "551": [0.4487953, 0.9967108, 0.0080352], "552": [0.464336, 0.9980983, 0.0073816], "553": [0.480064, 0.999112, 0.0067854], "554": [0.4959713, 0.9997482, 0.0062428], "555": [0.5120501, 1.0, 0.005749999], "556": [0.5282959, 0.9998567, 0.0053036], "557": [0.5446916, 0.9993046, 0.0048998], "558": [0.5612094, 0.9983255, 0.0045342], "559": [0.5778215, 0.9968987, 0.0042024], "560": [0.5945, 0.995, 0.0039], "561": [0.6112209, 0.9926005, 0.0036232], "562": [0.6279758, 0.9897426, 0.0033706], "563": [0.6447602, 0.9864444, 0.0031414], "564": [0.6615697, 0.9827241, 0.0029348], "565": [0.6784, 0.9786, 0.002749999], "566": [0.6952392, 0.9740837, 0.0025852], "567": [0.7120586, 0.9691712, 0.0024386], "568": [0.7288284, 0.9638568, 0.0023094], "569": [0.7455188, 0.9581349, 0.0021968], "570": [0.7621, 0.952, 0.0021], "571": [0.7785432, 0.9454504, 0.002017733], "572": [0.7948256, 0.9384992, 0.0019482], "573": [0.8109264, 0.9311628, 0.0018898], "574": [0.8268248, 0.9234576, 0.001840933], "575": [0.8425, 0.9154, 0.0018], "576": [0.8579325, 0.9070064, 0.001766267], "577": [0.8730816, 0.8982772, 0.0017378], "578": [0.8878944, 0.8892048, 0.0017112], "579": [0.9023181, 0.8797816, 0.001683067], "580": [0.9163, 0.87, 0.001650001], "581": [0.9297995, 0.8598613, 0.001610133], "582": [0.9427984, 0.849392, 0.0015644], "583": [0.9552776, 0.838622, 0.0015136], "584": [0.9672179, 0.8275813, 0.001458533], "585": [0.9786, 0.8163, 0.0014], "586": [0.9893856, 0.8047947, 0.001336667], "587": [0.9995488, 0.793082, 0.00127], "588": [1.0090892, 0.781192, 0.001205], "589": [1.0180064, 0.7691547, 0.001146667], "590": [1.0263, 0.757, 0.0011], "591": [1.0339827, 0.7447541, 0.0010688], "592": [1.040986, 0.7324224, 0.0010494], "593": [1.047188, 0.7200036, 0.0010356], "594": [1.0524667, 0.7074965, 0.0010212], "595": [1.0567, 0.6949, 0.001], "596": [1.0597944, 0.6822192, 0.00096864], "597": [1.0617992, 0.6694716, 0.
00092992], "598": [1.0628068, 0.6566744, 0.00088688], "599": [1.0629096, 0.6438448, 0.00084256], "600": [1.0622, 0.631, 0.0008], "601": [1.0607352, 0.6181555, 0.00076096], "602": [1.0584436, 0.6053144, 0.00072368], "603": [1.0552244, 0.5924756, 0.00068592], "604": [1.0509768, 0.5796379, 0.00064544], "605": [1.0456, 0.5668, 0.0006], "606": [1.0390369, 0.5539611, 0.0005478667], "607": [1.0313608, 0.5411372, 0.0004916], "608": [1.0226662, 0.5283528, 0.0004354], "609": [1.0130477, 0.5156323, 0.0003834667], "610": [1.0026, 0.503, 0.00034], "611": [0.9913675, 0.4904688, 0.0003072533], "612": [0.9793314, 0.4780304, 0.00028316], "613": [0.9664916, 0.4656776, 0.00026544], "614": [0.9528479, 0.4534032, 0.0002518133], "615": [0.9384, 0.4412, 0.00024], "616": [0.923194, 0.42908, 0.0002295467], "617": [0.907244, 0.417036, 0.00022064], "618": [0.890502, 0.405032, 0.00021196], "619": [0.87292, 0.393032, 0.0002021867], "620": [0.8544499, 0.381, 0.00019], "621": [0.835084, 0.3689184, 0.0001742133], "622": [0.814946, 0.3568272, 0.00015564], "623": [0.794186, 0.3447768, 0.00013596], "624": [0.772954, 0.3328176, 0.0001168533], "625": [0.7514, 0.321, 0.0001], "626": [0.7295836, 0.3093381, 8.613333e-05], "627": [0.7075888, 0.2978504, 7.46e-05], "628": [0.6856022, 0.2865936, 6.5e-05], "629": [0.6638104, 0.2756245, 5.693333e-05], "630": [0.6424, 0.265, 4.999999e-05], "631": [0.6215149, 0.2547632, 4.416e-05], "632": [0.6011138, 0.2448896, 3.948e-05], "633": [0.5811052, 0.2353344, 3.572e-05], "634": [0.5613977, 0.2260528, 3.264e-05], "635": [0.5419, 0.217, 3e-05], "636": [0.5225995, 0.2081616, 2.765333e-05], "637": [0.5035464, 0.1995488, 2.556e-05], "638": [0.4847436, 0.1911552, 2.364e-05], "639": [0.4661939, 0.1829744, 2.181333e-05], "640": [0.4479, 0.175, 2e-05], "641": [0.4298613, 0.1672235, 1.813333e-05], "642": [0.412098, 0.1596464, 1.62e-05], "643": [0.394644, 0.1522776, 1.42e-05], "644": [0.3775333, 0.1451259, 1.213333e-05], "645": [0.3608, 0.1382, 1e-05], "646": [0.3444563, 0.1315003, 7.733333e-06], "647": [0.3285168, 0.1250248, 5.4e-06], "648": [0.3130192, 0.1187792, 3.2e-06], "649": [0.2980011, 0.1127691, 1.333333e-06], "650": [0.2835, 0.107, 0.0], "651": [0.2695448, 0.1014762, 0.0], "652": [0.2561184, 0.09618864, 0.0], "653": [0.2431896, 0.09112296, 0.0], "654": [0.2307272, 0.08626485, 0.0], "655": [0.2187, 0.0816, 0.0], "656": [0.2070971, 0.07712064, 0.0], "657": [0.1959232, 0.07282552, 0.0], "658": [0.1851708, 0.06871008, 0.0], "659": [0.1748323, 0.06476976, 0.0], "660": [0.1649, 0.061, 0.0], "661": [0.1553667, 0.05739621, 0.0], "662": [0.14623, 0.05395504, 0.0], "663": [0.13749, 0.05067376, 0.0], "664": [0.1291467, 0.04754965, 0.0], "665": [0.1212, 0.04458, 0.0], "666": [0.1136397, 0.04175872, 0.0], "667": [0.106465, 0.03908496, 0.0], "668": [0.09969044, 0.03656384, 0.0], "669": [0.09333061, 0.03420048, 0.0], "670": [0.0874, 0.032, 0.0], "671": [0.08190096, 0.02996261, 0.0], "672": [0.07680428, 0.02807664, 0.0], "673": [0.07207712, 0.02632936, 0.0], "674": [0.06768664, 0.02470805, 0.0], "675": [0.0636, 0.0232, 0.0], "676": [0.05980685, 0.02180077, 0.0], "677": [0.05628216, 0.02050112, 0.0], "678": [0.05297104, 0.01928108, 0.0], "679": [0.04981861, 0.01812069, 0.0], "680": [0.04677, 0.017, 0.0], "681": [0.04378405, 0.01590379, 0.0], "682": [0.04087536, 0.01483718, 0.0], "683": [0.03807264, 0.01381068, 0.0], "684": [0.03540461, 0.01283478, 0.0], "685": [0.0329, 0.01192, 0.0], "686": [0.03056419, 0.01106831, 0.0], "687": [0.02838056, 0.01027339, 0.0], "688": [0.02634484, 0.009533311, 0.0], "689": [0.02445275, 0.008846157, 0.0], "690": [0.0227, 0.00821, 0.0], "691": [0.02108429, 0.007623781, 0.0], "692": [0.01959988, 0.007085424, 0.0], "693": [0.01823732, 0.006591476, 0.0], "694": [0.01698717, 0.006138485, 0.0], "695": [0.01584, 0.005723, 0.0], "696": [0.01479064, 0.005343059, 0.0], "697": [0.01383132, 0.004995796, 0.0], "698": [0.01294868, 0.004676404, 0.0], "699": [0.0121292, 0.004380075, 0.0], "700": [0.01135916, 0.004102, 0.0], "701": [0.01062935, 0.003838453, 0.0], "702": [0.009938846, 0.003589099, 0.0], "703": [0.009288422, 0.003354219, 0.0], "704": [0.008678854, 0.003134093, 0.0], "705": [0.008110916, 0.002929, 0.0], "706": [0.007582388, 0.002738139, 0.0], "707": [0.007088746, 0.002559876, 0.0], "708": [0.006627313, 0.002393244, 0.0], "709": [0.006195408, 0.002237275, 0.0], "710": [0.005790346, 0.002091, 0.0], "711": [0.005409826, 0.001953587, 0.0], "712": [0.005052583, 0.00182458, 0.0], "713": [0.004717512, 0.00170358, 0.0], "714": [0.004403507, 0.001590187, 0.0], "715": [0.004109457, 0.001484, 0.0], "716": [0.003833913, 0.001384496, 0.0], "717": [0.003575748, 0.001291268, 0.0], "718": [0.003334342, 0.001204092, 0.0], "719": [0.003109075, 0.001122744, 0.0], "720": [0.002899327, 0.001047, 0.0], "721": [0.002704348, 0.0009765896, 0.0], "722": [0.00252302, 0.0009111088, 0.0], "723": [0.002354168, 0.0008501332, 0.0], "724": [0.002196616, 0.0007932384, 0.0], "725": [0.00204919, 0.00074, 0.0], "726": [0.00191096, 0.0006900827, 0.0], "727": [0.001781438, 0.00064331, 0.0], "728": [0.00166011, 0.000599496, 0.0], "729": [0.001546459, 0.0005584547, 0.0], "730": [0.001439971, 0.00052, 0.0], "731": [0.001340042, 0.0004839136, 0.0], "732": [0.001246275, 0.0004500528, 0.0], "733": [0.001158471, 0.0004183452, 0.0], "734": [0.00107643, 0.0003887184, 0.0], "735": [0.0009999493, 0.0003611, 0.0], "736": [0.0009287358, 0.0003353835, 0.0], "737": [0.0008624332, 0.0003114404, 0.0], "738": [0.0008007503, 0.0002891656, 0.0], "739": [0.000743396, 0.0002684539, 0.0], "740": [0.0006900786, 0.0002492, 0.0], "741": [0.0006405156, 0.0002313019, 0.0], "742": [0.0005945021, 0.0002146856, 0.0], "743": [0.0005518646, 0.0001992884, 0.0], "744": [0.000512429, 0.0001850475, 0.0], "745": [0.0004760213, 0.0001719, 0.0], "746": [0.0004424536, 0.0001597781, 0.0], "747": [0.0004115117, 0.0001486044, 0.0], "748": [0.0003829814, 0.0001383016, 0.0], "749": [0.0003566491, 0.0001287925, 0.0], "750": [0.0003323011, 0.00012, 0.0], "751": [0.0003097586, 0.0001118595, 0.0], "752": [0.0002888871, 0.0001043224, 0.0], "753": [0.0002695394, 9.73356e-05, 0.0], "754": [0.0002515682, 9.084587e-05, 0.0], "755": [0.0002348261, 8.48e-05, 0.0], "756": [0.000219171, 7.914667e-05, 0.0], "757": [0.0002045258, 7.3858e-05, 0.0], "758": [0.0001908405, 6.8916e-05, 0.0], "759": [0.0001780654, 6.430267e-05, 0.0], "760": [0.0001661505, 6e-05, 0.0], "761": [0.0001550236, 5.598187e-05, 0.0], "762": [0.0001446219, 5.22256e-05, 0.0], "763": [0.0001349098, 4.87184e-05, 0.0], "764": [0.000125852, 4.544747e-05, 0.0], "765": [0.000117413, 4.24e-05, 0.0], "766": [0.0001095515, 3.956104e-05, 0.0], "767": [0.0001022245, 3.691512e-05, 0.0], "768": [9.539445e-05, 3.444868e-05, 0.0], "769": [8.90239e-05, 3.214816e-05, 0.0], "770": [8.307527e-05, 3e-05, 0.0], "771": [7.751269e-05, 2.799125e-05, 0.0], "772": [7.231304e-05, 2.611356e-05, 0.0], "773": [6.745778e-05, 2.436024e-05, 0.0], "774": [6.292844e-05, 2.272461e-05, 0.0], "775": [5.870652e-05, 2.12e-05, 0.0], "776": [5.477028e-05, 1.977855e-05, 0.0], "777": [5.109918e-05, 1.845285e-05, 0.0], "778": [4.767654e-05, 1.721687e-05, 0.0], "779": [4.448567e-05, 1.606459e-05, 0.0], "780": [4.150994e-05, 1.499e-05, 0.0], "781": [3.873324e-05, 1.398728e-05, 0.0], "782": [3.614203e-05, 1.305155e-05, 0.0], "783": [3.372352e-05, 1.217818e-05, 0.0], "784": [3.146487e-05, 1.136254e-05, 0.0], "785": [2.935326e-05, 1.06e-05, 0.0], "786": [2.737573e-05, 9.885877e-06, 0.0], "787": [2.552433e-05, 9.217304e-06, 0.0], "788": [2.379376e-05, 8.592362e-06, 0.0], "789": [2.21787e-05, 8.009133e-06, 0.0], "790": [2.067383e-05, 7.4657e-06, 0.0], "791": [1.927226e-05, 6.959567e-06, 0.0], "792": [1.79664e-05, 6.487995e-06, 0.0], "793": [1.674991e-05, 6.048699e-06, 0.0], "794": [1.561648e-05, 5.639396e-06, 0.0], "795": [1.455977e-05, 5.2578e-06, 0.0], "796": [1.357387e-05, 4.901771e-06, 0.0], "797": [1.265436e-05, 4.56972e-06, 0.0], "798": [1.179723e-05, 4.260194e-06, 0.0], "799": [1.099844e-05, 3.971739e-06, 0.0], "800": [1.025398e-05, 3.7029e-06, 0.0], "801": [9.559646e-06, 3.452163e-06, 0.0], "802": [8.912044e-06, 3.218302e-06, 0.0], "803": [8.308358e-06, 3.0003e-06, 0.0], "804": [7.745769e-06, 2.797139e-06, 0.0], "805": [7.221456e-06, 2.6078e-06, 0.0], "806": [6.732475e-06, 2.43122e-06, 0.0], "807": [6.276423e-06, 2.266531e-06, 0.0], "808": [5.851304e-06, 2.113013e-06, 0.0], "809": [5.455118e-06, 1.969943e-06, 0.0], "810": [5.085868e-06, 1.8366e-06, 0.0], "811": [4.741466e-06, 1.71223e-06, 0.0], "812": [4.420236e-06, 1.596228e-06, 0.0], "813": [4.120783e-06, 1.48809e-06, 0.0], "814": [3.841716e-06, 1.387314e-06, 0.0], "815": [3.581652e-06, 1.2934e-06, 0.0], "816": [3.339127e-06, 1.20582e-06, 0.0], "817": [3.112949e-06, 1.124143e-06, 0.0], "818": [2.902121e-06, 1.048009e-06, 0.0], "819": [2.705645e-06, 9.77058e-07, 0.0], "820": [2.522525e-06, 9.1093e-07, 0.0], "821": [2.351726e-06, 8.49251e-07, 0.0], "822": [2.192415e-06, 7.91721e-07, 0.0], "823": [2.043902e-06, 7.3809e-07, 0.0], "824": [1.905497e-06, 6.8811e-07, 0.0], "825": [1.776509e-06, 6.4153e-07, 0.0], "826": [1.656215e-06, 5.9809e-07, 0.0], "827": [1.544022e-06, 5.57575e-07, 0.0], "828": [1.43944e-06, 5.19808e-07, 0.0], "829": [1.341977e-06, 4.84612e-07, 0.0], "830": [1.251141e-06, 4.5181e-07, 0.0]}

用于生成黑体温度与RGB值对应关系表的代码

生成的csv文件中，第一列为黑体温度，第2/3/4列分别为r/g/b值，范围[0, 1]

# 建立黑体温度与RGB颜色的映射表

from calculateColour import bb_temperature_to_RGB
import numpy as np
import csv

T_list = np.arange(200, 100001, 10)
r_list = []
g_list = []
b_list = []
for T in T_list:
    if(T % 2000 == 0):
        print(T)
    RGB = bb_temperature_to_RGB(T)
    r = RGB[0]
    g = RGB[1]
    b = RGB[2]
    r_list.append(r)
    g_list.append(g)
    b_list.append(b)
with open("TCTable.csv", "w") as f:
    spamwriter = csv.writer(f, delimiter=",")
    for idx in range(len(T_list)):
        spamwriter.writerow([T_list[idx], r_list[idx], g_list[idx], b_list[idx]])
