SegNet算法详解

SegNet论文详解

SegNet算法Pytorch实现：https://github.com/codecat0/CV/tree/main/Semantic_Segmentation/SegNet

本文提出了一种用于语义分割的深度全卷积神经网络结构SegNet，其核心由一个编码器网络和一个对应的解码器网络以及一个像素级分类层组成。

本文的创新在于：

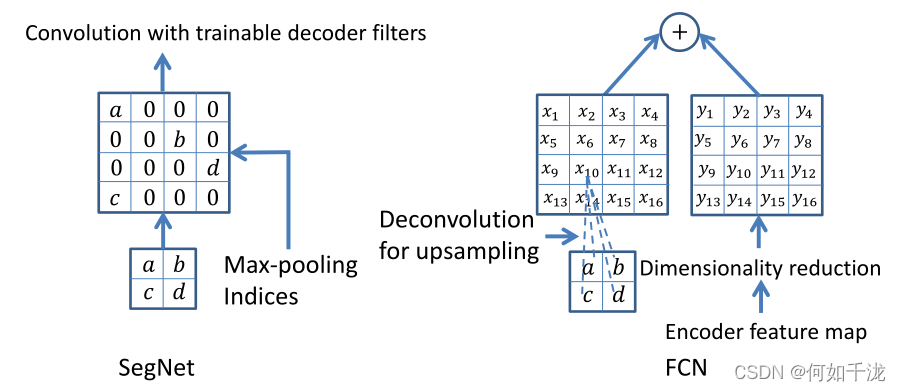

解码器使用在对应编码器的最大池化步骤中计算的池化索引来执行非线性上采样，这与反卷积相比，减少了参数量和运算量，而且消除了学习上采样的需要。

1. 网络结构

1.1 编码器

1. Conv层
   • 通过卷积提取特征，其中使用的是same padding的卷积，不会改变特征图的尺寸
2. BN层
   • 起到归一化的作用
3. ReLU层
   • 起到激活函数的作用
4. Pooling层
   • max pooling层，同时会记录最大值的索引位置

1.2 解码器

1. Upsampling层

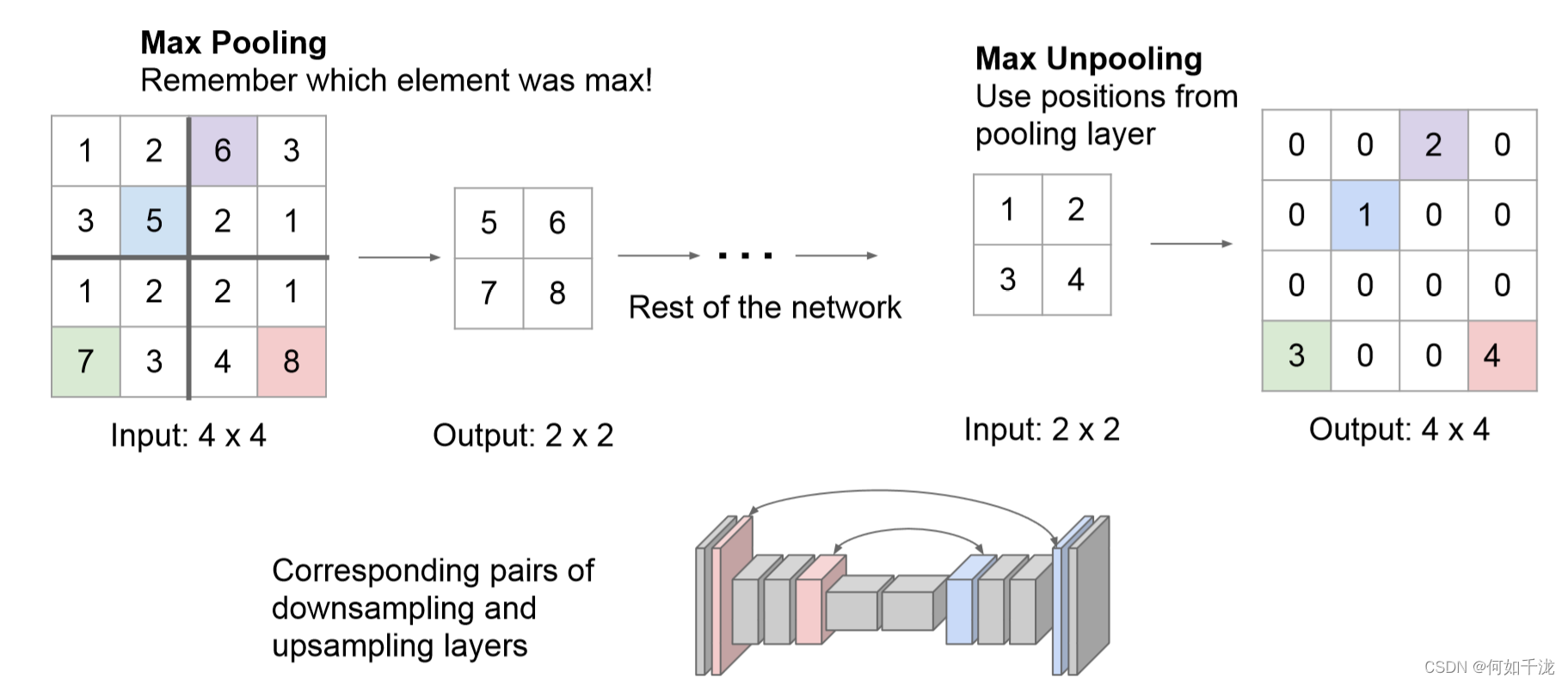

   • 对输入的特征图放大两倍，然后把输入特征图的数据根据编码器pooling层的索引位置放入，其他位置为0

2. Conv层

   • 通过卷积提取特征，其中使用的是same padding的卷积，不会改变特征图的尺寸

3. BN层

   • 起到归一化的作用

4. ReLU层

   • 起到激活函数的作用

1.3 像素级分类层

输出每一个像素点在所有类别概率，其中最大的概率类别为该像素的预测值

2. Pytorch实现

import torch
import torch.nn as nn
import torch.nn.functional as F


class Encoder(nn.Module):
    def __init__(self, in_channels):
        super(Encoder, self).__init__()

        batchNorm_momentum = 0.1

        self.encode1 = nn.Sequential(
            nn.Conv2d(in_channels, 64, kernel_size=3, stride=1, padding=1, bias=False),
            nn.BatchNorm2d(64, momentum=batchNorm_momentum),
            nn.ReLU(inplace=True),

            nn.Conv2d(64, 64, kernel_size=3, stride=1, padding=1, bias=False),
            nn.BatchNorm2d(64, momentum=batchNorm_momentum),
            nn.ReLU(inplace=True),
        )

        self.encode2 = nn.Sequential(
            nn.Conv2d(64, 128, kernel_size=3, stride=1, padding=1, bias=False),
            nn.BatchNorm2d(128, momentum=batchNorm_momentum),
            nn.ReLU(inplace=True),

            nn.Conv2d(128, 128, kernel_size=3, stride=1, padding=1, bias=False),
            nn.BatchNorm2d(128, momentum=batchNorm_momentum),
            nn.ReLU(inplace=True),
        )

        self.encode3 = nn.Sequential(
            nn.Conv2d(128, 256, kernel_size=3, stride=1, padding=1, bias=False),
            nn.BatchNorm2d(256, momentum=batchNorm_momentum),
            nn.ReLU(inplace=True),

            nn.Conv2d(256, 256, kernel_size=3, stride=1, padding=1, bias=False),
            nn.BatchNorm2d(256, momentum=batchNorm_momentum),
            nn.ReLU(inplace=True),
        )

        self.encode4 = nn.Sequential(
            nn.Conv2d(256, 512, kernel_size=3, stride=1, padding=1, bias=False),
            nn.BatchNorm2d(512, momentum=batchNorm_momentum),
            nn.ReLU(inplace=True),

            nn.Conv2d(512, 512, kernel_size=3, stride=1, padding=1, bias=False),
            nn.BatchNorm2d(512, momentum=batchNorm_momentum),
            nn.ReLU(inplace=True),
        )

        self.encode5 = nn.Sequential(
            nn.Conv2d(512, 512, kernel_size=3, stride=1, padding=1, bias=False),
            nn.BatchNorm2d(512, momentum=batchNorm_momentum),
            nn.ReLU(inplace=True),

            nn.Conv2d(512, 512, kernel_size=3, stride=1, padding=1, bias=False),
            nn.BatchNorm2d(512, momentum=batchNorm_momentum),
            nn.ReLU(inplace=True),
        )

    def forward(self, x):
        idx = []

        x = self.encode1(x)
        x, id1 = F.max_pool2d_with_indices(x, kernel_size=2, stride=2, return_indices=True)
        idx.append(id1)

        x = self.encode2(x)
        x, id2 = F.max_pool2d_with_indices(x, kernel_size=2, stride=2, return_indices=True)
        idx.append(id2)

        x = self.encode3(x)
        x, id3 = F.max_pool2d_with_indices(x, kernel_size=2, stride=2, return_indices=True)
        idx.append(id3)

        x = self.encode4(x)
        x, id4 = F.max_pool2d_with_indices(x, kernel_size=2, stride=2, return_indices=True)
        idx.append(id4)

        x = self.encode5(x)
        x, id5 = F.max_pool2d_with_indices(x, kernel_size=2, stride=2, return_indices=True)
        idx.append(id5)

        return x, idx


class Decoder(nn.Module):
    def __init__(self, out_channels):
        super(Decoder, self).__init__()

        batchNorm_momentum = 0.1

        self.decode1 = nn.Sequential(
            nn.Conv2d(512, 512, kernel_size=3, stride=1, padding=1, bias=False),
            nn.BatchNorm2d(512, momentum=batchNorm_momentum),
            nn.ReLU(inplace=True),

            nn.Conv2d(512, 512, kernel_size=3, stride=1, padding=1, bias=False),
            nn.BatchNorm2d(512, momentum=batchNorm_momentum),
            nn.ReLU(inplace=True)
        )

        self.decode2 = nn.Sequential(
            nn.Conv2d(512, 512, kernel_size=3, stride=1, padding=1, bias=False),
            nn.BatchNorm2d(512, momentum=batchNorm_momentum),
            nn.ReLU(inplace=True),

            nn.Conv2d(512, 256, kernel_size=3, stride=1, padding=1, bias=False),
            nn.BatchNorm2d(256, momentum=batchNorm_momentum),
            nn.ReLU(inplace=True)
        )

        self.decode3 = nn.Sequential(
            nn.Conv2d(256, 256, kernel_size=3, stride=1, padding=1, bias=False),
            nn.BatchNorm2d(256, momentum=batchNorm_momentum),
            nn.ReLU(inplace=True),

            nn.Conv2d(256, 128, kernel_size=3, stride=1, padding=1, bias=False),
            nn.BatchNorm2d(128, momentum=batchNorm_momentum),
            nn.ReLU(inplace=True)
        )

        self.decode4 = nn.Sequential(
            nn.Conv2d(128, 128, kernel_size=3, stride=1, padding=1, bias=False),
            nn.BatchNorm2d(128, momentum=batchNorm_momentum),
            nn.ReLU(inplace=True),

            nn.Conv2d(128, 64, kernel_size=3, stride=1, padding=1, bias=False),
            nn.BatchNorm2d(64, momentum=batchNorm_momentum),
            nn.ReLU(inplace=True)
        )

        self.decode5 = nn.Sequential(
            nn.Conv2d(64, 64, kernel_size=3, stride=1, padding=1, bias=False),
            nn.BatchNorm2d(64, momentum=batchNorm_momentum),
            nn.ReLU(inplace=True),

            nn.Conv2d(64, out_channels, kernel_size=3, stride=1, padding=1)
        )

    def forward(self, x, idx):
        x = F.max_unpool2d(x, idx[4], kernel_size=2, stride=2)

        x = self.decode1(x)
        x = F.max_unpool2d(x, idx[3], kernel_size=2, stride=2)

        x = self.decode2(x)
        x = F.max_unpool2d(x, idx[2], kernel_size=2, stride=2)

        x = self.decode3(x)
        x = F.max_unpool2d(x, idx[1], kernel_size=2, stride=2)

        x = self.decode4(x)
        x = F.max_unpool2d(x, idx[0], kernel_size=2, stride=2)

        x = self.decode5(x)

        return x


class SegNet(nn.Module):
    # https://arxiv.org/abs/1511.00561
    def __init__(self, num_classes):
        super(SegNet, self).__init__()

        self.encode = Encoder(in_channels=3)
        self.decode = Decoder(out_channels=num_classes)

    def forward(self, x):
        x, idx = self.encode(x)
        x = self.decode(x, idx)
        return x


if __name__ == '__main__':
    input = torch.randn(1, 3, 384, 544)
    model = SegNet(num_classes=2)
    output = model(input)
    print(output.shape)
