加法器Verilog写法汇总

1.一位全加器

写法一：卡诺图描述

module fulladder(
        input a,
        input b,
        input cin,
        output s,
        output cout);

    assign s = a ^ b ^ cin;
    assign cout = a & b | cin & (a ^ b);
endmodule

写法二：行为级描述

module fulladder(
        input a,
        input b,
        input cin,
        output s,
        output cout);

   assign {cout,s} = a + b + cin;
endmodule

2.行波进位加法器/串行加法器

module 4fulladder(
    input [3:0] a_in,
    input [3:0] b_in,
    input cin,
    output [3:0] s_o,
    output cout_o);

    wire [3:1] cin_o;
fulladder fulladder0(.a(a_in[0]), .b(b_in[0]), .cin(cin), .s(s_o[0]), .cout(cin_o[1]));
fulladder fulladder1(.a(a_in[1]), .b(b_in[1]), .cin(cin_o[1]), .s(s_o[1]), .cout(cin_o[2]));
fulladder fulladder2(.a(a_in[2]), .b(b_in[2]), .cin(cin_o[2]), .s(s_o[2]), .cout(cin_o[3]));
fulladder fulladder3(.a(a_in[3]), .b(b_in[3]), .cin(cin_o[3]), .s(s_o[3]), .cout(cout_o));
endmodule

module fulladder(
        input a,
        input b,
        input cin,
        output s,
        output cout);

   assign {cout,s} = a + b + cin;
endmodule

 3.超前进位加法器

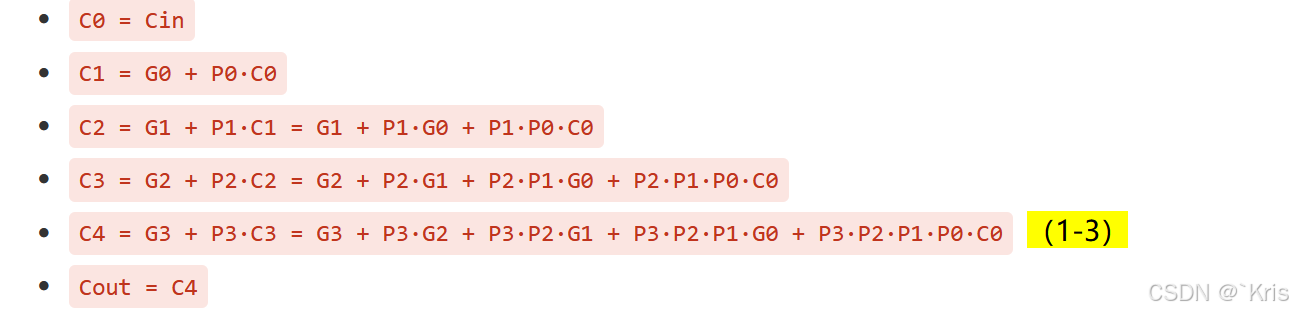

根据串行进位加法器的运算可以看出，前一位的进位要得到其进位信号以后才可以继续进行计算，这个过程浪费了太多时间。于是人们将表达式C_o = AB + Cin(A ^ B)，令Gi = AB ,Pi = A^B,按位展开，惊奇的发现：

原来特定位的进位不需要得到输入进位信号，Pi~Gi是可以提前算出来的，C0也是已知的，他们可以并行算出！实现这个逻辑的部件，称为CLA部件。超前进位加法器和串行进位加法器的写法，我觉得只是超前进位加法器多了计算C的CLA步骤

module adder_4(
    input [3:0] a,
    input [3:0] b,
    input cin,
    output [3:0] s
    output co);

    wire [4:1] g, p;
    assign g = a & b;
    assign p = a ^ b;

    wire c1,c2,c3,c4;
    assign c1 = g[1] | cin & p[1];
    assign c2 = g[2] | p[2] & g[1] | p2 & p1 & cin;
    assign c3 = g[3] | p[3] & g[2] | p[3] & p[2] & g[1] | p[3] & p[2] & p[1] & cin;
    assign c4 = g[4] | p[4] & g[3] | p[4] & p[3] & g[2] | p[4] & p[3] & p[2] & g[1] | p[4] & p[3] & p[2] & p[1] & cin;

    fulladder adder1(.a(a[0]), .b(b[0]), .cin(cin), .s(s[0]), .co());
    fulladder adder2(.a(a[1]), .b(b[1]), .cin(c1), .s(s[1]), .co());
    fulladder adder3(.a(a[2]), .b(b[2]), .cin(c2), .s(s[2]), .co());
    fulladder adder4(.a(a[3]), .b(b[3]), .cin(c3), .s(s[3]), .co());
endmodule

module fulladder(
        input a,
        input b,
        input cin,
        output s,
        output co);

    assign s = a ^ b ^ cin;
    assign co = a & b | cin & (a ^ b);
endmodule
