How to use a KdTree to search

在本教程中，我们将讨论如何使用KdTree查找特定点或位置的K个最近邻居，然后我们还将讨论如何查找用户指定的某个半径内的所有邻居（在本例中为随机）。

理论入门

k-d树或k维树是计算机科学中用于在具有k维度的空间中组织一些点的数据结构。它是一个二进制搜索树，其上施加了其他约束。 K-d树对范围和最近邻搜索非常有用。出于我们的目的，我们通常只处理三维点云，因此我们所有的k-d树都是三维的。 k-d树的每个级别使用垂直于相应轴的超平面沿着特定维度分割所有子节点。在树的根部，所有子节点将基于第一维分割（即，如果第一维坐标小于它将在左子树中的根，并且如果它大于根，则它将显然在正确的子树）。树中的每个级别在下一个维度上划分，一旦所有其他维度都耗尽，则返回到第一个维度。它们构建k-d树的最有效方法是使用分区方法，例如Quick Sort用于将中间点放置在根处，并且一切具有较小的一维值，左侧较大，右侧较大。然后，您可以在左侧和右侧子树上重复此过程，直到您要分区的最后一棵树仅由一个元素组成。

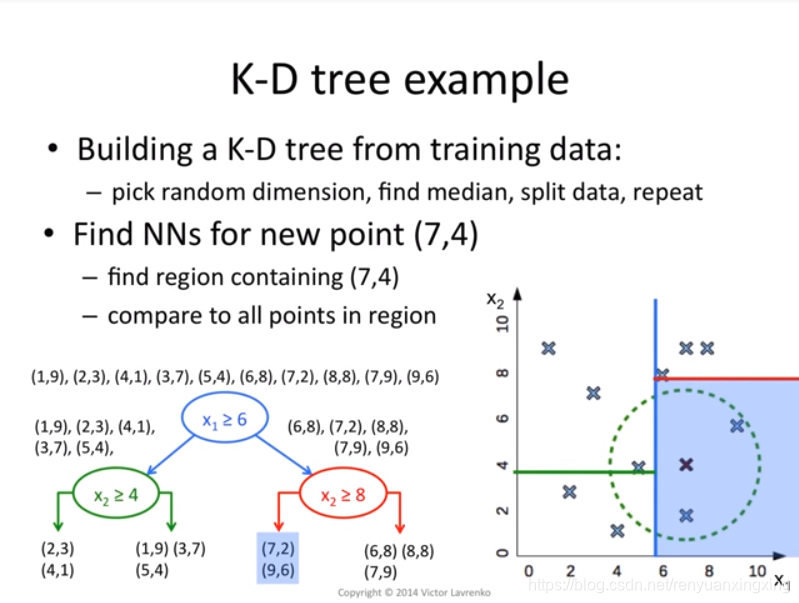

可以用下图更形象的表示这个过程:



 在您喜欢的编辑器中创建一个文件，比如kdtree_search.cpp，并将以下内容放入：

#include <pcl/point_cloud.h>
#include <pcl/kdtree/kdtree_flann.h>

#include <iostream>
#include <vector>
#include <ctime>

int
main (int argc, char** argv)
{
  srand (time (NULL));

  pcl::PointCloud<pcl::PointXYZ>::Ptr cloud (new pcl::PointCloud<pcl::PointXYZ>);

  // Generate pointcloud data
  cloud->width = 1000;
  cloud->height = 1;
  cloud->points.resize (cloud->width * cloud->height);

  for (size_t i = 0; i < cloud->points.size (); ++i)
  {
    cloud->points[i].x = 1024.0f * rand () / (RAND_MAX + 1.0f);
    cloud->points[i].y = 1024.0f * rand () / (RAND_MAX + 1.0f);
    cloud->points[i].z = 1024.0f * rand () / (RAND_MAX + 1.0f);
  }

  pcl::KdTreeFLANN<pcl::PointXYZ> kdtree;

  kdtree.setInputCloud (cloud);

  pcl::PointXYZ searchPoint;

  searchPoint.x = 1024.0f * rand () / (RAND_MAX + 1.0f);
  searchPoint.y = 1024.0f * rand () / (RAND_MAX + 1.0f);
  searchPoint.z = 1024.0f * rand () / (RAND_MAX + 1.0f);

  // K nearest neighbor search

  int K = 10;

  std::vector<int> pointIdxNKNSearch(K);
  std::vector<float> pointNKNSquaredDistance(K);

  std::cout << "K nearest neighbor search at (" << searchPoint.x
            << " " << searchPoint.y
            << " " << searchPoint.z
            << ") with K=" << K << std::endl;

  if ( kdtree.nearestKSearch (searchPoint, K, pointIdxNKNSearch, pointNKNSquaredDistance) > 0 )
  {
    for (size_t i = 0; i < pointIdxNKNSearch.size (); ++i)
      std::cout << "    "  <<   cloud->points[ pointIdxNKNSearch[i] ].x
                << " " << cloud->points[ pointIdxNKNSearch[i] ].y
                << " " << cloud->points[ pointIdxNKNSearch[i] ].z
                << " (squared distance: " << pointNKNSquaredDistance[i] << ")" << std::endl;
  }

  // Neighbors within radius search

  std::vector<int> pointIdxRadiusSearch;
  std::vector<float> pointRadiusSquaredDistance;

  float radius = 256.0f * rand () / (RAND_MAX + 1.0f);

  std::cout << "Neighbors within radius search at (" << searchPoint.x
            << " " << searchPoint.y
            << " " << searchPoint.z
            << ") with radius=" << radius << std::endl;


  if ( kdtree.radiusSearch (searchPoint, radius, pointIdxRadiusSearch, pointRadiusSquaredDistance) > 0 )
  {
    for (size_t i = 0; i < pointIdxRadiusSearch.size (); ++i)
      std::cout << "    "  <<   cloud->points[ pointIdxRadiusSearch[i] ].x
                << " " << cloud->points[ pointIdxRadiusSearch[i] ].y
                << " " << cloud->points[ pointIdxRadiusSearch[i] ].z
                << " (squared distance: " << pointRadiusSquaredDistance[i] << ")" << std::endl;
  }


  return 0;
}



cmake_minimum_required(VERSION 2.8 FATAL_ERROR)

project(kdtree_search)

find_package(PCL 1.2 REQUIRED)

include_directories(${PCL_INCLUDE_DIRS})
link_directories(${PCL_LIBRARY_DIRS})
add_definitions(${PCL_DEFINITIONS})

add_executable (kdtree_search kdtree_search.cpp)
target_link_libraries (kdtree_search ${PCL_LIBRARIES})
