VHDL设计——电梯控制器模块

设计一个10层楼的电梯控制器模块，要求：(1)时间先后优先级；(2)位置先后优先级。
电梯运行规则：
当电梯处在上升模式时，只响应比电梯所在位置高的上楼请求，由下向上逐个执行，直到最后一个上楼请求执行完毕。如果高层有下楼请求，直接升到有下楼请求的最高楼层，然后进入下降模式。下降模式类似。
定义每层楼的状态，可扩展至任意楼层。
FLOOR(IN):XXXXXXXXXX(10~1楼；1有效，0无效)
POSITION(OUT):XXXX(当前楼层)
UP_DOWN:X(0上升模式，1下降模式)

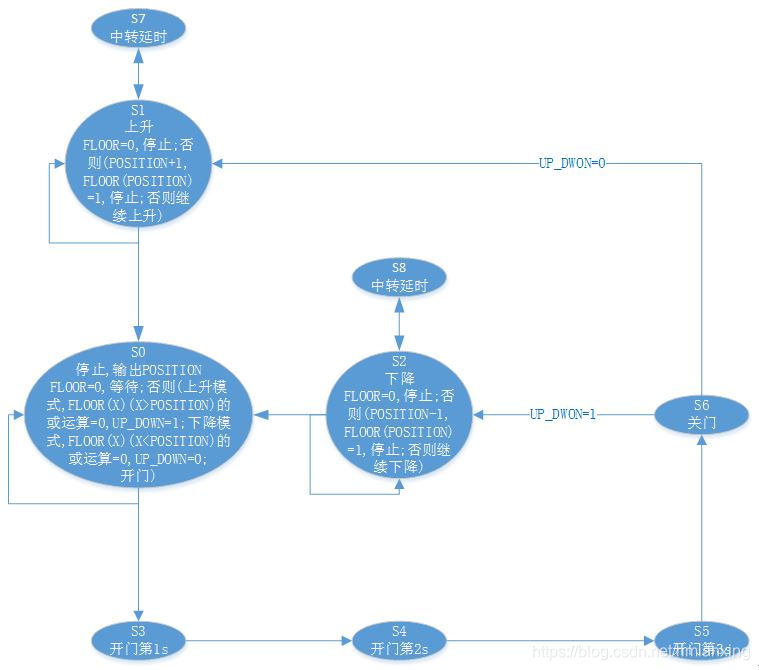

Design Block:

LIBRARY IEEE;
USE IEEE.STD_LOGIC_1164.ALL;
USE IEEE.STD_LOGIC_UNSIGNED.ALL;
ENTITY ELEVATOR IS
	PORT(CLK,RST:IN STD_LOGIC;
		FLOOR:IN STD_LOGIC_VECTOR(10 DOWNTO 1);
		POSITION:OUT STD_LOGIC_VECTOR(3 DOWNTO 0));
END ELEVATOR;
ARCHITECTURE BEHAV OF ELEVATOR IS
TYPE STATES IS (S0,S1,S2,S3,S4,S5,S6,S7,S8);
	ATTRIBUTE ENUM_ENCODING:STRING;
	ATTRIBUTE ENUM_ENCODING OF STATES:TYPE IS "gray";
	SIGNAL C_ST,N_ST:STATES:=S0;
	SIGNAL UP_DOWN,UD:STD_LOGIC:='0'; --0上升，1下降
	BEGIN
	COM:PROCESS(C_ST,FlOOR,UP_DOWN,RST)
	VARIABLE P:STD_LOGIC_VECTOR(3 DOWNTO 0);
		BEGIN
		IF RST='1' THEN P:="0001";
		END IF;
		CASE C_ST IS
		WHEN S0 =>
			IF FLOOR="0000000000" THEN N_ST<=S0;
			ELSIF UP_DOWN='0' THEN
				IF P="0001" THEN
					IF (FLOOR(2) OR FLOOR(3) OR FLOOR(4) OR FLOOR(5) OR FLOOR(6)
						OR FLOOR(7) OR FLOOR(8) OR FLOOR(9) OR FLOOR(10))='0' THEN UD<='1';
					END IF;
				ELSIF P="0010" THEN
					IF (FLOOR(3) OR FLOOR(4) OR FLOOR(5) OR FLOOR(6)
						OR FLOOR(7) OR FLOOR(8) OR FLOOR(9) OR FLOOR(10))='0' THEN UD<='1';
					END IF;
				ELSIF P="0011" THEN
					IF (FLOOR(4) OR FLOOR(5) OR FLOOR(6)
						OR FLOOR(7) OR FLOOR(8) OR FLOOR(9) OR FLOOR(10))='0' THEN UD<='1';
					END IF;
				ELSIF P="0100" THEN
					IF (FLOOR(5) OR FLOOR(6)
						OR FLOOR(7) OR FLOOR(8) OR FLOOR(9) OR FLOOR(10))='0' THEN UD<='1';
					END IF;
				ELSIF P="0101" THEN
					IF (FLOOR(6) OR FLOOR(7) OR FLOOR(8) OR FLOOR(9) OR FLOOR(10))='0' THEN UD<='1';
					END IF;
				ELSIF P="0110" THEN
					IF (FLOOR(7) OR FLOOR(8) OR FLOOR(9) OR FLOOR(10))='0' THEN UD<='1';
					END IF;
				ELSIF P="0111" THEN
					IF (FLOOR(8) OR FLOOR(9) OR FLOOR(10))='0' THEN UD<='1';
					END IF;
				ELSIF P="1000" THEN
					IF (FLOOR(9) OR FLOOR(10))='0' THEN UD<='1';
					END IF;
				ELSIF P="1001" THEN
					IF FLOOR(10)='0' THEN UD<='1';
					END IF;
				ELSIF P="1010" THEN UD<='1';
				END IF;
				N_ST<=S3;
			ELSIF UP_DOWN='1' THEN
				IF P="1010" THEN
					IF (FLOOR(9) OR FLOOR(8) OR FLOOR(7) OR FLOOR(6) OR FLOOR(5)
						OR FLOOR(4) OR FLOOR(3) OR FLOOR(2) OR FLOOR(1))='0' THEN UD<='0';
					END IF;
				ELSIF P="1001" THEN
					IF (FLOOR(8) OR FLOOR(7) OR FLOOR(6) OR FLOOR(5)
						OR FLOOR(4) OR FLOOR(3) OR FLOOR(2) OR FLOOR(1))='0' THEN UD<='0';
					END IF;
				ELSIF P="1000" THEN
					IF (FLOOR(7) OR FLOOR(6) OR FLOOR(5)
						OR FLOOR(4) OR FLOOR(3) OR FLOOR(2) OR FLOOR(1))='0' THEN UD<='0';
					END IF;
				ELSIF P="0111" THEN
					IF (FLOOR(6) OR FLOOR(5)
						OR FLOOR(4) OR FLOOR(3) OR FLOOR(2) OR FLOOR(1))='0' THEN UD<='0';
					END IF;
				ELSIF P="0110" THEN
					IF (FLOOR(5) OR FLOOR(4) OR FLOOR(3) OR FLOOR(2) OR FLOOR(1))='0' THEN UD<='0';
					END IF;
				ELSIF P="0101" THEN
					IF (FLOOR(4) OR FLOOR(3) OR FLOOR(2) OR FLOOR(1))='0' THEN UD<='0';
					END IF;
				ELSIF P="0100" THEN
					IF (FLOOR(3) OR FLOOR(2) OR FLOOR(1))='0' THEN UD<='0';
					END IF;
				ELSIF P="0011" THEN
					IF (FLOOR(2) OR FLOOR(1))='0' THEN UD<='0';
					END IF;
				ELSIF P="0010" THEN
					IF FLOOR(1)='0' THEN UD<='0';
					END IF;
				ELSIF P="0001" THEN UD<='0';
				END IF;
				N_ST<=S3;
			END IF;
			POSITION<=P;
		WHEN S1 =>
			IF FLOOR="0000000000" THEN N_ST<=S0;
			ELSE
				P:=P+1;
				IF FLOOR(CONV_INTEGER(P))='1' THEN N_ST<=S0;
				ELSE N_ST<=S7;
				END IF;
			END IF;
		WHEN S2 =>
			IF FLOOR="0000000000" THEN N_ST<=S0;
			ELSE
				P:=P-1;
				IF FLOOR(CONV_INTEGER(P))='1' THEN N_ST<=S0;
				ELSE N_ST<=S8;
				END IF;
			END IF;
		WHEN S3 => N_ST<=S4;
		WHEN S4 => N_ST<=S5;
		WHEN S5 => N_ST<=S6;
		WHEN S6 =>
			IF UP_DOWN='0' THEN N_ST<=S1;
			ELSIF UP_DOWN='1' THEN N_ST<=S2;
			END IF;
		WHEN S7 => N_ST<=S1;
		WHEN S8 => N_ST<=S2;
		END CASE;
	END PROCESS COM;
	REG:PROCESS(CLK,UD,RST)
		BEGIN
		IF RST='1' THEN C_ST<=S0;
		ELSIF CLK'EVENT AND CLK='1' THEN UP_DOWN<=UD;C_ST<=N_ST;
		END IF;
	END PROCESS REG;
END BEHAV;

Test Bench:

LIBRARY ieee;
USE ieee.std_logic_1164.all;
USE IEEE.STD_LOGIC_UNSIGNED.ALL;
ENTITY ELEVATOR_vhd_tst IS
END ELEVATOR_vhd_tst;
ARCHITECTURE ELEVATOR_arch OF ELEVATOR_vhd_tst IS
SIGNAL CLK1,RST1 : STD_LOGIC;
SIGNAL FLOOR1 : STD_LOGIC_VECTOR(10 DOWNTO 1);
SIGNAL POSITION1 : STD_LOGIC_VECTOR(3 DOWNTO 0);
CONSTANT CLK_P:TIME:=1 us;
COMPONENT ELEVATOR
	PORT(CLK,RST:IN STD_LOGIC;
		FLOOR:IN STD_LOGIC_VECTOR(10 DOWNTO 1);
		POSITION:OUT STD_LOGIC_VECTOR(3 DOWNTO 0));
END COMPONENT;
BEGIN
	i1 : ELEVATOR PORT MAP(CLK => CLK1, RST => RST1, FLOOR => FLOOR1, POSITION => POSITION1);
	PROCESS
		BEGIN
		CLK1<='0'; WAIT FOR CLK_P;
		CLK1<='1'; WAIT FOR CLK_P;
	END PROCESS;
	RST1<='1','0' AFTER 2 us;
	FLOOR1<="1010000110","0000000000" AFTER 72 us,"0010000011" AFTER 90 us,"0000000000" AFTER 152 us;
END ELEVATOR_arch;

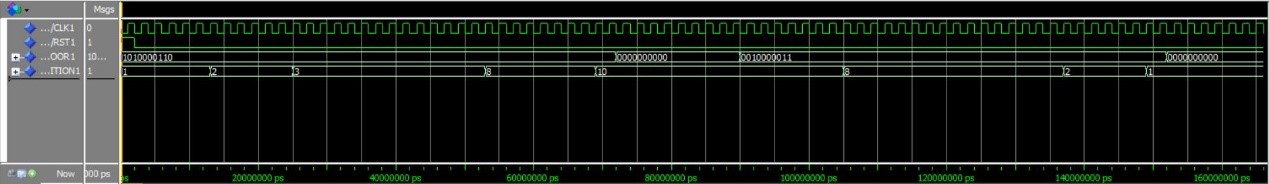

仿真波形图：
