差动变面积式电容式传感器的静态特性

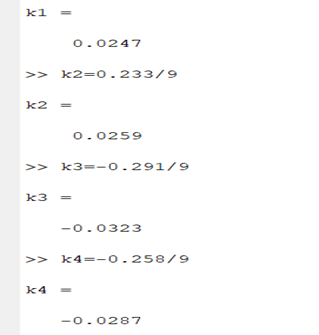

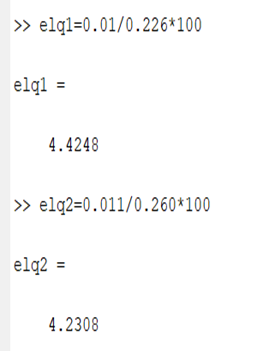

灵敏度＋迟滞＋误差

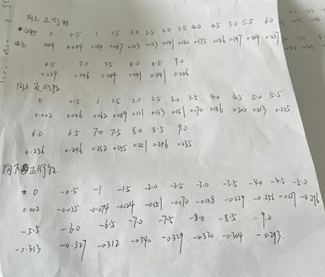

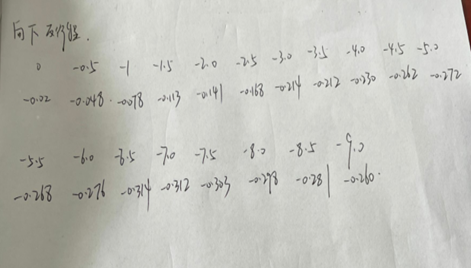

实验数据

附录代码：

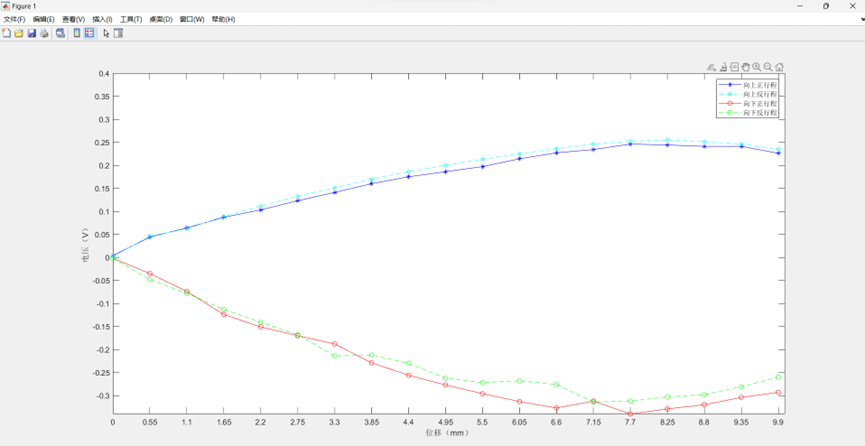

%霍尔对比

%

x=0:0.55:10;%x轴上的数据，第一个值代表数据开始，第二个值代表间隔，第三个值代表终止

 a5=[0.004,0.044,0.064,0.087,0.103,0.123,0.141,0.160,0.175,0.186,0.197,0.214,0.227,0.234,0.246,0.244,0.241,0.241,0.226]; %上正数据y值

 b5=[0.002,0.046,0.062,0.089,0.111,0.133,0.151,0.170,0.186,0.200,0.213,0.225,0.236,0.246,0.252,0.255,0.251,0.246,0.235]; %上反数据y值

%   subplot(3,2,5)

 plot(x,a5,'-*b',x,b5,'--pc'); %线性，颜色，标记

hold on

%

 a6=[-0.002,-0.035,-0.074,-0.124,-0.151,-0.170,-0.188,-0.229,-0.256,-0.277,-0.296,-0.313,-0.327,-0.312,-0.340,-0.329,-0.320,-0.304,-0.293]; %下正数据y值

 b6=[-0.002,-0.048,-0.078,-0.113,-0.141,-0.168,-0.214,-0.212,-0.230,-0.262,-0.272,-0.268,-0.276,-0.314,-0.312,-0.303,-0.298,-0.281,-0.260]; %下反数据y值

%   subplot(3,2,1)

 plot(x,a6,'-or',x,b6,'--og');

 hold on

axis([0,10,0,0.4])  %确定x轴与y轴框图大小

set(gca,'XTick',[0:0.55:10]) %x轴范围0-0.56，间隔10

set(gca,'YTick',[-0.4:0.05:0.4]) %y轴范围0-0.4，间隔0.05

legend('向上正行程','向上反行程','向下正行程','向下反行程');   %右上角标注

xlabel('位移（mm）')  %x轴坐标描述

ylabel('电压（V）') %y轴坐标描述
