LCD MIPI lane 状态

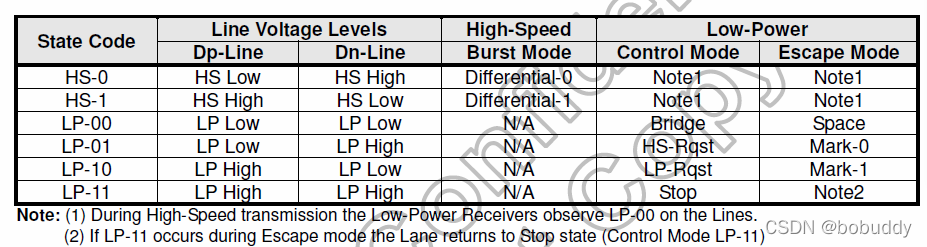

HS : high speed

Lp : Low power

 Clock lane mode

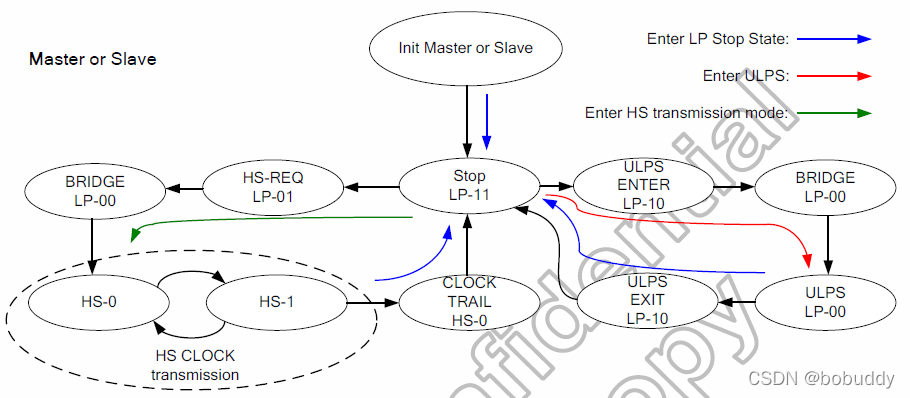

 Clock Lane can be driven LP-11 to enter Low Power Stop State. There are three
ways to enter Lower Power Stop State:

(1) After Initial state. (HW reset, SW reset, Power on sequence)

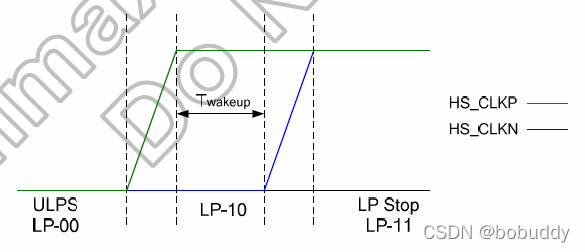

(2) Leaving ULPS: ULPS LP-00 -> LP-10 -> Low Power Stop State LP-11.

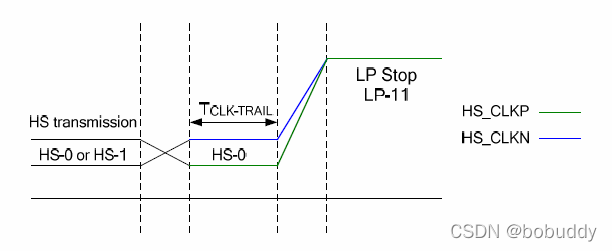

(3) Leaving HS clock transmission mode: HS mode (HS-0 or HS-1) -> H

Clock Lane can be driven LP-00 to enter Ultra Low Power State from Low Power

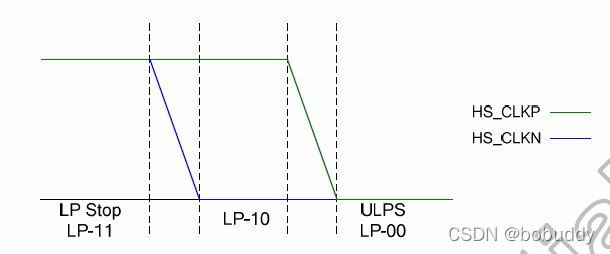

Stop State. The flow is Low Power Stop State LP-11 -> LP-10 -> ULPS LP-00.

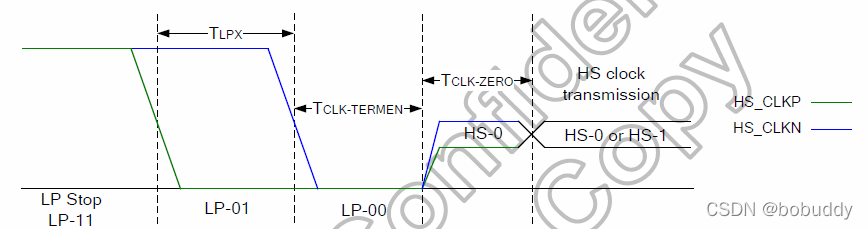

Clock Lane can be High Speed Clock transmission State from Low Power Stop State.
The flow is Low Power Stop State LP-11 -> LP-01 -> LP-00 -> HS-0/1.

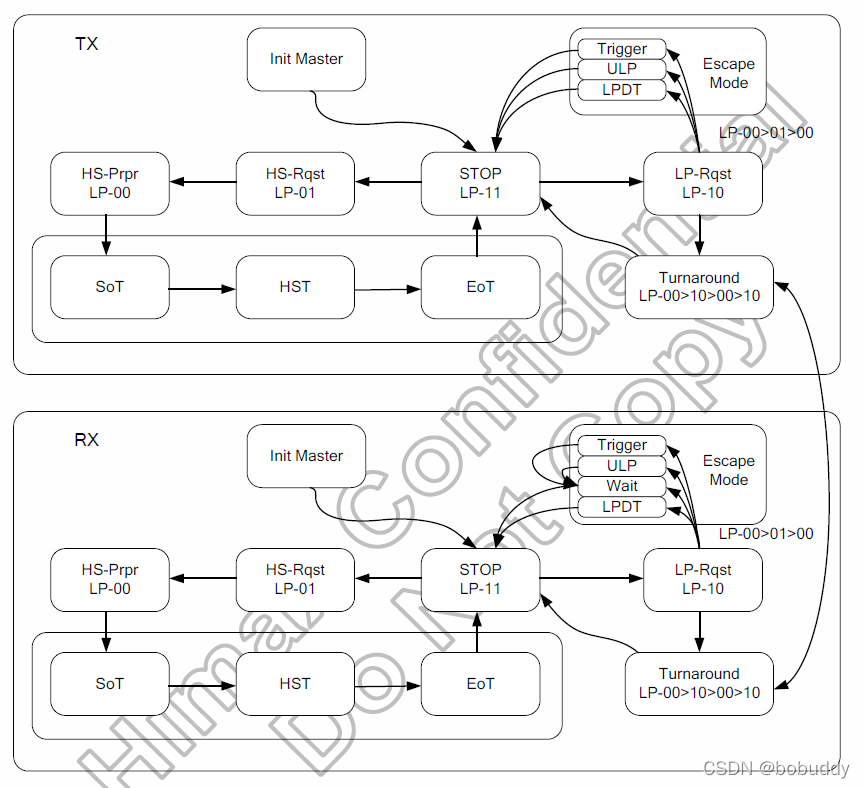

data lane mode

Escape mode

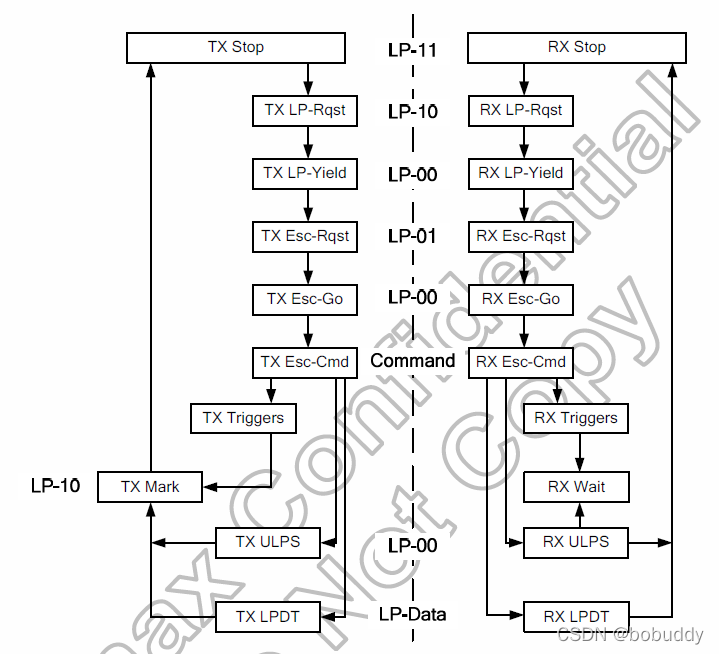

Data Lane0 is used in Escape Mode when data lane in LP mode. Data Lane shall
enter Escape mode via LP-11 -> LP-10 -> LP-00 -> LP-01 -> LP-00 and exit Escape
mode via LP-10 -> LP-11.



High speed data transmission

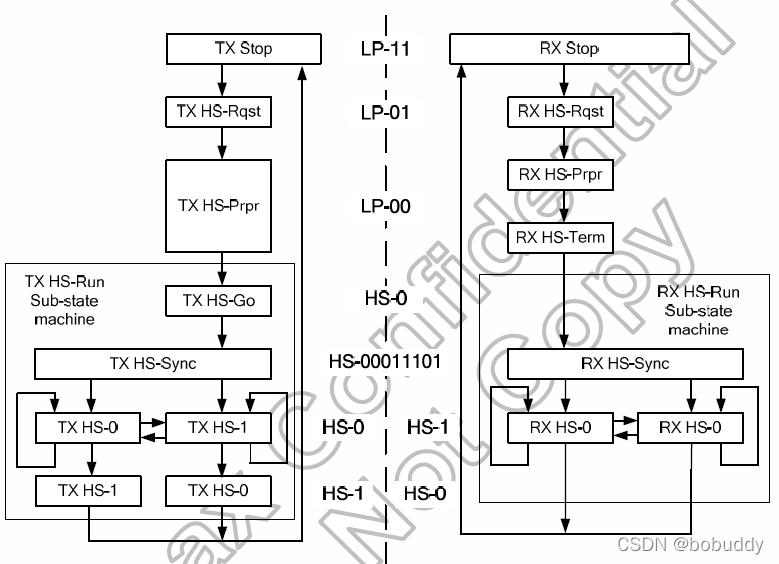

 Data Lane enter High Speed Data
Transmission flow: LP-11 -> LP-01 -> LP-00 -> SoT (0001_1101).
