Technica Engineering: Creating the Automotive Feature

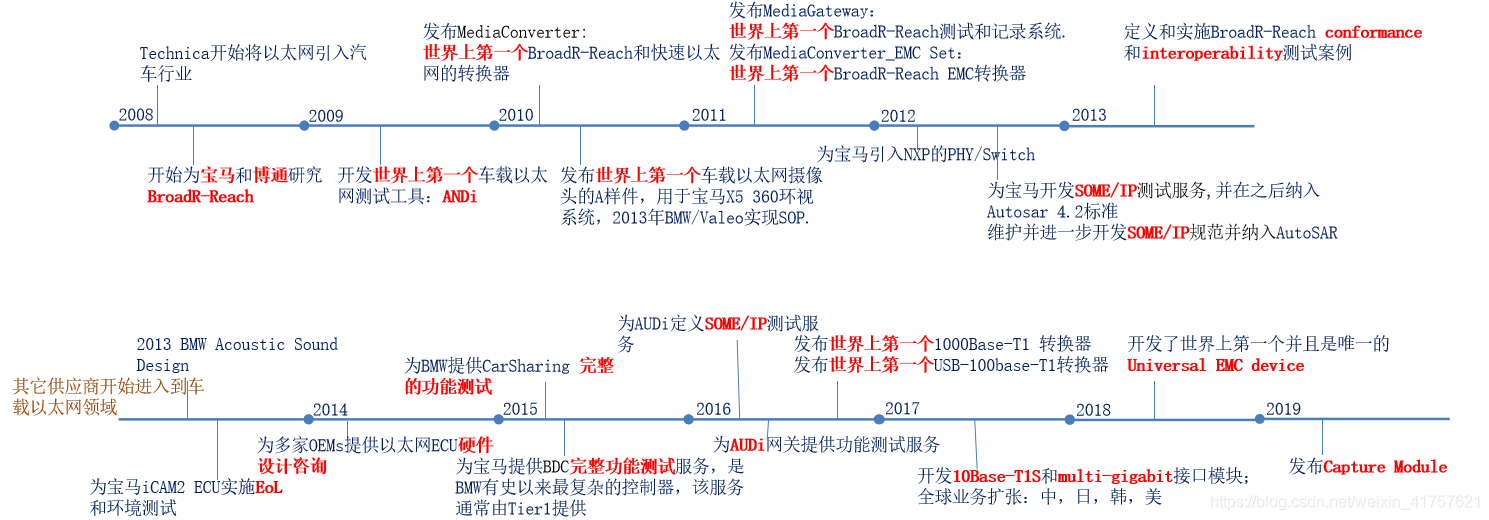

Technica Company Profile

• Year founded：2008
• Managing director：Dipl.-Ing. Joseba Rodriguez
• Head office：Munich
• Branch offices：Munich, Sfax (Tunisia)，Barcelona
• Employees：> 400（Sept,2019）
• Academics：> 95%
• Form of company：GmbH

Pioneers in Automotive Ethernet

Software Products

ANDI

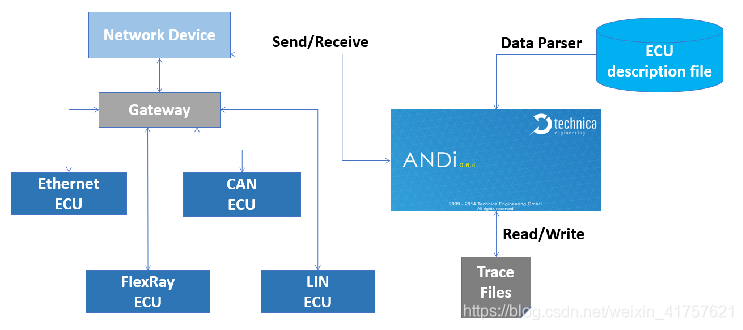

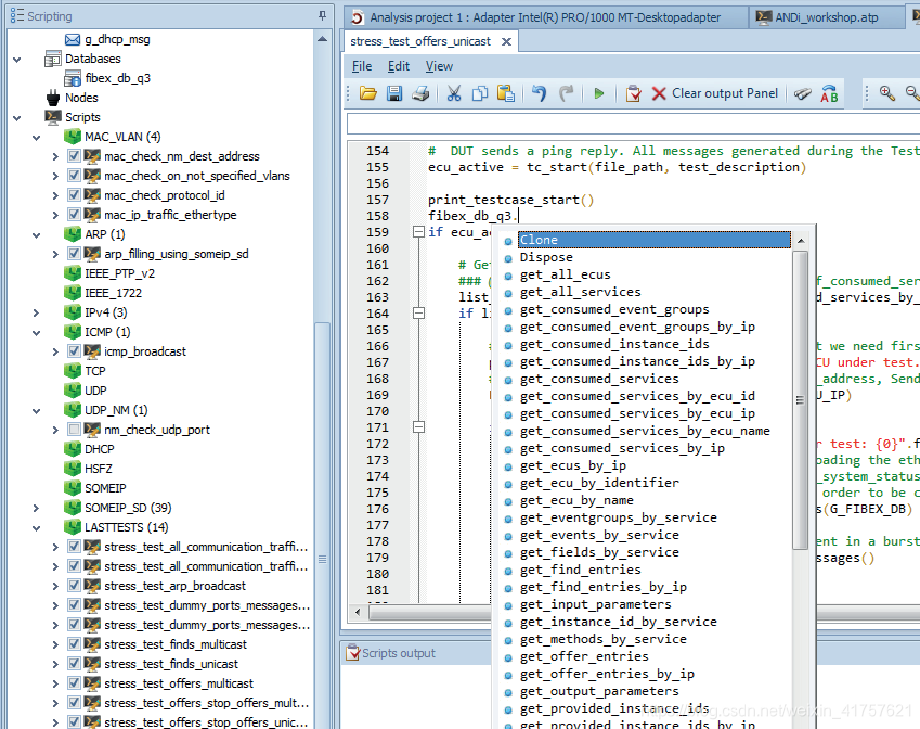

ANDI: 车载以太网仿真测试和分析工具

脚本语言：

• IronPython：

  • 优雅、明确、简单
  • 交互式语言
  • 面向对象语言
  • 解释型语言
  • 汽车测试的主流语言
  • 网络开发的主流语言
  • 人工智能开发的主要语言

• Microsoft XML Web services 平台:

  • 免费
  • 跨平台
  • 开源
  • 开发者平台

Ethernet Protocols supported以太网协议支持:

• All TCP/IP, SOME/IP(-SD), IEEE1722, PTP,所有的协议
• highly customizable and open to new customer protocols.对新的客户协议，可以高度定制化，开放性强
• CAN协议
• LIN协议

丰富实用的API
API根据实际项目开发

RBS 仿真

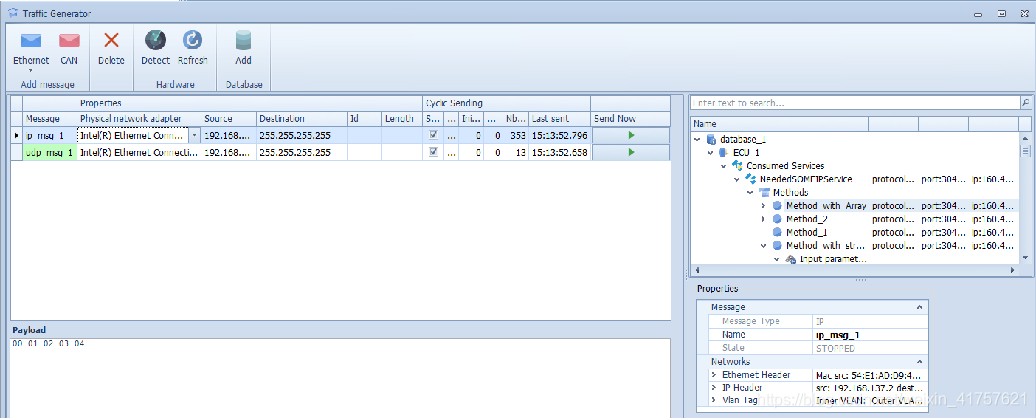

集成的小工具： 如收发报文的Traffic Generator/Viewer

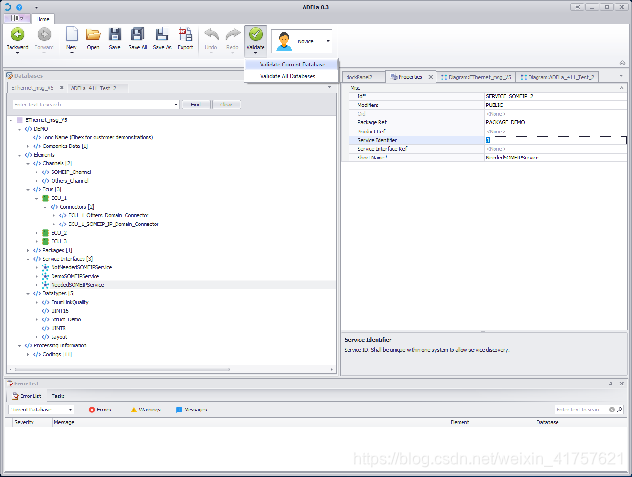

ADELa

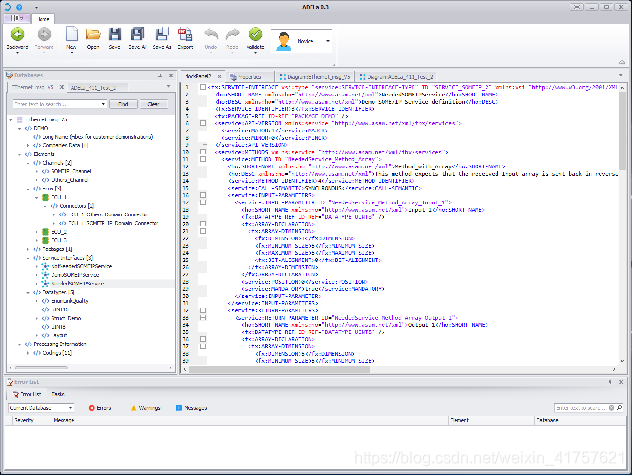

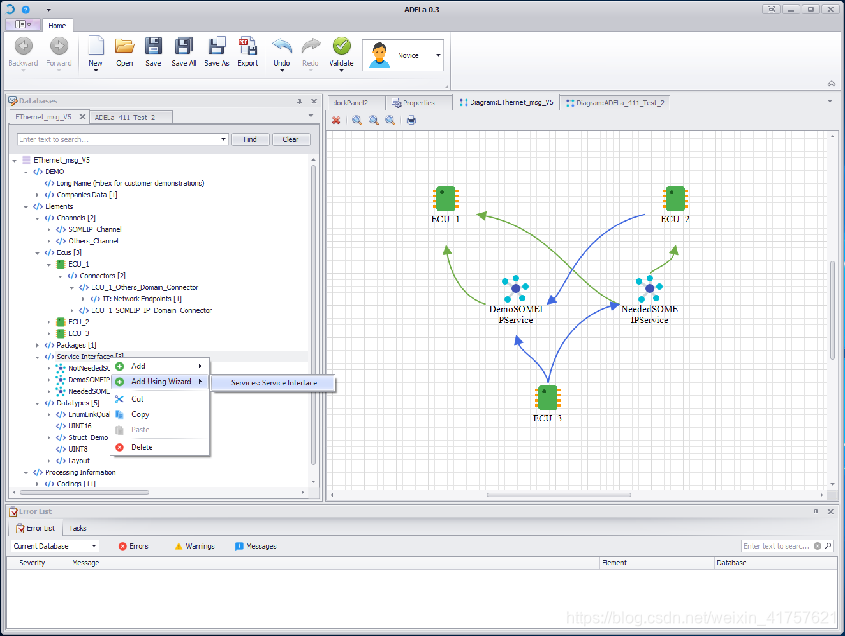

ADELa: 车载以太网数据库编辑和配置工具

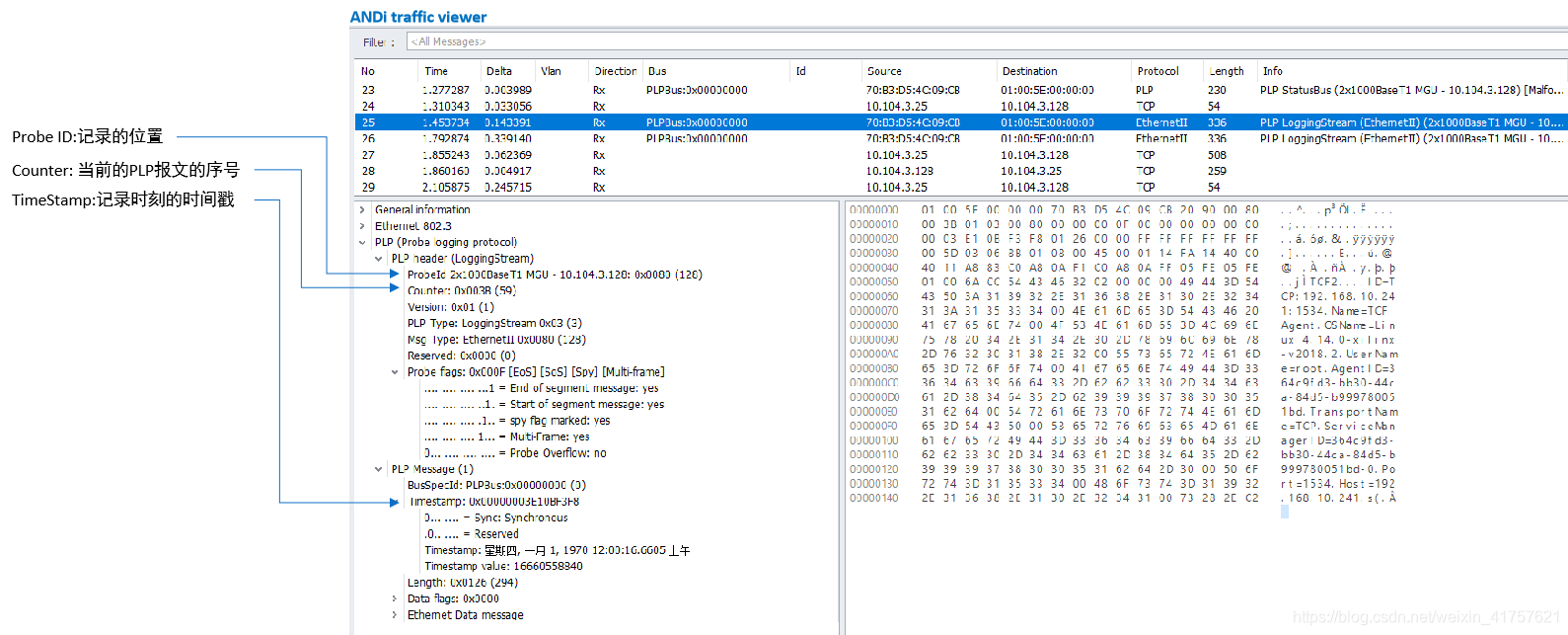

Observer

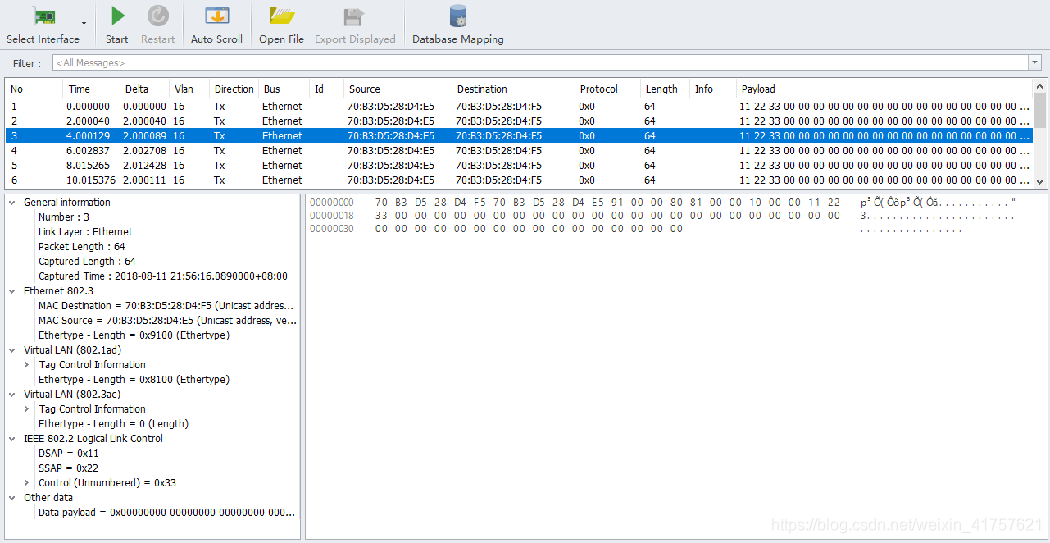

Observer:Automotive Ethernet Traffic Analyzer

EVA

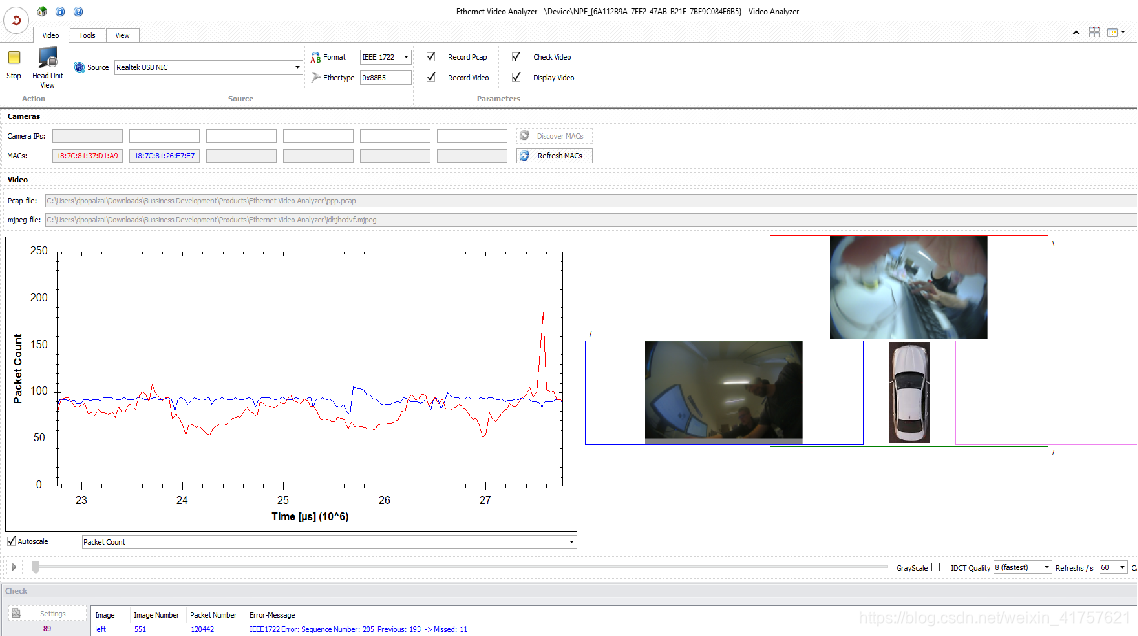

EVA: Automotive Ethernet Video Analyzer

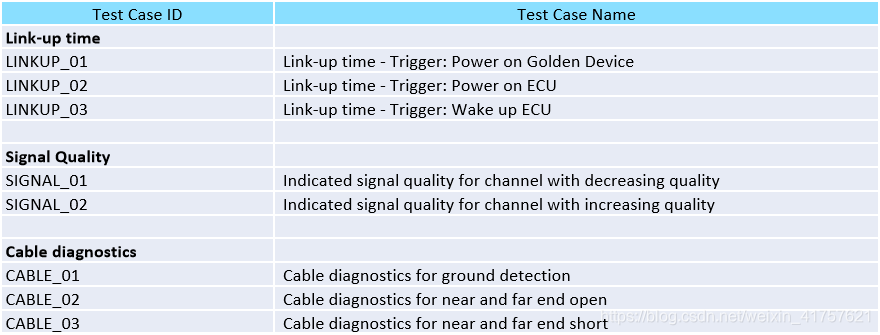

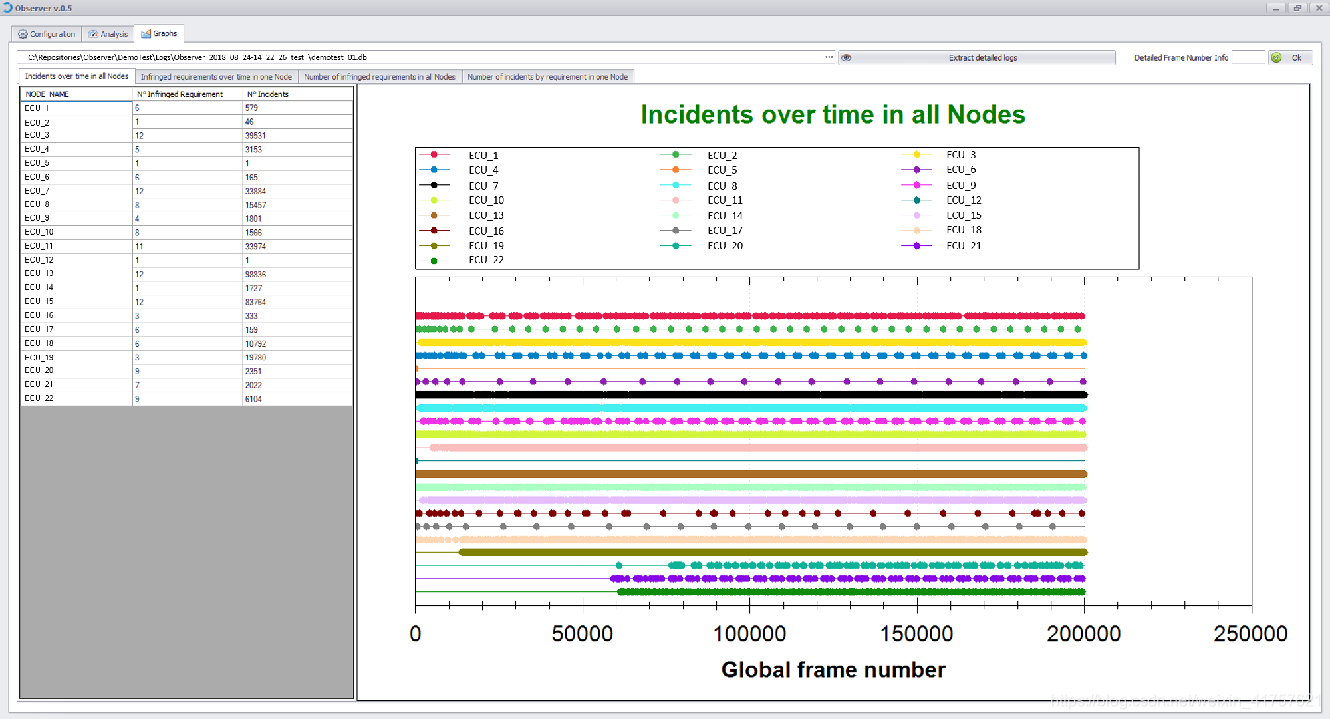

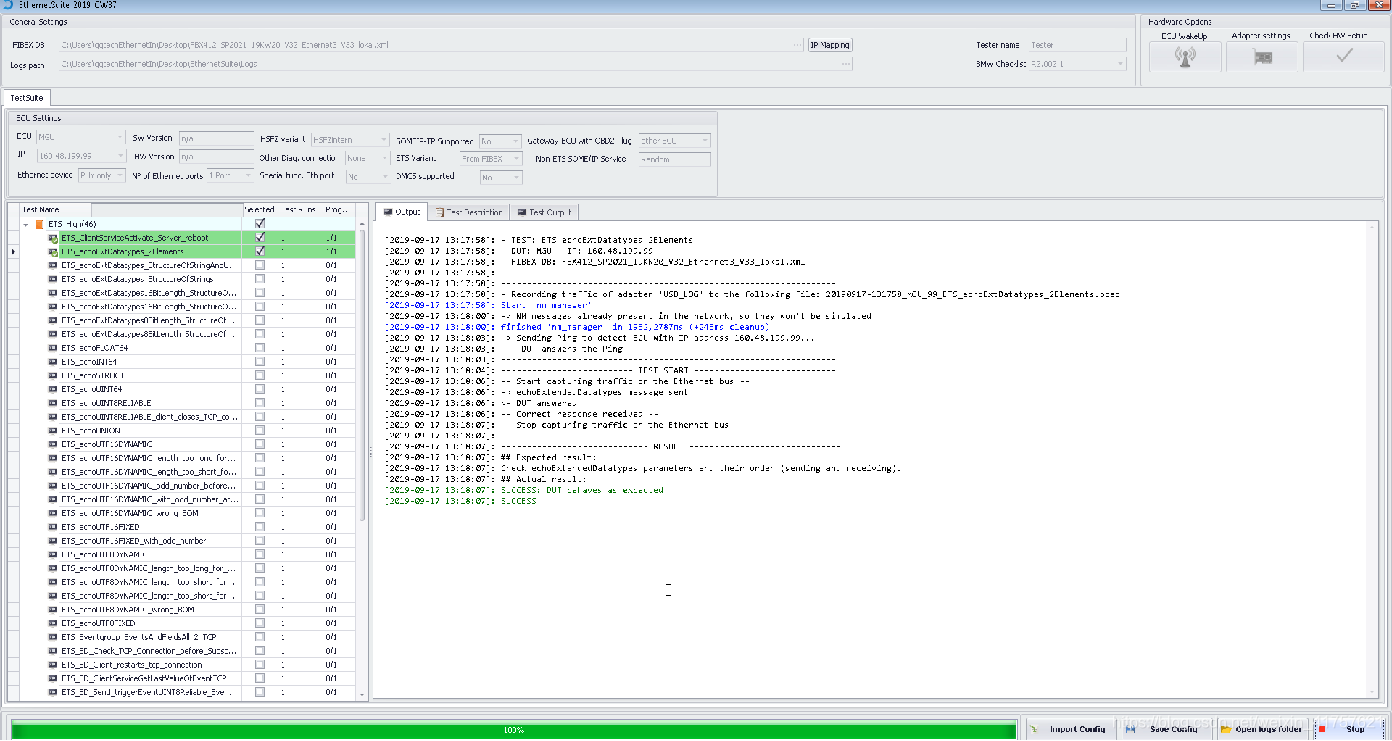

Test Suite

Hardware Products

100Base-T1

100Base-T1 MediaConverter

• 1 x 100Base-T1
• 1 x 100Base-Tx


100Base-T1 USB Converter

• 1 x 100Base-T1
• 1 x USB


100Base-T1 SFP Module

• 1 x 100Base-T1
• 1 x SGMII


MediaGateway

• 12 x 100Base-T1
• 5 x CAN
• 3 x 1000Base-Tx
• 1 x SFP


100Base-T1 SPY

• 12 x 100Base-T1
• 6 x CAN/-FD
• 2 x LIN
• 1 x FlexRay


100Base-T1 SPY Mini

• 4 x 100Base-T1
• 2 x 1000Base-Tx


Note:

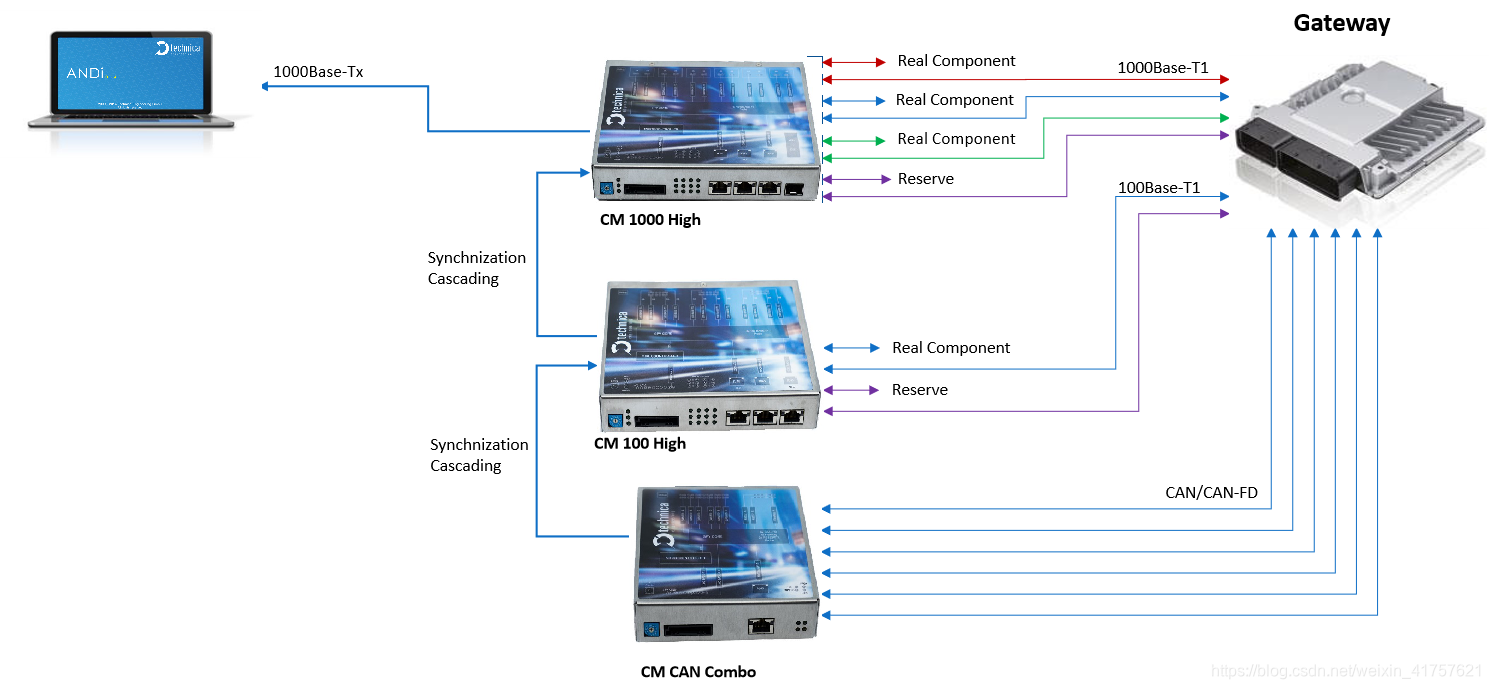

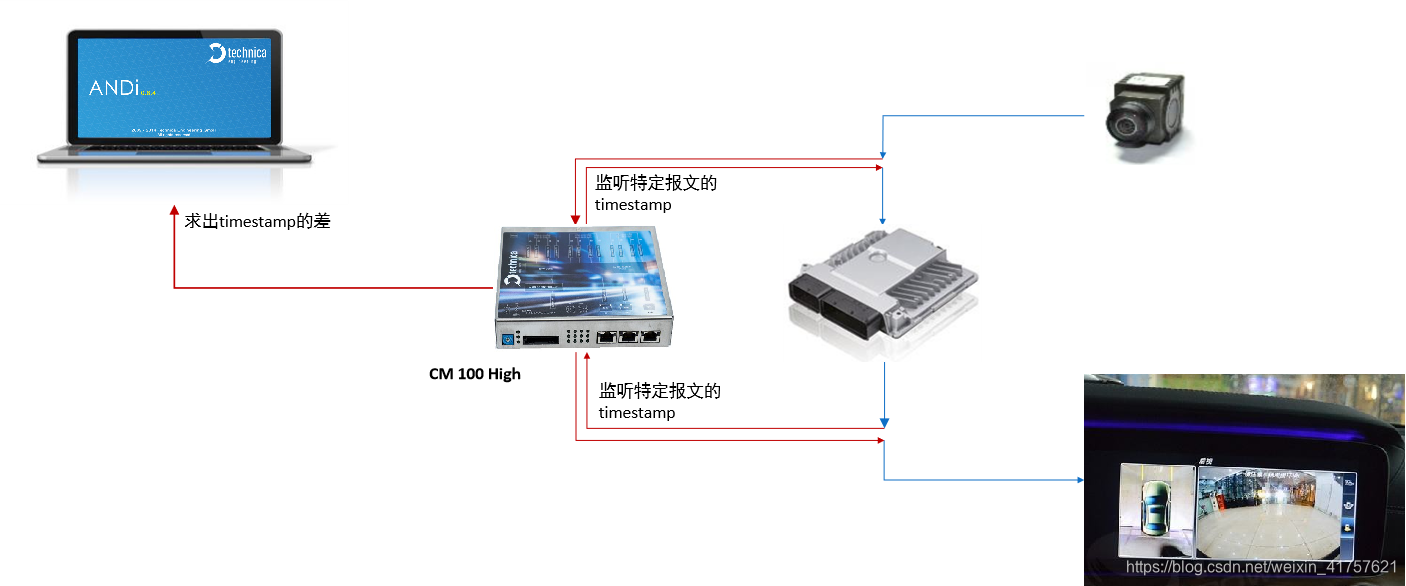

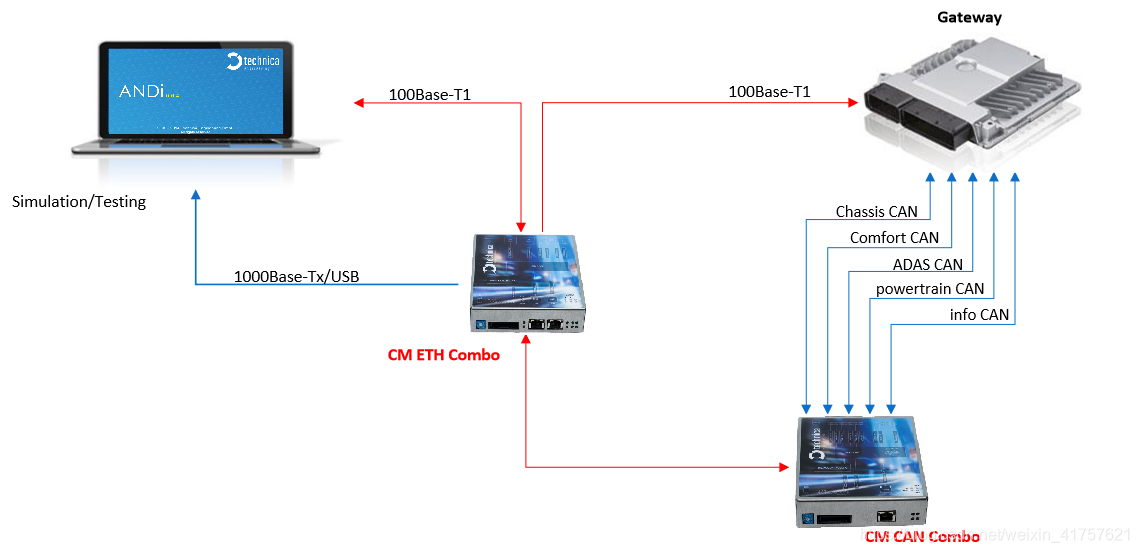

• 有两款Capture Module也支持100Base-T1 （CM 100 Hign和CM ETH Combo）

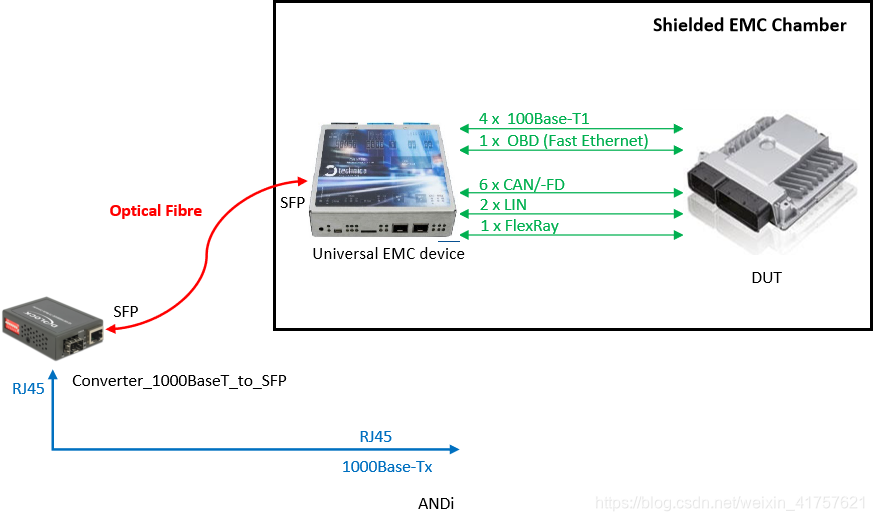

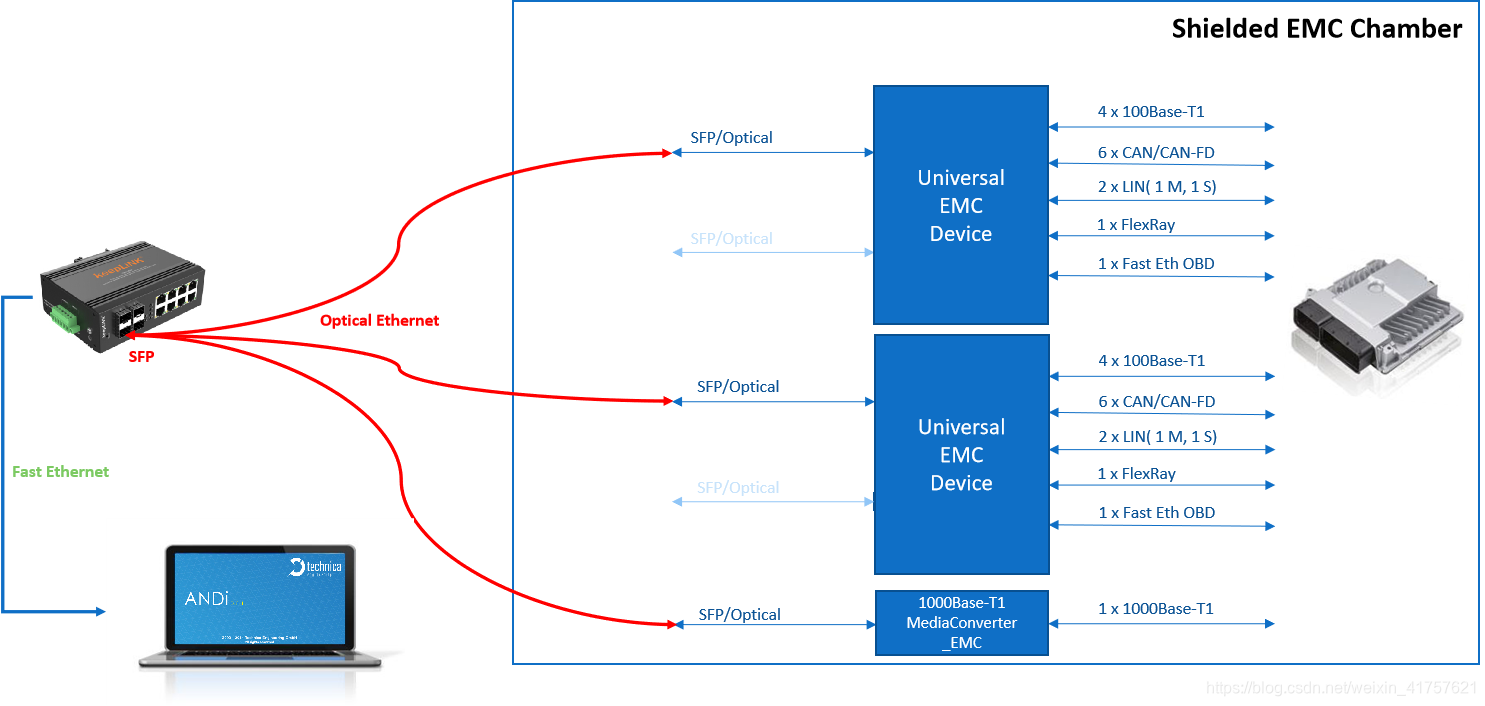

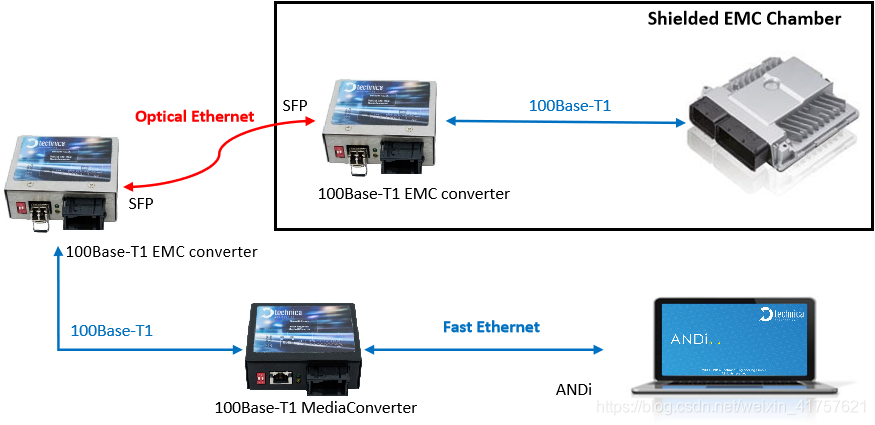

• 有两款EMC设备也支持100Base-T1 (100Base-T1 MediaConverter_EMC_Set和 Universal EMC device)
• 有一款Gold Device也支持100Base-T1

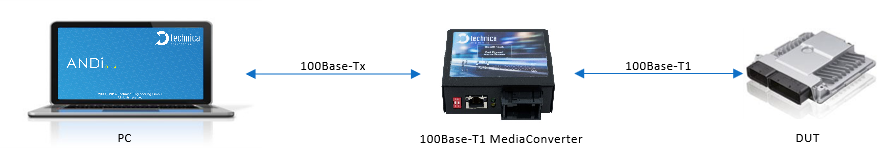

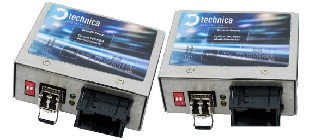

100Base-T1 MediaConverter

Description

• he ideal physical layer conversion between Automotive Ethernet and your PC system.
  车载以太网和电脑之间物理层转换。
• Duplex physical layer conversion between 100BASE-T1 and T100Base-Tx.
  100Base-T1和100Base-Tx之间物理层全双工转换。
• No packets are stored or modified.
  不存储或修改任何数据包。
• First on the market and highest proven reliability.
  本产品是市场上的第一个同类产品，具有验证过的最大的可靠性。
• It uses the Broadcom BCM89810 or TJA1100 Phy.
  它使用博通 BCM89810 或者TJA 1100Phy。


Feature

• duplex conversion between 100Base-T1 and 100BaseTX
  100Base-T1和 100Base-Tx的全双工转换
• Master / Slave configuration主 / 从 配置
• Configuration DIP switches,DIP配置开关
• Status LEDs状态灯
• Massive steel housing金属外壳
• Automotive MQS connector included (Power, BroadR-Reach)
  汽车级 Tyco - MQS 接插件
• Standard Ethernet RJ45 connector标准以太网RJ45接口
• Power requirement: 8 to 16 Volt DC,电源需求：8-16伏直流，
• Power consumption: 2 Watt功耗：2瓦
• Size: 92 x 63 x 28 mm尺寸：92 x 63 x 28 毫米

100Base-T1 USB Converter

The most compact and practical interface to your 100BASE-T1 device.
100BASE-T1最紧凑实用的接口模块。

Description

• The USB 100BASE-T1 Converter from Technica Engineering allows you to expand your PC/Laptop with an additional Network Interface Card with the in-built USB-LAN chip and to interact directly with your 100BASE-T1 device with only one device.
  来自Technica Engineering的100BASE-T1 USB转换器允许您使用内置USB-LAN芯片来扩展您的PC /笔记本电脑网络接口，并与您的100BASE-T1设备直接交互 。
• The power supply for the converter is provided by the USB port.
  转换器的电源由USB端口提供。
• Windows and Linux drivers available.
  提供Windows和Linux驱动程序。


Feature

• Converts 100Base-T1 100 MBit/s full duplex 1x unshielded twisted pair (UTP) to USB-LAN
  将100Base-T1信号全双工方式以非屏蔽双绞线转换到USB-LAN
• Master/slave configuration through a windows tool(Linux driver available)
  通过windows工具进行主从配置（也提供Linux驱动）
• Status LEDs
  状态灯
• Standard Tyco MQS Connector(100BASE-T1)
  标准Tyco MQS接插件(100BASE-T1)
• Standard USB Connector
  标准USB接插头
• Power requirement: 5V DC provided from USB 2.0,No additional power supply Needed
  电源需求：5V，由USB2.0供电,不需额外供电
• Small :60 x 42 x 19mmSmall
  尺寸：604219毫米

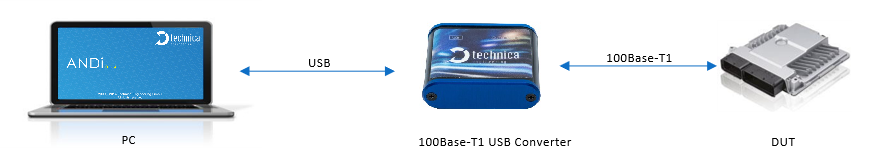

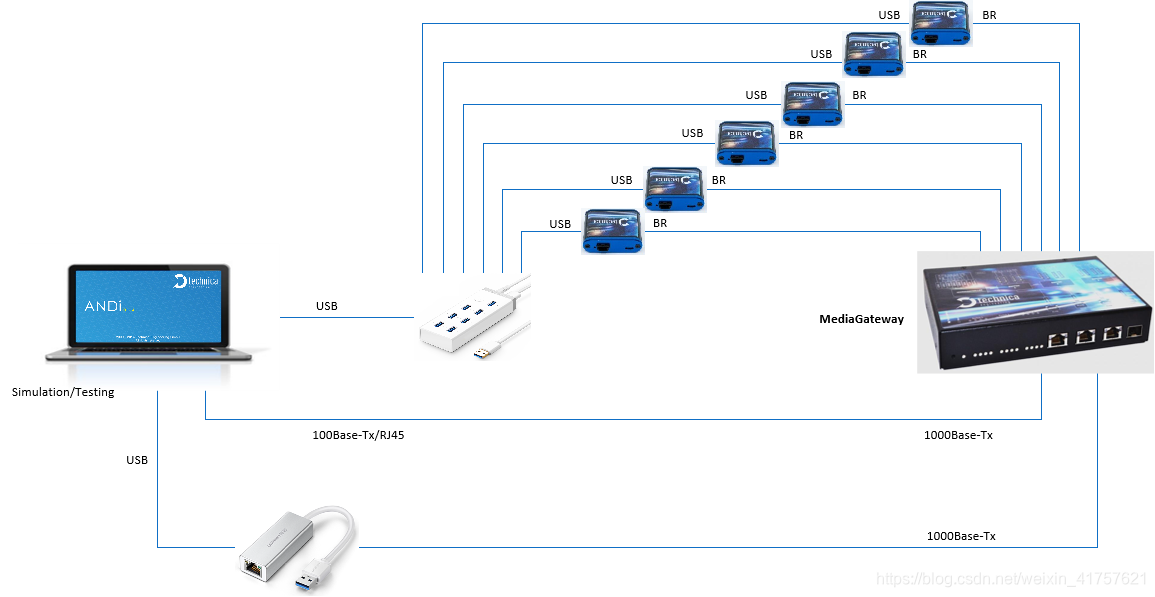

Use Case: 扩展网口以仿真
通过100Base-T1 USB Converter,上位机得以扩展多个以太网网口，进而实现节点仿真

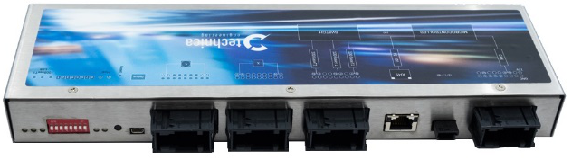

MediaGateway

The development tool for testing and analyzing on-board vehicle networks.
测试分析车载网络的开发工具。

Description

• MediaGateway from Technica Engineering is the most widely used development and testing tool for on-board vehicle networks using 100BASE-T1. It’s in-built automotive switches and 12 x 100BASE-T1 ports enable both capture of traffic between devices while maintaining the normal communication, as well as interaction with such devices via your test set-up. It supports single and double tagging of VLANs, Mirroring, Forwarding and more. An additional and optional CAN-Ethernet bi-directional conversion is available, as well as FlexRay logging via Ethernet and one SFP slot.
  Technica Engineering的MediaGateway是应用最广泛的100Base-T1车载网络开发和测试设备。它内置车规级交换机和12个100BASE-T1端口，可在被测设备保持正常通信的同时捕捉其相互之间的通信，也可以与这些被测设备直接通信。它支持单标签和双标签VLAN，镜像，转发的功能。此外，还具有可选的CAN-Ethernet双向转换功能，以及通过以太网的FlexRay记录功能，和一个SFP插槽。

Interface

• 12 x 100Base-T1
• 3 x 1000Base-Tx
• 5 x CAN
• 1 x Flexray
• 1 x SFP slot , Gigabit

Feature

• Support IEEE 802.1q (VLAN) mode
  支持IEEE 802.1q (VLAN)模式
• 802.1AS Bridging functionalities available
  支持 802.1AS桥接功能
• MAC Filtering for mirroring
  支持镜像时的MAC过滤
• CAN Ethernet Routing
  支持和CAN和Ethernet路由
• WakeUp function by CAN Bus or Wakeline
  通过CAN Bus 或Wakeline的唤醒功能
• Configurable through an integrated web server
  通过内置网络服务器进行配置
• Support remote control via ANDi or SOME/IP message
  支持通过ANDi或SOME./IP消息远程控制
• Possibility to reset to default settings by pushbutton
  按压方式恢复缺省设置
• 19 Status LEDs
  19个状态灯
• Power output for attached devices: VBAT max. 1 Ampere in total
  为连接的设备供电： VBAT, 共1安培
• Robust steel case
  钢制外壳
• Power requirement: 8 – 16 Volt DC, Power consumption : 8 Watt
  供电：8-16伏直流，功耗：8瓦
• Size: 195 x 143 x 33 mm
  尺寸：195 x 143 x 33 毫米

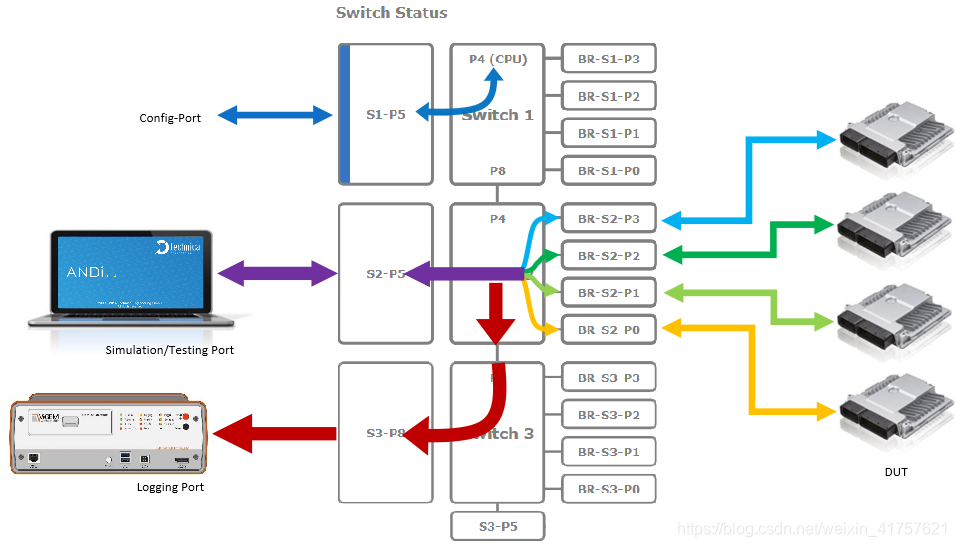

Use Case：Simulation and Logging
4个控制器经过switch与上位机建立双向通信，记录仪捕获控制器和上位机之间的全部报文

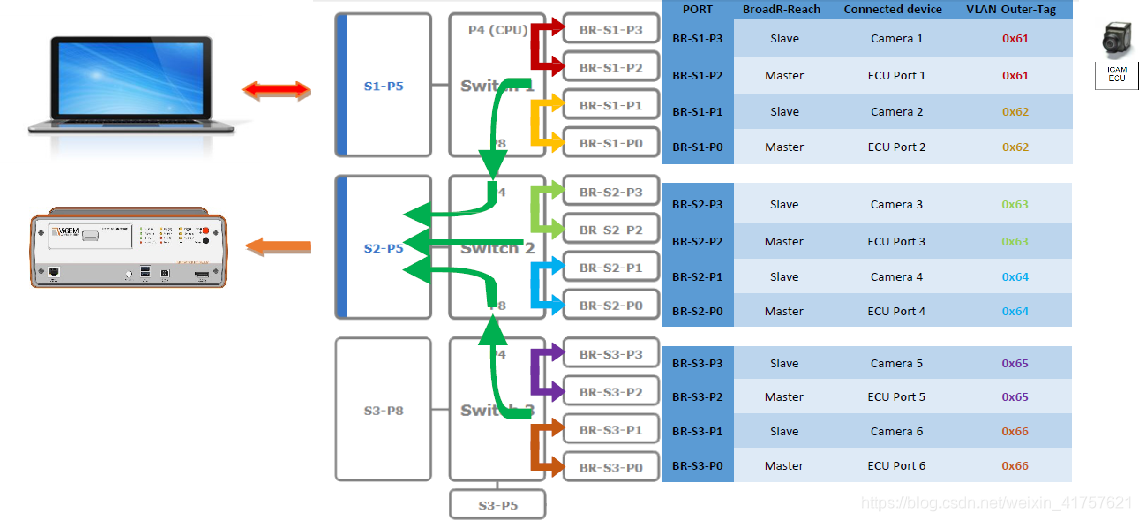

Use Case：Switch, mirroring and VLAN
360环视系统的6组摄像头以及其各自与控制器之间的所有通信被记录仪捕获

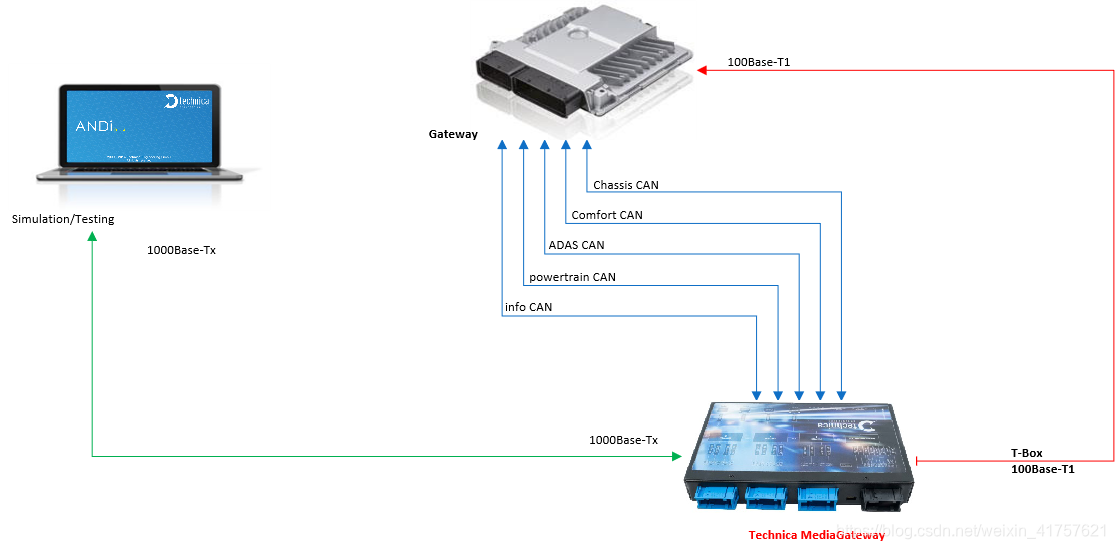

Use Case: CAN-Ethernet Gateway and Simulation
通过MediaGateways的CAN-ETH Gateway功能,上位机模拟对应的CAN节点和以太网节点，实现对被测对象Gateway的路由功能测试。

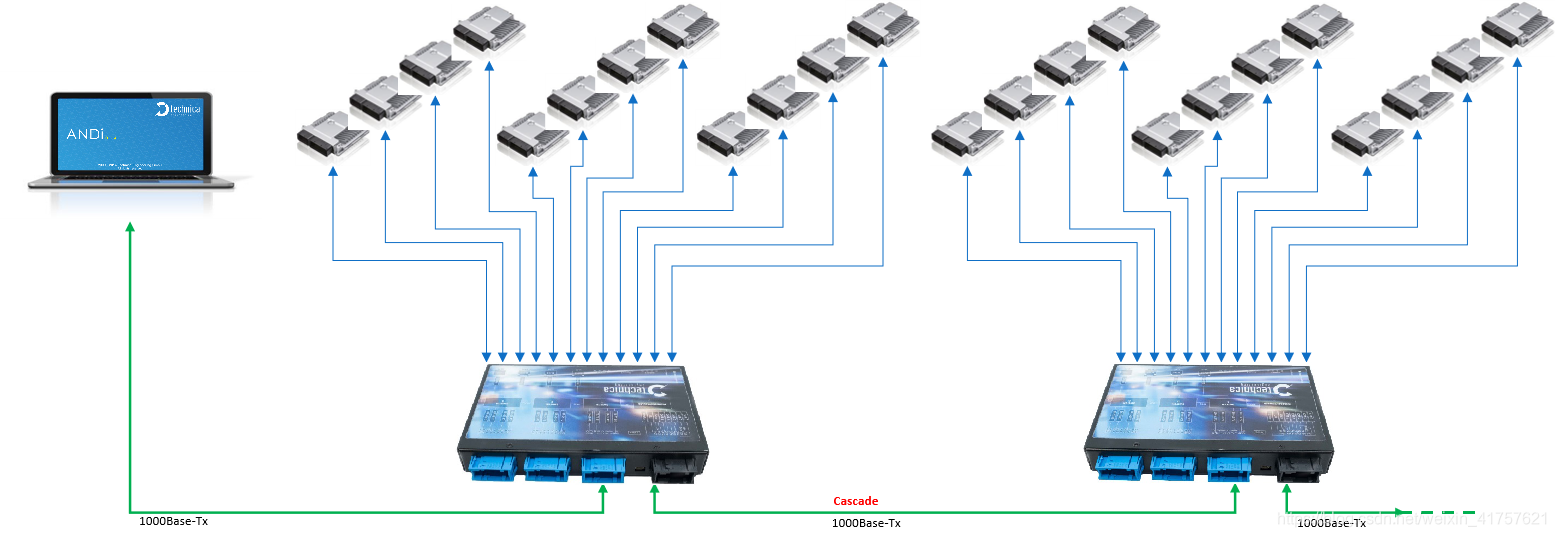

Use Case: Cascading
通过级联，在DV,PV过程中对一组控制器实现测试。

100Base-T1 SFP Module

Duplex conversion between 100BASE-T1 and SGMII.
在100BASE-T1和SGMII之间全双工转换。

Description

• The 100BASE-T1 SFP Module is the optimum solution to convert between 100BASE-T1 and SGMII.
  100BASE-T1 SFP模块是在100BASE-T1和SGMII之间进行转换的最佳解决方案
• It configures itself to Automotive 100BASE-T1 after power up. Master/slave mode of operation can be set with the DIP switch.
  它在上电后配置为车载100BASE-T1。 可以使用DIP开关设置主/从操作模式。
• Registers of the integrated Transceiver are accessible via I2C interface for diagnosis and reconfiguration.
  可通过I2C接口访问集成收发器的寄存器，以进行诊断和重新配置。
• It works seemlessly with our MediaGateway, which has one SFP slot.
  它与我们的MediaGateway无缝兼容， MediaGateway有一个SFP插槽。

Features

• 100BASE-T1 and SGMII converter
  实现100Base-T1和SGMIi转换
• DIP switch for Master/ Slave configuration
  通过DIP 开关实现Master/Slave配置
• Supports I2C for internal register access
  收发器的寄存器可以通过I2C接口访问
• Fits into a standard SFP Slot
  适用标准的SFP插槽
• Power requirements: 3.3 Volt DC
  供电：3.3V 直流
• Size: 68 x 14 x 14 mm
  尺寸：68 x 14 x 14 毫米

100Base-T1 SPY

Capture the traffic of 100BASE-T1, CAN/CANFD, LIN and Flexray Buses using only one device.
仅使用一个设备捕获100BASE-T1，CAN / CANFD，LIN和Flexray总线的报文。

Description

• The 100BASE-T1 SPY 12 port is a highly specialized test and evaluation tool for seamless capture of multiple in-vehicle-network technologies. It provides common timestamping of all incoming messages and delivers the traffic via Standard Gigabit Ethernet.
  100BASE-T1 SPY 12 port是一种高度专业化的测试和评估工具，用于无缝捕获多种车载网络技术。 它提供所有传入消息的共同时间戳，并通过标准千兆以太网传送报文。
• Its 12 x 100BASE-T1 ports enable the capture of AVB/TSN traffic, since the latency is symmetrical and deterministic.
  其12 x 100BASE-T1端口可捕获AVB / TSN流量，因为延迟是对称且确定的。
• Several devices can be synchronized with each other using RJ-45 cables via an internal 802.1AS implementation if more interfaces are needed.
  如果需要更多接口，可以通过内部802.1AS实现使用RJ-45电缆将多个设备相互同步。
• Optionally other Use Cases as Frame Generator, Fault Injection, Data Manipulation, Trigger Generator can be upgraded.
  可选的，可以升级以满足其它用例如帧生成器，故障注入，数据操作，触发生成器。

Interface

• 12x 100Base-T1 Ports Fullduplex
• 5x CAN / CAN-FD
• 1x LIN
• 1x FlexRay
• 4x Gigabit Ethernet Ports for Logging data output
  4个Gigabit以太网端口用来记录数据
• 1x Fast Ethernet Port for status output, configuration and webserver access
  1个快速以太网端口用于状态输出，配置和网络服务器入口

Feature

• 1x SD Card for configuration and storage of trigger events
  一个SD卡用于配置和存储触发事件
• 1x SMA Trigger
• Minimal Delay using FPGAs
  使用FPGA以实现最低的延迟
• Timestamps with 40 ns resolution
  40 ns精度的时间戳
• Optionally use case upgrades:
  • Frame Generator帧生成器
  • Fault Injection故障注入
  • Data Manipulation数据操作
  • Trigger Generator触发生成器
• Power Requirement: 12 Volt DC Nominal (7-16 Volt), 10 Watt
  电源需求：12伏直流（7-16伏），功耗10瓦
• Stainless steel case
  不锈钢外壳
• Size: 147 x 124 x 26mm
  尺寸： 147 x 124 x 26毫米

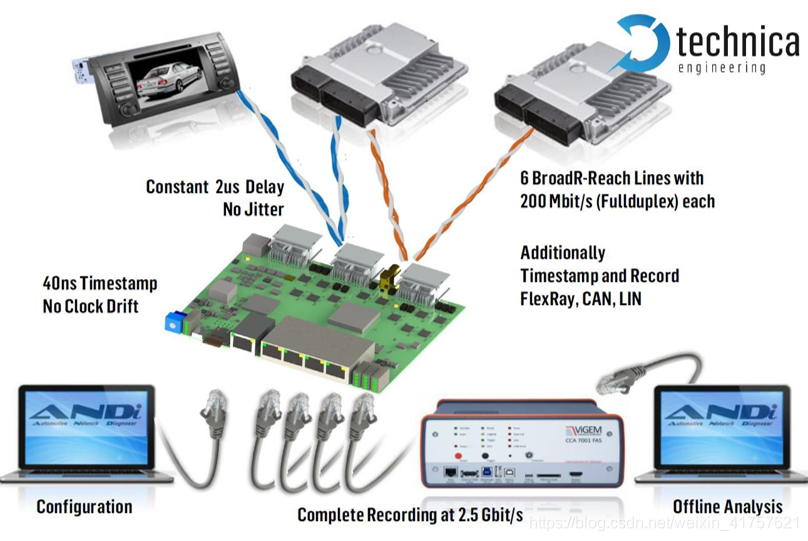

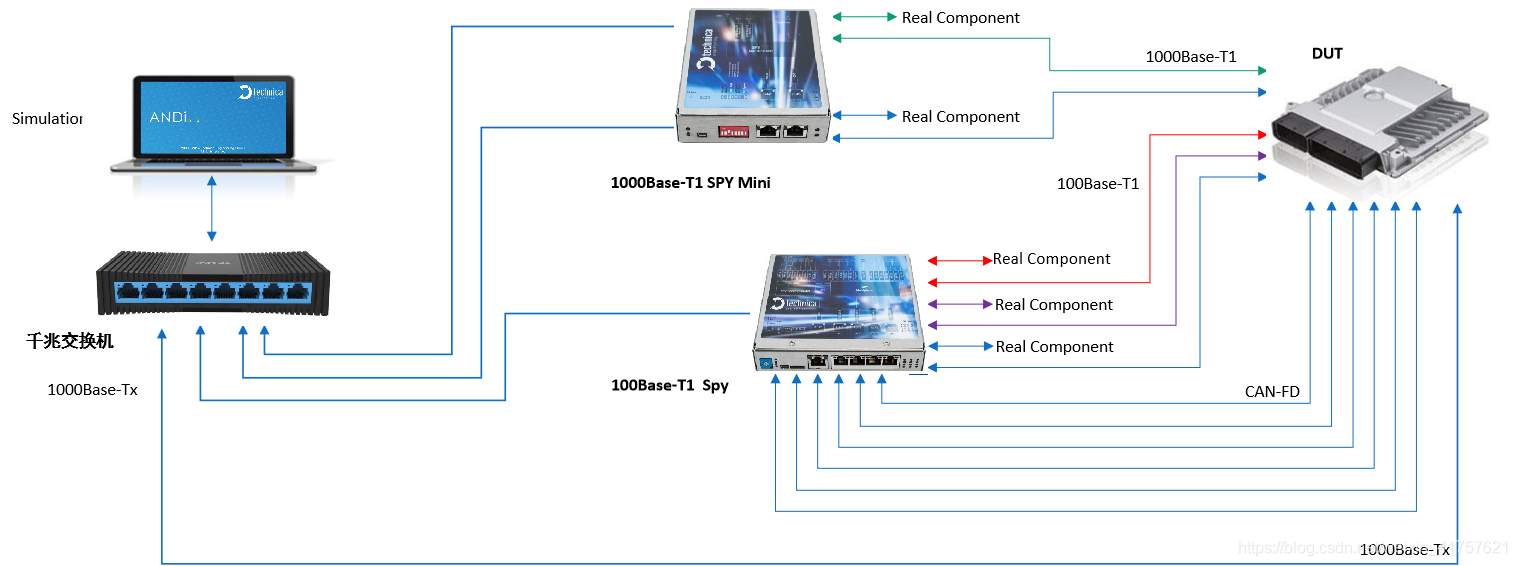

Use Case: Logging
通过SPY，捕获系统中的多路通信

Use Case: Logging
将控制器的通信捕获到上位机中

100Base-T1 SPY Mini

Description

• 100Base-T1 SPY mini captures Automotive Ethernet Frames (BroadR-Reach / 100Base-T1) directly on the line without influence of the original network. The data Frames can be enhanced with additional information: the exact timestamp and the bus port the data was originally sent on. All data can be recorded on a PC or datalogger for detailed offline analysis using standard RJ45 cables.
  BR_SPY_mini直接在线路上捕获汽车以太网帧（BroadR-Reach / 100Base-T1），而不受原始网络的影响。 可以使用附加信息增强数据帧：准确的时间戳和数据最初发送到的总线端口。 可以使用标准RJ45电缆将所有数据记录在PC或数据记录器上，以进行详细的离线分析。


Interface

• 4x 100Base-T1
• 2x Gigabit Ethernet Ports
• 6x 3V3 Bidirectional Trigger signals

Feature

• Timestamp with 0.04 μs resolution selectable
  可选0.04 μs精度时间戳
• Master/slave configuration
  主/从配置
• Status LEDs
  状态灯
• Configuration DIP switches
  可配置的DIP切换
• Power Requirement: 12 Volt DC Nominal (8-16 Volt), 4 to 7 Watt
  电源需求：12伏直流（8-16伏）4-7瓦
• DIP switches for easy configuration
  DIP开关：更方便的配置
• Robust steel case
  钢制外壳
• Automotive MQS connector included
  汽车级MQS接插件
• Size: 110 x 108 x 28 mm
  尺寸：110 x 108 x 28 毫米

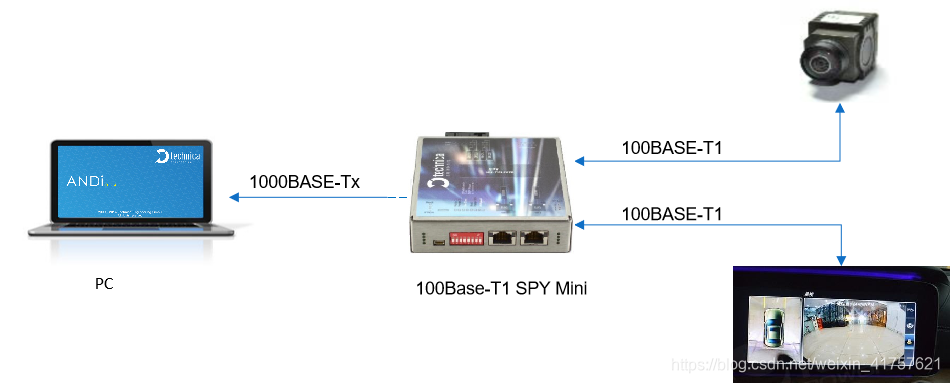

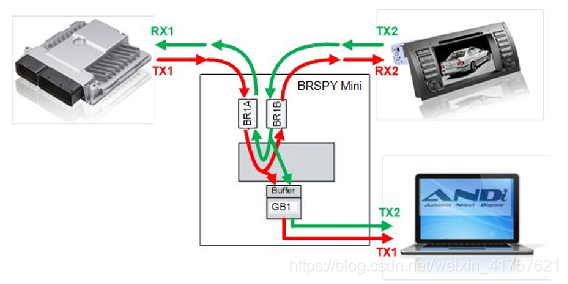

User Case:
BR-SPY-Mini监听摄像头和控制器之间的通讯，并将监听到的信息发送到上位机

1000Base-T1

1000Base-T1 MediaConverter

• 1 x 1000Base-T1
• 1 x 1000Base-Tx


1000Base-T1 SFP Module

• 1 x 1000Base-T1
• 1 x SGMII


1000Base-T1 SPY Mini

• 2 x 1000Base-T1
• 2 x 1000Base-Tx


Note:

• 有两款Capture Module也支持1000Base-T1 （CM 1000 Hign和CM ETH Combo）

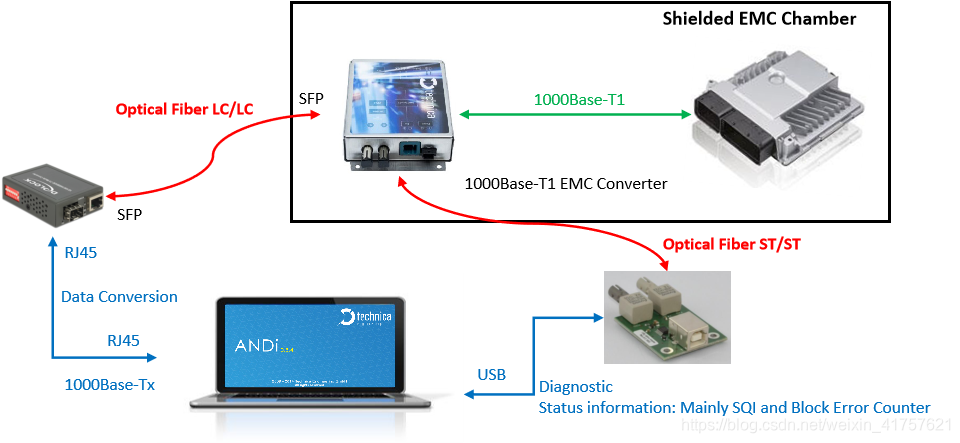

• 有一款EMC设备也支持1000Base-T1 (1000Base-T1 MediaConverter_EMC)

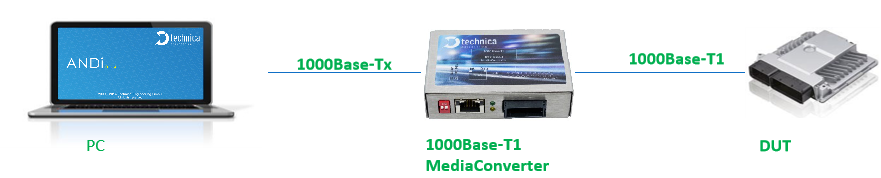

1000Base-T1 MediaConverter

The ideal physical layer conversion between Automotive Gigabit Ethernet and your PC system.
汽车千兆以太网与PC系统之间理想的物理层转换。

Description

• The 1000BASE-T1 MEDIA CONVERTER establishes one direct point-to-point conversion between automotive ECU’s using 1000BASE-T1 and any standard Gigabit Ethernet device with RJ-45 connector.
  1000BASE-T1 MEDIA CONVERTER在1000BASE-T1车载控制器和任何带RJ-45连接器的标准千兆以太网设备之间建立直接的点对点转换。
• No packets are stored or modified. Both 1000 Mbps and 100 Mbps modes are available with the Marvell 88Q2112 Phy.
  不存储或修改数据包。 使用Marvell 88Q2112 Phy，可提供1000 Mbps和100 Mbps模式。
• Thus, the 1000BASE-T1 MEDIA CONVERTER is the ideal solution for working quickly and efficiently with the new 1000BASE-T1 technology.
  因此，1000BASE-T1 MEDIA CONVERTER是与新型1000BASE-T1技术快速高效交互的理想解决方案。

Feature

• duplex conversion between 1000Base-T1 and 100BaseTx
  1000Base-T1和 100Base-Tx的全双工转换
• Master / Slave configuration
  主 / 从 配置
• Configuration DIP switches
  DIP配置开关
• Status LEDs
  状态灯
• Massive steel housing
  金属外壳
• Automotive Tyco Nano MQS connector(Power, BroadR-Reach)
  汽车级 Tyco Nano MQS 接插件
• Standard Ethernet RJ45 connector
  标准以太网RJ45接口
• Power requirement: 8 to 16 Volt DC
  电源需求：8-16伏直流，
• Power consumption: 2 Watt
  功耗：2瓦
• Size: 95 x 95x 32mm
  尺寸： 95 x 95x 32毫米

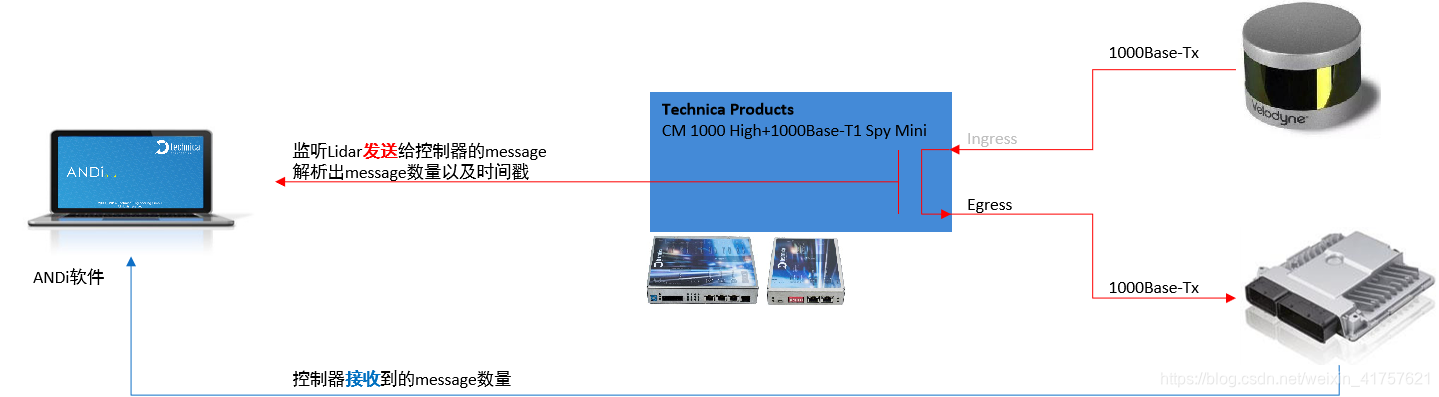

1000Base-T1 SPY Mini

Samples data frames directly from the bus without influencing the original network.
直接从总线采样数据帧，而不会影响原始网络。

Description

• The 1000BASE-T1 SPY mini is the first device to allow the direct capture of 1000BASE-T1 (Automotive Gigabit Ethernet) traffic with optional timestamping with 40 ns resolution to Standard Gigabit Ethernet.
  1000BASE-T1 SPY mini是第一款允许直接捕获1000BASE-T1（汽车千兆以太网）流量的设备，可选择时间戳，标准千兆以太网分辨率为40 ns。
• A clock synchronization with the 100BASE-T1 SPY 12 port is provided via internal 802.1AS implementation.
  通过内部802.1AS实现提供与100BASE-T1 SPY 12端口的时钟同步。
• In logging mode the data Frames can be enhanced with additional information: the exact timestamp with 0.04 µs resolution and the bus port the data was originally received on. All data can be recorded on a PC or datalogger for detailed offline analysis.
  在记录模式下，可以使用附加信息增强数据帧：具有0.04μs分辨率的精确时间戳和最初接收数据的总线端口。 所有数据都可以记录在PC或数据记录器上，以便进行详细的分析。

Features

• 2 x 1000BASE-T1 Ports
  2个1000BASE-T1端口
• 2x Gigabit Ethernet Ports
  2个千兆以太网端口
• Timestamp with 0.04 µs resolution selectable
  可选择0.04μs分辨率的时间戳
• Can be synchronized via 802.1AS with other devices, such as 100BASE-T1 SPY 12 Port
  可以通过802.1AS与其他设备同步，例如100BASE-T1 SPY 12端口
• 6x 3V3 Bidirectional Trigger signals
  6x 3V3双向触发信号
• DIP switches for easy configuration
  DIP开关，易于配置
• Robust steel case
  坚固的钢壳
• Power requirements: 12 Volt DC Nominal (8-16 Volts), 4 to 7 Watt
  功率要求：12伏直流标称（8-16伏），4至7瓦
• Size: 120x118x28 mm
  尺寸：120x118x28毫米

Different SPY modes are allowed允许不同的SPY模式：

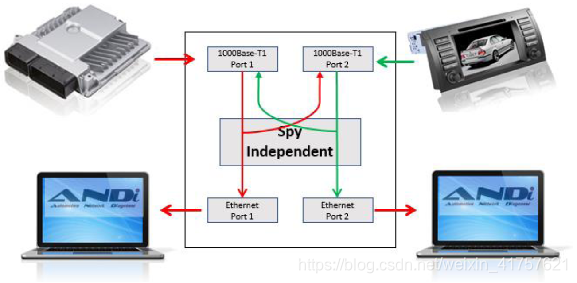

• Copying each direction of 1000BASE-T1 Traffic to one independent RJ45 interface
  将1000BASE-T1 Traf fic的每个方向复制到一个独立的RJ45接口
• Allowing copy of both directions of 1000BASE-T1 Traffic to only one RJ45 interface, assuming less than 500Mbps traffic bandwidth in each direction.
  允许将1000BASE-T1 Traf fic的两个方向复制到一个RJ45接口，假设每个方向的流量带宽小于500Mbps。
• Use as Dual Media Converter.
  用作两个媒体转换器。

1000Base-T1 SFP Module

Convert between 1000BASE-T1 (automotive Gigabit Ethernet) and SGMII Interface.
在1000BASE-T1（汽车千兆以太网）和SGMII接口之间进行转换。

Description

• The 1000BASE-T1 SFP Module is the cutting-edge solution to convert between 1000BASE-T1 and SGMII. It fits into a standard Small Form-factor Pluggable (SFP) and generates 1000 Mbit/s full-duplex.
  1000BASE-T1 SFP模块是在1000BASE-T1和SGMII之间进行转换的尖端解决方案。 它采用标准的小型可插拔（SFP），可实现1000 Mbit / s的全双工通信。
• It configures itself to Automotive 1000BASE-T1 after power up. Master/slave mode of operation can be set with the DIP switch.
  上电后它与汽车1000BASE-T1配合使用。 可以使用DIP开关设置主/从操作模式。
• Registers of the integrated transceiver are accessible via I2C interface for diagnosis and reconfiguration.
  可通过I2C接口访问集成收发器的寄存器，以进行诊断和重新配置。
• It works seemleesly with our MediaGateway, which has one SFP slot. In any other case, please contact us for more info.
  它与我们的MediaGateway无缝接口，因为它有一个SFP插槽。

Features

• 1000BASE-T1 and SGMII converter
  实现100Base-T1和SGMIi转换
• DIP switch for Master/ Slave configuration
  通过DIP 开关实现Master/Slave配置
• Supports I2C for internal register access
  收发器的寄存器可以通过I2C接口访问
• Fits into a standard SFP Slot
  适用标准的SFP插槽
• Power requirements: 3.3 Volt DC
  供电：3.3V 直流
• Size: 68 x 14 x 14 mm
  尺寸：68 x 14 x 14 毫米

Capture Module

Challenge Automotive industry meets汽车业面临的挑战:

• Automotive Ethernet has conquered the modern E/E vehicle network. The challenges arises during test and validation without interfering with the network timing. Now Automotive Ethernet has conquered the modern E/E vehicle network, this challenge gets even bigger when reliable capturing of AVB/TSN with the need for diagnostics protocols to be sent to the DUTs during run-time.
  可靠地捕获AVB / TSN流量，而不干扰网络时序是测试和验证过程中的挑战。随着汽车以太网进入了现代E / E车辆网络，可靠地捕获AVB / TSN流量使得这一挑战变得更大，尤其是在需要在运行时发送诊断报文到被测对象。
• The future brings connected and self-driving cars, for which an unprecedented amount of data is required. One technology soon to hit the road that addresses this challenge is Automotive Gigabit Ethernet.
  互联和自动驾驶是汽车的未来，需要前所未有的大量数据。 很快就能应对这一挑战的一项技术是汽车千兆以太网。
• In the Era of autonomous driving one key challenge for the test and validation is the reliable capture of relevant in-vehicle-traffic from different communication technologies，e.g. conventional CAN bus, as well as CAN-FD, FlexRay and RS-232.
  在自动驾驶时代，测试和验证的一个关键挑战是可靠地捕获来自不同通信技术的相关车载报文,比如传统CAN总线以及CAN-FD，FlexRay和RS-232。
• For the Body-Domain, the classic analogue signals and the cost efficient LIN Bus are still important technologies.
  对于车身域而言，传统的模拟信号和具有成本效率的LIN总线仍然是重要的技术。

Solution from TechnicaTechnica的解决方案:
Technica Engineering’s IVN2Eth Capture Module family was specifically designed to solve these problems and many more, such as:
Technica Engineering公司的IVN2Eth Capture Module专门用于解决这些问题，例如:

• Implement innovative PLP protocol
• 使用创新性的PLP协议
• It starts-up faster than the DUT’s whose traffic it will capture
  启动速度比DUT快，
• Special design to make sure no packet loss
  特殊设计保证不丢包
• The traffic is delivered with hardware time stamp.
  捕获报文打上硬件时间戳。
• Several devices can be used on the same setup, and when other IVN technologies are present, the in-built-synchronization using 802.1AS allows for simultaneous use with the other “IVN2Eth Capture Modules”.
  同一个环境可以使用多个设备，并使用内置的802.1AS协议与其他“IVN2Eth Capture Module”同步。
• Many additional features make this device appropriate for general-purpose testing
  该设备还有许多用于通用测试的其他功能

CM 100 High

• 6 x 2 x 100Base-T1
• 1000Base-T (Logging/Cascading)


CM 1000 High

• 6 x 2 x 1000Base-T1
• 10G SFP+ (Logging)


CM Eth Combo

• 2 x 2 x 100Base-T1
• 1 x 2 x 1000Base-T1
• 1000Base-T (Logging/Cascading)


CM CAN Combo

• 6 x CAN FD
• 1 x FlexRay
• 2 x RS232
• 100Base-T1 (Logging/Cascading)
• 1000Base-T (Logging)


CM LIN Combo

• 10 x LIN
• 4 x Analog
• 2 x Analog electrically isolated
• 100Base-T1 (Logging/Cascading)
• 1000Base-T (Logging)


Common Features

• PLP Protocol (time stamp, …) PLP协议
• High Speed Startup高速启动
• Startup Buffer启动缓存
• Output Traffic Shaping 输出流量整型
• Network Time Synchronization (802.1AS)– allows to synchronize any other “Capture Module”.
  网络时间同步（802.1AS）-可以与其它的Capture Module同步
• Cascading and synchronization of multiple devices级联和同步多个设备
• Source Timestamping with 40 ns resolution，40ns精度的时间戳
• AVB/TSN Capture capable支持捕捉AVB/TSN报文
• Advanced filtering丰富的过滤选项
• Time-Aware Injection报文注入
• Configure easily via webserver通过网络服务器配置
• Wakeup capable 可以唤醒
• Rotary Switch for manual configuration of the device’s IP-Addresses (Gbit – RJ-45) 用于人工设置设备IP地址的的圆形开关
• Extended Power Mode for Car integration 扩展的供电模式用于车辆集成
• Robust stainless-steel case 坚固的不锈钢外壳

Use Case

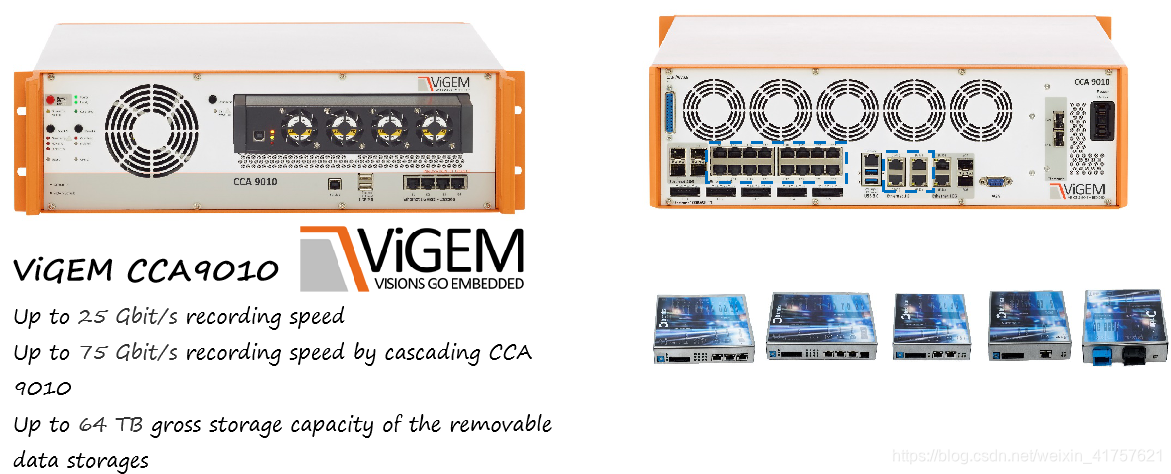

Use Case: Logging

Capture Module将采集到的报文输入到记录仪中

Use Case: latency test

Use Case: packet loss

Use Case: packet loss and latency test

Use Case: Logging

PLP protocol

EMC

As automotive ethernet pioneer, Technica Engineering released the first commercial tools for EMC validation of 100Base-T1 and 1000Base-T1 ECU, and also innovative Universal EMC device.
作为车载以太网先驱，Technica先后发布了世界上第一个用于100Base-T1和1000Base-T1控制器EMC测试的工具，以及创新的通用EMC测试模块。

100Base-T1 MediaConverter_EMC SET

• 1 x 100Base-T1


1000Base-T1 MediaConverter_EMC

• 1 x 1000Base-T1


Universal EMC Device

• 4 x 100Base-T1
• 1 x OBD(Fast Ethernet)
• 6 x CAN/-FD
• 2 x LIN
• 1 x FlexRay

  Common Features
• Master/slave configuration 主 / 从 配置
• Configuration DIP switches DIP配置开关
• Status LEDs 状态灯
• Stainless steel housing 不锈钢外壳
• Automotive connector 汽车级接插件
• Optical Fibre via SFP modules 通过SFP模块实现光纤通信
• Power supply: 10 to 13 Vold DC (nominal 12 Volt DC) 供电：10-13伏直流，

100Base-T1 MediaConverter_EMC SET

100BASE-T1

• 100Base-T1 MediaConverter_EMC SET works in a pair-set, converting 100BASE-T1 to optical fiber and back to 100BASE-T1.
  100Base-T1 MediaConverter_EMC SET采用成对设备，将100BASE-T1 转换为光纤传输, 然后再转换为100BASE-T1。
• No packages are stored or modified in the device. The process is a pure physical layer conversion.
  设备不存储或修改任何报文。 该过程是纯物理层转换。

1000BASE-T1 MediaConverter EMC

1000BASE-T1

• It is delivered in a Set.
  它以套件形式提供。
• Provides one point-to-point connection with SFP module and optical fibre.
  通过SFP模块和光纤，实现1000Base-T1至1000Base-Tx的点对点转换。
• Capable of reading the internal PHY status with a USB adapter board.
  能够通过一个USB适配板读取PHY内部状态。
• No packages are stored or modified within the device. The process is a direct physical layer conversion.
  设备中不存储或修改任何包。 该过程是直接的物理层转换。


Universal EMC device

Universal EMC device

• With only one Fiber optic Ethernet connection, you will have access to all the automotive buses, like LIN, CAN/CAN-FD, 100BASE-T1 and FlexRay etc.
  只需一个光纤以太网连接，您就可以访问所有汽车总线,例如LIN，CAN / CAN-FD，100BASE-T1和FlexRay。
• The device will automatically take care of the conversion between Gigabit Ethernet and the automotive standard buses, bidirectionally.
  设备自动处理千兆以太网和汽车标准总线之间的双向转换。
• Configuration via integreated web server.
  通过内置网页服务器进行配置。


Use Case

IOPT

Golden Device

100BASE-T1 Interoperability Tests includes following 3 aspects:100BASE-T1互操作性测试包含下面三方面内容

• Link-up Time 连接时间
• Signal Quality 信号质量
• Cable Diagnose 线束诊断
