笔试

壁仞科技的笔试题除了常规的IC设计或者验证的内容外,还包括浮点数的运算,DDR的带宽,PCIE的带宽等与公司业务高度相关的题目,难度比较大,其中的题目包括如下
1.以下四个概念的区分,同时判断以下哪一个DFX是在综合中实现的(以下均不应该在综合中实现)
DFT:Design for Testability
DFM:Design for Manufacturability
DFR:Design for Reliability
DFD:Design for Debug

2.下面哪个FP32数据格式是正确的(符号位,指数位,小数位)
A.1.8.23
B.1.5.26
C.2.8.22
D.2.5.25

正确的 FP32(单精度浮点数)数据格式是选项 C:2.8.22。
在 IEEE 754 浮点数标准中,单精度浮点数(FP32)由三个部分组成:符号位、指数位和小数位。

  1. 符号位:1 位,用于表示数的正负,0 表示正数,1 表示负数。
  2. 指数位:8 位,用于表示数的指数部分,以二进制补码形式表示。
  3. 小数位:23 位,用于表示数的小数部分,以二进制形式表示。

选项 C 中的数据格式是 2.8.22,其中 2 位表示符号位,8 位表示指数位,22 位表示小数位,符合 FP32 的格式要求。

3.对于PCIE gen5 serdes工作在32Gbps线速下,如设计controller数字逻辑频率为1G,请问对于每条lane,data path位宽设计为多少
A.16
B.20
C.32
D.40

PCIE的lane是双通道的,考虑 PCIe Gen5 SerDes 工作在 32 Gbps 线速下,设计 Controller 数字逻辑频率为 1 GHz,对于每条 lane,data path 的位宽应该为:
(32 Gbps / 2) / 1 GHz = 16

4.脚本语言:请写一段Python代码,打开一个文件,扫描每行,如果匹配到biren01,biren02…biren99,则以行号Key,将匹配到的birenxx保存下来

import re

def save_matching_lines(filename):
    target_strings = set()
    with open(filename, 'r') as file:
        for line_num, line in enumerate(file, start=1):
            matches = re.findall(r'biren\d{2}', line)
            if matches:
                target_strings.update(matches)

    with open('matched_strings.txt', 'w') as output_file:
        for line_num, target_string in enumerate(sorted(target_strings), start=1):
            output_file.write(f'Line {line_num}: {target_string}\n')

# 将 'your_file.txt' 替换为您要扫描的文件名
save_matching_lines('your_file.txt')

将代码中的 ‘your_file.txt’ 替换为您要扫描的文件名,然后运行代码。代码将扫描文件的每一行,查找匹配 “biren01” 到 “biren99” 的字符串,并将匹配到的字符串按行号和字母顺序保存在名为 “matched_strings.txt” 的输出文件中。

5.下面的语句分别覆盖了什么行为?
在这里插入图片描述

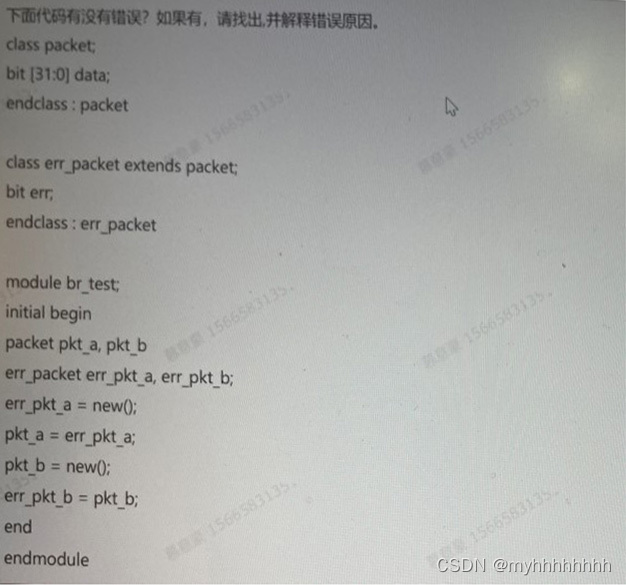

6.下面的代码有没有错误,如果有,请找出并解释错误原因
在这里插入图片描述

一面

主要是针对于AMBA总线和异步FIFO进行提问

二面

先进制程18-7-5nm对于前端后端的影响
