apriltag_ros 订阅节点，订阅位姿消息

关于apriltag_ros订阅内容网上参考资料较少，整理了一下过程中踩的坑，给大家排一下雷。
参考文章古月居 参考链接

1.环境

ubuntu 18.04
ROS  melodic

2.代码

#include "ros/ros.h"
#include "apriltag_ros/AprilTagDetectionArray.h"
#include "iostream"

using namespace std;

ros::Subscriber ar_sub_;

class Localizer
{
public:
  Localizer(ros::NodeHandle& nh)
  {
      ar_sub_ = nh.subscribe<apriltag_ros::AprilTagDetectionArray>("/tag_detections", 1, &Localizer::number_callback, this);
  }

  void number_callback(const apriltag_ros::AprilTagDetectionArray::ConstPtr& msg)
  {
      if(msg->detections.size()>0)
      {
             float getX = msg->detections[0].pose.pose.pose.position.x;
	    	 cout<<"Point position:"<<endl;
	    	 cout<<"cam_getX: "<<getX<<endl;    }
    	 else
  	{cout<<"未检测到tag"<<endl;}
  	 }
};

int main(int argc, char **argv)
{
    ros::init(argc, argv,"apriltag_detector_subscriber");
    ros::NodeHandle node_obj;
    Localizer localizer(node_obj);
    ROS_INFO("节点开始");
    ros::spin();
    return 0;
}

3.代码解析，CMake配置

头文件

#include "ros/ros.h"
#include "apriltag_ros/AprilTagDetectionArray.h" //apriltag_ros 头文件要包含
#include "iostream"

此时如果报找不到相关头文件
要去改CMakeLists.txt 文件
在find_package处加入相关的功能包即可
除此之外，其他配置如下所示

find_package(catkin REQUIRED COMPONENTS
  roscpp
  rospy
  std_msgs
  apriltag_ros//需加入的ros包
)
add_executable(apriltag_sub src/apriltag_sub.cpp)
add_dependencies(apriltag_sub  ${${PROJECT_NAME}_EXPORTED_TARGETS} ${catkin_EXPORTED_TARGETS})
target_link_libraries(apriltag_sub
  ${catkin_LIBRARIES}
)

4.小结

总结了一下订阅节点的笔记

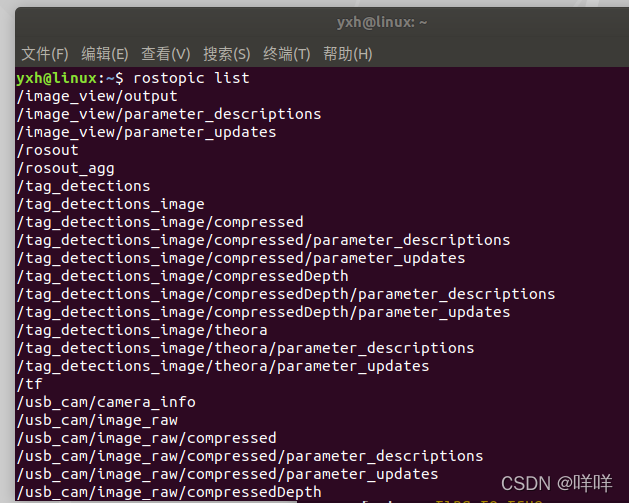

首先找到想到订阅的话题
通过

rostopic list

找到/tag_detections 话题
查看话题的消息类型

 rostopic type /tag_detections

发现是apriltag_ros/AprilTagDetectionArray类型
就可以写订阅节点了
