3D目标检测IoU框计算详解

最近在看自动驾驶的面试题，有一题问三维旋转框的IoU计算方式，在csdn博客上看到此代码，但是没有解读，遂记录如下。3D IoU框的计算有如下的步骤：

1. 计算高度的重叠部分，boxes_height先计算最高处与最低处。(z轴坐标±高度的一半)
2. overlaps_h(height)存储高度重叠结果：min_of_max-max_of_min
3. 计算水平方向的重叠部分，调用iou3d_nms_cuda.boxes_overlap_bev_gpu这个函数
4. 计算overlaps_3d=水平重叠*高度重叠（交集）
5. 无论是2D框还是3D框，计算公式都是 IoU=框的交集/框的并集，所以下一步计算框的并集
6. 框的并集=两个框的体积之和(vol_a,vol_b)-重叠部分(overlaps_3d)
7. 最后计算IoU_3d: iou3d = overlaps_3d / torch.clamp(vol_a + vol_b - overlaps_3d, min=1e-6)

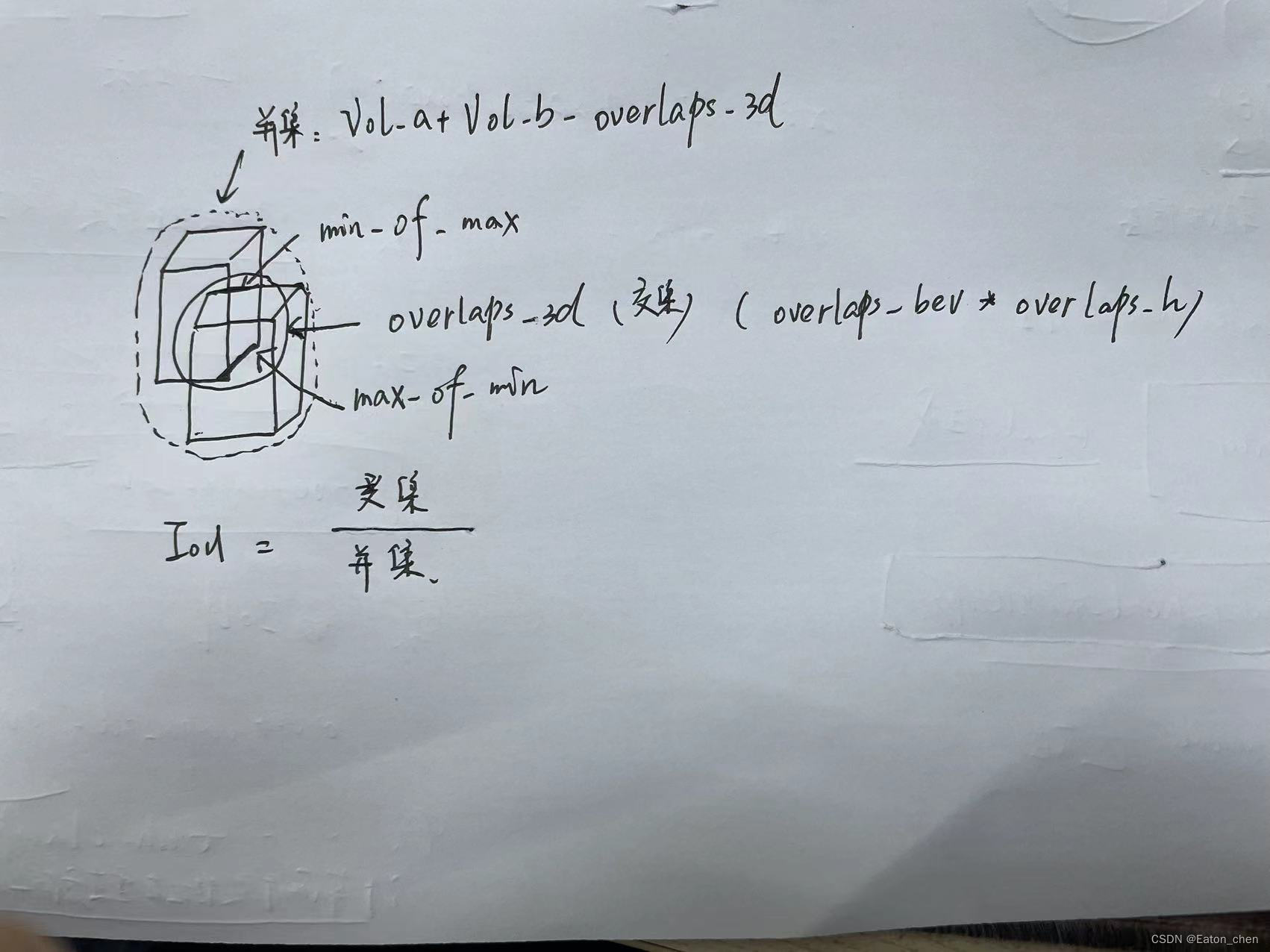

大致示意图如下，画的不好，博主画工不大行…

具体代码如下，请对照阅读。

# 3D IOU 计算
def boxes_iou3d_gpu(boxes_a, boxes_b):
    """
    Args:
        boxes_a: (N, 7) [x, y, z, dx, dy, dz, heading]
        boxes_b: (N, 7) [x, y, z, dx, dy, dz, heading]

    Returns:
        ans_iou: (N, M)
    """
    assert boxes_a.shape[1] == boxes_b.shape[1] == 7

    # height overlap
    # 最高：z轴坐标+高度的一半
    boxes_a_height_max = (boxes_a[:, 2] + boxes_a[:, 5] / 2).view(-1, 1)
    # 最低：z轴坐标-高度的一半
    boxes_a_height_min = (boxes_a[:, 2] - boxes_a[:, 5] / 2).view(-1, 1)
    boxes_b_height_max = (boxes_b[:, 2] + boxes_b[:, 5] / 2).view(1, -1)
    boxes_b_height_min = (boxes_b[:, 2] - boxes_b[:, 5] / 2).view(1, -1)

    # bev overlap
    overlaps_bev = torch.cuda.FloatTensor(torch.Size((boxes_a.shape[0], boxes_b.shape[0]))).zero_()  # (N, M)
    # 调用函数计算bev的overlap
		iou3d_nms_cuda.boxes_overlap_bev_gpu(boxes_a.contiguous(), boxes_b.contiguous(), overlaps_bev)
		# 选择两个框中的最低处的更高的位置
    max_of_min = torch.max(boxes_a_height_min, boxes_b_height_min)
    # 选择两个框中的最高处的更低的位置
    min_of_max = torch.min(boxes_a_height_max, boxes_b_height_max)
		# 计算垂直方向上的高度重叠部分
    overlaps_h = torch.clamp(min_of_max - max_of_min, min=0)

    # 3d iou   水平*高度重叠部分
    overlaps_3d = overlaps_bev * overlaps_h

		# 计算两个框的体积
    vol_a = (boxes_a[:, 3] * boxes_a[:, 4] * boxes_a[:, 5]).view(-1, 1)
    vol_b = (boxes_b[:, 3] * boxes_b[:, 4] * boxes_b[:, 5]).view(1, -1)

	  # 交集除以并集  分母为两个框的体积减去重叠的部分
    iou3d = overlaps_3d / torch.clamp(vol_a + vol_b - overlaps_3d, min=1e-6)
