ORCAD-自定义属性隐藏与显示之属性过滤器

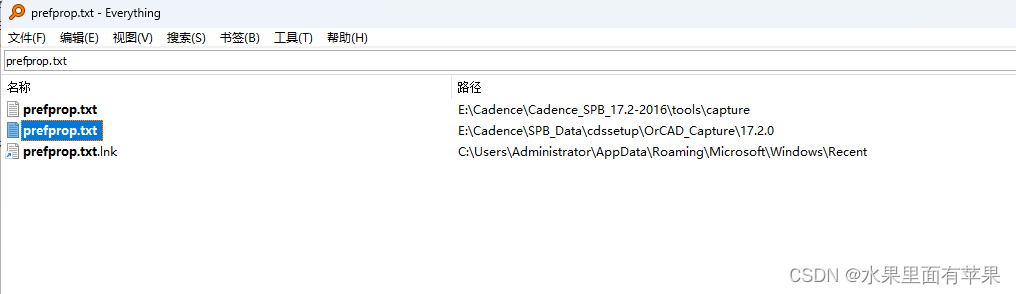

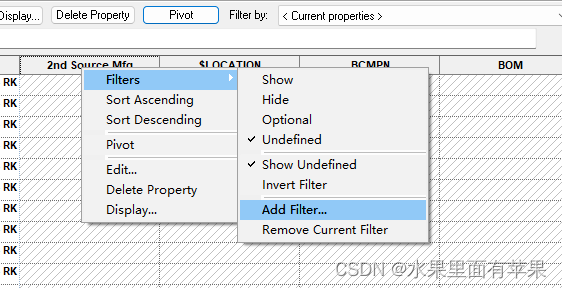

按照图示进行即可，显示自己的自定义属性，方便更改与显示，导出BOM也比较方便
在这里插入图片描述

(myfilter
    (Parts "" 1 "" 0
      (Value show)
      (Reference show)
      (Designator hide)
      ("PCB Footprint" show)
      (BOM_DEVICE show "" "" "" "" "" 227)
      (BOM_TYPE show)
      (BOM_footprint show)
      (BOM_VENDOR show "" "" "" "" "" 277)
      (NO_STUFF show)
      ("Power Pins Visible" hide)
      (Primitive hide)
      ("Source Library" hide)
      ("Implementation Type" hide)
      (Implementation hide)
      ("Implementation Path" hide)
      ("Part Reference" hide)
      (288 "" 221 365)
      (255 289 299)
      (304)
      (323 "" "" "" 261 305)
      (427 341 310))
    ("Schematic Nets" "" 1 "" 0
      (ID show)
      (Name show))
    (Pins "" 1 "" 0
      (Name show)
      (Number show)
      ("Net Name" show)
      (Type show)
      ("Is No Connect" show))
    ("Title Blocks" "" 1
      (Title show)
      ("Cage Code" show)
      (Document show)
      (OrgName show)
      (OrgAddr1 show)
      (OrgAddr2 show)
      (OrgAddr3 show)
      (OrgAddr4 show)
      ("Page Create Date" show)
      ("Page Create Time" show)
      ("Page Modify Date" show)
      ("Page Modify Time" show)
      ("Page Name" show)
      ("Page Size" show)
      ("Page Number" show)
      ("Page Count" show)
      ("Schematic Name" show)
      ("Schematic Modify Date" show)
      ("Schematic Modify Time" show)
      ("Schematic Create Date" show)
      ("Schematic Create Time" show)
      ("Schematic Path" show)
      ("Design File Name" show)
      ("Design Create Date" show)
      ("Design Create Time" show)
      ("Design Modify Date" show)
      ("Design Modify Time" show)
      ("Design Name" show)
      (RevCode show)
      ("Source Library" show)
      ("Source Symbol" show)
      ("Path Name" show)
      ("Variant Name" show)
      (Document show))
    ("Displayed Properties" "" "" 0
      ("Property Name" show)
      (Value show))
    (Ports "" 1 "" 0
      (Name show)
      (Type show)
      ("Connected Net name" show)
      ("Source Library" show)
      ("Source Symbol" show))
    (Aliases "" 1 1
      (Name show))
    (Globals "" 1 1
      (Name show))
    ("Flat Nets" "" 1 "" 0
      (ID show)
      (Name show))))
