  • Lemmings1

    • 题目描述：The game Lemmings involves critters with fairly simple brains. So simple that we are going to model it using a finite state machine.

      In the Lemmings’ 2D world, Lemmings can be in one of two states: walking left or walking right. It will switch directions if it hits an obstacle. In particular, if a Lemming is bumped on the left, it will walk right. If it’s bumped on the right, it will walk left. If it’s bumped on both sides at the same time, it will still switch directions.

      Implement a Moore state machine with two states, two inputs, and one output that models this behaviour.

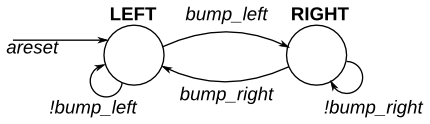

    • 题目分析：其实官网也给出了提示如下图，这样一来状态图已经有啦，只需要按步骤编写即可

    在这里插入图片描述

    • 解答1：

      /*我的解答*/
module top_module(
    input clk,
    input areset,    // Freshly brainwashed Lemmings walk left.
    input bump_left,
    input bump_right,
    output walk_left,
    output walk_right);

    reg     c_state     ;    //current state
    reg     n_state     ;    //next state

    parameter LEFT  = 1'b0  ,    //LEFT
              RIGHT = 1'b1  ;    //RIGHT

    always @(posedge clk or posedge areset) begin
        if (areset == 1'b1)
            c_state <= LEFT ;
        else
            c_state <= n_state;
    end

    always @(*) begin
        case(c_state)
           LEFT : begin       //向左走
                if(bump_left == 1'b1)
                    n_state = RIGHT;
                else if(bump_left == 1'b0)
                    n_state = LEFT;
                else
                    n_state = n_state;
            end
           RIGHT : begin     //向右走
                if(bump_right == 1'b1)
                    n_state = LEFT;
                else if (bump_right == 1'b0)
                    n_state = RIGHT;
                else
                    n_state = n_state;
            end
        default: n_state = LEFT;
        endcase
    end

    always @(posedge clk or posedge areset) begin
        if(areset == 1'b1) begin
            walk_left <= 1'b1;
            walk_right <= 1'b0;
        end
        else begin
            case(n_state)
               LEFT : begin
                    walk_left <= 1'b1;
                    walk_right <= 1'b0;
                end
               RIGHT : begin
                    walk_left <= 1'b0;
                    walk_right <= 1'b1;
                end
            default: begin
					walk_left <= 1'b1;
                    walk_right <= 1'b0;
            	end
            endcase
        end

    end

endmodule
/*官网解答*/
module top_module (
	input clk,
	input areset,
	input bump_left,
	input bump_right,
	output walk_left,
	output walk_right
);

	// Give state names and assignments. I'm lazy, so I like to use decimal numbers.
	// It doesn't really matter what assignment is used, as long as they're unique.
	parameter WL=0, WR=1;
	reg state;
	reg next;


    // Combinational always block for state transition logic. Given the current state and inputs,
    // what should be next state be?
    // Combinational always block: Use blocking assignments.
    always@(*) begin
		case (state)
			WL: next = bump_left  ? WR : WL;
			WR: next = bump_right ? WL : WR;
		endcase
    end


    // Combinational always block for state transition logic. Given the current state and inputs,
    // what should be next state be?
    // Combinational always block: Use blocking assignments.
    always @(posedge clk, posedge areset) begin
		if (areset) state <= WL;
        else state <= next;
	end


	// Combinational output logic. In this problem, an assign statement are the simplest.
	// In more complex circuits, a combinational always block may be more suitable.
	assign walk_left = (state==WL);
	assign walk_right = (state==WR);


endmodule
      • 解答2：
      module top_module(
input clk,
input areset,    // Freshly brainwashed Lemmings walk left.
input bump_left,
input bump_right,
output walk_left,
output walk_right); //

//parameter list
parameter LEFT = 2'b01;
parameter RIGHT = 2'b10;
//reg list
reg [1:0] c_state;
reg [1:0] n_state;

// State transition logic
always @(*) begin
  case(c_state)
      LEFT : n_state = bump_left ? RIGHT : LEFT;
      RIGHT : n_state = bump_right ? LEFT : RIGHT;
      default : n_state = LEFT;
  endcase
end

// State flip-flops with asynchronous reset
always @(posedge clk or posedge areset) begin
  if (areset == 1'b1)
      c_state <= LEFT;
  else
      c_state <= n_state;
end

// Output logic
assign walk_left = (c_state == RIGHT);
assign walk_right = (c_state == LEFT);

endmodule

  • Lemmings2

    • 题目描述：In addition to walking left and right, Lemmings will fall (and presumably go “aaah!”) if the ground disappears underneath them.

      In addition to walking left and right and changing direction when bumped, when ground=0, the Lemming will fall and say “aaah!”. When the ground reappears (ground=1), the Lemming will resume walking in the same direction as before the fall. Being bumped while falling does not affect the walking direction, and being bumped in the same cycle as ground disappears (but not yet falling), or when the ground reappears while still falling, also does not affect the walking direction.

      Build a finite state machine that models this behaviour.

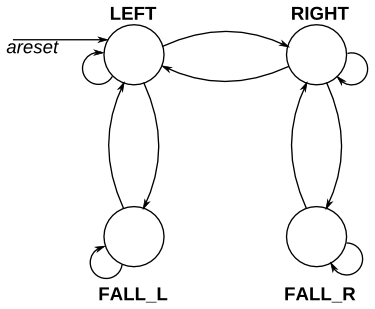

    • 题目分析：这题是在前一题基础上的扩展，添加了一个ground信号，当ground=0时表明地面塌陷，aaah此时置1，当ground=1时表明地面恢复原状，此时行进的方向应当是地面塌陷前的行进方向，即如果塌陷前是向左走的，那恢复后也应该是向左走。另外官网也给出了响应的提示，如下状态图


      作者将其分成了4个状态分别叙述它所代表的情况，下图是我将其补全后的状态转移图

      在这里插入图片描述

      LEFT与RIGHT状态和上一题类似，关键是FALL_L与FALL_R首先我们得清楚这两个状态所表示的情况，FALL_L表示说塌陷前是向左行进的，而FALL_R则表示说塌陷前是向右行进的，弄清楚这个后状态图就比较好画了，ground=0时LEFT与RIGHT分别跳转至相应状态即可。

      另外需要弄清楚的是，每个状态具体是做什么事情，比如说FALL_L当处在这个状态时除了aaah=1外，walk_left要将其置为0，我开始没有注意这一点，所以一直无法通过验证FALL_R也是类似。除此之外，在状态转移那一块，特别需要注意优先级的问题，ground的优先级是最高的，用if-else书写代码时尤其需要注意这点。

    • 解答1：

      /*我的解答*/
module top_module(
    input clk,
    input areset,    // Freshly brainwashed Lemmings walk left.
    input bump_left,
    input bump_right,
    input ground,
    output reg  walk_left,
    output reg  walk_right,
    output reg  aaah
);

    reg   [1:0]  c_state     ;
    reg   [1:0]  n_state     ;

    parameter LEFT   = 2'b00  ,
              RIGHT  = 2'b01  ,
              FALL_L = 2'b10  ,
              FALL_R = 2'b11  ;

    always @(posedge clk or posedge areset) begin
        if (areset == 1'b1)
            c_state <= LEFT ;
        else
            c_state <= n_state;
    end

    always @(*) begin
        case(c_state)
            LEFT : begin       //向左走
                if(ground == 1'b0)     //ground的优先级最高
                    n_state = FALL_L;
                else if(bump_left == 1'b1)
                    n_state = RIGHT;
                else
                    n_state = LEFT;
            end
            RIGHT : begin     //向右走
                if(ground == 1'b0)    //ground的优先级最高
                    n_state = FALL_R;
                else if(bump_right == 1'b1)
                    n_state = LEFT;
                else
                    n_state = RIGHT;
            end
            FALL_R : begin
                if(ground == 1'b1)
                    n_state = RIGHT;
                else
                    n_state = FALL_R;
            end
            FALL_L : begin
                if(ground == 1'b1)
                    n_state = LEFT;
                else
                    n_state = FALL_L;
            end
        default: n_state = LEFT;
        endcase
    end

    always @(posedge clk or posedge areset) begin
        if(areset == 1'b1) begin
            walk_left  <= 1'b1;
            walk_right <= 1'b0;
            aaah       <= 1'b0;
        end
        else begin
            case(n_state)
                LEFT : begin
                    walk_left  <= 1'b1;
                    walk_right <= 1'b0;
                    aaah       <= 1'b0;
                end
                RIGHT : begin
                    walk_left  <= 1'b0;
                    walk_right <= 1'b1;
                    aaah       <= 1'b0;
                end
                FALL_R : begin
                    aaah <= 1'b1;
                    walk_right <= 1'b0;
                end
                FALL_L : begin
                    aaah <= 1'b1;
                    walk_left <= 1'b0;
                end
            default: begin
					walk_left  <= 1'b1;
                    walk_right <= 1'b0;
                    aaah       <= 1'b0;
            	end
            endcase
        end
    end

endmodule
/*官网解答*/
无

    • 解答2：

    	module top_module(
 input clk,
 input areset,    // Freshly brainwashed Lemmings walk left.
 input bump_left,
 input bump_right,
 input ground,
 output walk_left,
 output walk_right,
 output aaah );


 //--------parameter list--------------//
 parameter LEFT   = 4'b0001;
 parameter RIGHT  = 4'b0010;
 parameter FALL_L = 4'b0100;
 parameter FALL_R = 4'b1000;

 //----------reg list-----------------//
 reg  [3:0] c_state;
 reg  [3:0] n_state;

 //State transition logic
 always @(*) begin
     case(c_state)
         LEFT    :
             if (bump_left == 1'b1 && ground == 1'b1)
                 n_state  =  RIGHT;
             else if(ground == 1'b0)
                 n_state = FALL_L;
             else
                 n_state = LEFT;
         RIGHT   :
             if (bump_right == 1'b1 && ground == 1'b1)
                 n_state = LEFT;
             else if(ground == 1'b0)
                 n_state = FALL_R;
             else
                 n_state = RIGHT;
         FALL_L  :   n_state  = ground ? LEFT : FALL_L;
         FALL_R  :   n_state  = ground ? RIGHT : FALL_R;
     endcase
 end

 //State Flip-Flops with asynchronous reset
 always @(posedge clk or posedge areset) begin
     if (areset == 1'b1)
         c_state <= LEFT;
     else
         c_state <= n_state;
 end

 //Moore Finite State Machine Output logic
 assign walk_left = (c_state == LEFT);
 assign walk_right = (c_state == RIGHT);
 assign aaah = (c_state == FALL_L | c_state == FALL_R);


 endmodule

  • Lemmings3

    • 题目描述：In addition to walking and falling, Lemmings can sometimes be told to do useful things, like dig (it starts digging when dig=1). A Lemming can dig if it is currently walking on ground (ground=1 and not falling), and will continue digging until it reaches the other side (ground=0). At that point, since there is no ground, it will fall (aaah!), then continue walking in its original direction once it hits ground again. As with falling, being bumped while digging has no effect, and being told to dig when falling or when there is no ground is ignored.

      (In other words, a walking Lemming can fall, dig, or switch directions. If more than one of these conditions are satisfied, fall has higher precedence than dig, which has higher precedence than switching directions.)

      Extend your finite state machine to model this behaviour.

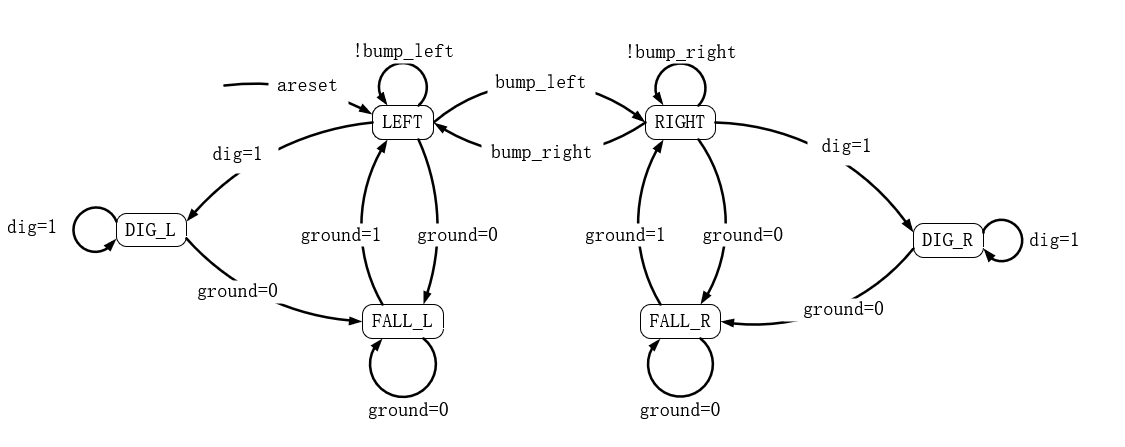

    • 题目分析：如果上一题弄清楚了，这一题也是依葫芦画瓢，仅是多了一个dig信号，状态转换图如下
      在这里插入图片描述

      这里仍需要清楚，每个状态所代表的事件是什么，谁的优先级高

    • 解答：

      /*我的解答*/
module top_module(
    input clk,
    input areset,    // Freshly brainwashed Lemmings walk left.
    input bump_left,
    input bump_right,
    input ground,
    input dig,
    output reg  walk_left,
    output reg  walk_right,
    output reg  aaah,
    output reg  digging
);

    reg   [5:0]  c_state     ;
    reg   [5:0]  n_state     ;

    parameter LEFT   = 6'b000001  ,    //LEFT
              RIGHT  = 6'b000010  ,    //RIGHT
              FALL_L = 6'b000100  ,    //FALL_L
              FALL_R = 6'b001000  ,    //FALL_R
              DIG_L  = 6'b010000  ,    //DIG_L
              DIG_R  = 6'b100000  ;

    always @(posedge clk or posedge areset) begin
        if (areset == 1'b1)
            c_state <= LEFT ;
        else
            c_state <= n_state;
    end

    always @(*) begin
        case(c_state)
            LEFT : begin       //向左走
                if(ground == 1'b0)
                    n_state = FALL_L;
                else if(dig == 1'b1)
                    n_state = DIG_L;
                else if(bump_left == 1'b1)
                    n_state = RIGHT;
                else
                    n_state = LEFT;
            end
            RIGHT : begin     //向右走
                if(ground == 1'b0)
                    n_state = FALL_R;
                else if(dig == 1'b1)
                    n_state = DIG_R;
                else if(bump_right == 1'b1)
                    n_state = LEFT;
                else
                    n_state = RIGHT;
            end
            FALL_R : begin
                if(ground == 1'b1)
                    n_state = RIGHT;
                else
                    n_state = FALL_R;
            end
            FALL_L : begin
                if(ground == 1'b1)
                    n_state = LEFT;
                else
                    n_state = FALL_L;
            end
            DIG_R : begin
                if(ground == 1'b0)
                    n_state = FALL_R;
                else
                    n_state = DIG_R;
            end
            DIG_L : begin
                if(ground == 1'b0)
                    n_state = FALL_L;
                else
                    n_state = DIG_L;
            end
        default: n_state = LEFT;
        endcase
    end

    always @(posedge clk or posedge areset) begin
        if(areset == 1'b1) begin
            walk_left  <= 1'b1;
            walk_right <= 1'b0;
            aaah       <= 1'b0;
            digging    <= 1'b0;
        end
        else begin
            case(n_state)
                LEFT : begin
                    walk_left  <= 1'b1;
                    walk_right <= 1'b0;
                    aaah       <= 1'b0;
                    digging    <= 1'b0;
                end
                RIGHT : begin
                    walk_left  <= 1'b0;
                    walk_right <= 1'b1;
                    aaah       <= 1'b0;
                    digging    <= 1'b0;
                end
                FALL_R : begin
                    aaah       <= 1'b1;
                    walk_right <= 1'b0;
                    digging    <= 1'b0;
                end
                FALL_L : begin
                    aaah      <= 1'b1;
                    walk_left <= 1'b0;
                    digging   <= 1'b0;
                end
                DIG_R : begin
                    digging    <= 1'b1;
                    aaah       <= 1'b0;
                    walk_right <= 1'b0;
                end
                DIG_L : begin
                    digging    <= 1'b1;
                    aaah       <= 1'b0;
                    walk_left  <= 1'b0;
                end
            default: begin
					walk_left  <= 1'b1;
                    walk_right <= 1'b0;
                    aaah       <= 1'b0;
                    digging    <= 1'b0;
            	end
            endcase
        end
    end

endmodule
/*官网解答*/
无

    • 解答2

module top_module(
   input clk,
   input areset,    // Freshly brainwashed Lemmings walk left.
   input bump_left,
   input bump_right,
   input ground,
   input dig,
   output walk_left,
   output walk_right,
   output aaah,
   output digging );


   //-------------parameter list-----------------//
   localparam  LEFT   = 6'b000_001;
   localparam  RIGHT  = 6'b000_010;
   localparam  FALL_L = 6'b000_100;
   localparam  FALL_R = 6'b001_000;
   localparam  DIG_L  = 6'b010_000;
   localparam  DIG_R  = 6'b100_000;

   //--------------reg_list----------------------//
   reg [5:0] c_state;
   reg [5:0] n_state;

   //State transition logic
   always @(*) begin
       case(c_state)
           LEFT :
               if (ground == 1'b0)
                   n_state = FALL_L;
               else if(dig == 1'b1)
                   n_state = DIG_L;
               else if(bump_left == 1'b1)
                   n_state = RIGHT;
               else
                   n_state = LEFT;
           RIGHT :
               if (ground == 1'b0)
                   n_state = FALL_R;
               else if(dig == 1'b1)
                   n_state = DIG_R;
               else if(bump_right == 1'b1)
                   n_state = LEFT;
               else
                   n_state = RIGHT;

           DIG_L : n_state = (~ground) ? FALL_L : DIG_L;
           DIG_R : n_state = (~ground) ? FALL_R : DIG_R;
           FALL_L : n_state = (~ground) ? FALL_L : LEFT;
           FALL_R : n_state = (~ground) ? FALL_R : RIGHT;
           default : n_state = LEFT;
       endcase
   end

   //State Flip-Flops with asynchronous reset
   always @(posedge clk or posedge areset) begin
       if (areset == 1'b1)
           c_state <= LEFT;
       else
           c_state <= n_state;
   end

   //Moore Finite State Machine Output logic
   assign walk_left = (c_state == LEFT);
   assign walk_right = (c_state == RIGHT);
   assign aaah = (c_state == FALL_L | c_state == FALL_R);
   assign digging = (c_state == DIG_L | c_state == DIG_R);

endmodule

  • Lemmings4

    • 题目描述：

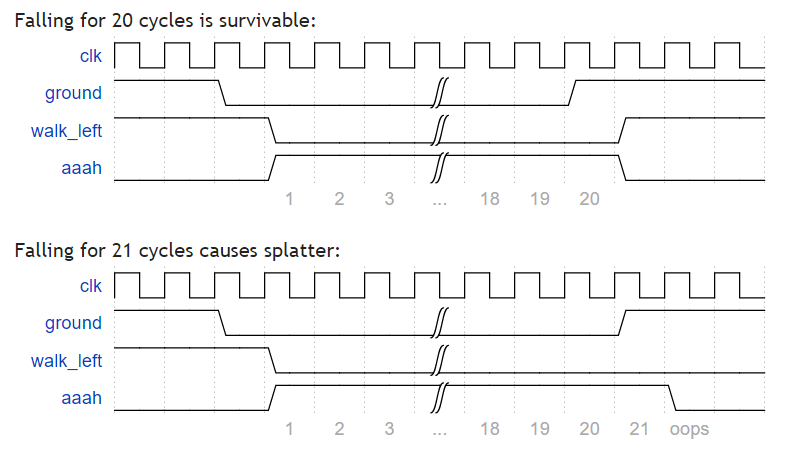

      Although Lemmings can walk, fall, and dig, Lemmings aren’t invulnerable. If a Lemming falls for too long then hits the ground, it can splatter. In particular, if a Lemming falls for more than 20 clock cycles then hits the ground, it will splatter and cease walking, falling, or digging (all 4 outputs become 0), forever (Or until the FSM gets reset). There is no upper limit on how far a Lemming can fall before hitting the ground. Lemmings only splatter when hitting the ground; they do not splatter in mid-air.

      Extend your finite state machine to model this behaviour.

      在这里插入图片描述

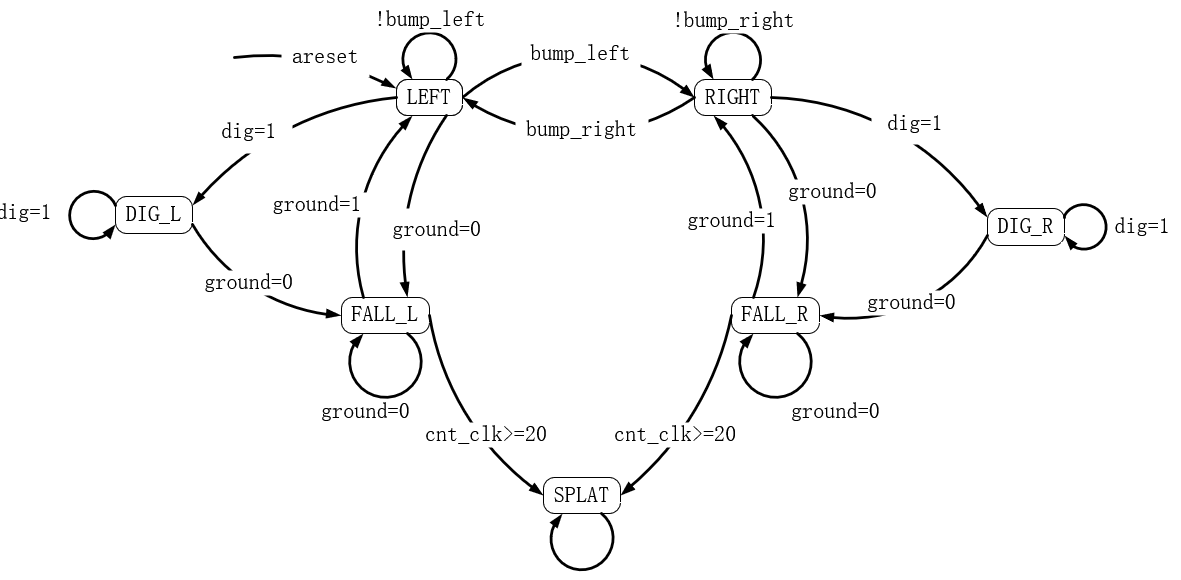

    • 题目分析：Lemming系列的最后一题。当下落时间超过20个周期，并且撞击地面旅鼠死亡。状态转换图如下所示，此题的要点是计数器的位宽，因为题目也说可以无限下落，为了防止位宽过小，在下落的过程中计数器溢出，所以应该把计数器设的大一点，其他部分和前三题基本一致，所以只是在上面几题的基础上做出的修改

      在这里插入图片描述

    • 解答：

      /*我的解答*/
module top_module(
    input clk,
    input areset,    // Freshly brainwashed Lemmings walk left.
    input bump_left,
    input bump_right,
    input ground,
    input dig,
    output reg  walk_left,
    output reg  walk_right,
    output reg  aaah,
    output reg  digging
);

    reg   [6:0]  c_state     ;
    reg   [6:0]  n_state     ;
    reg   [7:0]  cnt_clk     ;

	//采用独热编码
    parameter LEFT   = 7'b0000001  ,
              RIGHT  = 7'b0000010  ,
              FALL_L = 7'b0000100  ,
              FALL_R = 7'b0001000  ,
              DIG_L  = 7'b0010000  ,
              DIG_R  = 7'b0100000  ,
              SPLAT  = 7'b1000000  ;

	//状态转移
    always @(posedge clk or posedge areset) begin
        if (areset == 1'b1)
            c_state <= LEFT ;
        else
            c_state <= n_state;
    end

 	//转移条件
    always @(*) begin
        case(c_state)
            LEFT : begin       //向左走
                if(ground == 1'b0)
                    n_state = FALL_L;
                else if(dig == 1'b1)
                    n_state = DIG_L;
                else if(bump_left == 1'b1)
                    n_state = RIGHT;
                else
                    n_state = LEFT;
            end
            RIGHT : begin     //向右走
                if(ground == 1'b0)
                    n_state = FALL_R;
                else if(dig == 1'b1)
                    n_state = DIG_R;
                else if(bump_right == 1'b1)
                    n_state = LEFT;
                else
                    n_state = RIGHT;
            end
            FALL_R : begin
                if(ground == 1'b1) begin
                    if(cnt_clk >= 8'd21)
                        n_state = SPLAT;
                    else
                        n_state = RIGHT;
                end
                else
                    n_state = FALL_R;
            end
            FALL_L : begin
                if(ground == 1'b1) begin
                    if(cnt_clk >= 8'd21)
                        n_state = SPLAT;
                    else
                        n_state = LEFT;
                end
                else
                    n_state = FALL_L;
            end
            DIG_R : begin
                if(ground == 1'b0)
                    n_state = FALL_R;
                else
                    n_state = DIG_R;
            end
            DIG_L : begin
                if(ground == 1'b0)
                    n_state = FALL_L;
                else
                    n_state = DIG_L;
            end
            SPLAT : begin
                n_state = SPLAT;
            end
        default: n_state = LEFT;
        endcase
    end

	//状态输出
    always @(posedge clk or posedge areset) begin
        if(areset == 1'b1) begin
            walk_left  <= 1'b1;
            walk_right <= 1'b0;
            aaah       <= 1'b0;
            digging    <= 1'b0;
            cnt_clk    <= 8'd0;
        end
        else begin
            case(n_state)
                LEFT : begin
                    walk_left  <= 1'b1;
                    walk_right <= 1'b0;
                    aaah       <= 1'b0;
                    digging    <= 1'b0;
                    cnt_clk    <= 8'd0;
                end
                RIGHT : begin
                    walk_left  <= 1'b0;
                    walk_right <= 1'b1;
                    aaah       <= 1'b0;
                    digging    <= 1'b0;
                    cnt_clk    <= 8'd0;
                end
                FALL_R : begin
                    aaah       <= 1'b1;
                    walk_right <= 1'b0;
                    digging    <= 1'b0;
                    cnt_clk    <= cnt_clk + 1'b1;
                end
                FALL_L : begin
                    aaah      <= 1'b1;
                    walk_left <= 1'b0;
                    digging   <= 1'b0;
                    cnt_clk   <= cnt_clk + 1'b1;
                end
                DIG_R : begin
                    digging    <= 1'b1;
                    aaah       <= 1'b0;
                    walk_right <= 1'b0;
                    cnt_clk    <= 8'd0;
                end
                DIG_L : begin
                    digging    <= 1'b1;
                    aaah       <= 1'b0;
                    walk_left  <= 1'b0;
                    cnt_clk    <= 8'd0;
                end
                SPLAT : begin
                    walk_left  <= 1'b0;
                    walk_right <= 1'b0;
                    aaah       <= 1'b0;
                    digging    <= 1'b0;
                end
            default: begin
					walk_left  <= 1'b1;
                    walk_right <= 1'b0;
                    aaah       <= 1'b0;
                    digging    <= 1'b0;
                    cnt_clk    <= 8'd0;
            	end
            endcase
        end
    end

endmodule
/*官网解答*/
无
Troke
关注
  • 3
    点赞
  • 踩
  • 0
    收藏
    觉得还不错? 一键收藏
  • 1
    评论
专栏目录
Verilog及FPGA学习经典程序（一） fpga开发.pdf
04-22
Verilog及FPGA学习经典程序（一） fpga开发.pdf
HDLBits学习笔记——状态机（中）
Chika__的博客
05-25 392
FSM,Lemmings
FPGA学习： Verilog刷题记录(16)
Troke的博客
09-06 1822
FPGA学习： Verilog刷题记录（14-2） 刷题网站 ： HDLBits 第三章 ： Circuits 第二节 ：Sequential Logic 第一节：Finite State Machines（3） PS/2 packet parser 题目描述： The PS/2 mouse protocol sends messages that are three bytes long. However, within a continuous byte stream, it’s not obv
FPGA基础模块练习（基于牛客刷题）2
qq_42425212的博客
05-20 66
对于题目分析，根据真值表，观察当AB作为选择时，如果AB均为1，输出为1，如果A为1，输出看~C，同理，按照这个思路进行判断。因此，EO信号可以作为下一级EI信号，当这一级均为0时，再计算下一级的译码器。16.使用83优先编码器实现164线编码器。看了题解，原来是需要用门电路去实现。至此，基础部分组合逻辑刷完，再接再厉。通过真值表寻找来计算逻辑。19. 使用38译码器实现逻辑函数。按照真值表去写，好像没啥特殊的。20.数据选择器实现逻辑电路。（此图是反的，不过不影响）18. 实现38译码器。
FPGA学习——HDLBits网站刷题笔记整理（6）
qq_45087676的博客
07-27 816
组合逻辑：基本逻辑门 Wire wire线型的基本描述已在笔记整理（1）中给出了。 题目：实现输入与输出的连接。 答案： module top_module ( input in, output out); assign out = in; endmodule GND（接地） 题目：实现将输出接地。 答案： module top_module ( input in, output out); assign out = in; endmodule NO
FPGA入门：Verilog/VHDL语法学习的经验之谈
08-07
FPGA/CPLD器件的设计输入有很多种方式，如绘制原理图、编写代码或是调用IP核。早期的工程师对原理图的设计方式情有独钟，这种输入方式应付简单的逻辑电路还凑合，应该算得上简单实用，但随着逻辑规模的不断攀升，...
FPGA面试题 Verilog HDL 学习资料
07-04
FPGA学习资源，Verilog HDL 面试编程题
FPGA课程：有关FPGA Verilog代码的课程
02-18
FPGA课程：有关FPGA Verilog代码的课程
vtr-verilog-to-routing:Verilog 到路由——用于 FPGA 研究的开源 CAD 流程
07-24
VTR 设计流程将数字电路的 Verilog 描述和目标 FPGA 架构的描述作为输入。 然后执行： 精制与合成 (ODIN II) 逻辑优化与技术映射 (ABC) 封装、布局、布线和时序分析 (VPR) 生成 FPGA 速度和面积结果。 VTR 包括...
HDLBits问题--Lemmings
Sugirial的博客
10-07 270
今日份刷题 Lemmings The game翻译：“旅鼠”游戏中的动物大脑相当简单。非常简单，我们将使用有限状态机对其建模。在旅鼠的2D世界中，旅鼠可以处于两种状态之一：向左行走或向右行走。如果碰到障碍物，它会改变方向。特别是，如果旅鼠撞到左边，它就会向右走。如果它撞到右边，它就会向左走。如果它在两侧同时碰撞，它仍会切换方向。实现一个具有两个状态、两个输入和一个输出的Moore状态机来模拟这种行为。第一个基本上就是传统最简单的FSM，唯一的逻辑变换在于。
卧槽，这才是最强Verilog刷题网站！
OpenFPGA的博客
08-06 5869
大家好，最近经常有粉丝问零基础/基础薄弱，要怎么开始学习Verilog，今天来给大家分享一些Verilog的学习方法，先给大家推荐一个粉丝反馈用起来不错的免费Verilog学习&练习网站：https://www.nowcoder.com/exam/oj?tab=Verilog%E7%AF%87&topicId=302&fromPut=pc_zh_v...
HDLBits刷题之：Lemmings1-3
qq_43156536的博客
01-17 631
Lemmings1： The game Lemmings involves critters with fairly simple brains. So simple that we are going to model it using a finite state machine. In the Lemmings’ 2D world, Lemmings can be in one of two states: walking left or walking right. It will switch d
笔试 | FPGA和数字IC刷题——Verilog语法类笔试题合集（1）
qq_3053749041的博客
04-11 1723
汇总了华为海思、乐鑫科技等多家的笔试题中有关Verilog语法部分的题目，涉及位拼接、阻塞赋值与非阻塞赋值、Latch锁存器、量化、运算位扩展、可综合与不可综合、三目运算符（?:）等。 目录 1.位拼接 2.Latch锁存器 3.存储器声明 4.==和=== 5.?:条件运算符（三目运算符） 6.乘加运算位宽扩展 7.变量名称定义 8.数据定义与量化 9.阻塞赋值与非阻塞赋值 10.地址编码问题 11.Verilog关键字 12.Verilog可综合与不可综...
HDLBits练习——Lemmings1
tanxinxin512的博客
10-18 162
HDLBits练习
HDLBits练习——Lemmings2
tanxinxin512的博客
10-18 244
HDLBits练习
32个关于FPGA的学习网站
热门推荐
孤独的单刀
02-13 3万+
帮你整理了32个FPGA学习和资源网站，真的不来看看吗？
FPGA/数字IC实用笔试面试刷题汇总
DengFengLai123的博客
04-16 1963
（1）HDLBits：Verilog基础题比较多，题量大，波形对比比较好用，全部是Verilog编程，适合初学者锻炼代码编程能力（题目全是英文版的）； https://hdlbits.01xz.net/wiki/Main_Page （2）牛客刷题：Verilog刷题，加上FPGA的一些选择题，Verilog代码难度比HDLBits大一点【文末阅读原文转到】，适合初学者刷基础版和选择题，进阶者刷中难题，有对应解析和讨论； https://www.nowcoder.com/exam/oj?ta
「优质Verilog刷题网站推荐」HDLBits
最新发布
KS的博客
01-06 1164
它的题单从Wire变量这种很基础的语法开始 并且在给你题目的时候 还会给你详细的介绍和描述 总的来说 不论是新手还是老手都非常值得使用这个刷题网站 但是他也不是十全十美的 首先就是它不能提前看到官方题解 只有通过了题目才能看到官方题解 其次是它的题目描述和介绍都是全英文的 但其实所用到的英文词汇都是非常基础的 对通过了六级的各位相信不是难事。后续我会新开一个专栏用来发布HDLBits题库的答案 有需要的朋友可以关注一下。接下来给各位推荐的是最近新发现 并已经开始上手做题的网站——HDLBits。
FPGA学习网站、开源网站和论坛网站汇总
jk_101的博客
04-08 1181
HDLBits有一系列的 Verilog 基础知识，可以在线仿真的学习网站，题目很多，内容丰富，包括了 Verilog 的基础语法、时序电路和组合电路、基础电路和测试激励等等。牛客网是一个综合类刷题网站，包含了Verilog基础题、进阶题和面试题，题目挺丰富，可以在线仿真和对比结果。现在很多做开发板的公司都开源了部分开发板的教程和源代码，不管有没有买开发板，大家可以下载下来，学习和参考都行。米联客做开发板的，专业开发论坛，开源了学习资料和代码，可以学习和参考。数字IC论坛，里面有FPGA开发类板块。
牛客Verilog刷题
08-05
回答: 牛客网是一个面向程序员的在线编程练习平台，提供了丰富的编程题目供用户刷题。在牛客网上刷题也包括Verilog语言的题目，Verilog是一种硬件描述语言，用于描述数字电路和系统级集成电路。在Verilog刷题中，常见的内容包括时序逻辑实现、组合逻辑实现以及状态机设计等。常见的Verilog语言知识点包括使用always block实现时序逻辑、使用task和function进行模块化设计、使用循环语句进行计算和赋值操作等。其中，时序逻辑可以使用always block实现，而组合逻辑和循环语句可以用于可综合电路设计。在Verilog刷题中，可以遇到各种题目，比如T触发器的设计和实现，奇偶校验的Verilog代码等。

“相关推荐”对你有帮助么？

  • 非常没帮助
  • 没帮助
  • 一般
  • 有帮助
  • 非常有帮助
提交
评论 1
添加红包

请填写红包祝福语或标题

个

红包个数最小为10个

元

红包金额最低5元

当前余额3.43元 前往充值 >
需支付：10.00元
成就一亿技术人!
领取后你会自动成为博主和红包主的粉丝 规则
hope_wisdom
发出的红包
实付元
使用余额支付
点击重新获取
扫码支付
钱包余额 0

抵扣说明：

1.余额是钱包充值的虚拟货币，按照1:1的比例进行支付金额的抵扣。
2.余额无法直接购买下载，可以购买VIP、付费专栏及课程。

余额充值
