💥1 概述

一、背景与意义：随着无人机技术的迅速发展，其在各个领域的应用不断拓展，如航拍、物流配送、农业植保、环境监测等。然而，在复杂的飞行环境中，无人机面临着各种障碍物，如建筑物、树木、电线杆等，这使得自主避障成为无人机安全飞行的关键需求。无人机自主避障系统的开发旨在提高无人机的飞行安全性和可靠性，扩大其应用范围。

二、工作原理： 1. 环境感知：传感器不断扫描无人机周围的环境，获取障碍物的信息。 2. 数据处理：对传感器数据进行处理和分析，识别障碍物并确定其位置和运动状态。 3. 避障决策：根据障碍物信息和当前飞行状态，选择合适的避障策略。 4. 飞行控制：将避障决策转化为飞行控制指令，调整无人机的飞行姿态和轨迹，实现自主避障。

三、应用领域1. 航拍与影视制作：确保无人机在拍摄过程中的安全，获取更稳定、高质量的画面。 2. 物流配送：使无人机能够在城市中安全地进行货物配送，提高配送效率。 3. 农业植保：避免无人机与农作物、电线杆等障碍物碰撞，提高植保作业的准确性和安全性。 4. 环境监测：在复杂的自然环境中进行监测任务，如森林火灾监测、水质监测等。 5. 抢险救灾：快速进入危险区域进行侦察和救援，为救援行动提供支持。总之，无人机自主避障系统是无人机技术发展的重要方向之一，它将为无人机的安全飞行和广泛应用提供有力保障。

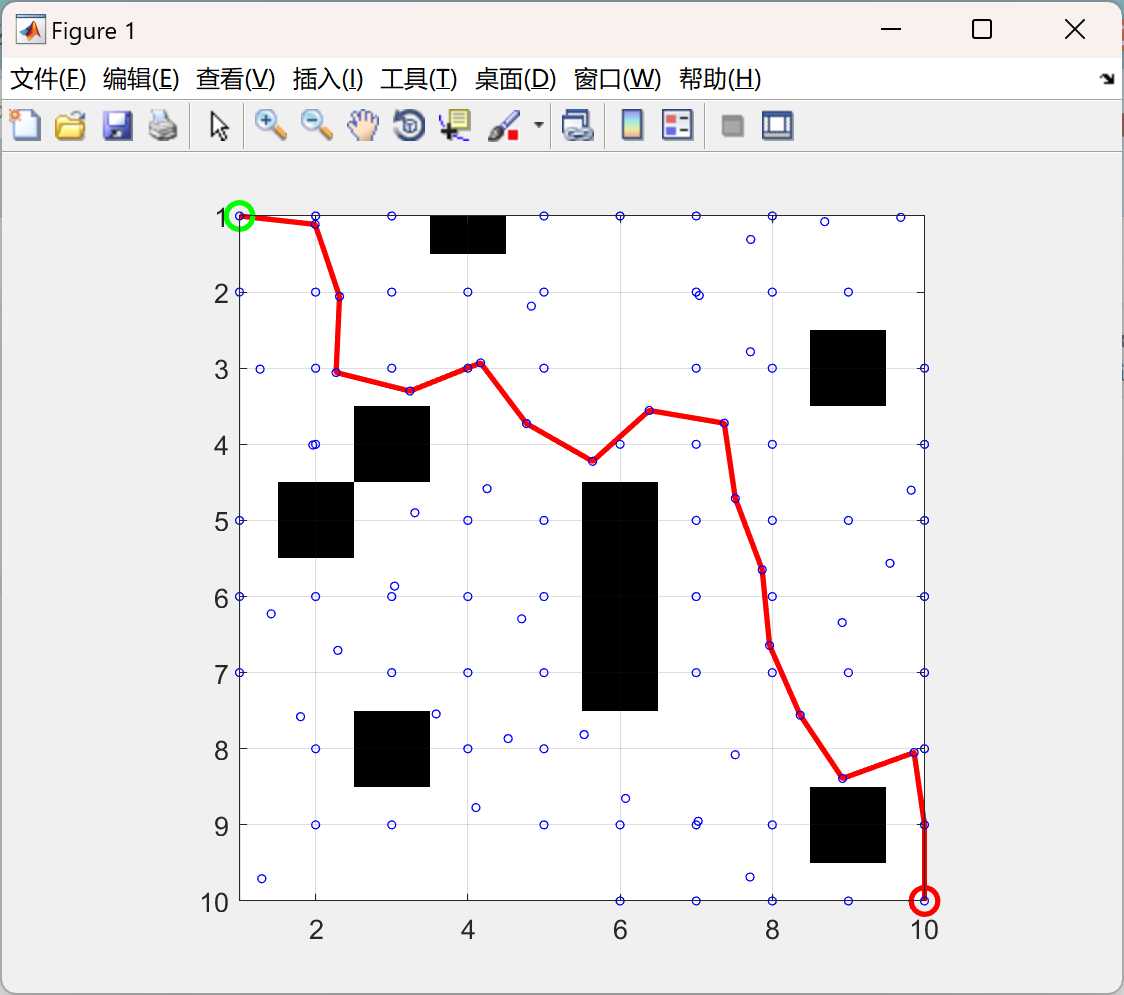

📚2 运行结果

主函数部分代码：

% Define the map
map = [
        0, 0, 0, 1, 0, 0, 0, 0, 0, 0;
        0, 0, 0, 0, 0, 0, 0, 0, 0, 0;
        0, 0, 0, 0, 0, 0, 0, 0, 1, 0;
        0, 0, 1, 0, 0, 0, 0, 0, 0, 0;
        0, 1, 0, 0, 0, 1, 0, 0, 0, 0;
        0, 0, 0, 0, 0, 1, 0, 0, 0, 0;
        0, 0, 0, 0, 0, 1, 0, 0, 0, 0;
        0, 0, 1, 0, 0, 0, 0, 0, 0, 0;
        0, 0, 0, 0, 0, 0, 0, 0, 1, 0;
        0, 0, 0, 0, 0, 0, 0, 0, 0, 0
];

% Define start and goal positions
start = [1, 1];
goal = [10, 10];

% Define RRT parameters
max_iter = 1000; % Maximum number of iterations
step_size = 1.0; % Step size for extending the tree

% Run RRT algorithm
[path, tree] = rrt(map, start, goal, max_iter, step_size);

% Plot the path and tree
plot_rrt(map, path, tree);


function [path, tree] = rrt(map, start, goal, max_iter, step_size)
    % Initialize the tree with the start node
    tree = [start, 0]; % Each node contains x, y, and parent index

    for iter = 1:max_iter
        % Sample a random point in the map
        random_point = [randi(size(map, 1)), randi(size(map, 2))];

        % Find the nearest node in the tree to the random point
        nearest_node_idx = nearest_neighbor(tree(:, 1:2), random_point);
        nearest_node = tree(nearest_node_idx, :);

        % Extend the tree towards the random point
        new_node = steer(nearest_node(1:2), random_point, step_size);

        % If the new node is not in collision with obstacles
        if ~check_collision(map, nearest_node(1:2), new_node)
            % Add the new node to the tree
            tree = [tree; new_node, nearest_node_idx];

            % Check if the goal is reached
            if norm(new_node - goal) < step_size
                path = reconstruct_path(tree, size(tree, 1));
                return;
            end
        end
    end

    % If the goal is not reached within the maximum iterations
    disp('Goal not reached within maximum iterations');
    path = [];
end

function nearest_node_idx = nearest_neighbor(tree, random_point)
    % Find the index of the nearest node in the tree to the random point
    distances = vecnorm(tree - random_point, 2, 2);
    [~, nearest_node_idx] = min(distances);
end

function new_node = steer(nearest_node, random_point, step_size)
    % Move from the nearest node towards the random point by step_size
    direction = random_point - nearest_node;
    distance = norm(direction);
    if distance <= step_size
        new_node = random_point;
    else
        new_node = nearest_node + (direction / distance) * step_size;
    end
end

function in_collision = check_collision(map, nearest_node, new_node)
    % Check if the line segment between nearest_node and new_node intersects with obstacles
    x1 = nearest_node(1);
    y1 = nearest_node(2);
    x2 = new_node(1);
    y2 = new_node(2);

    in_collision = any(map(round(linspace(x1, x2, 100)), round(linspace(y1, y2, 100))));
end

function path = reconstruct_path(tree, goal_idx)
    % Reconstruct the path from the goal node to the start node
    path = tree(goal_idx, 1:2);
    parent_idx = tree(goal_idx, 3);
    while parent_idx ~= 0
        path = [tree(parent_idx, 1:2); path];
        parent_idx = tree(parent_idx, 3);
    end
end

function plot_rrt(map, path, tree)
    % Plot map
    imagesc(map);
    colormap(flipud(gray));
    hold on;

    % Plot path
    if ~isempty(path)
        plot(path(:, 2), path(:, 1), 'r', 'LineWidth', 2);
    end

    % Plot tree
    plot(tree(:, 2), tree(:, 1), 'bo', 'MarkerSize', 3);
