NX二次开发——测量距离（两个对象之间最近、最远距离）

一、概述

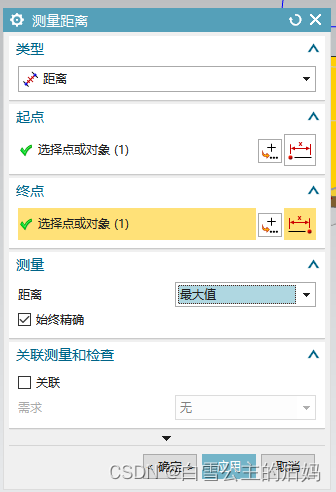

        最近看到 一些文章比较有趣，所以做个记录，顺便写一下博客，附上全部代码，方便刚从事NX二次开发同僚的理解。本次主要模拟NX自带的测量工具中对两个实体对象进行测量距离。NX系统功能如下所示：

二、代码解析

主要代码：

void measureDistance(tag_t objTAG1, tag_t objTAG2, double &MeasureDistance_Max, double &MeasureDistance_Min)
{
	double retMax = 0.0, retMin = 0.0;
	NXOpen::Session* theSession = NXOpen::Session::GetSession();
	NXOpen::Part* workPart(theSession->Parts()->Work());
	//测量对象1
	NXOpen::DisplayableObject* object1(dynamic_cast<NXOpen::DisplayableObject*>(NXObjectManager::Get(objTAG1)));
	//测量对象2
	NXOpen::DisplayableObject* object2(dynamic_cast<NXOpen::DisplayableObject*>(NXObjectManager::Get(objTAG2)));
	NXOpen::MeasureDistance* measureDistance0;
	NXOpen::MeasureDistance* measureDistance1;
	// 获得最远距离
	measureDistance0 = workPart->MeasureManager()->NewDistance(NULL, NXOpen::MeasureManager::MeasureType::MeasureTypeMaximum, object1, object2);
	// 获得最近距离
	measureDistance1 = workPart->MeasureManager()->NewDistance(NULL, NXOpen::MeasureManager::MeasureType::MeasureTypeMinimum, object1, object2);
	// 获取值
	MeasureDistance_Max = measureDistance0->Value();
	MeasureDistance_Min = measureDistance1->Value();
	delete measureDistance0, measureDistance1;
}

全部代码：

//NX12_NXOpenCPP_Wizard1

// Mandatory UF Includes
#include <uf.h>
#include <uf_object_types.h>

// Internal Includes
#include <NXOpen/ListingWindow.hxx>
#include <NXOpen/NXMessageBox.hxx>
#include <NXOpen/UI.hxx>

// Internal+External Includes
#include <NXOpen/Annotations.hxx>
#include <NXOpen/Assemblies_Component.hxx>
#include <NXOpen/Assemblies_ComponentAssembly.hxx>
#include <NXOpen/Body.hxx>
#include <NXOpen/BodyCollection.hxx>
#include <NXOpen/Face.hxx>
#include <NXOpen/Line.hxx>
#include <NXOpen/NXException.hxx>
#include <NXOpen/NXObject.hxx>
#include <NXOpen/Part.hxx>
#include <NXOpen/PartCollection.hxx>
#include <NXOpen/Session.hxx>

// Std C++ Includes
#include <iostream>
#include <sstream>
#include <uf_defs.h>
#include <NXOpen/NXException.hxx>
#include <NXOpen/Session.hxx>
#include <NXOpen/ModelingView.hxx>
#include <NXOpen/ModelingViewCollection.hxx>
#include <NXOpen/Part.hxx>
#include <NXOpen/PartCollection.hxx>
#include <NXOpen/View.hxx>

#include <NXOpen/Session.hxx>
#include <NXOpen/Body.hxx>
#include <NXOpen/BodyCollection.hxx>
#include <NXOpen/Builder.hxx>
#include <NXOpen/DatumAxis.hxx>
#include <NXOpen/DatumCollection.hxx>
#include <NXOpen/Direction.hxx>
#include <NXOpen/DirectionCollection.hxx>
#include <NXOpen/DisplayableObject.hxx>
#include <NXOpen/Expression.hxx>
#include <NXOpen/ExpressionCollection.hxx>
#include <NXOpen/MeasureDistanceBuilder.hxx>
#include <NXOpen/MeasureManager.hxx>
#include <NXOpen/Part.hxx>
#include <NXOpen/PartCollection.hxx>
#include <NXOpen/ScCollector.hxx>
#include <NXOpen/SelectDisplayableObject.hxx>
#include <NXOpen/SelectDisplayableObjectList.hxx>
#include <NXOpen/SelectObject.hxx>
#include <NXOpen/Session.hxx>
#include <NXOpen/SmartObject.hxx>
#include <NXOpen/MeasureDistance.hxx>
#include "uf_ui.h"
#include<NXOpen/NXObjectManager.hxx>
using namespace NXOpen;
using std::string;
using std::exception;
using std::stringstream;
using std::endl;
using std::cout;
using std::cerr;


//------------------------------------------------------------------------------
// NXOpen c++ test class
//------------------------------------------------------------------------------
class MyClass
{
    // class members
public:
    static Session *theSession;
    static UI *theUI;

    MyClass();
    ~MyClass();

	void do_it();
	void print(const NXString &);
	void print(const string &);
	void print(const char*);

private:
	BasePart *workPart, *displayPart;
	NXMessageBox *mb;
	ListingWindow *lw;
	LogFile *lf;
};

//------------------------------------------------------------------------------
// Initialize static variables
//------------------------------------------------------------------------------
Session *(MyClass::theSession) = NULL;
UI *(MyClass::theUI) = NULL;

//------------------------------------------------------------------------------
// Constructor
//------------------------------------------------------------------------------
MyClass::MyClass()
{

	// Initialize the NX Open C++ API environment
	MyClass::theSession = NXOpen::Session::GetSession();
	MyClass::theUI = UI::GetUI();
	mb = theUI->NXMessageBox();
	lw = theSession->ListingWindow();
	lf = theSession->LogFile();

    workPart = theSession->Parts()->BaseWork();
	displayPart = theSession->Parts()->BaseDisplay();

}

//------------------------------------------------------------------------------
// Destructor
//------------------------------------------------------------------------------
MyClass::~MyClass()
{
}

//------------------------------------------------------------------------------
// Print string to listing window or stdout
//------------------------------------------------------------------------------
void MyClass::print(const NXString &msg)
{
	if(! lw->IsOpen() ) lw->Open();
	lw->WriteLine(msg);
}
void MyClass::print(const string &msg)
{
	if(! lw->IsOpen() ) lw->Open();
	lw->WriteLine(msg);
}
void MyClass::print(const char * msg)
{
	if(! lw->IsOpen() ) lw->Open();
	lw->WriteLine(msg);
}

void measureDistance(tag_t objTAG1, tag_t objTAG2, double &MeasureDistance_Max, double &MeasureDistance_Min)
{
	double retMax = 0.0, retMin = 0.0;
	NXOpen::Session* theSession = NXOpen::Session::GetSession();
	NXOpen::Part* workPart(theSession->Parts()->Work());
	//测量对象1
	NXOpen::DisplayableObject* object1(dynamic_cast<NXOpen::DisplayableObject*>(NXObjectManager::Get(objTAG1)));
	//测量对象2
	NXOpen::DisplayableObject* object2(dynamic_cast<NXOpen::DisplayableObject*>(NXObjectManager::Get(objTAG2)));
	NXOpen::MeasureDistance* measureDistance0;
	NXOpen::MeasureDistance* measureDistance1;
	// 获得最远距离
	measureDistance0 = workPart->MeasureManager()->NewDistance(NULL, NXOpen::MeasureManager::MeasureType::MeasureTypeMaximum, object1, object2);
	// 获得最近距离
	measureDistance1 = workPart->MeasureManager()->NewDistance(NULL, NXOpen::MeasureManager::MeasureType::MeasureTypeMinimum, object1, object2);
	// 获取值
	MeasureDistance_Max = measureDistance0->Value();
	MeasureDistance_Min = measureDistance1->Value();
	delete measureDistance0, measureDistance1;
}


//------------------------------------------------------------------------------
// Do something
//------------------------------------------------------------------------------
void MyClass::do_it()
{

	// TODO: add your code here
	NXOpen::Session *theSession = NXOpen::Session::GetSession();
	NXOpen::Part *workPart(theSession->Parts()->Work());
	NXOpen::Part *displayPart(theSession->Parts()->Display());
	NXOpen::Body *body1(dynamic_cast<NXOpen::Body *>(workPart->Bodies()->FindObject("BLOCK(1)")));
	tag_t bodyTag1 = body1->Tag();
	NXOpen::Body *body2(dynamic_cast<NXOpen::Body *>(workPart->Bodies()->FindObject("BLOCK(2)")));
	tag_t bodyTag2 = body2->Tag();
	double MeasureDistance_Max = 0.0;
	double MeasureDistance_Min = 0.0;
	measureDistance(bodyTag1, bodyTag2, MeasureDistance_Max, MeasureDistance_Min);

	char msg1[256];
	sprintf(msg1, "%f", MeasureDistance_Max);
	char msg2[256];
	sprintf(msg2, "%f", MeasureDistance_Min);
	UF_UI_open_listing_window();//打开窗口
	UF_UI_write_listing_window("两个测量对象最大距离");
	UF_UI_write_listing_window(msg1);//打印
	UF_UI_write_listing_window("\n");
	UF_UI_write_listing_window("两个测量对象最小距离");
	UF_UI_write_listing_window(msg2);//打印
	UF_UI_write_listing_window("\n");

}

//------------------------------------------------------------------------------
// Entry point(s) for unmanaged internal NXOpen C/C++ programs
//------------------------------------------------------------------------------
//  Explicit Execution
extern "C" DllExport void ufusr( char *parm, int *returnCode, int rlen )
{
    try
    {
		// Create NXOpen C++ class instance
		MyClass *theMyClass;
		theMyClass = new MyClass();
		theMyClass->do_it();
		delete theMyClass;
	}
    catch (const NXException& e1)
    {
		UI::GetUI()->NXMessageBox()->Show("NXException", NXOpen::NXMessageBox::DialogTypeError, e1.Message());
    }
	catch (const exception& e2)
    {
		UI::GetUI()->NXMessageBox()->Show("Exception", NXOpen::NXMessageBox::DialogTypeError, e2.what());
    }
	catch (...)
    {
		UI::GetUI()->NXMessageBox()->Show("Exception", NXOpen::NXMessageBox::DialogTypeError, "Unknown Exception.");
    }
}


//------------------------------------------------------------------------------
// Unload Handler
//------------------------------------------------------------------------------
extern "C" DllExport int ufusr_ask_unload()
{
	return (int)NXOpen::Session::LibraryUnloadOptionImmediately;
}

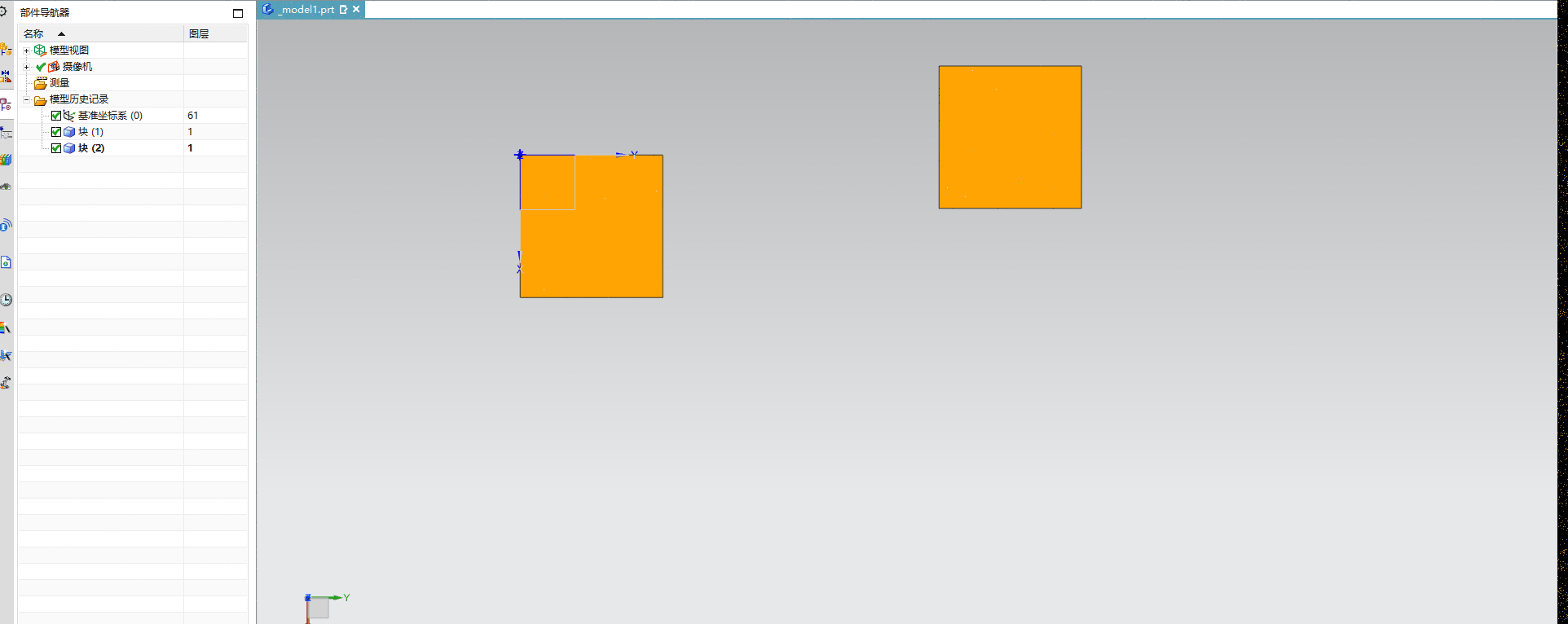

三、显示结果
