简单基础组合逻辑设计VHDL代码ISE仿真

名称:简单基础组合逻辑设计VHDL代码ISE仿真(文末获取)

软件:ISE

语言:VHDL

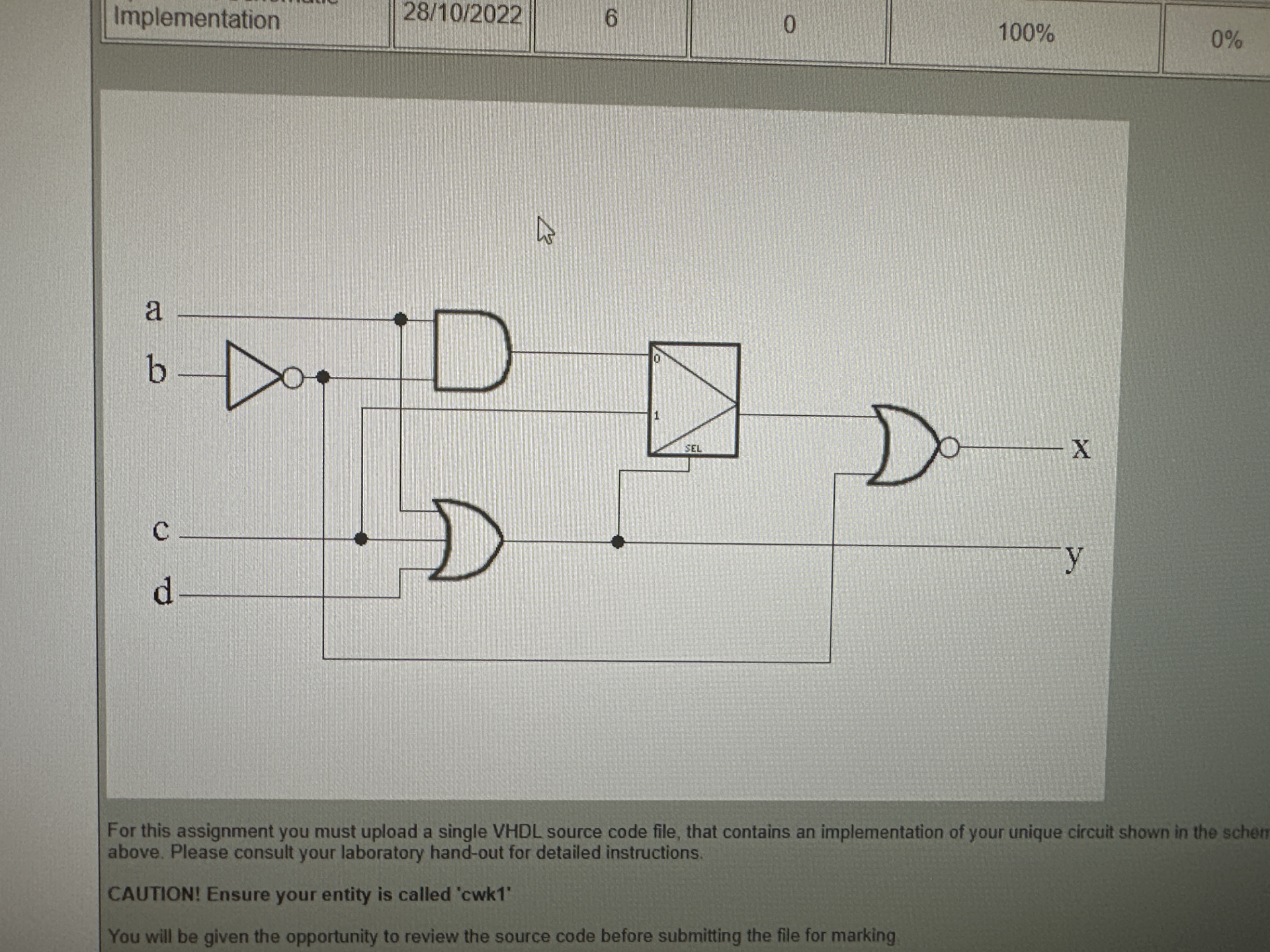

代码功能:简单基础组合逻辑

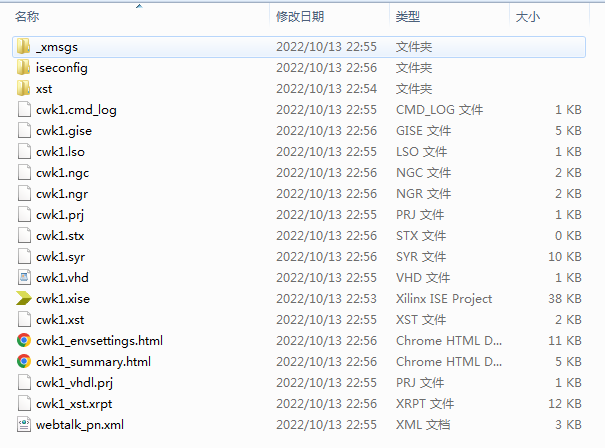

1. 工程文件

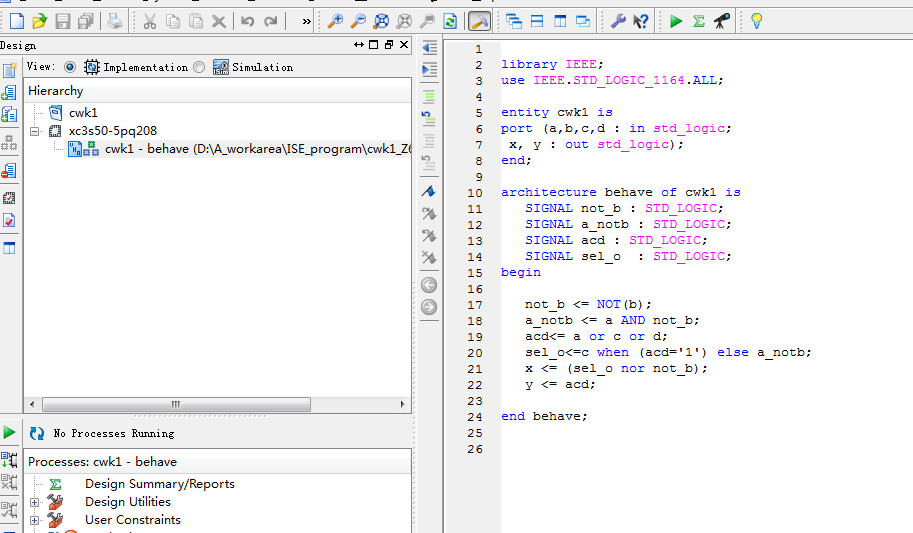

2. 程序文件

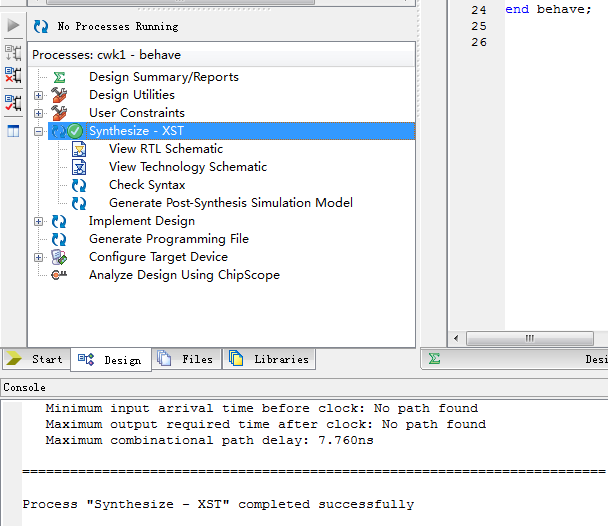

3. 程序编译

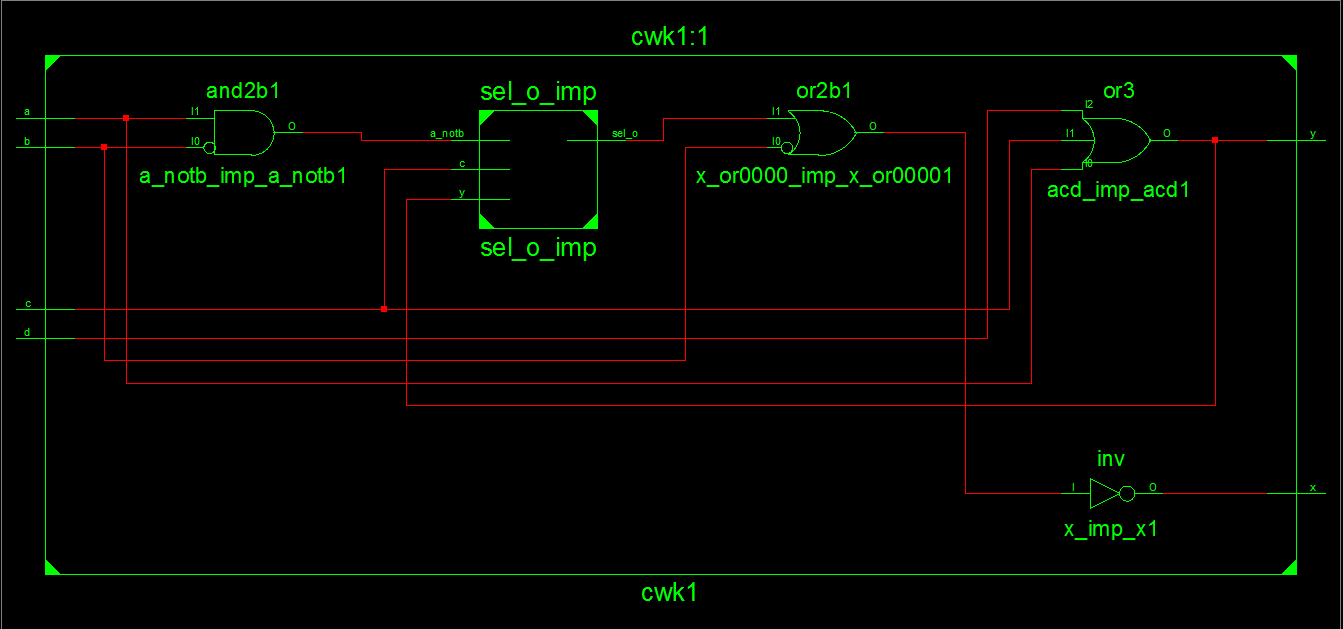

4. RTL图

真值表

a

b

c

d

x

y

0

0

0

0

0

0

0

0

0

1

0

1

0

0

1

0

0

1

0

0

1

1

0

1

0

1

0

0

1

0

0

1

0

1

1

1

0

1

1

0

0

1

0

1

1

1

0

1

1

0

0

0

0

1

1

0

0

1

0

1

1

0

1

0

0

1

1

0

1

1

0

1

1

1

0

0

1

1

1

1

0

1

1

1

1

1

1

0

0

1

1

1

1

1

0

1

部分代码展示:

--------------------------------------------------------------------------------
-- Company:
-- Engineer:
--
-- Create Date:   23:01:16 10/13/2022
-- Design Name:
-- Module Name:   D:/A_workarea/ISE_program/cwk1_Z600/cwk1/test.vhd
-- Project Name:  cwk1
-- Target Device:
-- Tool versions:
-- Description:
--
-- VHDL Test Bench Created by ISE for module: cwk1
--
-- Dependencies:
--
-- Revision:
-- Revision 0.01 - File Created
-- Additional Comments:
--
-- Notes:
-- This testbench has been automatically generated using types std_logic and
-- std_logic_vector for the ports of the unit under test.  Xilinx recommends
-- that these types always be used for the top-level I/O of a design in order
-- to guarantee that the testbench will bind correctly to the post-implementation
-- simulation model.
--------------------------------------------------------------------------------
LIBRARY ieee;
USE ieee.std_logic_1164.ALL;

-- Uncomment the following library declaration if using
-- arithmetic functions with Signed or Unsigned values
--USE ieee.numeric_std.ALL;

ENTITY test IS
END test;

ARCHITECTURE behavior OF test IS

    -- Component Declaration for the Unit Under Test (UUT)

    COMPONENT cwk1
    PORT(
         a : IN  std_logic;
         b : IN  std_logic;
         c : IN  std_logic;
         d : IN  std_logic;
         x : OUT  std_logic;
         y : OUT  std_logic
        );
    END COMPONENT;

   --Inputs
   signal a : std_logic := '0';
   signal b : std_logic := '0';
   signal c : std_logic := '0';
   signal d : std_logic := '0';
 --Outputs
   signal x : std_logic;
   signal y : std_logic;
BEGIN

-- Instantiate the Unit Under Test (UUT)
   uut: cwk1 PORT MAP (
          a => a,
          b => b,
          c => c,
          d => d,
          x => x,
          y => y
        );
源代码

点击下方的公众号卡片获取
