Video Inbetweening using 3D Convolutions | TF Hub

video_inbetweening_conv3d

From Here to There: Video Inbetweening Using Direct 3D Convolutions, 2019

Current Hub characteristics:

• has models for BAIR Robot pushing videos and KTH action video dataset (though this colab uses only BAIR)
• BAIR dataset already available in Hub. However, KTH videos need to be supplied by the users themselves
• only evaluation (video generation) for now
• batch size and frame size are hard-coded

import tensorflow as tf

import matplotlib.pyplot as plt
import numpy as np
import seaborn as sns
import tensorflow_hub as hub
import tensorflow_datasets as tfds

from tensorflow_datasets.core import SplitGenerator
from tensorflow_datasets.video.bair_robot_pushing import BairRobotPushingSmall

import tempfile
import pathlib
from tensorflow_docs.vis import embed
import imageio


def to_gif(images):
    converted_images = np.clip(images * 255, 0, 255).astype(np.uint8)
    imageio.mimsave('./animation.gif', converted_images, fps=1)
    return embed.embed_file('./animation.gif')


TEST_DIR = "/home/csdn/Downloads/Tensorflow_tutorial/TF_Hub/CV/bair_robot_pushing_small/softmotion30_44k/test/"

# Since the dataset builder expects the train and test split to be downloaded,
# patch it so it only expects the test data to be available
builder = BairRobotPushingSmall()
test_generator = SplitGenerator(name='test', gen_kwargs={"filedir": str(TEST_DIR)})
builder._split_generators = lambda _: [test_generator]
builder.download_and_prepare()

# @title Load some example data (BAIR).
batch_size = 16

# If unable to download the dataset automatically due to "not enough disk space", please download manually to Google Drive and
# load using tf.data.TFRecordDataset.
ds = builder.as_dataset(split="test")
test_videos = ds.batch(batch_size)
first_batch = next(iter(test_videos))
input_frames = first_batch['image_aux1'][:, ::15]
input_frames = tf.cast(input_frames, tf.float32)

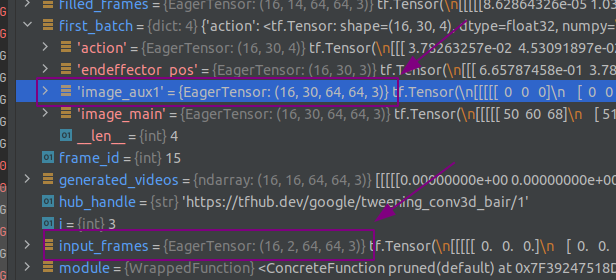

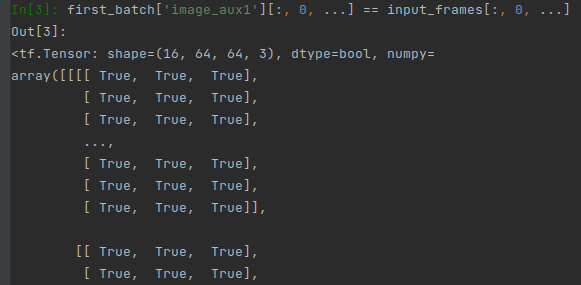

所以 [:, ::15]，取的索引分别是 0 和 15，因为 30 超过了 0 - 29 的索引范围，同时下方的两个图也进行了验证

# @title Visualize loaded videos start and end frames.

print('Test videos shape [batch_size, start/end frame, height, width, num_channels]: ', input_frames.shape)
sns.set_style('white')
plt.figure(figsize=(4, 2 * batch_size))

for i in range(batch_size)[:4]:
    plt.subplot(batch_size, 2, 1 + 2 * i)
    plt.imshow(input_frames[i, 0] / 255.0)
    plt.title('Video {}: First frame'.format(i))
    plt.axis('off')
    plt.subplot(batch_size, 2, 2 + 2 * i)
    plt.imshow(input_frames[i, 1] / 255.0)
    plt.title('Video {}: Last frame'.format(i))
    plt.axis('off')
plt.show()

hub_handle = 'https://tfhub.dev/google/tweening_conv3d_bair/1'
module = hub.load(hub_handle).signatures['default']

filled_frames = module(input_frames)['default'] / 255.0

# Show sequences of generated video frames.

# Concatenate start/end frames and the generated filled frames for the new videos.
generated_videos = np.concatenate([input_frames[:, :1] / 255.0, filled_frames, input_frames[:, 1:] / 255.0], axis=1)

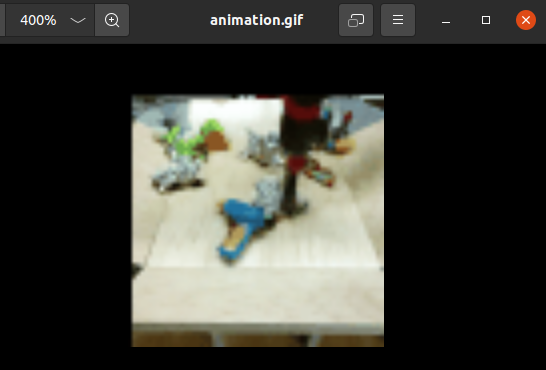

to_gif(generated_videos[1])

for video_id in range(4):
    fig = plt.figure(figsize=(10 * 2, 2))
    for frame_id in range(1, 16):
        ax = fig.add_axes([frame_id * 1 / 16., 0, (frame_id + 1) * 1 / 16., 1],
                          xmargin=0, ymargin=0)
        ax.imshow(generated_videos[video_id, frame_id])
        ax.axis('off')
    fig_name = 'generated_videos_' + str(video_id) + '.png'
    plt.savefig(fig_name)

把填充生成的 video frames 保存成 gif
