基本思想：学习oak双目相机实现rgb彩色图和depth深度图的移动测距

前言：

设备型号：OAK-D-Pro

一、环境配置参考

台式机ubuntu系统调用OAK相机_MFT小白的博客-CSDN博客

二、python版本

python调用OAK相机实现人脸检测的简单demo_MFT小白的博客-CSDN博客

三、测试

其中 utility 文件夹为oak官网 depthai_cpp_example 文件夹中

获取地址：GitHub - richard-xx/depthai_cpp_example

git clone https://github.com/richard-xx/depthai_cpp_example.git

cmakelist.txt

cmake_minimum_required(VERSION 3.16)
project(test_depthai)

set(CMAKE_CXX_STANDARD 14)
find_package(OpenCV REQUIRED)
find_package(depthai CONFIG REQUIRED)

include_directories(${CMAKE_CURRENT_LIST_DIR}/include)
include_directories(${CMAKE_CURRENT_LIST_DIR}/include/utility)

add_executable(test_depthai main.cpp)

target_link_libraries(test_depthai ${OpenCV_LIBS} depthai::opencv)

main.cpp

#include <iostream>
#include "depthai/depthai.hpp"
#include "utility.hpp"

#define Rgb 0
#define spatial_location_calculator 1


static constexpr float stepSize = 0.05f;

static std::atomic<bool> newConfig{false};


#if Rgb
int main() {

    dai::Pipeline pipeline;
    auto camRgb = pipeline.create<dai::node::ColorCamera>();
    auto xoutVideo = pipeline.create<dai::node::XLinkOut>();

    xoutVideo->setStreamName("video");

    camRgb->setBoardSocket(dai::CameraBoardSocket::RGB);
    camRgb->setResolution(dai::ColorCameraProperties::SensorResolution::THE_1080_P);
    camRgb->setVideoSize(1920, 1080);

    camRgb->video.link(xoutVideo->input);

    xoutVideo->input.setBlocking(false);
    xoutVideo->input.setQueueSize(1);

    dai::Device device(pipeline);

    auto video = device.getOutputQueue("video");

    while (true) {
        auto videoIn = video->get<dai::ImgFrame>();

        cv::Mat frame = videoIn->getCvFrame();

        cv::imshow("video", frame);
        int key = cv::waitKey(1);
        if (key == 'q' || key = 27) {
            return 0;
        }
    }

    return 0;
}


#elif spatial_location_calculator
int main() {
    using namespace std;

    // Create pipeline
    dai::Pipeline pipeline;
    dai::Device device;

    // Define sources and outputs
    auto camRgb = pipeline.create<dai::node::ColorCamera>();
    auto monoLeft = pipeline.create<dai::node::MonoCamera>();
    auto monoRight = pipeline.create<dai::node::MonoCamera>();
    auto stereo = pipeline.create<dai::node::StereoDepth>();
    auto spatialDataCaulator = pipeline.create<dai::node::SpatialLocationCalculator>();

    // Properties
    camRgb->setBoardSocket(dai::CameraBoardSocket::RGB);
    camRgb->setResolution(dai::ColorCameraProperties::SensorResolution::THE_1080_P);
    camRgb->setPreviewSize(1920, 1080);

    monoLeft->setBoardSocket(dai::CameraBoardSocket::LEFT);
    monoLeft->setResolution(dai::MonoCameraProperties::SensorResolution::THE_720_P);
    monoRight->setBoardSocket(dai::CameraBoardSocket::RIGHT);
    monoRight->setResolution(dai::MonoCameraProperties::SensorResolution::THE_720_P);

    try {
        auto calibData = device.readCalibration2();
        auto lensPosition = calibData.getLensPosition(dai::CameraBoardSocket::RGB);
        if (lensPosition) {
            camRgb->initialControl.setManualFocus(lensPosition);
        }
    }   catch (const std::exception &ex) {
            std::cout << ex.what() << std::endl;
            return 1;
    }

    bool lrcheck = true;
    bool subpixel = true;

    stereo->setDefaultProfilePreset(dai::node::StereoDepth::PresetMode::HIGH_ACCURACY);
    stereo->setLeftRightCheck(lrcheck);
    stereo->setSubpixel(subpixel);
    stereo->setDepthAlign(dai::CameraBoardSocket::RGB);

    // config
    dai::Point2f topLeft(0.4f, 0.4f);
    dai::Point2f bottomRight(0.6f, 0.6f);

    dai::SpatialLocationCalculatorConfigData config;
    config.depthThresholds.lowerThreshold = 100;
    config.depthThresholds.upperThreshold = 5000;
    config.roi = dai::Rect(topLeft, bottomRight);

    spatialDataCaulator->initialConfig.addROI(config);
    spatialDataCaulator->inputConfig.setWaitForMessage(false);


    auto xoutRgb = pipeline.create<dai::node::XLinkOut>();
    auto xoutDepth = pipeline.create<dai::node::XLinkOut>();
    auto xouSpatialData = pipeline.create<dai::node::XLinkOut>();
    auto xinspatialCalcConfig = pipeline.create<dai::node::XLinkIn>();

    xoutRgb->setStreamName("rgb");
    xoutDepth->setStreamName("depth");
    xouSpatialData->setStreamName("spatialData");
    xinspatialCalcConfig->setStreamName("spatialCalcConfig");


    // Linking
    camRgb->video.link(xoutRgb->input);
    monoLeft->out.link(stereo->left);
    monoRight->out.link(stereo->right);

    stereo->depth.link(spatialDataCaulator->inputDepth);
    spatialDataCaulator->passthroughDepth.link(xoutDepth->input);


    spatialDataCaulator->out.link(xouSpatialData->input);
    xinspatialCalcConfig->out.link(spatialDataCaulator->inputConfig);

    // Connect to device and start pipeline
    device.startPipeline(pipeline);


    // Output queue will be used to get the depth frames from the outputs defined above
    auto rgbQueue = device.getOutputQueue("rgb",8,false);
    auto depthQueue = device.getOutputQueue("depth", 8, false);
    auto spatialCalcQueue = device.getOutputQueue("spatialData", 8, false);
    auto spatialCalcConfigInQueue = device.getInputQueue("spatialCalcConfig");


    auto color = cv::Scalar(255,255,255);

    std::cout << "Use WASD keys to move ROI!" << std::endl;

    while (true) {
        auto inRgb = rgbQueue->get<dai::ImgFrame>();
        auto inDepth = depthQueue->get<dai::ImgFrame>();

        cv::Mat rgbFrame = inRgb->getCvFrame();
        cv::Mat depthFrame = inDepth->getCvFrame();

        cv::Mat depthFrameColor;
        cv::normalize(depthFrame, depthFrameColor, 255, 0, cv::NORM_INF, CV_8UC1);
        cv::equalizeHist(depthFrameColor, depthFrameColor);
        cv::applyColorMap(depthFrameColor, depthFrameColor, cv::COLORMAP_JET);

        auto spatialData = spatialCalcQueue->get<dai::SpatialLocationCalculatorData>()->getSpatialLocations();
        for(auto depthData : spatialData) {
            auto roi = depthData.config.roi;
            roi = roi.denormalize(depthFrameColor.cols, depthFrameColor.rows);
            auto xmin = (int)roi.topLeft().x;
            auto ymin = (int)roi.topLeft().y;
            auto xmax = (int)roi.bottomRight().x;
            auto ymax = (int)roi.bottomRight().y;

            auto depthMin = depthData.depthMin;
            auto depthMax = depthData.depthMax;

            cv::rectangle(depthFrameColor, cv::Rect(cv::Point(xmin, ymin), cv::Point(xmax, ymax)), color, cv::FONT_HERSHEY_SIMPLEX);
            std::stringstream depthX;
            depthX << "X: " << (int)depthData.spatialCoordinates.x << " mm";
            cv::putText(depthFrameColor, depthX.str(), cv::Point(xmin + 10, ymin + 20), cv::FONT_HERSHEY_TRIPLEX, 0.5, color);
            std::stringstream depthY;
            depthY << "Y: " << (int)depthData.spatialCoordinates.y << " mm";
            cv::putText(depthFrameColor, depthY.str(), cv::Point(xmin + 10, ymin + 35), cv::FONT_HERSHEY_TRIPLEX, 0.5, color);
            std::stringstream depthZ;
            depthZ << "Z: " << (int)depthData.spatialCoordinates.z << " mm";
            cv::putText(depthFrameColor, depthZ.str(), cv::Point(xmin + 10, ymin + 50), cv::FONT_HERSHEY_TRIPLEX, 0.5, color);

            cv::rectangle(rgbFrame, cv::Rect(cv::Point(xmin, ymin), cv::Point(xmax, ymax)), color, cv::FONT_HERSHEY_SIMPLEX);
            std::stringstream depthX_;
            depthX_ << "X: " << (int)depthData.spatialCoordinates.x << " mm";
            cv::putText(rgbFrame, depthX_.str(), cv::Point(xmin + 10, ymin + 20), cv::FONT_HERSHEY_TRIPLEX, 0.5, color);
            std::stringstream depthY_;
            depthY_ << "Y: " << (int)depthData.spatialCoordinates.y << " mm";
            cv::putText(rgbFrame, depthY_.str(), cv::Point(xmin + 10, ymin + 35), cv::FONT_HERSHEY_TRIPLEX, 0.5, color);
            std::stringstream depthZ_;
            depthZ_ << "Z: " << (int)depthData.spatialCoordinates.z << " mm";
            cv::putText(rgbFrame, depthZ_.str(), cv::Point(xmin + 10, ymin + 50), cv::FONT_HERSHEY_TRIPLEX, 0.5, color);
        }

        // Show the frame

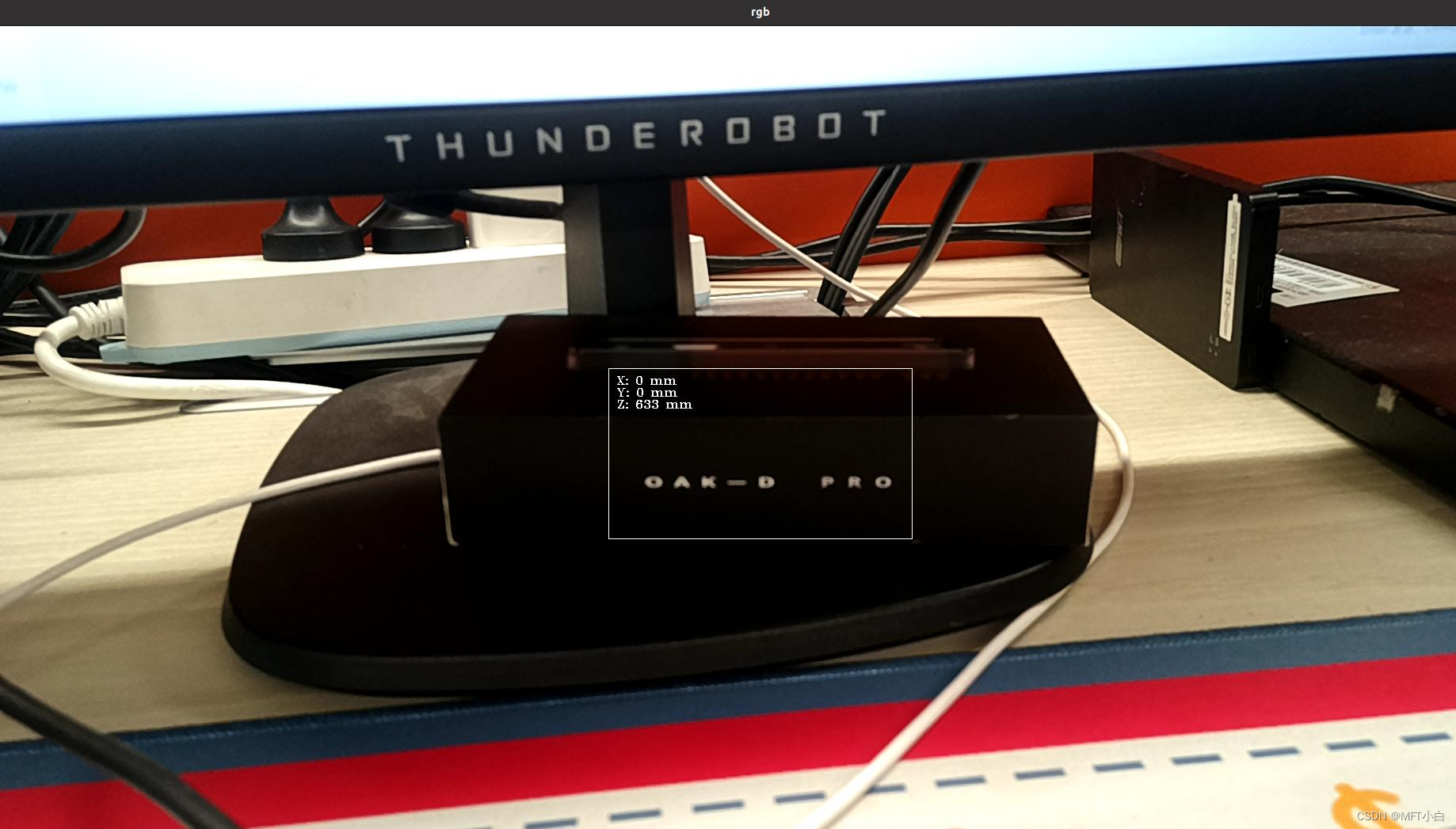

        cv::imshow("rgb", rgbFrame);

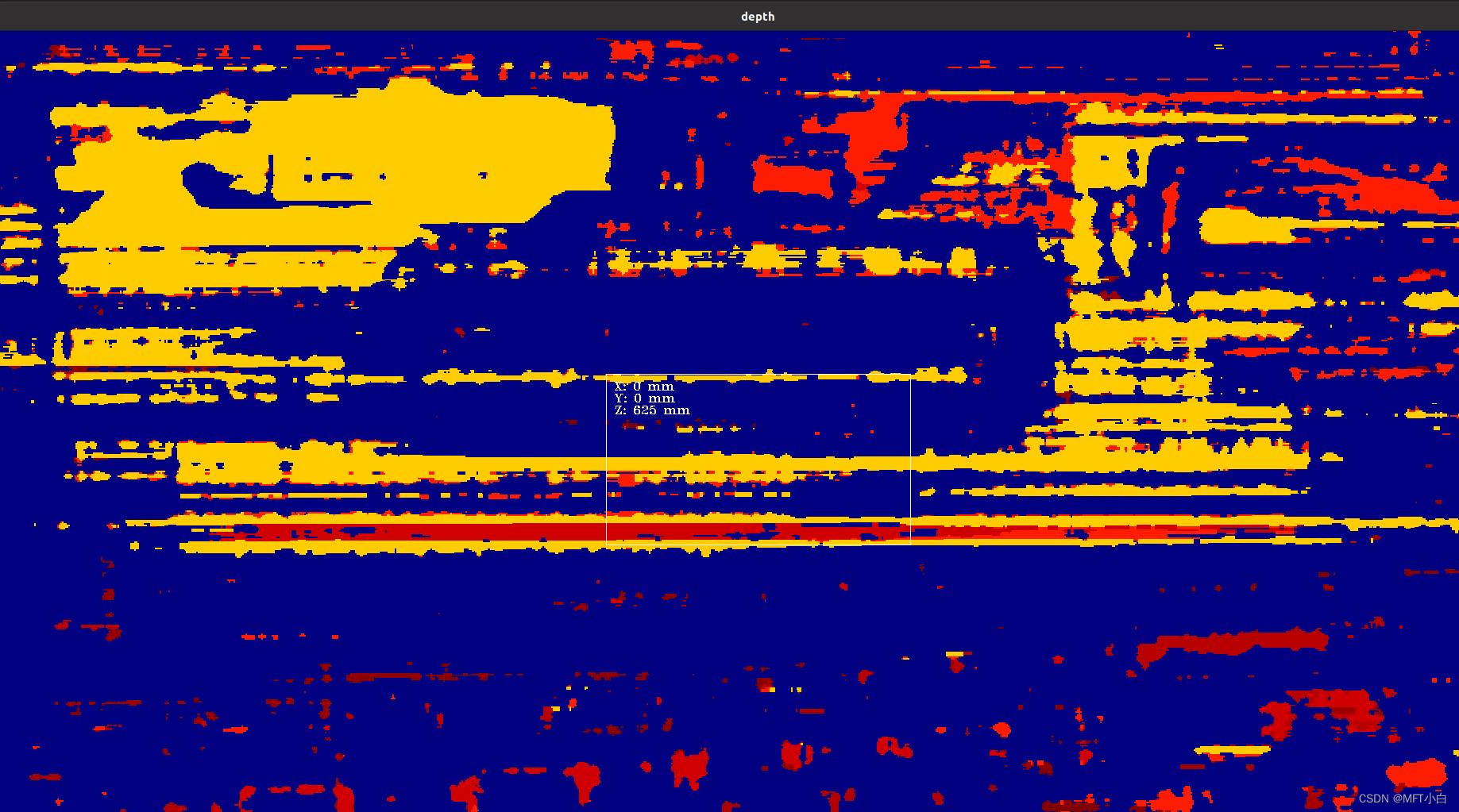

        cv::imshow("depth", depthFrameColor);

        int key = cv::waitKey(1);
        switch(key) {
            case 'q':
                return 0;
            case 'w':
                if (topLeft.y - stepSize >= 0) {
                    topLeft.y -= stepSize;
                    bottomRight.y -= stepSize;
                    newConfig = true;
                }
                break;
            case 'a':
                if (topLeft.x - stepSize >= 0) {
                    topLeft.x -= stepSize;
                    bottomRight.x -= stepSize;
                    newConfig = true;
                }
                break;
            case 's':
                if (bottomRight.y + stepSize <= 1) {
                    topLeft.y += stepSize;
                    bottomRight.y += stepSize;
                    newConfig = true;
                }
                break;
            case 'd':
                if (bottomRight.x + stepSize <= 1) {
                    topLeft.x += stepSize;
                    bottomRight.x += stepSize;
                    newConfig = true;
                }
                break;
            default:
                break;
        }

        if(newConfig) {
            config.roi = dai::Rect(topLeft, bottomRight);
            dai::SpatialLocationCalculatorConfig cfg;
            cfg.addROI(config);
            spatialCalcConfigInQueue->send(cfg);
            newConfig = false;
        }
    }

    return 0;
}
