RCWL-0516微波雷达感应开关 人体感应传感器,迷你多普勒雷达



00微波雷达感应开关


今天刚刚接到在TB购买的 RCWL-0516微波感应开关 模块。和前几天测试的 24G微波人体感应模块 相比,它(¥4.15)比起 24G微波人体感应模块 (¥8.8)更加的偏移。

下面对于这款模块进行初步的测试。

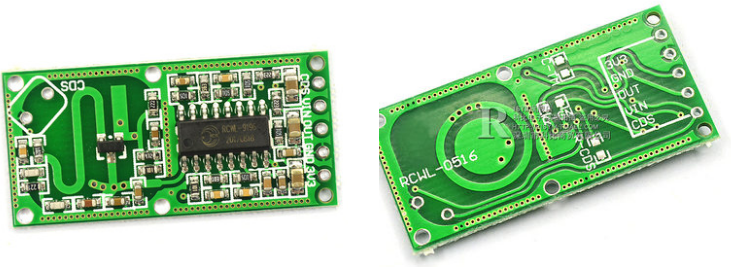

▲ RCWL-0516微波感应开关

▲ RCWL-0516微波感应开关

这个模块的工作原理被称为:自振混频器原理和多普勒效应



01模块的基本应用


1.外形和基本组件

  • 采用专用信号处理控制芯片RCWL-9196
  • 宽工作电压范围:4.0 ~ 28V
  • 与传统的红外感应PIR相比,具有穿透探测能力;
  • 封锁时间距离可调整;
  • 模块可以输出3.3V电源。

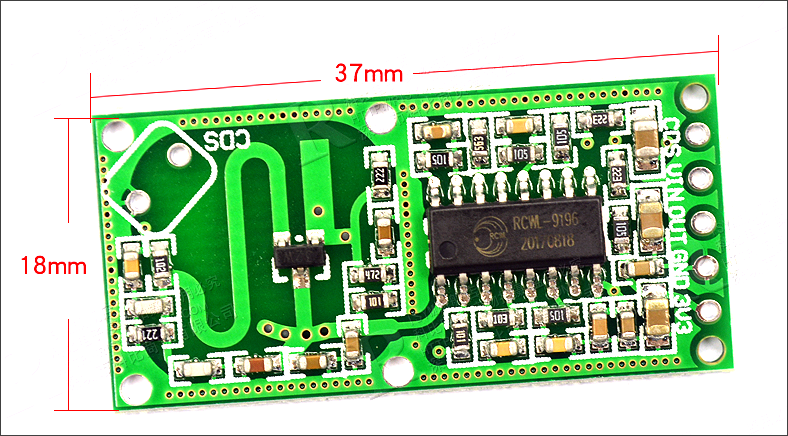

▲ RCWL-0516模块外形

▲ RCWL-0516模块外形

2.基本参数

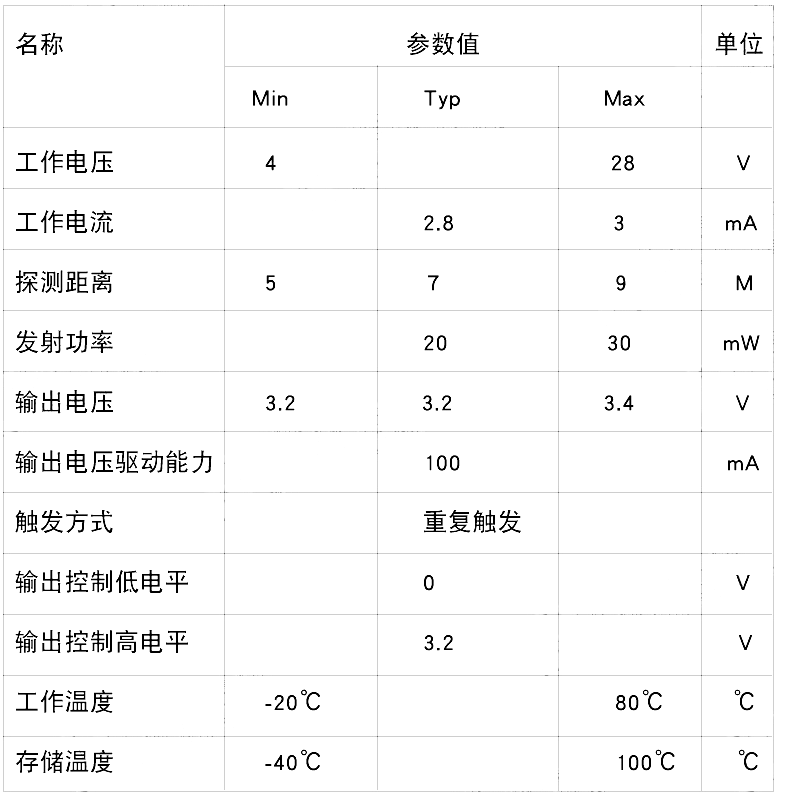

▲ 模块的基本参数性能

▲ 模块的基本参数性能

3.输出管脚功能定义

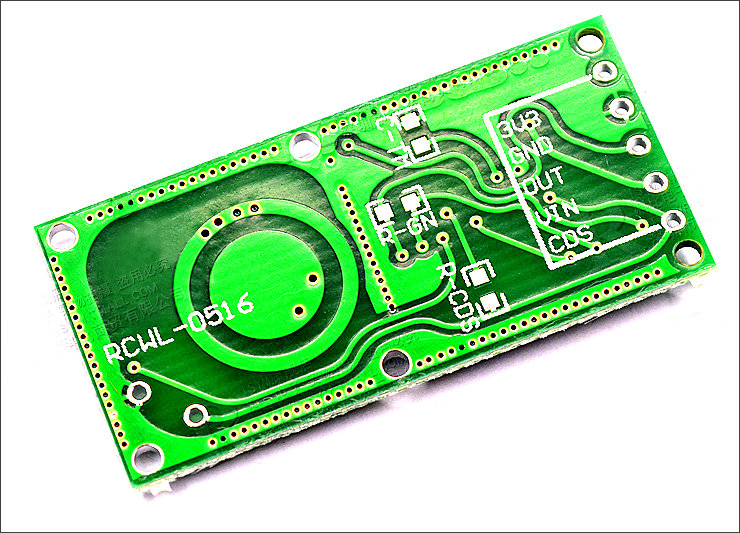

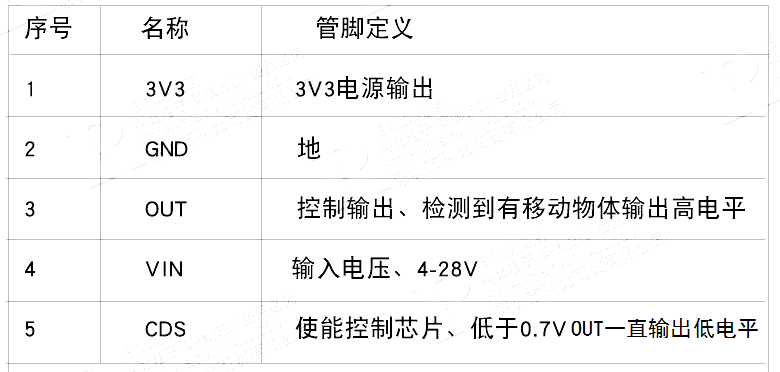

▲ 模块的输出管脚定义

▲ 模块的输出管脚定义

▲ 外部输出管脚功能定义

▲ 外部输出管脚功能定义

  1. 3V3:模块试试3.3V电源。100mA对外部的供电能力;
  2. GND : 模块电源地;
  3. OUT:控制信号输出。当监测区域内有物体移动是,OUT输出高电平。C-TM可以设置重复出发时间。如果从出发时间内有触发信号(有物体移动),持续输出高电平。如果监测区域内没有以动物体,输出低电平。
  4. VIN:模块电源输入:4 ~ 28V
  5. CDS:触发控制信号。小于0.7V,OUT一直输出低电平。如果大于3.3V,检测正常工作。CDS管脚外接光敏电阻,可以在白天关闭模块功能。

4.使用说明

(1) C-TM

调节触时间。默认的出发时间为2s。增加电容容量会增加重复出发时间。实际计算重复出发时间可以通过如下操作确定:C-TM上贴上电容。测量9196的3管脚信号的频率 f p i n 3 f_{pin3} fpin3。那么重复出发时间T等于: T = 32768 f p i n 3 T = {{32768} \over {f_{pin3} }} T=fpin332768

(2) R-CN

调节距离。接电阻,检测距离变小。如果没有接电阻,检测距离在7M左右。接1MΩ左右德玛得是,探测距离月5M。客户可以根据实际情况进行调节。

(3) R-CDS

内部VCC通过R-CDS与内部的1M电阻并联到CDS(即RCWL-9196的PIN9)。CDS处届光敏电阻,可以完结关闭模块检测功能。可以根据实际需要环境亮度来设计中R-CDS值。

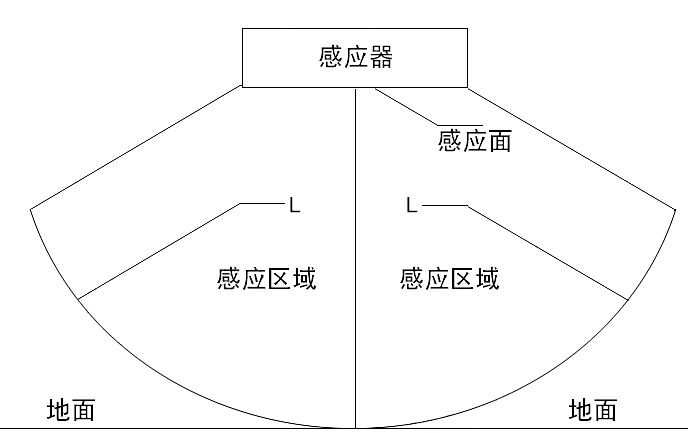

▲ 感应器的检测范围

▲ 感应器的检测范围

5.注意事项

  1. 感应正面不等有任何的金属遮挡;
  2. 感应面的前应该预留1CM以上的空间;
  3. 模块与安装载体的平面尽可能保持平行;
  4. 一定探测区域内应用有效;
  5. 模块的有元器件面为正感应面,反面为负感应面。负感应面的效果较差;
  6. 微博模块不能够在一个区域内大规模应用。会出现相互的干扰。单个个体之间的距离;该大于1M以上。
  7. U1除了PIN8以外,其余的管脚与B1SS0001兼容。功能也兼容。



02初步测试


1.静态测试

  • 供电+5V:工作电流大约2 ~ 3 mA。

2.各管脚电压

3V3GNDOUTVINCDS
3.3V0V3.3V5V3.0V

3.测试对于运动物体感应

在模块前方运动手掌,上下运动或者前后运动,都可以引起模块的输出。手掌距离模块大约50厘米左右。

▲ 测试对于手掌运动的感应

▲ 测试对于手掌运动的感应

在模块前方的一定区域,人体的运动均可以引起模块的输出感应信号。



03原理分析

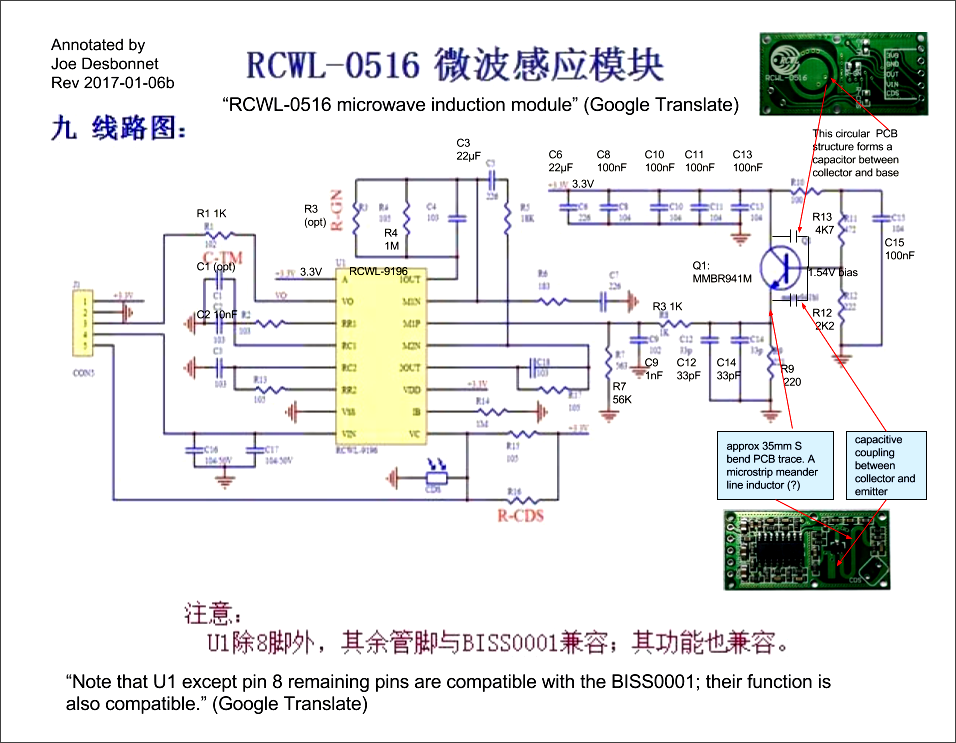

1.原理图

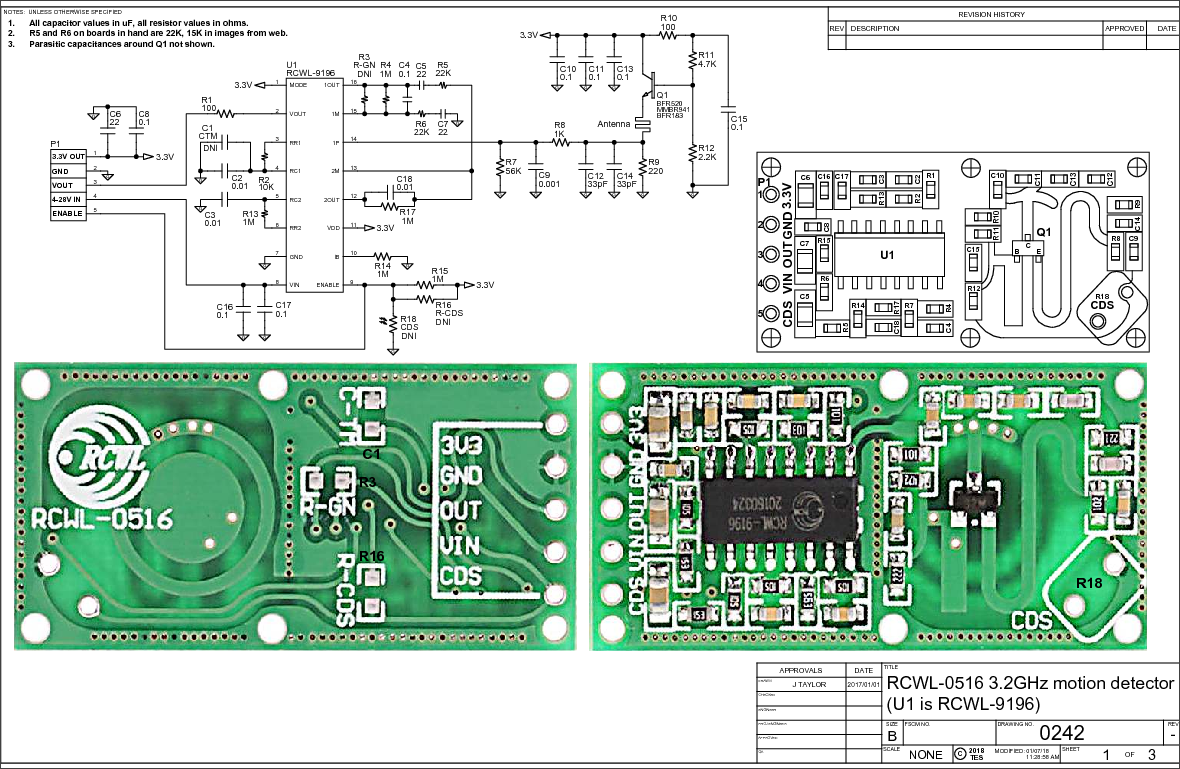

下图给出了来自于 RCWL-0516原理图 给出的模块的原理图。这是由澳大利亚墨尔本的的 Roger Clark (自由作家、咨询师和开发工程师)给出的一些分析资料。

▲ Roger Clark

▲ Roger Clark

在上述原理图中,提到RCWL-9196除了PIN8之外,其余的各项功能都与 BISS0001 (专门用于PIR:人体热释电红外传感器检测)IC。

微波核心是以微波晶体管 MMBR941LT1 组成的电容三点振荡为核心的。但是该电路如何完成对微波反射(多普勒)信号的检测的基本原理尚不太清楚。

2.在GITHUB上的资料

JdesbonetGITHUB上关于给出了RCWL-0516资料 。并对该模块的基本原理进行的解释。相关的实验也验证了模块的部分性能。

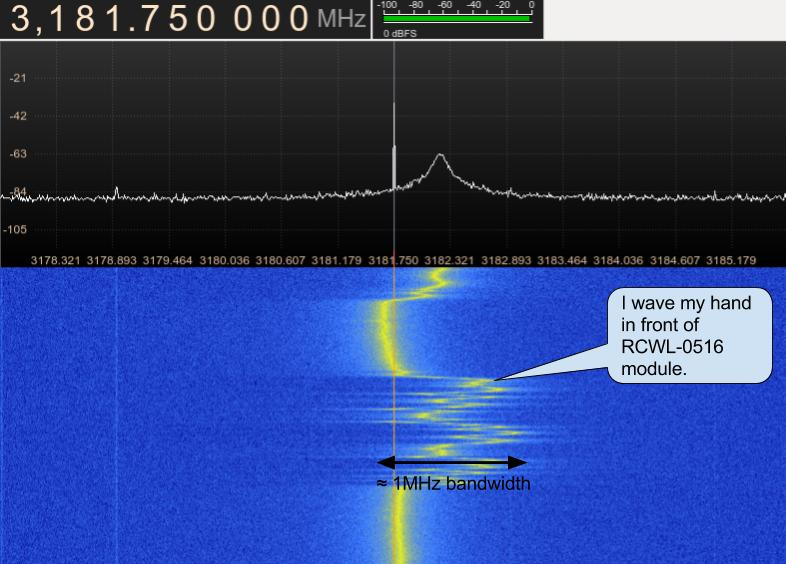

关于RCWL-0516的工作频率,Jdesbonnet通过HackRF One SDR Radio检测到3.181GHz的载波。并显示了传感器前挥动手引起载频的变化。

▲ 在模块前挥动手所引起的载频频谱的变化

▲ 在模块前挥动手所引起的载频频谱的变化

下面是相关的原理图:

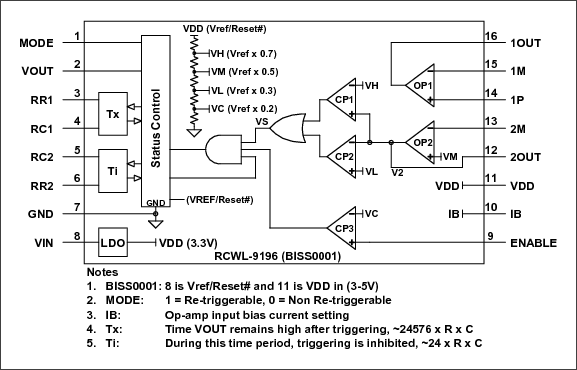

对于后期低频信号处理采用了RWCL-9196芯片。其内部的功能框图为:

▲ RCWL-9196内部功能图

▲ RCWL-9196内部功能图



04进一步信号测量


通过03-2中GITHUB上的关于RCWL-9196内部的功能描述,可以看到在RCWL-9196的PIN16输出了对于微波检测信号的放大信号。

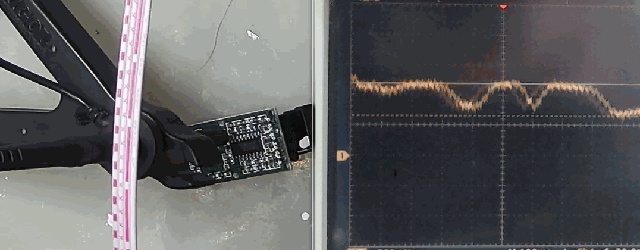

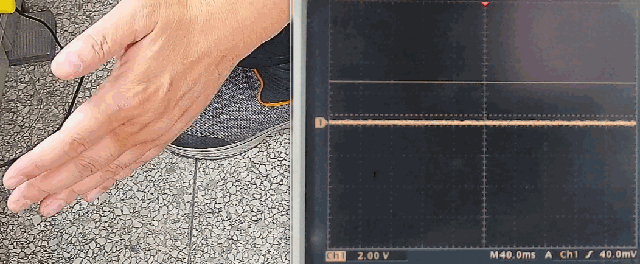

1.直接测试PIN16信号

使用示波器探头可以测量到这个变化的信号。

▲ 在RCWL-9196PIN16管脚测量变化的信号

▲ 在RCWL-9196PIN16管脚测量变化的信号

2.测量滑轨上运动单面覆铜板

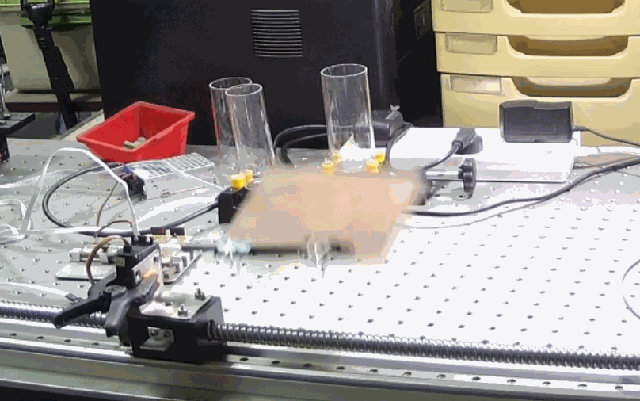

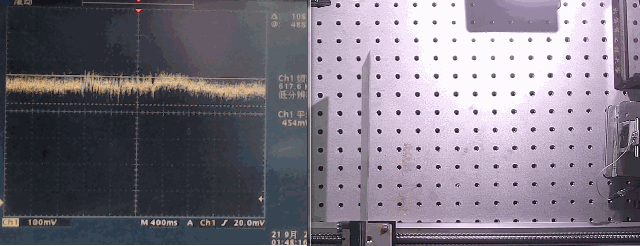

使用在博文 蜗杆单轨滑轨的驱动的统一接口 提到的单轨滑轨带动一块 单面覆铜板 与RCWL-0516模块相向运动。

由滑轨带动的覆铜板运动,引起RCWL-9196的PIN16管脚的电压上下波动。

▲ 运动的单面覆铜板引起电压上下波动

▲ 运动的单面覆铜板引起电压上下波动

3.舵机带动敷铜板摆动

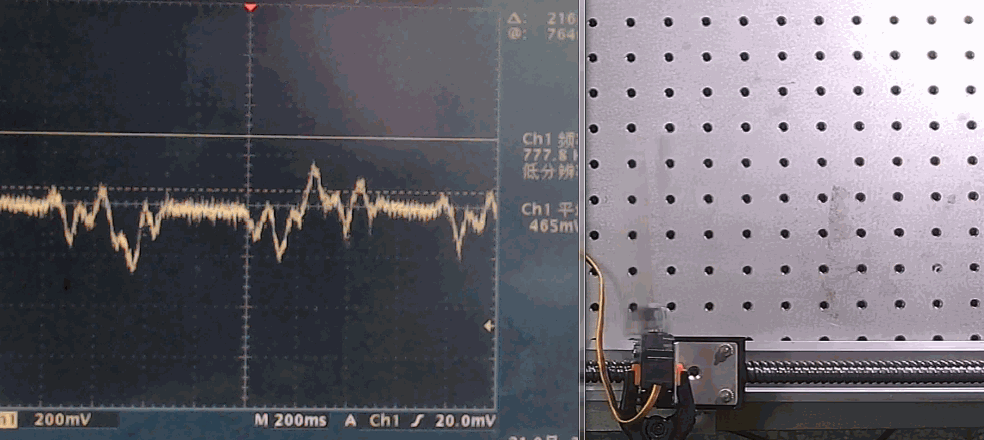

使用舵机带动覆铜板进行前后摆动,测量RCWL-9196的PIN16管脚的输出波形如下。

▲ 覆铜板在舵机带动下前后摆动

▲ 覆铜板在舵机带动下前后摆动



05采集波形分析

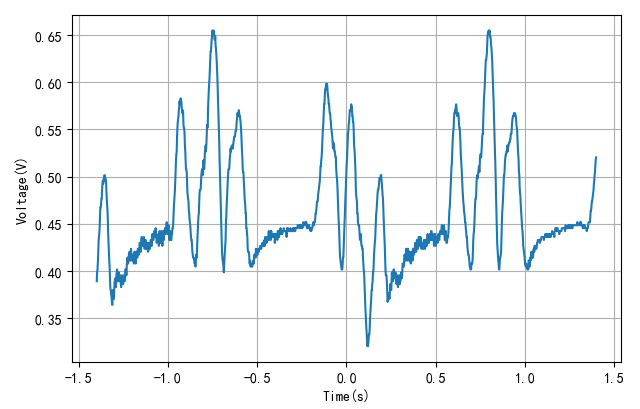

使用DS6104数字示波器采集RCWL-9196的PIN16波形进行分析。下图使用采集模式为High Resolution模式,获得的采集到的电压波形。

x=[-1.4000,-1.3980,-1.3960,-1.3940,-1.3920,-1.3900,-1.3880,-1.3860,-1.3840,-1.3820,-1.3800,-1.3780,-1.3760,-1.3740,-1.3720,-1.3700,-1.3680,-1.3660,-1.3640,-1.3620,-1.3600,-1.3580,-1.3560,-1.3540,-1.3520,-1.3500,-1.3480,-1.3460,-1.3440,-1.3420,-1.3400,-1.3380,-1.3360,-1.3340,-1.3320,-1.3299,-1.3279,-1.3259,-1.3239,-1.3219,-1.3199,-1.3179,-1.3159,-1.3139,-1.3119,-1.3099,-1.3079,-1.3059,-1.3039,-1.3019,-1.2999,-1.2979,-1.2959,-1.2939,-1.2919,-1.2899,-1.2879,-1.2859,-1.2839,-1.2819,-1.2799,-1.2779,-1.2759,-1.2739,-1.2719,-1.2699,-1.2679,-1.2659,-1.2639,-1.2619,-1.2599,-1.2579,-1.2559,-1.2539,-1.2519,-1.2499,-1.2479,-1.2459,-1.2439,-1.2419,-1.2399,-1.2379,-1.2359,-1.2339,-1.2319,-1.2299,-1.2279,-1.2259,-1.2239,-1.2219,-1.2199,-1.2179,-1.2159,-1.2139,-1.2119,-1.2099,-1.2079,-1.2059,-1.2039,-1.2019,-1.1999,-1.1979,-1.1959,-1.1939,-1.1919,-1.1898,-1.1878,-1.1858,-1.1838,-1.1818,-1.1798,-1.1778,-1.1758,-1.1738,-1.1718,-1.1698,-1.1678,-1.1658,-1.1638,-1.1618,-1.1598,-1.1578,-1.1558,-1.1538,-1.1518,-1.1498,-1.1478,-1.1458,-1.1438,-1.1418,-1.1398,-1.1378,-1.1358,-1.1338,-1.1318,-1.1298,-1.1278,-1.1258,-1.1238,-1.1218,-1.1198,-1.1178,-1.1158,-1.1138,-1.1118,-1.1098,-1.1078,-1.1058,-1.1038,-1.1018,-1.0998,-1.0978,-1.0958,-1.0938,-1.0918,-1.0898,-1.0878,-1.0858,-1.0838,-1.0818,-1.0798,-1.0778,-1.0758,-1.0738,-1.0718,-1.0698,-1.0678,-1.0658,-1.0638,-1.0618,-1.0598,-1.0578,-1.0558,-1.0538,-1.0518,-1.0497,-1.0477,-1.0457,-1.0437,-1.0417,-1.0397,-1.0377,-1.0357,-1.0337,-1.0317,-1.0297,-1.0277,-1.0257,-1.0237,-1.0217,-1.0197,-1.0177,-1.0157,-1.0137,-1.0117,-1.0097,-1.0077,-1.0057,-1.0037,-1.0017,-0.9997,-0.9977,-0.9957,-0.9937,-0.9917,-0.9897,-0.9877,-0.9857,-0.9837,-0.9817,-0.9797,-0.9777,-0.9757,-0.9737,-0.9717,-0.9697,-0.9677,-0.9657,-0.9637,-0.9617,-0.9597,-0.9577,-0.9557,-0.9537,-0.9517,-0.9497,-0.9477,-0.9457,-0.9437,-0.9417,-0.9397,-0.9377,-0.9357,-0.9337,-0.9317,-0.9297,-0.9277,-0.9257,-0.9237,-0.9217,-0.9197,-0.9177,-0.9157,-0.9137,-0.9117,-0.9096,-0.9076,-0.9056,-0.9036,-0.9016,-0.8996,-0.8976,-0.8956,-0.8936,-0.8916,-0.8896,-0.8876,-0.8856,-0.8836,-0.8816,-0.8796,-0.8776,-0.8756,-0.8736,-0.8716,-0.8696,-0.8676,-0.8656,-0.8636,-0.8616,-0.8596,-0.8576,-0.8556,-0.8536,-0.8516,-0.8496,-0.8476,-0.8456,-0.8436,-0.8416,-0.8396,-0.8376,-0.8356,-0.8336,-0.8316,-0.8296,-0.8276,-0.8256,-0.8236,-0.8216,-0.8196,-0.8176,-0.8156,-0.8136,-0.8116,-0.8096,-0.8076,-0.8056,-0.8036,-0.8016,-0.7996,-0.7976,-0.7956,-0.7936,-0.7916,-0.7896,-0.7876,-0.7856,-0.7836,-0.7816,-0.7796,-0.7776,-0.7756,-0.7736,-0.7716,-0.7695,-0.7675,-0.7655,-0.7635,-0.7615,-0.7595,-0.7575,-0.7555,-0.7535,-0.7515,-0.7495,-0.7475,-0.7455,-0.7435,-0.7415,-0.7395,-0.7375,-0.7355,-0.7335,-0.7315,-0.7295,-0.7275,-0.7255,-0.7235,-0.7215,-0.7195,-0.7175,-0.7155,-0.7135,-0.7115,-0.7095,-0.7075,-0.7055,-0.7035,-0.7015,-0.6995,-0.6975,-0.6955,-0.6935,-0.6915,-0.6895,-0.6875,-0.6855,-0.6835,-0.6815,-0.6795,-0.6775,-0.6755,-0.6735,-0.6715,-0.6695,-0.6675,-0.6655,-0.6635,-0.6615,-0.6595,-0.6575,-0.6555,-0.6535,-0.6515,-0.6495,-0.6475,-0.6455,-0.6435,-0.6415,-0.6395,-0.6375,-0.6355,-0.6335,-0.6315,-0.6294,-0.6274,-0.6254,-0.6234,-0.6214,-0.6194,-0.6174,-0.6154,-0.6134,-0.6114,-0.6094,-0.6074,-0.6054,-0.6034,-0.6014,-0.5994,-0.5974,-0.5954,-0.5934,-0.5914,-0.5894,-0.5874,-0.5854,-0.5834,-0.5814,-0.5794,-0.5774,-0.5754,-0.5734,-0.5714,-0.5694,-0.5674,-0.5654,-0.5634,-0.5614,-0.5594,-0.5574,-0.5554,-0.5534,-0.5514,-0.5494,-0.5474,-0.5454,-0.5434,-0.5414,-0.5394,-0.5374,-0.5354,-0.5334,-0.5314,-0.5294,-0.5274,-0.5254,-0.5234,-0.5214,-0.5194,-0.5174,-0.5154,-0.5134,-0.5114,-0.5094,-0.5074,-0.5054,-0.5034,-0.5014,-0.4994,-0.4974,-0.4954,-0.4934,-0.4914,-0.4893,-0.4873,-0.4853,-0.4833,-0.4813,-0.4793,-0.4773,-0.4753,-0.4733,-0.4713,-0.4693,-0.4673,-0.4653,-0.4633,-0.4613,-0.4593,-0.4573,-0.4553,-0.4533,-0.4513,-0.4493,-0.4473,-0.4453,-0.4433,-0.4413,-0.4393,-0.4373,-0.4353,-0.4333,-0.4313,-0.4293,-0.4273,-0.4253,-0.4233,-0.4213,-0.4193,-0.4173,-0.4153,-0.4133,-0.4113,-0.4093,-0.4073,-0.4053,-0.4033,-0.4013,-0.3993,-0.3973,-0.3953,-0.3933,-0.3913,-0.3893,-0.3873,-0.3853,-0.3833,-0.3813,-0.3793,-0.3773,-0.3753,-0.3733,-0.3713,-0.3693,-0.3673,-0.3653,-0.3633,-0.3613,-0.3593,-0.3573,-0.3553,-0.3533,-0.3513,-0.3492,-0.3472,-0.3452,-0.3432,-0.3412,-0.3392,-0.3372,-0.3352,-0.3332,-0.3312,-0.3292,-0.3272,-0.3252,-0.3232,-0.3212,-0.3192,-0.3172,-0.3152,-0.3132,-0.3112,-0.3092,-0.3072,-0.3052,-0.3032,-0.3012,-0.2992,-0.2972,-0.2952,-0.2932,-0.2912,-0.2892,-0.2872,-0.2852,-0.2832,-0.2812,-0.2792,-0.2772,-0.2752,-0.2732,-0.2712,-0.2692,-0.2672,-0.2652,-0.2632,-0.2612,-0.2592,-0.2572,-0.2552,-0.2532,-0.2512,-0.2492,-0.2472,-0.2452,-0.2432,-0.2412,-0.2392,-0.2372,-0.2352,-0.2332,-0.2312,-0.2292,-0.2272,-0.2252,-0.2232,-0.2212,-0.2192,-0.2172,-0.2152,-0.2132,-0.2112,-0.2091,-0.2071,-0.2051,-0.2031,-0.2011,-0.1991,-0.1971,-0.1951,-0.1931,-0.1911,-0.1891,-0.1871,-0.1851,-0.1831,-0.1811,-0.1791,-0.1771,-0.1751,-0.1731,-0.1711,-0.1691,-0.1671,-0.1651,-0.1631,-0.1611,-0.1591,-0.1571,-0.1551,-0.1531,-0.1511,-0.1491,-0.1471,-0.1451,-0.1431,-0.1411,-0.1391,-0.1371,-0.1351,-0.1331,-0.1311,-0.1291,-0.1271,-0.1251,-0.1231,-0.1211,-0.1191,-0.1171,-0.1151,-0.1131,-0.1111,-0.1091,-0.1071,-0.1051,-0.1031,-0.1011,-0.0991,-0.0971,-0.0951,-0.0931,-0.0911,-0.0891,-0.0871,-0.0851,-0.0831,-0.0811,-0.0791,-0.0771,-0.0751,-0.0731,-0.0711,-0.0690,-0.0670,-0.0650,-0.0630,-0.0610,-0.0590,-0.0570,-0.0550,-0.0530,-0.0510,-0.0490,-0.0470,-0.0450,-0.0430,-0.0410,-0.0390,-0.0370,-0.0350,-0.0330,-0.0310,-0.0290,-0.0270,-0.0250,-0.0230,-0.0210,-0.0190,-0.0170,-0.0150,-0.0130,-0.0110,-0.0090,-0.0070,-0.0050,-0.0030,-0.0010,0.0010,0.0030,0.0050,0.0070,0.0090,0.0110,0.0130,0.0150,0.0170,0.0190,0.0210,0.0230,0.0250,0.0270,0.0290,0.0310,0.0330,0.0350,0.0370,0.0390,0.0410,0.0430,0.0450,0.0470,0.0490,0.0510,0.0530,0.0550,0.0570,0.0590,0.0610,0.0630,0.0650,0.0670,0.0690,0.0711,0.0731,0.0751,0.0771,0.0791,0.0811,0.0831,0.0851,0.0871,0.0891,0.0911,0.0931,0.0951,0.0971,0.0991,0.1011,0.1031,0.1051,0.1071,0.1091,0.1111,0.1131,0.1151,0.1171,0.1191,0.1211,0.1231,0.1251,0.1271,0.1291,0.1311,0.1331,0.1351,0.1371,0.1391,0.1411,0.1431,0.1451,0.1471,0.1491,0.1511,0.1531,0.1551,0.1571,0.1591,0.1611,0.1631,0.1651,0.1671,0.1691,0.1711,0.1731,0.1751,0.1771,0.1791,0.1811,0.1831,0.1851,0.1871,0.1891,0.1911,0.1931,0.1951,0.1971,0.1991,0.2011,0.2031,0.2051,0.2071,0.2091,0.2112,0.2132,0.2152,0.2172,0.2192,0.2212,0.2232,0.2252,0.2272,0.2292,0.2312,0.2332,0.2352,0.2372,0.2392,0.2412,0.2432,0.2452,0.2472,0.2492,0.2512,0.2532,0.2552,0.2572,0.2592,0.2612,0.2632,0.2652,0.2672,0.2692,0.2712,0.2732,0.2752,0.2772,0.2792,0.2812,0.2832,0.2852,0.2872,0.2892,0.2912,0.2932,0.2952,0.2972,0.2992,0.3012,0.3032,0.3052,0.3072,0.3092,0.3112,0.3132,0.3152,0.3172,0.3192,0.3212,0.3232,0.3252,0.3272,0.3292,0.3312,0.3332,0.3352,0.3372,0.3392,0.3412,0.3432,0.3452,0.3472,0.3492,0.3513,0.3533,0.3553,0.3573,0.3593,0.3613,0.3633,0.3653,0.3673,0.3693,0.3713,0.3733,0.3753,0.3773,0.3793,0.3813,0.3833,0.3853,0.3873,0.3893,0.3913,0.3933,0.3953,0.3973,0.3993,0.4013,0.4033,0.4053,0.4073,0.4093,0.4113,0.4133,0.4153,0.4173,0.4193,0.4213,0.4233,0.4253,0.4273,0.4293,0.4313,0.4333,0.4353,0.4373,0.4393,0.4413,0.4433,0.4453,0.4473,0.4493,0.4513,0.4533,0.4553,0.4573,0.4593,0.4613,0.4633,0.4653,0.4673,0.4693,0.4713,0.4733,0.4753,0.4773,0.4793,0.4813,0.4833,0.4853,0.4873,0.4893,0.4914,0.4934,0.4954,0.4974,0.4994,0.5014,0.5034,0.5054,0.5074,0.5094,0.5114,0.5134,0.5154,0.5174,0.5194,0.5214,0.5234,0.5254,0.5274,0.5294,0.5314,0.5334,0.5354,0.5374,0.5394,0.5414,0.5434,0.5454,0.5474,0.5494,0.5514,0.5534,0.5554,0.5574,0.5594,0.5614,0.5634,0.5654,0.5674,0.5694,0.5714,0.5734,0.5754,0.5774,0.5794,0.5814,0.5834,0.5854,0.5874,0.5894,0.5914,0.5934,0.5954,0.5974,0.5994,0.6014,0.6034,0.6054,0.6074,0.6094,0.6114,0.6134,0.6154,0.6174,0.6194,0.6214,0.6234,0.6254,0.6274,0.6294,0.6315,0.6335,0.6355,0.6375,0.6395,0.6415,0.6435,0.6455,0.6475,0.6495,0.6515,0.6535,0.6555,0.6575,0.6595,0.6615,0.6635,0.6655,0.6675,0.6695,0.6715,0.6735,0.6755,0.6775,0.6795,0.6815,0.6835,0.6855,0.6875,0.6895,0.6915,0.6935,0.6955,0.6975,0.6995,0.7015,0.7035,0.7055,0.7075,0.7095,0.7115,0.7135,0.7155,0.7175,0.7195,0.7215,0.7235,0.7255,0.7275,0.7295,0.7315,0.7335,0.7355,0.7375,0.7395,0.7415,0.7435,0.7455,0.7475,0.7495,0.7515,0.7535,0.7555,0.7575,0.7595,0.7615,0.7635,0.7655,0.7675,0.7695,0.7716,0.7736,0.7756,0.7776,0.7796,0.7816,0.7836,0.7856,0.7876,0.7896,0.7916,0.7936,0.7956,0.7976,0.7996,0.8016,0.8036,0.8056,0.8076,0.8096,0.8116,0.8136,0.8156,0.8176,0.8196,0.8216,0.8236,0.8256,0.8276,0.8296,0.8316,0.8336,0.8356,0.8376,0.8396,0.8416,0.8436,0.8456,0.8476,0.8496,0.8516,0.8536,0.8556,0.8576,0.8596,0.8616,0.8636,0.8656,0.8676,0.8696,0.8716,0.8736,0.8756,0.8776,0.8796,0.8816,0.8836,0.8856,0.8876,0.8896,0.8916,0.8936,0.8956,0.8976,0.8996,0.9016,0.9036,0.9056,0.9076,0.9096,0.9117,0.9137,0.9157,0.9177,0.9197,0.9217,0.9237,0.9257,0.9277,0.9297,0.9317,0.9337,0.9357,0.9377,0.9397,0.9417,0.9437,0.9457,0.9477,0.9497,0.9517,0.9537,0.9557,0.9577,0.9597,0.9617,0.9637,0.9657,0.9677,0.9697,0.9717,0.9737,0.9757,0.9777,0.9797,0.9817,0.9837,0.9857,0.9877,0.9897,0.9917,0.9937,0.9957,0.9977,0.9997,1.0017,1.0037,1.0057,1.0077,1.0097,1.0117,1.0137,1.0157,1.0177,1.0197,1.0217,1.0237,1.0257,1.0277,1.0297,1.0317,1.0337,1.0357,1.0377,1.0397,1.0417,1.0437,1.0457,1.0477,1.0497,1.0518,1.0538,1.0558,1.0578,1.0598,1.0618,1.0638,1.0658,1.0678,1.0698,1.0718,1.0738,1.0758,1.0778,1.0798,1.0818,1.0838,1.0858,1.0878,1.0898,1.0918,1.0938,1.0958,1.0978,1.0998,1.1018,1.1038,1.1058,1.1078,1.1098,1.1118,1.1138,1.1158,1.1178,1.1198,1.1218,1.1238,1.1258,1.1278,1.1298,1.1318,1.1338,1.1358,1.1378,1.1398,1.1418,1.1438,1.1458,1.1478,1.1498,1.1518,1.1538,1.1558,1.1578,1.1598,1.1618,1.1638,1.1658,1.1678,1.1698,1.1718,1.1738,1.1758,1.1778,1.1798,1.1818,1.1838,1.1858,1.1878,1.1898,1.1919,1.1939,1.1959,1.1979,1.1999,1.2019,1.2039,1.2059,1.2079,1.2099,1.2119,1.2139,1.2159,1.2179,1.2199,1.2219,1.2239,1.2259,1.2279,1.2299,1.2319,1.2339,1.2359,1.2379,1.2399,1.2419,1.2439,1.2459,1.2479,1.2499,1.2519,1.2539,1.2559,1.2579,1.2599,1.2619,1.2639,1.2659,1.2679,1.2699,1.2719,1.2739,1.2759,1.2779,1.2799,1.2819,1.2839,1.2859,1.2879,1.2899,1.2919,1.2939,1.2959,1.2979,1.2999,1.3019,1.3039,1.3059,1.3079,1.3099,1.3119,1.3139,1.3159,1.3179,1.3199,1.3219,1.3239,1.3259,1.3279,1.3299,1.3320,1.3340,1.3360,1.3380,1.3400,1.3420,1.3440,1.3460,1.3480,1.3500,1.3520,1.3540,1.3560,1.3580,1.3600,1.3620,1.3640,1.3660,1.3680,1.3700,1.3720,1.3740,1.3760,1.3780,1.3800,1.3820,1.3840,1.3860,1.3880,1.3900,1.3920,1.3940,1.3960,1.3980,1.4000]
y=[0.3891,0.3985,0.4016,0.4079,0.4173,0.4298,0.4360,0.4391,0.4454,0.4579,0.4673,0.4673,0.4704,0.4766,0.4766,0.4860,0.4923,0.4954,0.4923,0.4954,0.4985,0.4985,0.5016,0.4954,0.4985,0.4954,0.4954,0.4860,0.4766,0.4704,0.4641,0.4548,0.4391,0.4298,0.4204,0.4110,0.4048,0.3923,0.3829,0.3798,0.3766,0.3735,0.3704,0.3641,0.3641,0.3798,0.3735,0.3766,0.3704,0.3798,0.3891,0.3891,0.3923,0.3891,0.3829,0.3954,0.3985,0.4016,0.3891,0.3891,0.3954,0.3985,0.3985,0.3891,0.3891,0.3923,0.3954,0.3891,0.3829,0.3860,0.3891,0.3954,0.3891,0.3860,0.3860,0.3923,0.3954,0.3923,0.3891,0.3923,0.4016,0.4016,0.4016,0.3954,0.4048,0.4110,0.4141,0.4079,0.4079,0.4110,0.4173,0.4173,0.4204,0.4173,0.4110,0.4141,0.4235,0.4173,0.4141,0.4110,0.4141,0.4173,0.4141,0.4110,0.4079,0.4141,0.4204,0.4141,0.4110,0.4079,0.4173,0.4204,0.4204,0.4141,0.4141,0.4235,0.4235,0.4235,0.4173,0.4204,0.4298,0.4298,0.4266,0.4204,0.4266,0.4329,0.4360,0.4298,0.4266,0.4298,0.4329,0.4329,0.4360,0.4298,0.4235,0.4266,0.4329,0.4329,0.4235,0.4235,0.4235,0.4298,0.4298,0.4235,0.4204,0.4235,0.4298,0.4266,0.4235,0.4235,0.4298,0.4329,0.4329,0.4266,0.4266,0.4360,0.4391,0.4329,0.4329,0.4329,0.4391,0.4423,0.4423,0.4360,0.4360,0.4454,0.4423,0.4360,0.4298,0.4329,0.4360,0.4360,0.4360,0.4391,0.4266,0.4329,0.4423,0.4360,0.4298,0.4298,0.4391,0.4423,0.4391,0.4329,0.4266,0.4391,0.4423,0.4423,0.4329,0.4391,0.4423,0.4454,0.4423,0.4391,0.4423,0.4485,0.4516,0.4485,0.4423,0.4391,0.4454,0.4485,0.4423,0.4329,0.4360,0.4423,0.4423,0.4329,0.4329,0.4329,0.4391,0.4391,0.4454,0.4454,0.4485,0.4579,0.4673,0.4735,0.4798,0.4860,0.4954,0.5079,0.5172,0.5235,0.5266,0.5423,0.5516,0.5579,0.5610,0.5641,0.5704,0.5735,0.5797,0.5766,0.5766,0.5829,0.5797,0.5797,0.5735,0.5704,0.5673,0.5704,0.5673,0.5548,0.5516,0.5516,0.5454,0.5329,0.5266,0.5172,0.5079,0.5079,0.5048,0.4954,0.4829,0.4798,0.4766,0.4735,0.4641,0.4610,0.4548,0.4516,0.4485,0.4423,0.4360,0.4329,0.4329,0.4266,0.4204,0.4173,0.4141,0.4141,0.4141,0.4110,0.4079,0.4079,0.4048,0.4048,0.4110,0.4173,0.4141,0.4235,0.4329,0.4423,0.4516,0.4579,0.4610,0.4735,0.4829,0.4860,0.4860,0.4860,0.4923,0.5016,0.5048,0.5079,0.5016,0.5016,0.5110,0.5172,0.5141,0.5079,0.5141,0.5266,0.5266,0.5329,0.5266,0.5329,0.5423,0.5548,0.5516,0.5548,0.5735,0.5829,0.5923,0.5985,0.6048,0.6141,0.6235,0.6329,0.6329,0.6391,0.6454,0.6485,0.6548,0.6516,0.6548,0.6548,0.6548,0.6516,0.6454,0.6454,0.6485,0.6391,0.6360,0.6298,0.6235,0.6141,0.6048,0.5923,0.5797,0.5673,0.5548,0.5391,0.5204,0.5079,0.4923,0.4766,0.4610,0.4454,0.4329,0.4204,0.4141,0.4110,0.4079,0.4048,0.3985,0.4048,0.4141,0.4204,0.4266,0.4329,0.4516,0.4579,0.4704,0.4766,0.4860,0.4954,0.5016,0.5079,0.5079,0.5079,0.5141,0.5204,0.5235,0.5298,0.5266,0.5298,0.5329,0.5329,0.5329,0.5298,0.5329,0.5360,0.5391,0.5423,0.5423,0.5423,0.5454,0.5485,0.5485,0.5516,0.5579,0.5610,0.5673,0.5673,0.5641,0.5673,0.5704,0.5673,0.5641,0.5641,0.5610,0.5579,0.5516,0.5454,0.5360,0.5266,0.5204,0.5079,0.5048,0.5048,0.4954,0.4891,0.4798,0.4735,0.4704,0.4610,0.4610,0.4454,0.4454,0.4391,0.4360,0.4235,0.4204,0.4204,0.4204,0.4173,0.4079,0.4079,0.4110,0.4048,0.4079,0.4048,0.4048,0.4048,0.4048,0.4079,0.4079,0.4110,0.4079,0.4173,0.4173,0.4173,0.4173,0.4141,0.4235,0.4173,0.4204,0.4173,0.4173,0.4173,0.4235,0.4235,0.4204,0.4235,0.4235,0.4235,0.4266,0.4235,0.4235,0.4235,0.4266,0.4266,0.4298,0.4298,0.4266,0.4266,0.4298,0.4266,0.4329,0.4266,0.4360,0.4298,0.4298,0.4329,0.4298,0.4360,0.4360,0.4360,0.4329,0.4360,0.4423,0.4329,0.4360,0.4360,0.4360,0.4423,0.4329,0.4423,0.4360,0.4360,0.4360,0.4391,0.4360,0.4391,0.4360,0.4360,0.4391,0.4298,0.4360,0.4360,0.4391,0.4360,0.4391,0.4391,0.4329,0.4423,0.4423,0.4391,0.4360,0.4360,0.4423,0.4423,0.4391,0.4454,0.4391,0.4423,0.4423,0.4391,0.4391,0.4423,0.4423,0.4423,0.4454,0.4423,0.4423,0.4423,0.4423,0.4423,0.4423,0.4423,0.4360,0.4454,0.4423,0.4423,0.4454,0.4423,0.4423,0.4423,0.4423,0.4423,0.4423,0.4454,0.4423,0.4423,0.4423,0.4423,0.4423,0.4423,0.4454,0.4423,0.4423,0.4454,0.4454,0.4454,0.4423,0.4454,0.4454,0.4454,0.4454,0.4454,0.4454,0.4485,0.4485,0.4485,0.4485,0.4485,0.4454,0.4485,0.4454,0.4454,0.4485,0.4485,0.4485,0.4485,0.4454,0.4485,0.4485,0.4516,0.4485,0.4485,0.4485,0.4485,0.4516,0.4516,0.4485,0.4516,0.4485,0.4454,0.4485,0.4454,0.4454,0.4485,0.4454,0.4485,0.4454,0.4454,0.4454,0.4423,0.4454,0.4423,0.4454,0.4454,0.4454,0.4485,0.4485,0.4516,0.4485,0.4516,0.4516,0.4516,0.4548,0.4610,0.4610,0.4641,0.4673,0.4735,0.4735,0.4735,0.4798,0.4829,0.4860,0.4891,0.4923,0.4954,0.5016,0.5110,0.5110,0.5172,0.5204,0.5266,0.5360,0.5454,0.5516,0.5579,0.5673,0.5766,0.5766,0.5860,0.5923,0.5923,0.5954,0.5985,0.5985,0.5985,0.5954,0.5891,0.5860,0.5829,0.5766,0.5766,0.5704,0.5673,0.5673,0.5610,0.5579,0.5516,0.5485,0.5454,0.5423,0.5360,0.5298,0.5360,0.5329,0.5329,0.5266,0.5266,0.5235,0.5204,0.5204,0.5079,0.5016,0.4985,0.4923,0.4829,0.4704,0.4610,0.4516,0.4454,0.4329,0.4204,0.4141,0.4110,0.4079,0.4048,0.4016,0.4016,0.4016,0.4079,0.4141,0.4141,0.4266,0.4360,0.4485,0.4579,0.4704,0.4798,0.4891,0.5016,0.5110,0.5172,0.5266,0.5360,0.5454,0.5485,0.5548,0.5579,0.5641,0.5704,0.5704,0.5704,0.5704,0.5766,0.5735,0.5735,0.5641,0.5641,0.5579,0.5579,0.5485,0.5329,0.5298,0.5235,0.5141,0.5048,0.4860,0.4798,0.4766,0.4735,0.4610,0.4610,0.4516,0.4485,0.4485,0.4485,0.4423,0.4360,0.4329,0.4360,0.4391,0.4298,0.4266,0.4266,0.4235,0.4235,0.4141,0.4079,0.4016,0.3985,0.3891,0.3766,0.3673,0.3579,0.3516,0.3422,0.3360,0.3298,0.3204,0.3235,0.3204,0.3235,0.3298,0.3329,0.3329,0.3422,0.3516,0.3579,0.3641,0.3704,0.3798,0.3798,0.3860,0.3891,0.3985,0.3985,0.4079,0.4173,0.4235,0.4298,0.4329,0.4423,0.4516,0.4610,0.4641,0.4704,0.4766,0.4829,0.4860,0.4860,0.4891,0.4923,0.4985,0.4985,0.4985,0.4985,0.5016,0.5016,0.4954,0.4923,0.4860,0.4798,0.4766,0.4641,0.4548,0.4454,0.4360,0.4266,0.4141,0.4016,0.3954,0.3954,0.3954,0.3860,0.3766,0.3673,0.3704,0.3766,0.3735,0.3735,0.3704,0.3735,0.3860,0.3860,0.3829,0.3798,0.3891,0.3985,0.3954,0.3923,0.3891,0.3954,0.4016,0.3985,0.3923,0.3923,0.3954,0.3985,0.3954,0.3891,0.3860,0.3891,0.3954,0.3923,0.3829,0.3860,0.3923,0.3954,0.3923,0.3860,0.3891,0.3891,0.3954,0.3985,0.3954,0.3923,0.3985,0.4079,0.4079,0.4048,0.4048,0.4079,0.4173,0.4173,0.4141,0.4110,0.4173,0.4235,0.4204,0.4173,0.4110,0.4204,0.4235,0.4204,0.4141,0.4110,0.4173,0.4204,0.4173,0.4110,0.4079,0.4173,0.4204,0.4173,0.4141,0.4110,0.4235,0.4235,0.4235,0.4173,0.4204,0.4204,0.4298,0.4298,0.4235,0.4204,0.4235,0.4329,0.4329,0.4298,0.4235,0.4298,0.4360,0.4360,0.4298,0.4266,0.4298,0.4360,0.4329,0.4266,0.4235,0.4266,0.4298,0.4298,0.4235,0.4235,0.4266,0.4329,0.4298,0.4235,0.4235,0.4266,0.4329,0.4298,0.4266,0.4266,0.4329,0.4391,0.4329,0.4298,0.4298,0.4298,0.4360,0.4391,0.4360,0.4329,0.4329,0.4423,0.4423,0.4360,0.4329,0.4329,0.4391,0.4360,0.4329,0.4266,0.4329,0.4391,0.4391,0.4329,0.4266,0.4329,0.4360,0.4360,0.4329,0.4298,0.4329,0.4391,0.4391,0.4329,0.4329,0.4391,0.4423,0.4423,0.4391,0.4391,0.4454,0.4485,0.4454,0.4391,0.4391,0.4391,0.4454,0.4485,0.4423,0.4329,0.4329,0.4391,0.4423,0.4329,0.4298,0.4298,0.4329,0.4360,0.4360,0.4391,0.4454,0.4548,0.4641,0.4673,0.4735,0.4829,0.4923,0.5016,0.5110,0.5141,0.5266,0.5360,0.5423,0.5485,0.5516,0.5610,0.5673,0.5673,0.5704,0.5673,0.5735,0.5766,0.5735,0.5673,0.5641,0.5641,0.5673,0.5673,0.5641,0.5548,0.5516,0.5516,0.5454,0.5360,0.5235,0.5172,0.5110,0.5048,0.4954,0.4860,0.4798,0.4735,0.4704,0.4641,0.4610,0.4579,0.4516,0.4516,0.4454,0.4423,0.4360,0.4360,0.4298,0.4235,0.4204,0.4173,0.4173,0.4141,0.4110,0.4048,0.4048,0.4016,0.4016,0.4016,0.4079,0.4079,0.4079,0.4110,0.4204,0.4329,0.4391,0.4423,0.4485,0.4610,0.4704,0.4766,0.4766,0.4798,0.4923,0.4985,0.5016,0.4985,0.4985,0.5048,0.5079,0.5110,0.5048,0.5110,0.5204,0.5235,0.5235,0.5204,0.5266,0.5329,0.5423,0.5454,0.5454,0.5610,0.5704,0.5829,0.5891,0.5954,0.6048,0.6141,0.6235,0.6235,0.6266,0.6298,0.6391,0.6485,0.6516,0.6516,0.6548,0.6516,0.6548,0.6548,0.6485,0.6485,0.6454,0.6391,0.6360,0.6298,0.6235,0.6110,0.6016,0.5891,0.5797,0.5641,0.5516,0.5360,0.5235,0.5110,0.4923,0.4766,0.4610,0.4485,0.4298,0.4235,0.4173,0.4110,0.4079,0.4016,0.4016,0.4079,0.4141,0.4141,0.4173,0.4204,0.4360,0.4485,0.4610,0.4673,0.4735,0.4829,0.4923,0.5016,0.5016,0.5079,0.5172,0.5204,0.5235,0.5235,0.5266,0.5266,0.5329,0.5329,0.5266,0.5329,0.5329,0.5360,0.5360,0.5360,0.5391,0.5391,0.5454,0.5454,0.5454,0.5516,0.5579,0.5610,0.5641,0.5641,0.5641,0.5673,0.5673,0.5673,0.5673,0.5641,0.5641,0.5610,0.5548,0.5516,0.5485,0.5391,0.5298,0.5235,0.5172,0.5048,0.5016,0.4891,0.4829,0.4798,0.4704,0.4641,0.4579,0.4516,0.4454,0.4423,0.4360,0.4266,0.4235,0.4204,0.4173,0.4141,0.4079,0.4079,0.4048,0.4079,0.4048,0.4048,0.4048,0.4016,0.4048,0.4016,0.4110,0.4110,0.4079,0.4048,0.4141,0.4110,0.4110,0.4141,0.4204,0.4141,0.4141,0.4204,0.4141,0.4173,0.4235,0.4235,0.4204,0.4266,0.4235,0.4266,0.4235,0.4235,0.4235,0.4266,0.4298,0.4298,0.4329,0.4329,0.4329,0.4329,0.4329,0.4329,0.4298,0.4329,0.4329,0.4329,0.4360,0.4360,0.4360,0.4360,0.4360,0.4360,0.4360,0.4329,0.4360,0.4360,0.4360,0.4391,0.4360,0.4360,0.4391,0.4391,0.4360,0.4391,0.4391,0.4360,0.4391,0.4391,0.4391,0.4360,0.4391,0.4391,0.4360,0.4391,0.4391,0.4391,0.4423,0.4391,0.4391,0.4391,0.4391,0.4391,0.4360,0.4423,0.4423,0.4454,0.4454,0.4454,0.4423,0.4423,0.4454,0.4454,0.4423,0.4423,0.4423,0.4423,0.4391,0.4423,0.4423,0.4423,0.4423,0.4423,0.4423,0.4454,0.4454,0.4454,0.4454,0.4454,0.4454,0.4454,0.4454,0.4454,0.4423,0.4454,0.4485,0.4454,0.4454,0.4454,0.4454,0.4454,0.4454,0.4485,0.4454,0.4485,0.4485,0.4454,0.4485,0.4454,0.4485,0.4454,0.4485,0.4485,0.4454,0.4454,0.4485,0.4485,0.4485,0.4485,0.4485,0.4485,0.4485,0.4485,0.4485,0.4485,0.4485,0.4485,0.4516,0.4516,0.4485,0.4485,0.4485,0.4485,0.4485,0.4485,0.4516,0.4485,0.4485,0.4516,0.4485,0.4485,0.4485,0.4485,0.4454,0.4485,0.4485,0.4454,0.4485,0.4485,0.4454,0.4454,0.4454,0.4454,0.4454,0.4423,0.4454,0.4454,0.4454,0.4485,0.4516,0.4516,0.4516,0.4516,0.4516,0.4579,0.4641,0.4641,0.4673,0.4735,0.4735,0.4766,0.4798,0.4829,0.4860,0.4923,0.4954,0.5016,0.5048,0.5110,0.5172,0.5204]

▲ 舵机带动覆铜板前后摆动

▲ 舵机带动覆铜板前后摆动

▲ 舵机带动覆铜板前后摆动

▲ 舵机带动覆铜板前后摆动



※ 结论


通过对于购买到的RCWL-0516微波感应开关电路进行初步分析,根据网站一些资料,可以基本获得该模块的工作特性以及内部工作信号。

通过对RCWL-9196的管脚16信号的测量,可以获得微波信号进一步的包含运动物体丰富信息的信号。关于这方面的进一步应用,可以今后展开。
