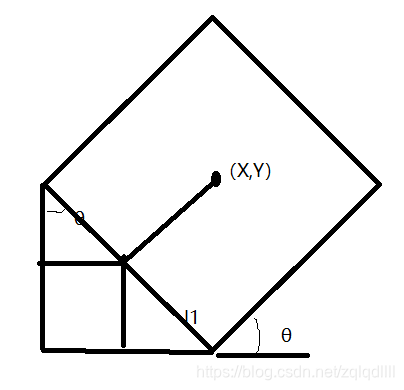

已知矩形的中心、半长及旋转角度，求四个顶点坐标

*Initialize the variable for coordinate of vertexes of rectangle2

VertexesY:=[]

VertexesX:=[]

*Initialize the temperary variables

RowTem:=0

ColTem:=0

*Judge the rectangle if it is available

if(Len1<0 or Len2<0)

    return()

endif

*Compute the sine and cosine of tuple Phi

tuple_cos(Phi,Cos)

tuple_sin(Phi,Sin)

*Compute the coordinate of the upper-right vertex of rectangle

RowTem:=CenterY-Len1*Sin-Len2*Cos

ColTem:=CenterX+Len1*Cos-Len2*Sin

VertexesY:=[VertexesY,RowTem]

VertexesX:=[VertexesX,ColTem]



*Compute the coordinate of the upper-left vertex of rectangle

RowTem:=CenterY+Len1*Sin-Len2*Cos

ColTem:=CenterX-Len1*Cos-Len2*Sin

VertexesY:=[VertexesY,RowTem]

VertexesX:=[VertexesX,ColTem]



*Compute the coordinate of the bottom-left vertex of rectangle

RowTem:=CenterY+Len1*Sin+Len2*Cos

ColTem:=CenterX-Len1*Cos+Len2*Sin

VertexesY:=[VertexesY,RowTem]

VertexesX:=[VertexesX,ColTem]



*Compute the coordinate of the bottom-right vertex of rectangle

RowTem:=CenterY-Len1*Sin+Len2*Cos

ColTem:=CenterX+Len1*Cos+Len2*Sin

VertexesY:=[VertexesY,RowTem]

VertexesX:=[VertexesX,ColTem]

return ()
