【SeNet模块学习】结合CIFAR-10任务学习

前置图像分类入门任务CIFAR-10图像分类：【图像分类入门】CIFAR-10图像分类-CSDN博客

1.训练模型（MyModel.py）

import torch
import torch.nn as nn


# 2.1 SENet模块
class SENet_Layer(nn.Module):  # SeNet模块
    def __init__(self, channel, reduction=16):  # 默认r为16
        super(SENet_Layer, self).__init__()
        self.avg_pool = nn.AdaptiveAvgPool2d(1)  # 自适应平均池化层，输出大小1*1
        self.fc = nn.Sequential(
            nn.Linear(channel, channel//reduction),
            nn.ReLU(),
            nn.Linear(channel//reduction, channel),
            nn.Sigmoid(),  # 将通道权重输出为0-1
        )

    def forward(self, x):
        b, c, _, _ = x.size()  # 输入的数据x为四维，提取批次数量和通道数c
        y = self.avg_pool(x).view(b, c)  # 经过池化层（挤压层）输出为b*c*1*1，展平为b*c以经过之后的全连接层(激励层)
        y = self.fc(y).view(b, c, 1, 1)  # 生成通道权重，输出恢复为原思维结构以供乘积
        return x * y.expand_as(x)  # 对应元素进行逐一相乘


# 2.2训练模型
class cifar10(nn.Module):
    def __init__(self):
        super(cifar10, self).__init__()
        # 初始维度3*32*32
        self.layer01 = nn.Sequential(
            nn.Conv2d(in_channels=3, out_channels=32, kernel_size=3, stride=1, padding=1, bias=True),  # (32-3+2)/1+1=32
            nn.BatchNorm2d(32),
            nn.ReLU(),
            nn.MaxPool2d(2),
        )  # 经过layer01维度变为32*16*16
        self.SEnet_layer01 = SENet_Layer(32)
        self.layer02 = nn.Sequential(
            nn.Conv2d(32, 128, kernel_size=3, stride=1, padding=1, bias=True),  # (16-3+2)/1+1=16
            nn.BatchNorm2d(128),
            nn.ReLU(),
            nn.MaxPool2d(2),
            # nn.Dropout(0.5),
        )  # 经过layer02维度变为128*8*8
        self.SEnet_layer02 = SENet_Layer(128)
        self.layer03 = nn.Sequential(
            nn.Conv2d(128, 64, kernel_size=3, stride=1, padding=1, bias=True),  # (8-3+2)/1+1=8
            nn.BatchNorm2d(64),
            nn.ReLU(),
            nn.MaxPool2d(2),
        )  # 经过layer0维度变为64*4*4
        self.SEnet_layer03 = SENet_Layer(64)
        self.fc = nn.Sequential(
            nn.Flatten(),

            nn.Linear(64*4*4, 256),
            nn.ReLU(),
            nn.Dropout(0.5),

            nn.Linear(256, 64),
            nn.ReLU(),
            nn.Linear(64, 10),
        )

    def forward(self, x):
        x = self.layer01(x)
        x = self.SEnet_layer01(x)
        x = self.layer02(x)
        x = self.SEnet_layer02(x)
        x = self.layer03(x)
        x = self.SEnet_layer03(x)
        x = self.fc(x)
        return x

 卷积层后添加基础se模块进行训练，最终训练结果特征图展平后进入全连接层。

2.正式训练

import torch
import torchvision.datasets as dataset
import torchvision.transforms as transforms
import torch.nn as nn
from torch.utils.data import DataLoader, random_split
import matplotlib.pyplot as plt
import time
from  MyModel import SENet_Layer, cifar10

total_start = time.time()

# 正式训练函数
def train_val(train_loader, val_loader, device, model, loss, optimizer, epochs, save_path):  # 正式训练函数
    model = model.to(device)

    plt_train_loss = []  # 训练过程loss值,存储每轮训练的均值
    plt_train_acc = []  # 训练过程acc值
    plt_val_loss = []  # 验证过程
    plt_val_acc = []
    max_acc = 0  # 以最大准确率来确定训练过程的最优模型

    for epoch in range(epochs):  # 开始训练
        train_loss = 0.0
        train_acc = 0.0
        val_acc = 0.0
        val_loss = 0.0

        start_time = time.time()
        model.train()
        for index, (images, labels) in enumerate(train_loader):
            images, labels = images.to(device), labels.to(device)

            optimizer.zero_grad()  # 梯度置0
            pred = model(images)
            bat_loss = loss(pred, labels)  # CrossEntropyLoss会对输入进行一次softmax
            bat_loss.backward()  # 回传梯度
            optimizer.step()  # 更新模型参数

            train_loss += bat_loss.item()
            # 注意此时的pred结果为64*10的张量
            pred = pred.argmax(dim=1)
            train_acc += (pred == labels).sum().item()
            print("当前为第{}轮训练，批次为{}/{}，该批次总loss:{} | acc数量:{}"
                  .format(epoch+1, index+1, len(train_data)//config["batch_size"],
                          bat_loss.item(), (pred == labels).sum().item()))

        # 计算当前Epoch的训练损失和准确率，并存储到对应列表中:
        plt_train_loss.append(train_loss / train_loader.dataset.__len__())
        plt_train_acc.append(train_acc / train_loader.dataset.__len__())

        model.eval()  # 模型调为验证模式
        with torch.no_grad():  # 验证过程不需要梯度回传，无需追踪grad
            for index, (images, labels) in enumerate(val_loader):
                images, labels = images.cuda(), labels.cuda()
                pred = model(images)
                bat_loss = loss(pred, labels)  # 算交叉熵loss
                val_loss += bat_loss.item()
                pred = pred.argmax(dim=1)
                val_acc += (pred == labels).sum().item()
                print("当前为第{}轮验证，批次为{}/{}，该批次总loss:{} | acc数量:{}"
                      .format(epoch+1, index+1, len(val_data)//config["batch_size"],
                              bat_loss.item(), (pred == labels).sum().item()))

        val_acc = val_acc / val_loader.dataset.__len__()
        if val_acc > max_acc:
            max_acc = val_acc
            torch.save(model, save_path)
        plt_val_loss.append(val_loss / val_loader.dataset.__len__())
        plt_val_acc.append(val_acc)

        print('该轮训练结束，训练结果如下[%03d/%03d] %2.2fsec(s) TrainAcc:%3.6f TrainLoss:%3.6f | valAcc:%3.6f valLoss:%3.6f \n\n'
              % (epoch+1, epochs, time.time()-start_time, plt_train_acc[-1], plt_train_loss[-1], plt_val_acc[-1], plt_val_loss[-1]))

    print(f'训练结束，最佳模型的准确率为{max_acc}')
    plt.plot(plt_train_loss)  # 画图
    plt.plot(plt_val_loss)
    plt.title('loss')
    plt.legend(['train', 'val'])
    plt.show()

    plt.plot(plt_train_acc)
    plt.plot(plt_val_acc)
    plt.title('Accuracy')
    plt.legend(['train', 'val'])
    # plt.savefig('./acc.png')
    plt.show()


# 1.数据预处理
transform = transforms.Compose([
    transforms.RandomHorizontalFlip(),  # 以 50% 的概率随机翻转输入的图像，增强模型的泛化能力
    transforms.RandomCrop(32, padding=4),  # 随机裁剪
    transforms.ToTensor(),
    transforms.Normalize((0.5, 0.5, 0.5), (0.5, 0.5, 0.5))  # 对图像张量进行归一化
])  # 数据增强
ori_data = dataset.CIFAR10(
    root="./Data_CIFAR10",
    train=True,
    transform=transform,
    download=True
)
print(f"各标签的真实含义：{ori_data.class_to_idx}\n")
# print(len(ori_data))
# # 查看某一样本数据
# image, label = ori_data[0]
# print(f"Image shape: {image.shape}, Label: {label}")
# image = image.permute(1, 2, 0).numpy()
# plt.imshow(image)
# plt.title(f'Label: {label}')
# plt.show()

config = {
    "train_size_perc": 0.8,
    "batch_size": 64,
    "learning_rate": 0.001,
    "epochs": 30,
    "save_path": "model_save/OptiBySenet_model.pth"
}

# 设置训练集和验证集的比例
train_size = int(config["train_size_perc"] * len(ori_data))  # 80%用于训练
val_size = len(ori_data) - train_size  # 20%用于验证
train_data, val_data = random_split(ori_data, [train_size, val_size])
# print(len(train_data))
# print(len(val_data))
train_loader = DataLoader(dataset=train_data, batch_size=config["batch_size"], shuffle=True)
val_loader = DataLoader(dataset=val_data, batch_size=config["batch_size"], shuffle=False)

model = cifar10()
print(f"我的模型框架如下：\n{model}")
loss = nn.CrossEntropyLoss()  # 交叉熵损失函数
optimizer = torch.optim.AdamW(model.parameters(), lr=config["learning_rate"], weight_decay=1e-3)  # L2正则化
# optimizer = torch.optim.Adam(model.parameters(), lr=config["learning_rate"])  # 优化器
device = "cuda" if torch.cuda.is_available() else "cpu"
print(device)

train_val(train_loader, val_loader, device, model, loss, optimizer, config["epochs"], config["save_path"])

print(f"\n本次训练总耗时为：{(time.time()-total_start) / 60 }min")

3.测试文件

from  MyModel import SENet_Layer, cifar10
import torch
import torchvision.datasets as dataset
import torchvision.transforms as transforms
import torch.nn as nn
from torch.utils.data import DataLoader, random_split
import matplotlib.pyplot as plt
import time

total_start = time.time()
# 测试函数
def test(save_path, test_loader, device, loss):  # 测试函数
    best_model = torch.load(save_path).to(device)
    test_loss = 0.0
    test_acc = 0.0
    start_time = time.time()

    best_model.eval()
    with torch.no_grad():
        for index, (images, labels) in enumerate(test_loader):
            images, labels = images.cuda(), labels.cuda()
            pred = best_model(images)
            bat_loss = loss(pred, labels)  # 算交叉熵loss
            test_loss += bat_loss.item()
            pred = pred.argmax(dim=1)
            test_acc += (pred == labels).sum().item()
            print("正在最终测试：批次为{}/{}，该批次总loss:{} | 正确acc数量:{}"
                  .format(index + 1, len(test_data) // config["batch_size"],
                          bat_loss.item(), (pred == labels).sum().item()))

    print('最终测试结束，测试结果如下：%2.2fsec(s) TestAcc:%.2f%%  TestLoss:%.2f \n\n'
          % (time.time() - start_time, test_acc/test_loader.dataset.__len__()*100, test_loss/test_loader.dataset.__len__()))


transform = transforms.Compose([
    transforms.RandomHorizontalFlip(),  # 以 50% 的概率随机翻转输入的图像，增强模型的泛化能力
    transforms.RandomCrop(32, padding=4),  # 随机裁剪
    transforms.ToTensor(),
    transforms.Normalize((0.5, 0.5, 0.5), (0.5, 0.5, 0.5))  # 对图像张量进行归一化
])  # 数据增强
test_data = dataset.CIFAR10(
    root="./Data_CIFAR10",
    train=False,
    transform=transform,
    download=True,
)
# print(len(test_data))  # torch.Size([3, 32, 32])
config = {
    "batch_size": 64,
    "save_path": "model_save/OptiBySenet_model.pth"
}
test_loader = DataLoader(dataset=test_data, batch_size=config["batch_size"], shuffle=False)

loss = nn.CrossEntropyLoss()  # 交叉熵损失函数
device = "cuda" if torch.cuda.is_available() else "cpu"
print(device)

test(config["save_path"], test_loader, device, loss)

print(f"\n本次训练总耗时为：{time.time()-total_start}sec(s)")

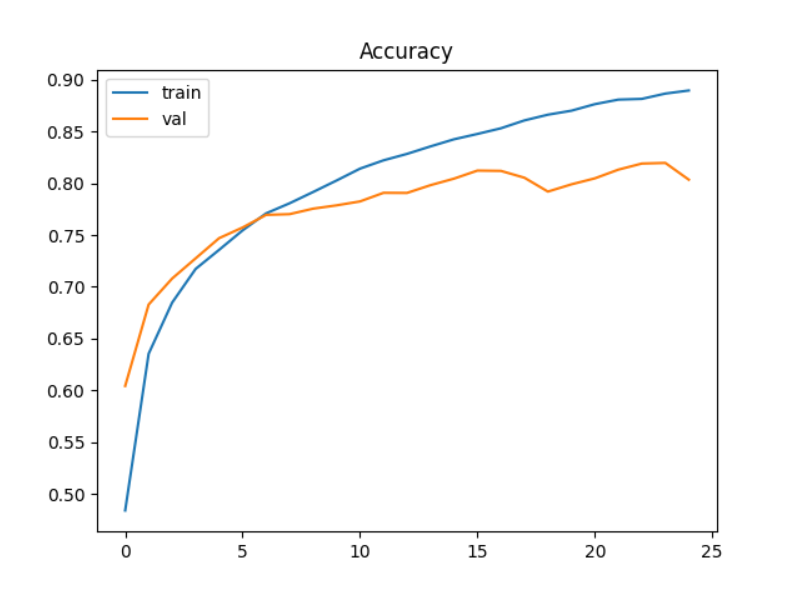

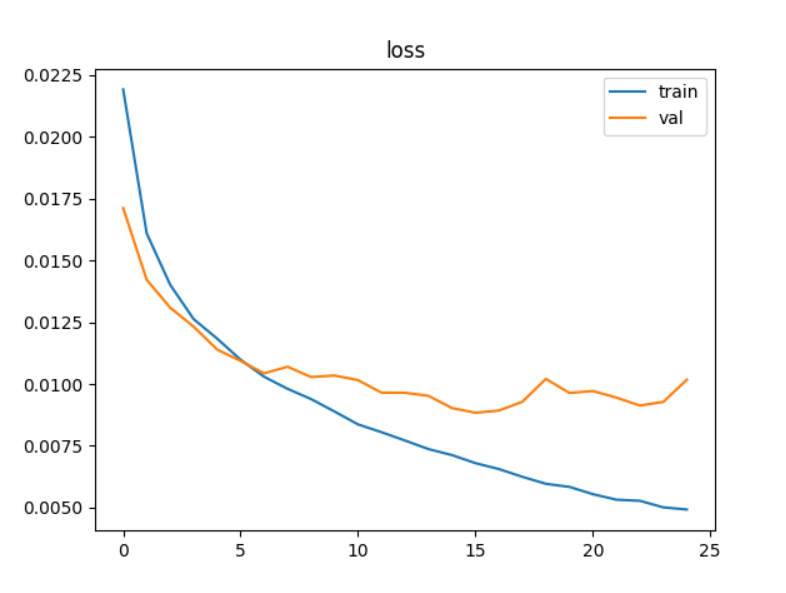

4.训练结果展示
