SQ 小车避障 Intel Realsense D435 基于线性梯度的深度值过滤

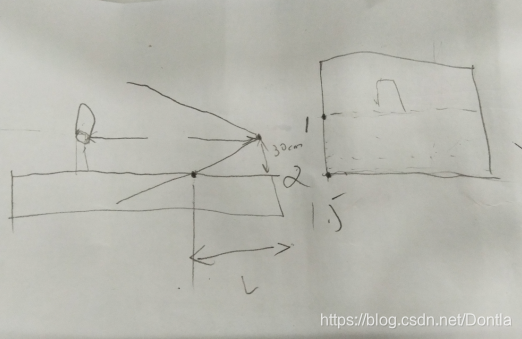

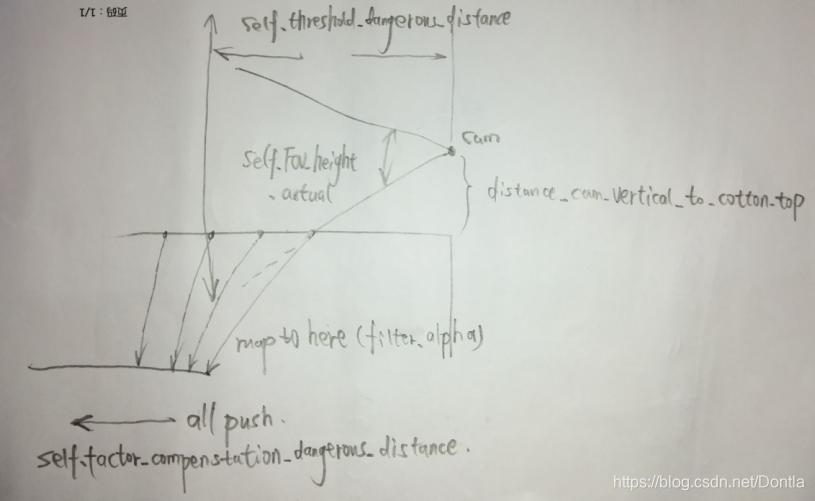

原理图

相关代码

# -*- coding: utf-8 -*-
"""
@File    : 191224_obstacle_detection_建立梯度.py
@Time    : 2019/12/24 14:51
@Author  : Dontla
@Email   : sxana@qq.com
@Software: PyCharm
"""

import time
import numpy as np
import pyrealsense2 as rs
import cv2
import sys
from numba import jit


# @jit
# 貌似开不了jit，不知啥原因，开了也没明显看到加速
def filter_alpha(depth_image, filter_alpha):
    if filter_alpha > 1:
        # 获取depth_image宽高
        h, w = depth_image.shape[0], depth_image.shape[1]  # 360,640

        # 创建上下alpha（不同方法都能创建）
        # filter_upper = np.array([1] * int(h / 2))
        filter_upper = np.full(int(h / 2), 1)
        filter_lower = np.linspace(1, filter_alpha, h / 2)

        # 将filter_upper和filter_lower连在一起
        filter = np.r_[filter_upper, filter_lower]

        # print(filter)
        # print(filter.shape) # (360,)

        # print(filter_alpha_upper)
        # print(filter_alpha_upper.shape)  # (180,)

        # print(filter_alpha_lower)
        # print(filter_alpha_lower.shape) # (180,)
        return (depth_image.T * filter).T
    else:
        return depth_image


# 如果要防止下面cotton过近被误探测,可用两层for循环设置梯度过滤
# 不过貌似还得中间对半分,下面直接舍弃掉,只用上面作为判断,因为就算下面用了梯度...(还是得用梯度...)
@jit
def traversing_pixels(depth_image, threshold_dangerous_distance):
    num_dangerous = 0
    num_all_pixels = 0
    depth_image_ravel = depth_image.ravel()
    # depth_image_segmentation为分割后的图像（红蓝两色）
    depth_image_segmentation_ravel = []
    for pixel in depth_image_ravel:
        num_all_pixels += 1
        # 第一种效果要好一些
        if pixel < threshold_dangerous_distance and pixel != 0:
            # if pixel < threshold_dangerous_distance:
            num_dangerous += 1
            depth_image_segmentation_ravel.append(0)
        else:
            depth_image_segmentation_ravel.append(6000)
    depth_image_segmentation = np.array(depth_image_segmentation_ravel).reshape(depth_image.shape)
    return num_all_pixels, num_dangerous, depth_image_segmentation


class ObstacleDetection(object):

    def __init__(self):
        # self.cam_serials = ['838212073161', '827312071726']
        # self.cam_serials = ['838212073161', '827312071726', '838212073249', '827312070790', '836612072369',
        #                     '826212070395']
        self.cam_serials = ['838212073161']
        self.cam_width, self.cam_height = 640, 360
        # 【危险距离：单位mm】
        self.threshold_dangerous_distance = 3000
        # 【摄像头到cotton平面垂直距离（单位mm）】
        self.distance_cam_vertical_to_cotton_top = 260
        # 【危险距离补偿系数】用于让最下面深度远离临界值，避免造成误检测
        self.factor_compensation_dangerous_distance = 1.5
        # 【危险距离像素占比】
        self.threshold_dangerous_scale = 0.05

        # 【摄像头视场角（单位°）】
        self.FOV_width = 69.4
        self.FOV_height = 42.5
        self.FOV_scale = self.FOV_height / self.FOV_width  # 0.6123919308357348

        # 【实际变换后height视场角】
        if self.cam_height / self.cam_width < self.FOV_scale:
            self.FOV_height_actual = self.FOV_width * self.cam_height / self.cam_width
        else:
            self.FOV_height_actual = self.FOV_height

        # 【计算过滤α值（distance_min为图像最下方的深度，看到最近cotton的距离）】
        # 当摄像头到cotton顶垂直距离为800，最小距离为2256，当危险距离为2000时，alpha滤值为0.88
        # 当摄像头到cotton顶垂直距离为800，最小距离为2256，当危险距离为3000时，alpha滤值为1.32
        # 所以，后面进行滤值时需判断self.filter_alpha的值是否大于1（已添加进filter_alpha()函数中）
        self.distance_min = self.distance_cam_vertical_to_cotton_top / (
            np.tan(self.FOV_height_actual / 2 * np.pi / 180))
        self.filter_alpha = self.threshold_dangerous_distance / self.distance_min * self.factor_compensation_dangerous_distance

    def obstacle_detection(self):
        # print(self.distance_min)  # 2256.7829632201597
        # print(self.filter_alpha)  # 0.8862172537611853
        # 摄像头个数（在这里设置所需使用摄像头的总个数）
        cam_num = 6

        ctx = rs.context()

        '''连续验证机制'''
        # D·C 1911202：创建最大验证次数max_veri_times；创建连续稳定值continuous_stable_value，用于判断设备重置后是否处于稳定状态
        max_veri_times = 100
        continuous_stable_value = 5
        print('\n', end='')
        print('开始连续验证，连续验证稳定值：{}，最大验证次数：{}：'.format(continuous_stable_value, max_veri_times))
        continuous_value = 0
        veri_times = 0
        while True:
            devices = ctx.query_devices()
            connected_cam_num = len(devices)
            print('摄像头个数：{}'.format(connected_cam_num))
            if connected_cam_num == cam_num:
                continuous_value += 1
                if continuous_value == continuous_stable_value:
                    break
            else:
                continuous_value = 0
            veri_times += 1
            if veri_times == max_veri_times:
                print("检测超时，请检查摄像头连接！")
                sys.exit()

        '''循环reset摄像头'''
        # hardware_reset()后是不是应该延迟一段时间？不延迟就会报错
        print('\n', end='')
        print('开始初始化摄像头：')
        for dev in ctx.query_devices():
            # 先将设备的序列号放进一个变量里，免得在下面for循环里访问设备的信息过多（虽然不知道它会不会每次都重新访问）
            dev_serial = dev.get_info(rs.camera_info.serial_number)
            # 匹配序列号，重置我们需重置的特定摄像头（注意两个for循环顺序，哪个在外哪个在内很重要，不然会导致刚重置的摄像头又被访问导致报错）
            for serial in self.cam_serials:
                if serial == dev_serial:
                    dev.hardware_reset()
                    # 像下面这条语句居然不会报错，不是刚刚才重置了dev吗？莫非区别在于没有通过for循环ctx.query_devices()去访问？
                    # 是不是刚重置后可以通过ctx.query_devices()去查看有这个设备，但是却没有存储设备地址？如果是这样，
                    # 也就能够解释为啥能够通过len(ctx.query_devices())函数获取设备数量，但访问序列号等信息就会报错的原因了
                    print('摄像头{}初始化成功'.format(dev.get_info(rs.camera_info.serial_number)))

        '''连续验证机制'''
        # D·C 1911202：创建最大验证次数max_veri_times；创建连续稳定值continuous_stable_value，用于判断设备重置后是否处于稳定状态
        print('\n', end='')
        print('开始连续验证，连续验证稳定值：{}，最大验证次数：{}：'.format(continuous_stable_value, max_veri_times))
        continuous_value = 0
        veri_times = 0
        while True:
            devices = ctx.query_devices()
            connected_cam_num = len(devices)
            print('摄像头个数：{}'.format(connected_cam_num))
            if connected_cam_num == cam_num:
                continuous_value += 1
                if continuous_value == continuous_stable_value:
                    break
            else:
                continuous_value = 0
            veri_times += 1
            if veri_times == max_veri_times:
                print("检测超时，请检查摄像头连接！")
                sys.exit()

        '''配置各个摄像头的基本对象'''
        for i in range(len(self.cam_serials)):
            locals()['pipeline' + str(i)] = rs.pipeline(ctx)

            locals()['config' + str(i)] = rs.config()
            locals()['config' + str(i)].enable_device(self.cam_serials[i])

            # 为啥我设置成1280×720就报错呢？明明Intel Realsense的usb接口已经显示为3.0了
            # locals()['config' + str(i)].enable_stream(rs.stream.depth, 640, 480, rs.format.z16, 30)
            # locals()['config' + str(i)].enable_stream(rs.stream.color, 640, 480, rs.format.bgr8, 30)

            locals()['config' + str(i)].enable_stream(rs.stream.depth, self.cam_width, self.cam_height, rs.format.z16,
                                                      30)
            locals()['config' + str(i)].enable_stream(rs.stream.color, self.cam_width, self.cam_height, rs.format.bgr8,
                                                      30)

            locals()['pipeline' + str(i)].start(locals()['config' + str(i)])

            # 创建对齐对象（深度对齐颜色）
            locals()['align' + str(i)] = rs.align(rs.stream.color)

        '''运行摄像头'''
        try:
            while True:
                start_time = time.time()
                for i in range(len(self.cam_serials)):
                    locals()['frames' + str(i)] = locals()['pipeline' + str(i)].wait_for_frames()
                    # 获取对齐帧集
                    locals()['aligned_frames' + str(i)] = locals()['align' + str(i)].process(
                        locals()['frames' + str(i)])
                    # 获取对齐后的深度帧和彩色帧
                    locals()['aligned_depth_frame' + str(i)] = locals()[
                        'aligned_frames' + str(i)].get_depth_frame()
                    locals()['color_frame' + str(i)] = locals()['aligned_frames' + str(i)].get_color_frame()

                    if not locals()['aligned_depth_frame' + str(i)] or not locals()['color_frame' + str(i)]:
                        continue

                    # 获取颜色帧内参
                    locals()['color_profile' + str(i)] = locals()['color_frame' + str(i)].get_profile()
                    locals()['cvsprofile' + str(i)] = rs.video_stream_profile(
                        locals()['color_profile' + str(i)])
                    locals()['color_intrin' + str(i)] = locals()['cvsprofile' + str(i)].get_intrinsics()
                    locals()['color_intrin_part' + str(i)] = [locals()['color_intrin' + str(i)].ppx,
                                                              locals()['color_intrin' + str(i)].ppy,
                                                              locals()['color_intrin' + str(i)].fx,
                                                              locals()['color_intrin' + str(i)].fy]

                    locals()['color_image' + str(i)] = np.asanyarray(
                        locals()['color_frame' + str(i)].get_data())
                    locals()['depth_image' + str(i)] = np.asanyarray(
                        locals()['aligned_depth_frame' + str(i)].get_data())

                    # 【阿尔法过滤】
                    locals()['depth_image_alpha_filter' + str(i)] = filter_alpha(locals()['depth_image' + str(i)],
                                                                                 self.filter_alpha)

                    # 【遍历深度图像素值,如存在小于危险值范围比例超过阈值,则告警】
                    locals()['num_all_pixels' + str(i)], locals()['num_dangerous' + str(i)], locals()[
                        'depth_image_segmentation' + str(i)] = traversing_pixels(
                        locals()['depth_image_alpha_filter' + str(i)], self.threshold_dangerous_distance)
                    print('num_all_pixels:{}'.format(locals()['num_all_pixels' + str(i)]))
                    print('num_dangerous:{}'.format(locals()['num_dangerous' + str(i)]))
                    locals()['dangerous_scale' + str(i)] = locals()['num_dangerous' + str(i)] / locals()[
                        'num_all_pixels' + str(i)]
                    print('危险比例:{}'.format(locals()['dangerous_scale' + str(i)]))
                    if locals()['dangerous_scale' + str(i)] > self.threshold_dangerous_scale:
                        print("距离警告!")

                    locals()['depth_colormap' + str(i)] = cv2.applyColorMap(
                        cv2.convertScaleAbs(locals()['depth_image_segmentation' + str(i)], alpha=0.0425),
                        cv2.COLORMAP_JET)

                    locals()['image' + str(i)] = np.hstack(
                        (locals()['color_image' + str(i)], locals()['depth_colormap' + str(i)]))
                    # 注意: 窗口名不要用中文字符, 小心乱码
                    cv2.imshow('win{}:{}'.format(i, self.cam_serials[i]), locals()['image' + str(i)])

                    # cv2.imshow('colorWin{}: {}'.format(i, self.cam_serials[i]), locals()['color_image' + str(i)])
                    # cv2.imshow('depthWin{}: {}'.format(i, self.cam_serials[i]), locals()['depth_colormap' + str(i)])
                    cv2.waitKey(1)
                end_time = time.time()
                # print('单帧运行时间：{}'.format(end_time - start_time))

        # 遇到异常再次启动检测函数，如有需要可以将连续监测和摄像头重置全放进去
        except:
            print('\n出现异常，请重新检查摄像头连接！\n')
            for i in range(len(self.cam_serials)):
                cv2.destroyAllWindows()
                locals()['pipeline' + str(i)].stop()
            ObstacleDetection().obstacle_detection()
        finally:
            for i in range(len(self.cam_serials)):
                locals()['pipeline' + str(i)].stop()


if __name__ == '__main__':
    ObstacleDetection().obstacle_detection()

参考文章：为什么Intel Realsense D435深度摄像头在基于深度的水平方向障碍物检测（避障）方案中，摄像头不宜安装太高？
