前言
本篇博客我们将详细介绍如何在 YOLOv10 项目中增加 NWDLoss。包括如何修改配置文件、增加新的损失函数、调整现有的损失计算模块,以及增加训练代码来使用新的损失函数。相信通过这篇博文会使大家更佳熟悉YOLOv10项目的整体结构
文章概述
1. 增加了两个参数 nwdloss 和 iou_ratio 用于配置是否使用 Wasserstein 损失以及 IoU 损失的比例
2. 在 ultralytics/utils/loss.py 中添加了 wasserstein_loss 函数
3. 修改了 BboxLoss 类的 init 和 forward 函数,加入了 Wasserstein 损失的计算
4. 修改了 v8DetectionLoss 类的 init 函数,添加了 nwdloss 和 iou_ratio 参数
5. 编写了训练和验证的主函数,支持命令行参数设置,支持使用nwdloss等
必要环境
- 配置yolov10环境 可参考往期博客
地址:https://blog.csdn.net/Dora_blank/article/details/139302363?spm=1001.2014.3001.5502
- 论文地址
地址:https://arxiv.org/abs/2110.13389
一、修改方法
1.修改配置文件
我们需要在配置文件 ultralytics\cfg\default.yaml 中增加两个新的参数 nwdloss 和 iou_ratio。这两个参数分别控制是否使用 NWDLoss 以及 NWDLoss 和 IoU 损失的权重比
nwdloss: False
iou_ratio: 0.5
参数详解:
1. nwdloss: 用于指定是否启用 NWDLoss,默认值为 False,表示不使用 NWDLoss
2. iou_ratio: 用于指定 NWDLoss 和 IoU 损失的权重比,默认值为 0.5,表示 NWDLoss 和 IoU 损失各占 50%
2. 增加 wasserstein_loss函数
在 ultralytics\utils\loss.py 文件中增加一个名为 wasserstein_loss 的函数,函数的主要计算包括拆分预测框和目标框的坐标,计算框的宽度、高度及中心坐标,计算中心距离和宽高距离,最后返回 wasserstein 损失
import torch
import torch.nn as nn
def wasserstein_loss(pred, target, eps=1e-7, constant=12.8):
r"""Implementation of paper `Enhancing Geometric Factors into
Model Learning and Inference for Object Detection and Instance
Segmentation <https://arxiv.org/abs/2005.03572>`_.
Code is modified from https://github.com/Zzh-tju/CIoU.
Args:
pred (Tensor): Predicted bboxes of format (x_min, y_min, x_max, y_max),
shape (n, 4).
target (Tensor): Corresponding gt bboxes, shape (n, 4).
eps (float): Eps to avoid log(0).
Return:
Tensor: Loss tensor.
"""
# 拆分坐标
b1_x1, b1_y1, b1_x2, b1_y2 = pred.split(1, dim=-1)
b2_x1, b2_y1, b2_x2, b2_y2 = target.split(1, dim=-1)
# 计算框的宽度和高度
w1, h1 = b1_x2 - b1_x1, b1_y2 - b1_y1 + eps
w2, h2 = b2_x2 - b2_x1, b2_y2 - b2_y1 + eps
# 计算框的中心坐标
b1_x_center, b1_y_center = (b1_x1 + b1_x2) / 2, (b1_y1 + b1_y2) / 2
b2_x_center, b2_y_center = (b2_x1 + b2_x2) / 2, (b2_y1 + b2_y2) / 2
# 计算中心距离和宽高距离
center_distance = (b1_x_center - b2_x_center).pow(2) + (b1_y_center - b2_y_center).pow(2) + eps
wh_distance = ((w1 - w2).pow(2) + (h1 - h2).pow(2)) / 4
# Wasserstein 距离
wasserstein_2 = center_distance + wh_distance
# 返回损失
return torch.exp(-torch.sqrt(wasserstein_2) / constant)
参数详解:
1. eps: 用于避免计算过程中出现除零错误的一个极小值
2. constant: 用于控制 Wasserstein 距离的缩放因子
3. 修改 BboxLoss类
我们需要在 ultralytics\utils\loss.py 的BboxLoss类中集成 NWDLoss,需要修改 init 和 forward 方法,将这两个函数替换为如下代码
class BboxLoss(nn.Module):
"""Criterion class for computing training losses during training."""
def __init__(self, reg_max, use_dfl=False, nwd_loss=False, iou_ratio=0.5):
"""Initialize the BboxLoss module with regularization maximum and DFL settings."""
super().__init__()
self.reg_max = reg_max
self.use_dfl = use_dfl
self.iou_ratio = iou_ratio
self.nwd_loss = nwd_loss
def forward(self, pred_dist, pred_bboxes, anchor_points, target_bboxes, target_scores, target_scores_sum, fg_mask):
"""IoU loss."""
weight = target_scores.sum(-1)[fg_mask].unsqueeze(-1)
iou = bbox_iou(pred_bboxes[fg_mask], target_bboxes[fg_mask], xywh=False, CIoU=True)
loss_iou = ((1.0 - iou) * weight).sum() / target_scores_sum
if self.nwd_loss:
nwd = wasserstein_loss(pred_bboxes[fg_mask], target_bboxes[fg_mask])
nwd_loss = ((1.0 - nwd) * weight).sum() / target_scores_sum
loss_iou = self.iou_ratio * loss_iou + (1 - self.iou_ratio) * nwd_loss
# DFL loss
if self.use_dfl:
target_ltrb = bbox2dist(anchor_points, target_bboxes, self.reg_max)
loss_dfl = self._df_loss(pred_dist[fg_mask].view(-1, self.reg_max + 1), target_ltrb[fg_mask]) * weight
loss_dfl = loss_dfl.sum() / target_scores_sum
else:
loss_dfl = torch.tensor(0.0).to(pred_dist.device)
return loss_iou, loss_dfl
参数详解:
1. nwd_loss: 指定是否使用 NWDLoss
2. iou_ratio: 指定 NWDLoss 和 IoU 损失的权重比
4. 修改 v8DetectionLoss 类的 init 方法
我们还需在 ultralytics\utils\loss.py 的v8DetectionLoss 类中集成 NWDLoss 的相关参数,需要修改 init 方法,将该函数代码替换为如下代码
class v8DetectionLoss:
"""Criterion class for computing training losses."""
def __init__(self, model, tal_topk=10): # model must be de-paralleled
"""Initializes v8DetectionLoss with the model, defining model-related properties and BCE loss function."""
device = next(model.parameters()).device # get model device
h = model.args # hyperparameters
m = model.model[-1] # Detect() module
self.bce = nn.BCEWithLogitsLoss(reduction="none")
self.hyp = h
self.stride = m.stride # model strides
self.nc = m.nc # number of classes
self.no = m.no
self.reg_max = m.reg_max
self.device = device
self.use_dfl = m.reg_max > 1
self.nwdloss = self.hyp.nwdloss
self.iou_ratio = self.hyp.iou_ratio
self.assigner = TaskAlignedAssigner(topk=tal_topk, num_classes=self.nc, alpha=0.5, beta=6.0)
self.bbox_loss = BboxLoss(m.reg_max - 1, use_dfl=self.use_dfl, nwd_loss=self.nwdloss,
iou_ratio=self.iou_ratio).to(device)
self.proj = torch.arange(m.reg_max, dtype=torch.float, device=device)
参数详解:
1. nwdloss: 从default.yaml中读取,指定是否使用 NWDLoss。
2. iou_ratio: 从default.yaml中读取,指定 NWDLoss 和 IoU 损失的权重比
二、训练代码
完成训练代码如下 其中usenwd参数控制是否使用nwdloss,iou_ratio参数控制nwdloss和iou损失的权重比
# -*- coding:utf-8 -*-
from ultralytics import YOLOv10
import argparse
# 解析命令行参数
parser = argparse.ArgumentParser(description='Train or validate YOLO model.')
# train用于训练原始模型 val 用于得到精度指标
parser.add_argument('--mode', type=str, default='train', help='Mode of operation.')
# 预训练模型
parser.add_argument('--weights', type=str, default='yolov10n.pt', help='Path to model file.')
# 是否使用nwdloss
parser.add_argument('--usenwd', type=str, default=False, help='Whether to use NWDLoss or not (True/False)')
# iou使用比例
parser.add_argument('--iou_ratio', type=float, default=0.5, help='Intersection over Union (IoU) threshold for NWDLoss')
# 数据集存放路径
parser.add_argument('--data', type=str, default='data-test.yaml', help='Path to data file.')
parser.add_argument('--epoch', type=int, default=50, help='Number of epochs.')
parser.add_argument('--batch', type=int, default=8, help='Batch size.')
parser.add_argument('--workers', type=int, default=0, help='Number of workers.')
parser.add_argument('--device', type=str, default='0', help='Device to use.')
parser.add_argument('--name', type=str, default='', help='Name data file.')
args = parser.parse_args()
def train(model, data, epoch, batch, workers, device, name, usenwd, iou_ratio):
model.train(data=data, epochs=epoch, batch=batch, workers=workers, device=device, name=name,
nwdloss=usenwd, iou_ratio=iou_ratio,val_period=1)
def validate(model, data, batch, workers, device, name):
model.val(data=data, batch=batch, workers=workers, device=device, name=name)
def main():
model = YOLOv10(args.weights)
if args.mode == 'train':
train(model, args.data, args.epoch, args.batch, args.workers, args.device, args.name, args.usenwd,
args.iou_ratio)
else:
validate(model, args.data, args.batch, args.workers, args.device, args.name)
if __name__ == '__main__':
main()
三、训练过程

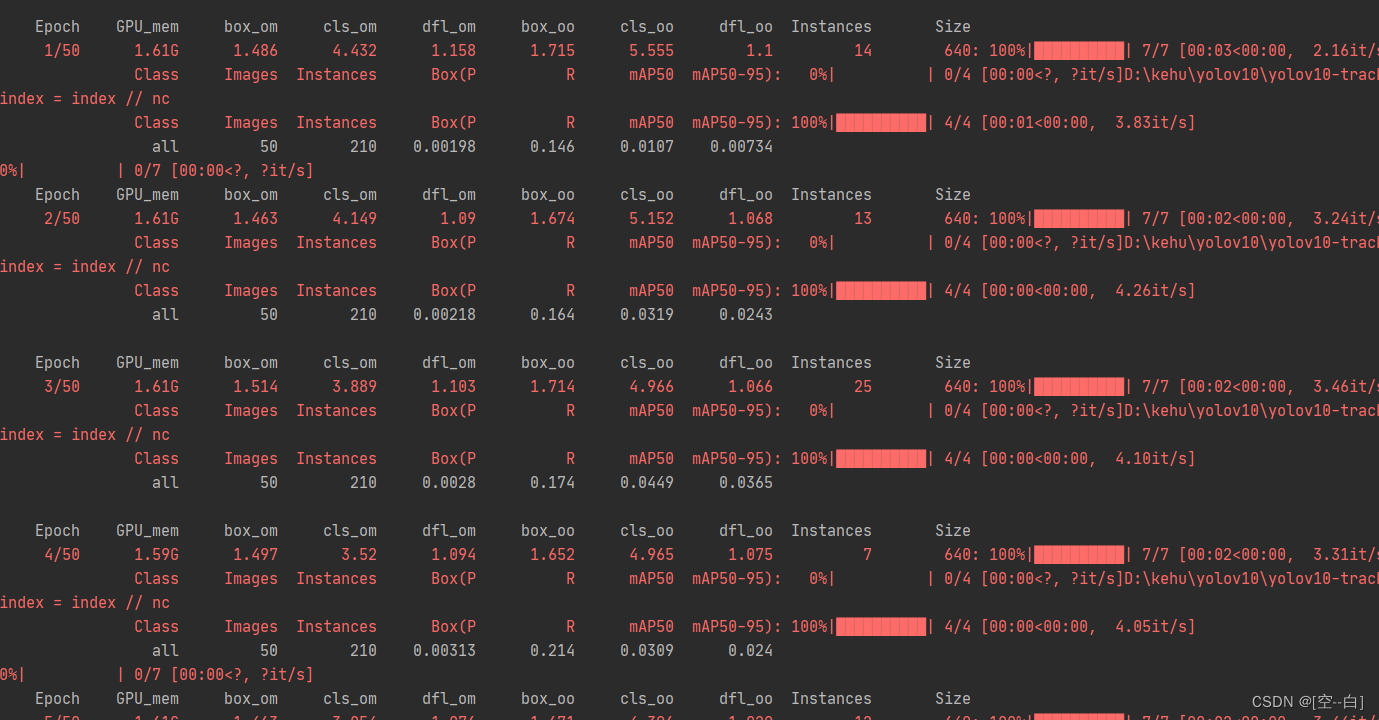

随便找了几张图测试是否能跑通
总结
本期博客就到这里啦,喜欢的小伙伴们可以点点关注,感谢!
