verilog中的文件读写等操作指令

System file I/O tasks

mcd = $fopen("file_name" [ , type ] );

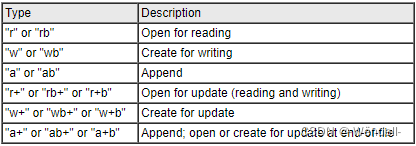

$fopen opens a disk file for writing, and returns a 32-bit unsigned integer multi-channel descriptor pointer to the file. It returns a zero if the file could not be opened for writing. In Verilog-2001 the type indicates how the file is to be opened. The "b" distinguishes a binary file from a text file:

---

$fclose(mcd);

$fclose closes a disk file that was opened by $fopen.

---

$readmemb("file_name", memory_name [ , start_address [ , end_address ]] );
$readmemh("file_name", memory_name [ , start_address [ , end_address ]] );

$readmemb and $readmemh initialize a memory array with the values from the file. The file must be an ASCII file with values represented in binary ($readmemb) or hexadecimal ($readmemh). The data values must be the same width as the memory array, and be separated by white spaces. The start and end address are hexadecimal numbers, even for $readmemb, preceded by @.

---

c = $fgetc(mcd);

$fgetc reads a byte (a character) from the file.

---

ungetc(c, mcd);

$ungetc inserts a specified character into a buffer specified by the file.

---

i = $fgets(str, mcd);

$fgets reads a line from the file.

---

i = $fscanf(mcd, "text", signal, signal, ...);
i = $sscanf(str, "text", signal, signal, ...);

$fscanf and $sscanf reads data and interprets the data according to a format.

---

i = $fread(reg_or_mem, mcd [ , start_address [ , end_address ]] );

$fread reads binary data from the file.

---

i = $ftell(mcd)

$ftell returns the offset from the beginning of the file.

---

i = $fseek(mcd, offset, operation);
i = $rewind(mcd);

$fseek sets the position of the next input or output operation on the file.

$rewind is the same as $fseek(0,0).

---

$fflush( [ mcd ] );

 $fflush writes any buffered output to the file.

---

i = $ferror(mcd, str);

 $ferror can be used to obtain more information about an error.

---

$swrite(output_reg, signal, signal, ...));
$sformat(output_reg, text", signal, signal, ...);

$swrite and $sformat writes a string to a reg variable. $sformat interprets the string as a format string.

---

Example:
initial begin
  File = $fopen("Result.dat");
  if (!File)
    $display("Could not open \"result.dat\"");
  else begin
    $display(File, "Result is: %4b", A);
    $fclose(File);
  end
end

reg [7:0] Memory [15:0];
initial begin
  $readmemb("Stimulus.txt", Memory);
end
