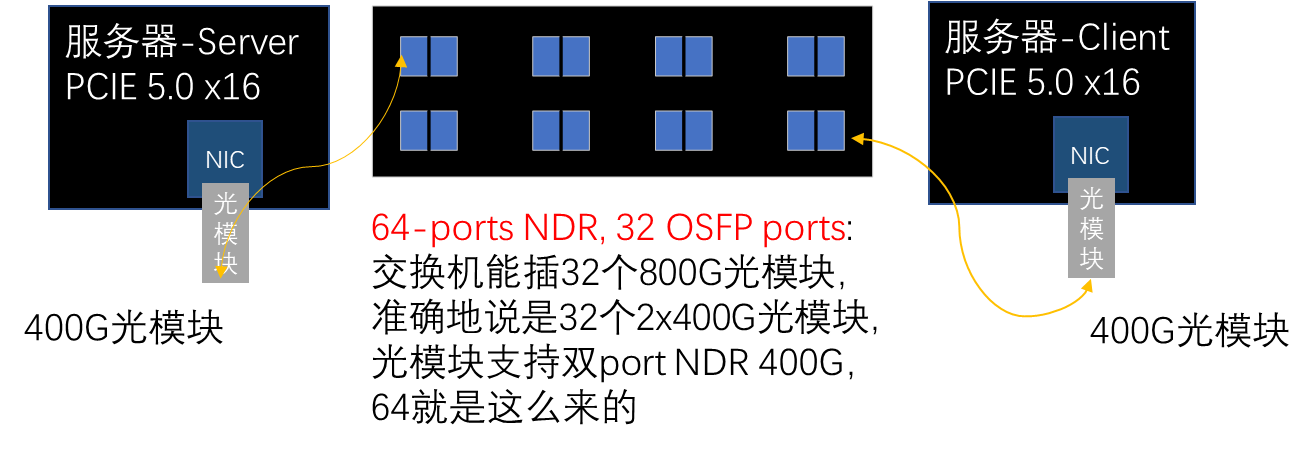

在英伟达官网看到QM9700/QM9790系列IB交换机时,规格书通篇没提800G,却能测800G光模块,怎么回事呢?交换机照片只有32个ports,但规格书写的有64个NDR ports,64怎么来的?
![](https://img-blog.csdnimg.cn/direct/09696c34e1c84914a046924466cf2520.png)
![](https://img-blog.csdnimg.cn/direct/5583d95ca29c45d19c71be484ecf02fe.png)

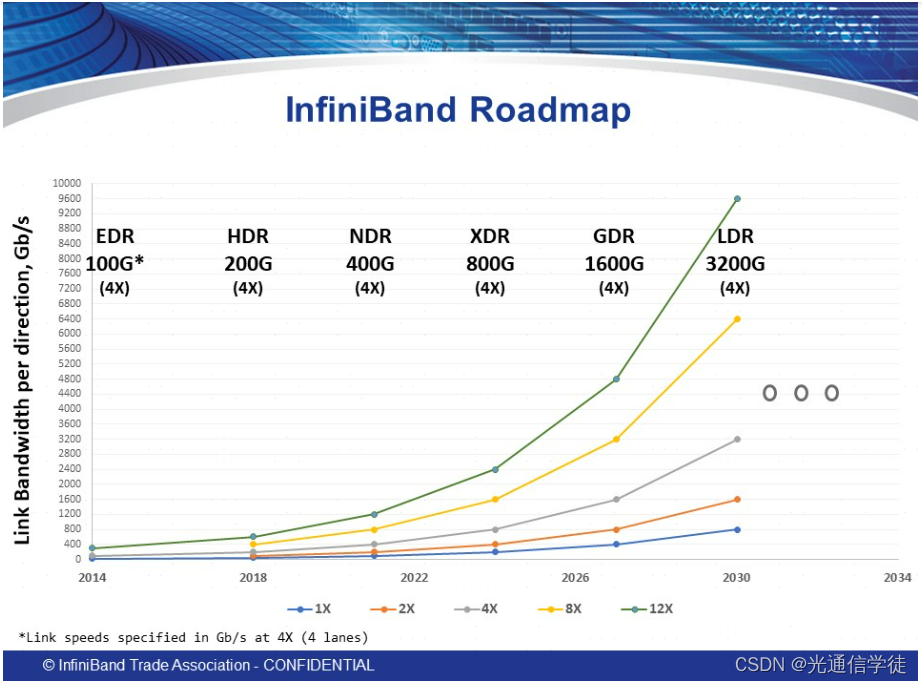

按照IB的Roadmap(图3),描述速率不像很多光模块厂家直接速率+封装的方式,而是EDR/HDR/NDR这样,NDR对应400G,所以英伟达官网的规格书介绍的这是一款400G交换机,有32个OSFP ports,每个OSFP port支持2个NDR port,所以一共有64个NDR ports。光模块厂家可能更喜欢形容它为800G交换机。
![](https://img-blog.csdnimg.cn/direct/f83b424a5d584270a4609a44e5b2d154.png)

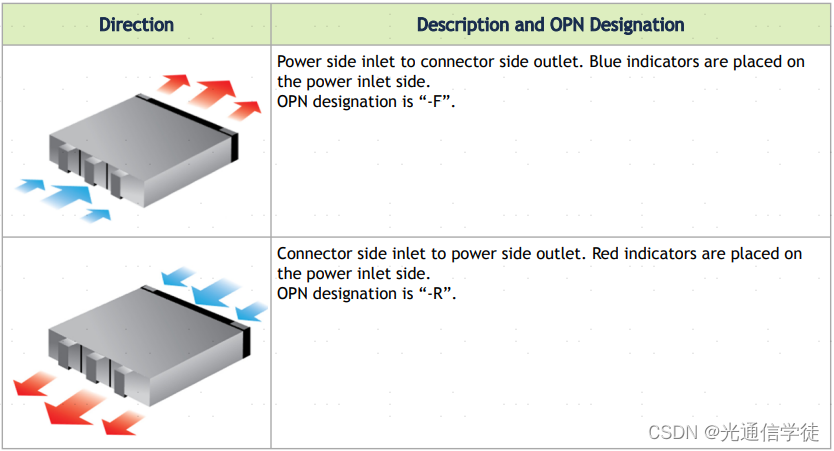

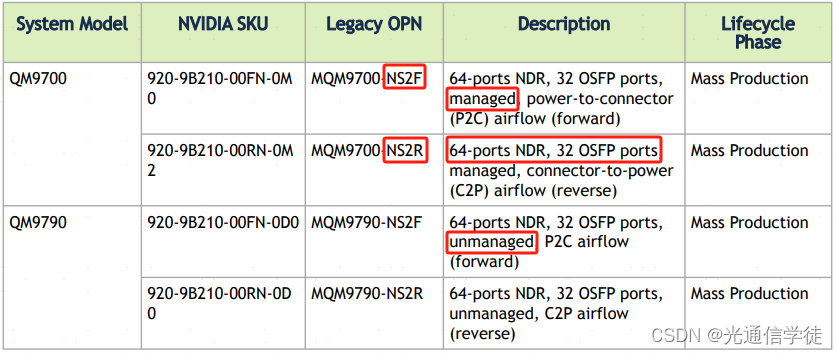

如图1,四个型号的交换机是风扇风向(图4)的区别和unmanaged和managed的区别。
unmanaged和managed的区别是mananged交换机额外带了一个cpu chip用于交换机的单机图形界面和CLI (command-line interface)以及 restful API调用等管理用途,还可以跑opensm子网管理器。
![](https://img-blog.csdnimg.cn/direct/68d818247600419c918723dcaba15176.png)
Roadmap 缩写及速率对照表:
名称 | 缩写 | 信号速率 | 编码方式 | 实际数据速率 | X4链路数据速率 | X12链路数据速率 |
Single Data Rate | SDR | 2.5Gb/s | 8b/10b | 2Gb/s | 8.Gb/s | 24Gb/s |
Double Data Rate | DDR | 5Gb/s | 8b/10b | 4Gb/s | 16Gb/s | 48Gb/s |
QuadDataRate | QDR | 10.Gb/s | 8b/10b | 8Gb/s | 32Gb/s | 96.Gb/s |
FourteenData Rate | FDR | 14.0625Gb/s | 64b/66b | 13.64Gb/s | 54.54Gb/s | 163.64Gb/s |
Ehanced Data Rate | EDR | 25Gb/s | 64b/66b | 25.78125Gb/s | 100Gb/s | 300Gb/s |
HighData Rate | HDR | 50Gb/s | 64b/66b | 50Gb/s | 200Gb/s | 600Gb/s |
NextData Rate | NDR | 待定 | 待定 | 待定 | 400Gb/s | 1200Gb/s |
eXtremeDataRate | XDR | 待定 | 待定 | 待定 | 800Gb/s | 待定 |
GxxDataRate | GDR | 待定 | 待定 | 待定 | 1.6T/s | 待定 |
待定 | LDR | 待定 | 待定 | 待定 | 3.2T/s | 待定 |
