1、Introduce
The ESP32-S3 support use the JTAG pins
or USB pins
for JTAG debugging. For more instructions,please read the “ESP32-S3 JTAG Debugging ”guide.
2、Hardware Instructions
2.1 JTAG Pins for Debugging
- The ESP32-S3 JTAG pins are GPIO39~GPIO42, please read the "ESP32-S3 pins and JTAG signals " instructions.
For debugging with JTAG pins, you need to use the ESP-PROG tool.
ESP32-S3 Pin | JTAG Signal |
---|---|
MTDO / GPIO40 | TDO |
MTDI / GPIO41 | TDI |
MTCK / GPIO39 | TCK |
MTMS / GPIO42 | TMS |
Please Note :

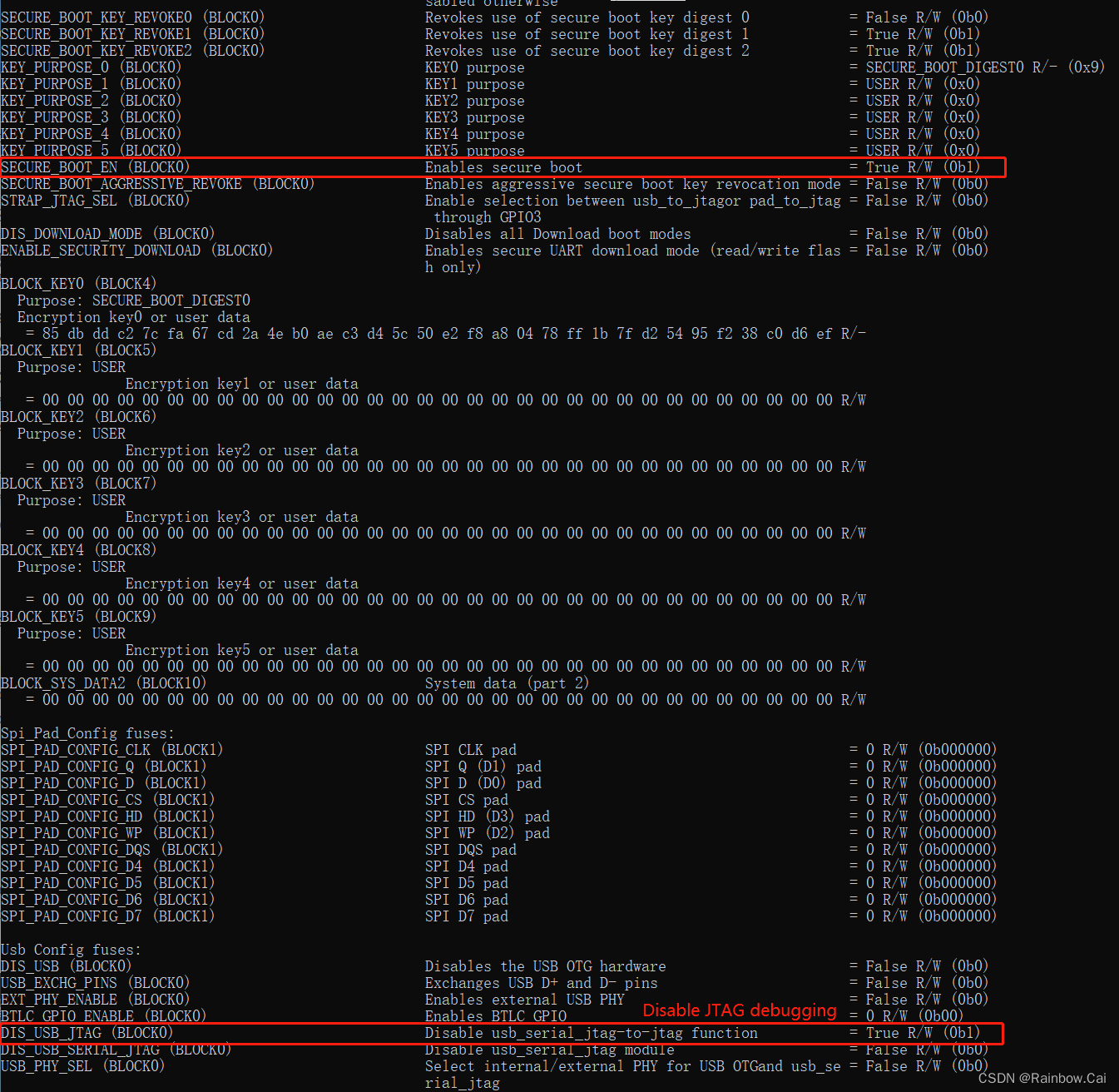

- By default, after
enable Flash Encryption
and/orSecure Boot
, It is willdisabled the USB JTAG debugging
function, butnot disabled
the USB host and USB device function. Please read the “JTAG with Flash Encryption or Secure Boot” or “JTAG Debugging” instructions

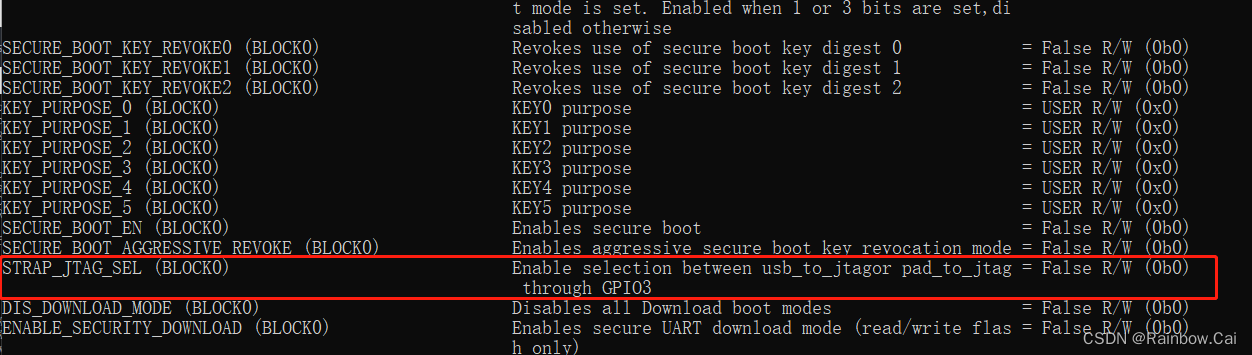

- If you need to use the JTAG pins for debugging, First, you need to set the
STRAP_JTAG_SEL
to ‘1
’ in eFuse , and then theGPIO3
needs to be pulled down.

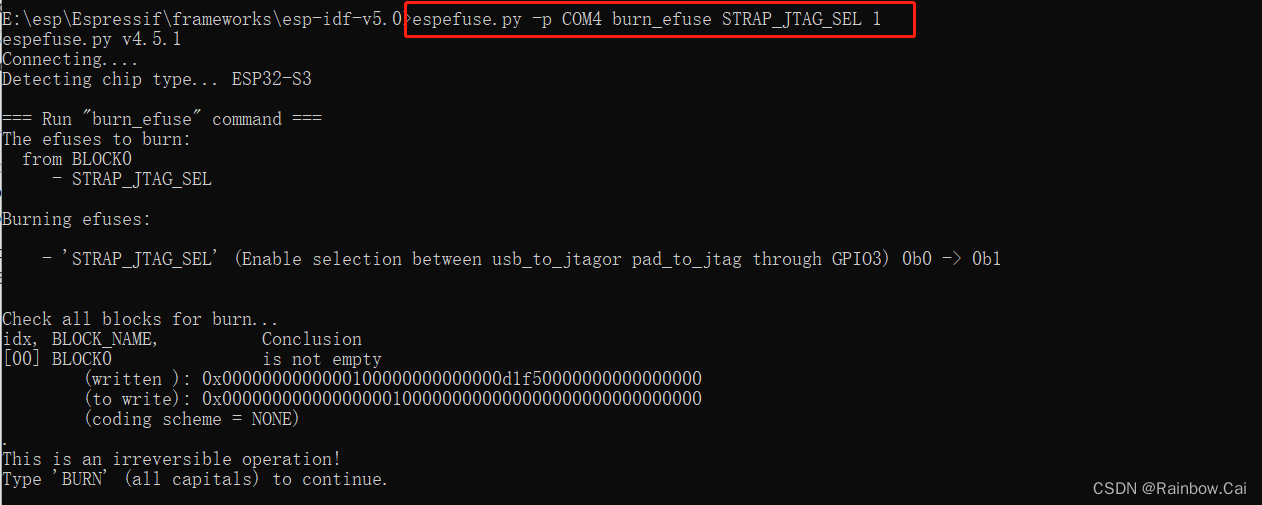

- Write the eFuse
STRAP_JTAG_SEL
command
espefuse.py -p COM4 burn_efuse STRAP_JTAG_SEL 1

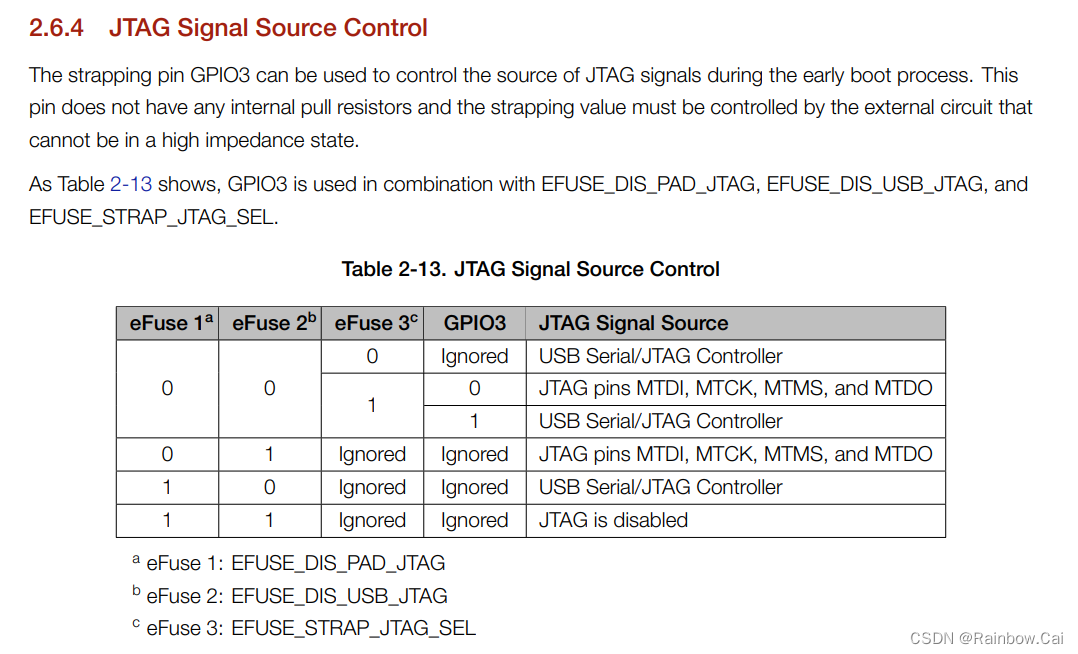

- Please refer to the 《ESP32-S3 Datasheet》 about the
"Table 2-13. JTAG Signal Source Control"
instructions. As follows :
2.2 USB Pins for Debugging
If you need to use the USB pins for debugging,the
GPIO3
can befloat
.
- ESP32-S3 has a built-in JTAG circuitry and can be debugged without any additional chip. Only an USB cable connected to the D+/D- pins is necessary. The necessary connections are shown in the following section. Please read the "Configure ESP32-S3 built-in JTAG Interface " instructions.
ESP32-S3 Pin | USB Signal |
---|---|
GPIO19 | D- |
GPIO20 | D+ |
5V | V_BUS |
GND | Ground |
3、Debugging Environment Preparation
3.1 The Software Environment
- The esp-idf SDK software
compilation environment
OpenOCD
environmentGDB
command environment
- Before debugging , please set up the esp-idf SDK software environment. please refer to the "ESP-IDF Programming Guide " .The ESP32-S3 only supports release/v4.4 and later version of the ESP-IDF SDK. Please refer to the “ESP-IDF Release and SoC Compatibility” instructions.
The software development environment we recommend to you is the simplest.
-
For windows ,You can use “ESP-IDF Tools Installer ” to install ESP-IDF SDK Environment . Please refer to the “Set up the ESP-IDF SDK compilation environment + Visual Studio Code software programming environment” guide.
-
For Ubuntu(We recommend) , Please read "Standard Setup of Toolchain for Linux " instructions. You can also refer to the “How to set up the software development environment ESP-IDF for ESP32-S3” guide.
-
The esp-idf software compilation environment integrates the ‘OpenOCD Environment’ and ‘
GDB Environment
’ required for software debugging.
3.2 The Hardware Preparation
-
If you are using the JTAG pins for Debugging, You can use our ESP32-S3-DevKitC-1 board and ESP-PROG tool for testing.
-

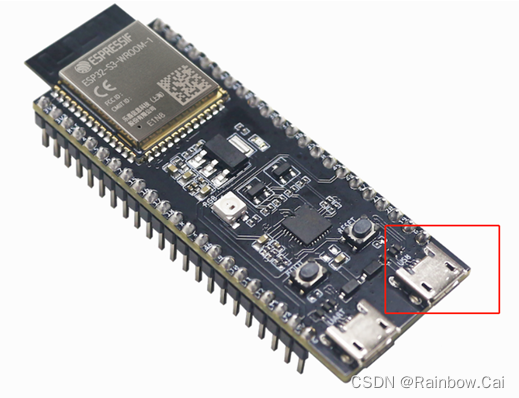

If you are using the USB pins for Debugging, You can use our ESP32-S3-DevKitC-1 board USB port for testing diectly!
4、Debugging Steps

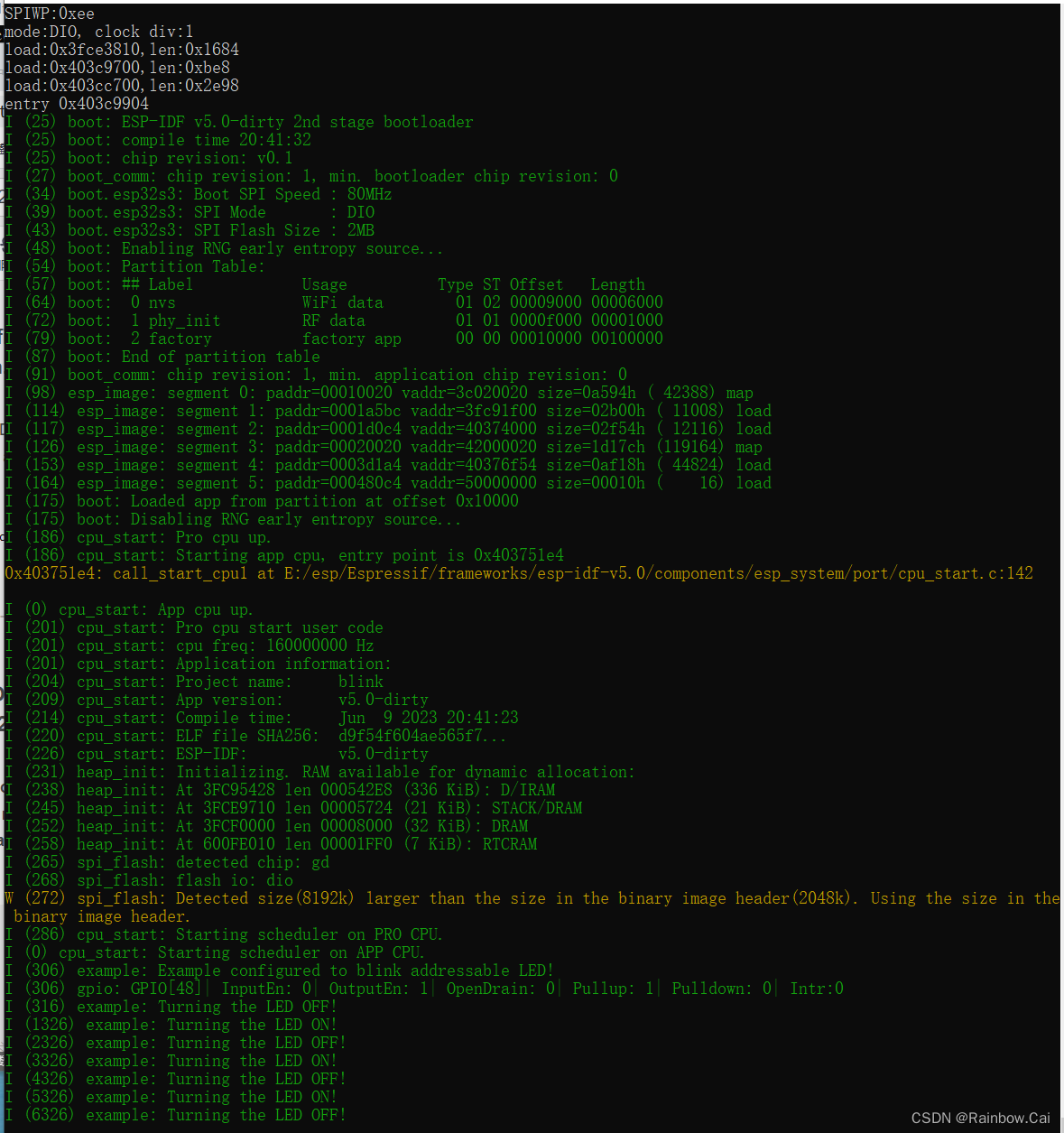

4.1 Flash the firmware
- Under the esp-idf SDK compilation environment, please use the UART0 pins and running the following command to
download the firmware
andview the firmware running log
.
idf.py -p COM4 flash monitor

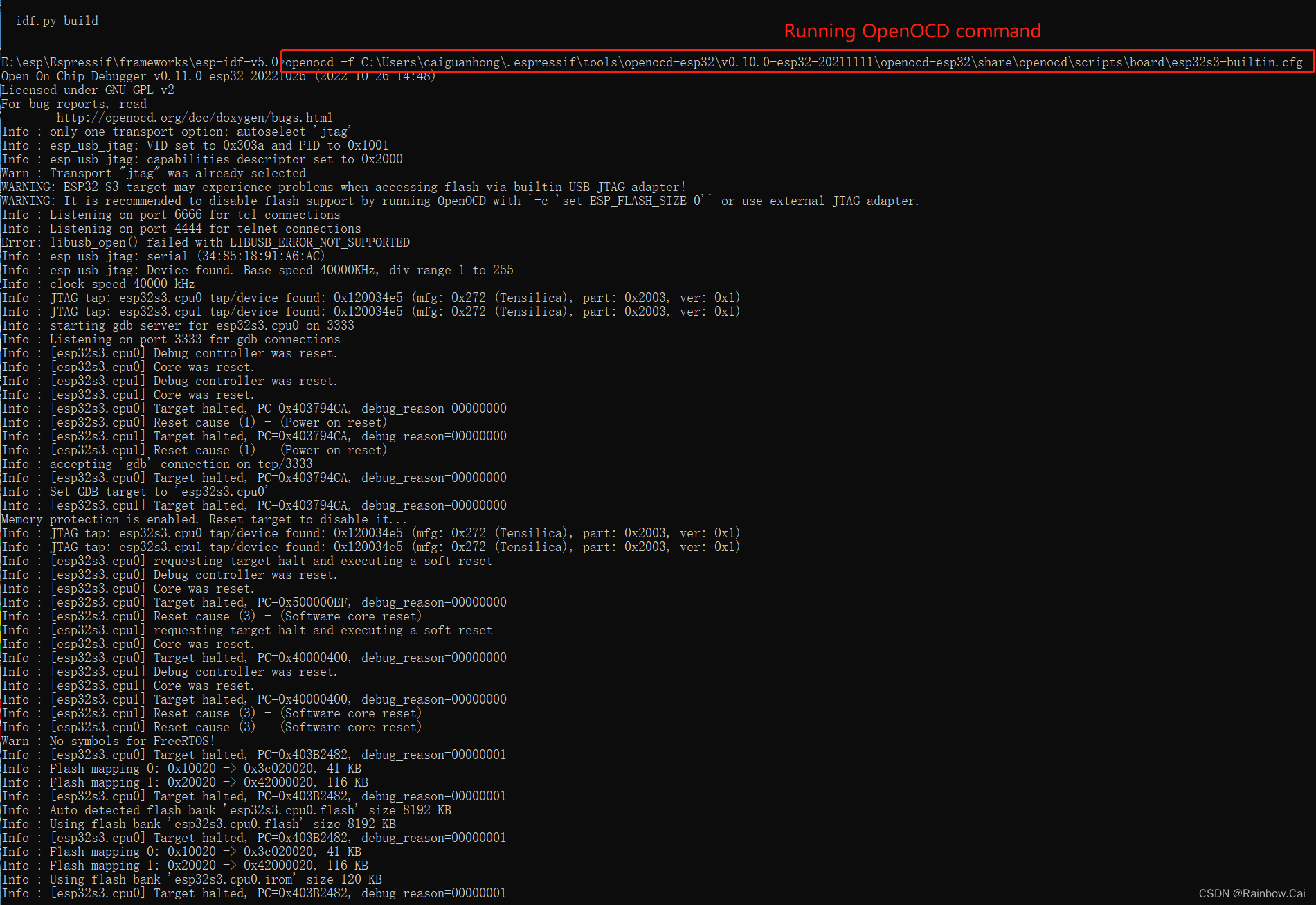

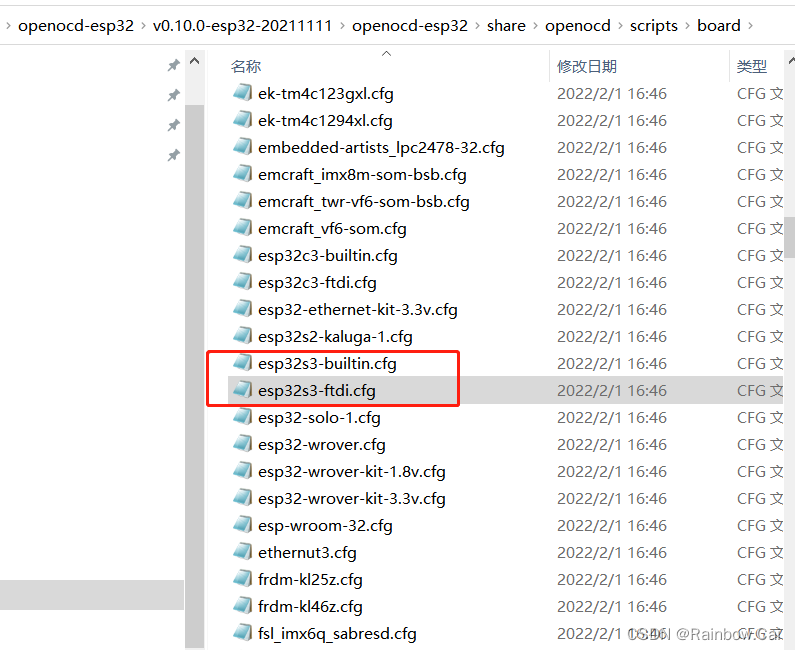

4.2 Running OpenOCD
-
We recommend to open a new esp-idf CMD terminal environment, then to running the “openocd” environment,Please refer to the "Run OpenOCD " . For example,
- If you are using the
USB Pins for Debugging
, you need to use the “openocd
” command to running the “esp32s3-builtin.cfg
” file.
- If you are using the
openocd -f C:\Users\caiguanhong\.espressif\tools\openocd-esp32\v0.10.0-esp32-20211111\openocd-esp32\share\openocd\scripts\board\esp32s3-builtin.cfg
-
- If you are using the
JTAG Pins for Debugging
, you need to use the “openocd
” command to running the “esp32s3-ftdi.cfg
” file.
- If you are using the
openocd -f C:\Users\caiguanhong\.espressif\tools\openocd-esp32\v0.10.0-esp32-20211111\openocd-esp32\share\openocd\scripts\board\esp32s3-ftdi.cfg
【Note】

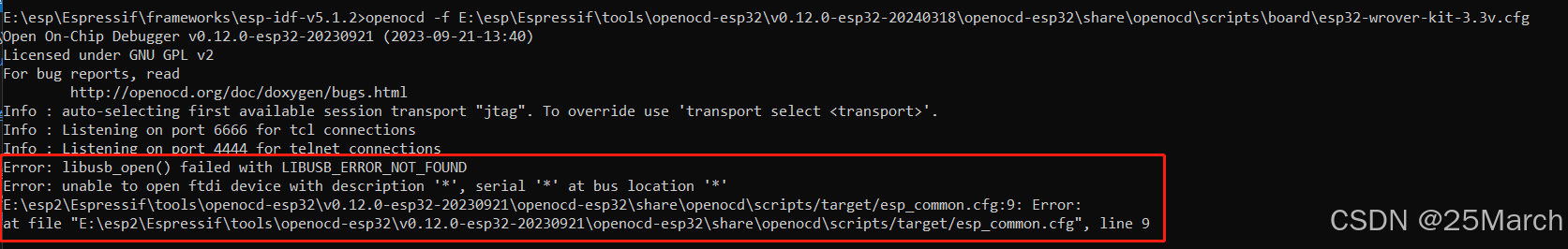

If you get similar the follows error report when running openocd
commands, please try to install the zadig tool to resolve the problem. Please refer to “Windows - manual driver change” instructions.
E:\esp\Espressif\frameworks\esp-idf-v5.1.2>openocd -f E:\esp\Espressif\tools\openocd-esp32\v0.12.0-esp32-20240318\openocd-esp32\share\openocd\scripts\board\esp32-wrover-kit-1.8v.cfg
Open On-Chip Debugger v0.12.0-esp32-20230921 (2023-09-21-13:40)
Licensed under GNU GPL v2
For bug reports, read
http://openocd.org/doc/doxygen/bugs.html
Info : auto-selecting first available session transport "jtag". To override use 'transport select <transport>'.
Info : Listening on port 6666 for tcl connections
Info : Listening on port 4444 for telnet connections
Error: libusb_open() failed with LIBUSB_ERROR_NOT_FOUND
Error: unable to open ftdi device with description '*', serial '*' at bus location '*'
E:\esp2\Espressif\tools\openocd-esp32\v0.12.0-esp32-20230921\openocd-esp32\share\openocd\scripts/target/esp_common.cfg:9: Error:
at file "E:\esp2\Espressif\tools\openocd-esp32\v0.12.0-esp32-20230921\openocd-esp32\share\openocd\scripts/target/esp_common.cfg", line 9

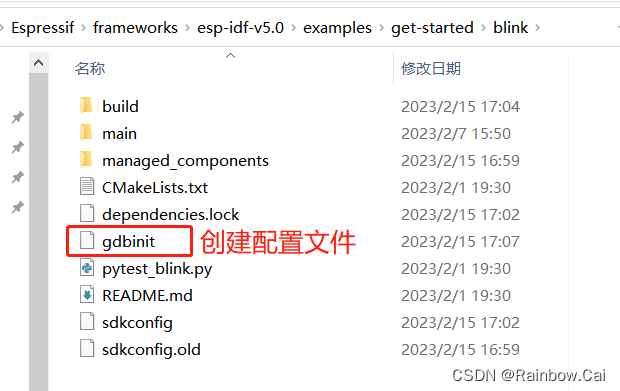

4.3 Create a configuration file
and name it gdbinit
- Under the current debug project, create a configuration file named “
gdbinit
” and write the following. Please read the “Command Line ” instructions.
target remote :3333
set remote hardware-watchpoint-limit 2
mon reset halt
flushregs
thb app_main
c
4.4 Ready to launch GDB
-
We recommend to
open a new esp-idf CMD terminal environment
, and to enable the “GDB” environment. Please refer to “Command Line” . -

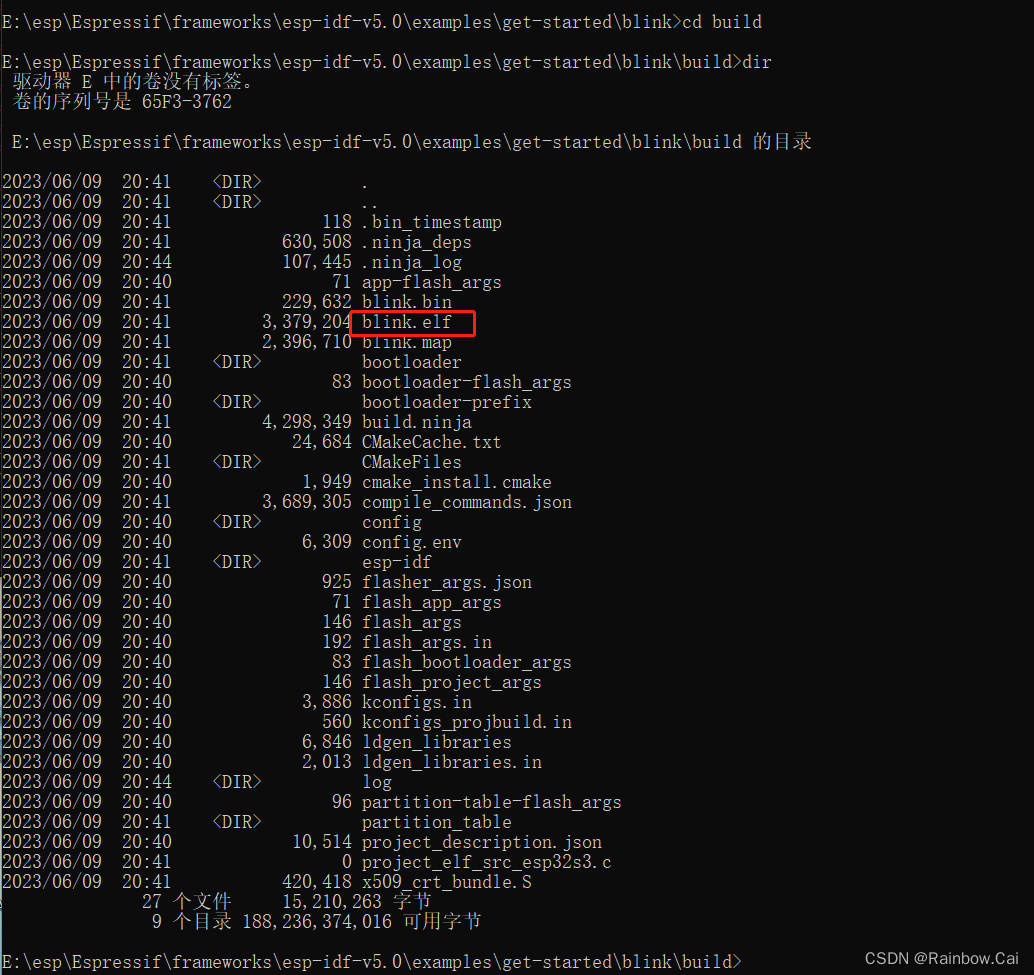

You need to running your project "
.elf
" file, As follows:

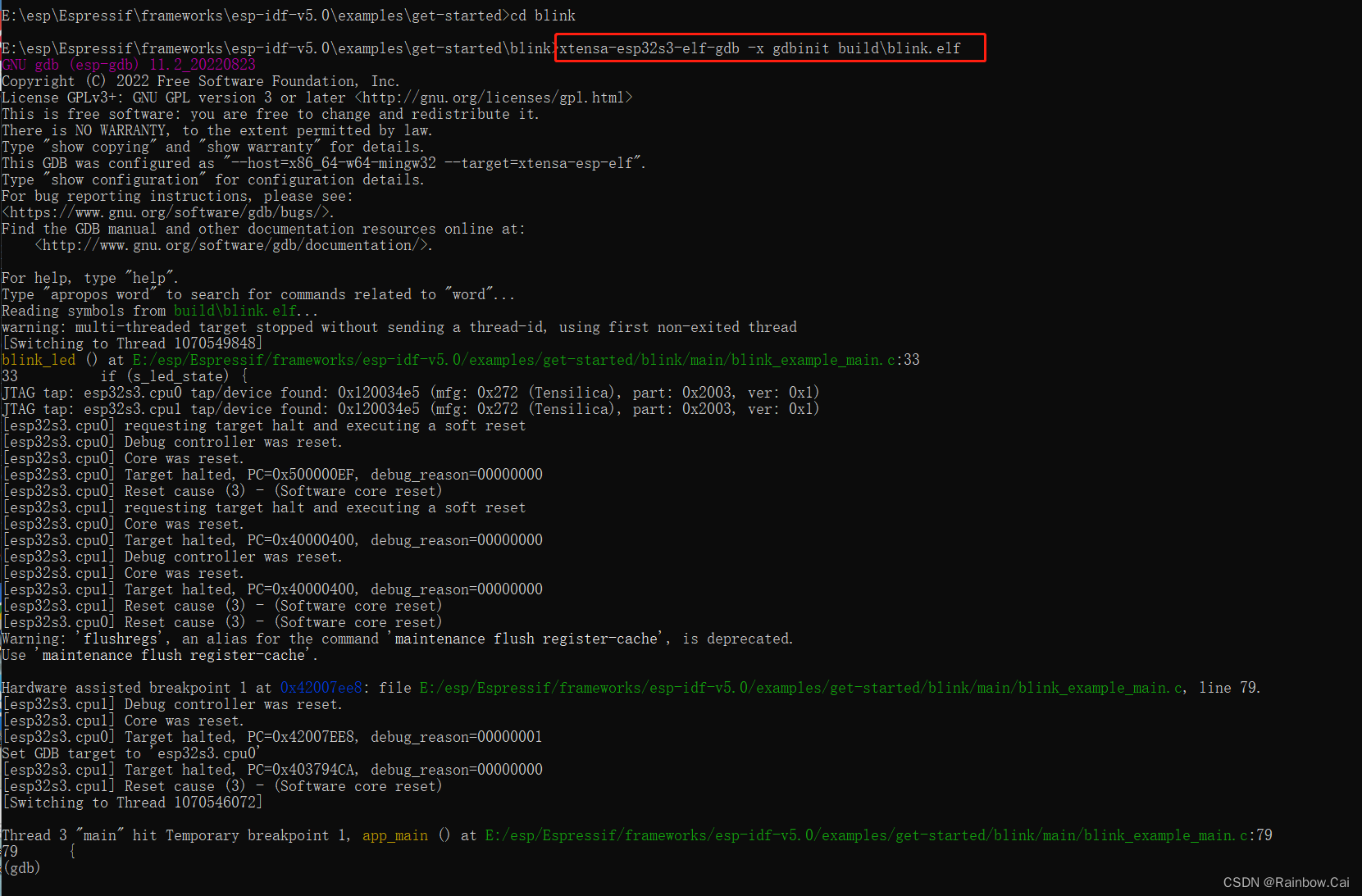

- Ready to launch GDB
xtensa-esp32s3-elf-gdb -x gdbinit build\blink.elf

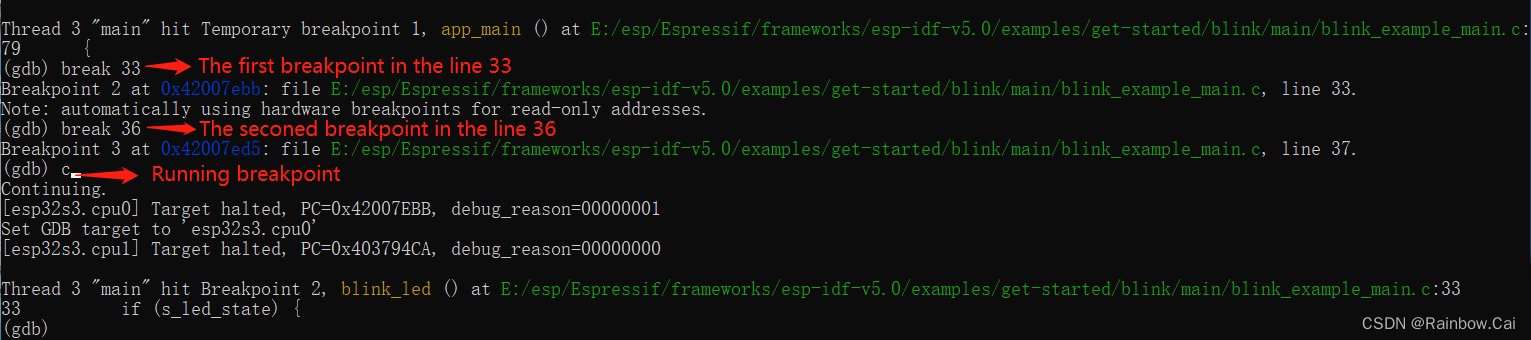

4.5 Setting and clearing breakpoints
- Use the gdb
break 33
command to set the breakpoints - Use the gdb
c
command to running breakpoints
As follows:
For more guide ,please refer to “Debugging Examples”
