判断任意一点是否在矩形内(矩形可能与坐标轴有一定夹角)

1. 理论方法

1.1 点乘实现理论

• 问题

如何判断点$P$是否在被$P_1{P}_2{P}_3{P}_4$四个点围成的矩形框内？

• 方法

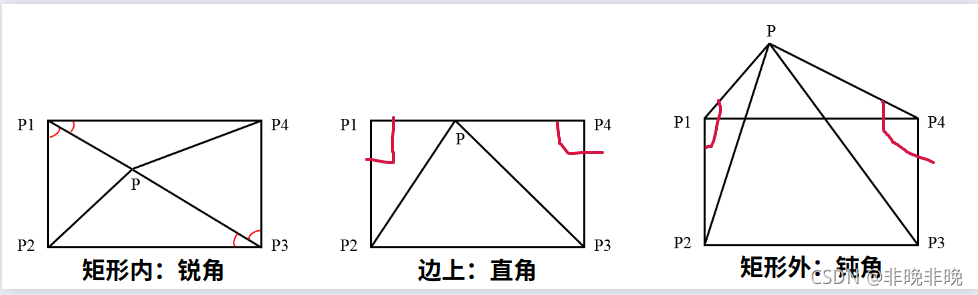

如果在矩形内：点$P$与矩形4个角的连线与任意轴形成的夹角都为锐角。可以用向量的点乘判断角度是否为锐角。具体方法如下图所示。

所以可以通过下列公式判断：

$$点P位于矩形框内\iff \{\begin{array}{l}\angle P{P}_1{P}_4<90\\ \angle P{P}_1{P}_2<90\\ \angle P{P}_3{P}_4<90\\ \angle P{P}_3{P}_2<90\end{array}\iff \{\begin{array}{l}\stackrel{\rightharpoonup }{P_{1}P}\ast \stackrel{\rightharpoonup }{P_1{P}_4}>0\\ \stackrel{\rightharpoonup }{P_{1}P}\ast \stackrel{\rightharpoonup }{P_1{P}_2}>0\\ \stackrel{\rightharpoonup }{P_{3}P}\ast \stackrel{\rightharpoonup }{P_3{P}_4}>0\\ \stackrel{\rightharpoonup }{P_{3}P}\ast \stackrel{\rightharpoonup }{P_3{P}_2}>0\end{array}$$

1.2 叉乘实现理论

只需要判断点$P$是否在上下两条边和左右两条边之间就可以，判断一个点是否在两条线段之间夹着，可以使用叉乘来判断，当$(P_1{P}_2\times P_{1}P)\ast (P_3{P}_4\times P_{3}P)>=0$时，说明点$P$在$P_1{P}_2$与$P_3{P}_4$的中间。同理判断两边即可。所以点$P$在矩形内的条件为：
$$(P_1{P}_2\times P_{1}P)\ast (P_3{P}_4\times P_{3}P)>=0and(P_2{P}_3\times P_{2}P)\ast (P_4{P}_1\times P_{4}P)>=0$$

2. 代码实现

2.1 点乘方法实现

#include<iostream>
struct MPoint
{
    double x;
    double y;
};
struct RectPoint
{
    MPoint p1;
    MPoint p2;
    MPoint p3;
    MPoint p4;
};
bool isPointInRect(MPoint p, RectPoint rect)
{
    if ((rect.p1.x - p.x) * (rect.p1.x - rect.p4.x) + (rect.p1.y - p.y) * (rect.p1.y - rect.p4.y) < 0)
        return false;
    if (((rect.p1.x - p.x) * (rect.p1.x - rect.p2.x) + (rect.p1.y - p.y) * (rect.p1.y - rect.p2.y)) < 0)
        return false;
    if (((rect.p3.x - p.x) * (rect.p3.x - rect.p4.x) + (rect.p3.y - p.y) * (rect.p3.y - rect.p4.y)) < 0)
        return false;
    if (((rect.p3.x - p.x) * (rect.p3.x - rect.p2.x) + (rect.p3.y - p.y) * (rect.p3.y - rect.p2.y)) < 0)
        return false;
    return true;
}
int main(int argc,char *argv[])
{
    RectPoint rect;
    MPoint p;
    //添加矩形框点
    rect.p1.x = 1;
    rect.p1.y = 0;

    rect.p2.x = -1;
    rect.p2.y = 0;

    rect.p3.x = 0;
    rect.p3.y = 1;

    rect.p4.x = 0;
    rect.p4.y = -1;

    p.x = 0.5;
    p.y = 0.5;
    std::cout<<"("<<p.x<<", "<<p.y<<")"<<"是否在矩形框内："<<std::boolalpha<<isPointInRect(p, rect)<<std::endl;//1 or 0 use noboolalpha
    p.x = 0.5;
    p.y = 3.0;
    std::cout<<"("<<p.x<<", "<<p.y<<")"<<"是否在矩形框内："<<std::boolalpha<<isPointInRect(p, rect)<<std::endl;//1 or 0 use noboolalpha

    return 1;
}

输出：

(0.5, 0.5)是否在矩形框内：true
(0.5, 3)是否在矩形框内：false

2.2 叉乘方法实现

#include <iostream>

struct Point
{
	float x;
	float y;
	Point(float x, float y)
	{
		this->x = x;
		this->y = y;
	}
};
// 计算 |p1 p2| X |p1 p|
float GetCross(Point &p1, Point &p2, Point &p)
{
	return (p2.x - p1.x) * (p.y - p1.y) - (p.x - p1.x) * (p2.y - p1.y);
}
bool IsPointInMatrix(Point &p)
{
	Point p1(0, 5);
	Point p2(0, 0);
	Point p3(5, 0);
	Point p4(5, 5);

	return GetCross(p1, p2, p) * GetCross(p3, p4, p) >= 0 && GetCross(p2, p3, p) * GetCross(p4, p1, p) >= 0;
}
using namespace std;
int main(int argc, char *argv[])
{
	Point testPoint(3, 4);

	cout << "the point is " << (IsPointInMatrix(testPoint) ? "in the Matrix ." : "not in the matrix .") << endl;

	testPoint.x = 5;
	testPoint.y = 34;
	cout << "the point is " << (IsPointInMatrix(testPoint) ? "in the Matrix ." : "not in the matrix .") << endl;
	return 0;
}

输出：

the point is in the Matrix .
the point is not in the matrix .

---
