SV之操作符和表达式

目录



Assignment operators 赋值操作

Wild equality and wild inequality 不定值的比较

struct expressions 结构体表达式

Streaming operators 流操作符

inside 操作符

---

Assignment operators 赋值操作

• +=
• -=
• *=
• /=
• %=
• &=
• |=
• ^=
• <<= 左移后赋值
• >>= 右移后赋值
• <<<= 算术左移后赋值
• >>>= 算术右移后赋值

注意：逻辑移位（<<和>>）时移入的是0，算术右移（>>>）移入的是标志位（最高位），算术左移移入的是0；

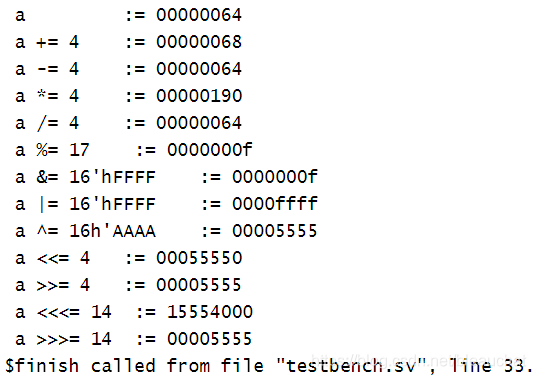

module assignment_operator ();

reg [31:0] a = 100;

initial begin
  $display (" a         := %h",  a );
  a += 4;
  $display (" a += 4    := %h",  a );
  a -= 4;
  $display (" a -= 4    := %h",  a );
  a *= 4;
  $display (" a *= 4    := %h",  a );
  a /= 4;
  $display (" a /= 4    := %h",  a );
  a %= 17;
  $display (" a %s= 17    := %h", "%", a );
  a &= 16'hFFFF;
  $display (" a &= 16'hFFFF    := %h",  a );
  a |= 16'hFFFF;
  $display (" a |= 16'hFFFF    := %h",  a );
  a ^= 16'hAAAA;
  $display (" a ^= 16h'AAAA    := %h",  a );
  a <<= 4;
  $display (" a <<= 4   := %h",  a );
  a >>= 4;
  $display (" a >>= 4   := %h",  a );
  a <<<= 14;
  $display (" a <<<= 14  := %h",  a );
  a >>>= 14;
  $display (" a >>>= 14  := %h",  a );
  #1 $finish;
end

endmodule



再来看常用的两种类型logic和bit的操作：

module bit_logic_operator ();

bit   [7:0] a = 8'b01xz_01xz;
logic [7:0] b = 8'b01xz_01xz;
integer     c = 32'b01xz_01xz_01xz_01xz;
int         d = 32'b01xz_01xz_01xz_01xz;

initial begin
  $display  ("Value of bit     a = %b", a);
  $display  ("Value of logic   b = %b", b);
  $display  ("Value of integer c = %b", c);
  $display  ("Value of int     d = %b", d);

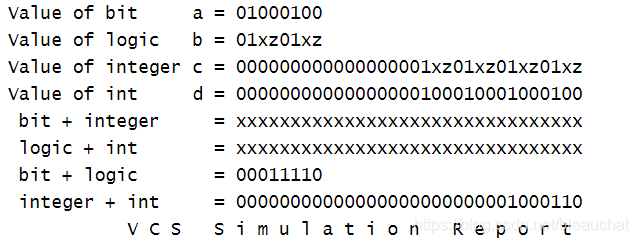

  $display  (" bit + integer     = %b", a + c);//任何带不定值的操作，结果都是不定值
  $display  (" logic + int       = %b", b + d);
  a = 10;
  b = 20;
  c = 30;
  d = 40;
  $display  (" bit + logic       = %b", a + b);
  $display  (" integer + int     = %b", c + d);
end

endmodule



Wild equality and wild inequality 不定值的比较

不定值的比较主要涉及到两个操作符：=?=和 !?=，例子如下：

module wild_equality_operator ();

bit [7:0] data = 8'hFF;

initial begin
  // Compare with wild equality
  if (data =?= 8'b1xxx_z1xz) begin
    $display ("Data %b matches with %b", data,  8'b1xxx_z1xz);
  end
  // Compare with wild non-equality
  if (data !?= 8'b1xxx_z1x0) begin
    $display ("Data %b does not matches with %b", data,  8'b1xxx_z1x0);
  end
  #1 $finish;
end

endmodule



struct expressions 结构体表达式

module  struct_expr_operator();

typedef struct {
  int x;
  int y;
} myStruct;//定义结构体

myStruct s1;//结构体实例
int k = 1;

initial begin
  #1 s1 = '{1, 2+k}; //初始化结构体，格式与数组是相同的
  // by position
  #1 $display("Value of x = %g y = %g by position", s1.x, s1.y); //调用结构体元素，这与调用类中的方法是一致的
  #1 s1 = '{x:2, y:3+k};
  // by name
  #1 $display("Value of s1 ", s1, " by name");
  #1 $finish;
end

endmodule

Streaming operators 流操作符

流操作符用于把其后的数据打包成一个比特流。操作符>>把数据从左至右变成流，而<<把数据从右至左变成流 .

module streaming();

//-------------------------------
// PACK Example
//-------------------------------
int j = { "A", "B", "C", "D" };

bit [31:0] stream;

initial begin
 $display("       PACK");
 $display("Value of j %0x",j);
 $monitor("@%0dns stream value is %x",$time, stream);
 #1 stream = { << byte {j}};
 #1 stream = { >> {j}} ;
 #1 stream = { << { 8'b0011_0101 }};
 #1 stream = { << 16 {j}};
 #1 stream = { << 4 { 6'b11_0101 }};
 #1 stream = { >> 4 { 6'b11_0101 }} ;
 #1 stream = { << 2 { { << { 4'b1101 }} }};
end

//-------------------------------
// UNPACK Example
//-------------------------------
int          a, b, c;
logic [10:0] up [3:0];
logic [11:1] p1, p2, p3, p4;
bit   [96:1] y;
int          j ;
bit   [99:0] d;

initial begin
  #20;
  $display("       UNPACK");
  // Below line should give compile error
  //{>>{ a, b, c }} = 23'b1;
  {>>{ a, b, c }} = 96'b1;
  $display("@%0dns a %x b %x c %x",$time,a,b,c);
  {>>{ a, b, c }} = 100'b1;
  $display("@%0dns a %x b %x c %x",$time,a,b,c);
  { >> {p1, p2, p3, p4}} = up;
  $display("@%0dns p1 %x p2 %x p3 %x p4 %x",$time,p1,p2,p3,p4);
  y = {>>{ a, b, c }};
  $display("@%0dns y %x",$time,y);
  // Below line should give compile error
  //j = {>>{ a, b, c }};
  d = {>>{ a, b, c }};
  $display("@%0dns d %x",$time,d);
end

endmodule

inside 操作符

看例子：

module set_member();

int array [$] = {1,2,3,4,5,6,7};
int check = 0;

initial begin

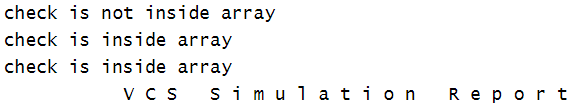

  if (check inside {array}) begin
    $display("check is inside array");
  end else begin
    $display("check is not inside array");
  end
  check = 5;
  if (check inside {array}) begin
    $display("check is inside array");
  end else begin
    $display("check is not inside array");
  end
  check = 1;
  // Constant range
  if (check inside {[0:10]}) begin
    $display("check is inside array");
  end else begin
    $display("check is not inside array");
  end

end

endmodule
