ros：kcf算法+行人检测 = 让机器人自动识别并追踪行人

实现目标：机器人检测到有人走过来，迎上去并开始追踪。
追踪算法使用kcf算法，关于kcf追踪的ros库在github地址https://github.com/TianyeAlex/tracker_kcf_ros，kcf算法是目前追踪算法中比较好的，程序跑起来后效果也是不错的。我能力有限，在这里不作介绍。有兴趣的可以去研究一下。这里主要讲一下在次基础上添加行人检测，做到自动追踪。
训练库地址：http://download.csdn.net/detail/yiranhaiziqi/9711174，下载后放到src目录下。

追踪的代码结构
作者将kcf算法封装起来，在runtracker.cpp里面调用。

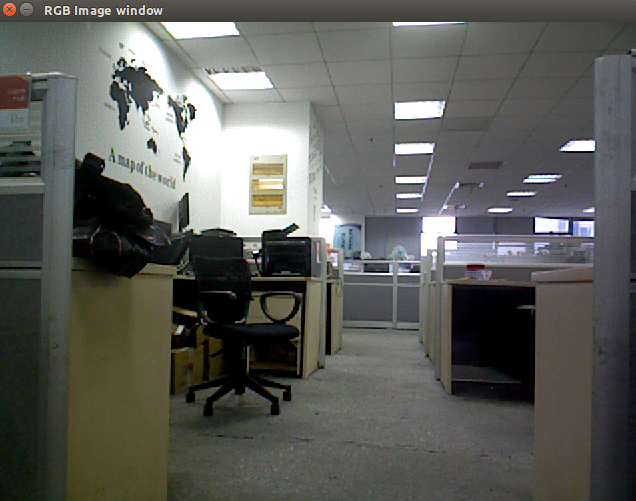

程序跑起来的效果

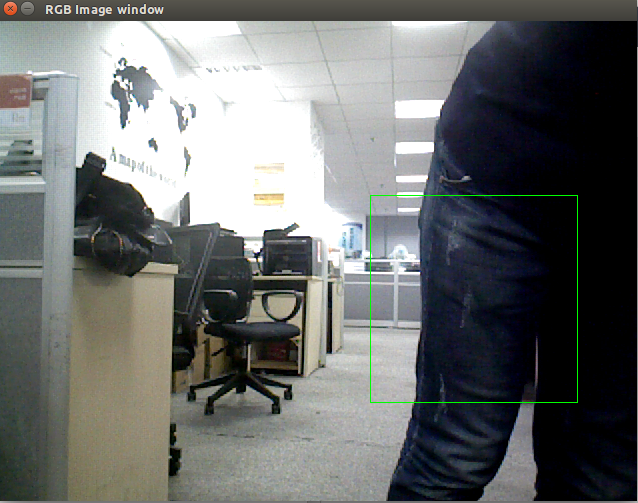

出现一个窗口，用鼠标左键选中一个区域作为感兴趣区域，之后机器人会跟踪这个区域。例如，选中画面中的椅子，移动椅子之后，机器人会跟随移动。选中画面中的人或者人的某个部位都可以实现人物跟踪。我要想实现自动追踪，就是把鼠标选择跟踪物变成自动选择跟踪物，这里的跟踪物就是行人。
首先要先实现行人检测，在OpenCV中，有行人检测的demo，路径在opencv-2.4.13/samples/cpp/peopledetect.cpp。接下来做的就是把代码结合起来。
简单介绍一下runtracker.cpp。
ImageConverter类是核心
初始化我们要接受/发送主题的Publisher 和Subscriber，设置相应的回掉函数。

image_sub_ = it_.subscribe("/camera/rgb/image_rect_color", 1,&ImageConverter::imageCb, this);
        depth_sub_ = it_.subscribe("/camera/depth/image", 1,&ImageConverter::depthCb, this);
        pub = nh_.advertise<geometry_msgs::Twist>("/mobile_base/mobile_base_controller/cmd_vel", 1000);


1
2
3


1
2
3

image_sub_是接受rgb图的subscribe，执行imageCb回掉函数，imageCb主要是将摄像头的数据显示在窗口中，选择感兴趣区域。
depth_sub_是接受深度图的subscribe，执行depthCb回掉函数，depthCb作用就是计算距离和方向。
了解到这里之后，要将手动选择感兴趣区域改为自动选择感兴趣区域，必然是在imageCb函数中修改。
imageCb中 cv::setMouseCallback(RGB_WINDOW, onMouse, 0);监听鼠标操作，如果鼠标不动，程序不会往下执行。onMouse为鼠标监听回调。要实现自动选择肯定就不能用这个了，将其注掉。
再来看下onMouse函数做了什么事

void onMouse(int event, int x, int y, int, void*)
{
    if (select_flag)
    {
        selectRect.x = MIN(origin.x, x);
        selectRect.y = MIN(origin.y, y);
        selectRect.width = abs(x - origin.x);
        selectRect.height = abs(y - origin.y);
        selectRect &= cv::Rect(0, 0, rgbimage.cols, rgbimage.rows);
    }
    if (event == CV_EVENT_LBUTTONDOWN)
    {
        bBeginKCF = false;
        select_flag = true;
        origin = cv::Point(x, y);
        selectRect = cv::Rect(x, y, 0, 0);
    }
    else if (event == CV_EVENT_LBUTTONUP)
    {
        select_flag = false;
        bRenewROI = true;
    }
}


1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23


1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23

当按下鼠标左键时，这个点就是起始点，按住鼠标左键移动鼠标，会选择感兴趣区域，松开鼠标左键，bRenewROI = true;修改标志，表示新的roi区域selectRect已经产生。在imageCb中程序继续执行，初始化KCFTracker，开始追踪。
到这里基本的流程已经比较清晰了，接下来开始将行人检测代替手动选择roi区域。

preparePeopleDetect()函数是初始化检测，
peopleDetect()函数是开始检测。

void preparePeopleDetect()
    {
        has_dectect_people = false;
        //hog.setSVMDetector(HOGDescriptor::getDefaultPeopleDetector());//使用默认的训练数据，下面是使用自己的训练数据。
        MySVM svm;
        string path = ros::package::getPath("track_pkg")+"/src/12000neg_2400pos.xml";
        printf("path === %s",path.c_str());
        //svm.load("/home/server/catkin_ws/src/tracker_kcf_ros/src/track_pkg/src/12000neg_2400pos.xml");
        svm.load(path.c_str());
        DescriptorDim = svm.get_var_count();//特征向量的维数，即HOG描述子的维数
        int supportVectorNum = svm.get_support_vector_count();//支持向量的个数
        cout<<"支持向量个数："<<supportVectorNum<<endl;

        Mat alphaMat = Mat::zeros(1, supportVectorNum, CV_32FC1);//alpha向量，长度等于支持向量个数
        Mat supportVectorMat = Mat::zeros(supportVectorNum, DescriptorDim, CV_32FC1);//支持向量矩阵
        Mat resultMat = Mat::zeros(1, DescriptorDim, CV_32FC1);//alpha向量乘以支持向量矩阵的结果

        //将支持向量的数据复制到supportVectorMat矩阵中
        for(int i=0; i<supportVectorNum; i++)
        {
            const float * pSVData = svm.get_support_vector(i);//返回第i个支持向量的数据指针
            for(int j=0; j<DescriptorDim; j++)
            {
                supportVectorMat.at<float>(i,j) = pSVData[j];
            }
        }

        //将alpha向量的数据复制到alphaMat中
        double * pAlphaData = svm.get_alpha_vector();//返回SVM的决策函数中的alpha向量
        for(int i=0; i<supportVectorNum; i++)
        {
            alphaMat.at<float>(0,i) = pAlphaData[i];
        }

        //计算-(alphaMat * supportVectorMat),结果放到resultMat中
        //gemm(alphaMat, supportVectorMat, -1, 0, 1, resultMat);//不知道为什么加负号？
        resultMat = -1 * alphaMat * supportVectorMat;

        //得到最终的setSVMDetector(const vector<float>& detector)参数中可用的检测子

        //将resultMat中的数据复制到数组myDetector中
        for(int i=0; i<DescriptorDim; i++)
        {
            myDetector.push_back(resultMat.at<float>(0,i));
        }
        //最后添加偏移量rho，得到检测子
        myDetector.push_back(svm.get_rho());
        cout<<"检测子维数："<<myDetector.size()<<endl;
        hog.setSVMDetector(myDetector);
        ofstream fout("HOGDetectorForOpenCV.txt");
        for(int i=0; i<myDetector.size(); i++)
        {
            fout<<myDetector[i]<<endl;
        }
        printf("Start the tracking process\n");

    }
    //行人检测
    void peopleDetect()
    {
        if(has_dectect_people)
            return;
        vector<Rect> found, found_filtered;
        double t = (double)getTickCount();
        hog.detectMultiScale(rgbimage, found, 0, Size(8,8), Size(32,32), 1.05, 2);
        t = (double)getTickCount() - t;
        //printf("tdetection time = %gms\n", t*1000./cv::getTickFrequency());
        size_t i, j;
        printf("found.size==%d",found.size());
        for( i = 0; i < found.size(); i++ )
        {
            Rect r = found[i];
            for( j = 0; j < found.size(); j++ )
                if( j != i && (r & found[j]) == r)
                    break;
            if( j == found.size() )
                found_filtered.push_back(r);
        }
        Rect r ;
        for( i = 0; i < found_filtered.size(); i++ )
        {
            r = found_filtered[i];
            // the HOG detector returns slightly larger rectangles than the real objects.
            // so we slightly shrink the rectangles to get a nicer output.
            r.x += cvRound(r.width*0.1);
            r.width = cvRound(r.width*0.8);
            r.y += cvRound(r.height*0.07);
            r.height = cvRound(r.height*0.8);
            //rectangle(rgbimage, r.tl(), r.br(), cv::Scalar(0,255,0), 3);
            //printf("r.x==%d,y==%d,width==%d,height==%d\n",r.x,r.y,r.width,r.height);
        }
        //防止误检测
        if(r.width>100&&r.height>350){
            has_dectect_people=true;
            selectRect.x = r.x+(r.width-roi_width)/2;
            selectRect.y = r.y+(r.height-roi_height)/2;
            selectRect.width = roi_width;
            selectRect.height = roi_height;
            printf("selectRect.x==%d,y==%d,width==%d,height==%d\n",selectRect.x,selectRect.y,selectRect.width,selectRect.height);
        }//imshow(RGB_WINDOW, rgbimage);
    }


1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101


1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101

检测到人后，人所在的区域是一个矩形，我这里在矩形区域内取其中间100*100的矩形为感兴趣区域。检测到人后将has_dectect_people置为true，使其不会再次检测。设置bRenewROI = true;select_flag = true;
select_flag：当追踪目标未消失时，为true，消失时为false，与bRenewROI一起作为是否重新检测行人追踪的标记。

完整代码如下

#include <iostream>
#include <fstream>
#include <sstream>
#include <algorithm>
#include <dirent.h>
#include <math.h>
#include <ros/ros.h>
#include <ros/package.h>
#include <image_transport/image_transport.h>
#include <cv_bridge/cv_bridge.h>
#include <sensor_msgs/image_encodings.h>
#include "geometry_msgs/Twist.h"

#include <opencv2/core/core.hpp>
#include <opencv2/highgui/highgui.hpp>
#include "opencv2/imgproc/imgproc.hpp"
#include "opencv2/objdetect/objdetect.hpp"
#include <stdio.h>
#include <string.h>
#include <ctype.h>
#include "kcftracker.hpp"

using namespace cv;
using namespace std;
static const std::string RGB_WINDOW = "RGB Image window";
//static const std::string DEPTH_WINDOW = "DEPTH Image window";

#define Max_linear_speed 1
#define Min_linear_speed 0.4
#define Min_distance 1.0
#define Max_distance 5.0
#define Max_rotation_speed 0.75

float linear_speed = 0;
float rotation_speed = 0;

float k_linear_speed = (Max_linear_speed - Min_linear_speed) / (Max_distance - Min_distance);
float h_linear_speed = Min_linear_speed - k_linear_speed * Min_distance;

float k_rotation_speed = 0.004;
float h_rotation_speed_left = 1.2;
float h_rotation_speed_right = 1.36;
float distance_scale = 1.0;
int ERROR_OFFSET_X_left1 = 100;
int ERROR_OFFSET_X_left2 = 300;
int ERROR_OFFSET_X_right1 = 340;
int ERROR_OFFSET_X_right2 = 600;
int roi_height = 100;
int roi_width = 100;
cv::Mat rgbimage;
cv::Mat depthimage;
cv::Rect selectRect;
cv::Point origin;
cv::Rect result;

bool select_flag = false;
bool bRenewROI = false;  // the flag to enable the implementation of KCF algorithm for the new chosen ROI
bool bBeginKCF = false;
bool enable_get_depth = false;

bool HOG = true;
bool FIXEDWINDOW = false;
bool MULTISCALE = true;
bool SILENT = true;
bool LAB = false;
int DescriptorDim;
bool has_dectect_people ;
// Create KCFTracker object
KCFTracker tracker(HOG, FIXEDWINDOW, MULTISCALE, LAB);
vector<float> myDetector;
float dist_val[5] ;

/*void onMouse(int event, int x, int y, int, void*)
{
    if (select_flag)
    {
        selectRect.x = MIN(origin.x, x);
        selectRect.y = MIN(origin.y, y);
        selectRect.width = abs(x - origin.x);
        selectRect.height = abs(y - origin.y);
        selectRect &= cv::Rect(0, 0, rgbimage.cols, rgbimage.rows);
    }
    if (event == CV_EVENT_LBUTTONDOWN)
    {
        bBeginKCF = false;
        select_flag = true;
        origin = cv::Point(x, y);
        selectRect = cv::Rect(x, y, 0, 0);
    }
    else if (event == CV_EVENT_LBUTTONUP)
    {
        select_flag = false;
        bRenewROI = true;
    }
}*/

class MySVM : public CvSVM
{
public:
    //获得SVM的决策函数中的alpha数组
    double * get_alpha_vector()
    {
        return this->decision_func->alpha;
    }

    //获得SVM的决策函数中的rho参数,即偏移量
    float get_rho()
    {
        return this->decision_func->rho;
    }
};

class ImageConverter
{
    ros::NodeHandle nh_;
    image_transport::ImageTransport it_;
    image_transport::Subscriber image_sub_;
    image_transport::Subscriber depth_sub_;
    HOGDescriptor hog;

public:
    ros::Publisher pub;

    ImageConverter()
    : it_(nh_)
    {
        // Subscrive to input video feed and publish output video feed
        image_sub_ = it_.subscribe("/camera/rgb/image_rect_color", 1,&ImageConverter::imageCb, this);
        depth_sub_ = it_.subscribe("/camera/depth/image", 1,&ImageConverter::depthCb, this);
        pub = nh_.advertise<geometry_msgs::Twist>("/mobile_base/mobile_base_controller/cmd_vel", 1000);
        //pub = nh_.advertise<geometry_msgs::Twist>("/cmd_vel", 1000);
        preparePeopleDetect();
        cv::namedWindow(RGB_WINDOW);
        //cv::namedWindow(DEPTH_WINDOW);
    }

    ~ImageConverter()
    {
        cv::destroyWindow(RGB_WINDOW);
        //cv::destroyWindow(DEPTH_WINDOW);
    }

    void imageCb(const sensor_msgs::ImageConstPtr& msg)
    {
        cv_bridge::CvImagePtr cv_ptr;
        try
        {
            cv_ptr = cv_bridge::toCvCopy(msg, sensor_msgs::image_encodings::BGR8);
        }
        catch (cv_bridge::Exception& e)
        {
            ROS_ERROR("cv_bridge exception: %s", e.what());
            return;
        }

        cv_ptr->image.copyTo(rgbimage);
        peopleDetect();
        if(has_dectect_people&&!select_flag)
        {
            printf("has_dectect_people = true \n");
            selectRect &= cv::Rect(0,0,rgbimage.cols,rgbimage.rows);
            bRenewROI = true;
            select_flag = true;
        }
        //cv::setMouseCallback(RGB_WINDOW, onMouse, 0);
        if(bRenewROI)
        {
            // if (selectRect.width <= 0 || selectRect.height <= 0)
            // {
            //     bRenewROI = false;
            //     //continue;
            // }
            tracker.init(selectRect, rgbimage);
            bBeginKCF = true;
            bRenewROI = false;
            enable_get_depth = false;
        }
        if(bBeginKCF)
        {
            result = tracker.update(rgbimage);
            cv::rectangle(rgbimage, result, cv::Scalar( 0, 255,0 ), 1, 8 );
            enable_get_depth = true;
        }
        else
            cv::rectangle(rgbimage, selectRect, cv::Scalar(0, 255, 0), 2, 8, 0);

        cv::imshow(RGB_WINDOW, rgbimage);
        cv::waitKey(1);
    }
    void preparePeopleDetect()
    {
        has_dectect_people = false;
        //hog.setSVMDetector(HOGDescriptor::getDefaultPeopleDetector());
        MySVM svm;
        string path = ros::package::getPath("track_pkg")+"/src/12000neg_2400pos.xml";
        printf("path === %s",path.c_str());
        //svm.load("/home/server/catkin_ws/src/tracker_kcf_ros/src/track_pkg/src/12000neg_2400pos.xml");
        svm.load(path.c_str());
        DescriptorDim = svm.get_var_count();//特征向量的维数，即HOG描述子的维数
        int supportVectorNum = svm.get_support_vector_count();//支持向量的个数
        cout<<"支持向量个数："<<supportVectorNum<<endl;

        Mat alphaMat = Mat::zeros(1, supportVectorNum, CV_32FC1);//alpha向量，长度等于支持向量个数
        Mat supportVectorMat = Mat::zeros(supportVectorNum, DescriptorDim, CV_32FC1);//支持向量矩阵
        Mat resultMat = Mat::zeros(1, DescriptorDim, CV_32FC1);//alpha向量乘以支持向量矩阵的结果

        //将支持向量的数据复制到supportVectorMat矩阵中
        for(int i=0; i<supportVectorNum; i++)
        {
            const float * pSVData = svm.get_support_vector(i);//返回第i个支持向量的数据指针
            for(int j=0; j<DescriptorDim; j++)
            {
                supportVectorMat.at<float>(i,j) = pSVData[j];
            }
        }

        //将alpha向量的数据复制到alphaMat中
        double * pAlphaData = svm.get_alpha_vector();//返回SVM的决策函数中的alpha向量
        for(int i=0; i<supportVectorNum; i++)
        {
            alphaMat.at<float>(0,i) = pAlphaData[i];
        }

        //计算-(alphaMat * supportVectorMat),结果放到resultMat中
        //gemm(alphaMat, supportVectorMat, -1, 0, 1, resultMat);//不知道为什么加负号？
        resultMat = -1 * alphaMat * supportVectorMat;

        //得到最终的setSVMDetector(const vector<float>& detector)参数中可用的检测子

        //将resultMat中的数据复制到数组myDetector中
        for(int i=0; i<DescriptorDim; i++)
        {
            myDetector.push_back(resultMat.at<float>(0,i));
        }
        //最后添加偏移量rho，得到检测子
        myDetector.push_back(svm.get_rho());
        cout<<"检测子维数："<<myDetector.size()<<endl;
        hog.setSVMDetector(myDetector);
        ofstream fout("HOGDetectorForOpenCV.txt");
        for(int i=0; i<myDetector.size(); i++)
        {
            fout<<myDetector[i]<<endl;
        }
        printf("Start the tracking process\n");

    }
    //行人检测
    void peopleDetect()
    {
        if(has_dectect_people)
            return;
        vector<Rect> found, found_filtered;
        double t = (double)getTickCount();
        hog.detectMultiScale(rgbimage, found, 0, Size(8,8), Size(32,32), 1.05, 2);
        t = (double)getTickCount() - t;
        //printf("tdetection time = %gms\n", t*1000./cv::getTickFrequency());
        size_t i, j;
        printf("found.size==%d",found.size());
        for( i = 0; i < found.size(); i++ )
        {
            Rect r = found[i];
            for( j = 0; j < found.size(); j++ )
                if( j != i && (r & found[j]) == r)
                    break;
            if( j == found.size() )
                found_filtered.push_back(r);
        }
        Rect r ;
        for( i = 0; i < found_filtered.size(); i++ )
        {
            r = found_filtered[i];
            // the HOG detector returns slightly larger rectangles than the real objects.
            // so we slightly shrink the rectangles to get a nicer output.
            r.x += cvRound(r.width*0.1);
            r.width = cvRound(r.width*0.8);
            r.y += cvRound(r.height*0.07);
            r.height = cvRound(r.height*0.8);
            //rectangle(rgbimage, r.tl(), r.br(), cv::Scalar(0,255,0), 3);
            //printf("r.x==%d,y==%d,width==%d,height==%d\n",r.x,r.y,r.width,r.height);
        }
        if(r.width>100&&r.height>350){
            has_dectect_people=true;
            selectRect.x = r.x+(r.width-roi_width)/2;
            selectRect.y = r.y+(r.height-roi_height)/2;
            selectRect.width = roi_width;
            selectRect.height = roi_height;
            printf("selectRect.x==%d,y==%d,width==%d,height==%d\n",selectRect.x,selectRect.y,selectRect.width,selectRect.height);
        }//imshow(RGB_WINDOW, rgbimage);
    }
    void depthCb(const sensor_msgs::ImageConstPtr& msg)
    {
        cv_bridge::CvImagePtr cv_ptr;
        try
        {
            cv_ptr = cv_bridge::toCvCopy(msg,sensor_msgs::image_encodings::TYPE_32FC1);
            cv_ptr->image.copyTo(depthimage);
        }
        catch (cv_bridge::Exception& e)
        {
            ROS_ERROR("Could not convert from '%s' to 'TYPE_32FC1'.", msg->encoding.c_str());
        }

        if(enable_get_depth)
        {
            dist_val[0] = depthimage.at<float>(result.y+result.height/3 , result.x+result.width/3) ;
            dist_val[1] = depthimage.at<float>(result.y+result.height/3 , result.x+2*result.width/3) ;
            dist_val[2] = depthimage.at<float>(result.y+2*result.height/3 , result.x+result.width/3) ;
            dist_val[3] = depthimage.at<float>(result.y+2*result.height/3 , result.x+2*result.width/3) ;
            dist_val[4] = depthimage.at<float>(result.y+result.height/2 , result.x+result.width/2) ;

            float distance = 0;
            int num_depth_points = 5;
            for(int i = 0; i < 5; i++)
            {
                if(dist_val[i] > 0.4 && dist_val[i] < 10.0)
                    distance += dist_val[i];
                else
                    num_depth_points--;
            }
            distance /= num_depth_points;

            //calculate linear speed
            if(distance > Min_distance)
                linear_speed = distance * k_linear_speed + h_linear_speed;
            else if (distance <= Min_distance-0.5){
                //linear_speed = 0;
                linear_speed =-1* ((Min_distance-0.5) * k_linear_speed + h_linear_speed);
            }else{
                linear_speed = 0;
            }

            if( fabs(linear_speed) > Max_linear_speed)
                linear_speed = Max_linear_speed;

            //calculate rotation speed
            int center_x = result.x + result.width/2;
            if(center_x < ERROR_OFFSET_X_left1){
                printf("center_x <<<<<<<< ERROR_OFFSET_X_left1\n");
                rotation_speed =  Max_rotation_speed/5;
                has_dectect_people = false;
                enable_get_depth = false;
                select_flag = false;
                bBeginKCF = false;
            }
            else if(center_x > ERROR_OFFSET_X_left1 && center_x < ERROR_OFFSET_X_left2)
                rotation_speed = -k_rotation_speed * center_x + h_rotation_speed_left;
            else if(center_x > ERROR_OFFSET_X_right1 && center_x < ERROR_OFFSET_X_right2)
                rotation_speed = -k_rotation_speed * center_x + h_rotation_speed_right;
            else if(center_x > ERROR_OFFSET_X_right2){
                printf("center_x >>>>>>>> ERROR_OFFSET_X_right2\n");
                rotation_speed = -Max_rotation_speed/5;
                has_dectect_people = false;
                enable_get_depth = false;
                select_flag = false;
                bBeginKCF = false;
            }
            else
                rotation_speed = 0;

            //std::cout <<  "linear_speed = " << linear_speed << "  rotation_speed = " << rotation_speed << std::endl;

            // std::cout <<  dist_val[0]  << " / " <<  dist_val[1] << " / " << dist_val[2] << " / " << dist_val[3] <<  " / " << dist_val[4] << std::endl;
            // std::cout <<  "distance = " << distance << std::endl;
        }

        //cv::imshow(DEPTH_WINDOW, depthimage);
        cv::waitKey(1);
    }
};

int main(int argc, char** argv)
{
    ros::init(argc, argv, "kcf_tracker");
    ImageConverter ic;

    while(ros::ok())
    {
        ros::spinOnce();

        geometry_msgs::Twist twist;
        twist.linear.x = linear_speed;
        twist.linear.y = 0;
        twist.linear.z = 0;
        twist.angular.x = 0;
        twist.angular.y = 0;
        twist.angular.z = rotation_speed;
        ic.pub.publish(twist);
        if (cvWaitKey(33) == 'q')
            break;
    }

    return 0;
}





1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
278
279
280
281
282
283
284
285
286
287
288
289
290
291
292
293
294
295
296
297
298
299
300
301
302
303
304
305
306
307
308
309
310
311
312
313
314
315
316
317
318
319
320
321
322
323
324
325
326
327
328
329
330
331
332
333
334
335
336
337
338
339
340
341
342
343
344
345
346
347
348
349
350
351
352
353
354
355
356
357
358
359
360
361
362
363
364
365
366
367
368
369
370
371
372
373
374
375
376
377
378
379
380
381
382
383
384
385
386
387
388
389
390
391
392
393
394
395
396


1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
278
279
280
281
282
283
284
285
286
287
288
289
290
291
292
293
294
295
296
297
298
299
300
301
302
303
304
305
306
307
308
309
310
311
312
313
314
315
316
317
318
319
320
321
322
323
324
325
326
327
328
329
330
331
332
333
334
335
336
337
338
339
340
341
342
343
344
345
346
347
348
349
350
351
352
353
354
355
356
357
358
359
360
361
362
363
364
365
366
367
368
369
370
371
372
373
374
375
376
377
378
379
380
381
382
383
384
385
386
387
388
389
390
391
392
393
394
395
396

程序运行结果。
