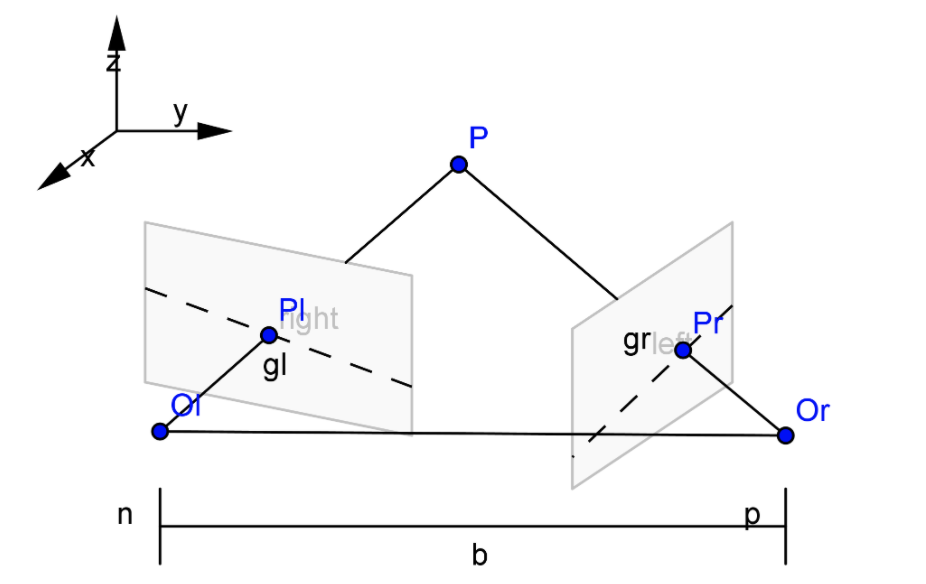

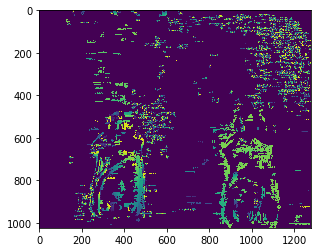

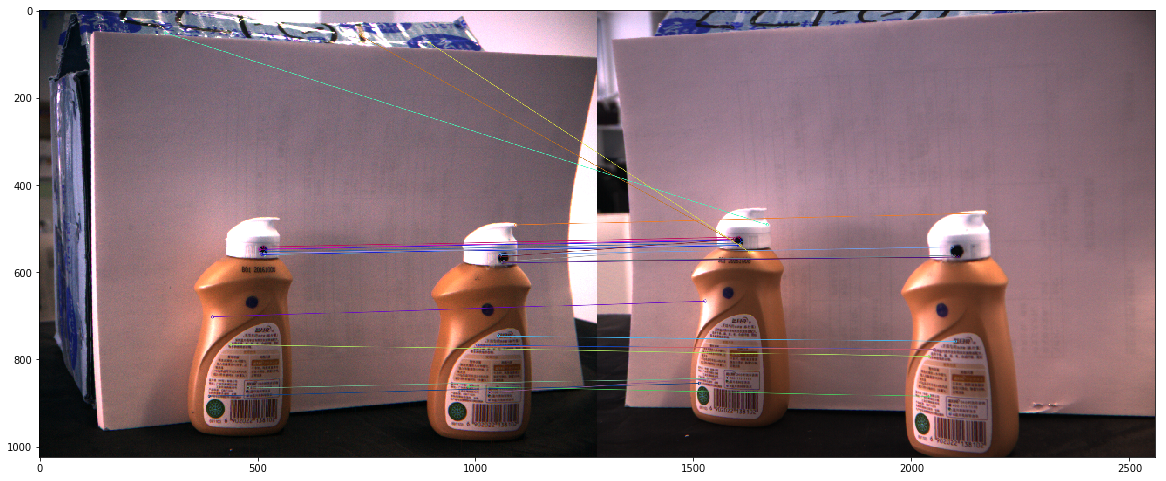

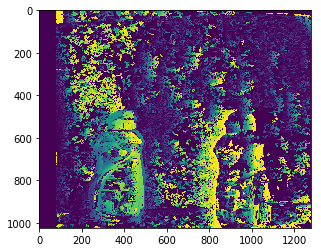

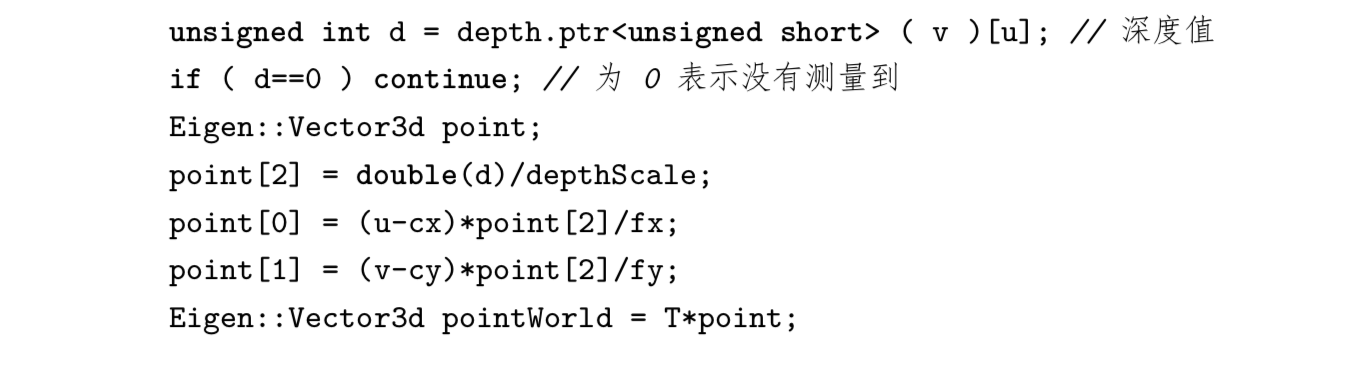

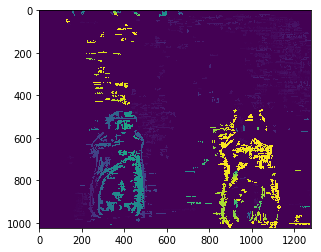

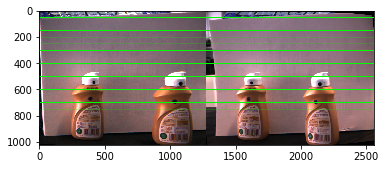

双目标定+去畸变+视差/深度+测距+特征点匹配算法（ipynb+opencv 4.3）

双目标定+去畸变+视差/深度+测距+特征点匹配算法（ipynb+opencv 4.3）

本文主要阐述代码与试验部分，提供范例，直接使用。

本文提供标定图片：
链接:百度网盘 密码:tldz

1. 标定

导入图片需要更改：

1. 角点个数
2. 文件夹名称
3. 世界坐标系的圆心点距离
4. 确定是棋盘格还是圆心标定板

import cv2

import matplotlib.pyplot as plt # plt 用于显示图片
import matplotlib.image as mpimg # mpimg 用于读取图片

import sys
import numpy as np
import glob
class shuangmu:
    def __init__(self):
        self.m1 = 0
        self.m2 = 0
        self.d1 = 0
        self.d2 = 0
        self.R = 0
        self.T = 0
stereo = shuangmu()

class StereoCalibration(object):
    def __init__(self):
        self.imagesL = self.read_images('camL')
        self.imagesR = self.read_images('camR')

    def read_images(self , cal_path):
        filepath = glob.glob(cal_path + '/*.bmp')
        filepath.sort()
        return filepath
    #标定图像
    def calibration_photo(self):
        #设置要标定的角点个数
        x_nums = 7                                                   #x方向上的角点个数
        y_nums = 7
        # 设置(生成)标定图在世界坐标中的坐标
        world_point = np.zeros((x_nums * y_nums,3),np.float32)            #生成x_nums*y_nums个坐标，每个坐标包含x,y,z三个元素
        world_point[:,:2] = np.mgrid[:x_nums,:y_nums].T.reshape(-1, 2)    #mgrid[]生成包含两个二维矩阵的矩阵，每个矩阵都有x_nums列,y_nums行
                                                                            #.T矩阵的转置
                                                                            #reshape()重新规划矩阵，但不改变矩阵元素
        #保存角点坐标
        world_position = []
        image_positionl = []
        image_positionr = []
        #设置角点查找限制
        criteria = (cv2.TERM_CRITERIA_EPS + cv2.TERM_CRITERIA_MAX_ITER,30,0.001)
        #获取所有标定图
        for ii in range(20):

            image_path_l = self.imagesL[ii]
            image_path_r = self.imagesR[ii]

            image_l = cv2.imread(image_path_l)
            image_r = cv2.imread(image_path_r)
            gray_l = cv2.cvtColor(image_l,cv2.COLOR_RGB2GRAY)
            gray_r = cv2.cvtColor(image_r,cv2.COLOR_RGB2GRAY)

            #查找角点
    #         ok,corners = cv2.findChessboardCorners(gray,(x_nums,y_nums),None)
#             ok1,cornersl = cv2.findChessboardCorners(gray_l,(x_nums,y_nums),None)
#             ok2,cornersr = cv2.findChessboardCorners(gray_r,(x_nums,y_nums),None)
            ok1,cornersl = cv2.findCirclesGrid(gray_l,(x_nums,y_nums),None)
            ok2,cornersr = cv2.findCirclesGrid(gray_r,(x_nums,y_nums),None)

            self.world = world_point
#             print(ok1&ok2)
            if ok1&ok2:
                #把每一幅图像的世界坐标放到world_position中
                center_spacing = 15     ## 圆心的位置距离，这一个其实不重要
                world_position.append(world_point*center_spacing)
                #获取更精确的角点位置
                exact_cornersl = cv2.cornerSubPix(gray_l,cornersl,(11,11),(-1,-1),criteria)
                exact_cornersr = cv2.cornerSubPix(gray_r,cornersr,(11,11),(-1,-1),criteria)
                #把获取的角点坐标放到image_position中
                image_positionl.append(exact_cornersl)
                image_positionr.append(exact_cornersr)
                #可视化角点
    #             image = cv2.drawChessboardCorners(image,(x_nums,y_nums),exact_corners,ok)
    #             cv2.imshow('image_corner',image)
    #             cv2.waitKey(0)
        #计算内参数
        image_shape = gray_l.shape[::-1]

        retl, mtxl, distl, rvecsl, tvecsl = cv2.calibrateCamera(world_position, image_positionl, image_shape , None,None)
        retr, mtxr, distr, rvecsr, tvecsr = cv2.calibrateCamera(world_position, image_positionr, image_shape , None,None)
        print('left camera\'s K  = ',mtxl)
        print('right camera\'s K = ',mtxr)
        print('left camera\'s distort = ' , distl)
        print('right camera\'s distort = ' , distr)
        stereo.m1 = mtxl
        stereo.m2 = mtxr
        stereo.d1 = distl
        stereo.d2 = distr


        #计算误差
        self.cal_error(world_position , image_positionl ,  mtxl , distl , rvecsl , tvecsl)
        self.cal_error(world_position , image_positionr ,  mtxr,  distr , rvecsr , tvecsr)

        ##双目标定
        self.stereo_calibrate( world_position ,image_positionl , image_positionr , mtxl, distl, mtxr, distr, image_shape)

    def cal_error(self , world_position , image_position ,  mtx , dist , rvecs , tvecs):
        #计算偏差
        mean_error = 0
        for i in range(len(world_position)):
            image_position2, _ = cv2.projectPoints(world_position[i], rvecs[i], tvecs[i], mtx, dist)
            error = cv2.norm(image_position[i], image_position2, cv2.NORM_L2) / len(image_position2)
            mean_error += error
        print("total error: ", mean_error / len(image_position))

    def stereo_calibrate( self ,  objpoints ,imgpoints_l , imgpoints_r , M1, d1, M2, d2, dims):
        flags = 0
        flags |= cv2.CALIB_FIX_INTRINSIC
        flags |= cv2.CALIB_USE_INTRINSIC_GUESS
        flags |= cv2.CALIB_FIX_FOCAL_LENGTH
        flags |= cv2.CALIB_ZERO_TANGENT_DIST
        stereocalib_criteria = (cv2.TERM_CRITERIA_MAX_ITER +cv2.TERM_CRITERIA_EPS, 100, 1e-5)
        ret, M1, d1, M2, d2
