一、CSPDarknet整体结构
CSPDarknet主要借鉴Darknet53（yolov3中使用）的网络框架，并使用了SPP和CSPNet结构做了改进。
二、CSPNet结构
论文链接:https://arxiv.org/pdf/1911.11929
CSPNet由里层小残差Bottleneck结构和外层大残差结构CSP组成。

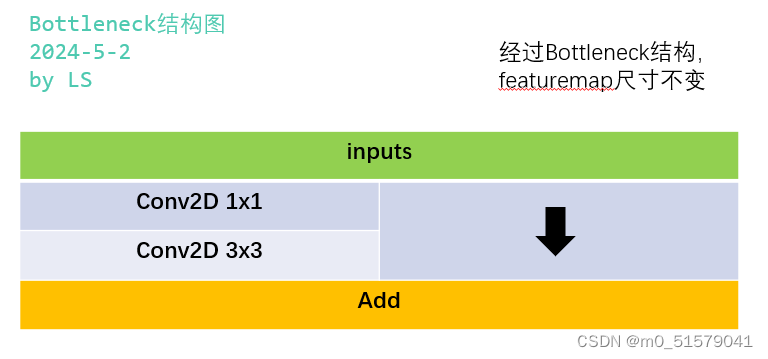

2.1 里面小残差结构Bottleneck
Bottleneck小残差结构图如下，其中Conv2D可以根据需要设置为普通卷积BaseConv或者是深度可分离卷积DWConv，激活函数可以选择relu或者leaky_relu。
代码实现
#--------------------------------------------------#
# activation func.
#--------------------------------------------------#
def get_activation(name="lrelu", inplace=True):
if name == "relu":
module = nn.ReLU(inplace=inplace)
elif name == "lrelu":
module = nn.LeakyReLU(0.1, inplace=inplace)
else:
raise AttributeError("Unsupported act type: {}".format(name))
return module
#--------------------------------------------------#
# BaseConv
#--------------------------------------------------#
class BaseConv(nn.Module):
def __init__(self, in_channels, out_channels, ksize, stride, groups=1, bias=False, act="lrelu"):
super().__init__()
pad = (ksize - 1) // 2
self.conv = nn.Conv2d(in_channels, out_channels, kernel_size=ksize, stride=stride, padding=pad, groups=groups, bias=bias)
self.bn = nn.BatchNorm2d(out_channels, eps=0.001, momentum=0.03)
self.act = get_activation(act, inplace=True)
def forward(self, x):
return self.act(self.bn(self.conv(x)))
def fuseforward(self, x):
return self.act(self.conv(x))
#--------------------------------------------------#
# DWConv
#--------------------------------------------------#
class DWConv(nn.Module):
def __init__(self, in_channels, out_channels, ksize, stride=1, act="lrelu"):
super().__init__()
self.dconv = BaseConv(in_channels, in_channels, ksize=ksize, stride=stride, groups=in_channels, act=act,)
self.pconv = BaseConv(in_channels, out_channels, ksize=1, stride=1, groups=1, act=act)
def forward(self, x):
x = self.dconv(x)
return self.pconv(x)
#--------------------------------------------------#
# 残差结构的构建，小的残差结构
#--------------------------------------------------#
class Bottleneck(nn.Module):
# Standard bottleneck
def __init__(self, in_channels, out_channels, shortcut=True, expansion=0.5, depthwise=False, act="lrelu"):
super().__init__()
hidden_channels = int(out_channels * expansion)
Conv = DWConv if depthwise else BaseConv
#--------------------------------------------------#
# 利用1x1卷积进行通道数的缩减。缩减率一般是50%
#--------------------------------------------------#
self.conv1 = BaseConv(in_channels, hidden_channels, 1, stride=1, act=act)
#--------------------------------------------------#
# 利用3x3卷积进行通道数的拓张。并且完成特征提取
#--------------------------------------------------#
self.conv2 = Conv(hidden_channels, out_channels, 3, stride=1, act=act)
self.use_add = shortcut and in_channels == out_channels
def forward(self, x):
y = self.conv2(self.conv1(x))
if self.use_add:
y = y + x
return y

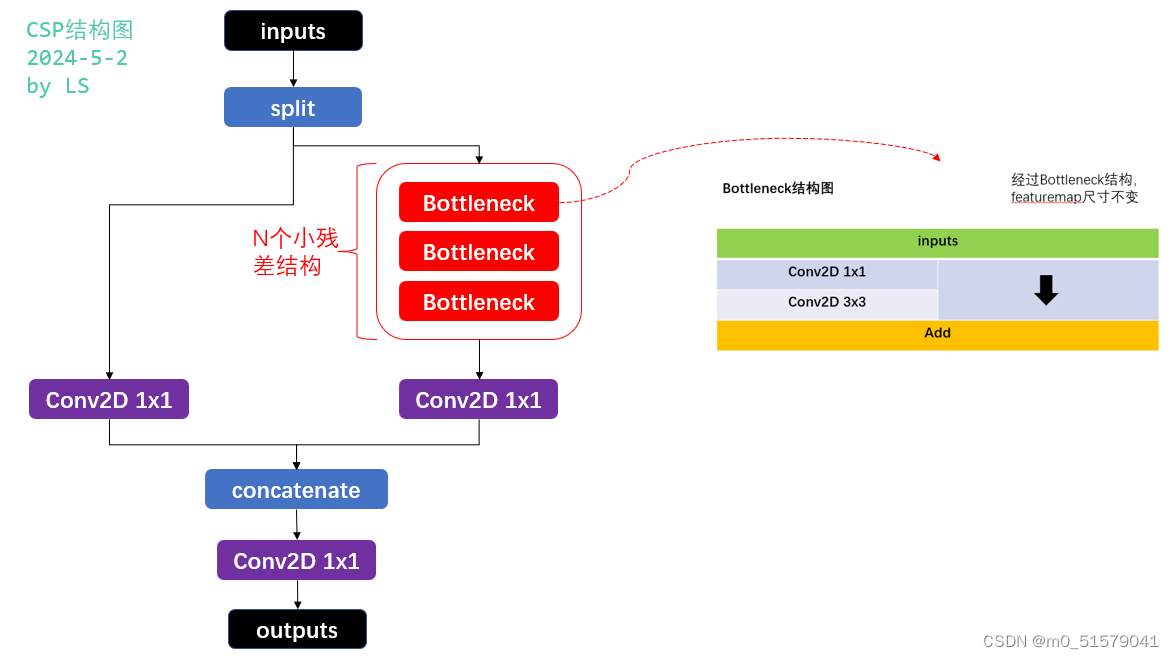

2.2 外层大残差结构CSP
CSPLayer外层大残差结构图如下
代码实现
#--------------------------------------------------#
# CSP
#--------------------------------------------------#
class CSPLayer(nn.Module):
def __init__(self, in_channels, out_channels, n=1, shortcut=True, expansion=0.5, depthwise=False, act="lrelu"):
# ch_in, ch_out, number, shortcut, groups, expansion
super().__init__()
hidden_channels = int(out_channels * expansion)
#--------------------------------------------------#
# 主干部分的初次卷积
#--------------------------------------------------#
self.conv1 = BaseConv(in_channels, hidden_channels, 1, stride=1, act=act)
#--------------------------------------------------#
# 大的残差边部分的初次卷积
#--------------------------------------------------#
self.conv2 = BaseConv(in_channels, hidden_channels, 1, stride=1, act=act)
#-----------------------------------------------#
# 对堆叠的结果进行卷积的处理
#-----------------------------------------------#
self.conv3 = BaseConv(2 * hidden_channels, out_channels, 1, stride=1, act=act)
#--------------------------------------------------#
# 根据循环的次数构建上述Bottleneck残差结构
#--------------------------------------------------#
module_list = [Bottleneck(hidden_channels, hidden_channels, shortcut, 1.0, depthwise, act=act) for _ in range(n)]
self.m = nn.Sequential(*module_list)
def forward(self, x):
#-------------------------------#
# x_1是主干部分
#-------------------------------#
x_1 = self.conv1(x)
#-------------------------------#
# x_2是大的残差边部分
#-------------------------------#
x_2 = self.conv2(x)
#-----------------------------------------------#
# 主干部分利用残差结构堆叠继续进行特征提取
#-----------------------------------------------#
x_1 = self.m(x_1)
#-----------------------------------------------#
# 主干部分和大的残差边部分进行堆叠
#-----------------------------------------------#
x = torch.cat((x_1, x_2), 1)
#-----------------------------------------------#
# 对堆叠的结果进行卷积的处理
#-----------------------------------------------#
return self.conv3(x)

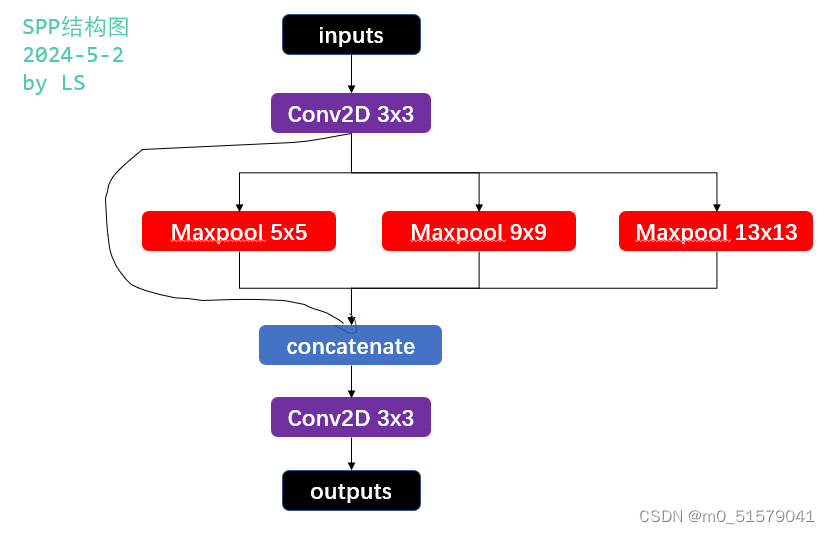

三、SPP结构

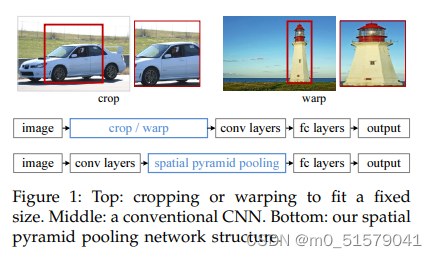

在一般的CNN结构中，在卷积层后面通常连接着全连接。而全连接层的特征数是固定的，所以在网络输入的时候，会固定输入的大小(fixed-size)。但在现实中，我们的输入的图像尺寸总是不能满足输入时要求的大小。然而通常的手法就是裁剪(crop)和拉伸(warp)。
这样做总是不好的：图像的纵横比(ratio aspect) 和 输入图像的尺寸是被改变的。这样就会扭曲原始的图像。而Kaiming He在这里提出了一个SPP(Spatial Pyramid Pooling)层能很好的解决这样的问题， 但SPP通常连接在最后一层卷基层。
论文链接：https://arxiv.org/pdf/1406.4729
代码实现
#--------------------------------------------------#
# SPP
#--------------------------------------------------#
class SPPBottleneck(nn.Module):
def __init__(self, in_channels, out_channels, kernel_sizes=(5, 9, 13), activation="lrelu"):
super().__init__()
hidden_channels = in_channels // 2
self.conv1 = BaseConv(in_channels, hidden_channels, 1, stride=1, act=activation)
self.m = nn.ModuleList([nn.MaxPool2d(kernel_size=ks, stride=1, padding=ks // 2) for ks in kernel_sizes])
conv2_channels = hidden_channels * (len(kernel_sizes) + 1)
self.conv2 = BaseConv(conv2_channels, out_channels, 1, stride=1, act=activation)
def forward(self, x):
x = self.conv1(x)
x = torch.cat([x] + [m(x) for m in self.m], dim=1)
x = self.conv2(x)
return x
四、CSPDarknet结构
参考yolov3中的Darknet53结构，结合二，三节的CSP和SPP结构，就可以进行CSPDarknet完整网络结构的搭建。CSPDarkenet主体由input，stem，dark2，dark3，dark4，dark5组成。其中dark2,3,4结构类似，stem，dark5稍微有点区别。

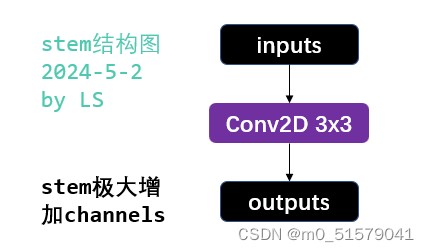

4.1 stem结构
结构
代码实现
#-----------------------------------------------#
# 输入图片是640, 640, 3
# 初始的基本通道是64
#-----------------------------------------------#
base_channels = int(wid_mul * 64) # 64
base_depth = max(round(dep_mul * 3), 1) # 3
#-----------------------------------------------#
# 利用卷积结构进行特征提取
# 640, 640, 3 -> 320, 320, 64
#-----------------------------------------------#
self.stem = Conv(3, base_channels, 6, 2)

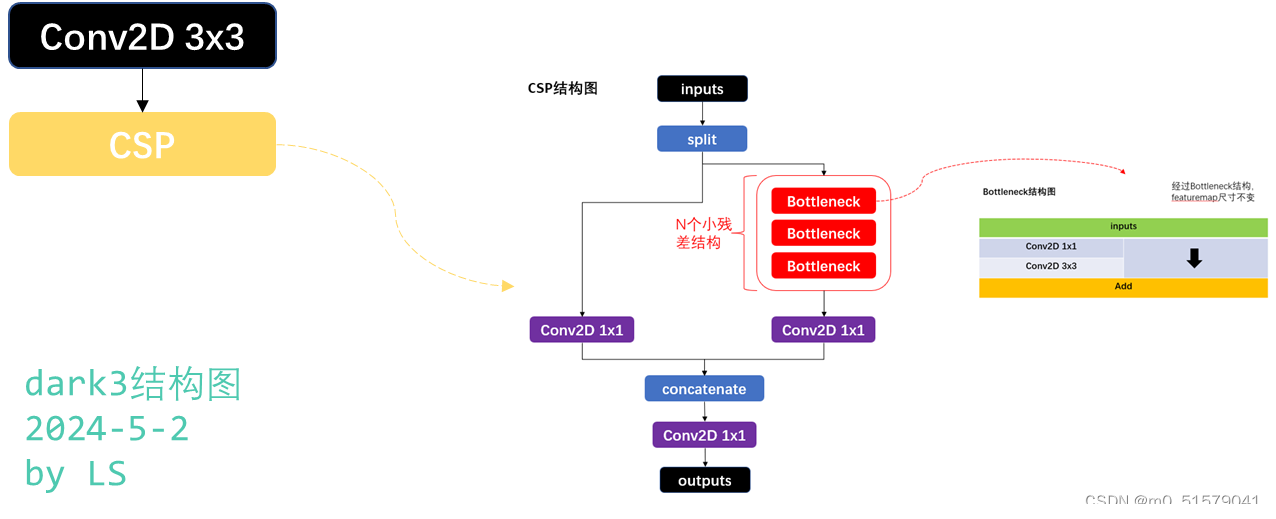

4.2 dark2,3,4结构，dark3为例：
结构
代码实现
#-----------------------------------------------#
# 完成卷积之后，160, 160, 128 -> 80, 80, 256
# 完成CSPlayer之后，80, 80, 256 -> 80, 80, 256
#-----------------------------------------------#
self.dark3 = nn.Sequential(
Conv(base_channels * 2, base_channels * 4, 3, 2, act=act),
CSPLayer(base_channels * 4, base_channels * 4, n=base_depth * 3, depthwise=depthwise, act=act),
)

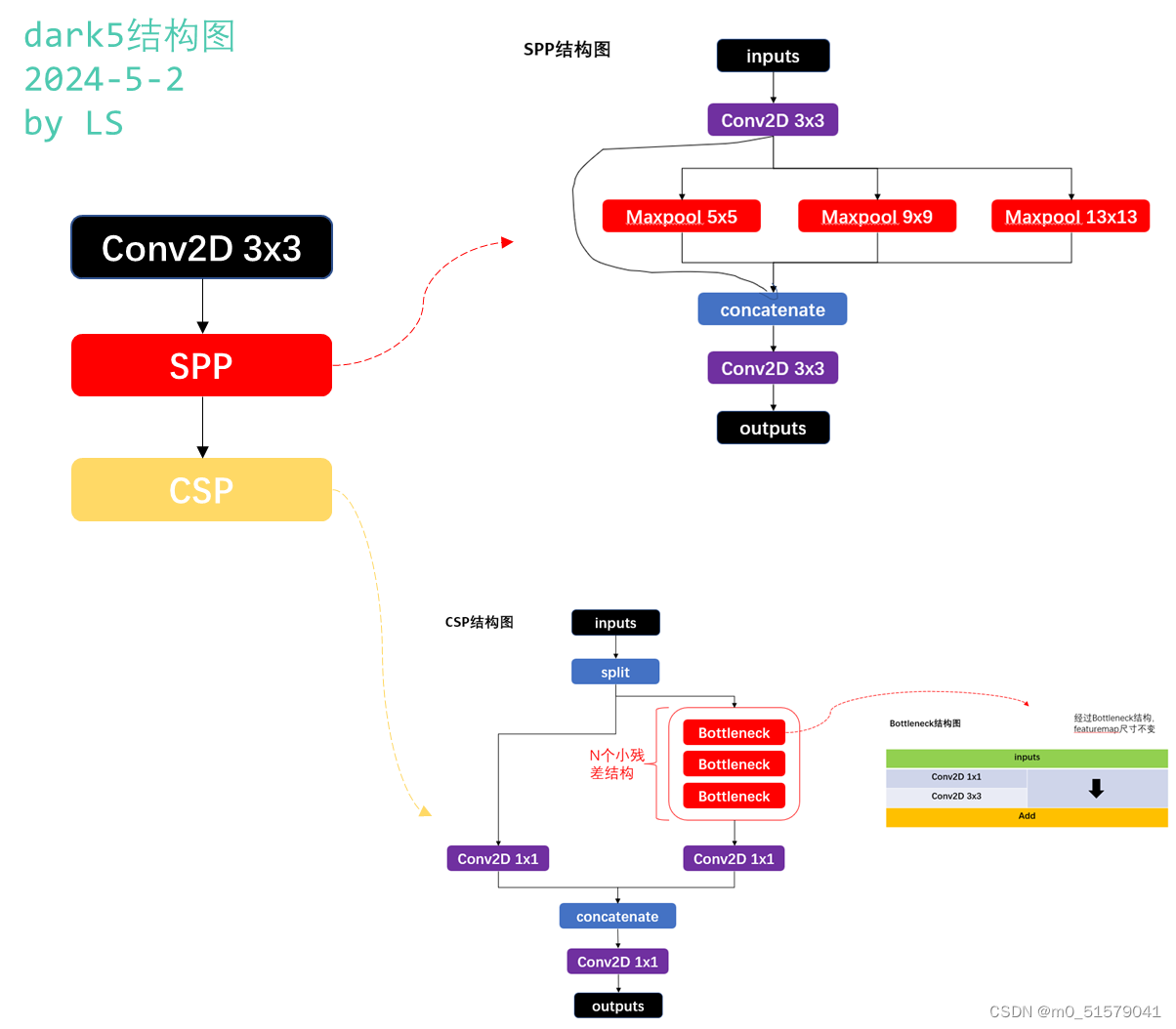

4.3 dark5结构
结构
代码实现
#-----------------------------------------------#
# 完成卷积之后，40, 40, 512 -> 20, 20, 1024
# 完成SPP之后，20, 20, 1024 -> 20, 20, 1024
# 完成CSPlayer之后，20, 20, 1024 -> 20, 20, 1024
#-----------------------------------------------#
self.dark5 = nn.Sequential(
Conv(base_channels * 8, base_channels * 16, 3, 2, act=act),
SPPBottleneck(base_channels * 16, base_channels * 16, activation=act),
# SPPF(base_channels * 16, base_channels * 16,activation=act),
CSPLayer(base_channels * 16, base_channels * 16, n=base_depth, shortcut=False, depthwise=depthwise, act=act),
)

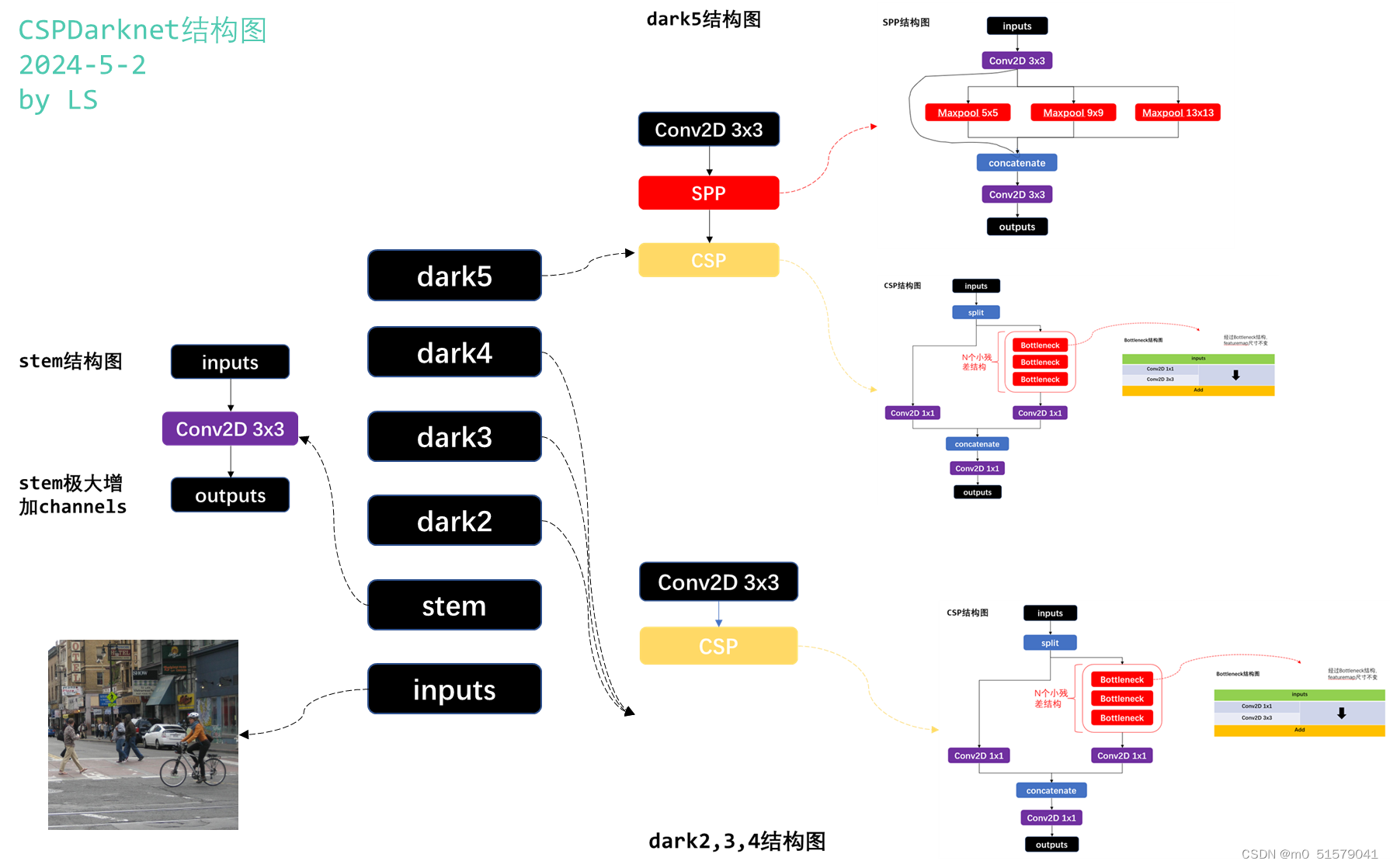

4.4 CSPDarkNet整体结构
结构
代码实现
#--------------------------------------------------#
# CSPDarknet
#--------------------------------------------------#
class CSPDarknet(nn.Module):
def __init__(self, dep_mul, wid_mul, out_features=("dark3", "dark4", "dark5"), depthwise=False, act="lrelu"):
super().__init__()
assert out_features, "please provide output features of Darknet"
self.out_features = out_features
Conv = DWConv if depthwise else BaseConv
#-----------------------------------------------#
# 输入图片是640, 640, 3
# 初始的基本通道是64
#-----------------------------------------------#
base_channels = int(wid_mul * 64) # 64
base_depth = max(round(dep_mul * 3), 1) # 3
#-----------------------------------------------#
# 利用卷积结构进行特征提取
# 640, 640, 3 -> 320, 320, 64
#-----------------------------------------------#
self.stem = Conv(3, base_channels, 6, 2)
#-----------------------------------------------#
# 完成卷积之后，320, 320, 64 -> 160, 160, 128
# 完成CSPlayer之后，160, 160, 128 -> 160, 160, 128
#-----------------------------------------------#
self.dark2 = nn.Sequential(
Conv(base_channels, base_channels * 2, 3, 2, act=act),
CSPLayer(base_channels * 2, base_channels * 2, n=base_depth, depthwise=depthwise, act=act),
)
#-----------------------------------------------#
# 完成卷积之后，160, 160, 128 -> 80, 80, 256
# 完成CSPlayer之后，80, 80, 256 -> 80, 80, 256
#-----------------------------------------------#
self.dark3 = nn.Sequential(
Conv(base_channels * 2, base_channels * 4, 3, 2, act=act),
CSPLayer(base_channels * 4, base_channels * 4, n=base_depth * 3, depthwise=depthwise, act=act),
)
#-----------------------------------------------#
# 完成卷积之后，80, 80, 256 -> 40, 40, 512
# 完成CSPlayer之后，40, 40, 512 -> 40, 40, 512
#-----------------------------------------------#
self.dark4 = nn.Sequential(
Conv(base_channels * 4, base_channels * 8, 3, 2, act=act),
CSPLayer(base_channels * 8, base_channels * 8, n=base_depth * 3, depthwise=depthwise, act=act),
)
#-----------------------------------------------#
# 完成卷积之后，40, 40, 512 -> 20, 20, 1024
# 完成SPP之后，20, 20, 1024 -> 20, 20, 1024
# 完成CSPlayer之后，20, 20, 1024 -> 20, 20, 1024
#-----------------------------------------------#
self.dark5 = nn.Sequential(
Conv(base_channels * 8, base_channels * 16, 3, 2, act=act),
SPPBottleneck(base_channels * 16, base_channels * 16, activation=act),
# SPPF(base_channels * 16, base_channels * 16,activation=act),
CSPLayer(base_channels * 16, base_channels * 16, n=base_depth, shortcut=False, depthwise=depthwise, act=act),
)
def forward(self, x):
outputs = {}
x = self.stem(x)
outputs["stem"] = x
x = self.dark2(x)
outputs["dark2"] = x
#-----------------------------------------------#
# dark3的输出为80, 80, 256，是一个有效特征层
#-----------------------------------------------#
x = self.dark3(x)
outputs["dark3"] = x
#-----------------------------------------------#
# dark4的输出为40, 40, 512，是一个有效特征层
#-----------------------------------------------#
x = self.dark4(x)
outputs["dark4"] = x
#-----------------------------------------------#
# dark5的输出为20, 20, 1024，是一个有效特征层
#-----------------------------------------------#
x = self.dark5(x)
outputs["dark5"] = x
return [v for k, v in outputs.items() if k in self.out_features]
四、完整代码
#!/usr/bin/env python3
# -*- coding:utf-8 -*-
# Copyright (c) Megvii, Inc. and its affiliates.
import torch
from torch import nn
from torchsummary import summary
#--------------------------------------------------#
# activation func.
#--------------------------------------------------#
def get_activation(name="lrelu", inplace=True):
if name == "relu":
module = nn.ReLU(inplace=inplace)
elif name == "lrelu":
module = nn.LeakyReLU(0.1, inplace=inplace)
else:
raise AttributeError("Unsupported act type: {}".format(name))
return module
#--------------------------------------------------#
# BaseConv (CBL)
#--------------------------------------------------#
class BaseConv(nn.Module):
def __init__(self, in_channels, out_channels, ksize, stride, groups=1, bias=False, act="lrelu"):
super().__init__()
pad = (ksize - 1) // 2
self.conv = nn.Conv2d(in_channels, out_channels, kernel_size=ksize, stride=stride, padding=pad, groups=groups, bias=bias)
self.bn = nn.BatchNorm2d(out_channels, eps=0.001, momentum=0.03)
self.act = get_activation(act, inplace=True)
def forward(self, x):
return self.act(self.bn(self.conv(x)))
def fuseforward(self, x):
return self.act(self.conv(x))
#--------------------------------------------------#
# DWConv
#--------------------------------------------------#
class DWConv(nn.Module):
def __init__(self, in_channels, out_channels, ksize, stride=1, act="lrelu"):
super().__init__()
self.dconv = BaseConv(in_channels, in_channels, ksize=ksize, stride=stride, groups=in_channels, act=act,)
self.pconv = BaseConv(in_channels, out_channels, ksize=1, stride=1, groups=1, act=act)
def forward(self, x):
x = self.dconv(x)
return self.pconv(x)
#--------------------------------------------------#
# SPP
#--------------------------------------------------#
class SPPBottleneck(nn.Module):
def __init__(self, in_channels, out_channels, kernel_sizes=(5, 9, 13), activation="lrelu"):
super().__init__()
hidden_channels = in_channels // 2
self.conv1 = BaseConv(in_channels, hidden_channels, 1, stride=1, act=activation)
self.m = nn.ModuleList([nn.MaxPool2d(kernel_size=ks, stride=1, padding=ks // 2) for ks in kernel_sizes])
conv2_channels = hidden_channels * (len(kernel_sizes) + 1)
self.conv2 = BaseConv(conv2_channels, out_channels, 1, stride=1, act=activation)
def forward(self, x):
x = self.conv1(x)
x = torch.cat([x] + [m(x) for m in self.m], dim=1)
x = self.conv2(x)
return x
#--------------------------------------------------#
# 残差结构的构建，小的残差结构
#--------------------------------------------------#
class Bottleneck(nn.Module):
# Standard bottleneck
def __init__(self, in_channels, out_channels, shortcut=True, expansion=0.5, depthwise=False, act="lrelu"):
super().__init__()
hidden_channels = int(out_channels * expansion)
Conv = DWConv if depthwise else BaseConv
#--------------------------------------------------#
# 利用1x1卷积进行通道数的缩减。缩减率一般是50%
#--------------------------------------------------#
self.conv1 = BaseConv(in_channels, hidden_channels, 1, stride=1, act=act)
#--------------------------------------------------#
# 利用3x3卷积进行通道数的拓张。并且完成特征提取
#--------------------------------------------------#
self.conv2 = Conv(hidden_channels, out_channels, 3, stride=1, act=act)
self.use_add = shortcut and in_channels == out_channels
def forward(self, x):
y = self.conv2(self.conv1(x))
if self.use_add:
y = y + x
return y
#--------------------------------------------------#
# CSP
#--------------------------------------------------#
class CSPLayer(nn.Module):
def __init__(self, in_channels, out_channels, n=1, shortcut=True, expansion=0.5, depthwise=False, act="lrelu"):
# ch_in, ch_out, number, shortcut, groups, expansion
super().__init__()
hidden_channels = int(out_channels * expansion)
#--------------------------------------------------#
# 主干部分的初次卷积
#--------------------------------------------------#
self.conv1 = BaseConv(in_channels, hidden_channels, 1, stride=1, act=act)
#--------------------------------------------------#
# 大的残差边部分的初次卷积
#--------------------------------------------------#
self.conv2 = BaseConv(in_channels, hidden_channels, 1, stride=1, act=act)
#-----------------------------------------------#
# 对堆叠的结果进行卷积的处理
#-----------------------------------------------#
self.conv3 = BaseConv(2 * hidden_channels, out_channels, 1, stride=1, act=act)
#--------------------------------------------------#
# 根据循环的次数构建上述Bottleneck残差结构
#--------------------------------------------------#
module_list = [Bottleneck(hidden_channels, hidden_channels, shortcut, 1.0, depthwise, act=act) for _ in range(n)]
self.m = nn.Sequential(*module_list)
def forward(self, x):
#-------------------------------#
# x_1是主干部分
#-------------------------------#
x_1 = self.conv1(x)
#-------------------------------#
# x_2是大的残差边部分
#-------------------------------#
x_2 = self.conv2(x)
#-----------------------------------------------#
# 主干部分利用残差结构堆叠继续进行特征提取
#-----------------------------------------------#
x_1 = self.m(x_1)
#-----------------------------------------------#
# 主干部分和大的残差边部分进行堆叠
#-----------------------------------------------#
x = torch.cat((x_1, x_2), 1)
#-----------------------------------------------#
# 对堆叠的结果进行卷积的处理
#-----------------------------------------------#
return self.conv3(x)
#--------------------------------------------------#
# CSPDarknet
#--------------------------------------------------#
class CSPDarknet(nn.Module):
def __init__(self, dep_mul, wid_mul, out_features=("dark3", "dark4", "dark5"), depthwise=False, act="lrelu"):
super().__init__()
assert out_features, "please provide output features of Darknet"
self.out_features = out_features
Conv = DWConv if depthwise else BaseConv
#-----------------------------------------------#
# 输入图片是640, 640, 3
# 初始的基本通道是64
#-----------------------------------------------#
base_channels = int(wid_mul * 64) # 64
base_depth = max(round(dep_mul * 3), 1) # 3
#-----------------------------------------------#
# 利用卷积结构进行特征提取
# 640, 640, 3 -> 320, 320, 64
#-----------------------------------------------#
self.stem = Conv(3, base_channels, 6, 2)
#-----------------------------------------------#
# 完成卷积之后，320, 320, 64 -> 160, 160, 128
# 完成CSPlayer之后，160, 160, 128 -> 160, 160, 128
#-----------------------------------------------#
self.dark2 = nn.Sequential(
Conv(base_channels, base_channels * 2, 3, 2, act=act),
CSPLayer(base_channels * 2, base_channels * 2, n=base_depth, depthwise=depthwise, act=act),
)
#-----------------------------------------------#
# 完成卷积之后，160, 160, 128 -> 80, 80, 256
# 完成CSPlayer之后，80, 80, 256 -> 80, 80, 256
#-----------------------------------------------#
self.dark3 = nn.Sequential(
Conv(base_channels * 2, base_channels * 4, 3, 2, act=act),
CSPLayer(base_channels * 4, base_channels * 4, n=base_depth * 3, depthwise=depthwise, act=act),
)
#-----------------------------------------------#
# 完成卷积之后，80, 80, 256 -> 40, 40, 512
# 完成CSPlayer之后，40, 40, 512 -> 40, 40, 512
#-----------------------------------------------#
self.dark4 = nn.Sequential(
Conv(base_channels * 4, base_channels * 8, 3, 2, act=act),
CSPLayer(base_channels * 8, base_channels * 8, n=base_depth * 3, depthwise=depthwise, act=act),
)
#-----------------------------------------------#
# 完成卷积之后，40, 40, 512 -> 20, 20, 1024
# 完成SPP之后，20, 20, 1024 -> 20, 20, 1024
# 完成CSPlayer之后，20, 20, 1024 -> 20, 20, 1024
#-----------------------------------------------#
self.dark5 = nn.Sequential(
Conv(base_channels * 8, base_channels * 16, 3, 2, act=act),
SPPBottleneck(base_channels * 16, base_channels * 16, activation=act),
# SPPF(base_channels * 16, base_channels * 16,activation=act),
CSPLayer(base_channels * 16, base_channels * 16, n=base_depth, shortcut=False, depthwise=depthwise, act=act),
)
def forward(self, x):
outputs = {}
x = self.stem(x)
outputs["stem"] = x
x = self.dark2(x)
outputs["dark2"] = x
#-----------------------------------------------#
# dark3的输出为80, 80, 256，是一个有效特征层
#-----------------------------------------------#
x = self.dark3(x)
outputs["dark3"] = x
#-----------------------------------------------#
# dark4的输出为40, 40, 512，是一个有效特征层
#-----------------------------------------------#
x = self.dark4(x)
outputs["dark4"] = x
#-----------------------------------------------#
# dark5的输出为20, 20, 1024，是一个有效特征层
#-----------------------------------------------#
x = self.dark5(x)
outputs["dark5"] = x
return [v for k, v in outputs.items() if k in self.out_features]
if __name__ == '__main__':
dep_mul =1
wid_mul = 1
net = CSPDarknet(dep_mul,wid_mul,out_features=("dark3", "dark4", "dark5"), depthwise=False, act="lrelu")
summary(net, input_size=(3, 320, 320), batch_size=2, device="cpu")
运行查看CSPDarknet完整结构信息
----------------------------------------------------------------
Layer (type) Output Shape Param #
================================================================
Conv2d-1 [2, 32, 160, 160] 3,456
BatchNorm2d-2 [2, 32, 160, 160] 64
LeakyReLU-3 [2, 32, 160, 160] 0
BaseConv-4 [2, 32, 160, 160] 0
Conv2d-5 [2, 64, 80, 80] 18,432
BatchNorm2d-6 [2, 64, 80, 80] 128
LeakyReLU-7 [2, 64, 80, 80] 0
BaseConv-8 [2, 64, 80, 80] 0
Conv2d-9 [2, 32, 80, 80] 2,048
BatchNorm2d-10 [2, 32, 80, 80] 64
LeakyReLU-11 [2, 32, 80, 80] 0
BaseConv-12 [2, 32, 80, 80] 0
Conv2d-13 [2, 32, 80, 80] 2,048
BatchNorm2d-14 [2, 32, 80, 80] 64
LeakyReLU-15 [2, 32, 80, 80] 0
BaseConv-16 [2, 32, 80, 80] 0
Conv2d-17 [2, 32, 80, 80] 1,024
BatchNorm2d-18 [2, 32, 80, 80] 64
LeakyReLU-19 [2, 32, 80, 80] 0
BaseConv-20 [2, 32, 80, 80] 0
Conv2d-21 [2, 32, 80, 80] 9,216
BatchNorm2d-22 [2, 32, 80, 80] 64
LeakyReLU-23 [2, 32, 80, 80] 0
BaseConv-24 [2, 32, 80, 80] 0
Bottleneck-25 [2, 32, 80, 80] 0
Conv2d-26 [2, 64, 80, 80] 4,096
BatchNorm2d-27 [2, 64, 80, 80] 128
LeakyReLU-28 [2, 64, 80, 80] 0
BaseConv-29 [2, 64, 80, 80] 0
CSPLayer-30 [2, 64, 80, 80] 0
Conv2d-31 [2, 128, 40, 40] 73,728
BatchNorm2d-32 [2, 128, 40, 40] 256
LeakyReLU-33 [2, 128, 40, 40] 0
BaseConv-34 [2, 128, 40, 40] 0
Conv2d-35 [2, 64, 40, 40] 8,192
BatchNorm2d-36 [2, 64, 40, 40] 128
LeakyReLU-37 [2, 64, 40, 40] 0
BaseConv-38 [2, 64, 40, 40] 0
Conv2d-39 [2, 64, 40, 40] 8,192
BatchNorm2d-40 [2, 64, 40, 40] 128
LeakyReLU-41 [2, 64, 40, 40] 0
BaseConv-42 [2, 64, 40, 40] 0
Conv2d-43 [2, 64, 40, 40] 4,096
BatchNorm2d-44 [2, 64, 40, 40] 128
LeakyReLU-45 [2, 64, 40, 40] 0
BaseConv-46 [2, 64, 40, 40] 0
Conv2d-47 [2, 64, 40, 40] 36,864
BatchNorm2d-48 [2, 64, 40, 40] 128
LeakyReLU-49 [2, 64, 40, 40] 0
BaseConv-50 [2, 64, 40, 40] 0
Bottleneck-51 [2, 64, 40, 40] 0
Conv2d-52 [2, 64, 40, 40] 4,096
BatchNorm2d-53 [2, 64, 40, 40] 128
LeakyReLU-54 [2, 64, 40, 40] 0
BaseConv-55 [2, 64, 40, 40] 0
Conv2d-56 [2, 64, 40, 40] 36,864
BatchNorm2d-57 [2, 64, 40, 40] 128
LeakyReLU-58 [2, 64, 40, 40] 0
BaseConv-59 [2, 64, 40, 40] 0
Bottleneck-60 [2, 64, 40, 40] 0
Conv2d-61 [2, 64, 40, 40] 4,096
BatchNorm2d-62 [2, 64, 40, 40] 128
LeakyReLU-63 [2, 64, 40, 40] 0
BaseConv-64 [2, 64, 40, 40] 0
Conv2d-65 [2, 64, 40, 40] 36,864
BatchNorm2d-66 [2, 64, 40, 40] 128
LeakyReLU-67 [2, 64, 40, 40] 0
BaseConv-68 [2, 64, 40, 40] 0
Bottleneck-69 [2, 64, 40, 40] 0
Conv2d-70 [2, 128, 40, 40] 16,384
BatchNorm2d-71 [2, 128, 40, 40] 256
LeakyReLU-72 [2, 128, 40, 40] 0
BaseConv-73 [2, 128, 40, 40] 0
CSPLayer-74 [2, 128, 40, 40] 0
Conv2d-75 [2, 256, 20, 20] 294,912
BatchNorm2d-76 [2, 256, 20, 20] 512
LeakyReLU-77 [2, 256, 20, 20] 0
BaseConv-78 [2, 256, 20, 20] 0
Conv2d-79 [2, 128, 20, 20] 32,768
BatchNorm2d-80 [2, 128, 20, 20] 256
LeakyReLU-81 [2, 128, 20, 20] 0
BaseConv-82 [2, 128, 20, 20] 0
Conv2d-83 [2, 128, 20, 20] 32,768
BatchNorm2d-84 [2, 128, 20, 20] 256
LeakyReLU-85 [2, 128, 20, 20] 0
BaseConv-86 [2, 128, 20, 20] 0
Conv2d-87 [2, 128, 20, 20] 16,384
BatchNorm2d-88 [2, 128, 20, 20] 256
LeakyReLU-89 [2, 128, 20, 20] 0
BaseConv-90 [2, 128, 20, 20] 0
Conv2d-91 [2, 128, 20, 20] 147,456
BatchNorm2d-92 [2, 128, 20, 20] 256
LeakyReLU-93 [2, 128, 20, 20] 0
BaseConv-94 [2, 128, 20, 20] 0
Bottleneck-95 [2, 128, 20, 20] 0
Conv2d-96 [2, 128, 20, 20] 16,384
BatchNorm2d-97 [2, 128, 20, 20] 256
LeakyReLU-98 [2, 128, 20, 20] 0
BaseConv-99 [2, 128, 20, 20] 0
Conv2d-100 [2, 128, 20, 20] 147,456
BatchNorm2d-101 [2, 128, 20, 20] 256
LeakyReLU-102 [2, 128, 20, 20] 0
BaseConv-103 [2, 128, 20, 20] 0
Bottleneck-104 [2, 128, 20, 20] 0
Conv2d-105 [2, 128, 20, 20] 16,384
BatchNorm2d-106 [2, 128, 20, 20] 256
LeakyReLU-107 [2, 128, 20, 20] 0
BaseConv-108 [2, 128, 20, 20] 0
Conv2d-109 [2, 128, 20, 20] 147,456
BatchNorm2d-110 [2, 128, 20, 20] 256
LeakyReLU-111 [2, 128, 20, 20] 0
BaseConv-112 [2, 128, 20, 20] 0
Bottleneck-113 [2, 128, 20, 20] 0
Conv2d-114 [2, 256, 20, 20] 65,536
BatchNorm2d-115 [2, 256, 20, 20] 512
LeakyReLU-116 [2, 256, 20, 20] 0
BaseConv-117 [2, 256, 20, 20] 0
CSPLayer-118 [2, 256, 20, 20] 0
Conv2d-119 [2, 512, 10, 10] 1,179,648
BatchNorm2d-120 [2, 512, 10, 10] 1,024
LeakyReLU-121 [2, 512, 10, 10] 0
BaseConv-122 [2, 512, 10, 10] 0
Conv2d-123 [2, 256, 10, 10] 131,072
BatchNorm2d-124 [2, 256, 10, 10] 512
LeakyReLU-125 [2, 256, 10, 10] 0
BaseConv-126 [2, 256, 10, 10] 0
MaxPool2d-127 [2, 256, 10, 10] 0
MaxPool2d-128 [2, 256, 10, 10] 0
MaxPool2d-129 [2, 256, 10, 10] 0
Conv2d-130 [2, 512, 10, 10] 524,288
BatchNorm2d-131 [2, 512, 10, 10] 1,024
LeakyReLU-132 [2, 512, 10, 10] 0
BaseConv-133 [2, 512, 10, 10] 0
SPPBottleneck-134 [2, 512, 10, 10] 0
Conv2d-135 [2, 256, 10, 10] 131,072
BatchNorm2d-136 [2, 256, 10, 10] 512
LeakyReLU-137 [2, 256, 10, 10] 0
BaseConv-138 [2, 256, 10, 10] 0
Conv2d-139 [2, 256, 10, 10] 131,072
BatchNorm2d-140 [2, 256, 10, 10] 512
LeakyReLU-141 [2, 256, 10, 10] 0
BaseConv-142 [2, 256, 10, 10] 0
Conv2d-143 [2, 256, 10, 10] 65,536
BatchNorm2d-144 [2, 256, 10, 10] 512
LeakyReLU-145 [2, 256, 10, 10] 0
BaseConv-146 [2, 256, 10, 10] 0
Conv2d-147 [2, 256, 10, 10] 589,824
BatchNorm2d-148 [2, 256, 10, 10] 512
LeakyReLU-149 [2, 256, 10, 10] 0
BaseConv-150 [2, 256, 10, 10] 0
Bottleneck-151 [2, 256, 10, 10] 0
Conv2d-152 [2, 512, 10, 10] 262,144
BatchNorm2d-153 [2, 512, 10, 10] 1,024
LeakyReLU-154 [2, 512, 10, 10] 0
BaseConv-155 [2, 512, 10, 10] 0
CSPLayer-156 [2, 512, 10, 10] 0
================================================================
Total params: 4,212,672
Trainable params: 4,212,672
Non-trainable params: 0
----------------------------------------------------------------
Input size (MB): 2.34
Forward/backward pass size (MB): 303.91
Params size (MB): 16.07
Estimated Total Size (MB): 322.32
----------------------------------------------------------------
2353
被折叠的 条评论
为什么被折叠?
到【灌水乐园】发言
